Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

24 part groups · 7 illustrations

Illustrations

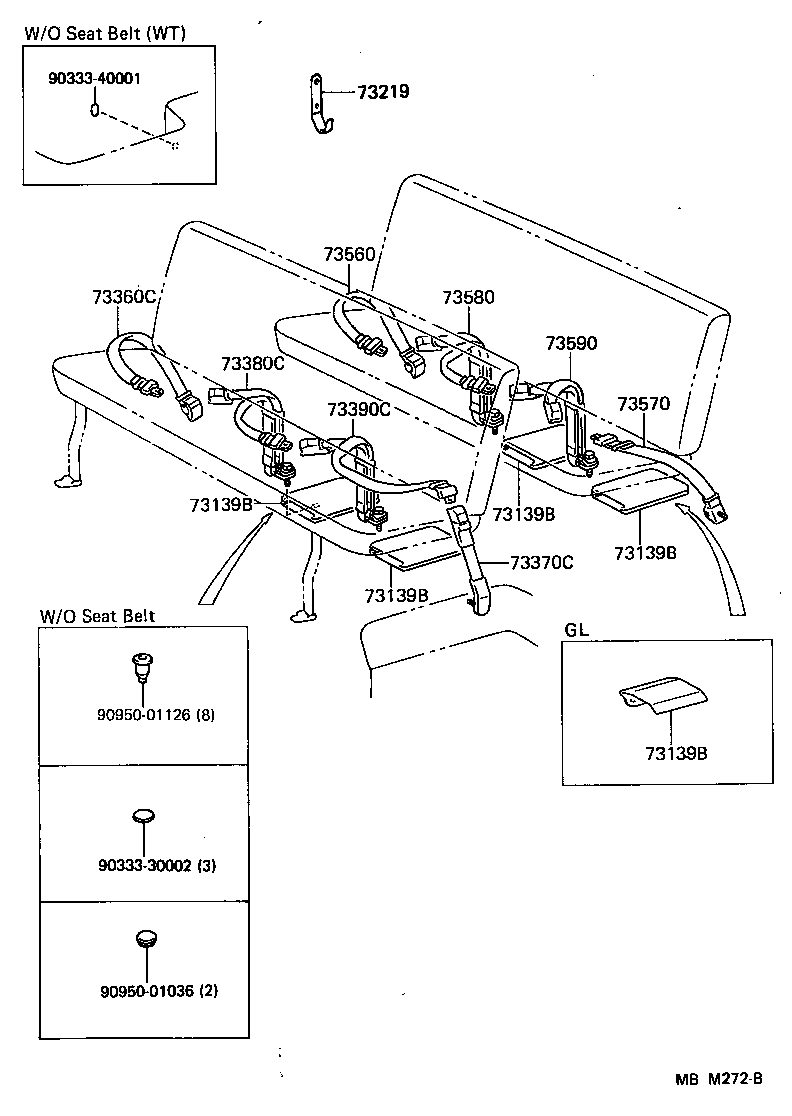

Figure MBE753G MBE753G 1987-08 → — Figure MBM271 MBM271 1987-08 → — Figure MBM272B MBM272B 1987-08 → — Figure MBM273 MBM273 1987-08 → — Figure MBM274 MBM274 1987-08 → — Figure MBM275 MBM275 1987-08 → — Figure MBM276 MBM276 1987-08 → —

Part groups

PNCDescription
73131A Bracket, Seat Belt
73139B Cover, Seat Belt Anchor
73150 Belt Assy, Front Seat Lap Type, Center
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330E Belt Assy, Rear NO.1 Seat Lap Type, RH
73340E Belt Assy, Rear NO.1 Seat Lap Type, LH
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73550 Belt Assy, Rear NO.2 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
