Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

18 part groups · 2 illustrations

Illustrations

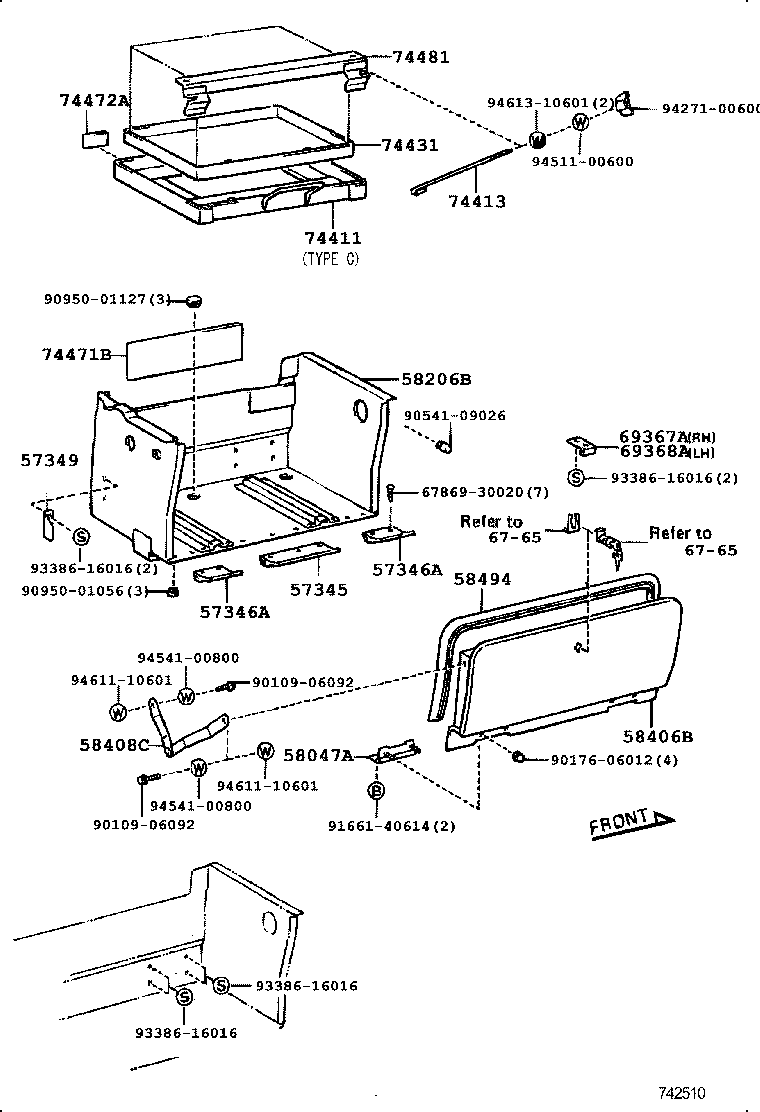

Figure 742509 742509 1987-08 → — Figure 742510 742510 1987-08 → —

Part groups

PNCDescription
57345 Packing, Battery Box, A
57346A Packing, Battery Box, B
57349 Bracket, Battery Box Clamp, B
58047A Hinge Sub-assy, Battery Box Lid
58206B Box Sub-assy, Battery
58406B Lid Sub-assy, Battery Box
58408C Stay Sub-assy, Battery Service Opening Lid, Front
58494 Packing, Battery Box Lid
69367A Striker, Battery Service Opening Lid Lock, Front
69368A Striker, Battery Service Opening Lid Lock, Rear
74402C Bracket Sub-assy, Battery Carrier, Rear
74411 Carrier, Battery
74413 Bolt, Battery Clamp
74431 Tray, Battery
74446 Band, Battery
74471B Pad, Battery Box
74472A Pad, Battery Carrier
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
