Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

15 part groups · 7 illustrations

Illustrations

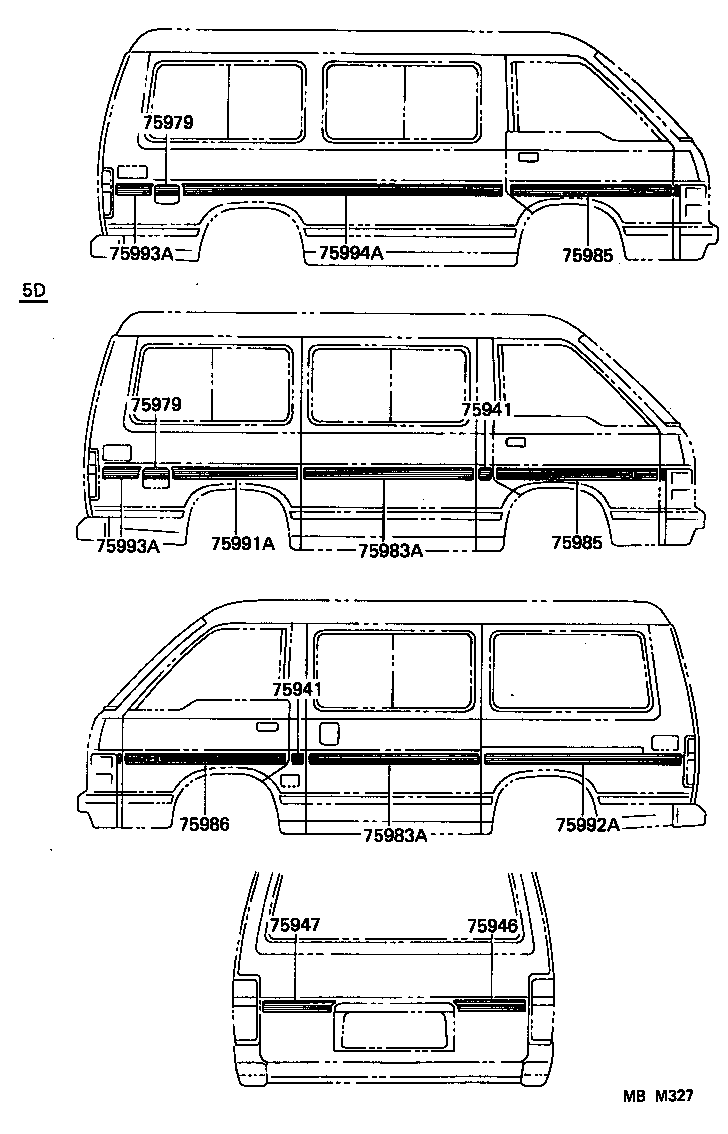

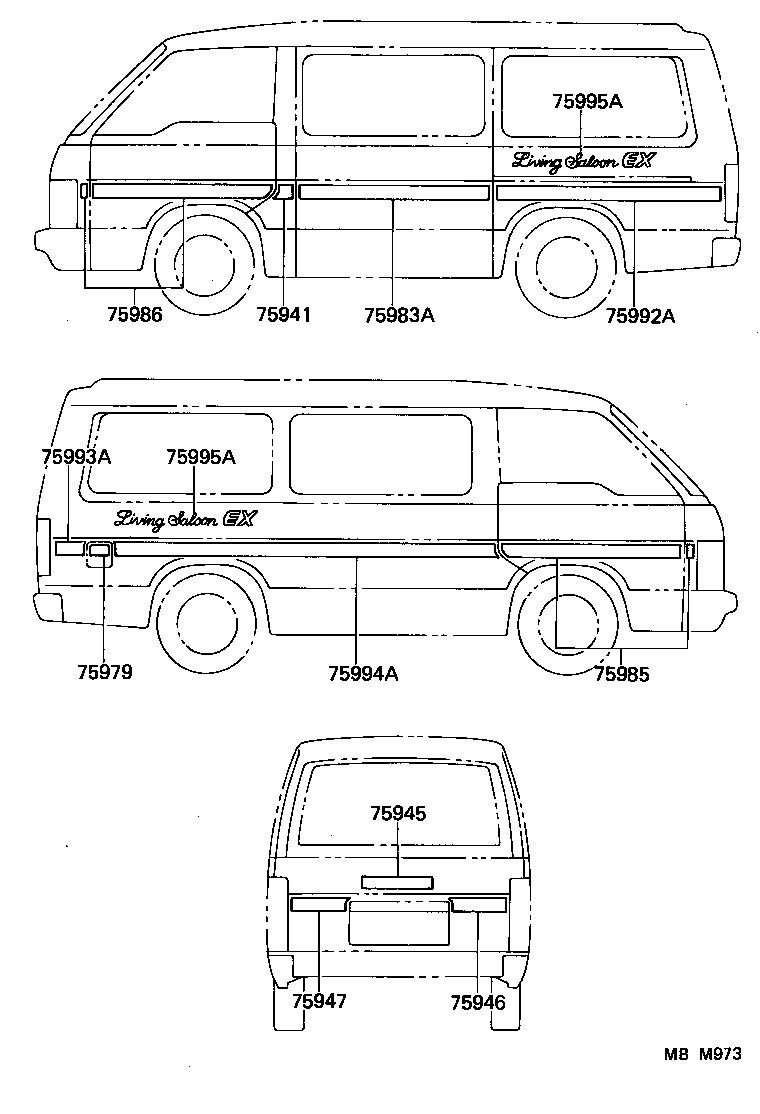

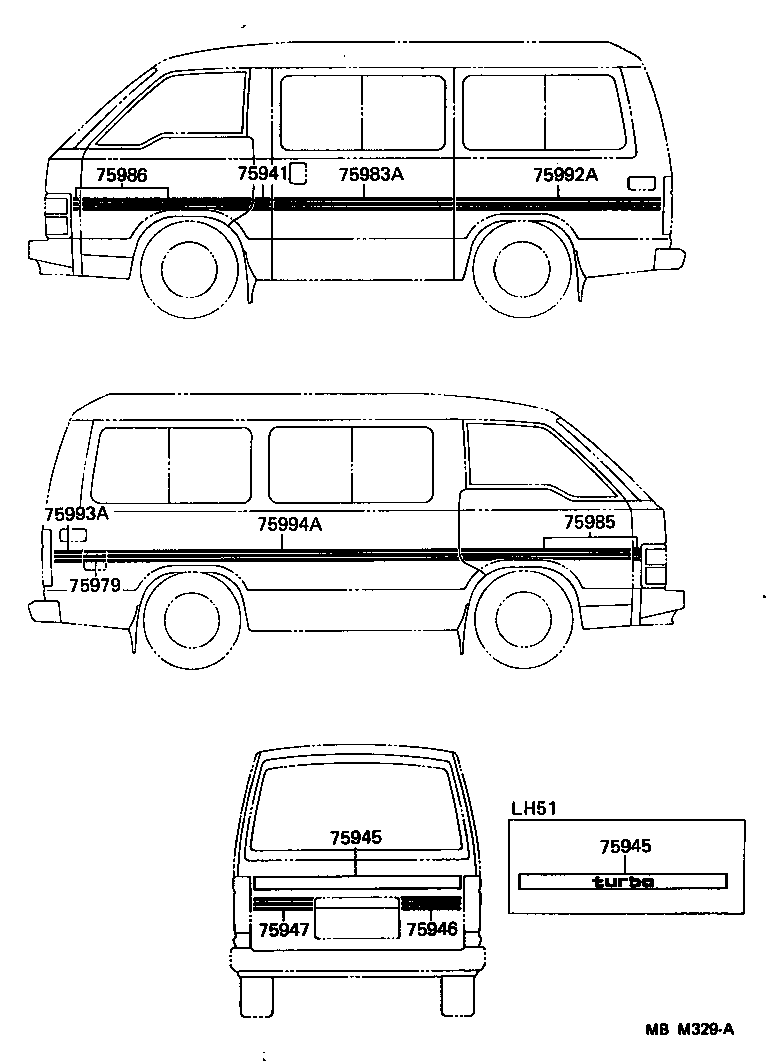

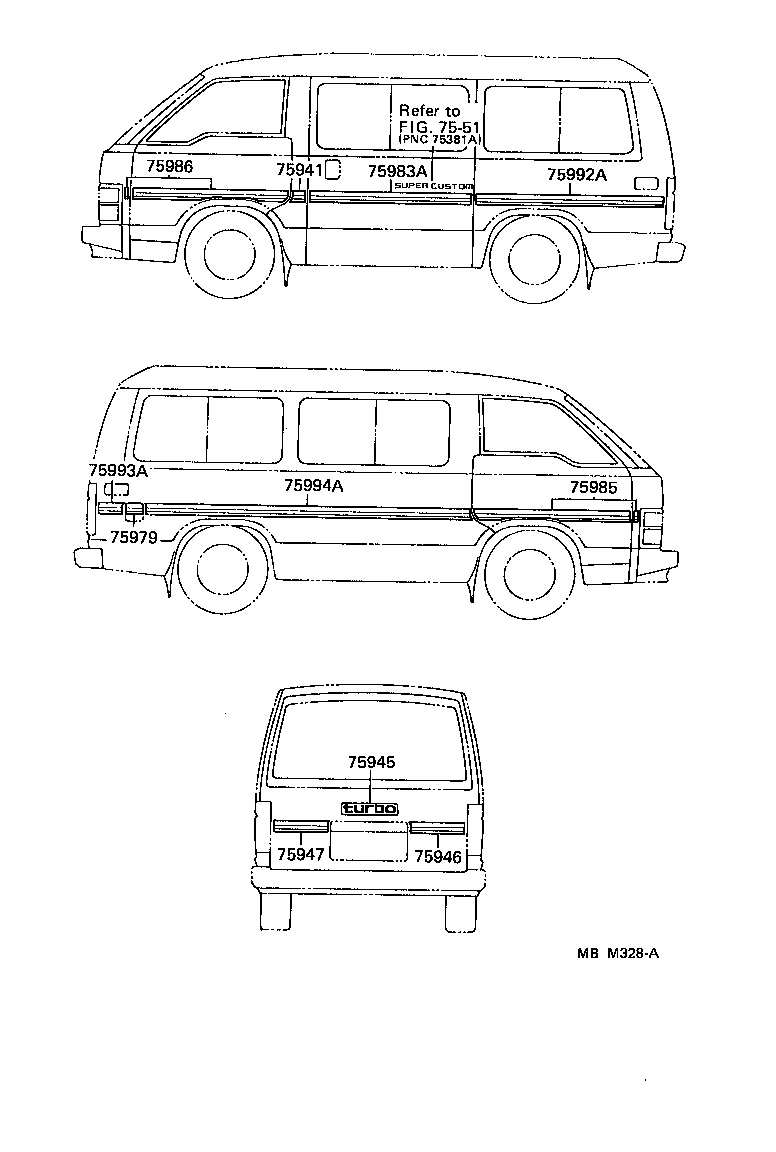

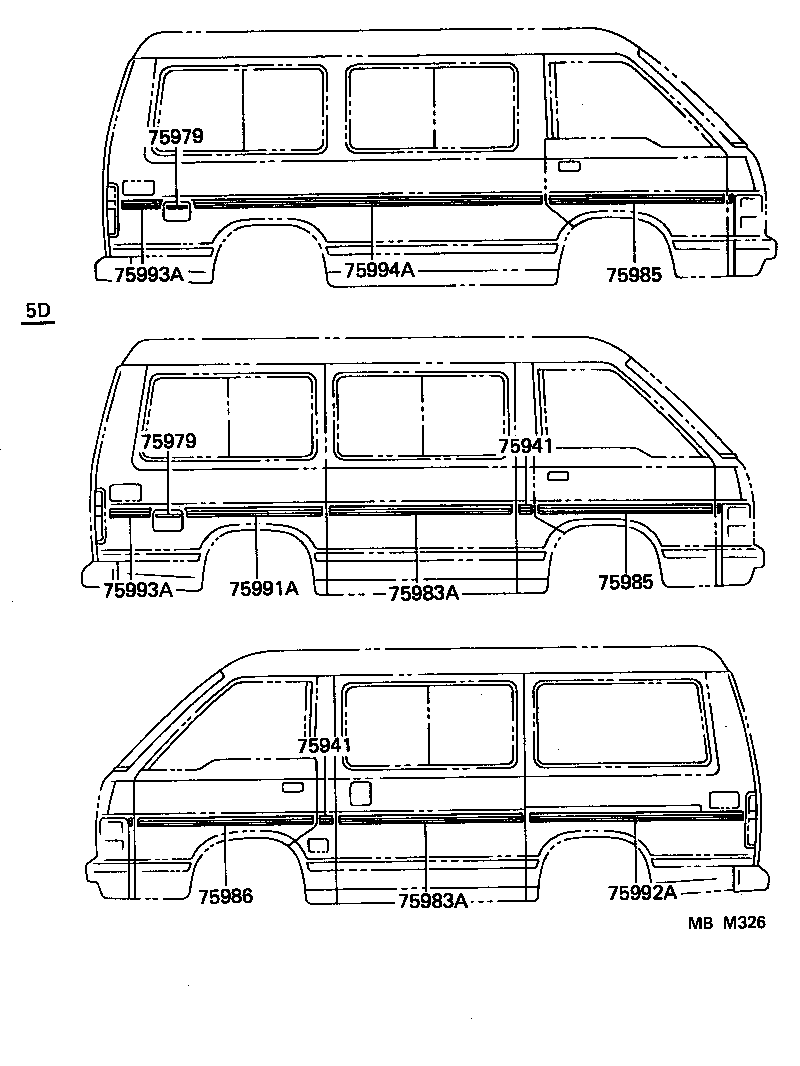

Figure MBM325 MBM325 1987-08 → — Figure MBM326 MBM326 1987-08 → — Figure MBM327 MBM327 1987-08 → — Figure MBM328A MBM328A 1987-08 → — Figure MBM973 MBM973 1988-01 → 1988-05 Figure MBP387A MBP387A 1988-05 → — Figure MBM329A MBM329A 1987-08 → —

Part groups

PNCDescription
75941 Stripe, Center Pillar, RH
75945 Stripe, Back Door
75946 Stripe, Back Door, RH
75947 Stripe, Back Door, LH
75979 Stripe, Fuel Filler Opening Lid
75983A Stripe, Slide Door
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75993A Stripe, Quarter, Rear RH
75994A Stripe, Quarter Extension
75995A Stripe, Rear Body, Center
75998E Stripe, Quarter Rear Lower, RH
75999E Stripe, Quarter Rear Lower, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
