Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

17 part groups · 2 illustrations

Illustrations

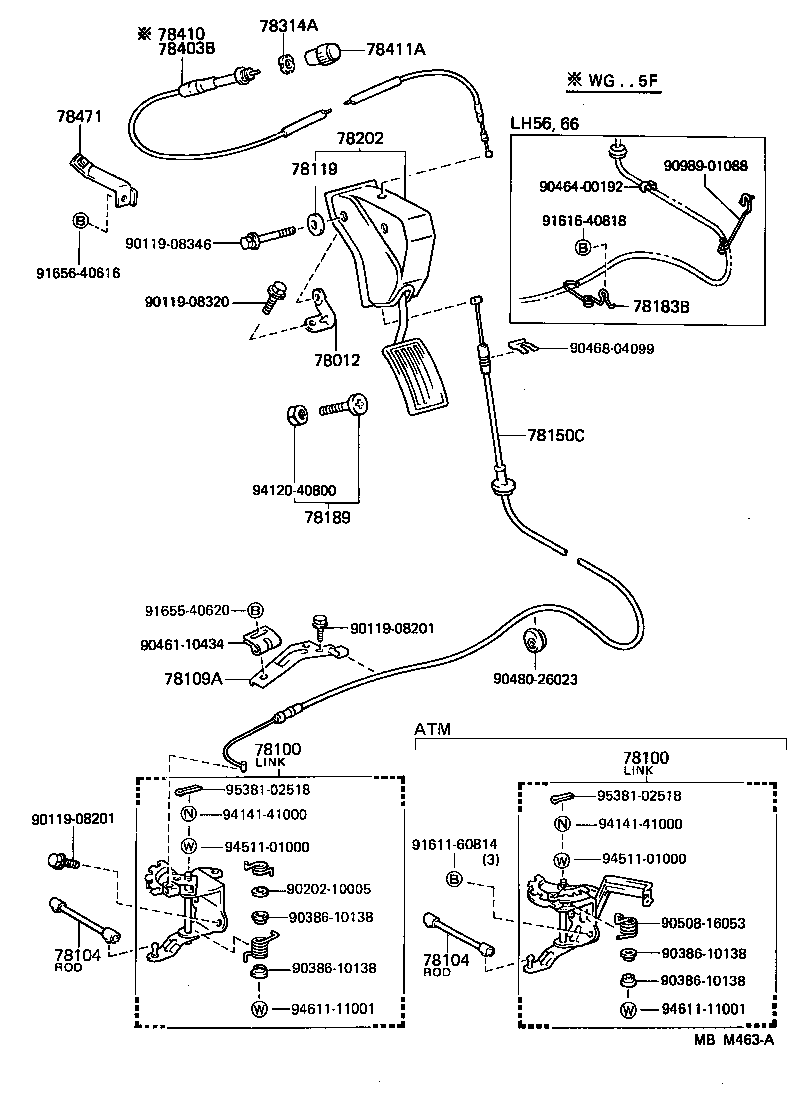

Figure MBM462B MBM462B 1987-08 → — Figure MBM463A MBM463A 1987-08 → —

Part groups

PNCDescription
78012 Bracket Sub-assy, Accelerator Pedal Rod
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78109A Bracket Sub-assy, Accelerator Wire Clamp
78119 Stopper, Accelerator Pedal Rod
78129B Seal, Accelerator Pedal Arm
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78189 Bolt, Accelerator Pedal Stopper
78202 Link Sub-assy, Accelerator
78314A Nut
78403B Rod Sub-assy, Throttle
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
78471 Bracket, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
