Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

41 part groups · 5 illustrations

Illustrations

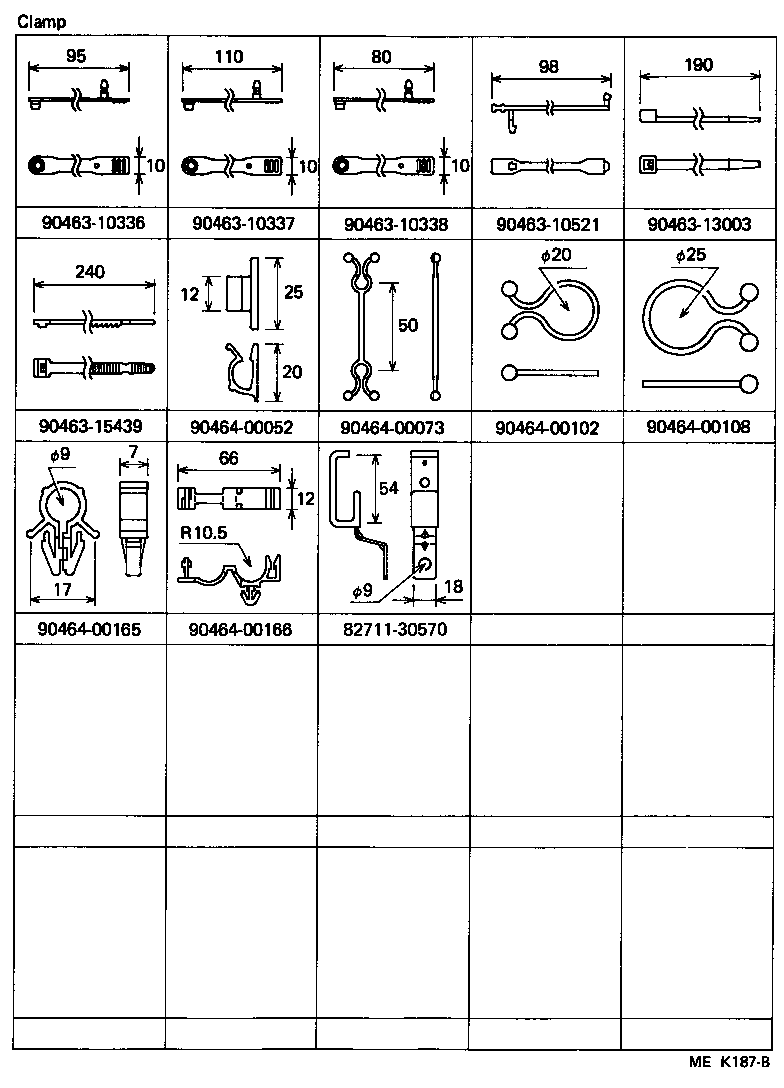

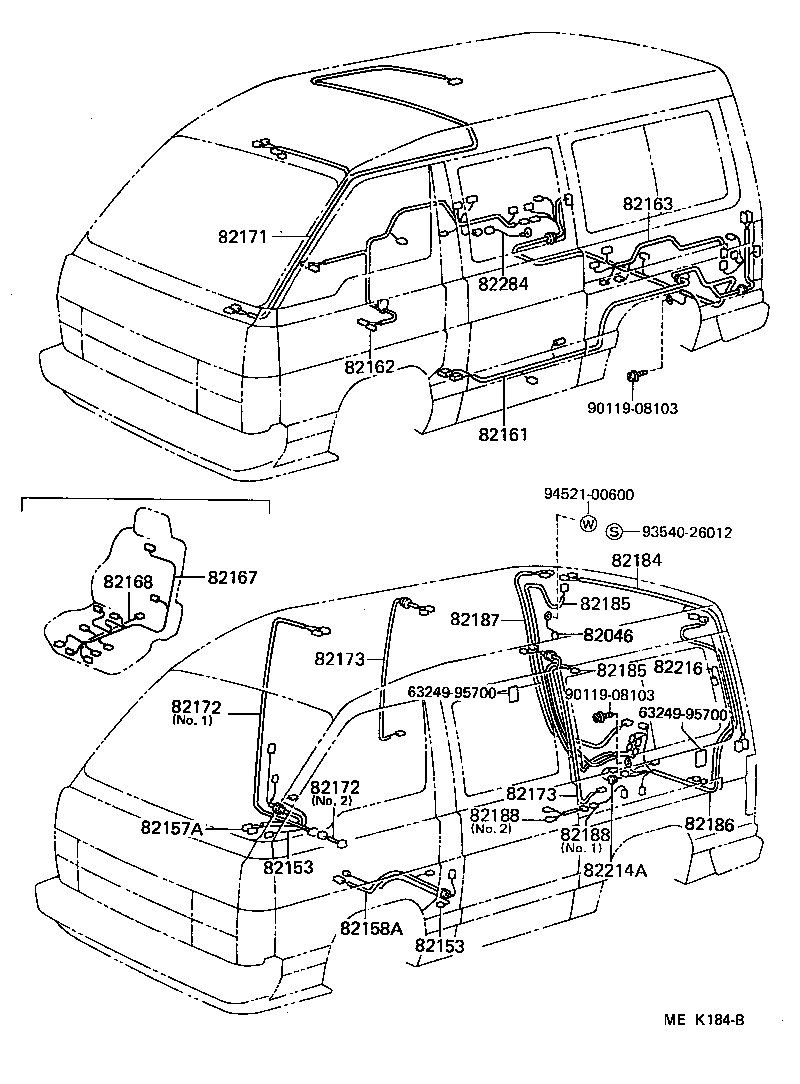

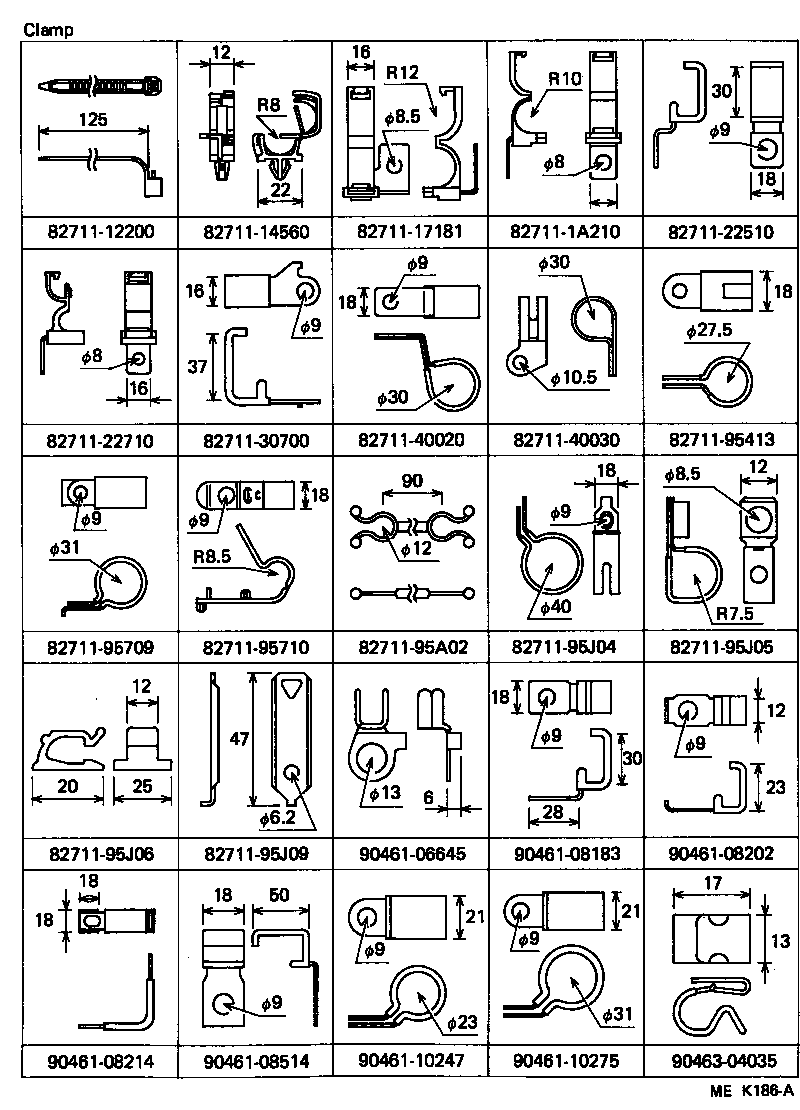

Figure MEK183D MEK183D 1987-08 → — Figure MEK184B MEK184B 1987-08 → — Figure MEK185A MEK185A 1987-08 → — Figure MEK186A MEK186A 1987-08 → — Figure MEK187B MEK187B 1987-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046 Wire Sub-assy, Rear Window Defogger Earth
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82157A Wire, Step Panel, RH
82158A Wire, Step Panel, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188 Wire, Fuel Tank
82210C Fusible Link
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82221 Wire, Oil Pressure Switch
82241C Wire, Relay
82284 Wire, Earth
82345 Diode
82615A Bracket, Fuse
82670 Block Assy, Junction, NO.1
82701 Bracket Sub-assy, Wire Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
