Toyota Hiace Van,Wagon
1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan
Discontinued model
Data version 1989-07
Meter
24 part groups · 5 illustrations
Part groups

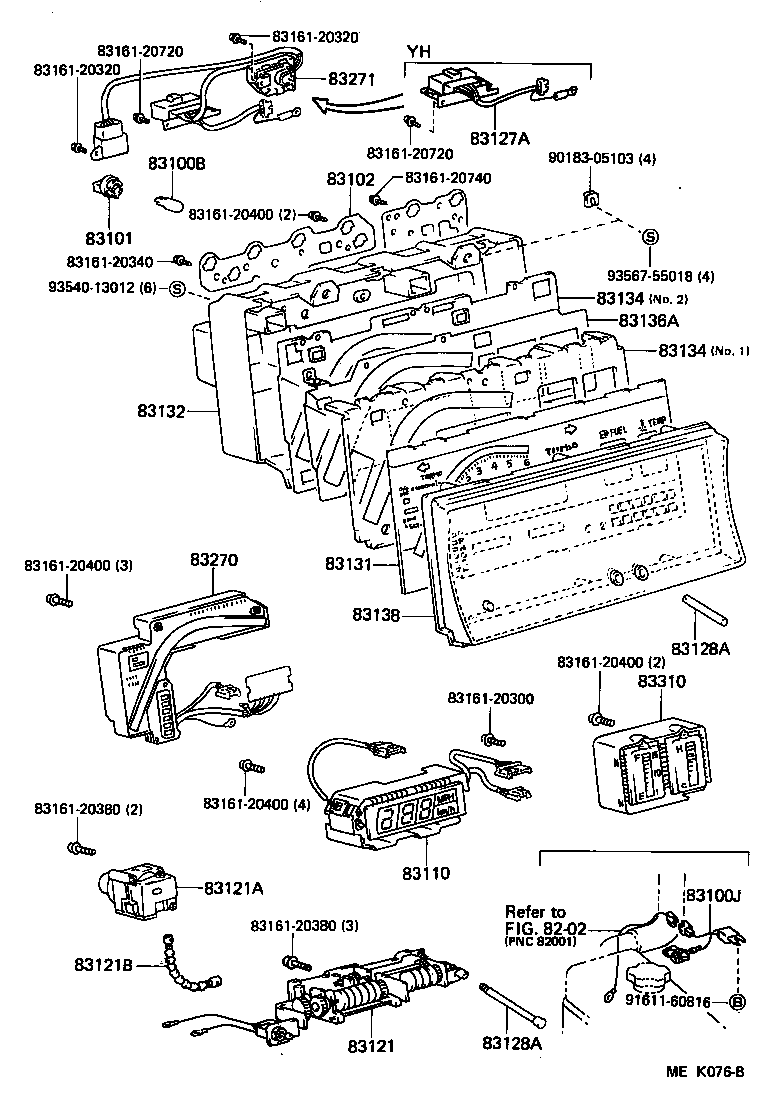

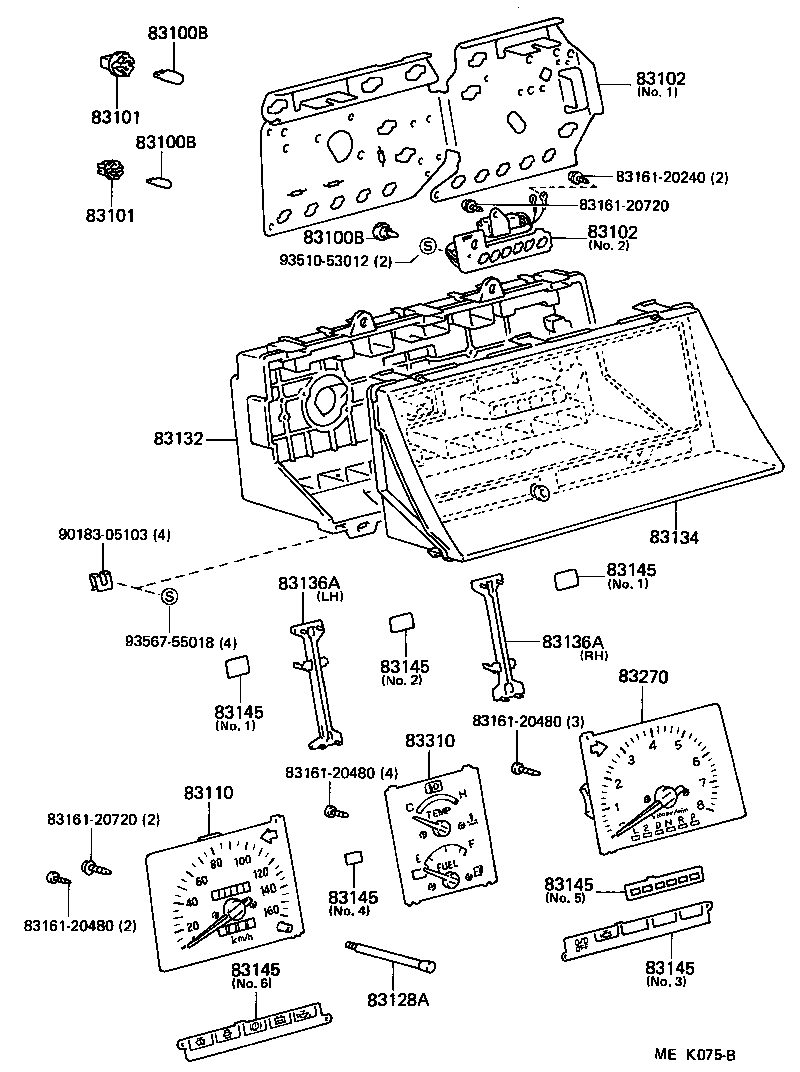

| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100J | Condenser |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83121 | Counter, Total |
| 83121A | Sensor, Speed |
| 83121B | Cable, Counter And Sensor |
| 83127A | Connector, Male |
| 83128A | Knob, Meter |
| 83131 | Dial, Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83136A | Cover, Combination Meter |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83180 | Detector Assy, Revolution |
| 83270 | Tachometer Assy, Engine |
| 83271 | Relay, Meter Control |
| 83310 | Gage Assy, Fuel Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |

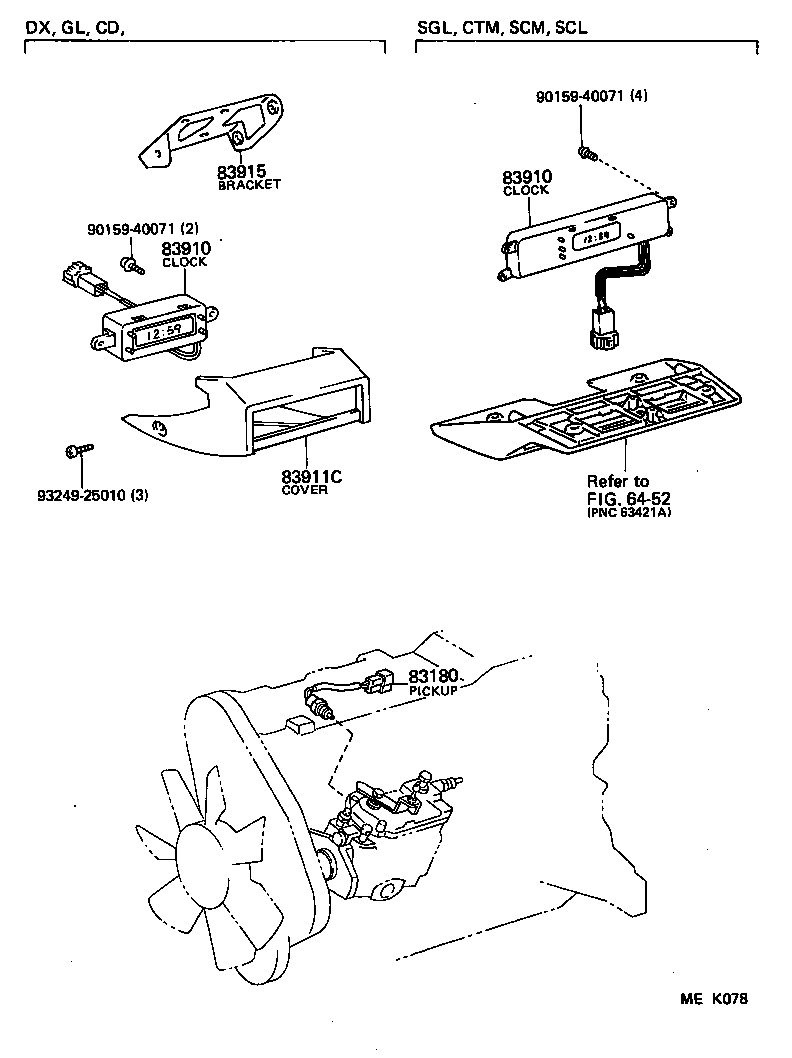

| 83910 | Clock Assy |
| 83911C | Ornament, Clock |
| 83915 | Bracket, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
