Toyota Hiace Van,Wagon
1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan
Discontinued model
Data version 1989-07
Radio Receiver & Amplifier & Condenser
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86120 | Receiver Assy, Radio |
| 86171 | Base, Radio Remote Control |
| 86202B | Wire, Tape Player |

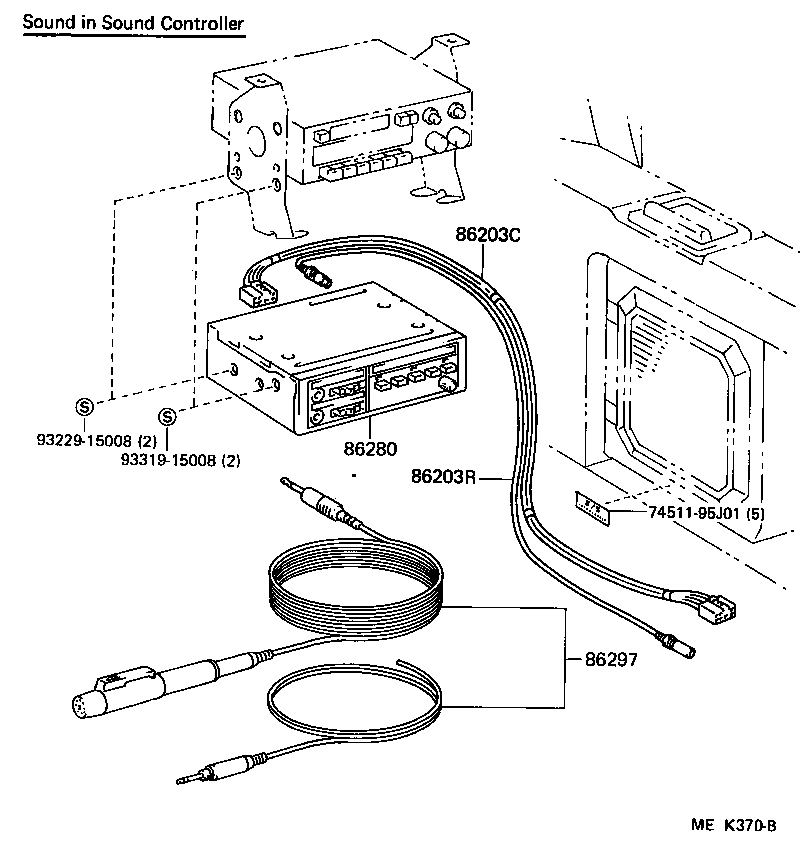

| 86203C | Wire, Tape Player |

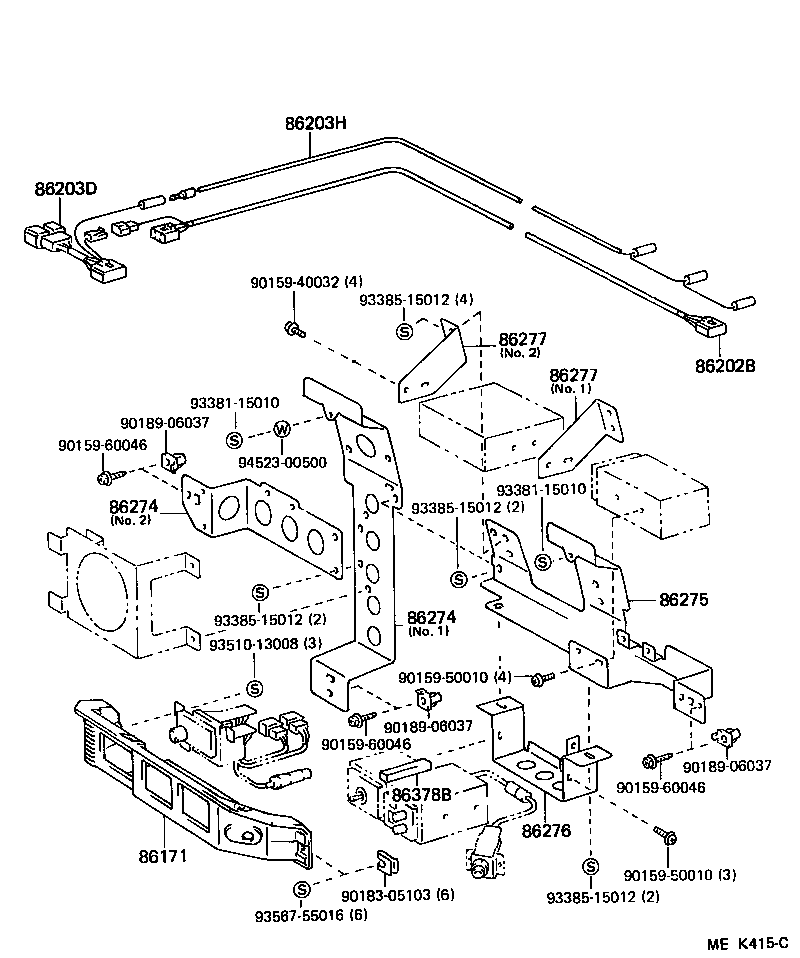

| 86203D | Wire, Stereo Component, NO.1 |
| 86203H | Wire, Stereo Component, NO.2 |
| 86203R | Wire Sub-assy, RR |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86260 | Tape Player Assy |
| 86274 | Bracket, Disc Player |
| 86275 | Bracket |
| 86276 | Cover, Disc Player |
| 86277 | Bracket |

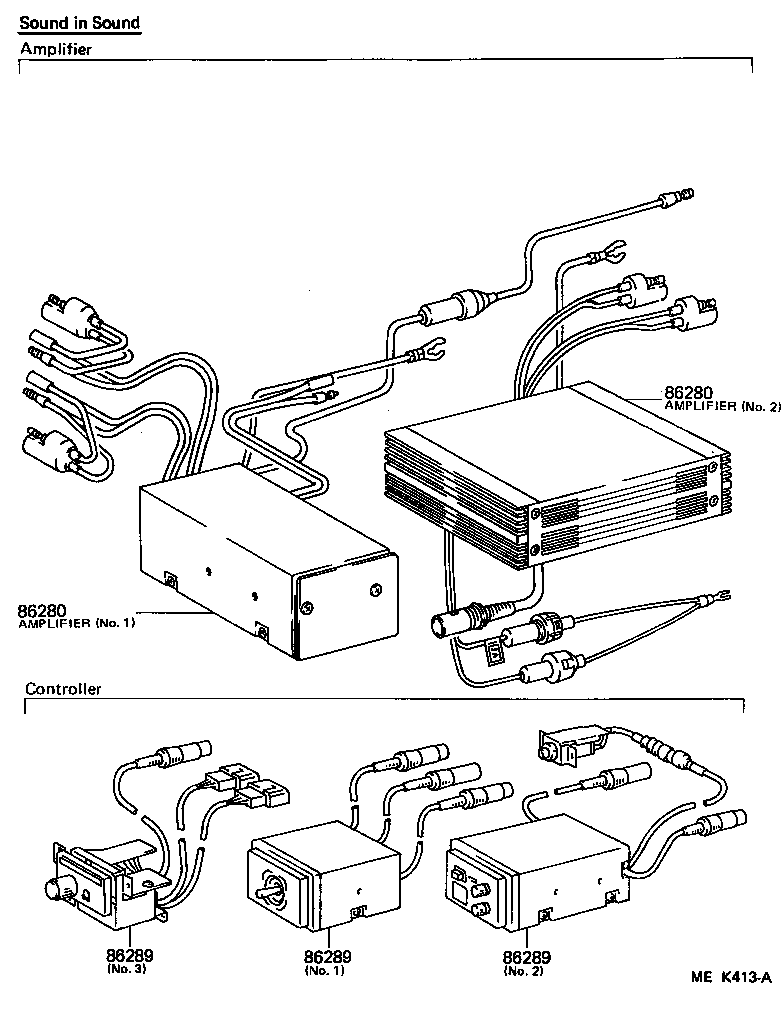

| 86280 | Amplifier Assy, Stereo Component |
| 86289 | Controller, Stereo Component Speaker |
| 86297 | Microphone, Wireless |
| 86378B | Spacer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
