Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

19 part groups · 3 illustrations

Illustrations

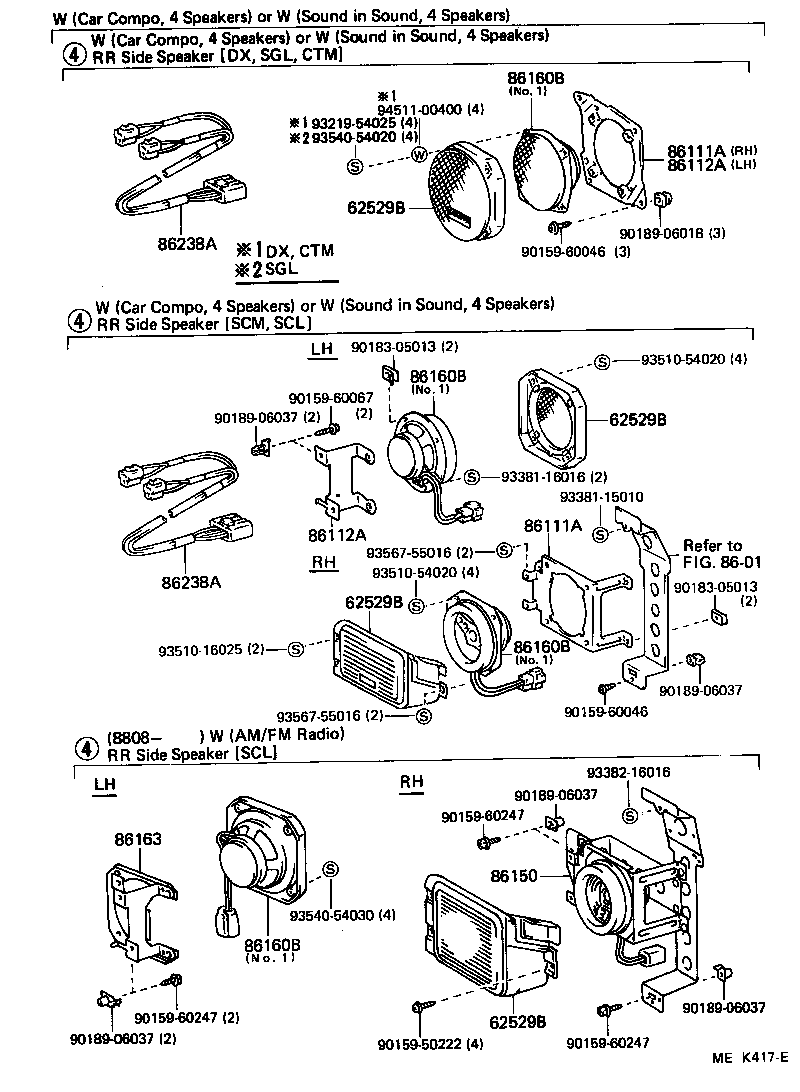

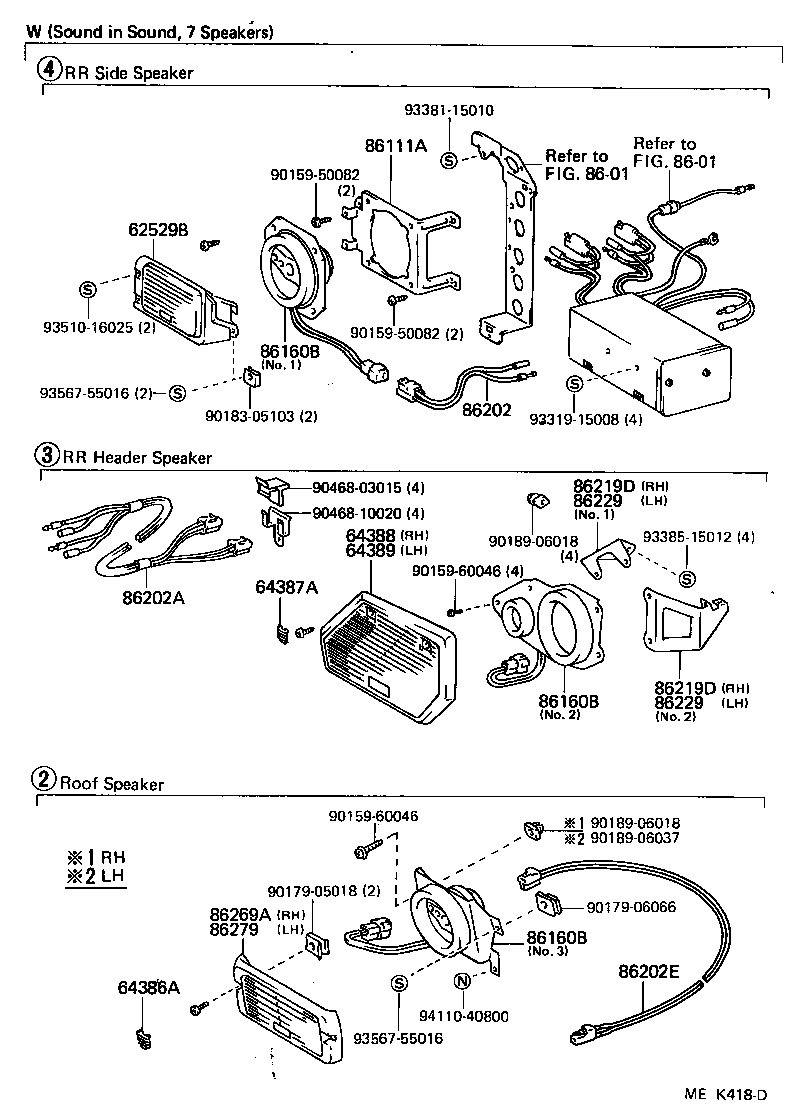

Figure MEK416A MEK416A 1987-08 → — Figure MEK417E MEK417E 1987-08 → — Figure MEK418D MEK418D 1987-08 → —

Part groups

PNCDescription
62529B Grille, Speaker
64386A Cap, Rear Speaker Grille, NO.1
64387A Cap, Rear Speaker Grille, NO.2
64388 Base, Rear Speaker Grille, RH
64389 Base, Rear Speaker Grille, LH
86111A Bracket, Stereo Speaker, RH
86112A Bracket, Stereo Speaker, LH
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86163 Bracket, Speaker, NO.2
86202 Wire, Speaker, NO.1
86202A Wire, Speaker, NO.2
86202E Wire, Speaker, NO.5
86219D Bracket, Speaker, Rear NO.1
86229 Bracket, Stereo Speaker, LH
86238A Wire, Speaker, NO.8
86269A Grille, Speaker
86279 Grille, Speaker, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
