Toyota Hiace Van,Wagon
1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan
Discontinued model
Data version 1989-07

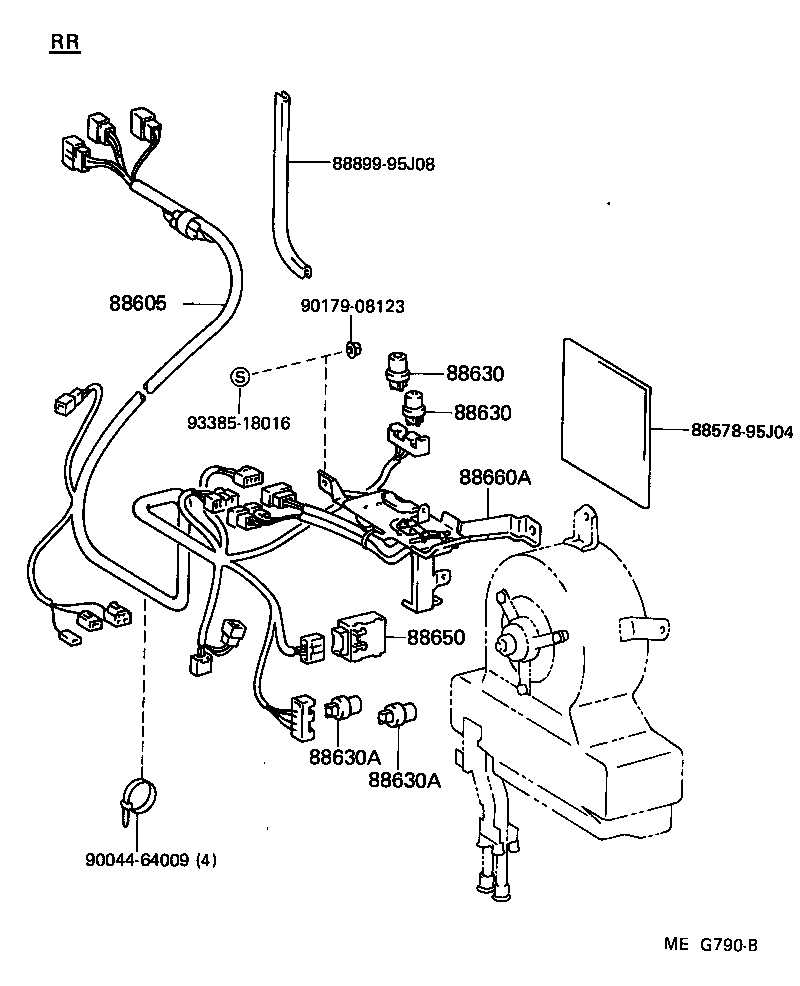

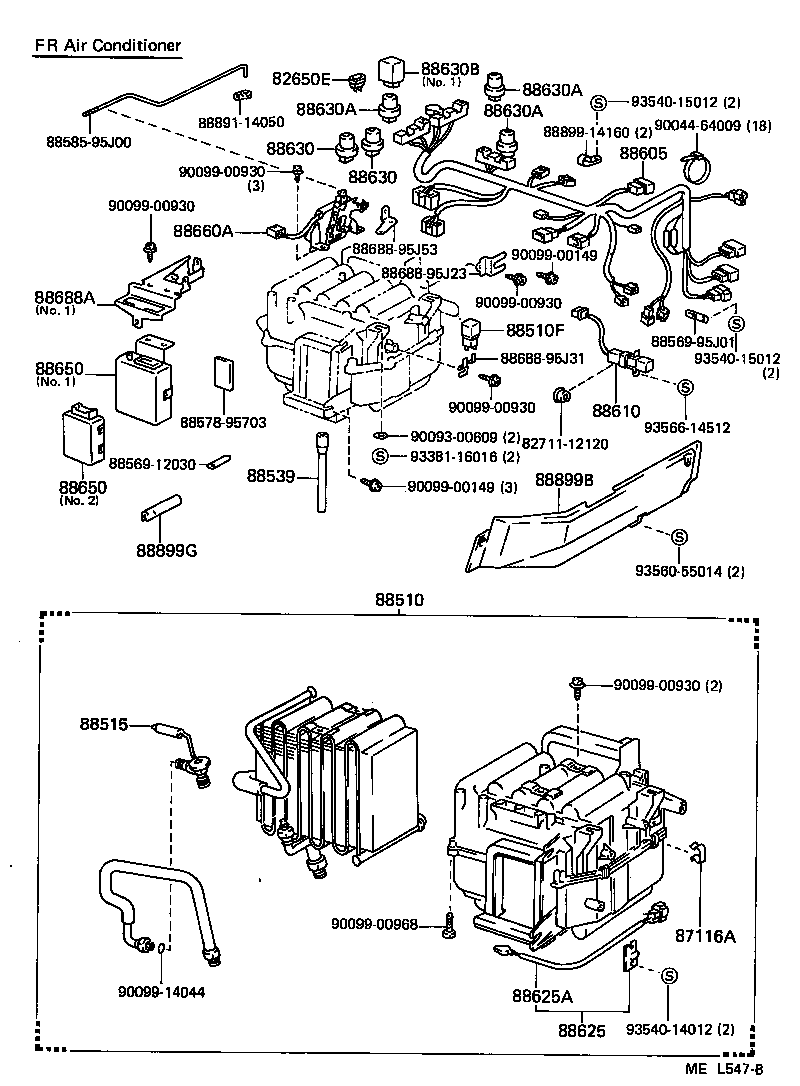

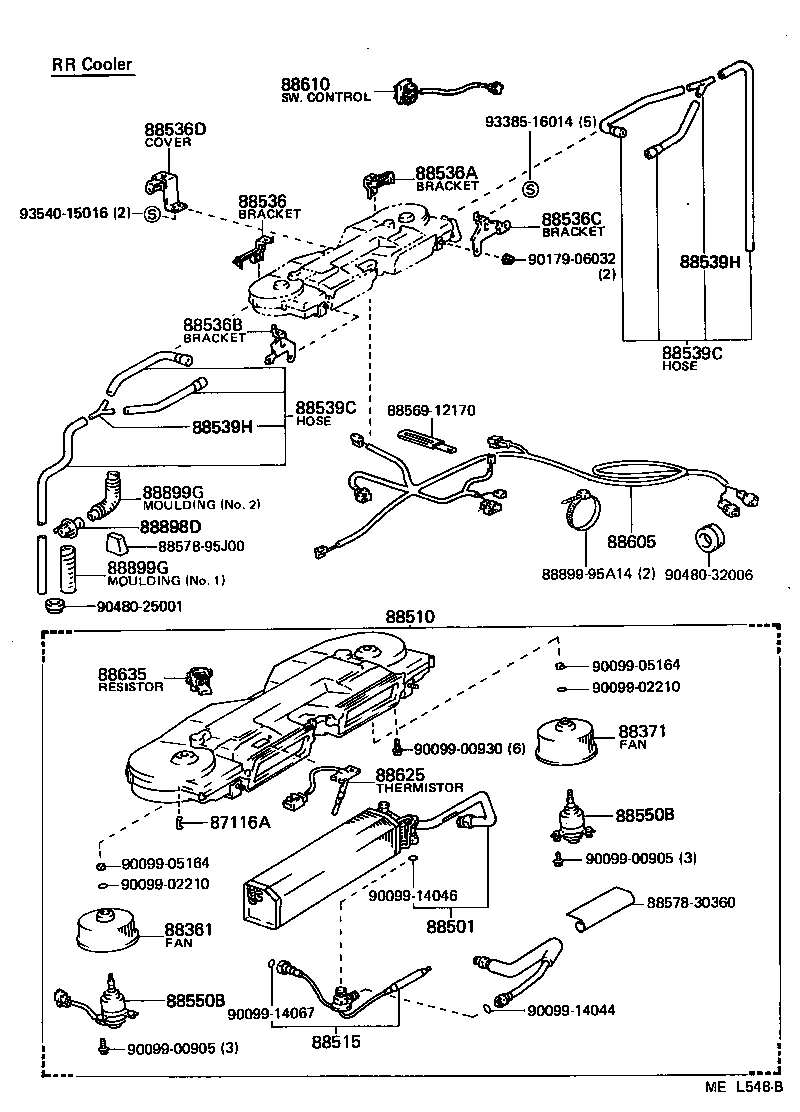

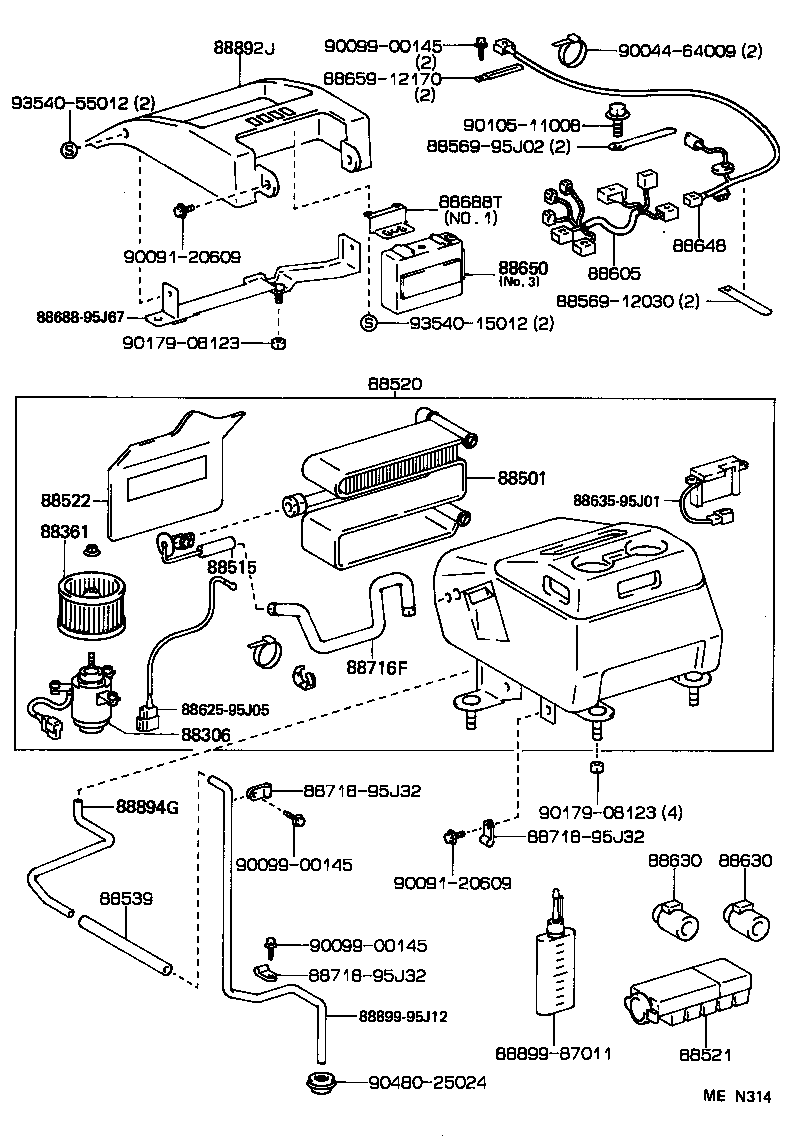

Heating & Air Conditioning - Cooler Unit
37 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 82650E | Breaker Assy, Wiring Circuit |
| 87116A | Spring, Holding (FOR COOLER UNIT CASE) |
| 88306 | Motor Sub-assy, Cooler Blower, NO.1 |
| 88361 | Fan, Cooler Blower, NO.1 |
| 88371 | Fan, Cooler Blower, NO.2 |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88510F | Holder, Fuse |
| 88515 | Valve, Cooler Expansion |
| 88520 | Box Assy, Cooling |
| 88521 | Case, Cooler Unit |
| 88522 | Door, Cooling Unit |
| 88536 | Bracket, Cooling Unit, NO.1 |
| 88536A | Bracket, Cooling Unit, NO.2 |
| 88536B | Bracket, Cooling Unit, NO.3 |
| 88536C | Bracket, Cooling Unit, NO.4 |
| 88536D | Cover, Cooler Unit Bracket |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88539H | Connector |
| 88550B | Motor Assy, Blower |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88610 | Switch Assy, Cooler Control |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88630B | Relay Assy, Cooler |
| 88635 | Resistor, Cooler Unit Blower |
| 88648 | Wiring, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88660A | Servo Assy, Air Conditioner, NO.1 |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88892J | Cover Sub-assy |
| 88894G | Connector, Drain Hose |
| 88898D | Grommet |
| 88899B | Cover, Cooler Control |
| 88899G | Moulding, Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
