Toyota Hiace Van,Wagon
1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan
Discontinued model
Data version 1989-07
Heating & Air Conditioning - Control & Air Duct
40 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55519 | Plate, Heater Control Name |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55907B | Cable Sub-assy, Temperature Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |

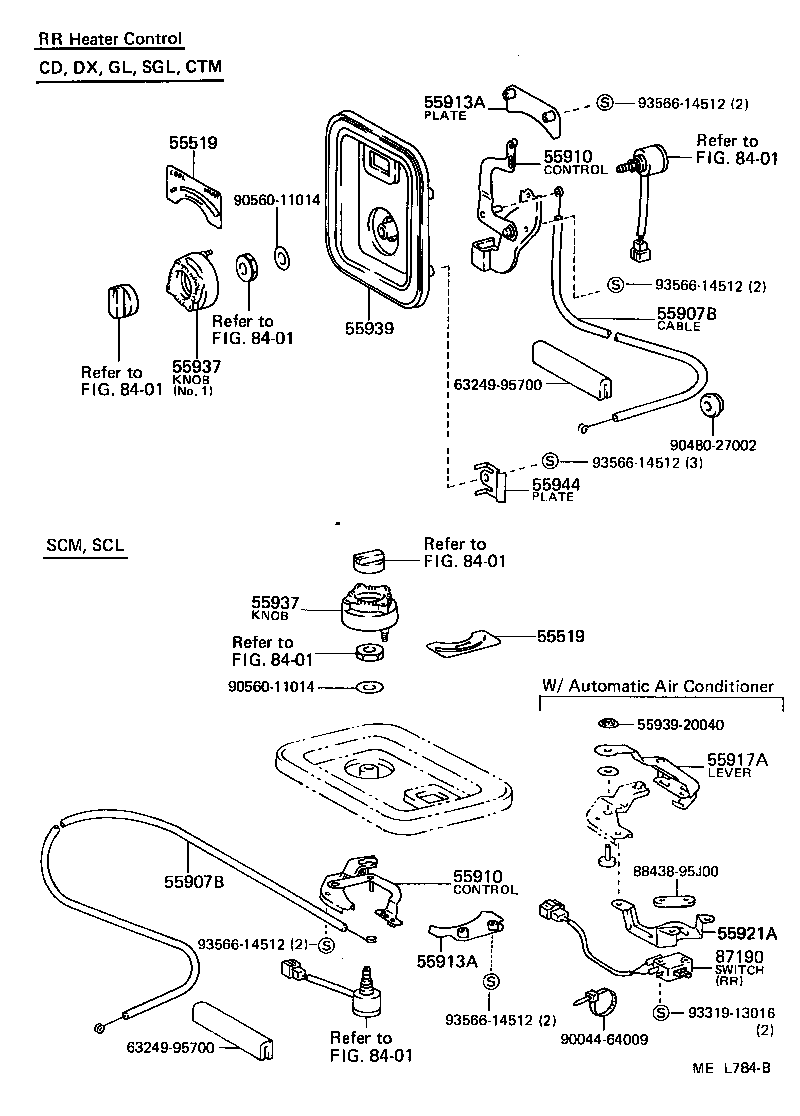

| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55913A | Plate, Heater Control Lever Guide |
| 55917A | Lever, Temperature Damper Control |
| 55921A | Retainer, Heater Control |
| 55931 | Clamp, Heater Control Wire |
| 55937 | Knob, Heater Control Lever |
| 55939 | Ornament, Heater Control |
| 55944 | Plate, Heater Control Support |
| 87180 | Grille Assy, RR Heater Air Outlet |
| 87190 | Switch Assy, Temperature Control |
| 87195A | Cover, Heater Inlet Hole |

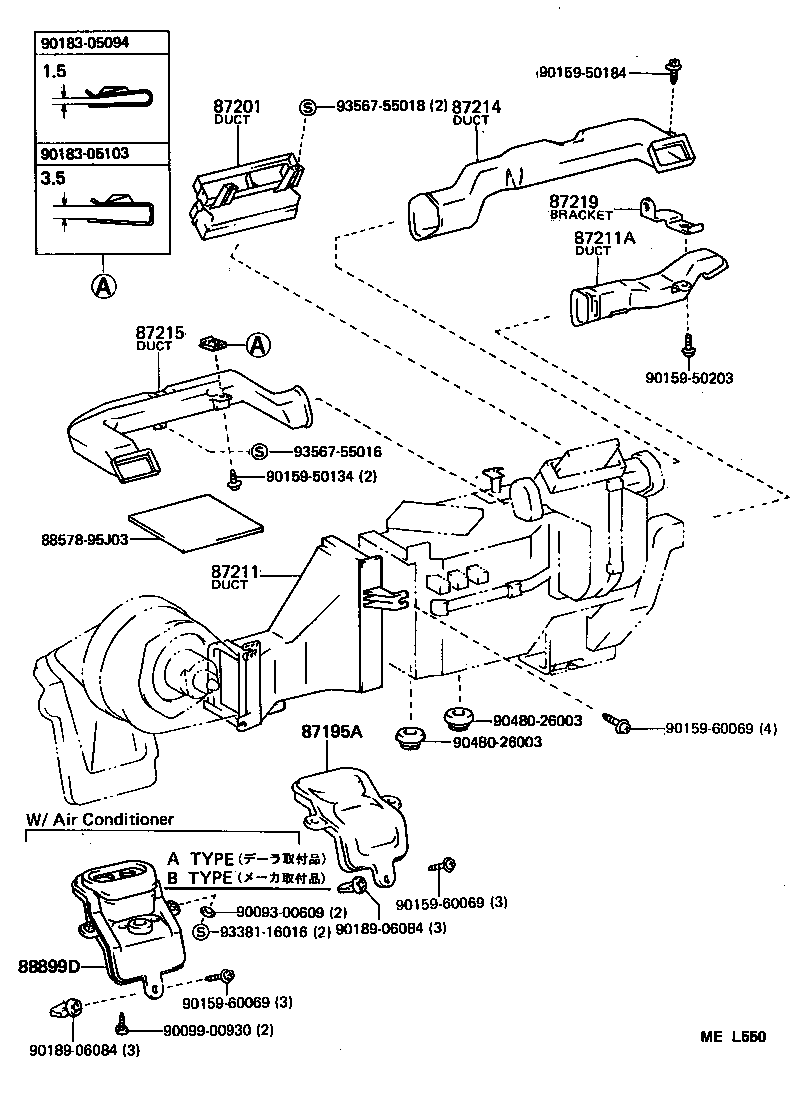

| 87201 | Duct Sub-assy, Air, NO.1 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |

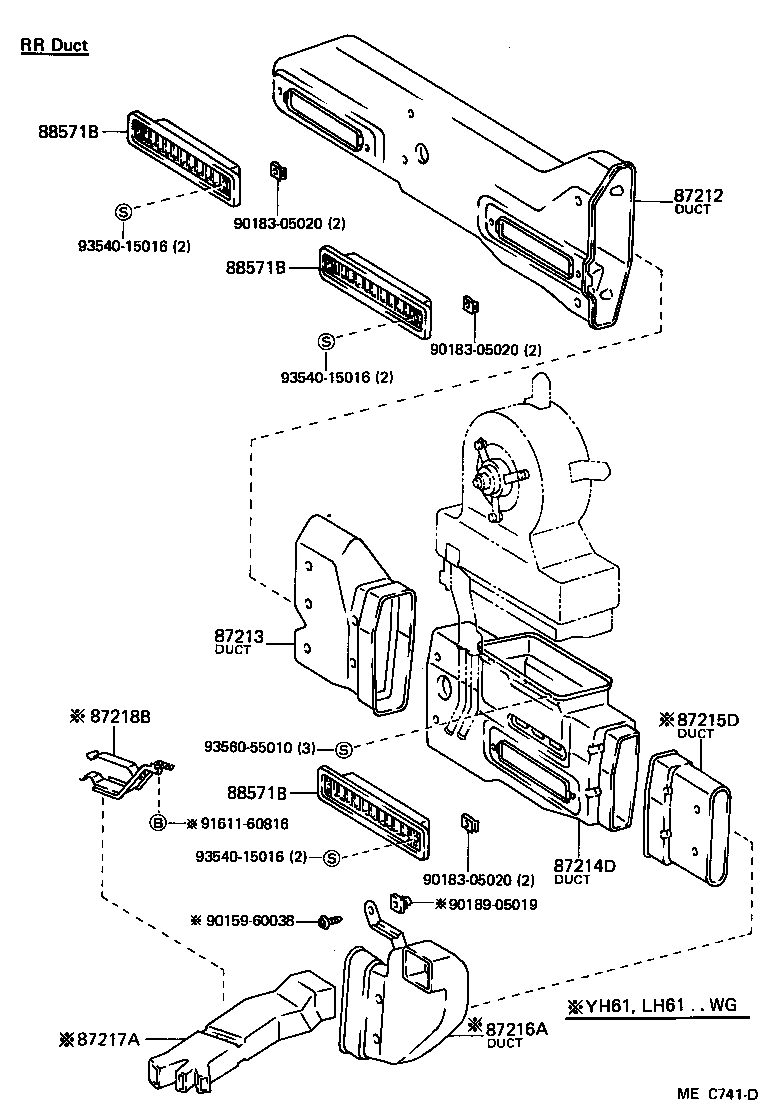

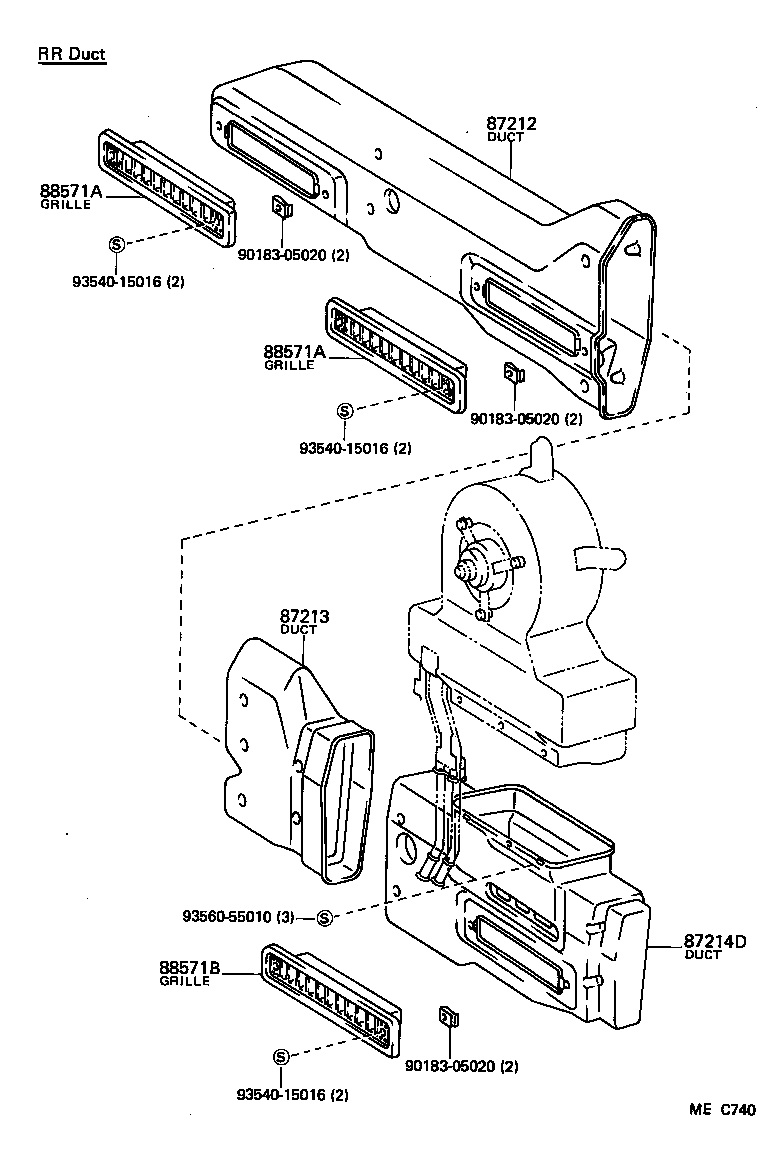

| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214 | Duct, Air, Side NO.1 RH |
| 87214D | Duct, Air, Rear NO.3 |
| 87215 | Duct, Air, Side NO.1 LH |
| 87215D | Duct, Air, Rear NO.4 |
| 87216A | Duct, Air, Rear NO.5 |
| 87217A | Duct, Air, Rear NO.6 |
| 87218B | Bracket |
| 87219 | Bracket, Front Air Duct |
| 87284 | Resistor Sub-assy, Variable |

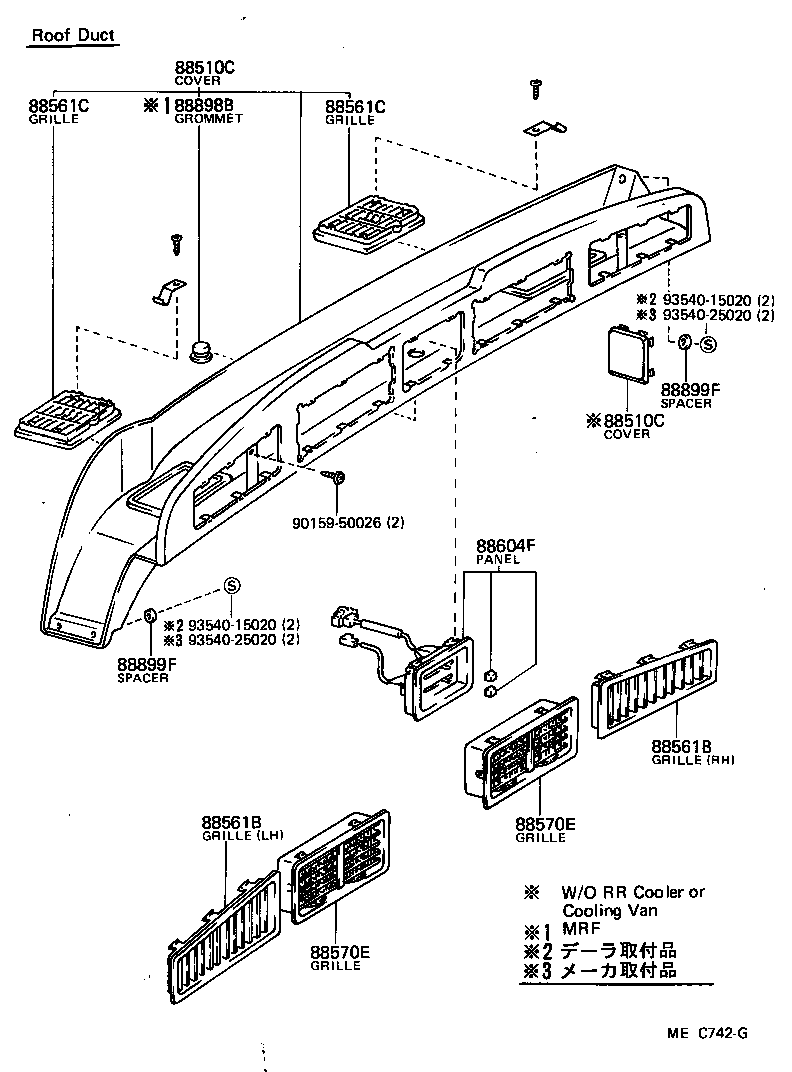

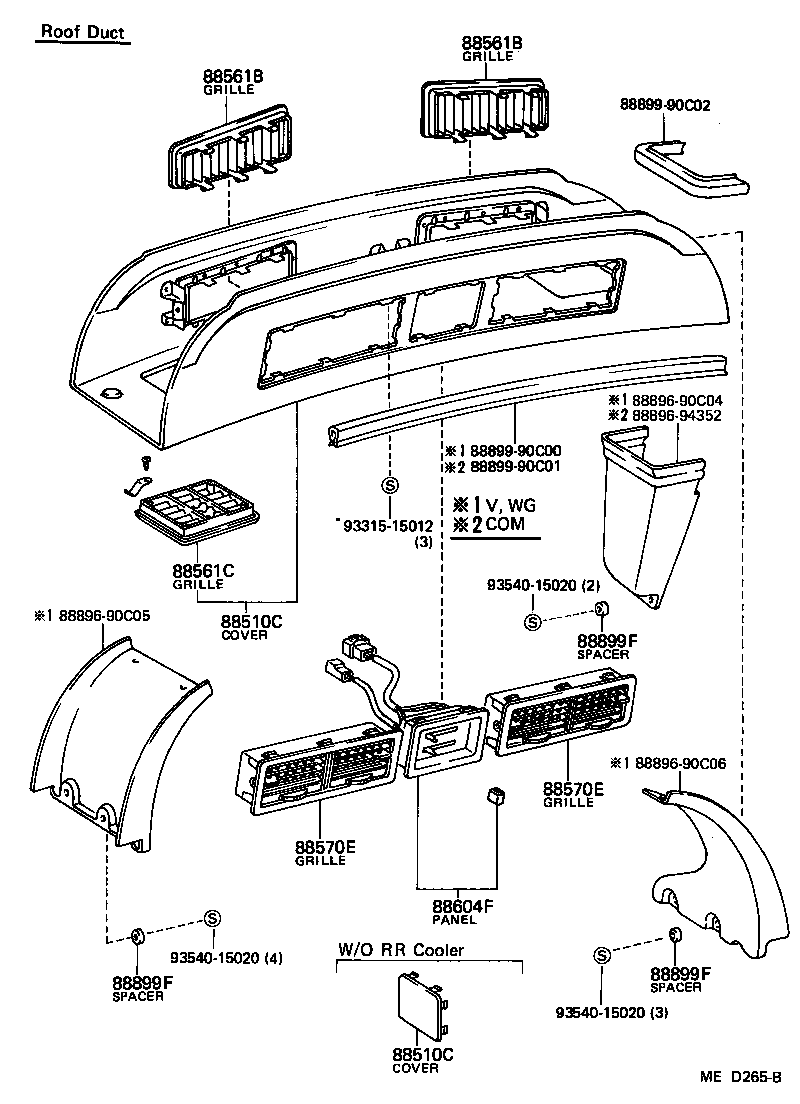

| 88510C | Cover Assy, Cooler Unit |
| 88561B | Grille, Cooler Air Inlet |
| 88561C | Grille, Cooler Air Inlet |
| 88570E | Grille Assy, Air Outlet |
| 88571B | Grille, Air Outlet |
| 88604F | Panel Sub-assy, Cooler Control |
| 88898B | Grommet, Cooler Unit Cover |
| 88899D | Cover, Cooler Control |
| 88899F | Spacer |
