Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

53 part groups · 16 illustrations

Illustrations

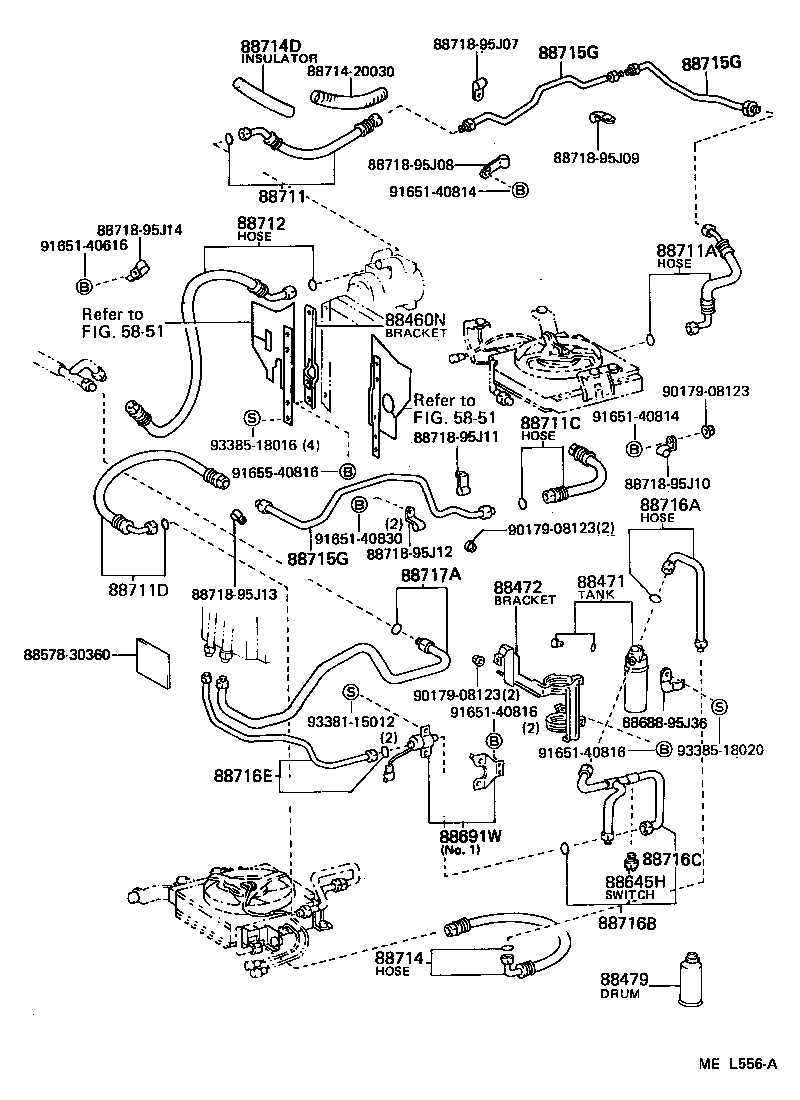

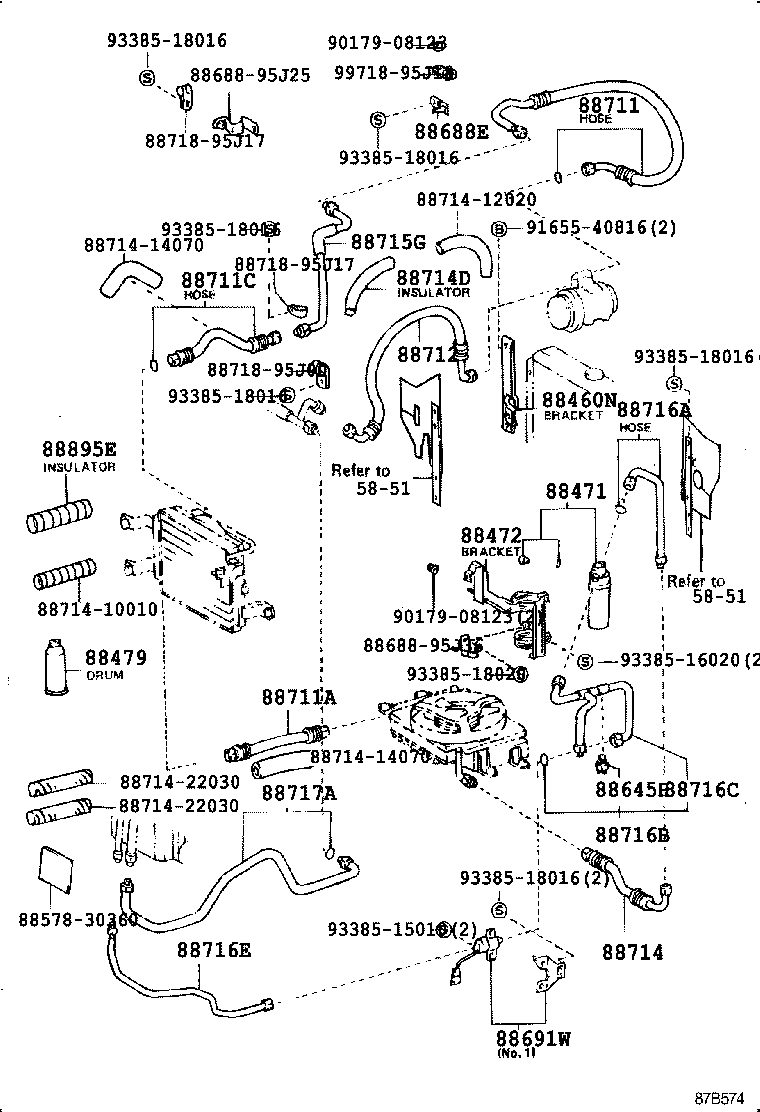

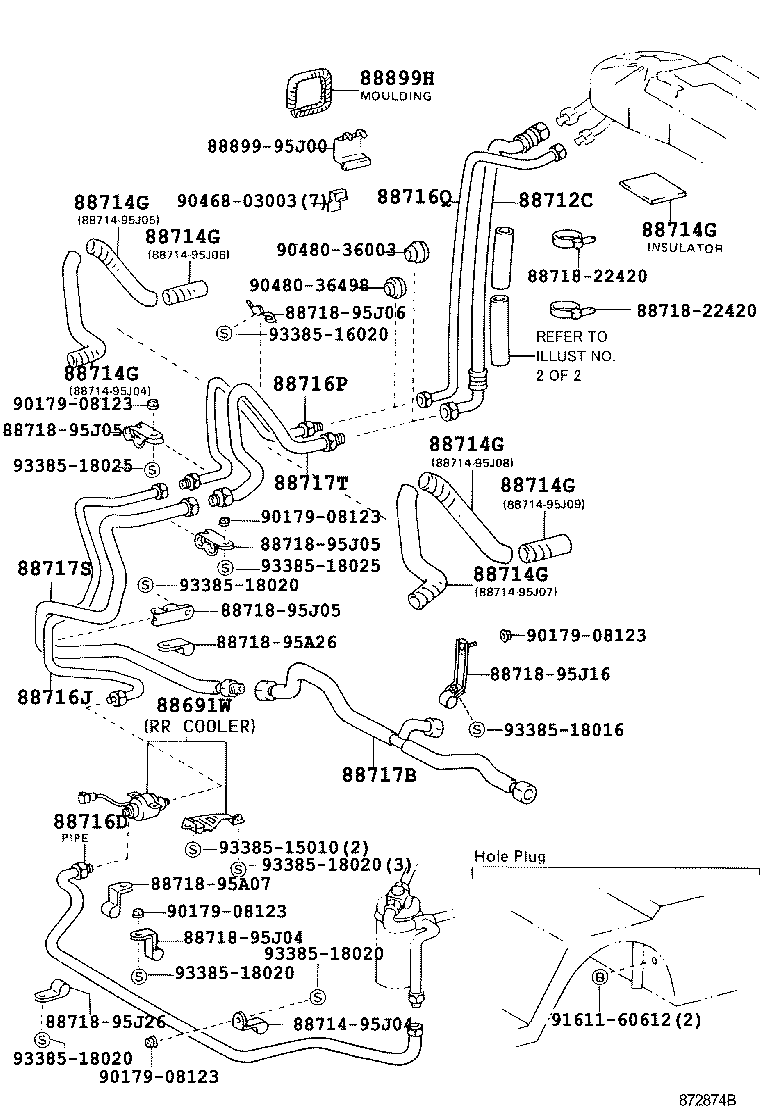

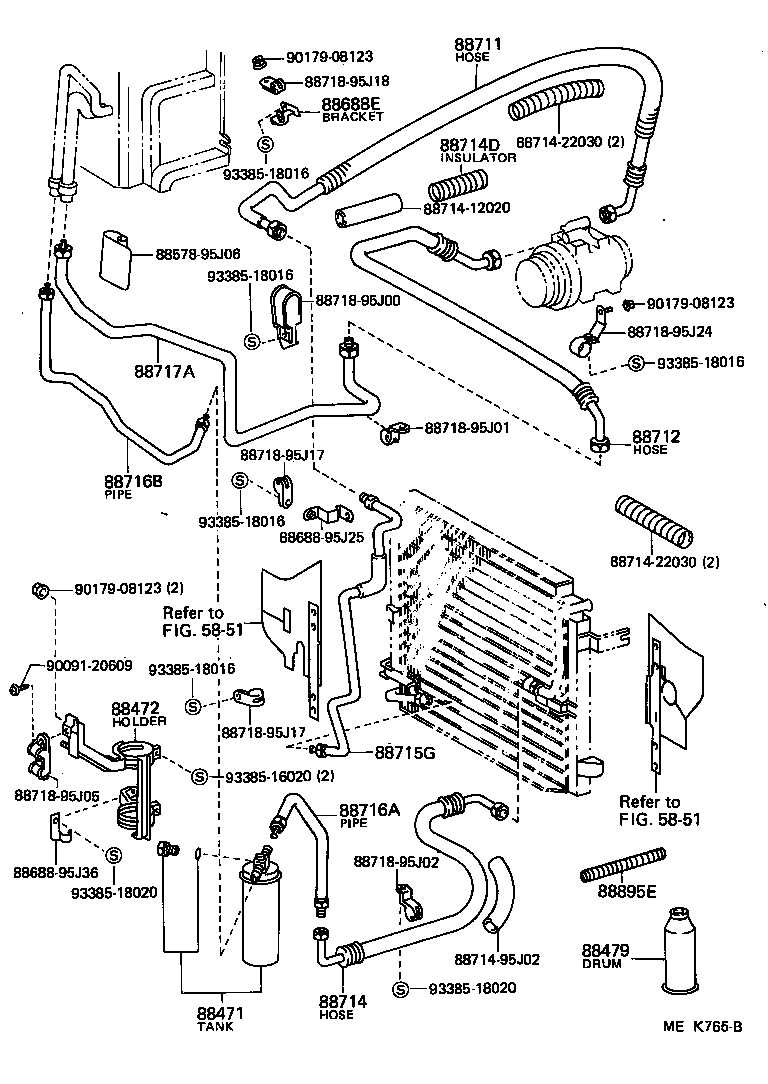

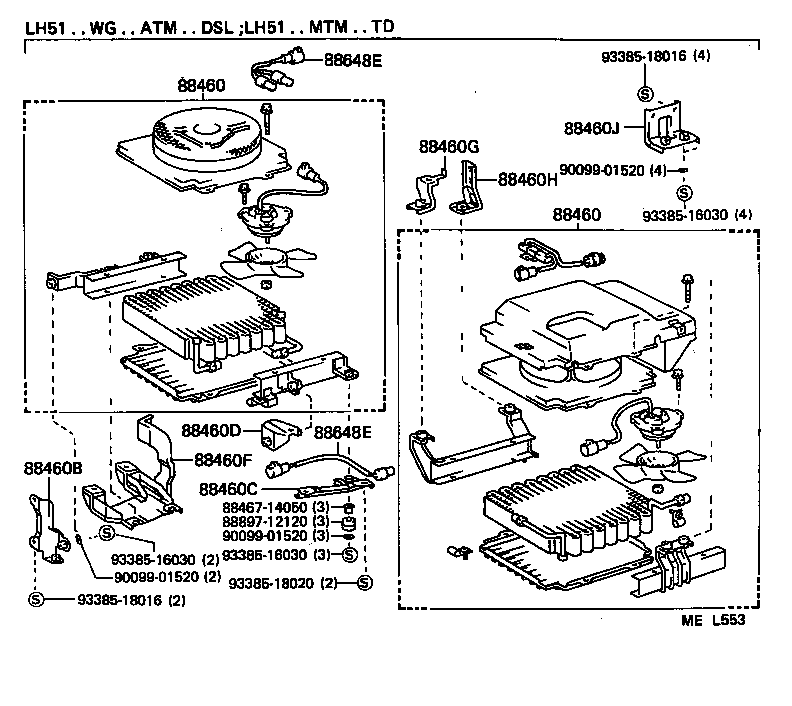

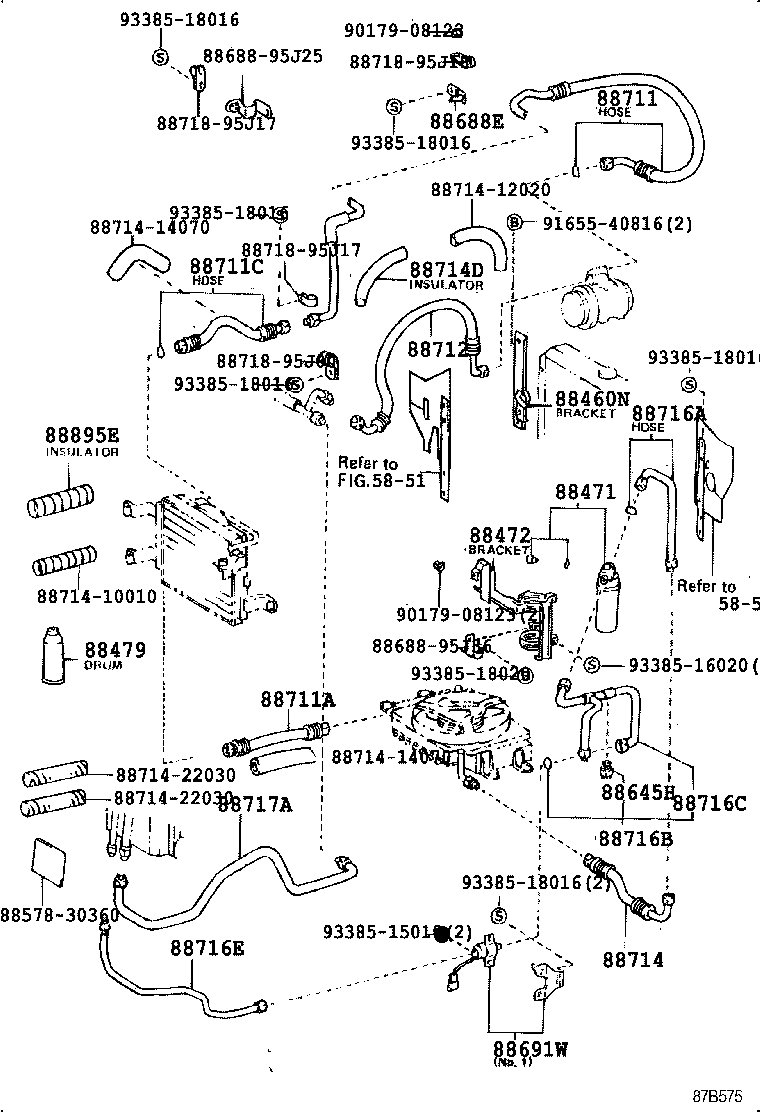

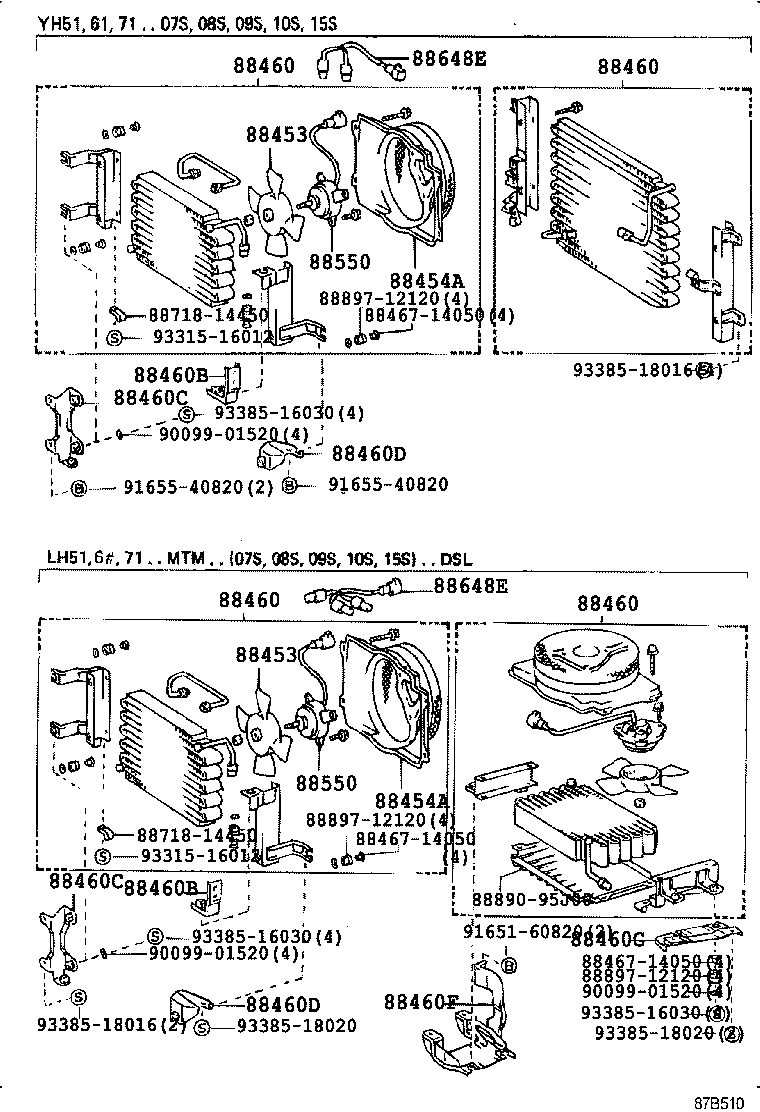

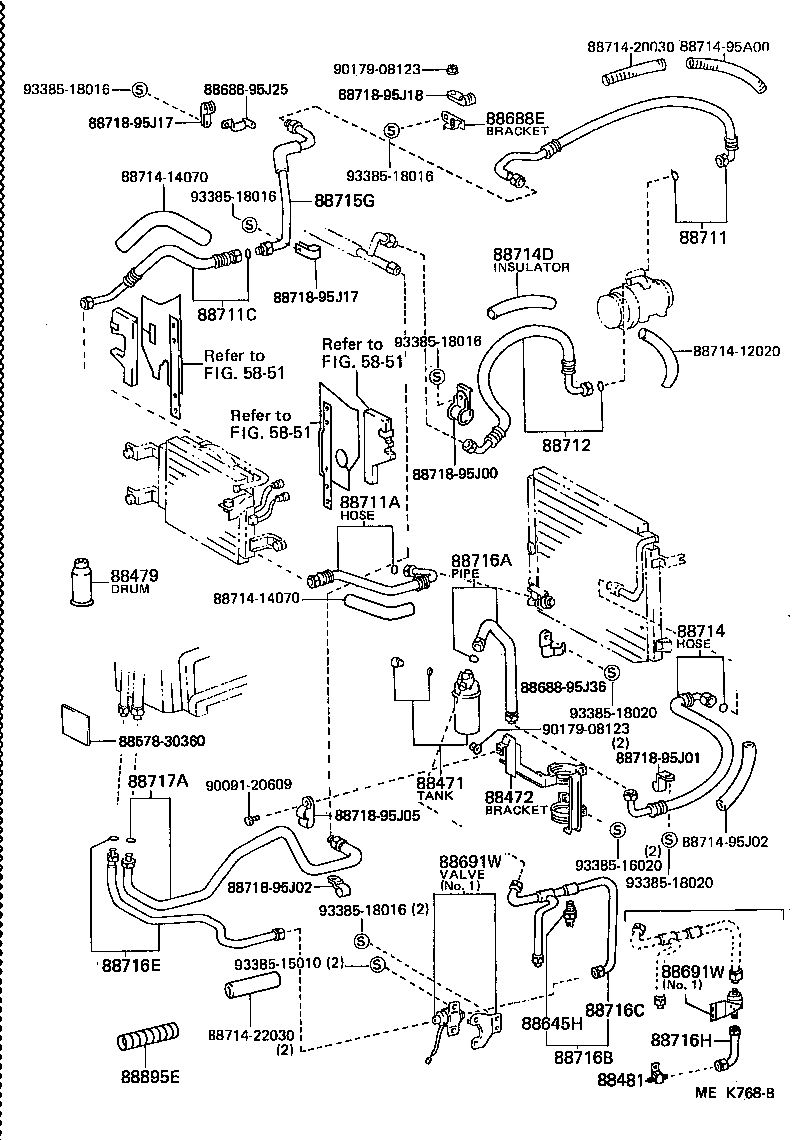

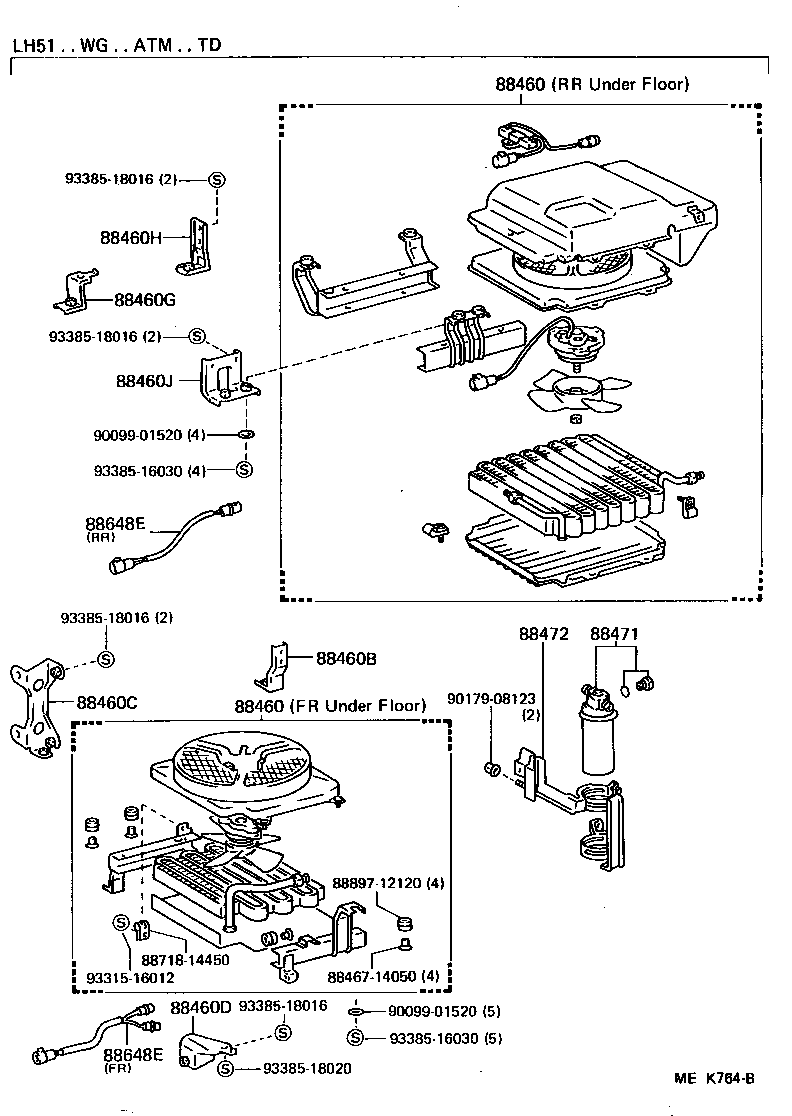

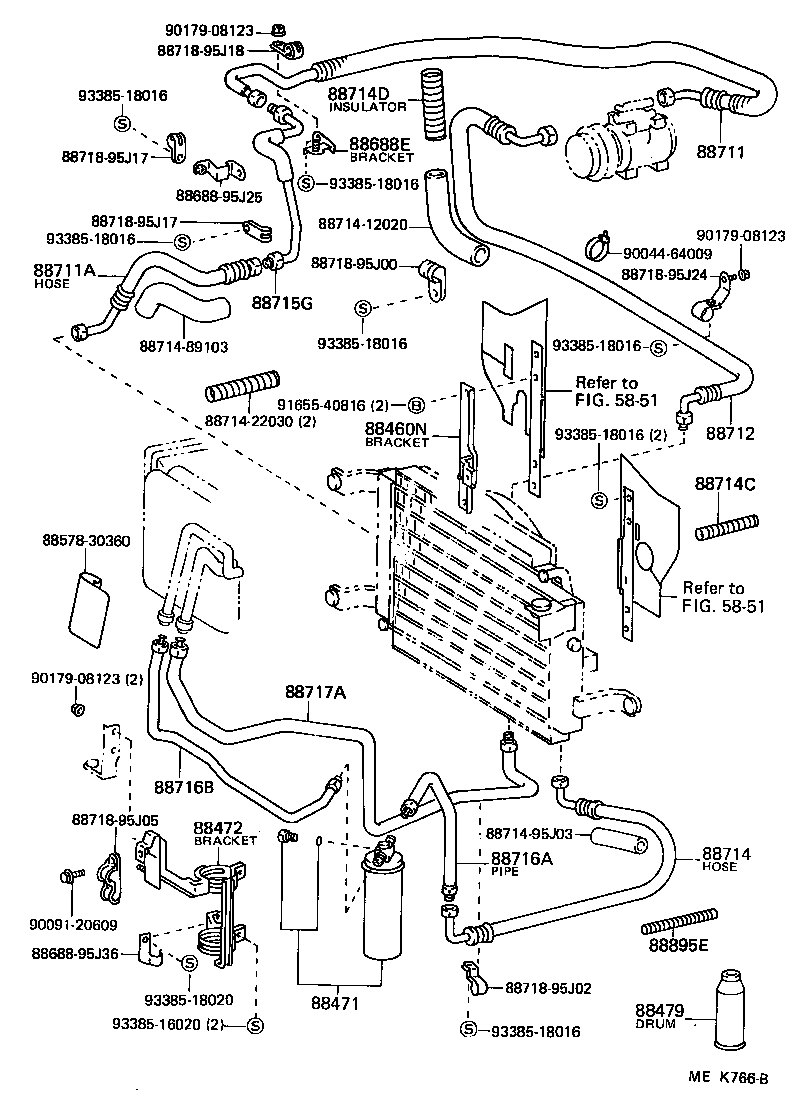

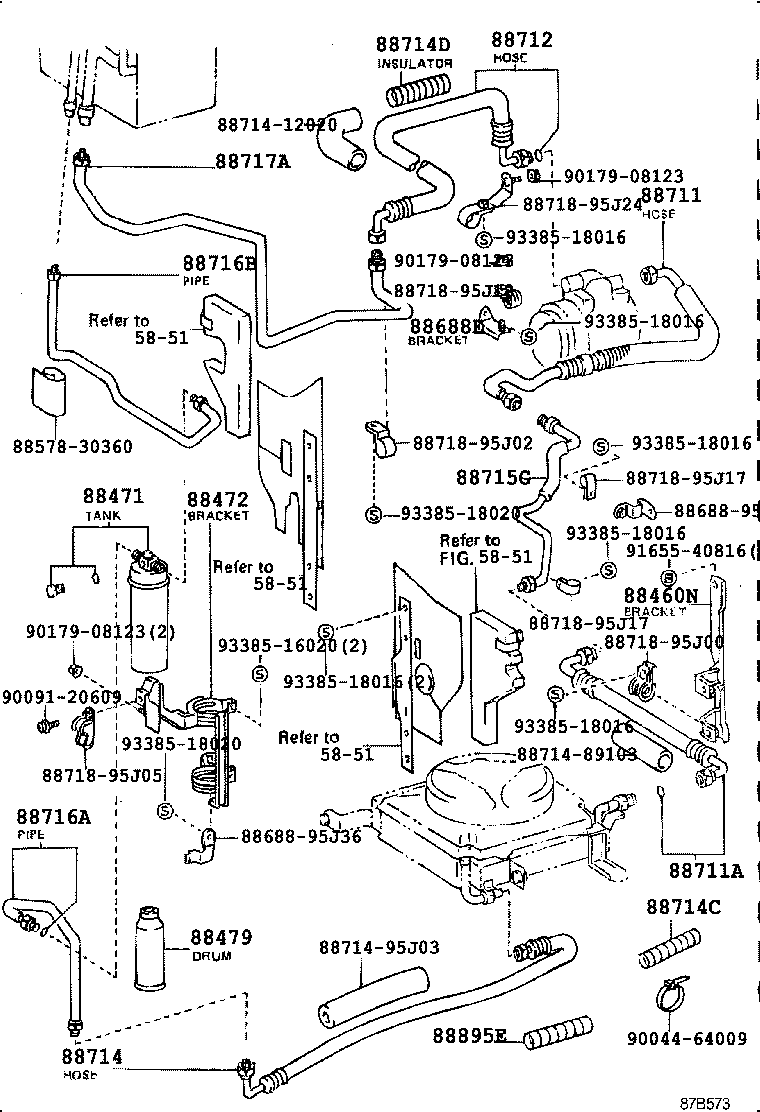

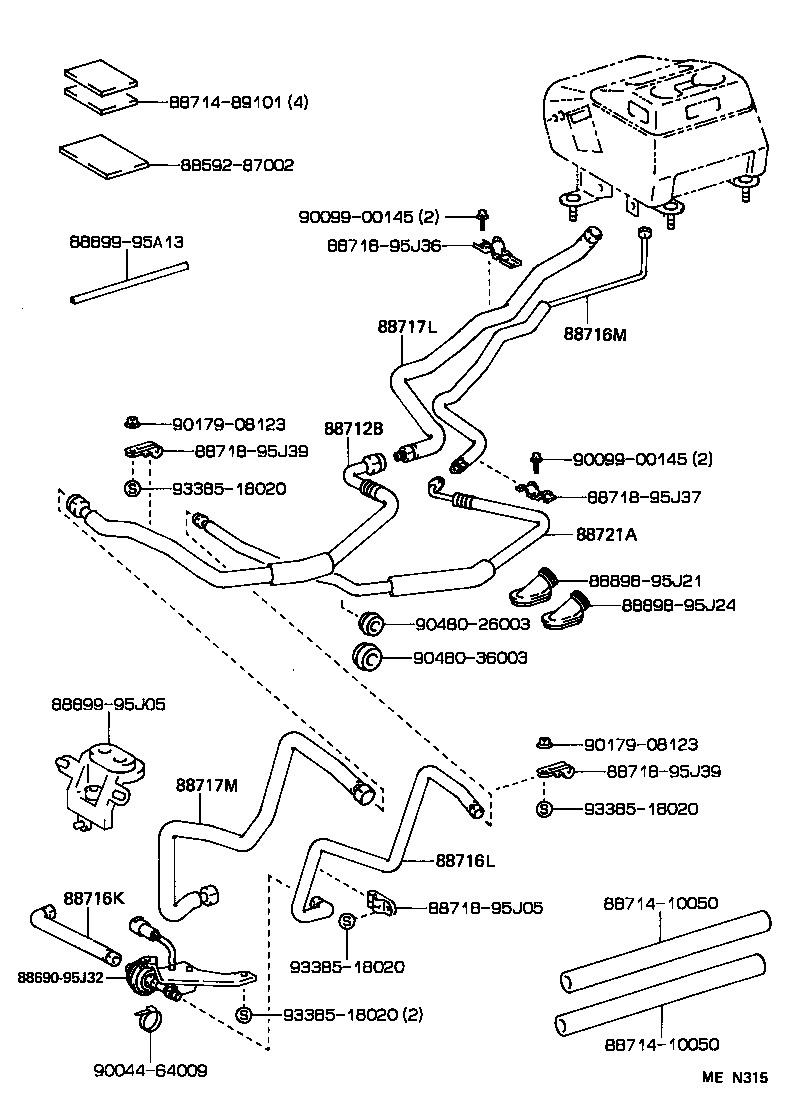

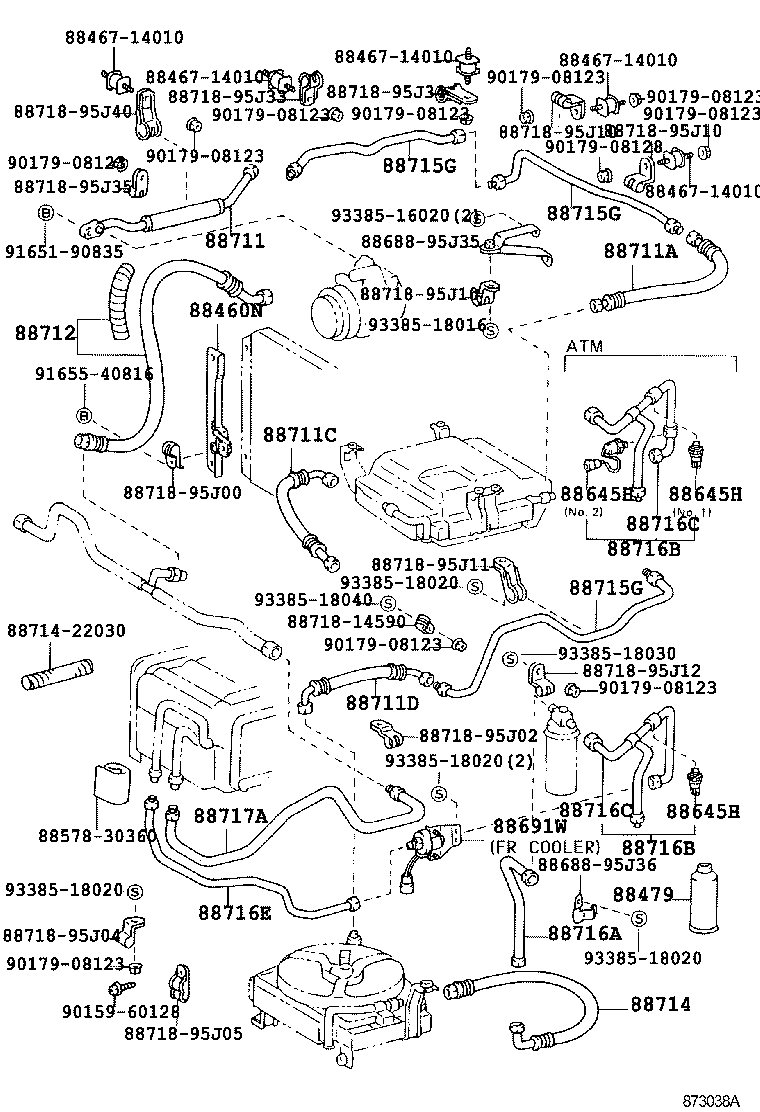

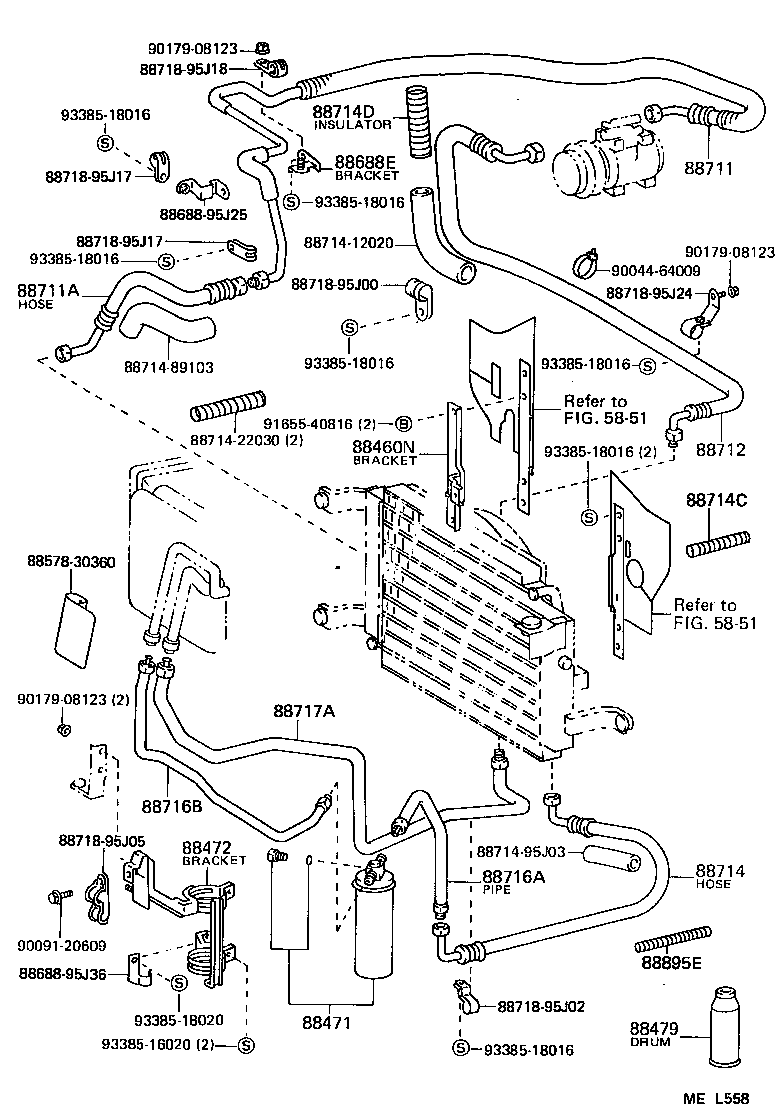

Figure MEL552B MEL552B 1987-08 → — Figure 87B510 87B510 1987-08 → — Figure MEL553 MEL553 1987-08 → — Figure MEK764B MEK764B 1987-08 → — Figure MEK765B MEK765B 1987-08 → — Figure MEK766B MEK766B 1987-08 → — Figure 87B573 87B573 1987-08 → — Figure MEL558 MEL558 1987-08 → — Figure MEK768B MEK768B 1987-08 → — Figure 873038A 873038A 1987-08 → — Figure 87B574 87B574 1987-08 → — Figure MEL556A MEL556A 1987-08 → — Figure 87B575 87B575 1987-08 → — Figure 872874B 872874B 1987-08 → — Figure 87B509 87B509 1987-08 → — Figure MEN315 MEN315 1987-08 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88460G Bracket, Cooler Condenser, NO.5
88460H Bracket, Cooler Condenser, NO.6
88460J Bracket, Cooler Condenser, NO.7
88460N Bracket, Cooler Condenser, NO.8
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88481 Glass, Sight
88550 Motor Assy, Blower (FOR CONDENSER)
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88711C Hose, Cooler Refrigerant Discharge, NO.3
88711D Hose, Cooler Refrigerant Discharge, NO.4
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88712C Hose, Suction
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88714D Insulator, Cooler Refrigerant Hose, NO.2
88714G Insulator, Cooler Refrigerant Pipe, NO.1
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716K Pipe, Cooler Refrigerant Liquid, K
88716L Pipe, Cooler Refrigerant Liquid, L
88716M Pipe, Cooler Refrigerant Liquid, M
88716P Pipe, Cooler Refrigerant Liquid, P
88716Q Pipe, Cooler Refrigerant Liquid, Q
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717L Pipe, Cooler Refrigerant Suction, L
88717M Pipe, Cooler Refrigerant Suction, M
88717S Pipe, Cooler Refrigerant Suction, S
88717T Pipe, Cooler Refrigerant Suction, T
88721A Hose, Liquid, A
88895E Insulator, Return Tube
88899H Moulding, Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
