Toyota Hiace Van,Wagon

1987-08 → 1989-08 · chassis YH5#,6#,71,LH5#,6#,7# · catalogue 711130 · Japan

Discontinued model Data version 1989-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

13 part groups · 2 illustrations

Illustrations

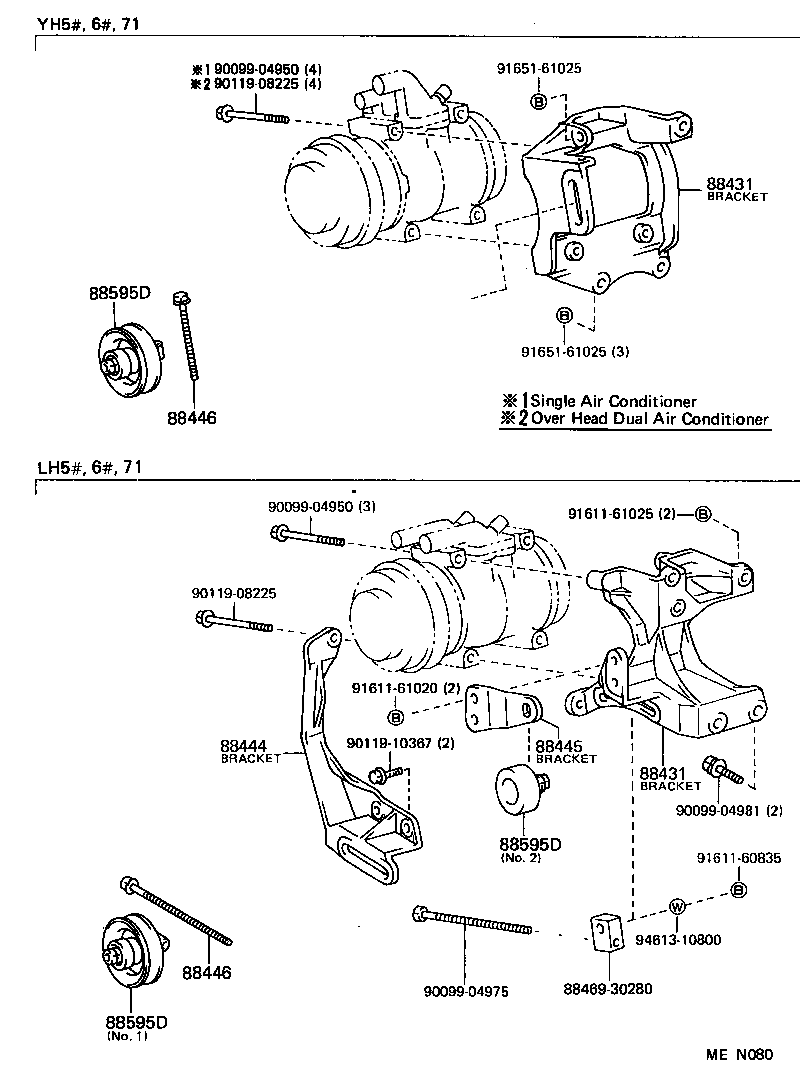

Figure MEL559A MEL559A 1987-08 → — Figure MEN080 MEN080 1987-08 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88301A Bearing (FOR MAGNET CLUTCH)
88301B Ring, Snap (FOR MAGNET CLUTCH)
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88444 Bracket, Idle Pulley
88445 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88595D Pulley Assy, Idle
88899J Case, Oil
