Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

13 part groups · 4 illustrations

Illustrations

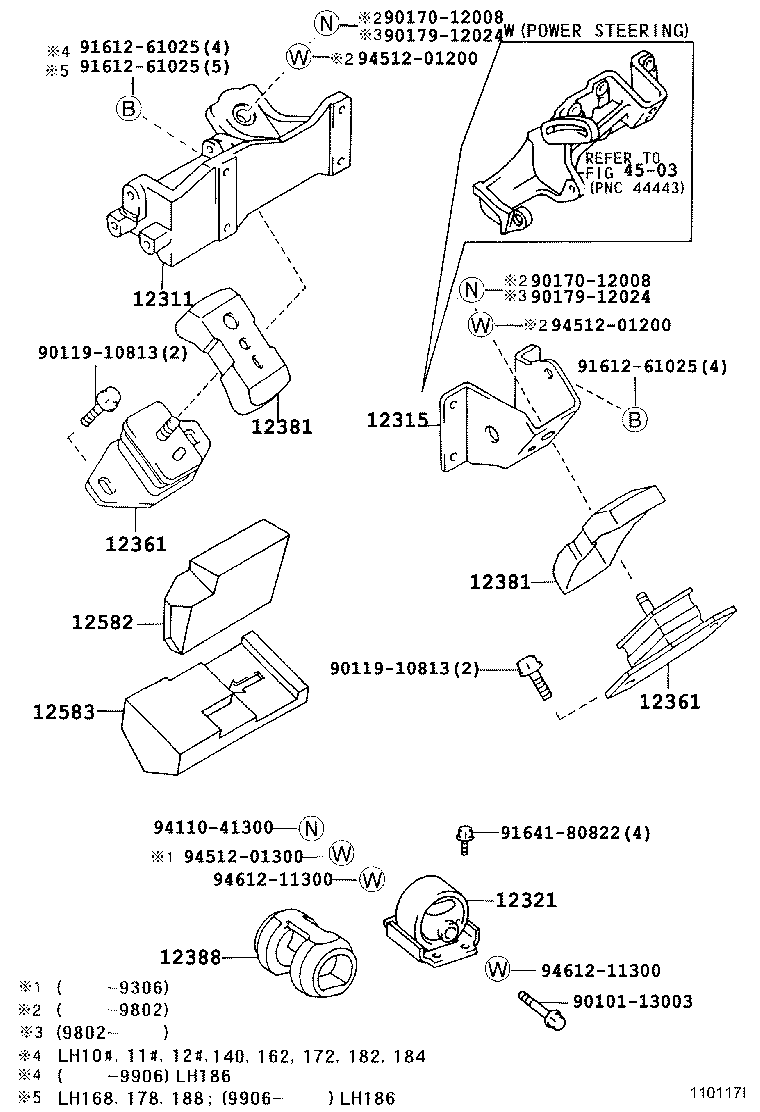

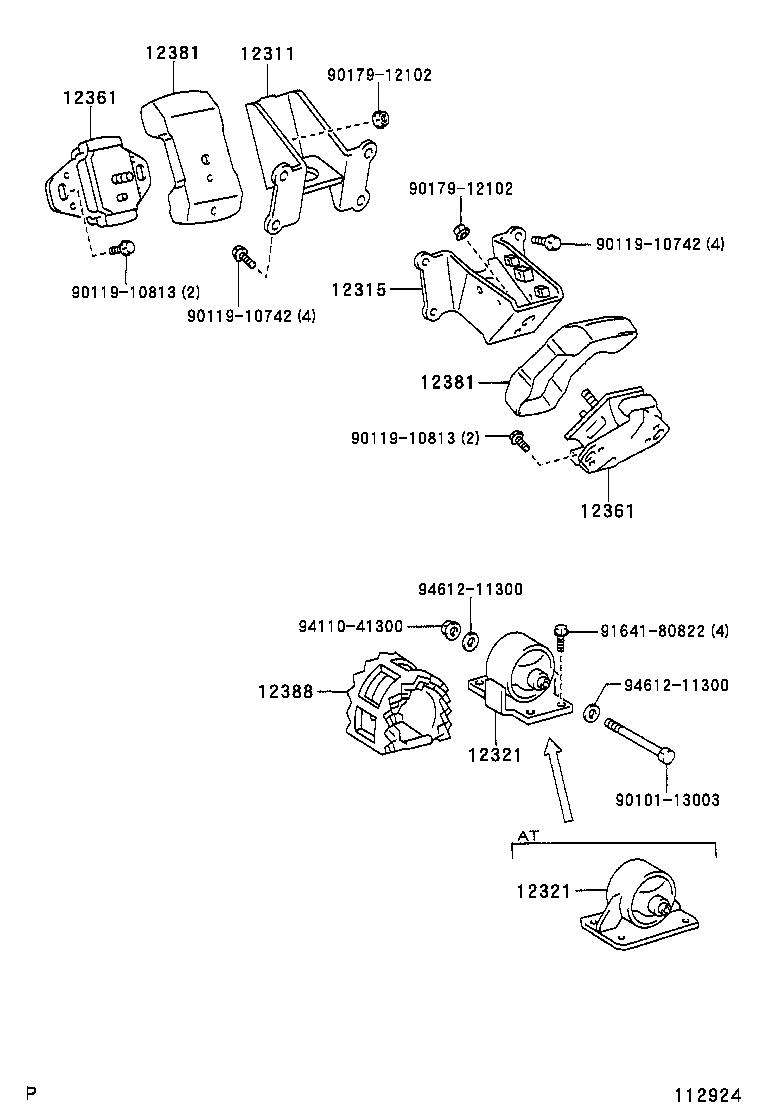

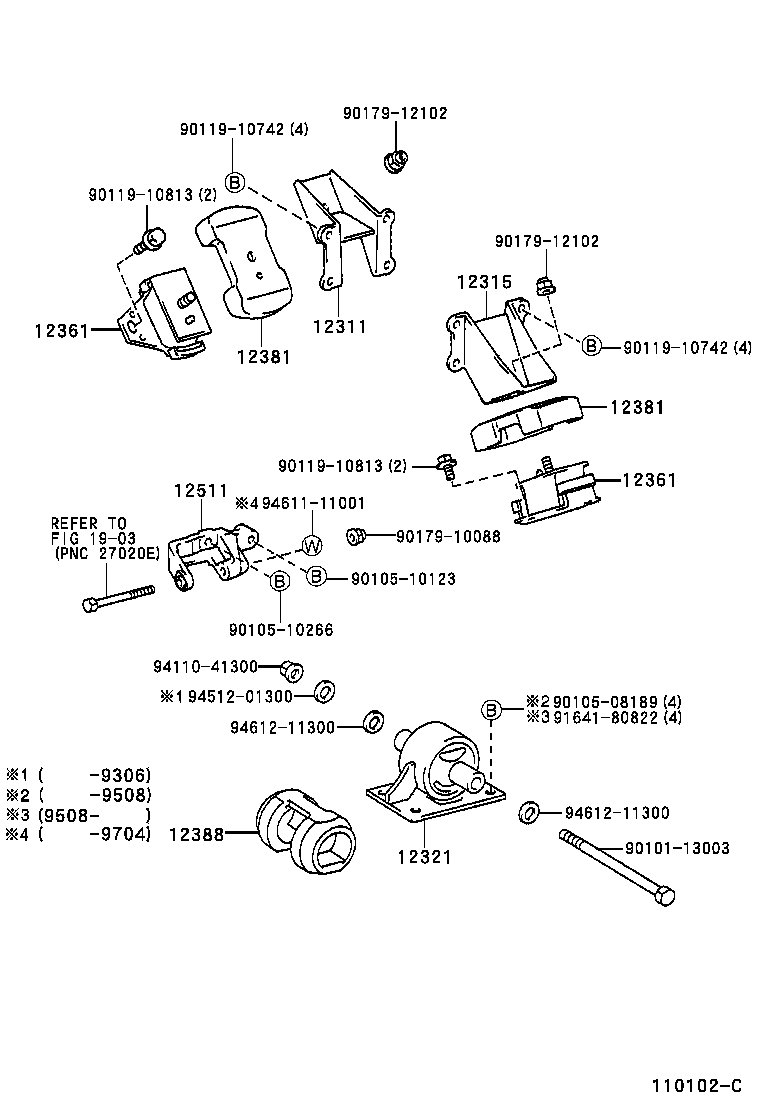

Figure 110100I 110100I 1993-08 → — Figure 110117I 110117I 1989-08 → — Figure 110102C 110102C 1989-08 → — Figure 112924 112924 2003-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12341 Spacer, Engine Mounting
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12388 Stopper, Engine Mounting Bracket, Rear
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12582 Insulator, Cylinder Block, NO.2
12583 Insulator, Cylinder Block, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
