Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

52 part groups · 17 illustrations

Illustrations

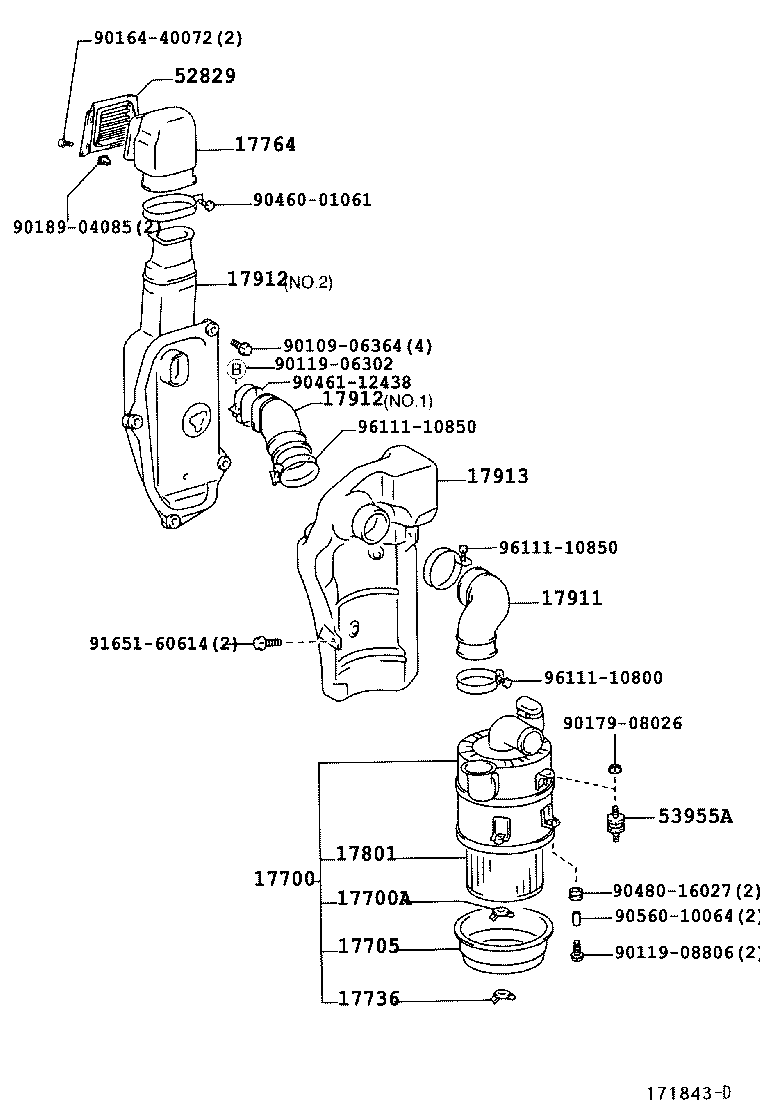

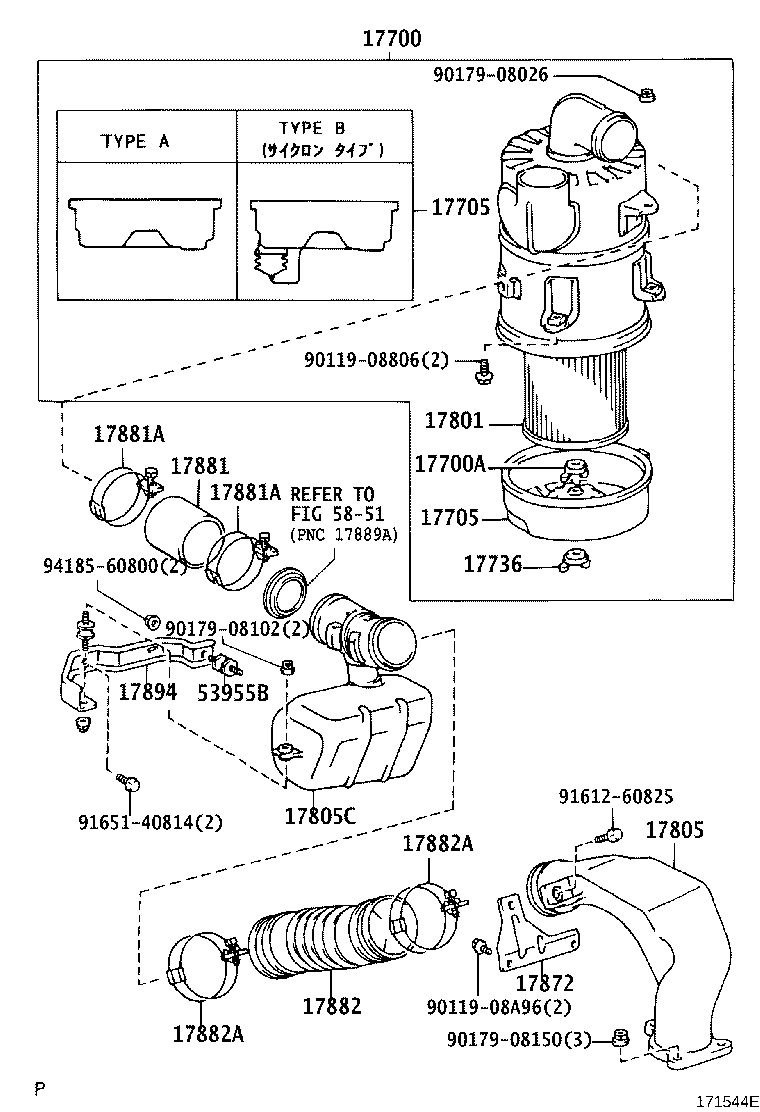

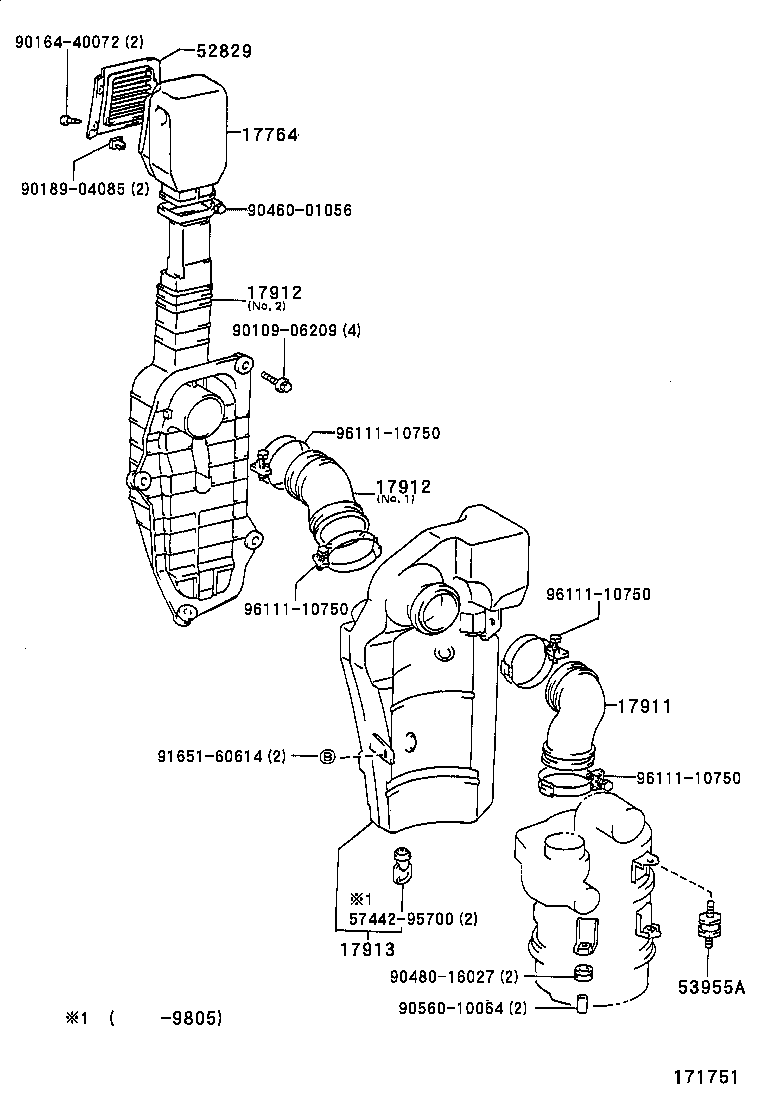

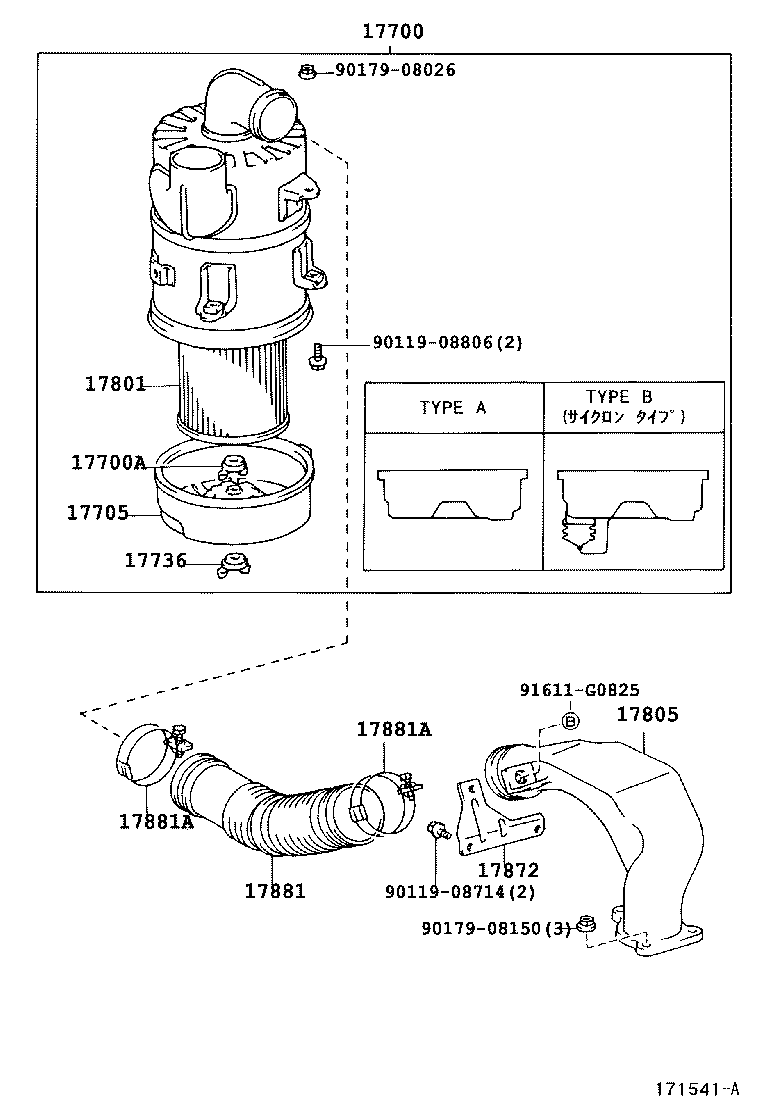

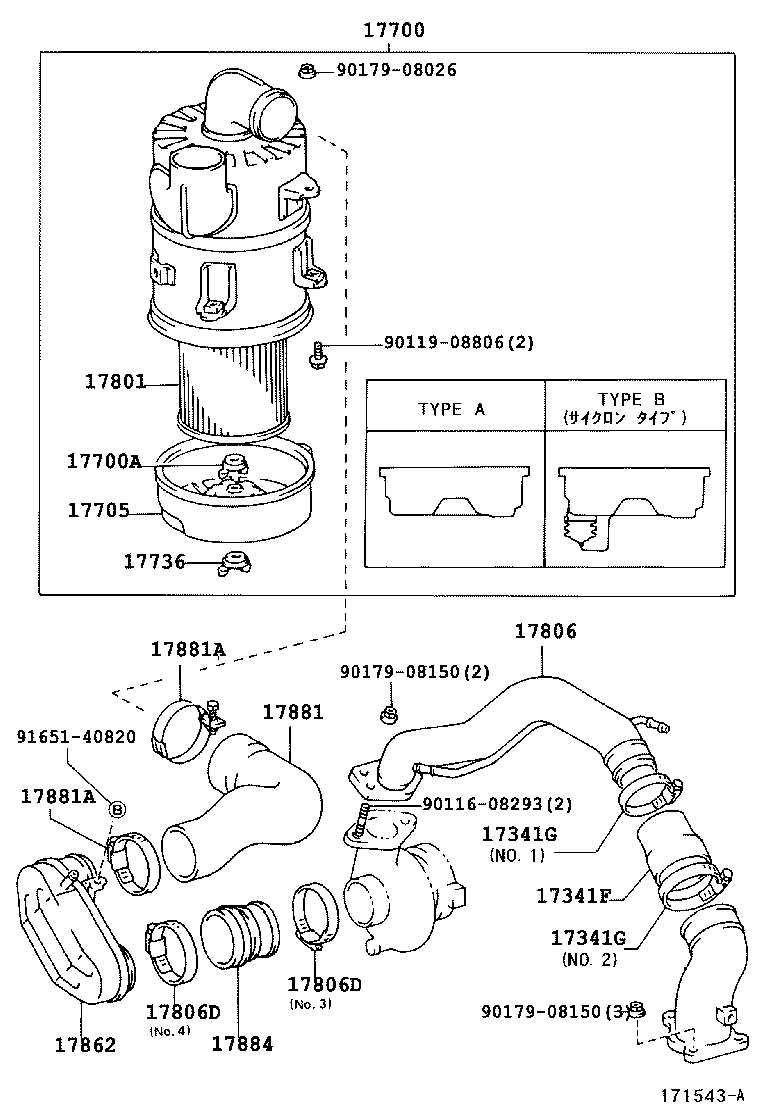

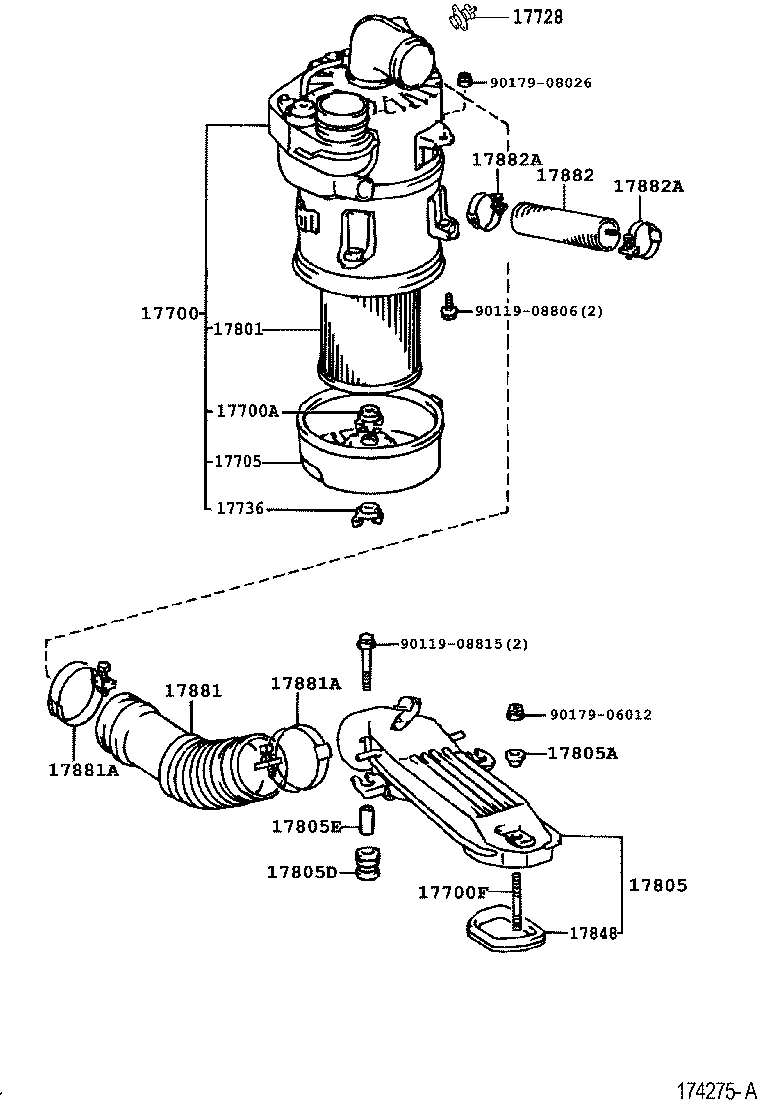

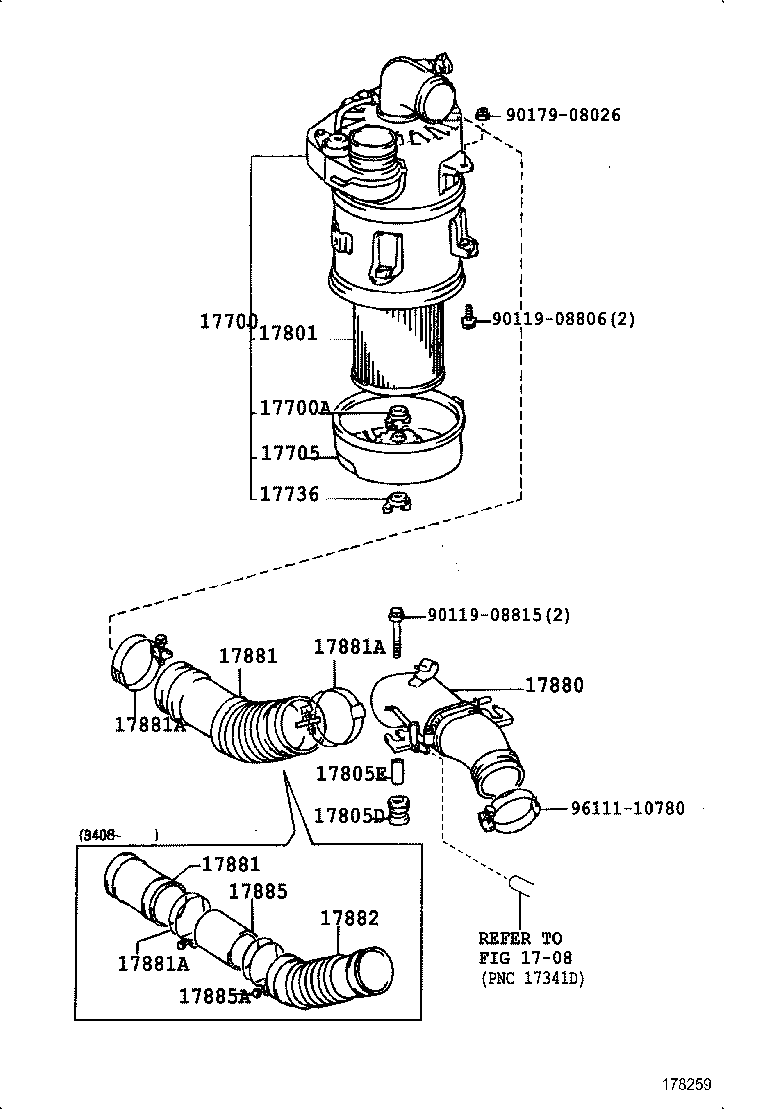

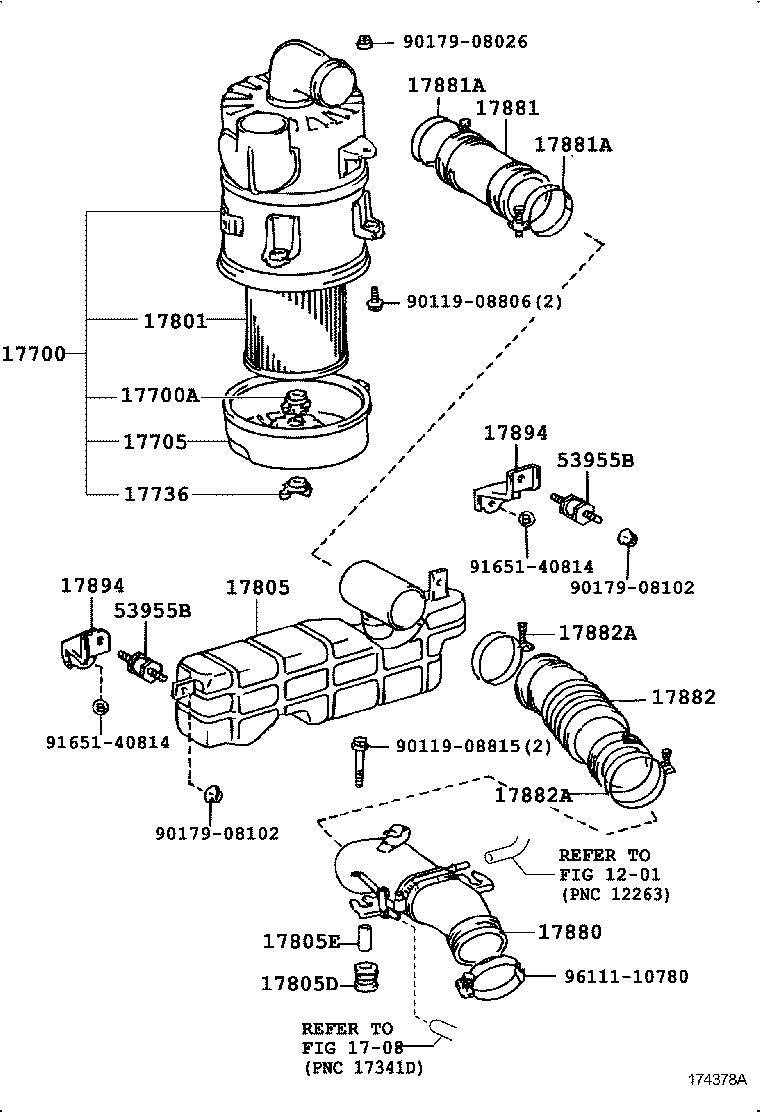

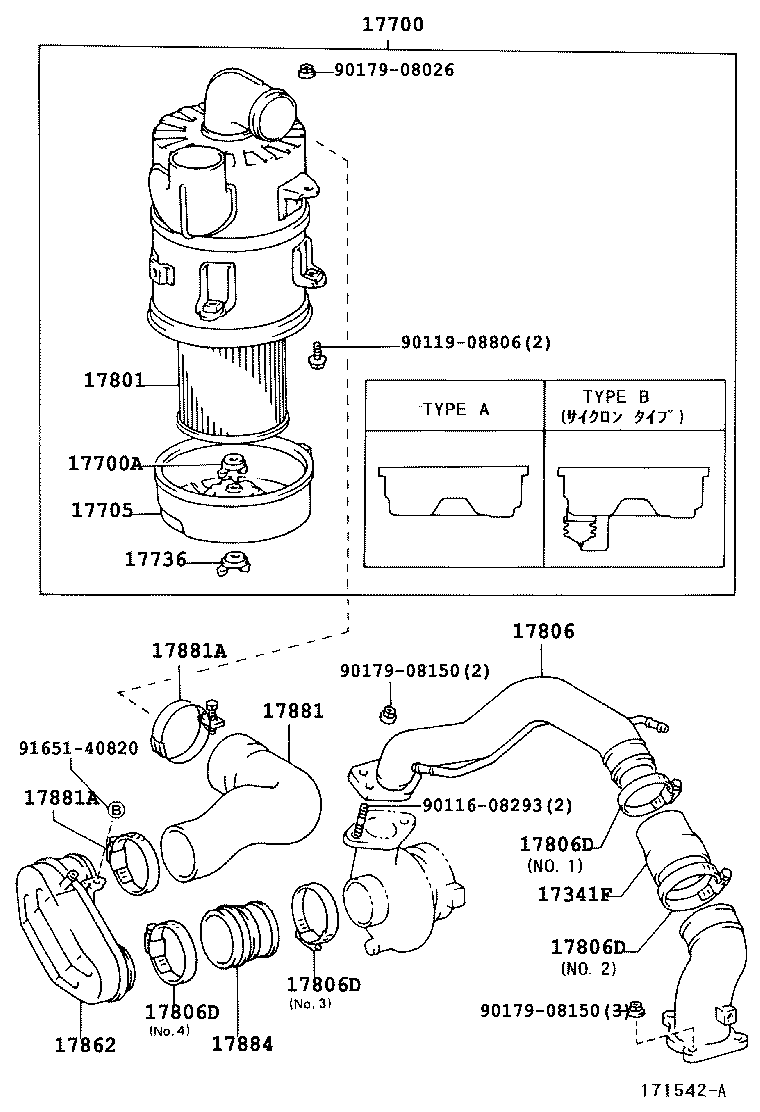

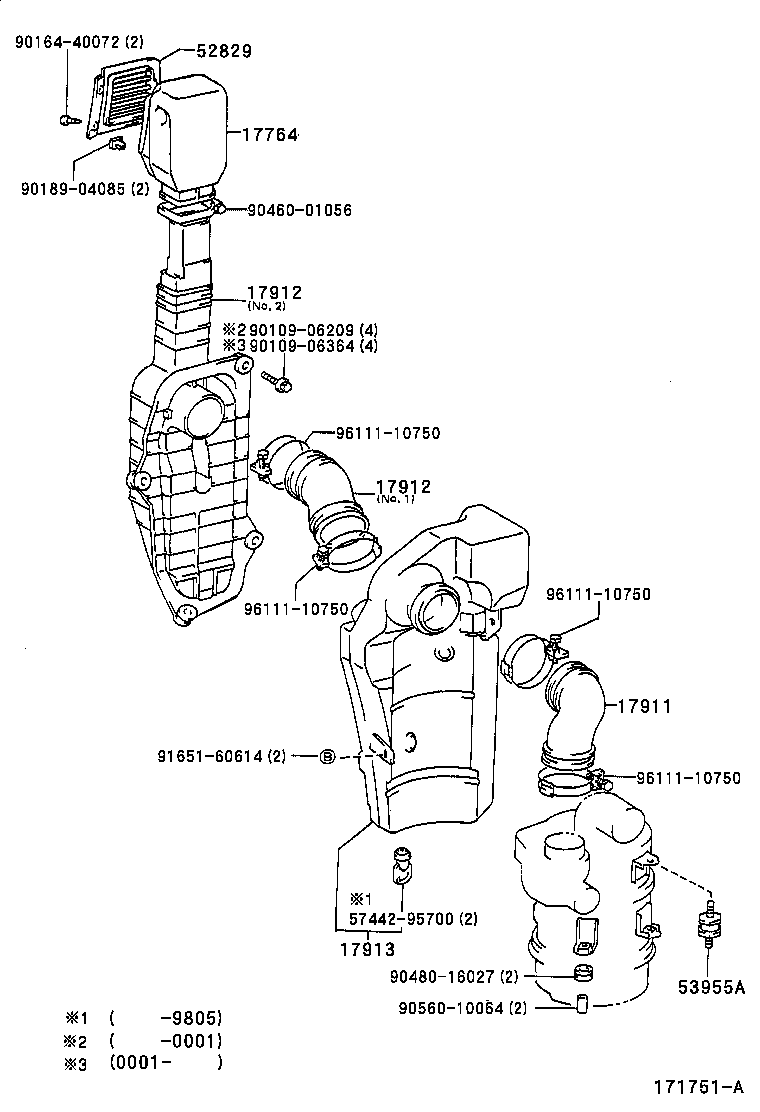

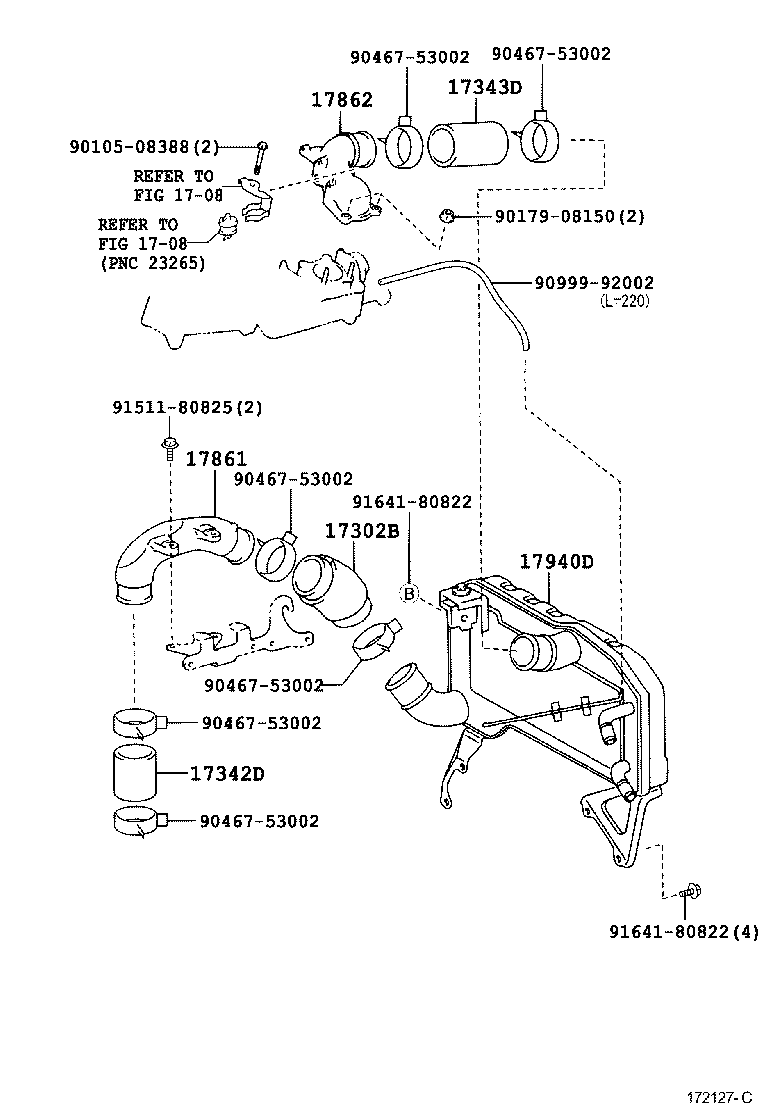

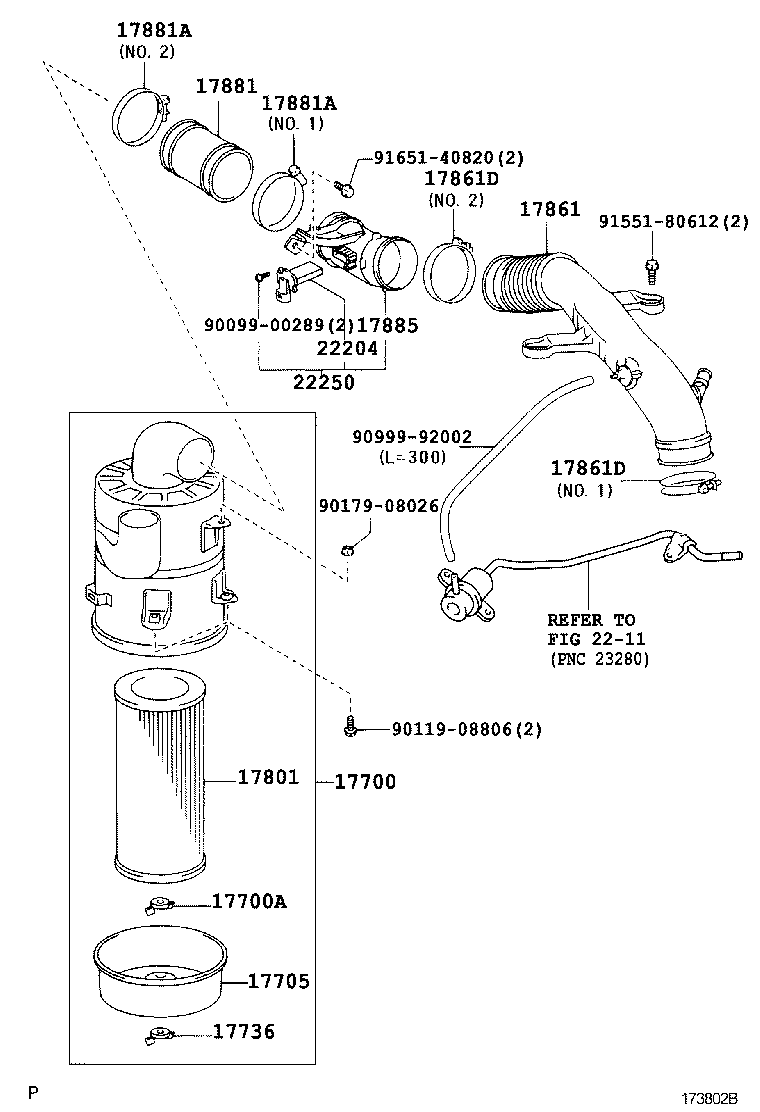

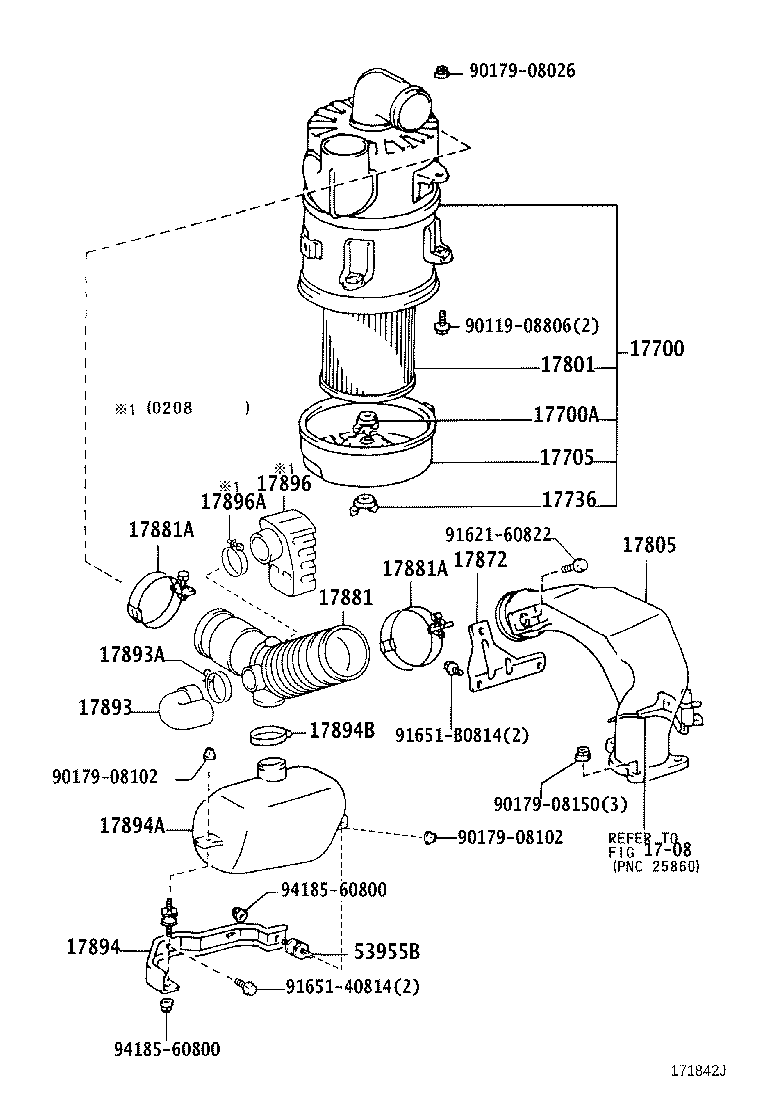

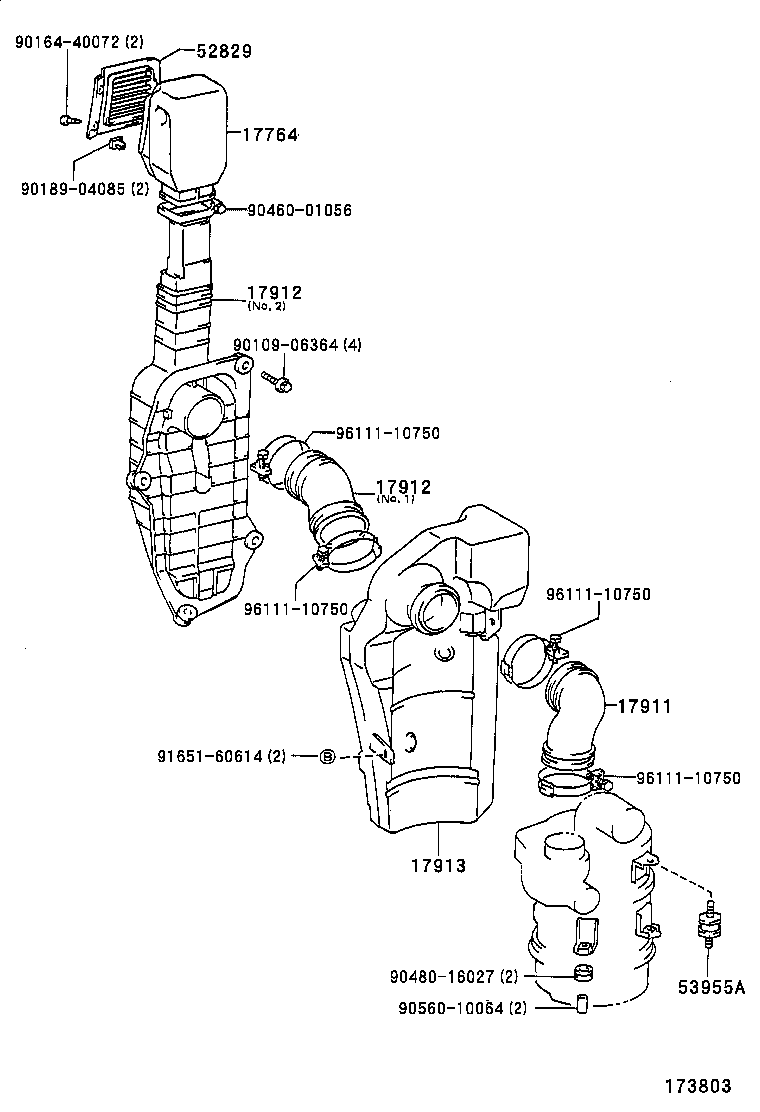

Figure 172480B 172480B 1993-08 → — Figure 172127C 172127C 1999-07 → — Figure 171541A 171541A 1989-08 → 1993-08 Figure 171542A 171542A 1989-08 → 1990-10 Figure 171543A 171543A 1990-10 → 1993-08 Figure 171544E 171544E 1989-08 → 1998-08 Figure 171842J 171842J 1998-08 → — Figure 171751 171751 1989-08 → 1998-08 Figure 171843D 171843D 1998-08 → — Figure 174275A 174275A 1989-08 → 1993-08 Figure 178259 178259 1989-08 → 1989-10 Figure 178259 178259 1989-08 → 1995-08 Figure 174378A 174378A 1989-10 → — Figure 174379 174379 1995-08 → — Figure 171751A 171751A 1989-08 → — Figure 173802B 173802B 2003-08 → — Figure 173803 173803 2003-08 → —

Part groups

PNCDescription
17302B Hose Sub-assy, Air
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17343D Hose, Air, NO.3
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17736 Nut, Air Cleaner Case
17764 Duct, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805A Gasket & Washer, Seal
17805C Pipe Sub-assy, Air Cleaner, NO.1
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805E Collar(FOR INTAKE AIR CONNECTOR)
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17848 Gasket, Air Cleaner TO Carburetor
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17862 Connector, Intake Air, NO.2
17872 Bracket, Intake Air Connector
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17884 Hose, Air Cleaner, NO.4
17885 Pipe, Air Cleaner
17885A Hose, Air Cleaner, NO.5
17893 Resonator, Intake Air
17893A Clamp, Hose
17894 Bracket, Resonator
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17896 Resonator, Intake Air, NO.3
17896A Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.3)
17911 Duct, Cool Air Intake, NO.1
17912 Duct, Cool Air Intake, NO.2
17913 Duct, Cool Air Intake, NO.3
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
22250 Meter Assy, Intake Air Flow
52816 Duct, Cool Air Intake, NO.6
52825 Resonator Assy, Cool Air Intake
52829 Grille, Cool Air Intake
52840 Resonator Assy, Cool Air Intake
53955A Cushion, Air Cleaner Inlet NO.1
53955B Cushion, Air Cleaner Inlet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
