Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

14 part groups · 4 illustrations

Illustrations

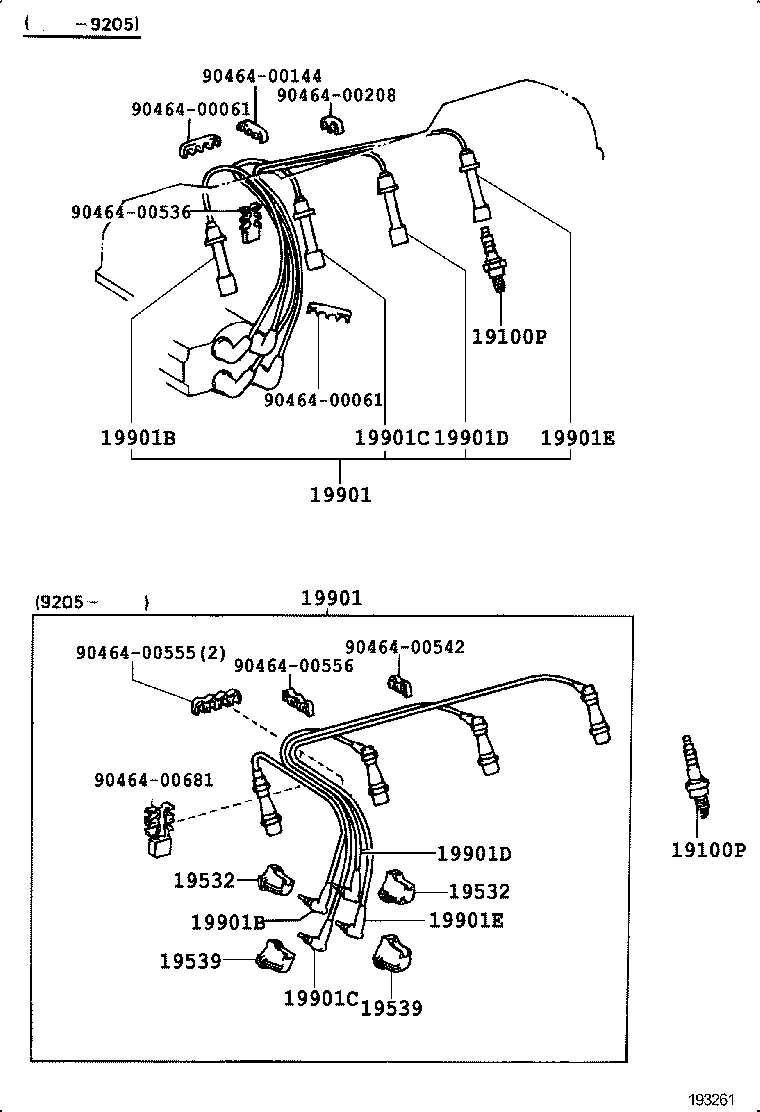

Figure MAG478 MAG478 1993-08 → — Figure 191287 191287 1989-08 → — Figure 193261 193261 1989-08 → — Figure 191938 191938 2003-08 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19856 Nut, Connecting(FOR GLOW PLUG)
19856A Grommet, Screw(FOR, GLOW PLUG CONNECTOR)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
