Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

22 part groups · 18 illustrations

Illustrations

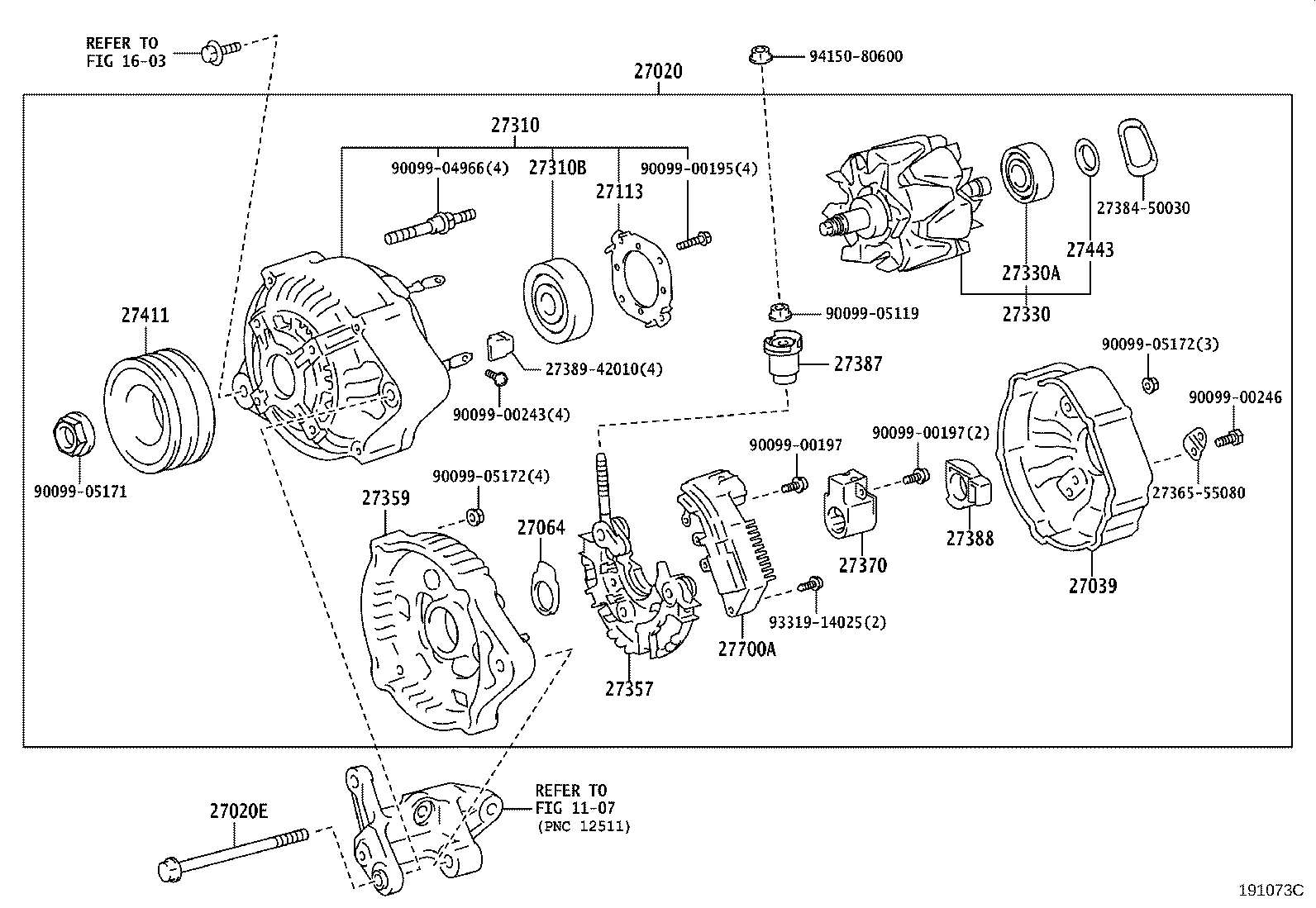

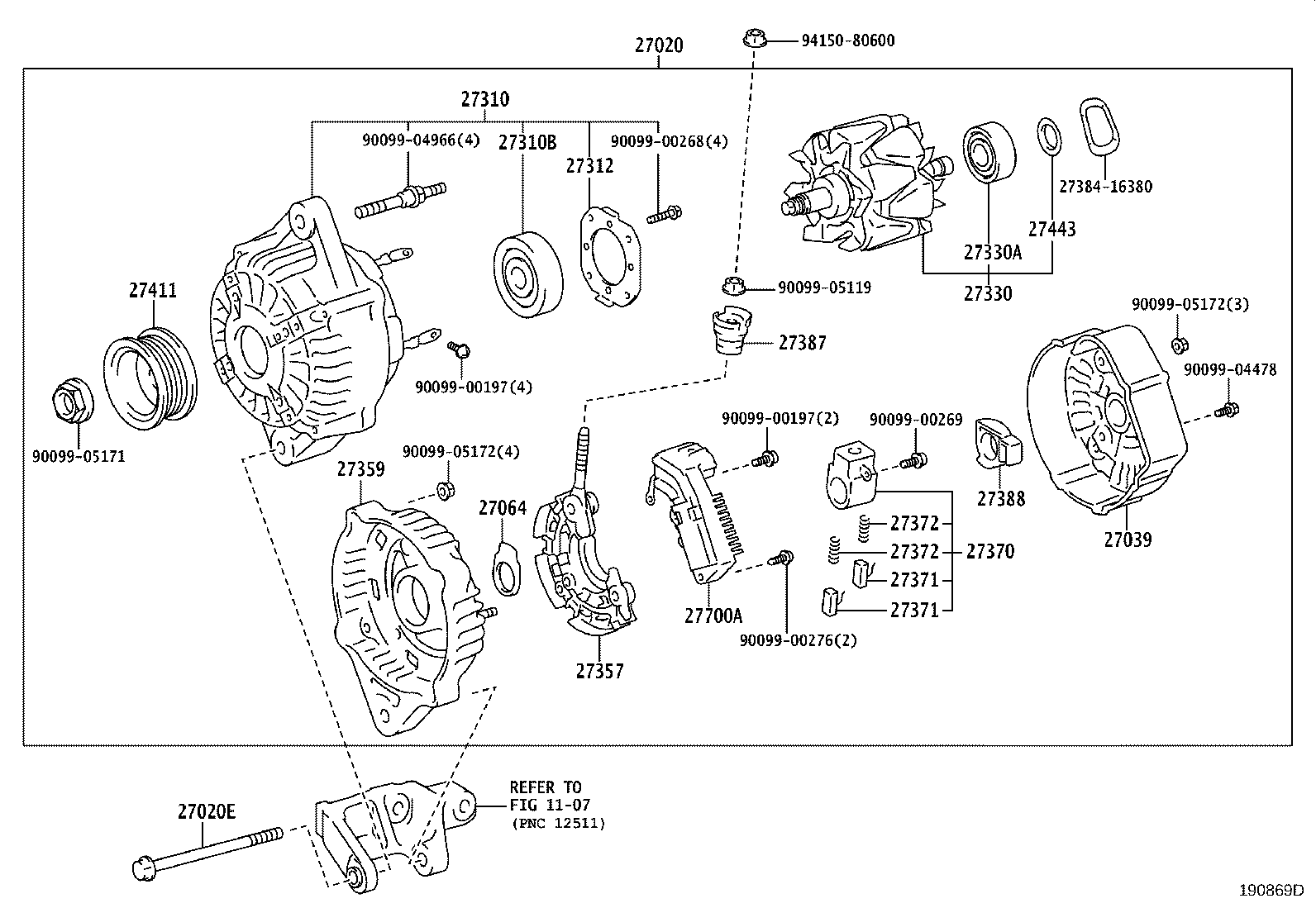

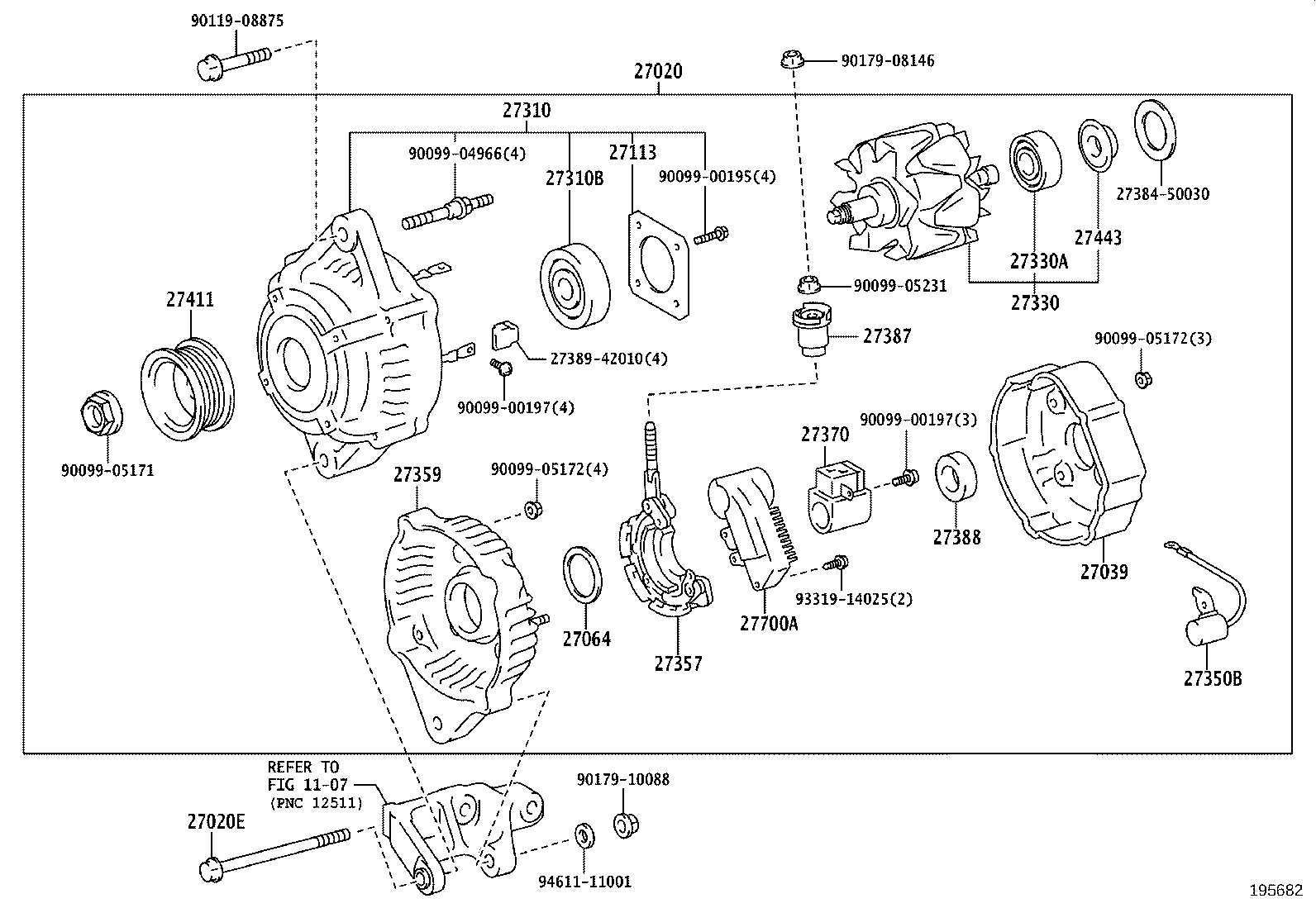

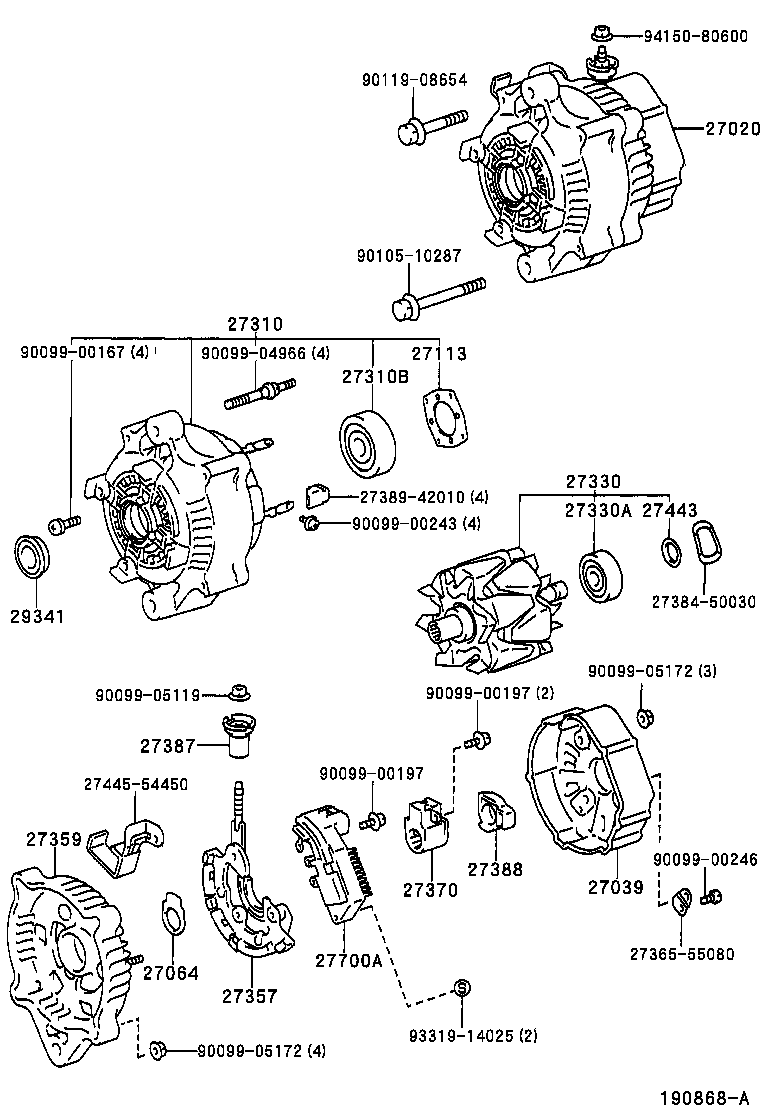

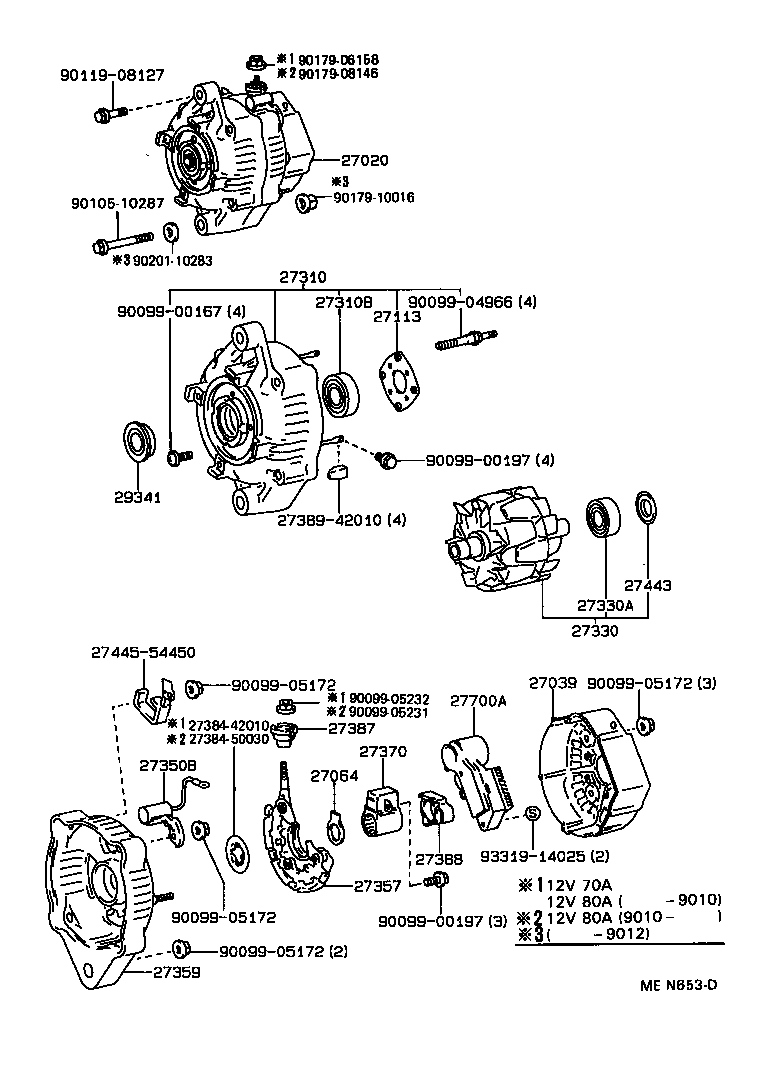

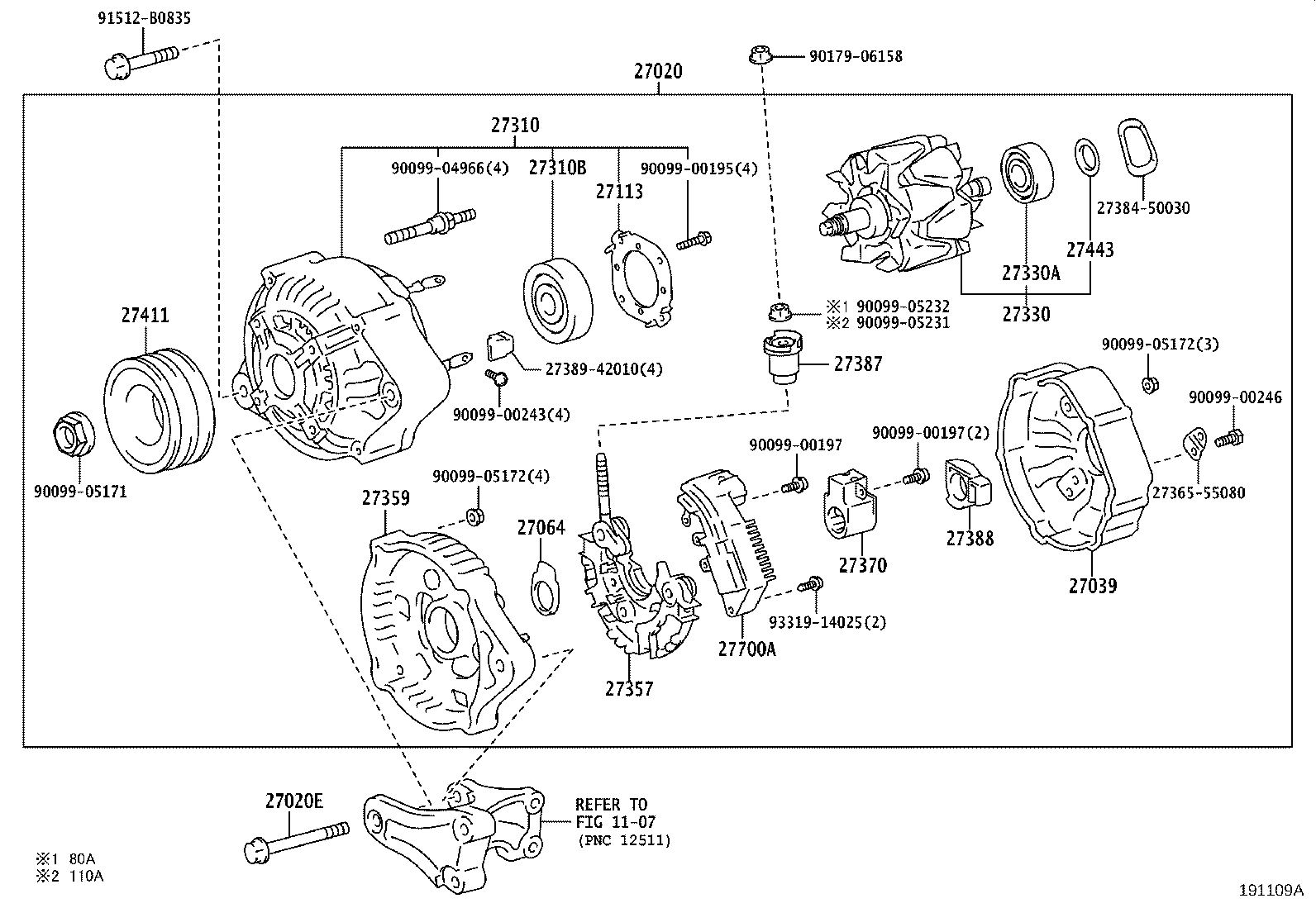

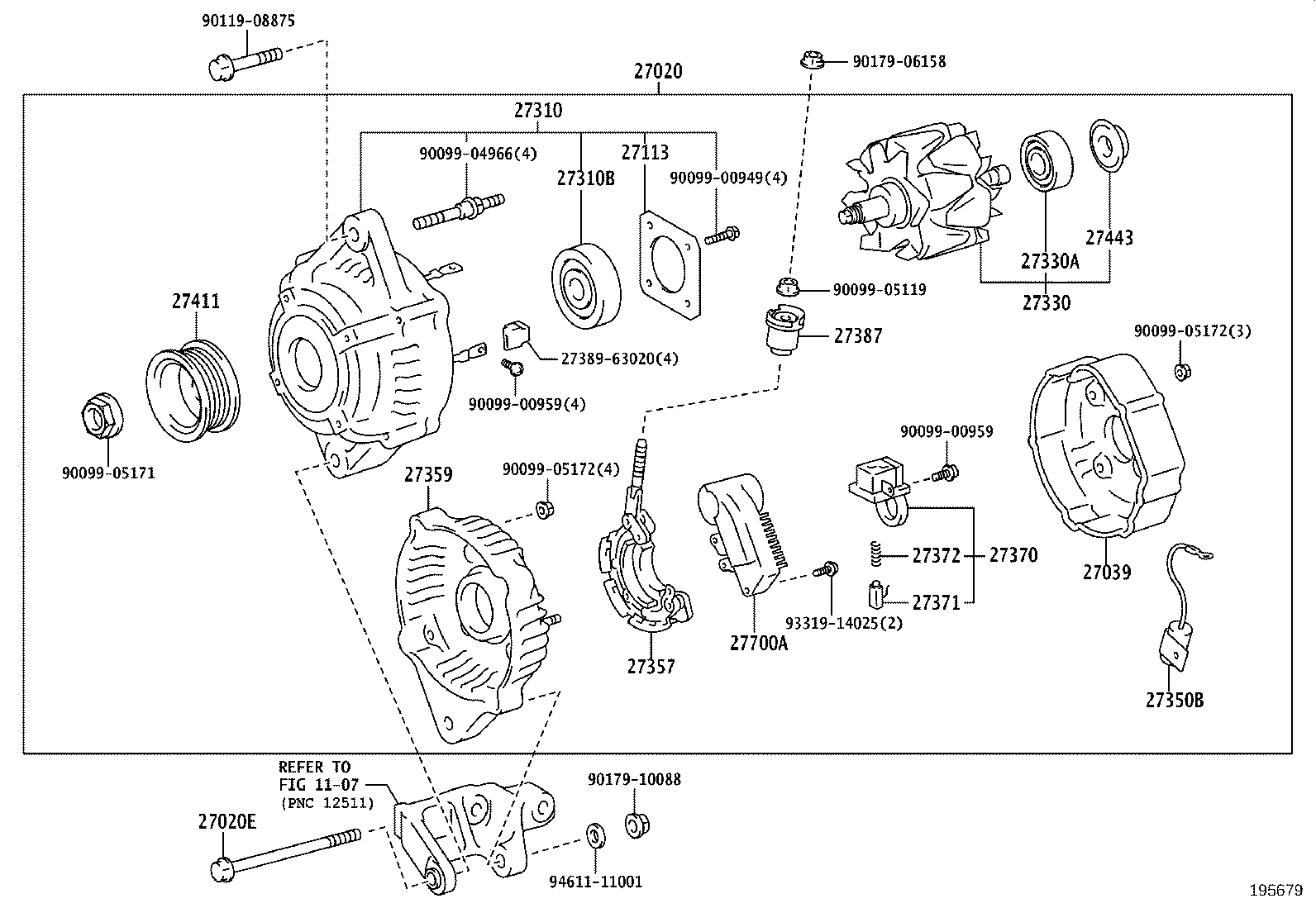

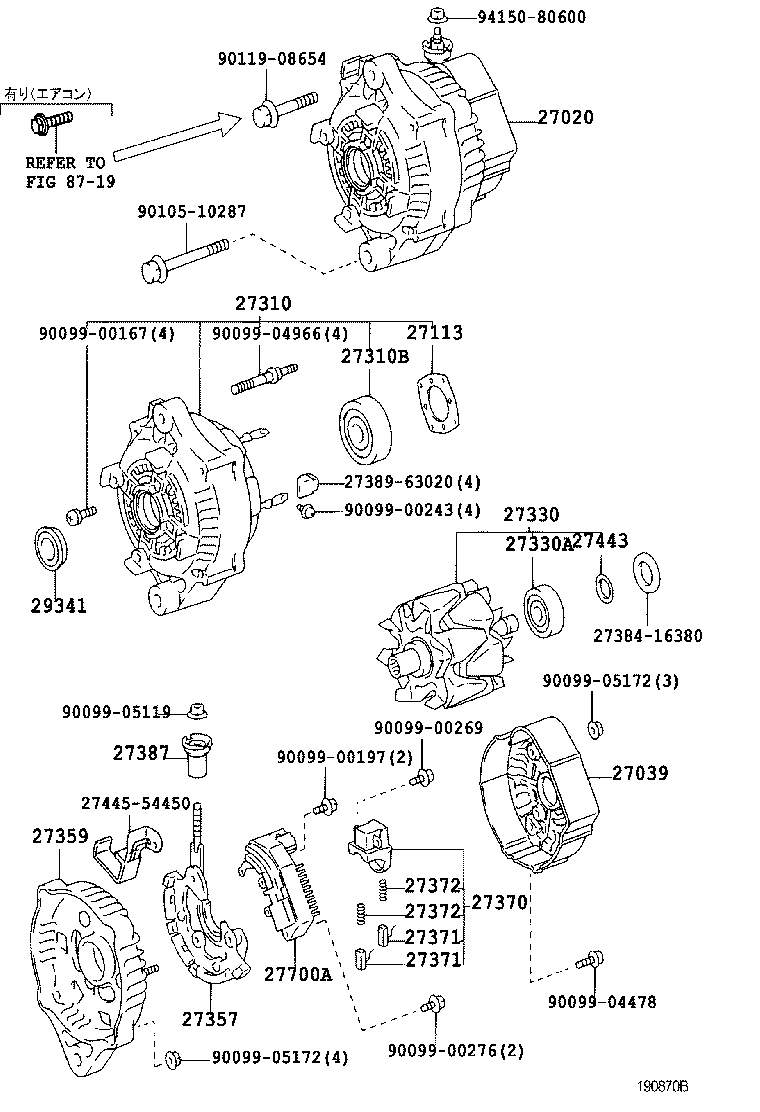

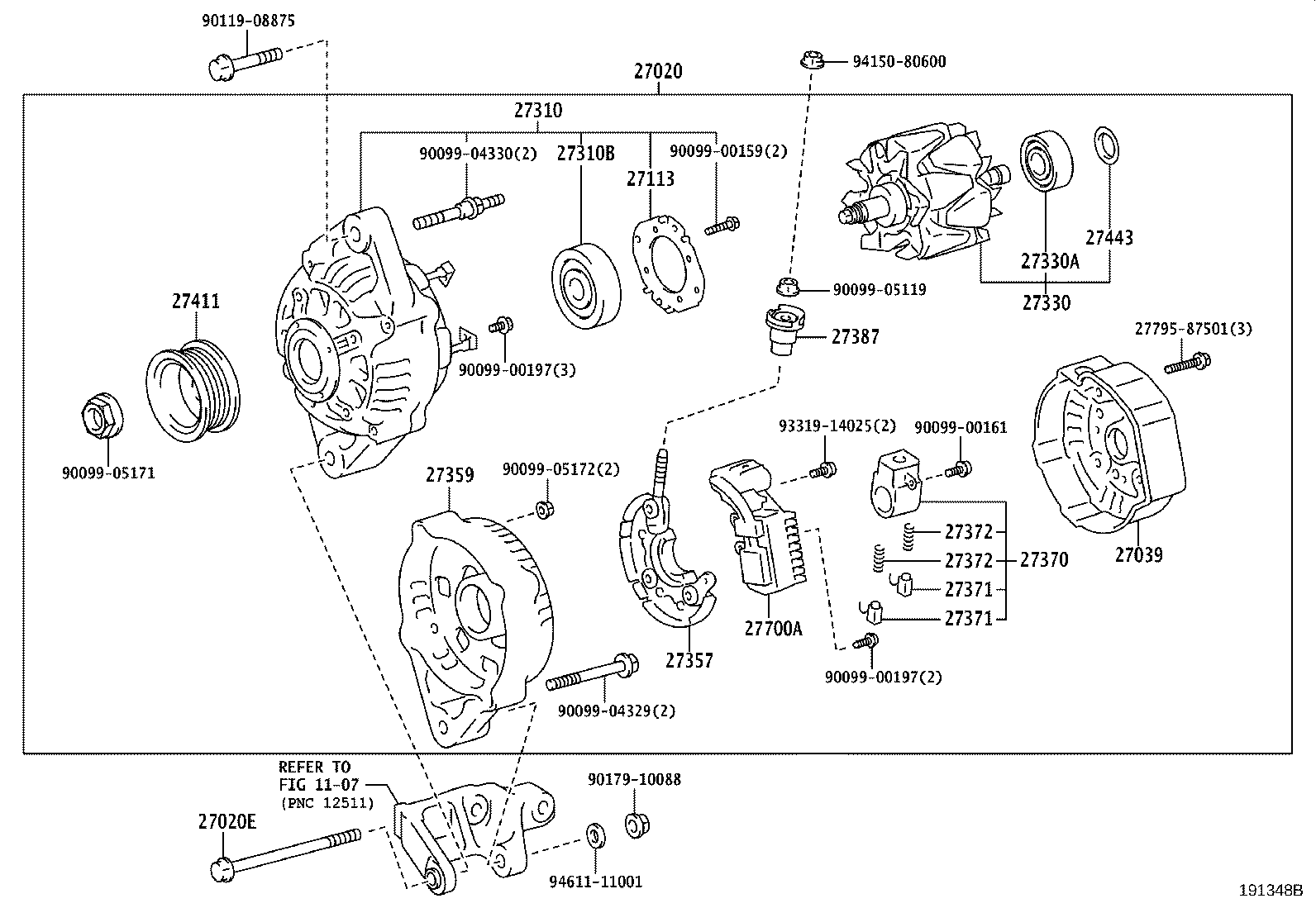

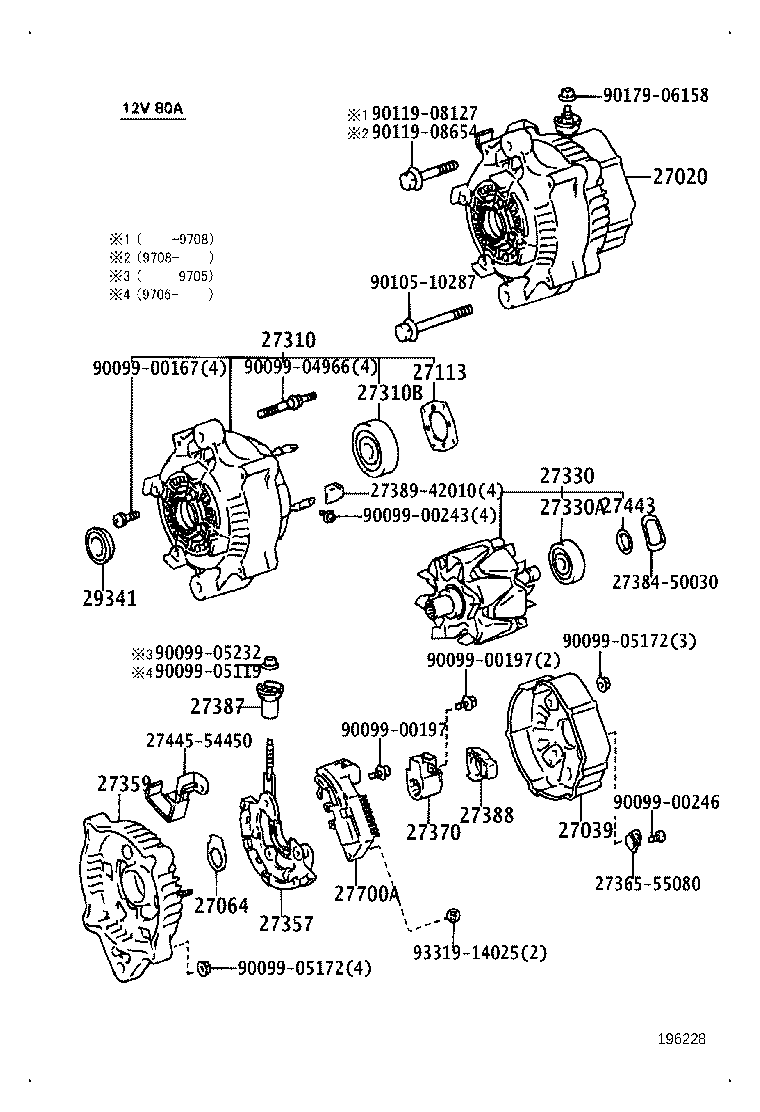

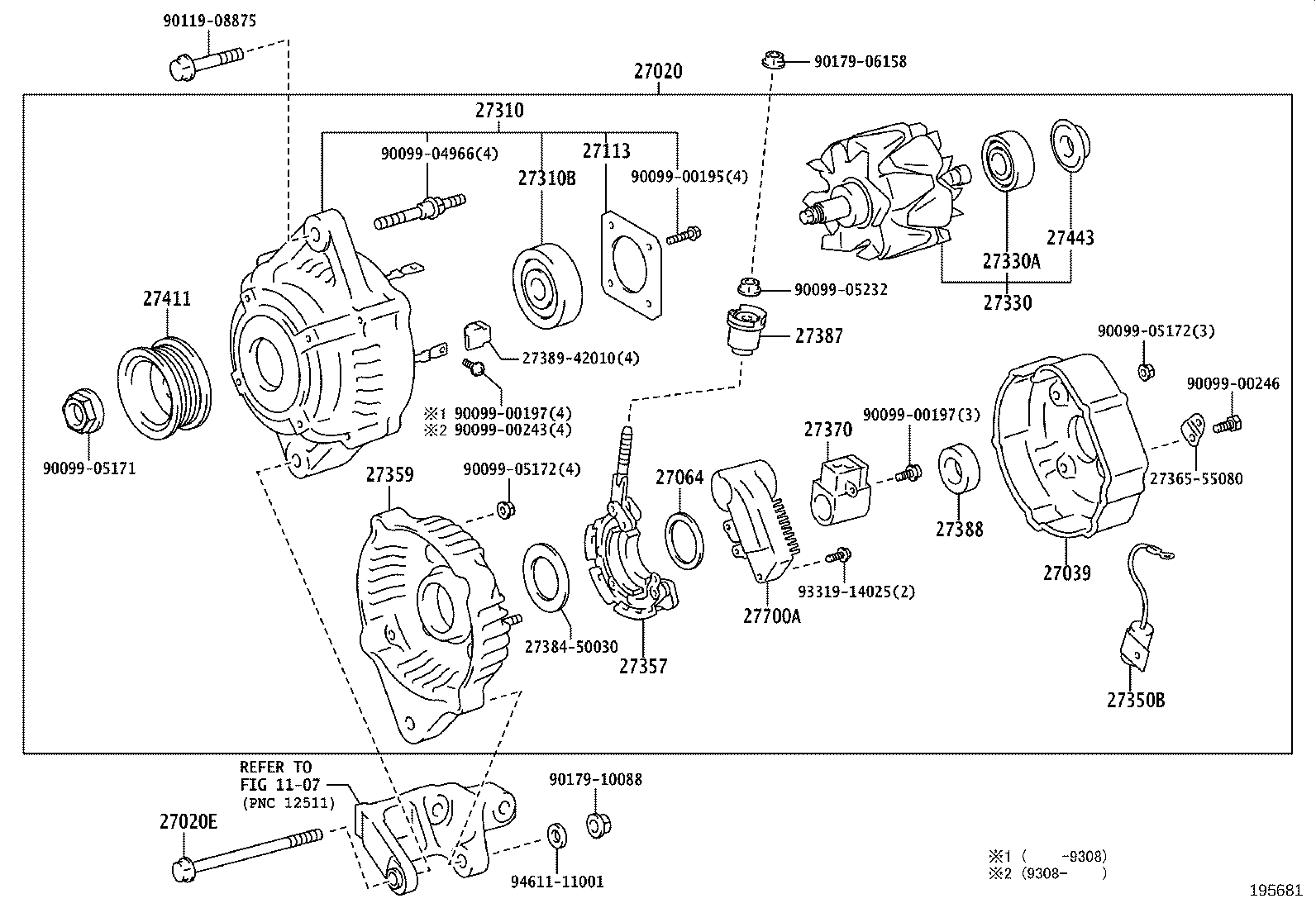

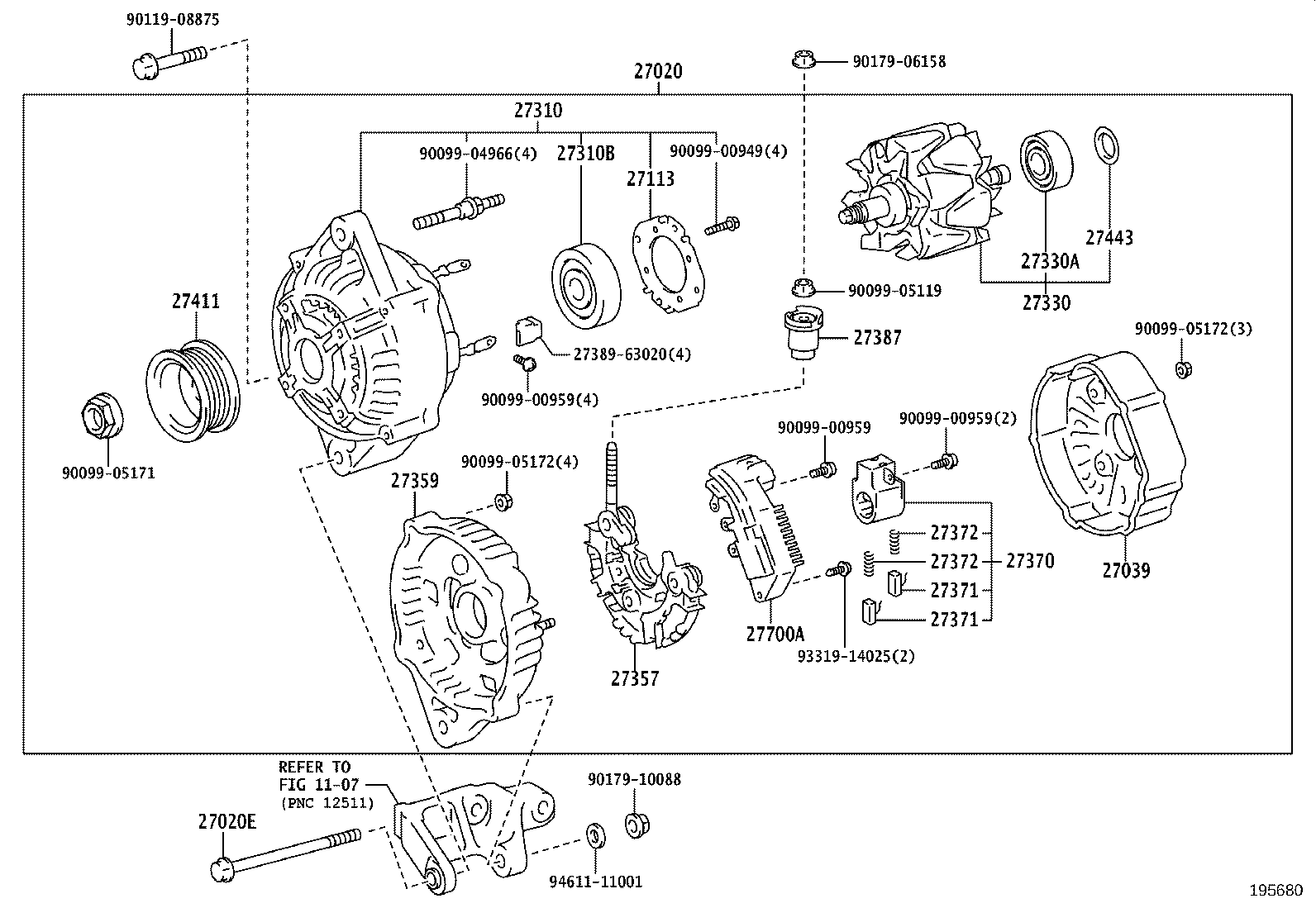

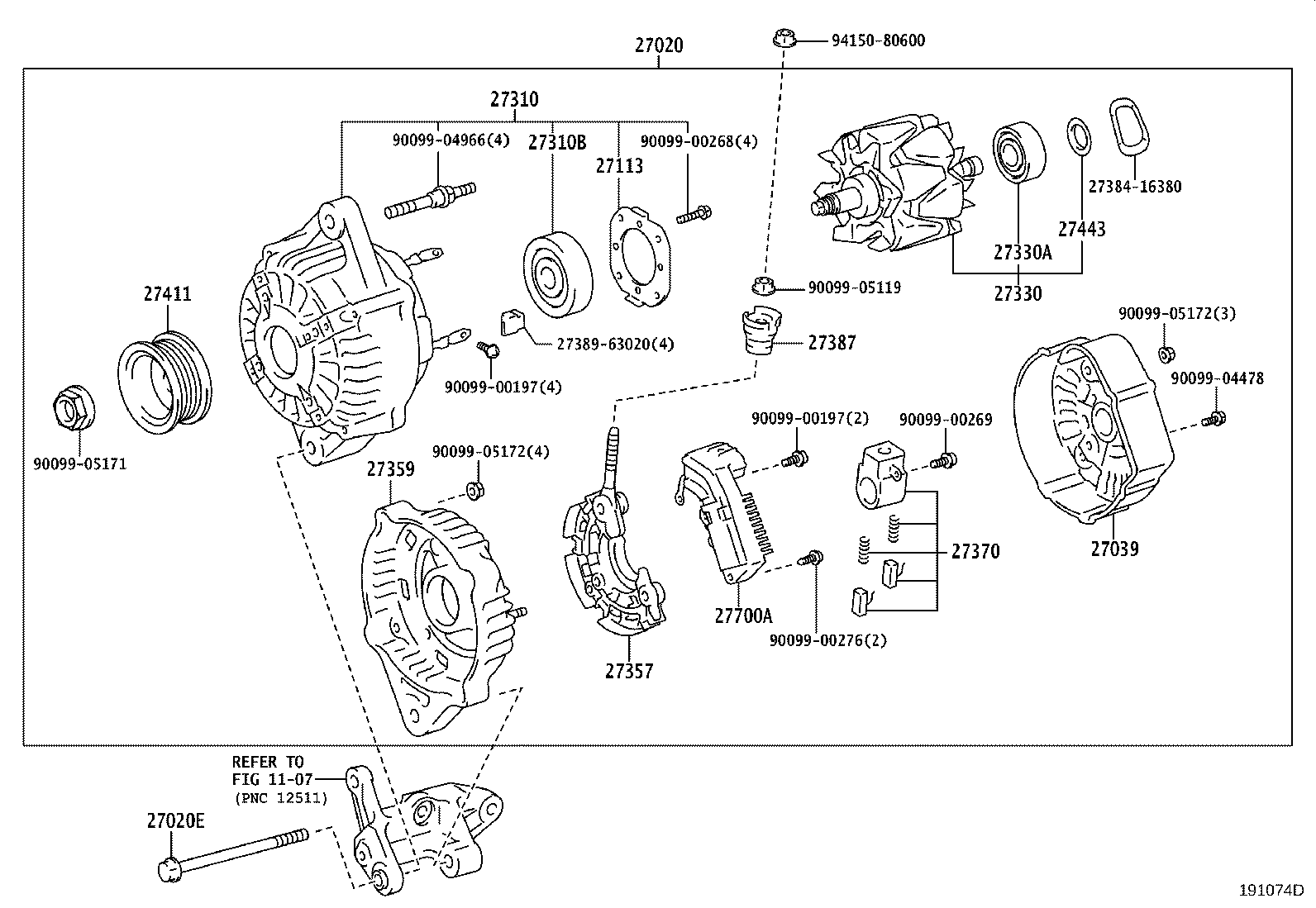

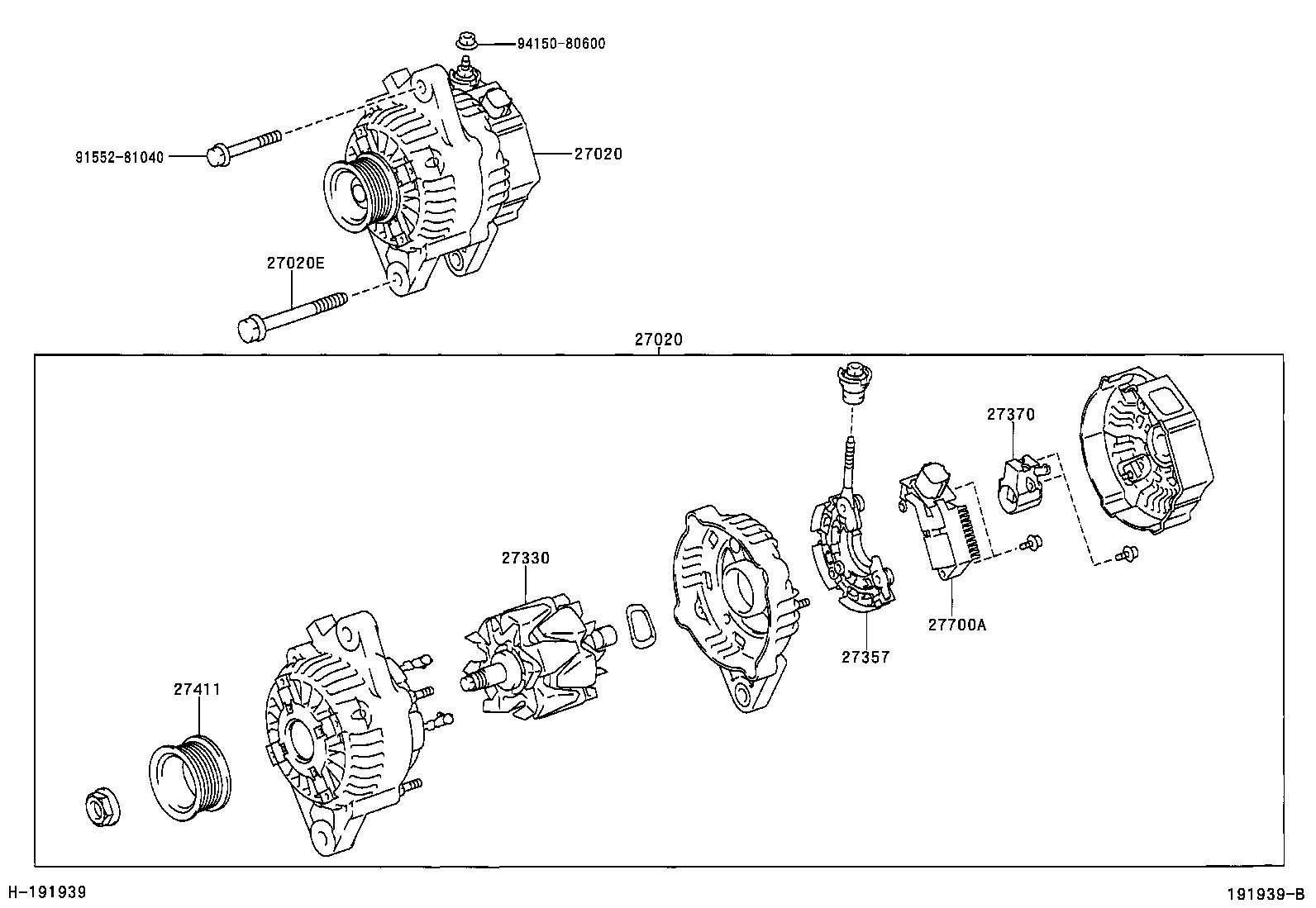

Figure MEN652C MEN652C 1989-08 → 1993-08 Figure 190870B 190870B 1993-08 → — Figure MEN653D MEN653D 1989-08 → 1993-08 Figure 196228 196228 1989-08 → — Figure 196228 196228 1989-08 → — Figure 195679 195679 1989-08 → 1993-08 Figure 191348B 191348B 1993-08 → — Figure 195680 195680 1993-08 → — Figure 195681 195681 1989-08 → 1993-08 Figure 195681 195681 1993-08 → 1999-07 Figure 195682 195682 1990-01 → 1993-08 Figure 191109A 191109A 1993-08 → 1999-07 Figure 190868A 190868A 1998-08 → — Figure 190869D 190869D 1998-08 → — Figure 191073C 191073C 1999-07 → — Figure 191073C 191073C 2000-12 → — Figure 191074D 191074D 1999-07 → — Figure 191939B 191939B 2003-08 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27064 Seal, Alternator Plate
27113 Plate, Bearing Retainer, Alternator
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27350B Condenser, Alternator
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27387 Insulator, Terminal
27388 Cover, Alternator Brush
27411 Pulley, Alternator
27443 Cover, Alternator Bearing
27700A Regulator Assy, Generator
29341 Seal, Alternator Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
