Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07

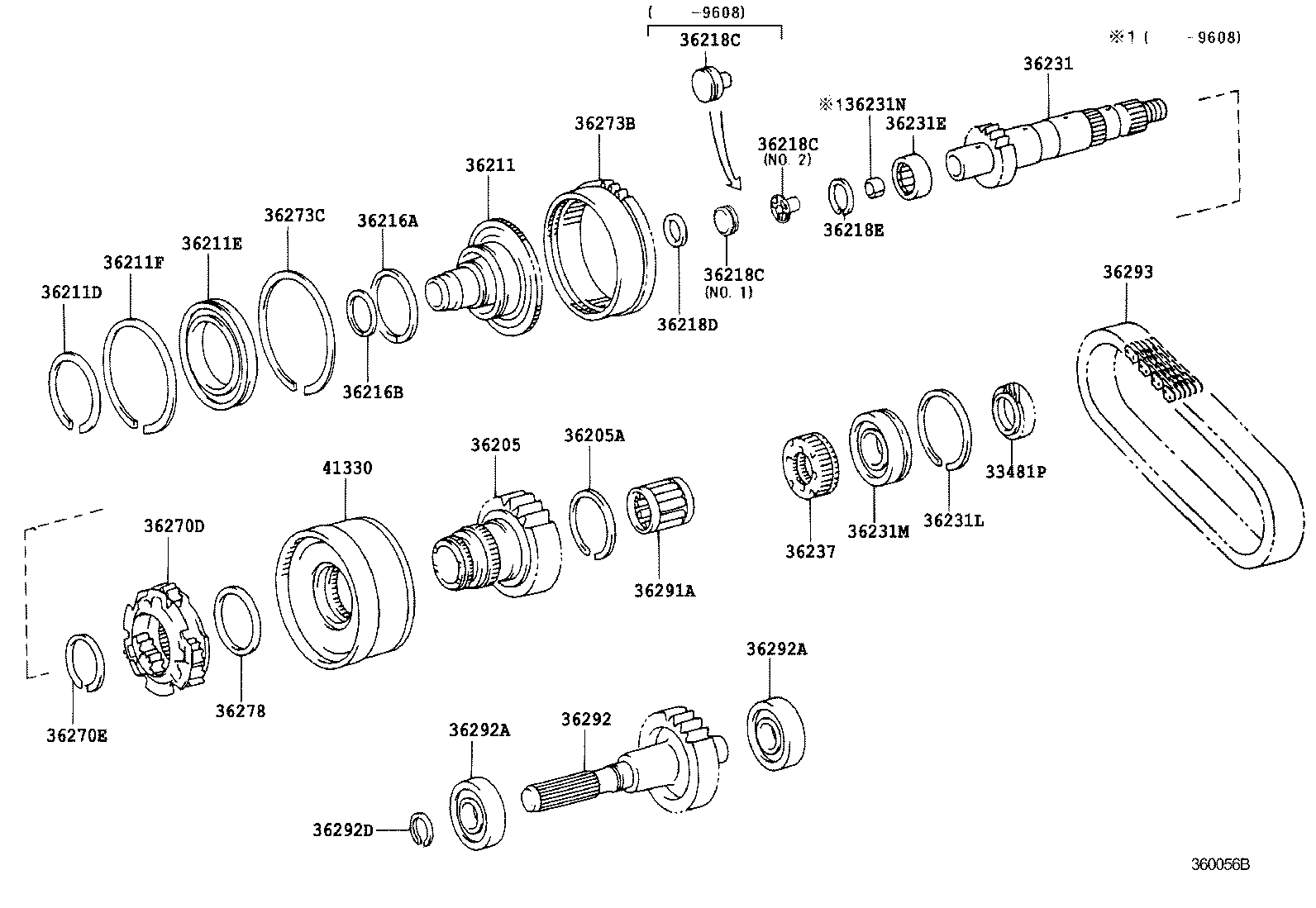

Transfer Gear
62 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33358B | Key, Synchromesh Shifting (FOR TRANSFER FR DRIVE CLUTCH) |
| 33368B | Ring, Synchronizer (FOR TRANSFER FRONT DRIVE CLUTCH) |
| 33371B | Spring, Synchromesh Shifting Key (FOR TRANSFER) |
| 33385B | Retainer, Shifting Key (FOR TRANSFER FRONT DRIVE CLUTCH) |
| 33481P | Gear, Speedometer Drive (FOR TRANSFER) |
| 36205 | Sprocket Sub-assy, Transfer Drive |
| 36205A | Ring, Shaft Snap |
| 36206 | Sleeve Sub-assy, Trnsfr FR Drive Clutch |
| 36210 | Shaft Assy, Transfer Input |
| 36210A | Bearing (FOR TRANSFER INPUT SHAFT) |
| 36210B | Bearing, Thrust (FOR TRANSFER INPUT SHAFT) |
| 36211 | Shaft, Transfer Input |
| 36211D | Ring, Hole Snap (FOR TRANSFER INPUT SHAFT) |
| 36211E | Bearing, Radial Ball (FOR TRANSFER INPUT SHAFT) |
| 36211F | Ring, Shaft Snap (FOR TRANSFER INPUT SHAFT) |
| 36216A | Ring, Transfer Input Shaft Seal, NO.1 |
| 36216B | Ring, Transfer Input Shaft Seal, NO.2 |
| 36218C | Plug, Transfer Input Shaft |
| 36218D | Ring, O (FOR TRANSFER INPUT SHAFT PLUG) |
| 36218E | Ring, Hole Snap (FOR TRANSFER INPUT SHAFT PLUG) |
| 36231 | Shaft, Transfer Output, Rear |
| 36231E | Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT) |
| 36231J | Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR) |
| 36231L | Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT REAR) |
| 36231M | Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT REAR) |
| 36231N | Pin, Slotted Spring (FOR TRANSFER OUTPUT SHAFT REAR) |
| 36231Q | Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT REAR BEARING) |
| 36231R | Ring, O (FOR TRANSFER OUTPUT SHAFT) |
| 36234 | Shaft, Transfer Output, Front |
| 36234A | Bearing (FOR TRANSFER OUTPUT FRONT SHAFT) |
| 36234B | Ring, Snap (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) |
| 36234C | Spacer (FOR TRANSFER OUTPUT FRONT SHAFT) |
| 36235 | Sleeve, Transfer High & Low Clutch |
| 36236 | Sleeve, Front Drive Clutch |
| 36237 | Hub, Transfer Clutch |
| 36255 | Spacer, Transfer Output Shaft, NO.1 |
| 36255A | Ball (FOR TRANSFER OUTPUT SHAFT SPACER) |
| 36270 | Gear Assy, Transfer Low Planetary |
| 36270A | Bearing (FOR TRANSFER LOW PLANETARY GEAR) |
| 36270B | Ring, Shaft Snap (FOR TRANSFER LOW PLANETARY GEAR) |
| 36270C | Ring, Shaft Snap(FOR TRANSFER LOW PLANETARY GEAR BEARING) |
| 36270D | Gear Assy, Manual Transfer Planetary |
| 36270E | Ring, Shaft Snap (FOR MANUAL TRANSFER PLANETARY GEAR) |
| 36271 | Gear, Transfer Low Planetary Sun |
| 36271A | Ring, Shaft Snap (FOR TRANSFER LOW PLANETARY SUN GEAR) |
| 36273 | Gear, Transfer Low Planetary Ring |
| 36273A | Ring, Hole Snap (FOR TRANSFER LOW PLANETARY RING GEAR) |
| 36273B | Gear, Manual Transfer Planetary Ring |
| 36273C | Ring, Hole Snap (FOR MANUAL TRANSFER PLANETARY RING GEAR) |
| 36278 | Washer, Manual Transfer Planetary Carrier |
| 36284 | Piece, Transfer Low Planetary Gear Spline |
| 36284A | Ring, Hole Snap(FOR TRANSFER SPLINE PIECE) |
| 36288 | Race, Transfer Thrust Bearing, NO.1 |
| 36289 | Race, Transfer Thrust Bearing, NO.2 |
| 36291 | Sprocket, Transfer Drive |
| 36291A | Bearing (FOR TRANSFER DRIVE SPROCKET) |
| 36292 | Sprocket, Transfer Driven |
| 36292A | Bearing (FOR TRANSFER DRIVEN SPROCKET) |
| 36292B | Spacer (FOR TRANSFER DRIVEN SPROCKET) |
| 36292D | Ring Shaft Snap(FOR TRANSFER DRIVEN SPROCKET) |
| 36293 | Chain, Transfer Front Drive |
| 41330 | Coupling Assy, Center Differential Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
