Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

8 part groups · 8 illustrations

Illustrations

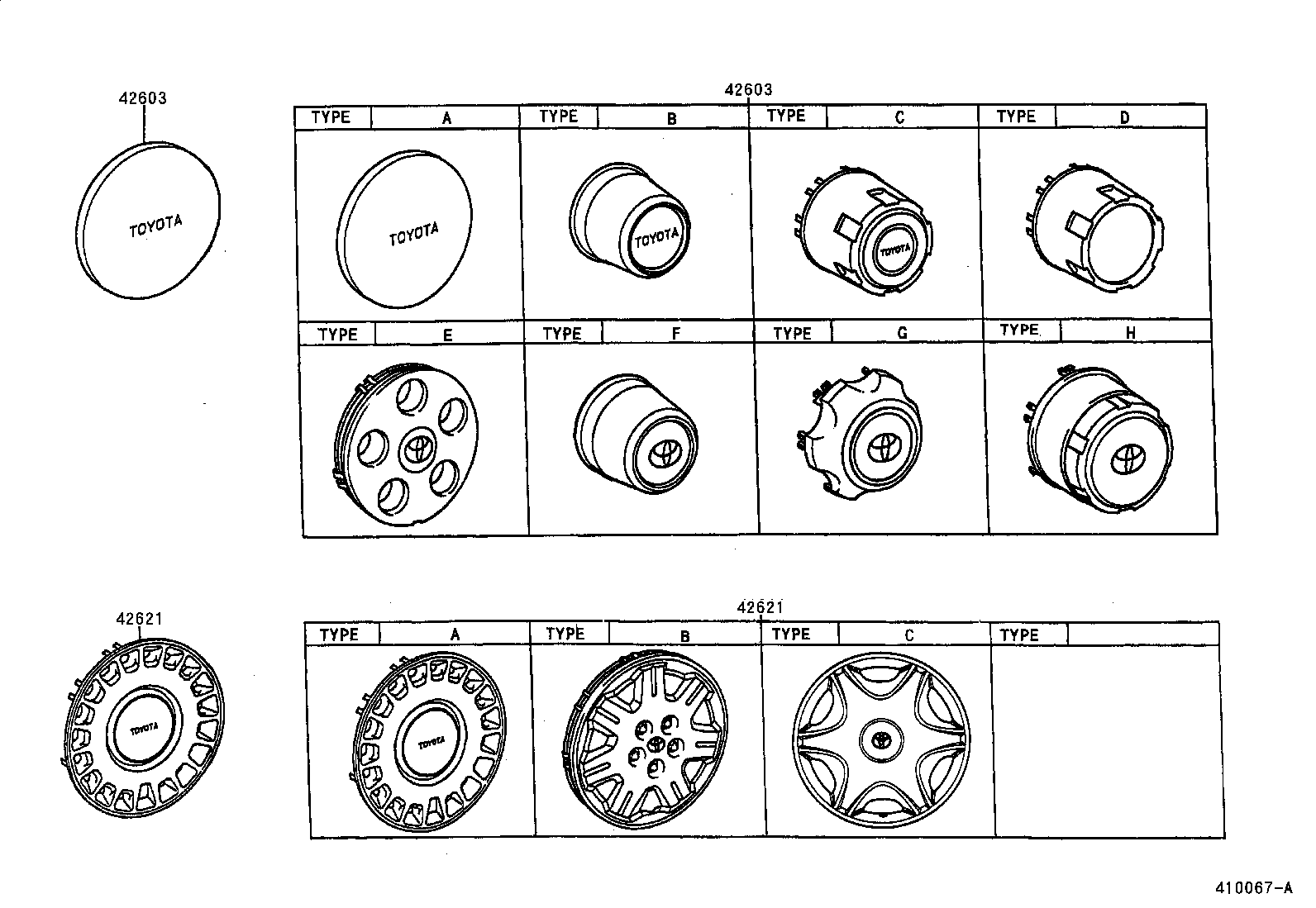

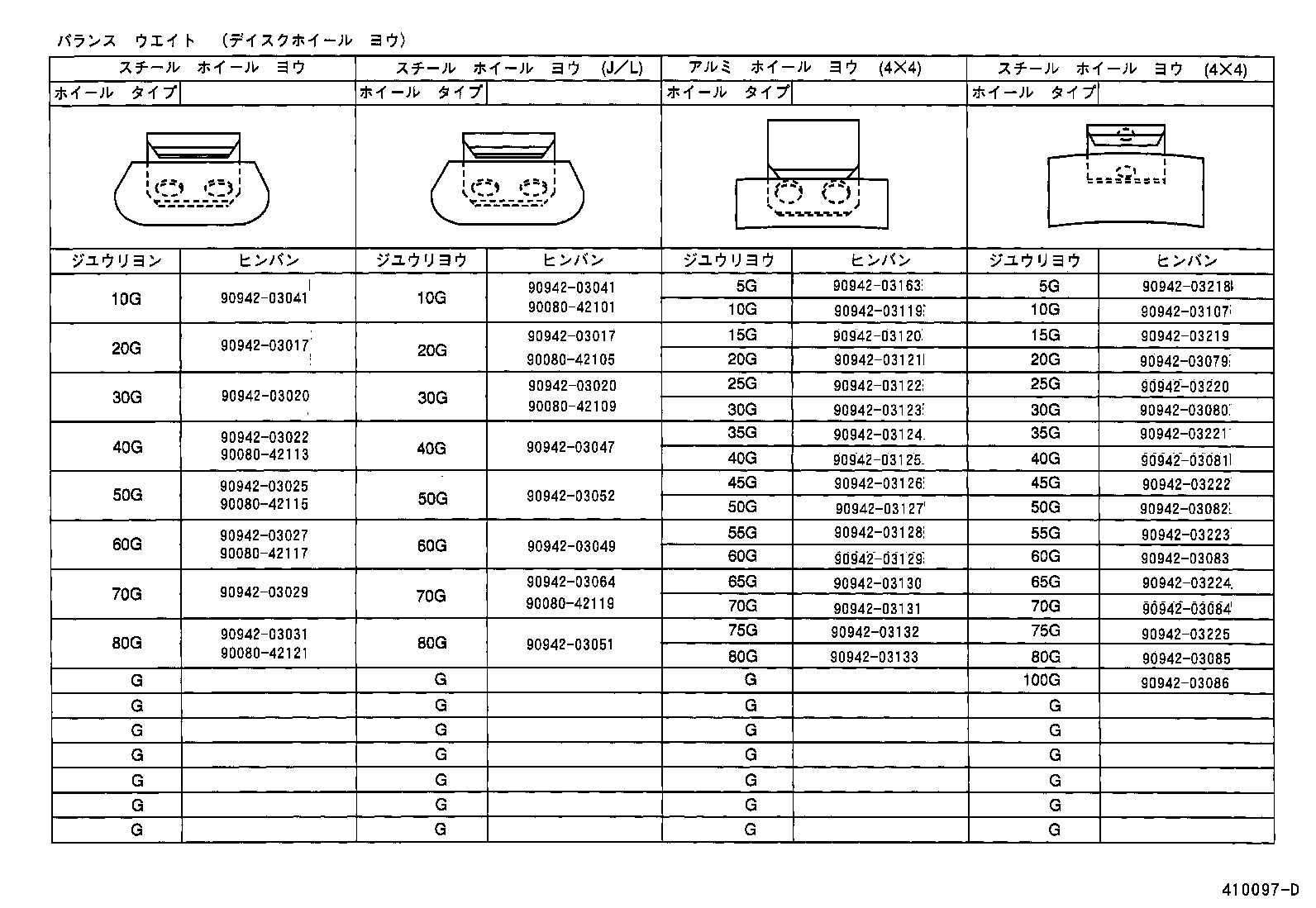

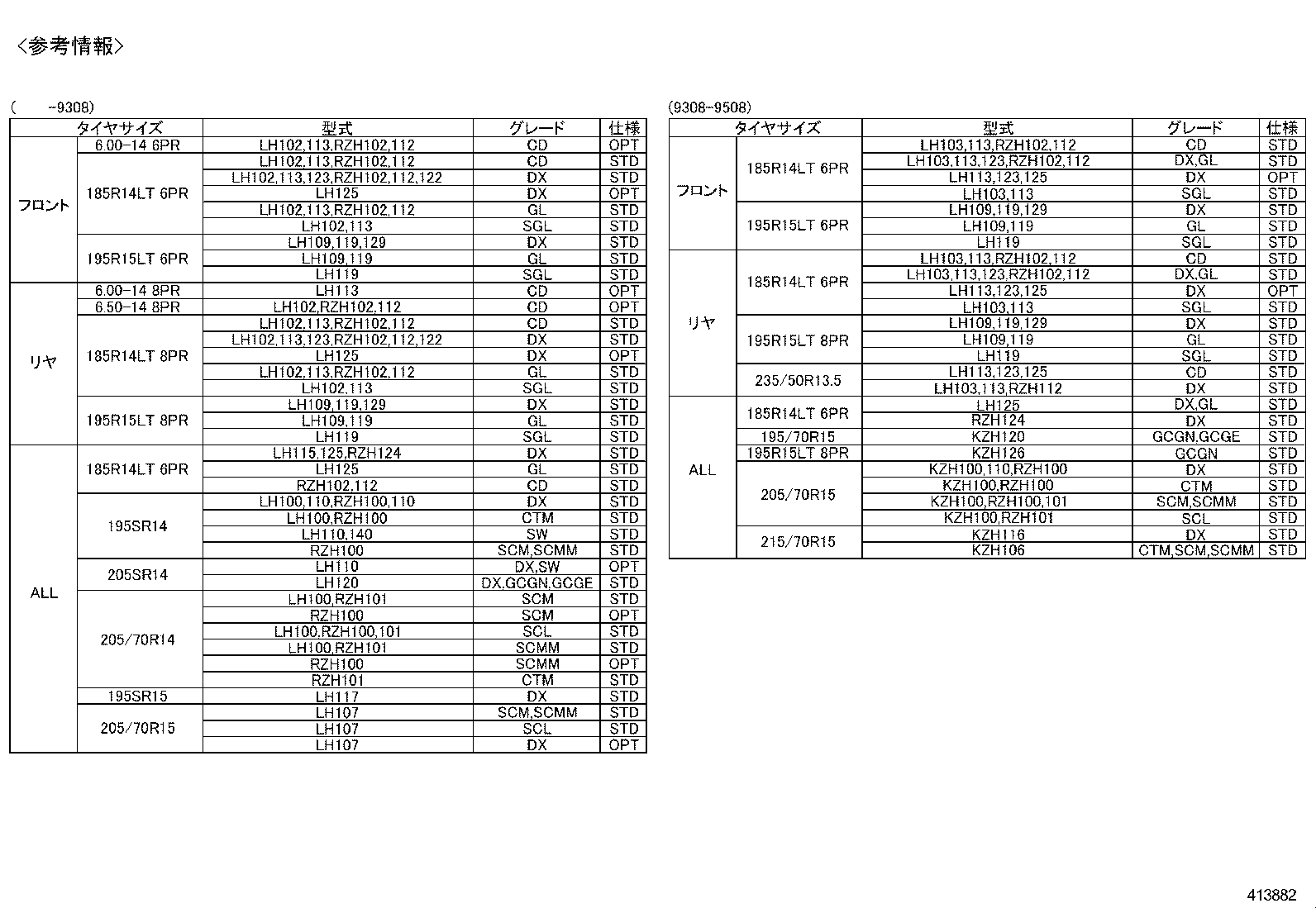

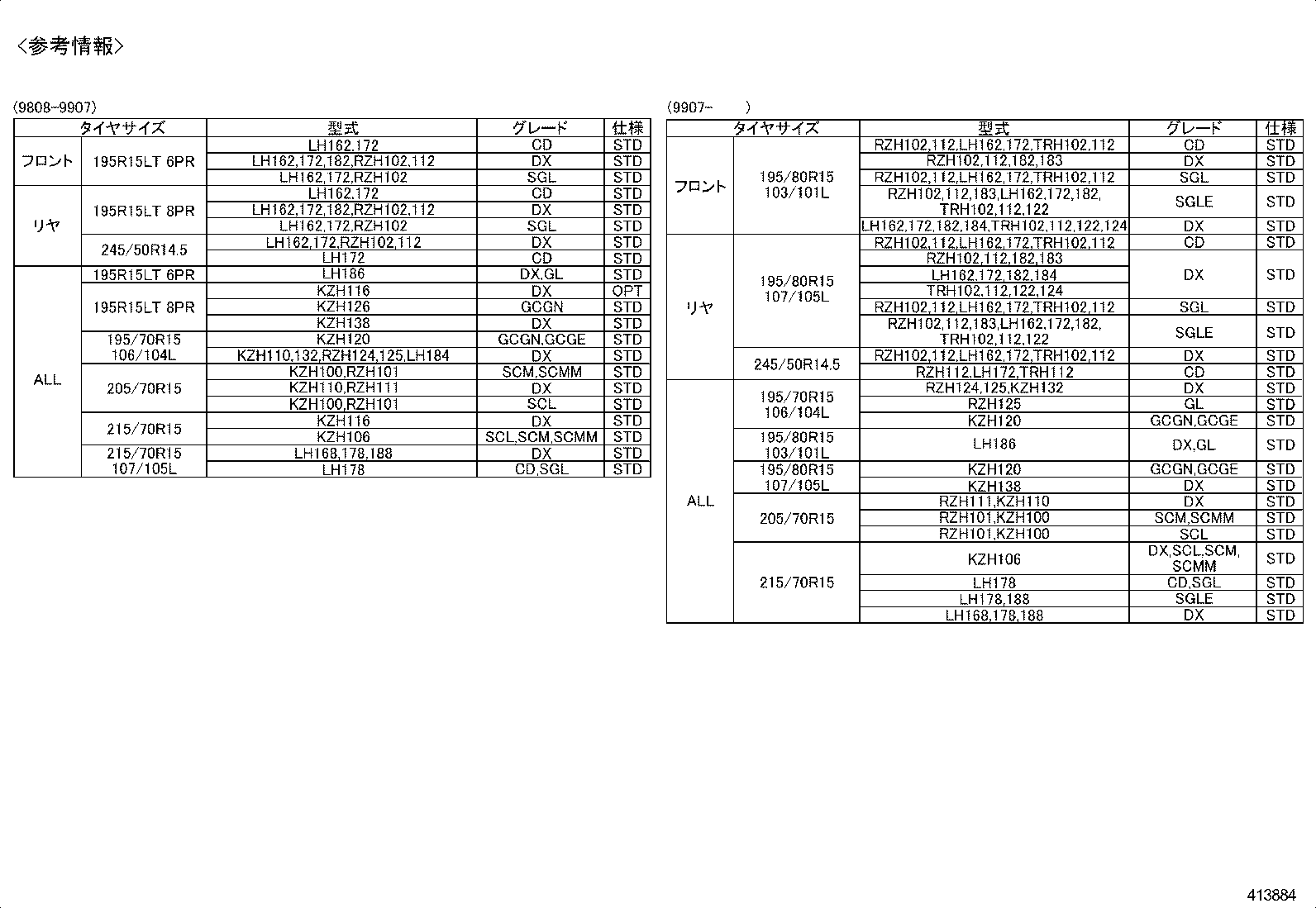

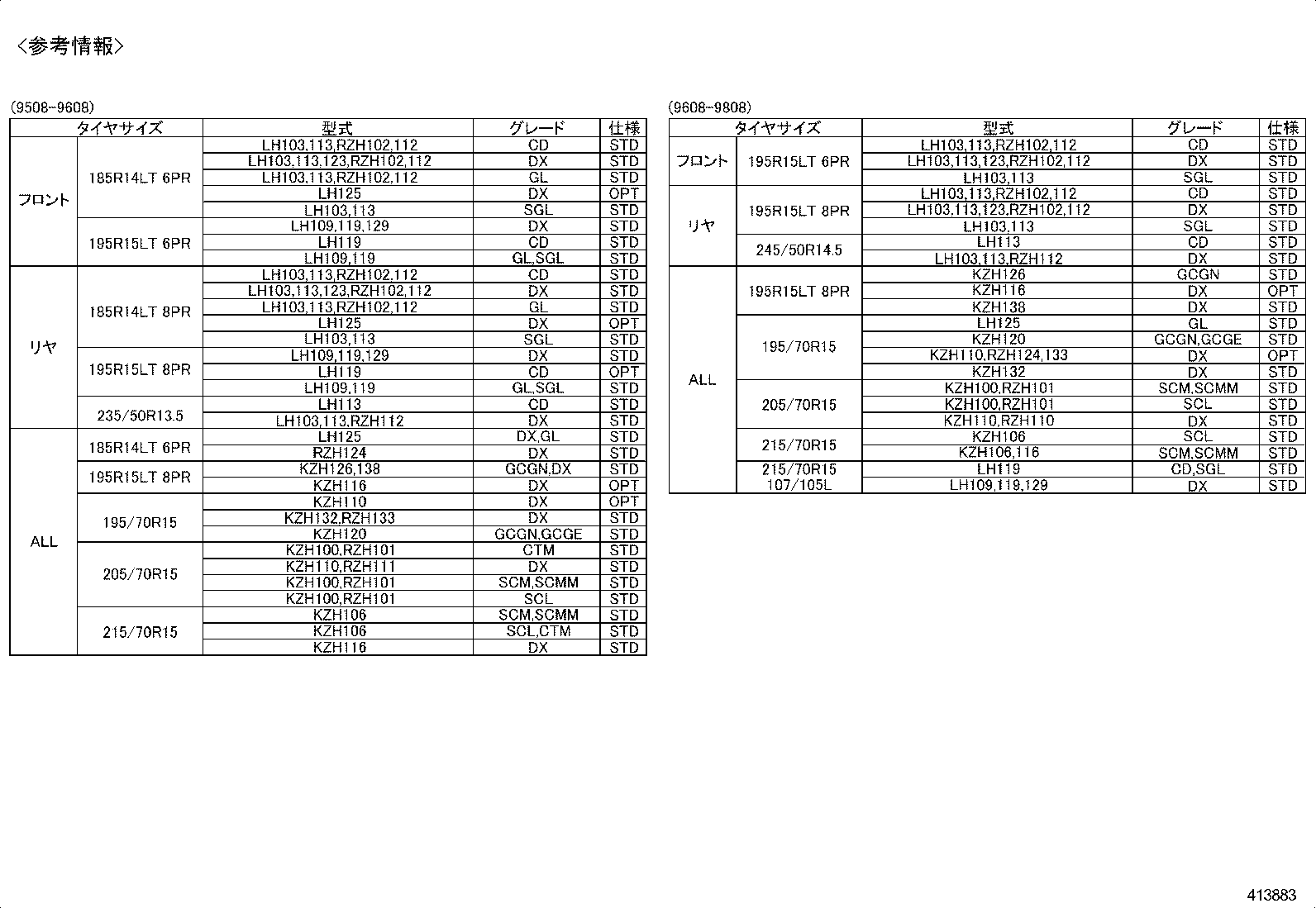

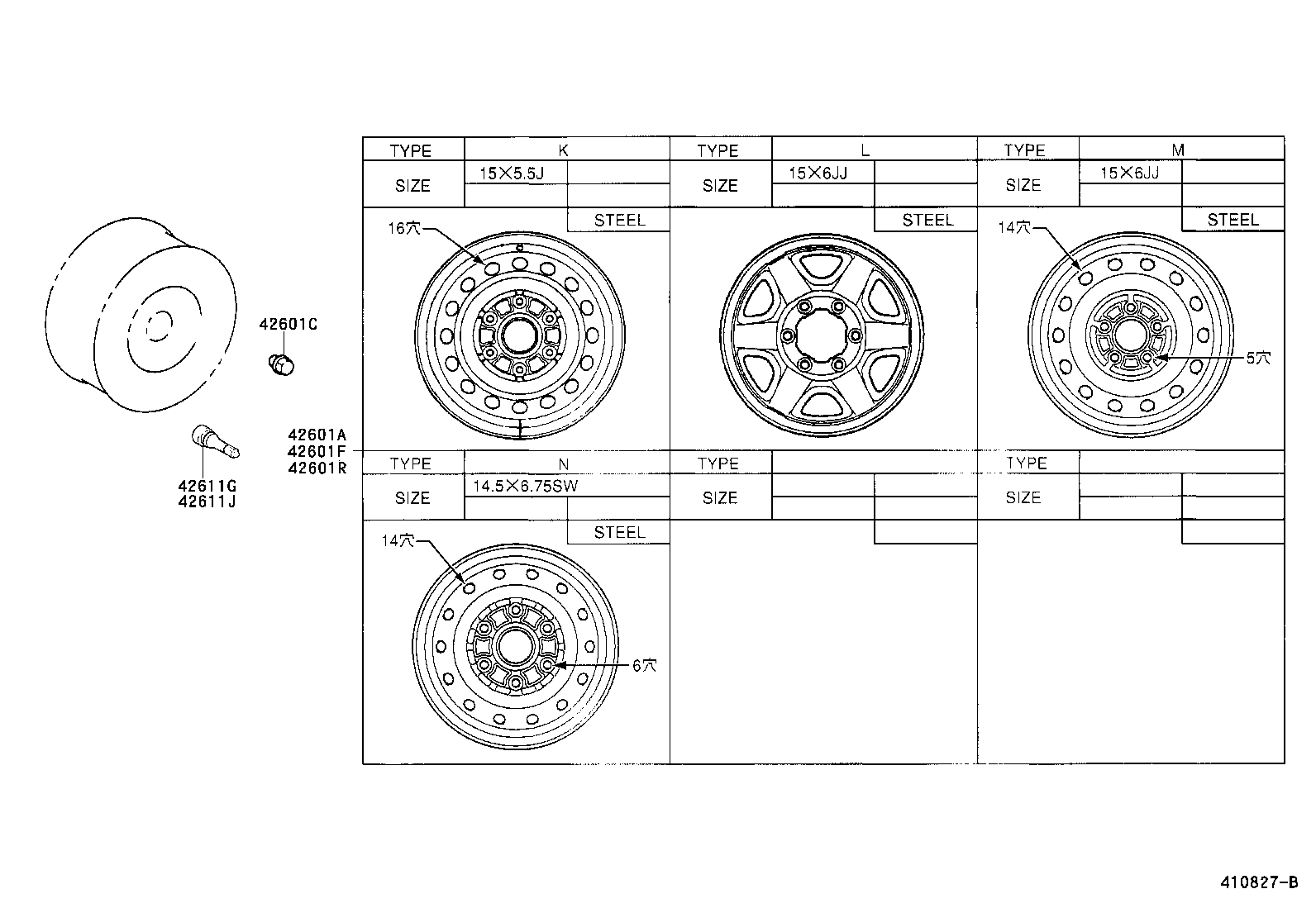

Figure 410066F 410066F 1989-08 → — Figure 410827B 410827B 1989-08 → — Figure 410067A 410067A 1989-08 → — Figure 410097D 410097D 1989-08 → — Figure 410098C 410098C 1989-08 → — Figure 413882 413882 1989-08 → 1995-08 Figure 413883 413883 1995-08 → 1998-08 Figure 413884 413884 1998-08 → —

Part groups

PNCDescription
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42601F Wheel, Disc (FOR FRONT)
42601R Wheel, Disc (FOR REAR)
42603 Ornament Sub-assy, Wheel Hub
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42621 Cap, Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
