Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

18 part groups · 12 illustrations

Illustrations

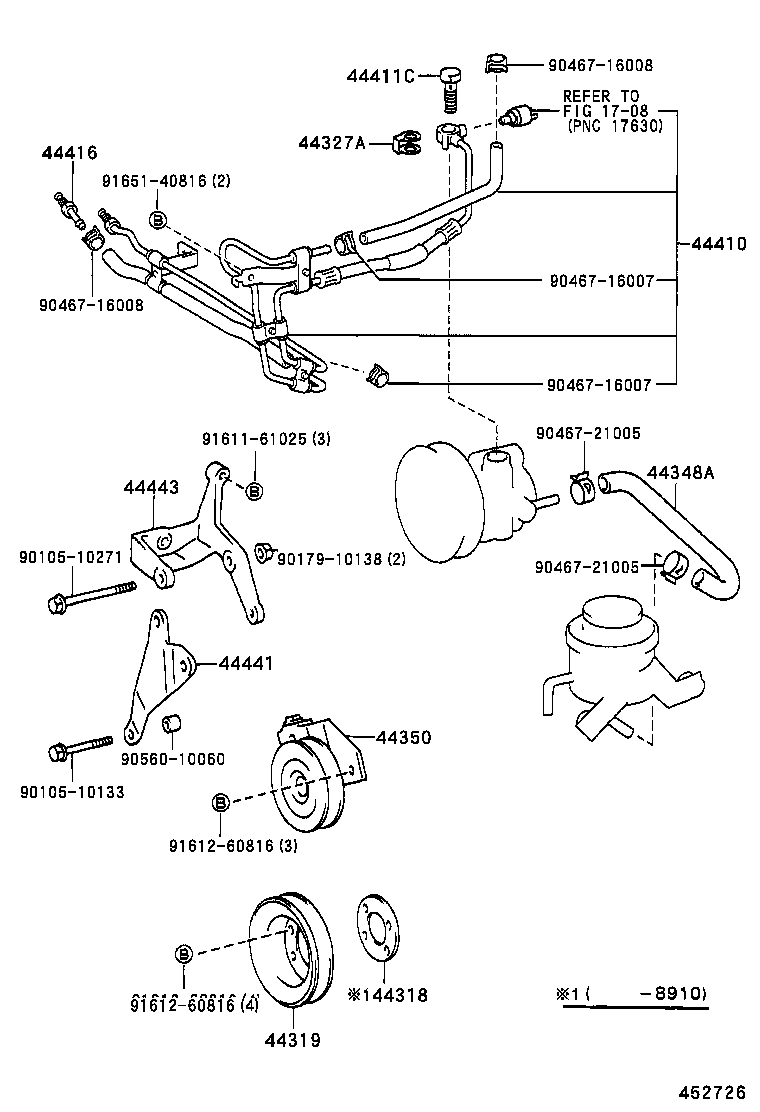

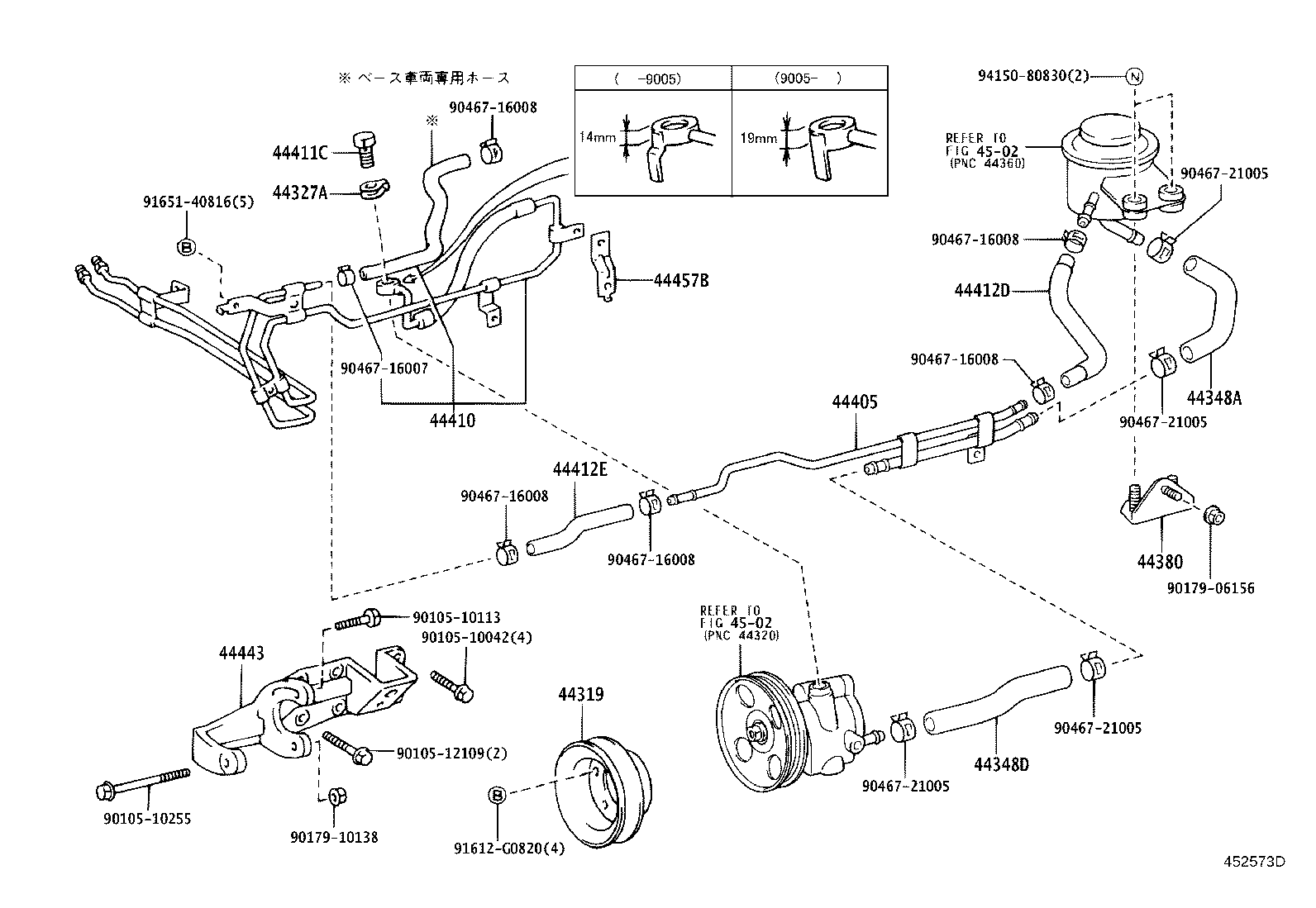

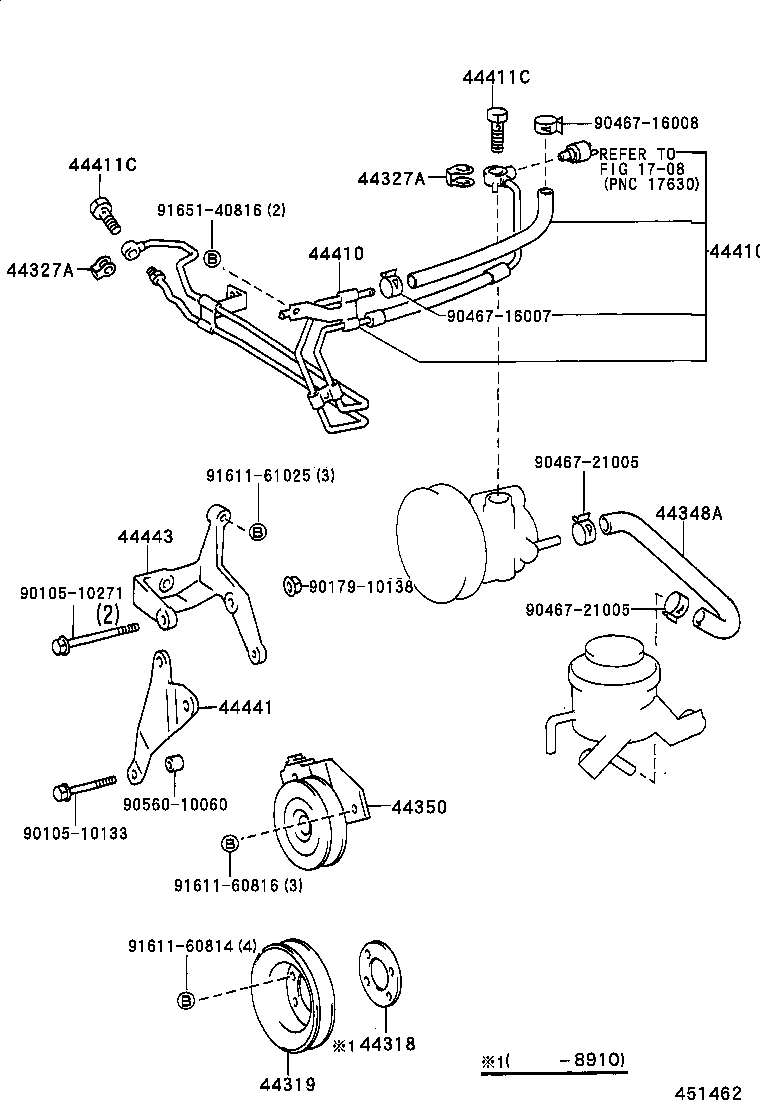

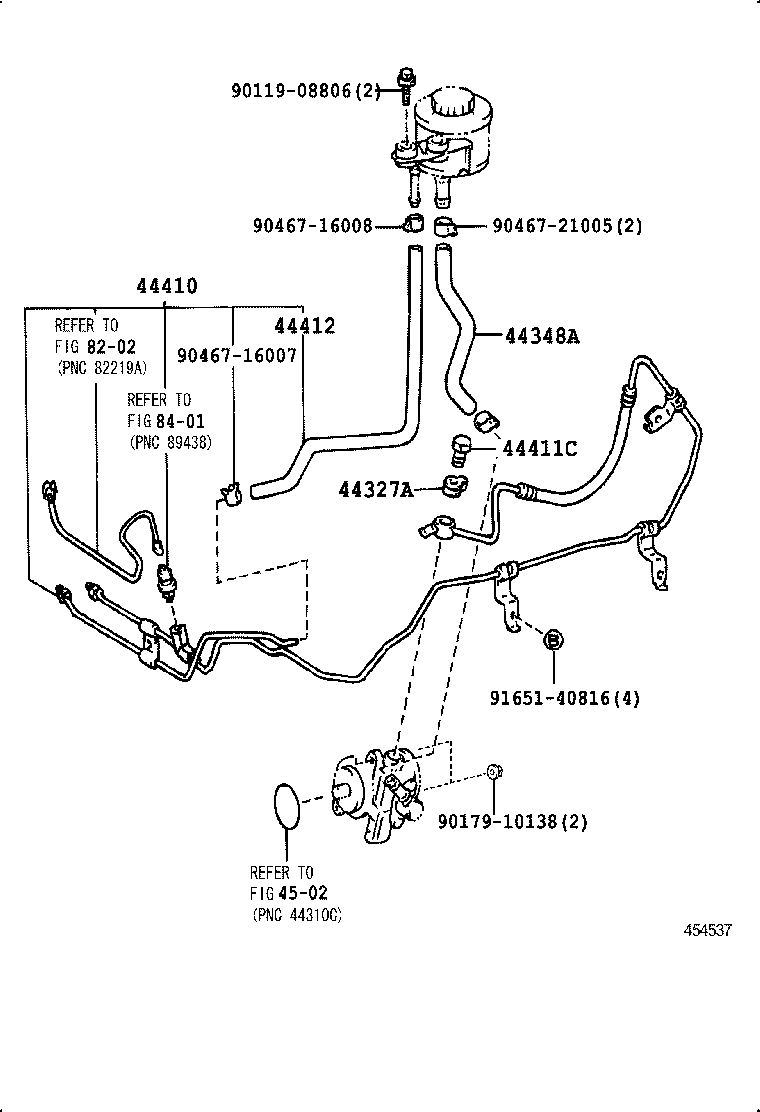

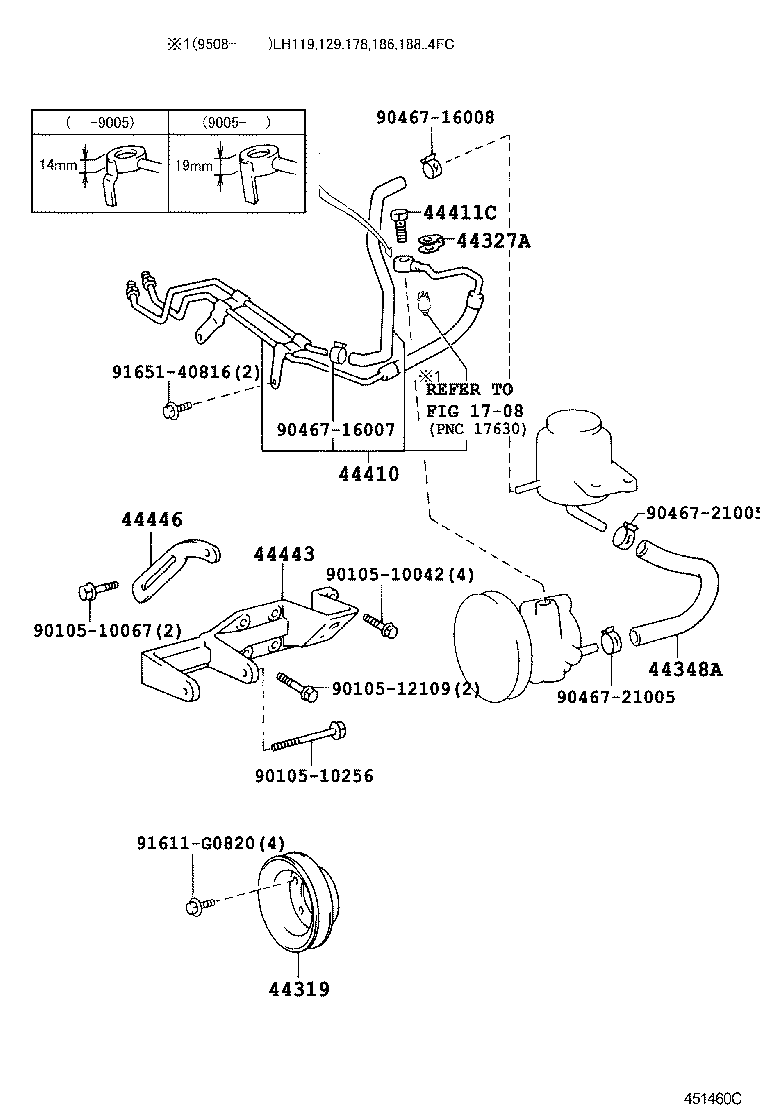

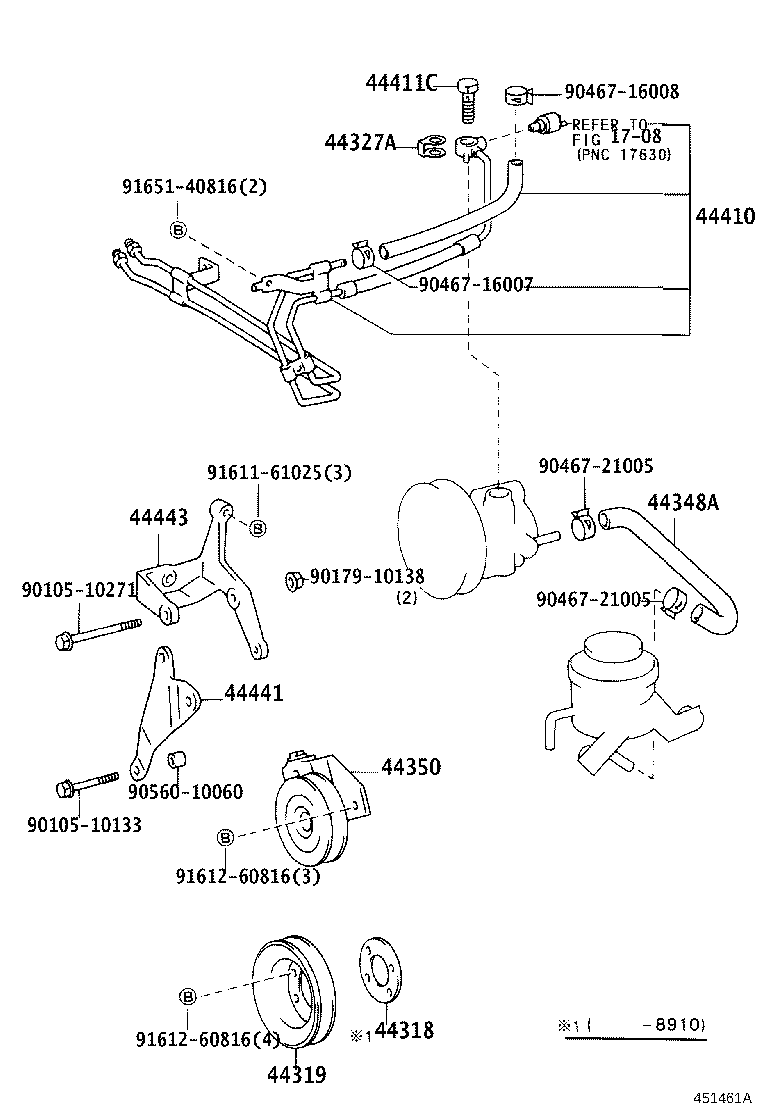

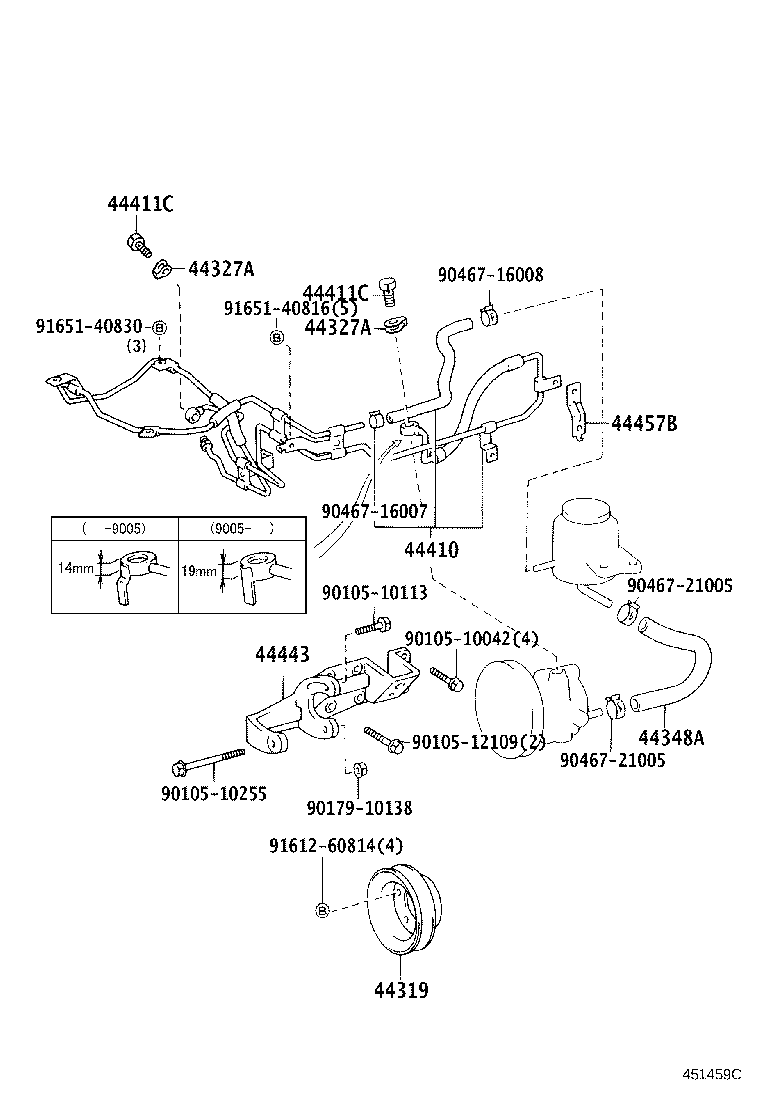

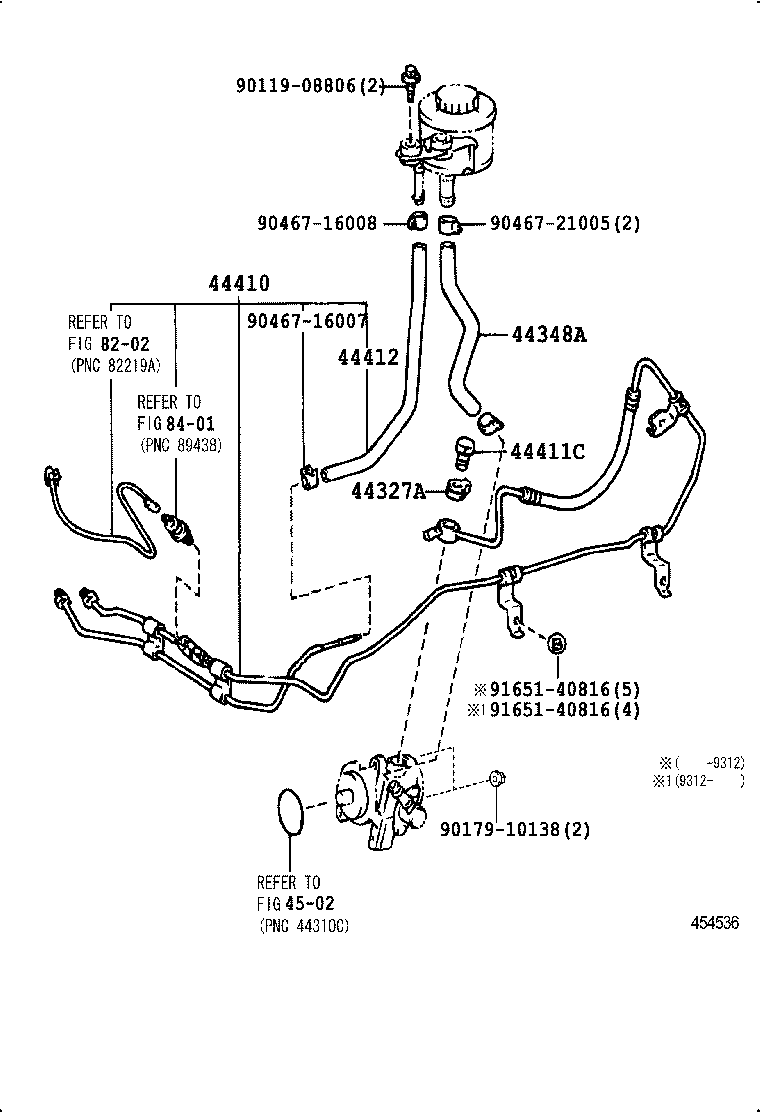

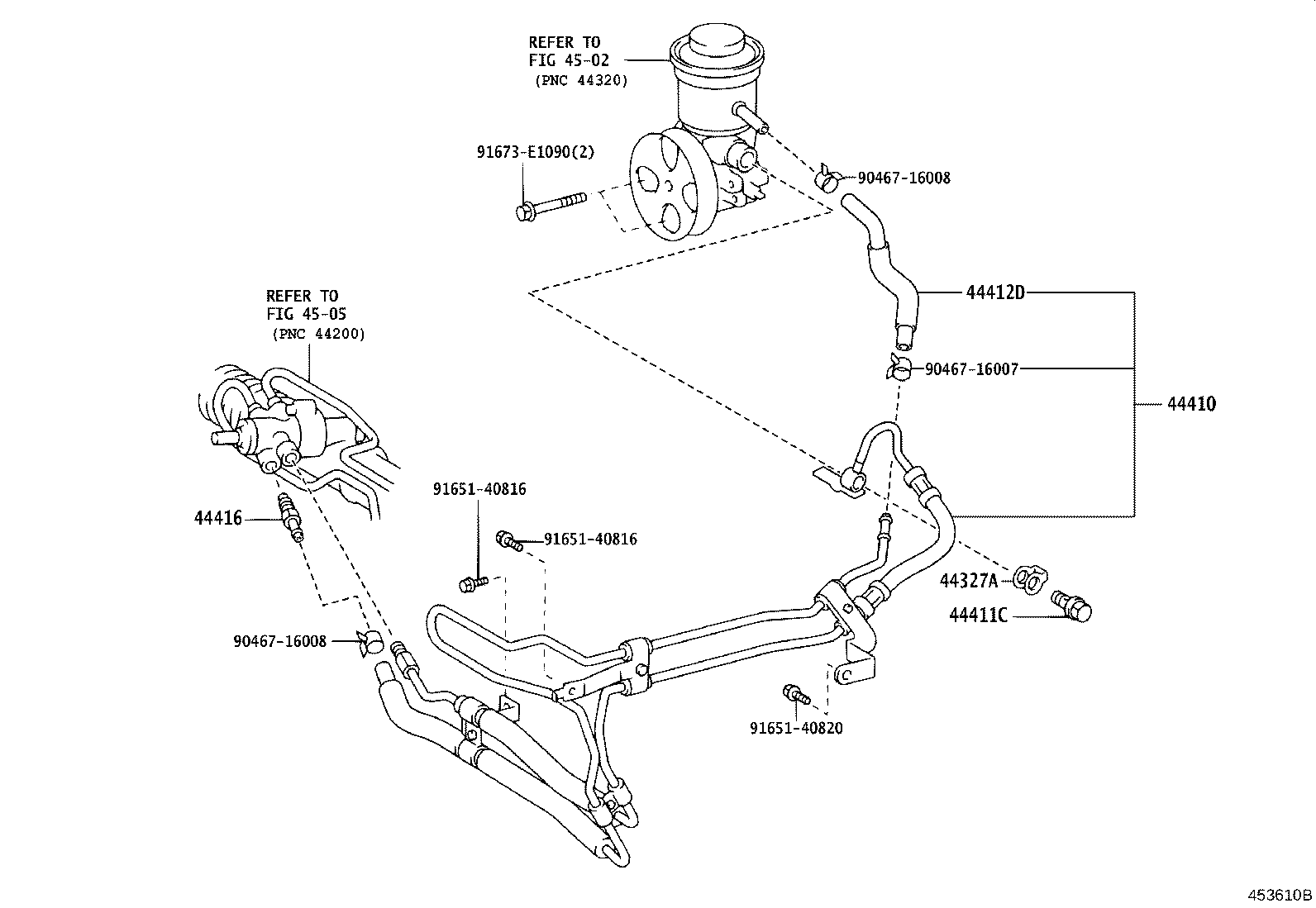

Figure 451457F 451457F 1989-08 → — Figure 451459C 451459C 1989-08 → 1993-08 Figure 451460C 451460C 1989-08 → — Figure 452573D 452573D 2000-12 → — Figure 452573D 452573D 2001-08 → — Figure 451461A 451461A 1989-08 → 2001-03 Figure 451461A 451461A 1989-08 → — Figure 452726 452726 2001-03 → — Figure 451462 451462 1989-08 → 1990-10 Figure 454536 454536 1993-08 → — Figure 454537 454537 1993-08 → — Figure 453610B 453610B 2003-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348D Hose, Oil Reservoir TO Pump, NO.2
44350 Pulley Assy, Power Steering Idle
44380 Pulley Assy, Power Steering Idle W/Bracket
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44441 Bracket, Pump, Front
44443 Bracket, Pump
44446 Strut, Adjusting
44457B Bracket, Power Steering Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
