Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07

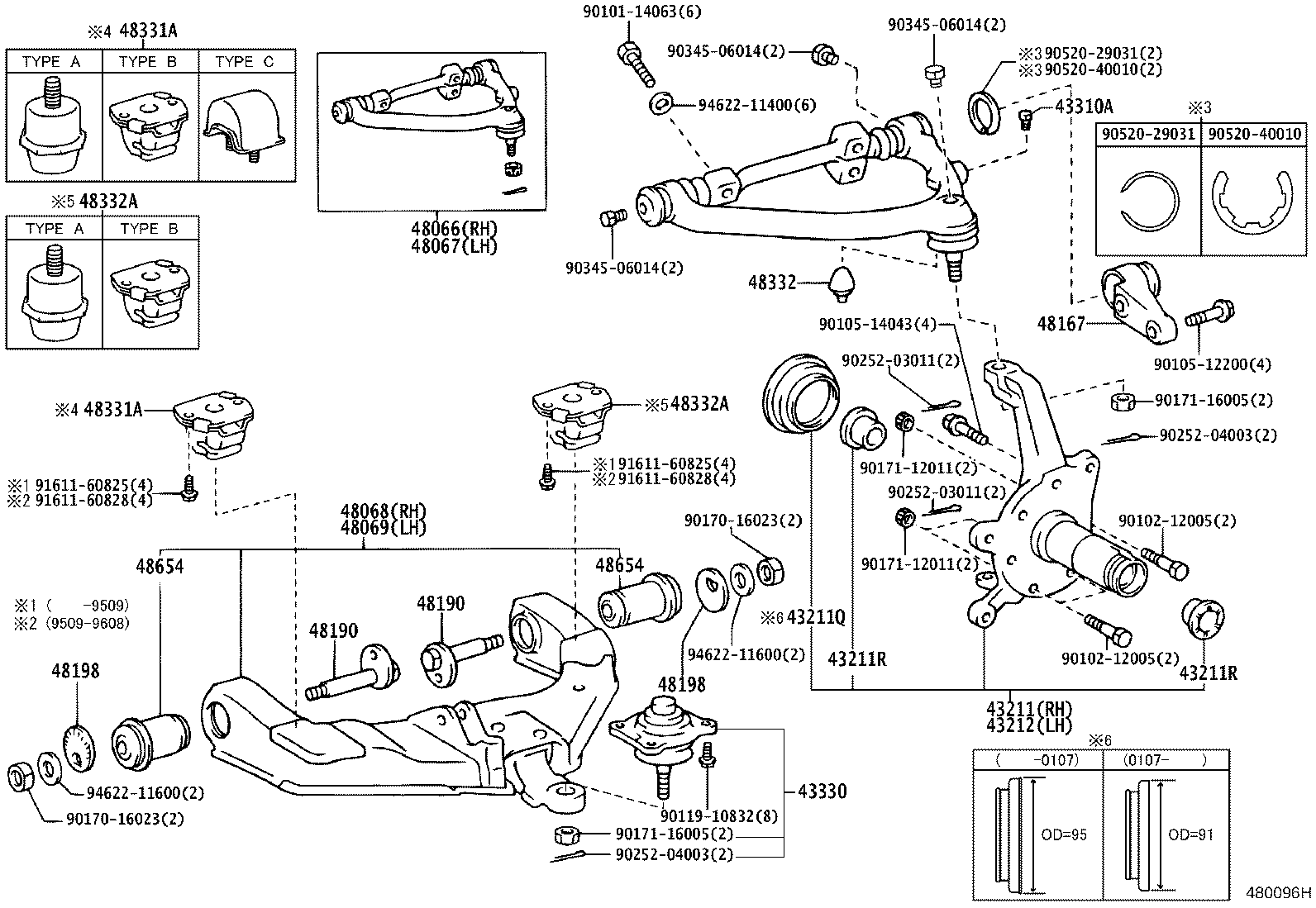

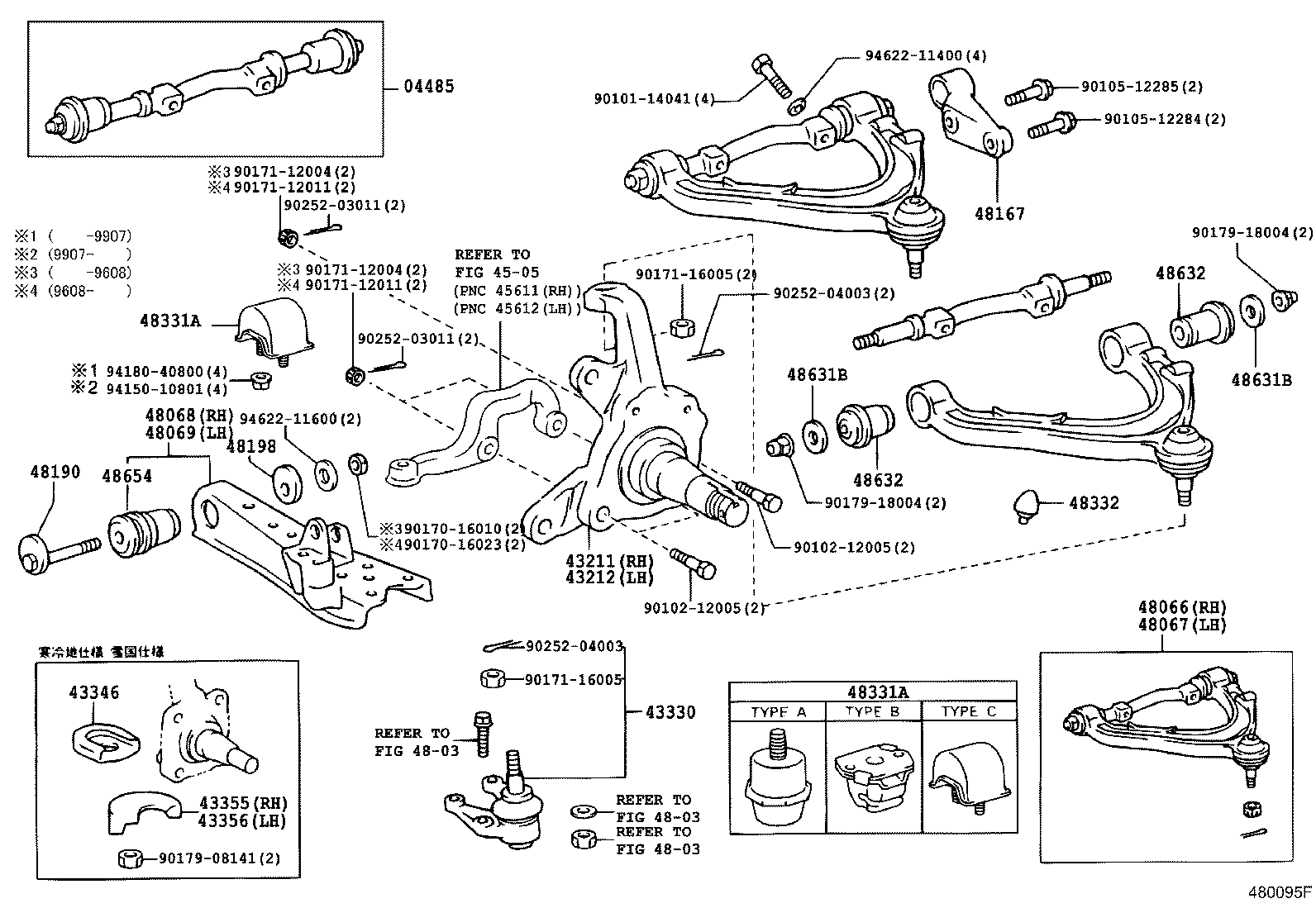

Front Axle Arm & Steering Knuckle
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04485 | Shaft Kit, Upper Suspension Arm |
| 43211 | Knuckle, Steering, RH |
| 43211Q | Seal, Oil (FOR STEERING KNUCKLE) |
| 43211R | Bush (FOR STEERING KNUCKLE) |
| 43212 | Knuckle, Steering, LH |
| 43310A | Plug (FOR BALL JOINT) |
| 43330 | Joint Assy, Lower Ball, Front |
| 43346 | Protector, Lower Ball Joint Dust Cover |
| 43350 | Joint Assy, Front Upper Ball, RH |
| 43355 | Deflector, Lower Arm Ice, RH |
| 43356 | Deflector, Lower Arm Ice, LH |
| 43360 | Joint Assy, Front Upper Ball, LH |
| 48066 | Arm Sub-assy, Front Suspension, Upper RH |
| 48067 | Arm Sub-assy, Front Suspension, Upper LH |
| 48068 | Arm Sub-assy, Front Suspension, Lower NO.1 RH |
| 48069 | Arm Sub-assy, Front Suspension, Lower NO.1 LH |
| 48167 | Arm, Torque |
| 48190 | Cam Assy, Camber Adjust |
| 48198 | Cam, Camber Adjust, NO.2 |
| 48331A | Bumper, Front Spring, NO.1 |
| 48332 | Bumper, Front Spring, NO.2 |
| 48332A | Bumper, Front Spring, NO.3 |
| 48610 | Arm Assy, Front Suspension Upper, RH |
| 48630 | Arm Assy, Front Suspension, Upper LH |
| 48631B | Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM) |
| 48632 | Bush, Upper Arm |
| 48654 | Bush, Lower Arm |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
