Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

72 part groups · 20 illustrations

Illustrations

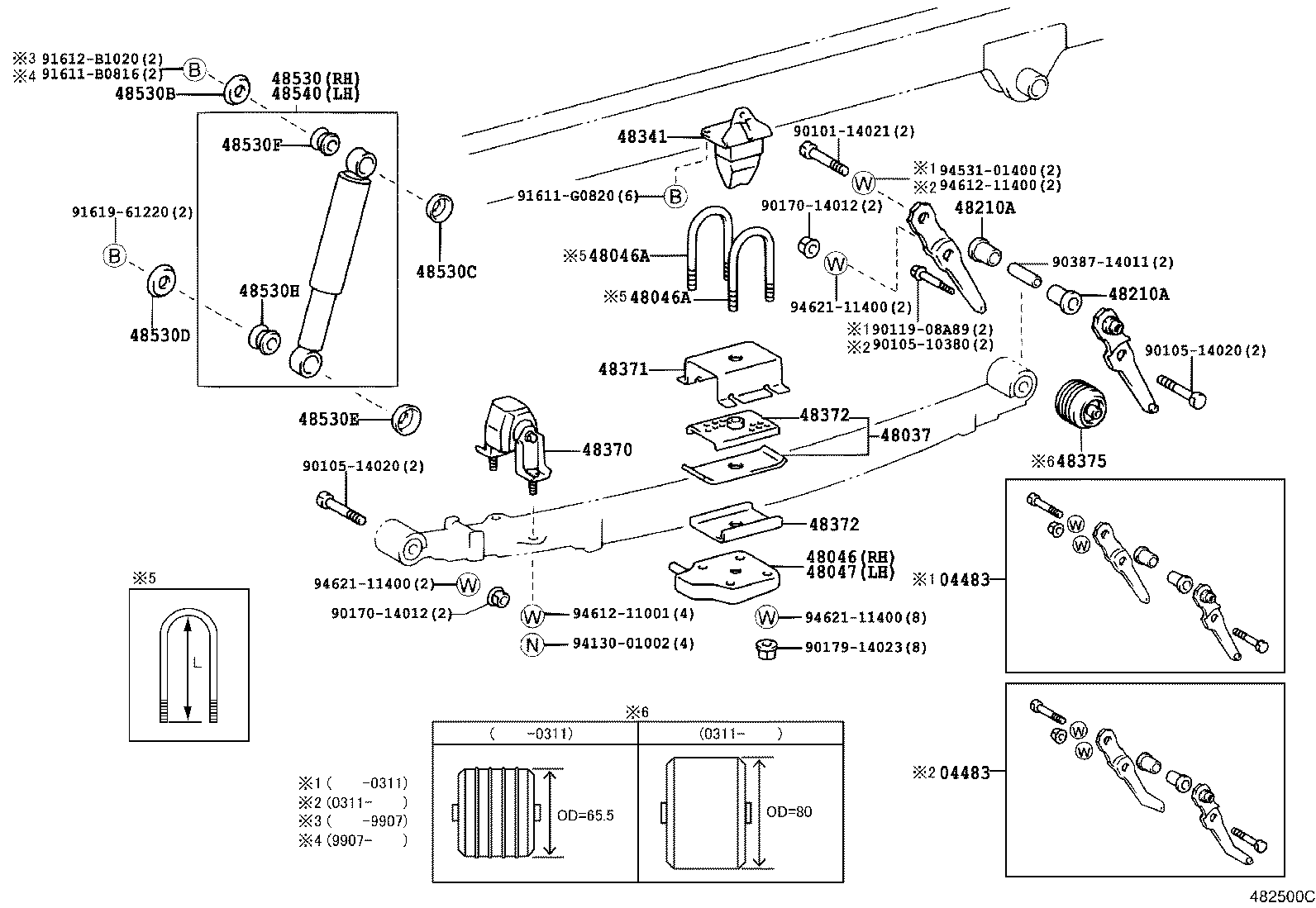

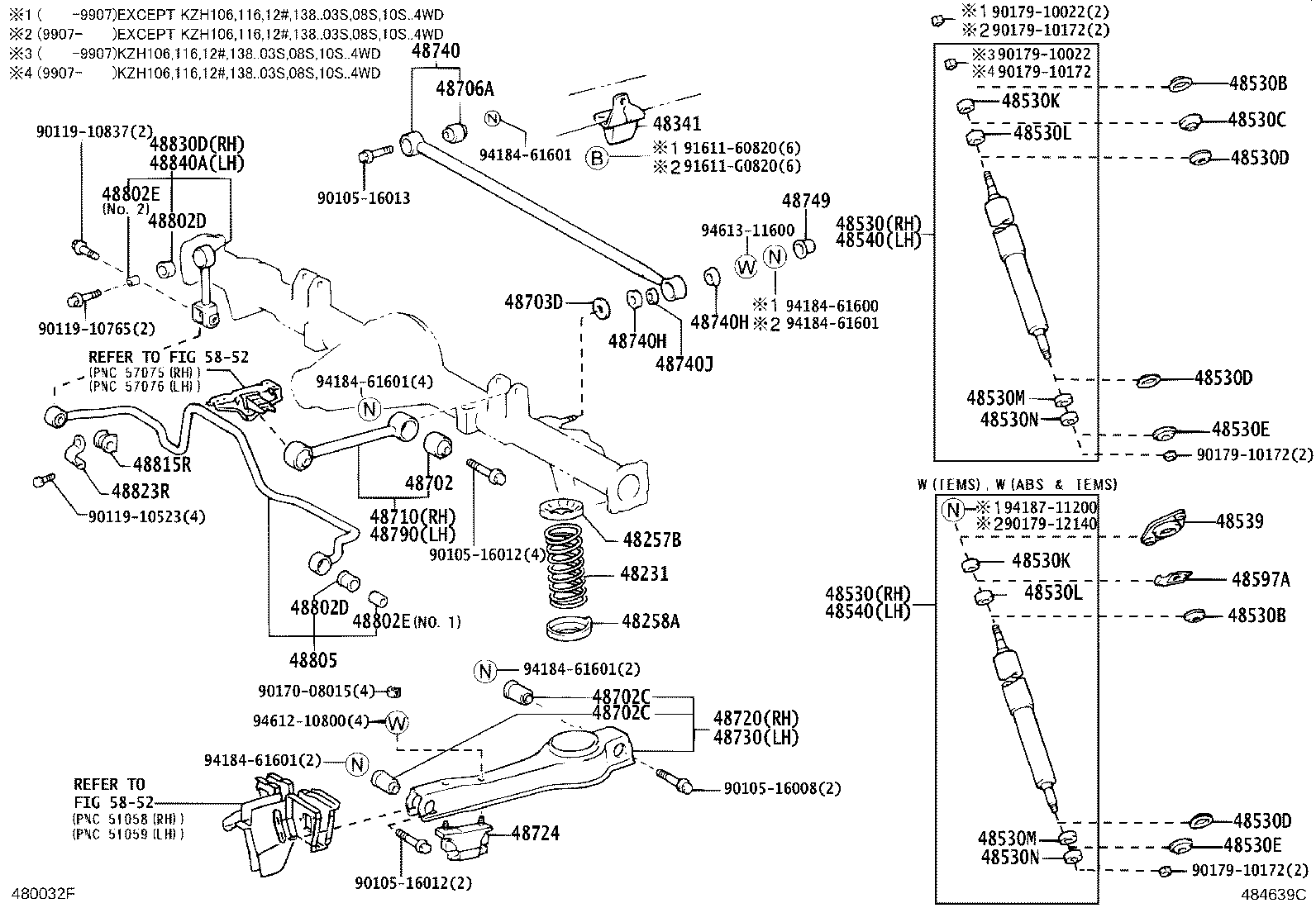

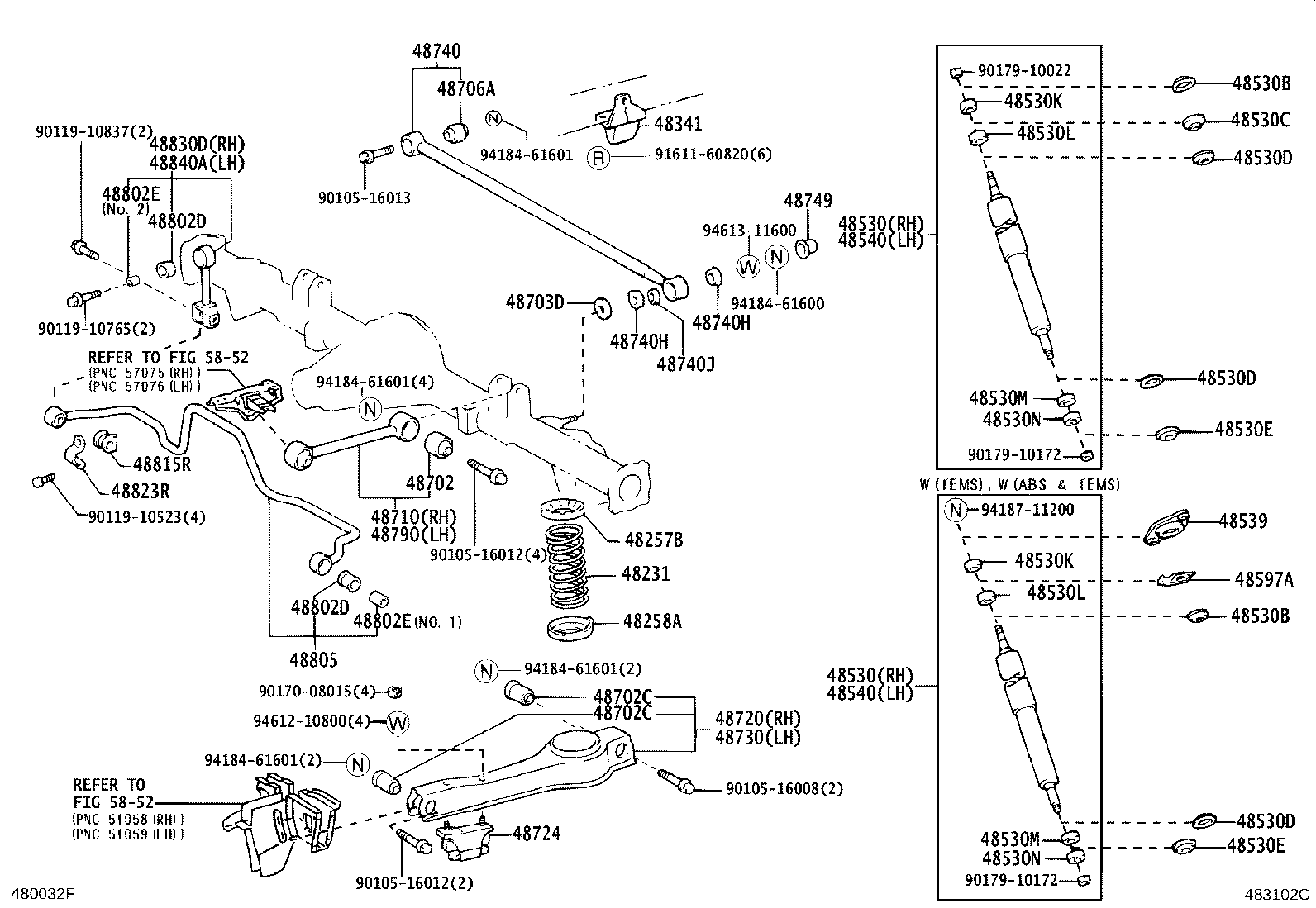

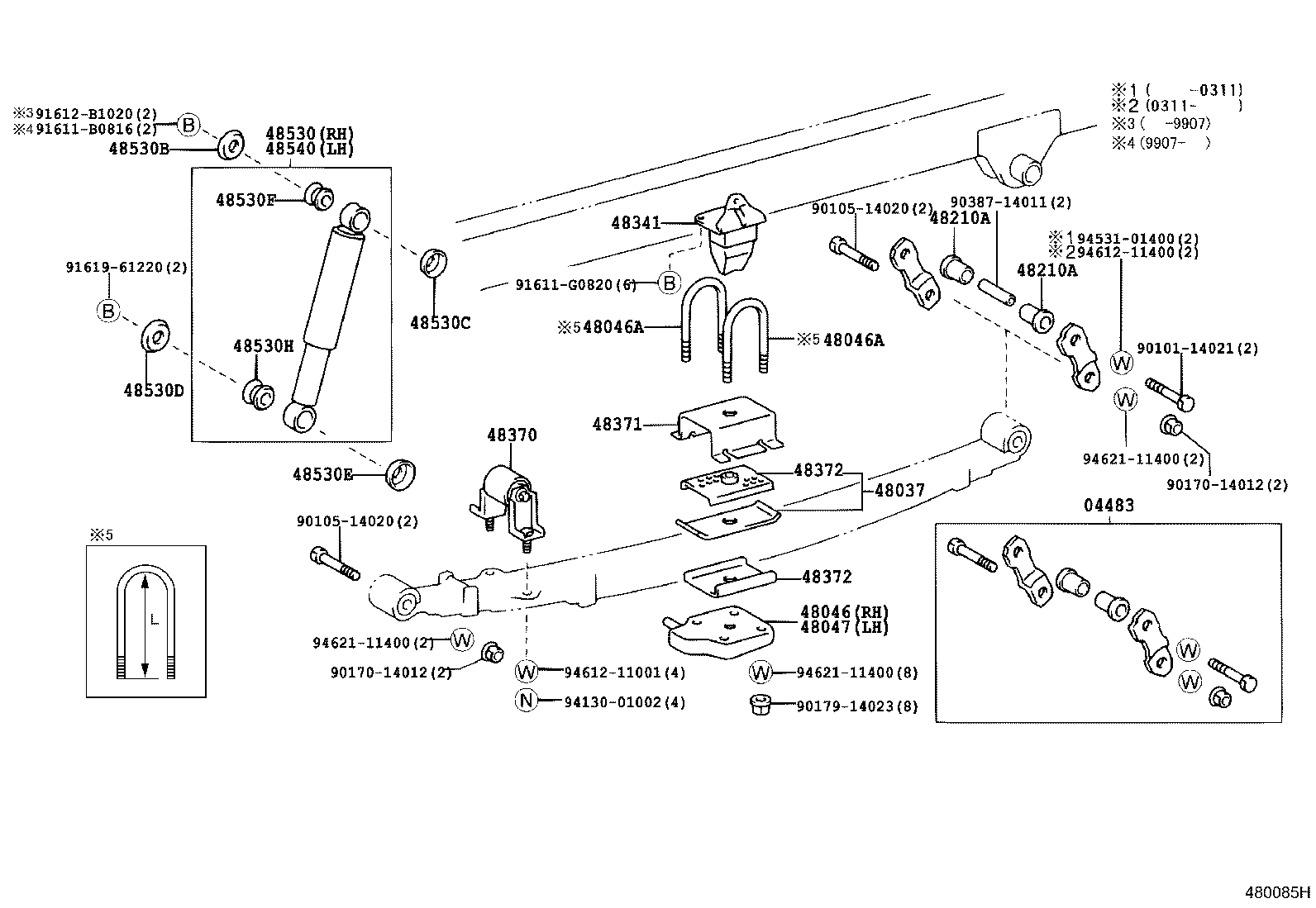

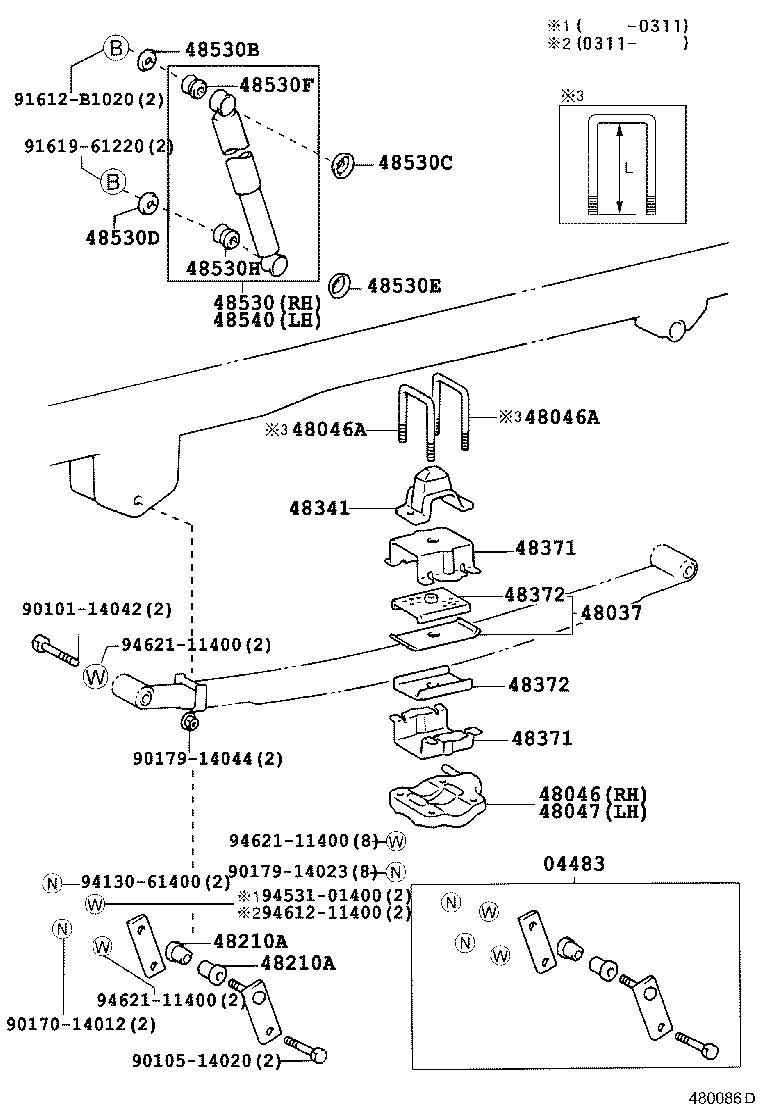

Figure 480031C 480031C 1989-08 → 1993-08 Figure 483102C 483102C 1993-08 → 1996-07 Figure 484639C 484639C 1996-07 → — Figure 480085H 480085H 1989-08 → — Figure 480086D 480086D 1989-08 → — Figure 482500C 482500C 1998-08 → — Figure 480794A 480794A 1989-08 → 1998-08 Figure 480793A 480793A 1989-08 → 1993-08 Figure 480495A 480495A 1989-08 → 1996-08 Figure 480496B 480496B 1989-08 → 1993-08 Figure 481687C 481687C 1998-08 → — Figure 480088E 480088E 1989-08 → — Figure 480795 480795 1989-08 → 1996-08 Figure 480107C 480107C 1992-05 → 1993-08 Figure 480497B 480497B 1992-05 → 1993-08 Figure 480796 480796 1989-08 → 1996-08 Figure 480796 480796 1996-08 → — Figure 480089B 480089B 1996-08 → — Figure 480498B 480498B 1996-08 → — Figure 480106B 480106B 1990-10 → 1993-08

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
48037 Spacer Sub-assy, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210C Bush(FOR REAR SPRING LEAF)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48220 Spring Assy, Rear LH
48231 Spring, Coil, Rear
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48252A Spacer, Rear Spring, NO.2
48252C Silencer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48254 Spacer, Rear Spring Leaf
48255 Spacer, Rear Spring Leaf
48257B Insulator, Rear Coil Spring, Upper
48258A Insulator, Rear Coil Spring, Lower
48284 Nut, Rear Spring Center Bolt
48341 Bumper, Rear Spring
48370 Damper Assy, Leaf Spring Dynamic
48371 Retainer, Rear Spring Pad
48372 Pad, Rear Spring
48375 Damper, Leaf Spring Dynamic
48530 Absorber Assy, Shock, Rear RH
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48530F Retainer, Shock Absorber Cushion(FOR REAR)
48530H Bush, Rear Shock Absorber
48530K Cushion, Rear Shock Absorber, NO.2
48530L Cushion, Rear Shock Absorber, NO.3
48530M Cushion, Rear Shock Absorber, NO.4
48530N Cushion, Rear Shock Absorber, NO.5
48539 Bracket, Actuator Support, RR
48540 Absorber Assy, Shock, Rear LH
48597A Retainer, Rear Shock Absorber Cushion
48702 Bush Sub-assy, Upper Control Arm
48702C Bush Sub-assy, Lower Control Arm
48703D Washer(FOR REAR SUSPENSION ARM)
48703G Arm Sub-assy, Lower Control, RH
48706A Bush Sub-assy, Rear Lateral Control Rod
48706C Bush Sub-assy, Lateral Control Rod
48707A Arm Sub-assy, Lwr Control, LH
48710 Arm Assy, Upper Control
48720 Arm Assy, Lower Control, RH
48724 Damper, Lwr Control Arm Dynamic
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48740H Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48740J Bush, NO.2(FOR REAR LATERAL CONTROL ROD)
48749 Cover, Lateral Control Rod Nut
48790 Arm Assy, Upper Control, Rear LH
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817U Bolt(FOR REAR STABILIZER)
48823R Cover, Stabilizer Link(FOR REAR)
48830D Link Assy, Rear Stabilizer, RH
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
