Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

14 part groups · 2 illustrations

Illustrations

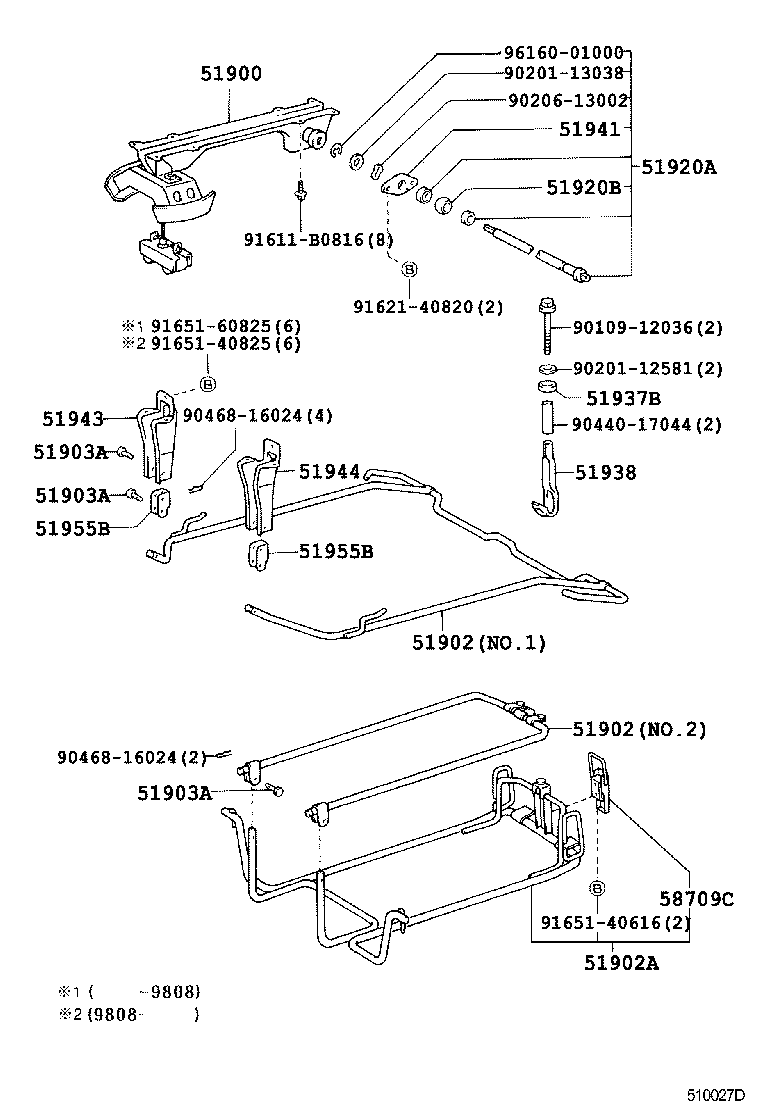

Figure 510026B 510026B 1989-08 → — Figure 510027D 510027D 1989-08 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51902 Carrier Sub-assy, Spare Wheel
51902A Cover Sub-assy, Spare Wheel
51903A Pin, W/Hole(FOR SPARE WHEEL CARRIER HANDLE HANGER SETTING)
51920A Shaft Assy, Spare Wheel Carrier Drive
51920B Bush,(FOR SPARE WHEEL CARRIER)
51937B Plate, Spare Wheel Carrier Lock
51938 Lock, Spare Wheel Carrier
51941 Stopper, Spare Wheel Carrier
51943 Bracket, Spare Wheel Carrier, NO.1
51944 Bracket, Spare Wheel Carrier, NO.2
51955B Hinge, Spare Wheel Carrier, NO.1
51967A Hook Sub-assy, Rear
58709C Catch Sub-assy, Engine Service Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
