Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 9 illustrations

Illustrations

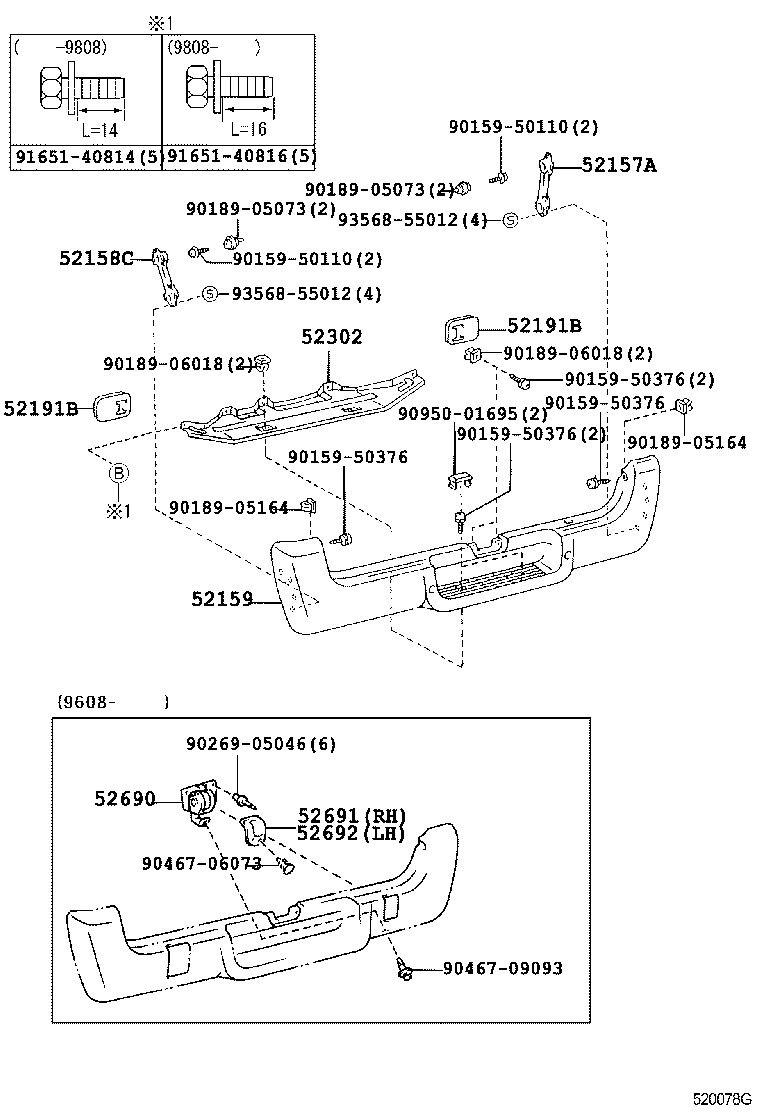

Figure 520064 520064 1989-08 → 1993-08 Figure 520064 520064 1990-01 → 1993-08 Figure 520065 520065 1989-08 → 1993-08 Figure 520065 520065 1992-05 → 1993-08 Figure MBT102B MBT102B 1989-08 → 1993-08 Figure 520077D 520077D 1993-08 → — Figure 520066G 520066G 1993-08 → — Figure 520078G 520078G 1993-08 → — Figure 520078G 520078G 2000-12 → —

Part groups

PNCDescription
52019 Bar Sub-assy, Rear Bumper
52023 Reinforcement Sub-assy, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52157A Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52185A Bracket, Rear Bumper Side, RH
52186A Bracket, Rear Bumper Side, LH
52191B Grommet, Rear Bumper Stay
52302 Step Sub-assy, Back
52354 Shutter, Rear Cross TO Bumper
52690 Roller Assy, Power Lift Guide
52691 Cover, Power Lift Guide Roller, RH
52692 Cover, Power Lift Guide Roller, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
