Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 10 illustrations

Illustrations

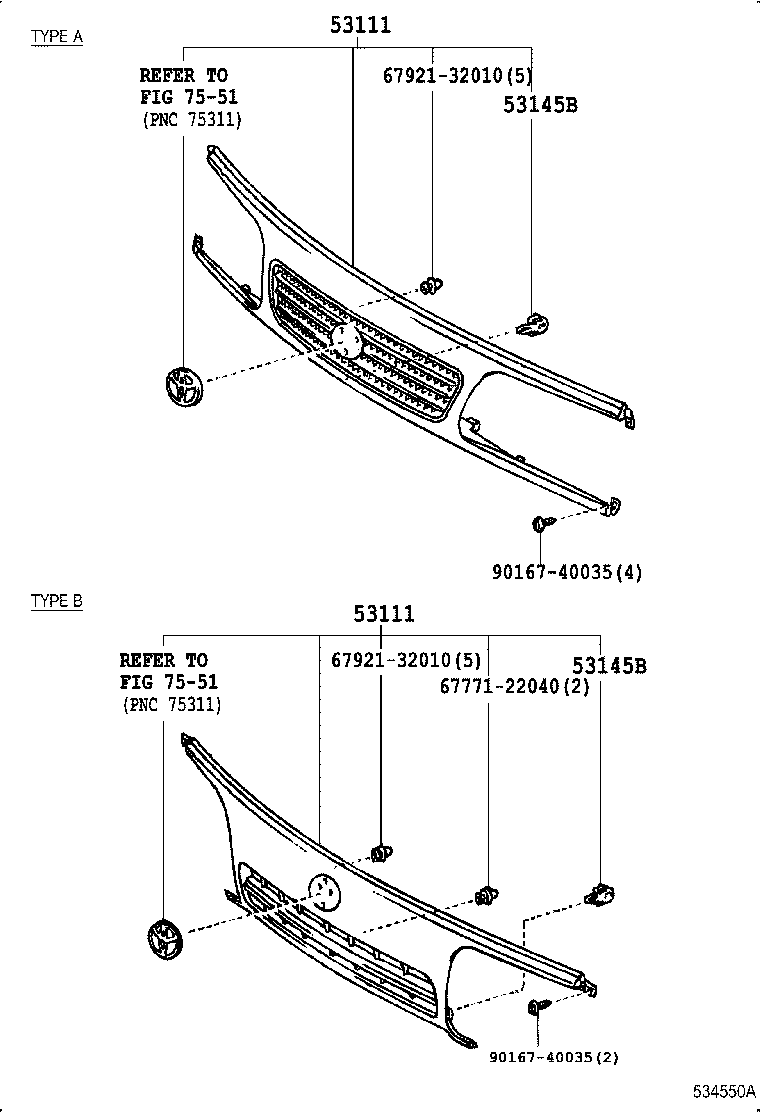

Figure MBT105C MBT105C 1989-08 → 1993-08 Figure MBT106D MBT106D 1989-08 → 1993-08 Figure MBT106D MBT106D 1990-05 → 1993-08 Figure MBT106D MBT106D 1991-03 → 1993-08 Figure MBT106D MBT106D 1992-05 → 1993-08 Figure 534550A 534550A 1993-08 → 1996-08 Figure 534550A 534550A 1993-08 → 1998-08 Figure 534550A 534550A 1993-08 → — Figure 530108C 530108C 1996-08 → — Figure 530707A 530707A 1998-08 → —

Part groups

PNCDescription
53111 Grille, Radiator
53118B Retainer, Radiator Grille, NO.2 RH
53128B Retainer, Radiator Grille, NO.2 LH
53145B Clip, Radiator Grille Garnish
81819A Cover, Turn Signal Indicator Lamp
81819B Cover, Turn Signal Indicator Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
