Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07

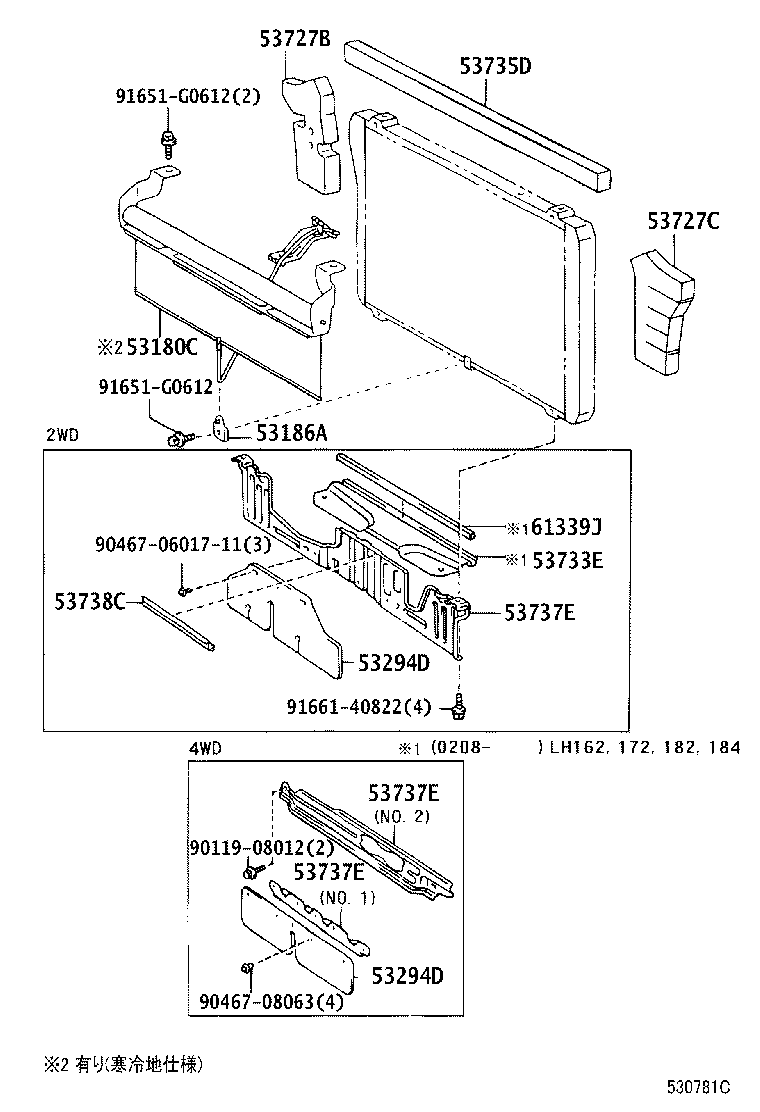

Radiator Support & Wind Guide
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53180C | Shutter Assy, Radiator |
| 53186A | Hook, Radiator Shutter |
| 53294D | Deflector, Radiator Lower Air, NO.1 |
| 53727B | Shutter, Hot Air Side, RH |
| 53727C | Shutter, Hot Air Side, LH |
| 53733E | Shutter, Hot Air |
| 53735D | Shutter, Hot Air, Upper |
| 53737E | Shutter, Hot Air, Lower |
| 53738C | Shutter, Hot Air, Lower LH |
| 61339J | Seal, Center Body Pillar, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
