Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

60 part groups · 11 illustrations

Illustrations

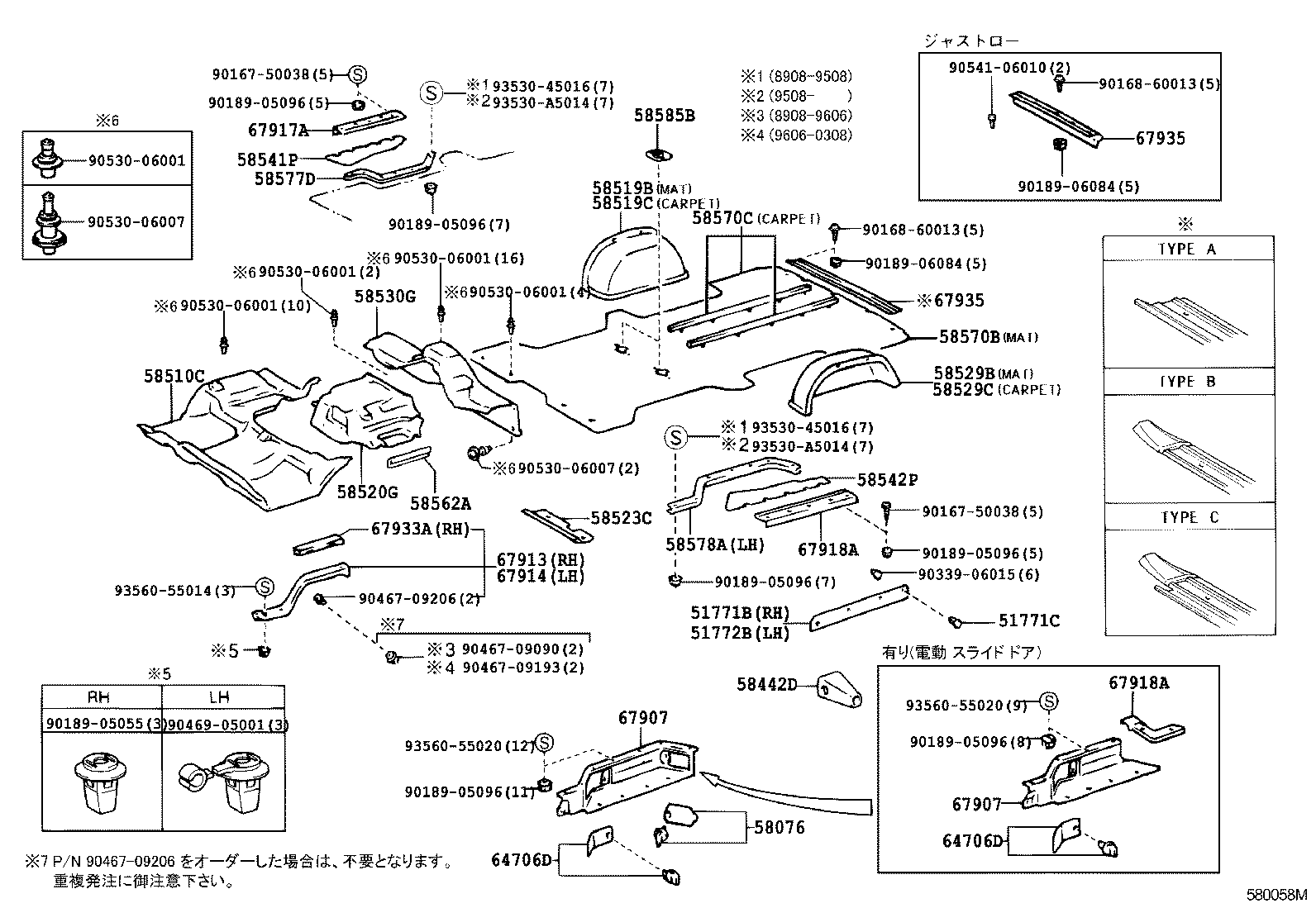

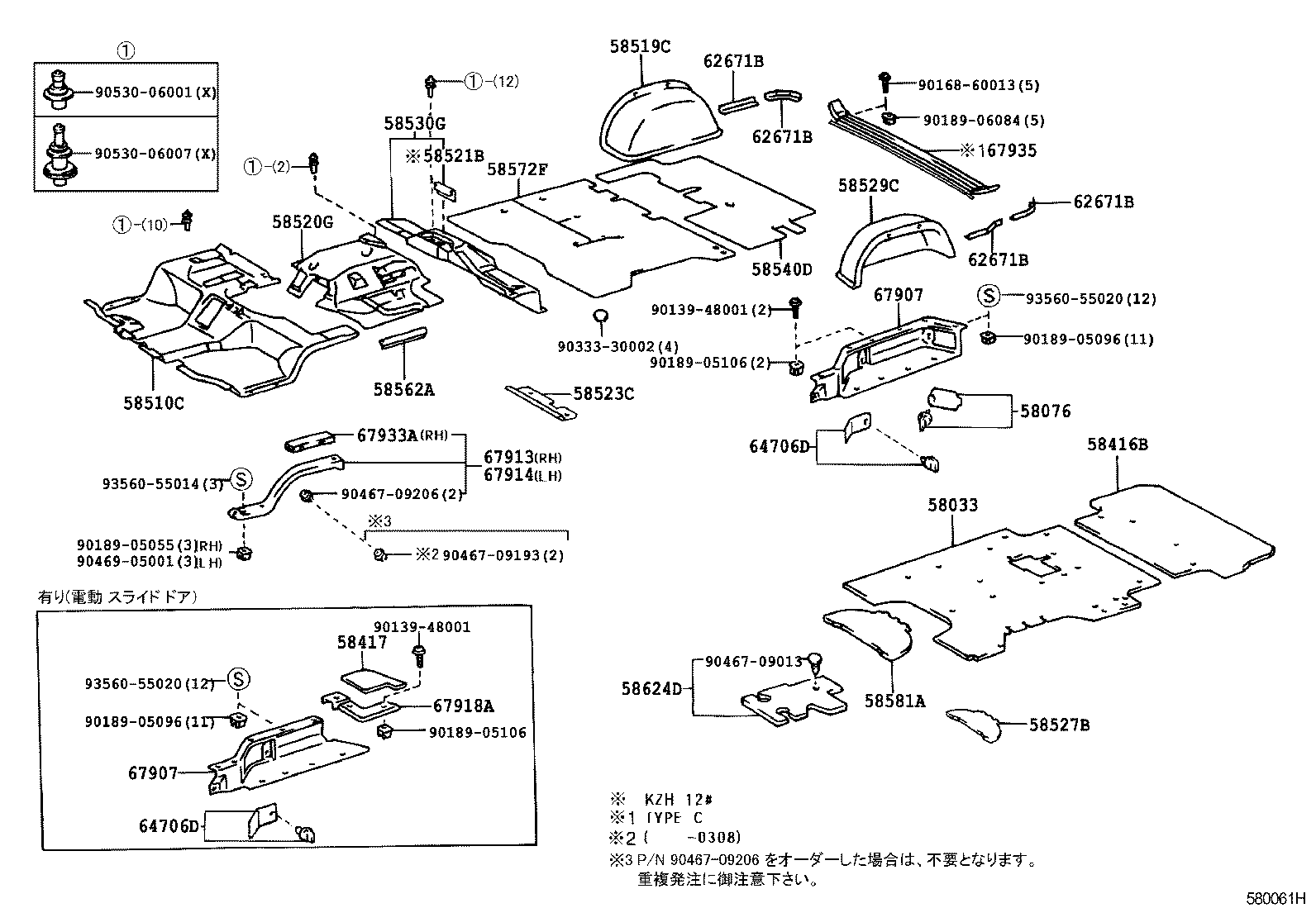

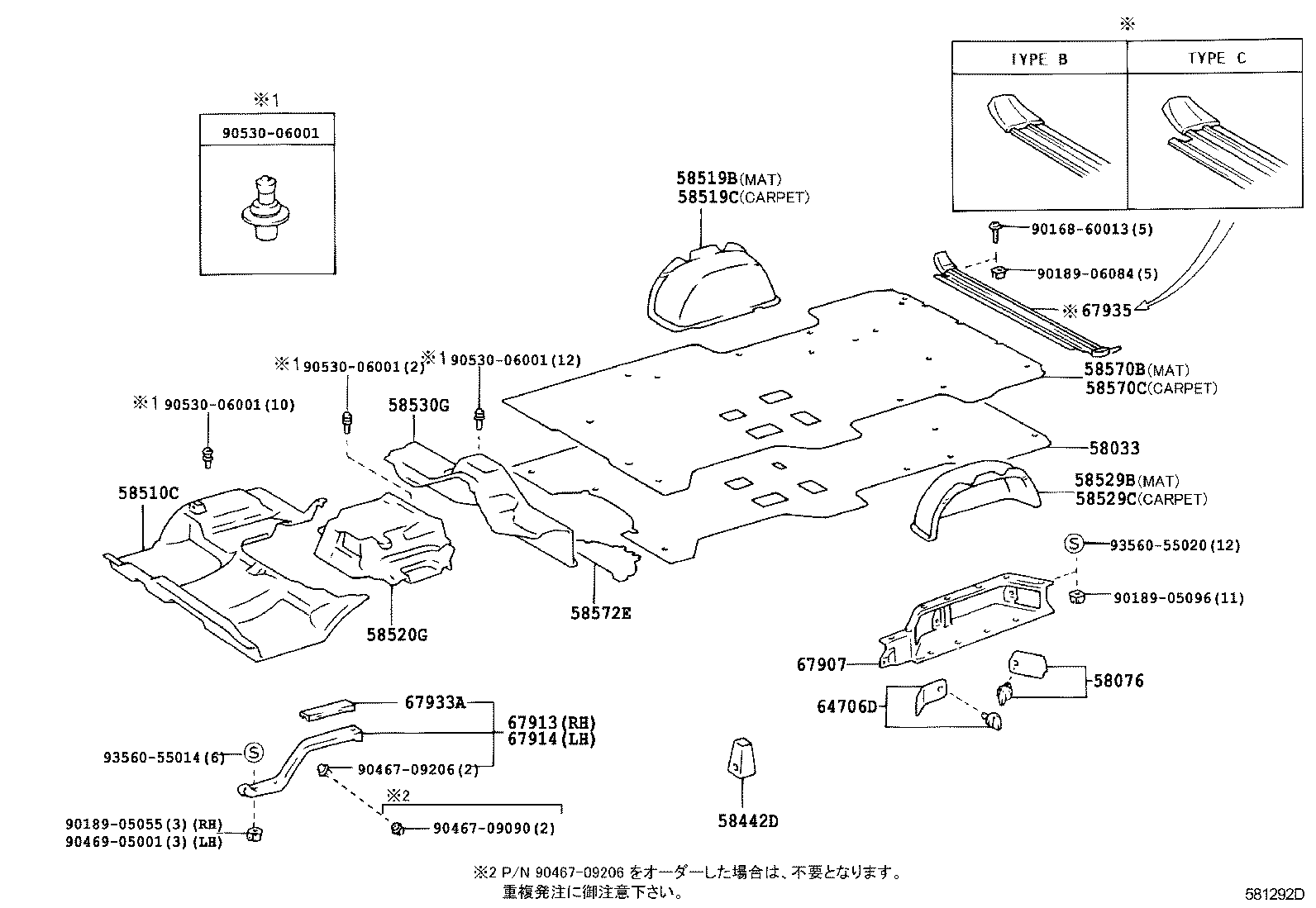

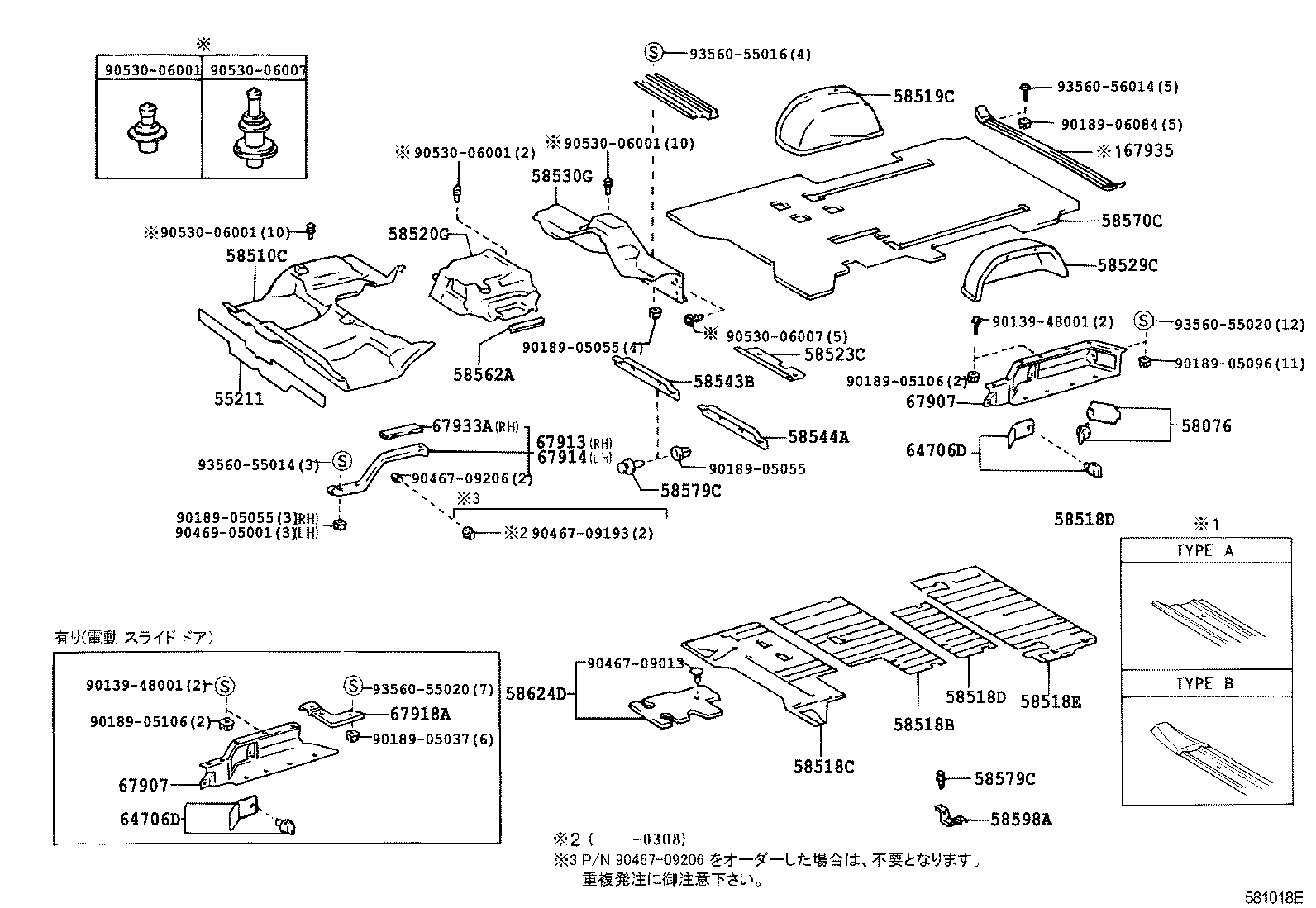

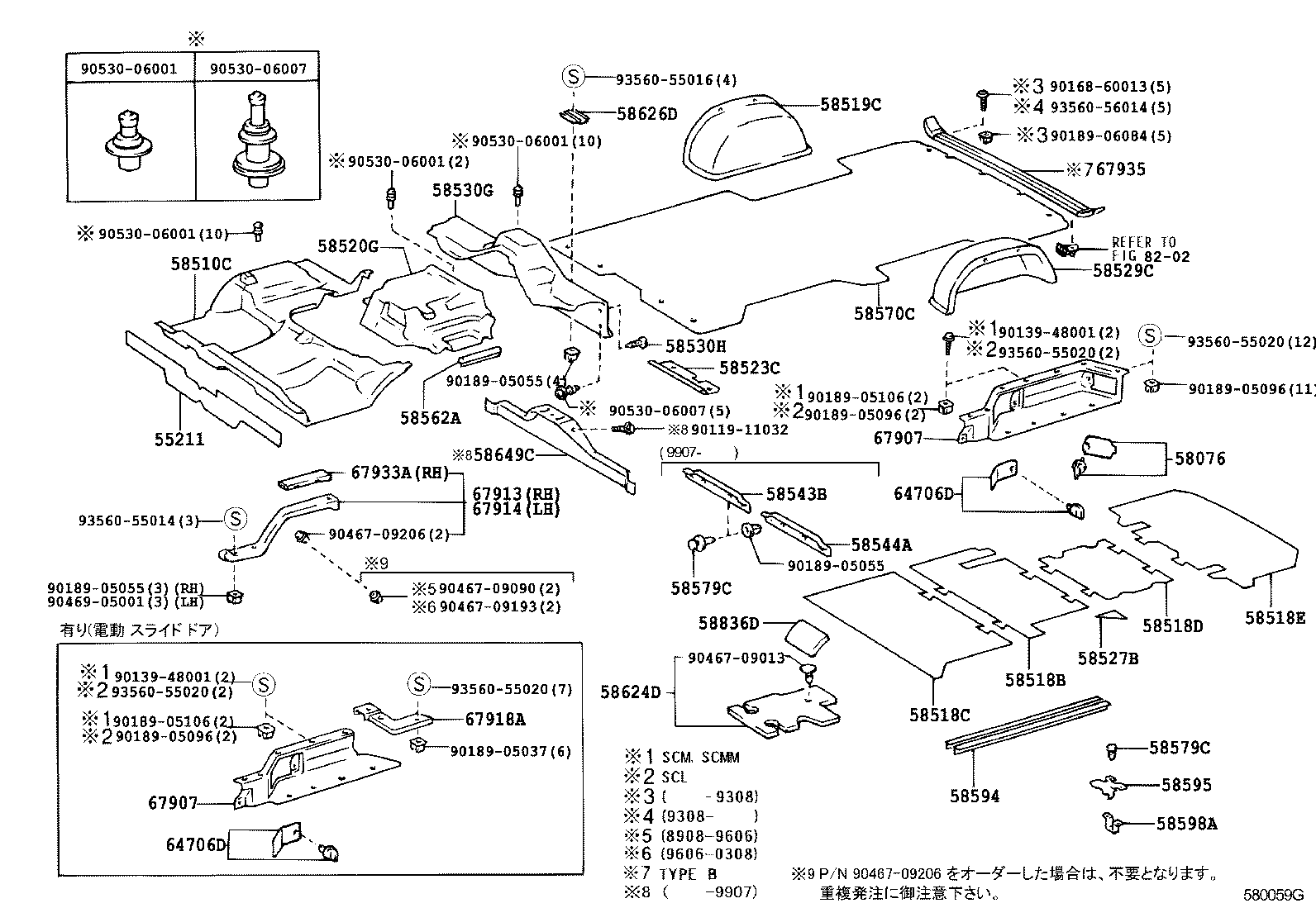

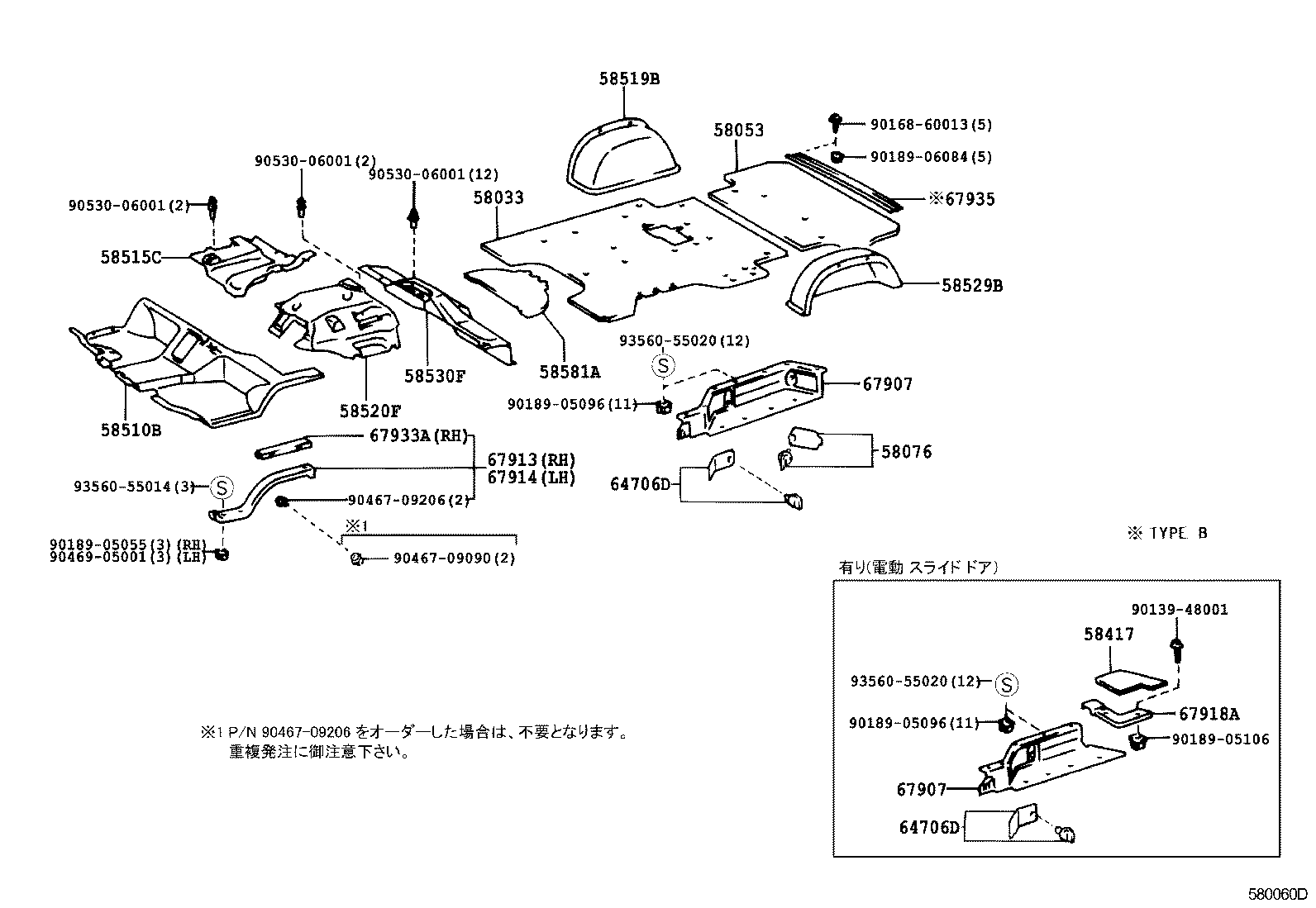

Figure 580057N 580057N 1989-08 → — Figure 580058M 580058M 1989-08 → — Figure 580058M 580058M 1993-08 → — Figure 580059G 580059G 1989-08 → — Figure 580060D 580060D 1992-05 → 1993-08 Figure 581292D 581292D 1990-05 → — Figure 581292D 581292D 1991-03 → — Figure 581292D 581292D 1995-08 → — Figure 581292D 581292D 2001-08 → — Figure 580061H 580061H 1992-05 → — Figure 581018E 581018E 1999-07 → —

Part groups

PNCDescription
51771B Plate, Step, RH
51771C Clip(FOR STEP PLATE)
51772B Plate, Step, LH
55211 Silencer, Front Panel
58033 Board Sub-assy, Rear Floor
58053 Board Sub-assy, Rear Floor, Rear
58076 Cover Sub-assy, Jack Box Hole
58416B Board, Rear Floor, NO.2
58417 Board, Rear Floor, NO.3
58442D Cover, Jack
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58515C Mat, Front Floor, Rear NO.1
58518B Mat, Rear Floor, NO.2
58518C Mat, Rear Floor, NO.2
58518D Mat, Rear Floor, NO.2
58518E Mat, Rear Floor, NO.2
58519B Mat, Rear Wheel House, RH
58519C Carpet, Rear Wheel House, RH
58520F Mat Assy, Engine Cover
58520G Carpet Assy, Engine Cover
58521B Hook, Floor Carpet
58523C Floor Carpet Set Bracket
58527B Mat, Rear Floor, NO.3
58529B Mat, Rear Wheel House, LH
58529C Carpet, Rear Wheel House, LH
58530F Mat Assy, Header
58530G Carpet Assy, Header
58530H Clip(FOR HEADER MAT & HEADER CARPET)
58540D Carpet Assy, Floor, Rear
58541P Mat, Step, RH
58542P Mat, Step, LH
58543B Bracket, Floor Carpet, RH
58544A Bracket, Floor Carpet, LH
58562A Carpet, Front Seat Side, LH
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58572E Mat, Rear Floor, Front
58572F Carpet, Rear Floor, Front
58577D Plate, Rear Floor Mat Support Side, RH
58578A Plate, Rear Floor Mat Support Side, LH
58579C Clip, Rear Floor Carpet Set
58581A Mat, Rear Floor
58585B Cover, Rear Floor Seat Lock
58594 Moulding, Floor Carpet, NO.2
58595 Moulding, Floor Carpet, NO.3
58598A Bracket, NO.3 Seat Leg Space
58624D Pad, Center Floor Silencer
58626D Plate, Rear Floor Mat, NO.2
58649C Cover, Mat Set Plate
58836D Pad, Console Box Silencer, NO.1
62671B Cover, Back Corner
64706D Cover Sub-assy, Side Trim Tool Bag
67907 Plate Sub-assy, Center Door Scuff
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67933A Plate, Front Door Scuff, Rear RH
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
