Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07
Console Box & Bracket

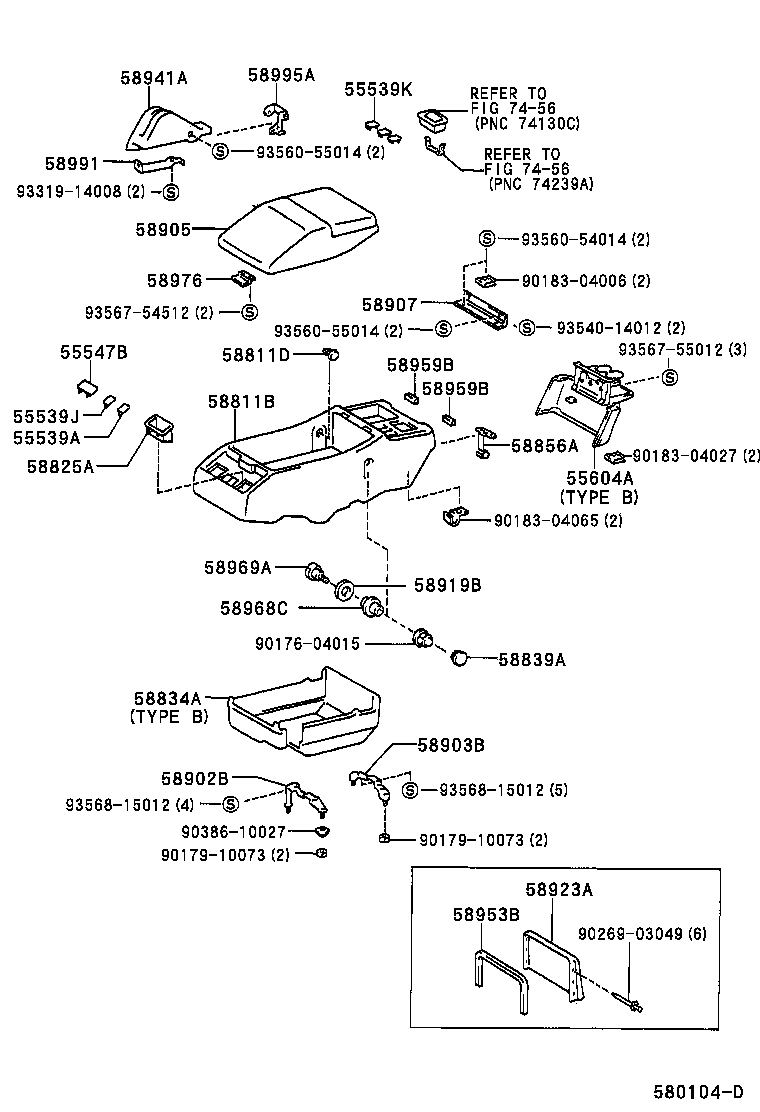

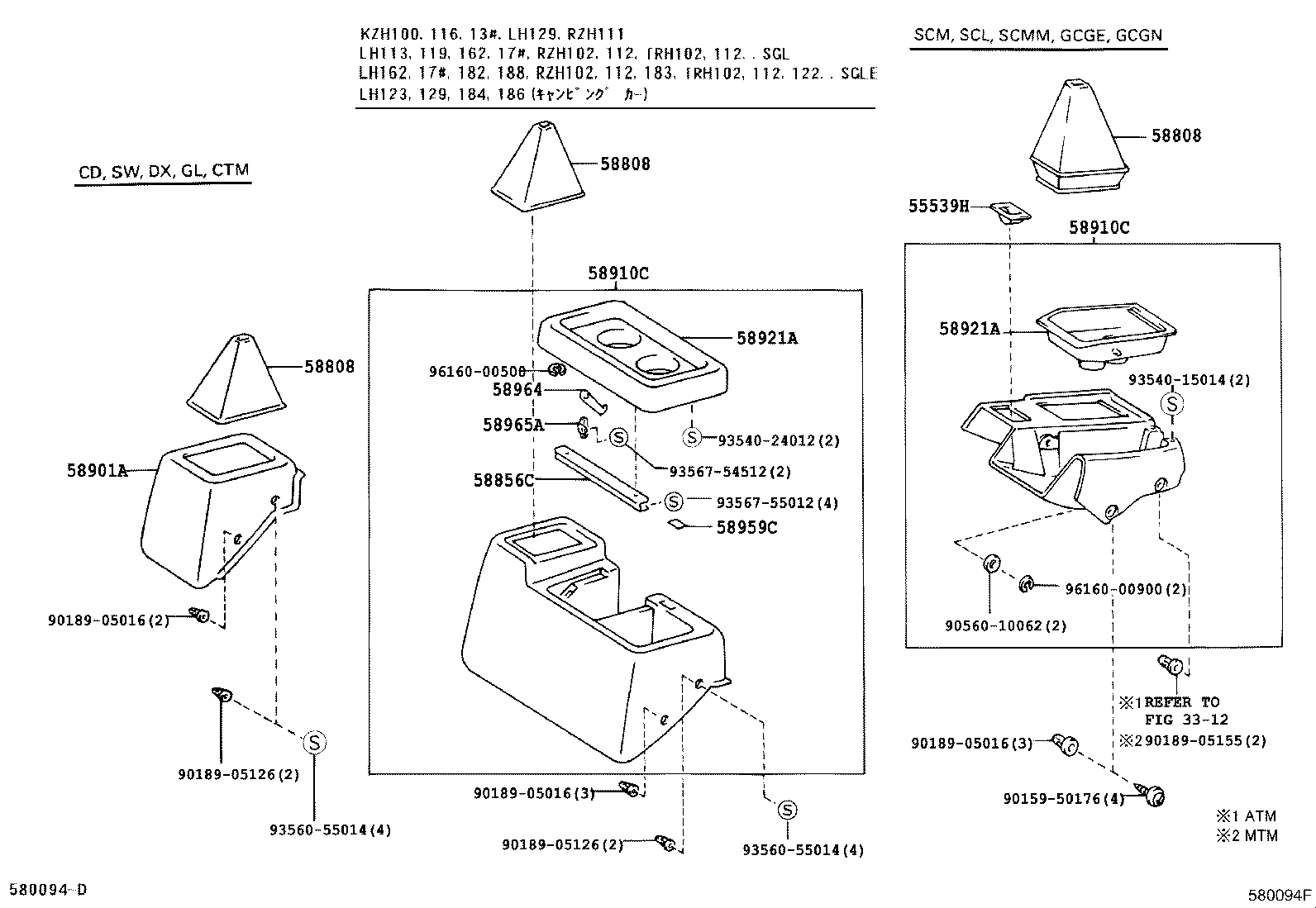

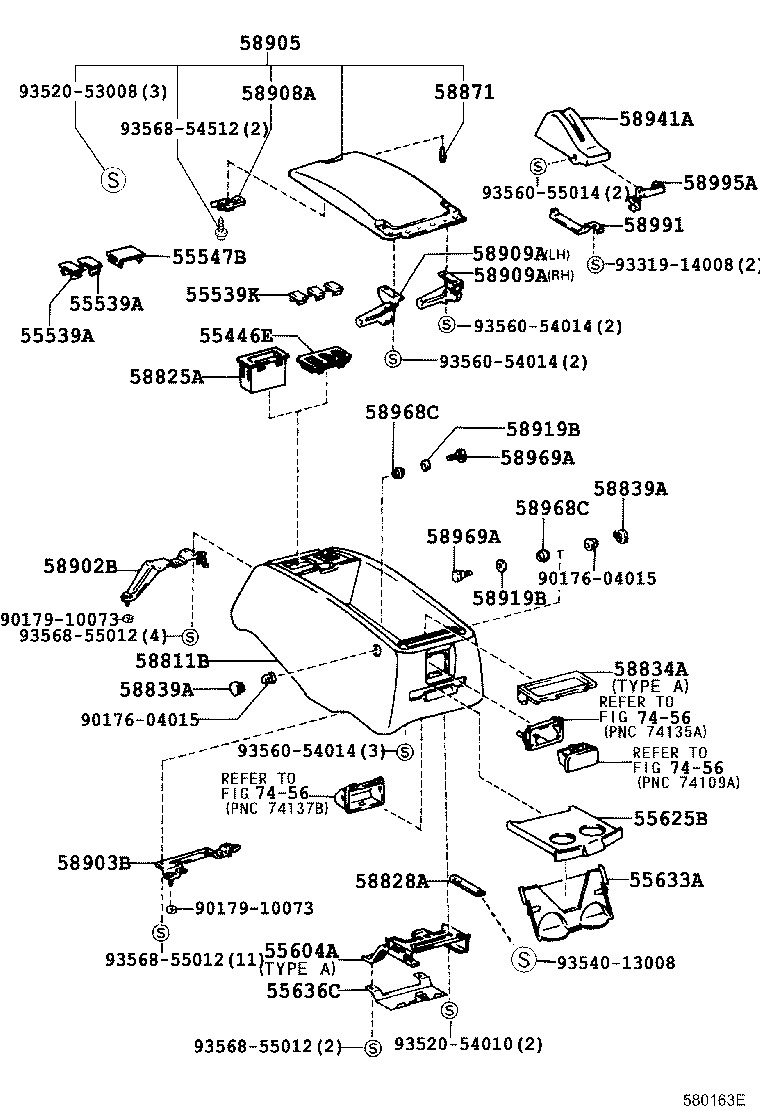

50 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 55446E | Base, Switch Hole, NO.1 |
| 55539A | Cover, Spare Switch Hole |
| 55539H | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 55539K | Cover, Spare Switch Hole |
| 55547B | Cover, Remote Control Mirror Hole |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 55625B | Tray, Instrument Panel Cup Holder |
| 55633A | Support, Instrument Panel Cup Holder, NO.1 |
| 55636C | Bracket, Instrument Panel Under Cover, NO.1 |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58811A | Box, Console, Front |
| 58811B | Box, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58825A | Pocket, Console Box |
| 58828A | Bracket, Console Box, Lower |
| 58833A | Cover, Console, Upper |
| 58834A | Cover, Console, Lower |
| 58836B | Pad, Console Box Silencer, NO.1 |
| 58837A | Pad, Console Box Silencer, NO.2 |
| 58839A | Cover, Console Box Hole |
| 58841A | Cover, Shifting Hole |
| 58849A | Pad, Console Box Silencer, NO.3 |
| 58856A | Holder, Console Box |
| 58856C | Holder, Console |
| 58871 | Cushion, Console Box |
| 58878 | Pad, Console Box Silencer, NO.4 |
| 58901A | Box Sub-assy, Console, Rear |
| 58902B | Bracket Sub-assy, Console Box Hinge, NO.1 |
| 58903B | Bracket Sub-assy, Console Box Hinge, NO.2 |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58909A | Stopper Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58919B | Plate, Console Box |
| 58921A | Panel, Rear Console, Upper |
| 58923A | Panel, Console Rear End |
| 58941A | Cover, Parking Brake Hole |
| 58953B | Packing, Box Panel |
| 58959B | Cushion, Console Compartment Door |
| 58959C | Cushion, Console Compartment Door |
| 58961A | Hinge, Console Compartment Door Male |
| 58964 | Stopper, Console Compartment Door, NO.1 |
| 58965A | Stopper, Console Compartment Door, NO.2 |
| 58968C | Shim, Console Compartment Door Stopper |
| 58969A | Retainer, Console Compartment Door Stopper |
| 58976 | Striker, Console Compartment Door Lock |
| 58991 | Bracket, Console Box Mounting, Upper |
| 58995A | Bracket, Console Box Mounting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
