Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

59 part groups · 9 illustrations

Illustrations

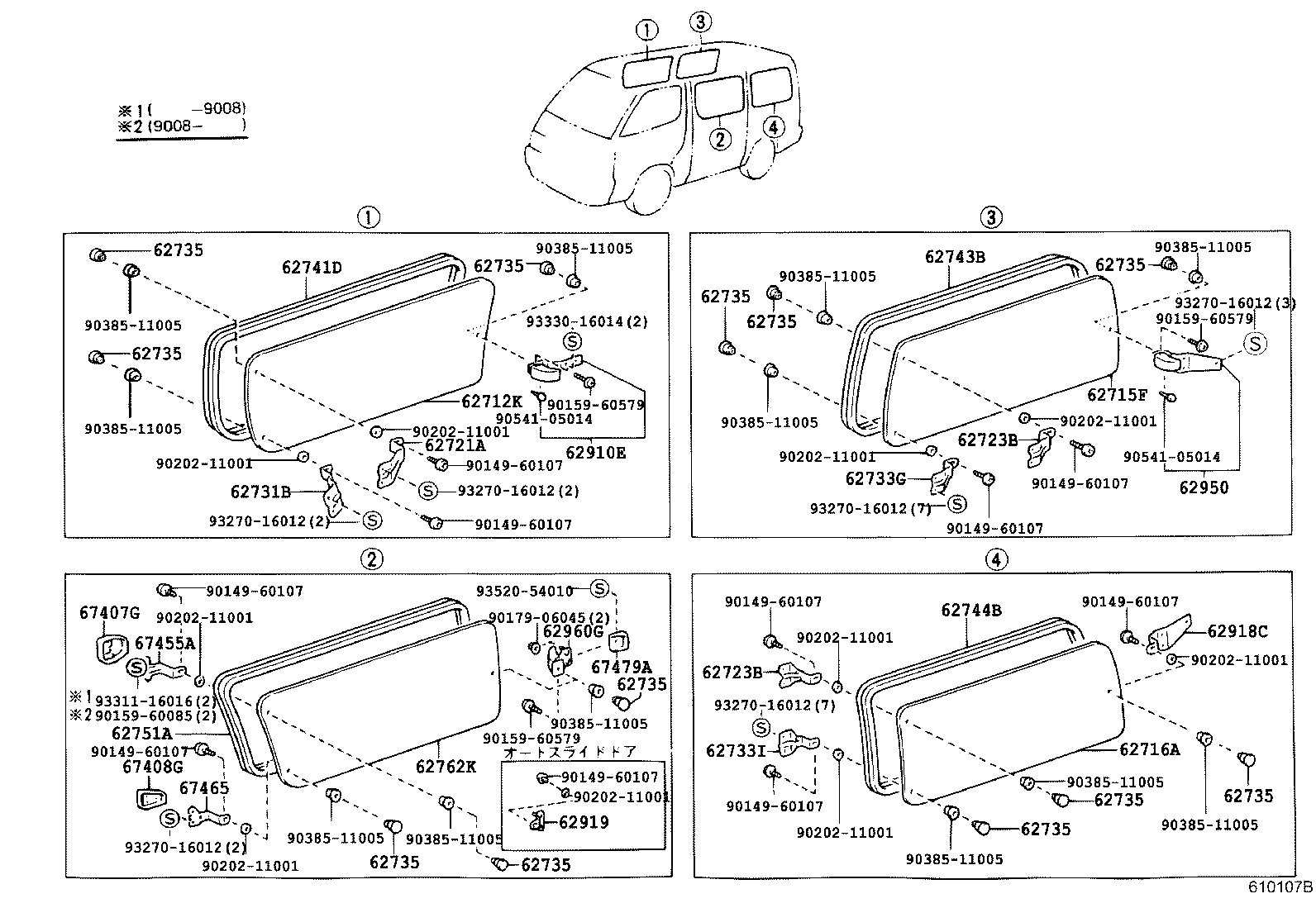

610107B 1989-08 → 1999-07

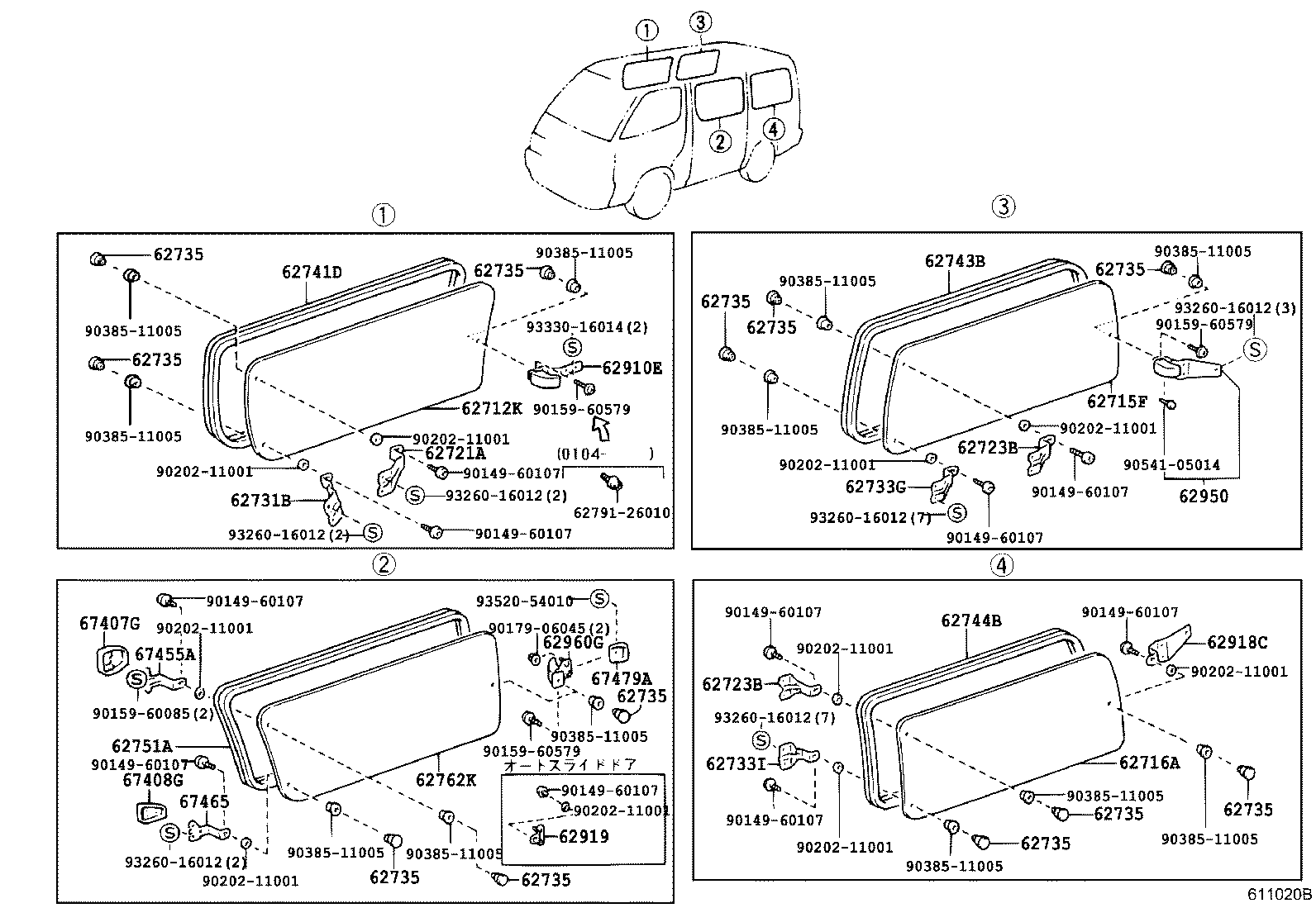

611020B 1999-07 → —

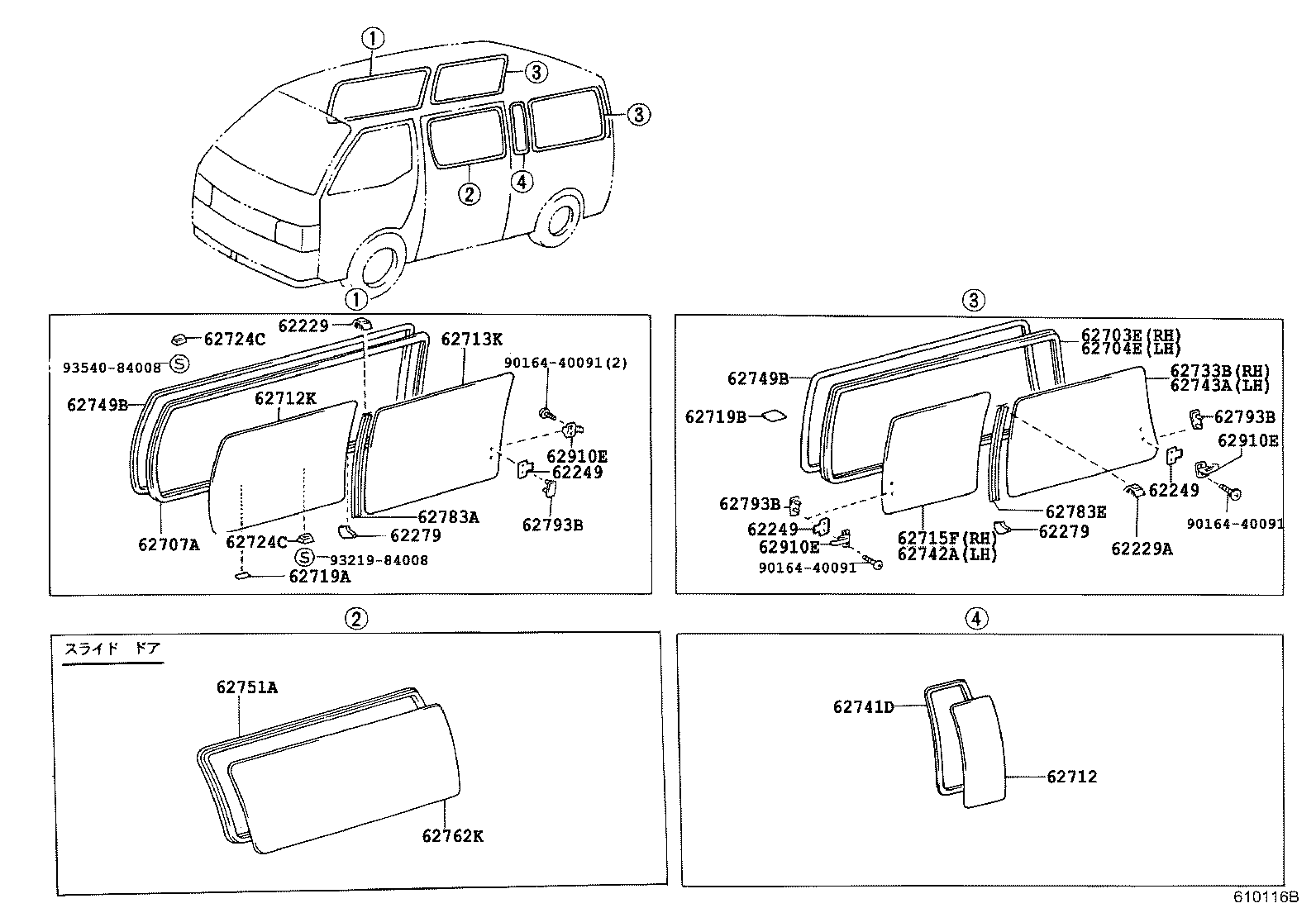

610116B 1992-05 → —

Part groups

PNC	Description
62149A	Tape, Side Window Frame
62229	Packing, Side Window
62229A	Packing, Side Window, NO.2
62229B	Packing, Side Window, NO.3
62249	Plate, Side Window, RH
62275C	Cover, Side Window
62279	Spacer, Side Window Frame, Upper
62703E	Frame Sub-assy, Side Rear Window, RH
62704E	Frame Sub-assy, Side Rear Window, LH
62707A	Frame Sub-assy, Side Front Window, RH
62712	Glass, Quarter Window, LH
62712K	Glass, Side Window, Front RH
62713K	Glass, Side Window, Rear RH
62715F	Glass, Side Rear Window, RH
62716A	Glass, Side Rear Window, LH
62719A	Packing, Side Front Window, Upper
62719B	Packing, Side Rear Window, Upper
62721A	Hinge, Side Front Window, Upper
62723B	Hinge, Side Rear Window, Upper
62724B	Stop, Side Window Glass
62724C	Stop, Side Front Window Glass, RH
62724F	Stop, Side Rear Window Glass, LH
62724G	Stop, Slide Door Window Glass, RH
62724H	Stop, Slide Door Window Glass, LH
62731B	Hinge, Side Front Window, Lower
62732C	Glass, Slide Door Window, Front RH
62733B	Glass, Side Rear Window, Rear RH
62733G	Hinge, Side Rear Window, Lower RH
62733I	Hinge, Side Rear Window, Lower
62735	Retainer, Quarter Window Hinge
62735A	Grass, Slide Door Window, Rear RH
62736	Glass, Slide Door Window, Rear LH
62741D	Weatherstrip, Side Front Window
62742A	Glass, Side Rear Window, Front LH
62743A	Glass, Side Rear Window, Rear LH
62743B	Weatherstrip, Side Rear Window
62744B	Weatherstrip, Side Rear Window, LH
62746B	Packing, Quarter Window, RH
62746D	Packing, Quarter Window, LH
62749B	Seal, Side Window Frame
62751A	Weatherstrip, Slide Door Window
62762K	Glass, Side Door Window, Front LH
62783A	Sash, Side Window, Center
62783E	Sash, Side Rear Window, Center
62793B	Retainer, Side Window Lock, RH
62897	Tube, Side Window Guard
62898A	Tube, Side Window Guard, LH
62910E	Lock Assy, Side Window
62918C	Stay, Side Rear Window Lock
62919	Stay, Slide Door Window Lock
62950	Lock Assy, Side Rear Window
62960G	Lock Assy, Slide Door Window
67043D	Frame Sub-assy, Slide Door Window, RH
67044D	Frame Sub-assy, Slide Door Window, LH
67407G	Cover Sub-assy, Slide Door Window Hinge, Upper
67408G	Cover Sub-assy, Slide Door Window Hinge, Lower
67455A	Hinge, Slide Door Window, Upper
67465	Hinge, Slide Door Window, Lower
67479A	Cover, Slide Door Window Lock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
