Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Room Curtain & Room Rack

24 part groups · 5 illustrations

Illustrations

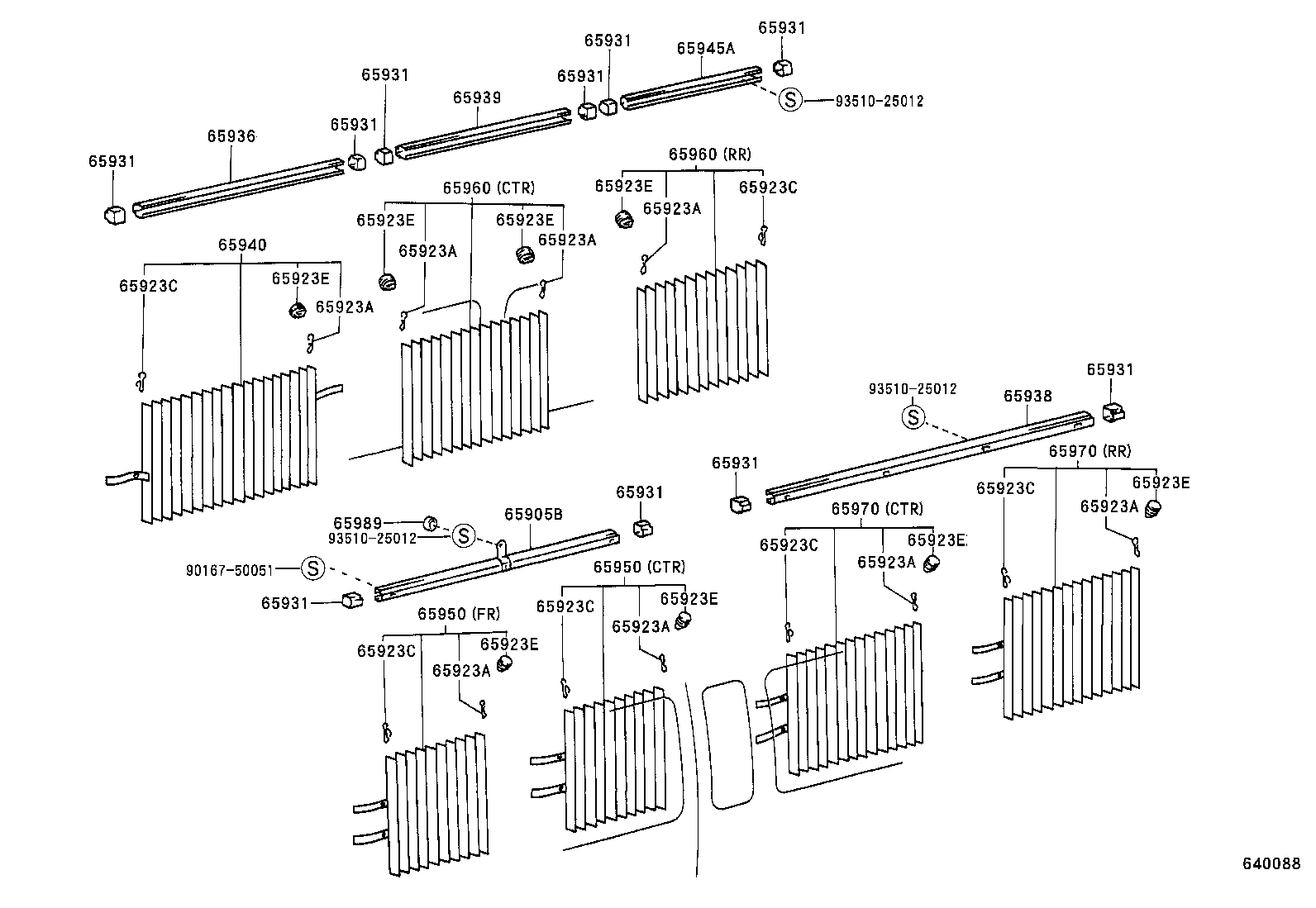

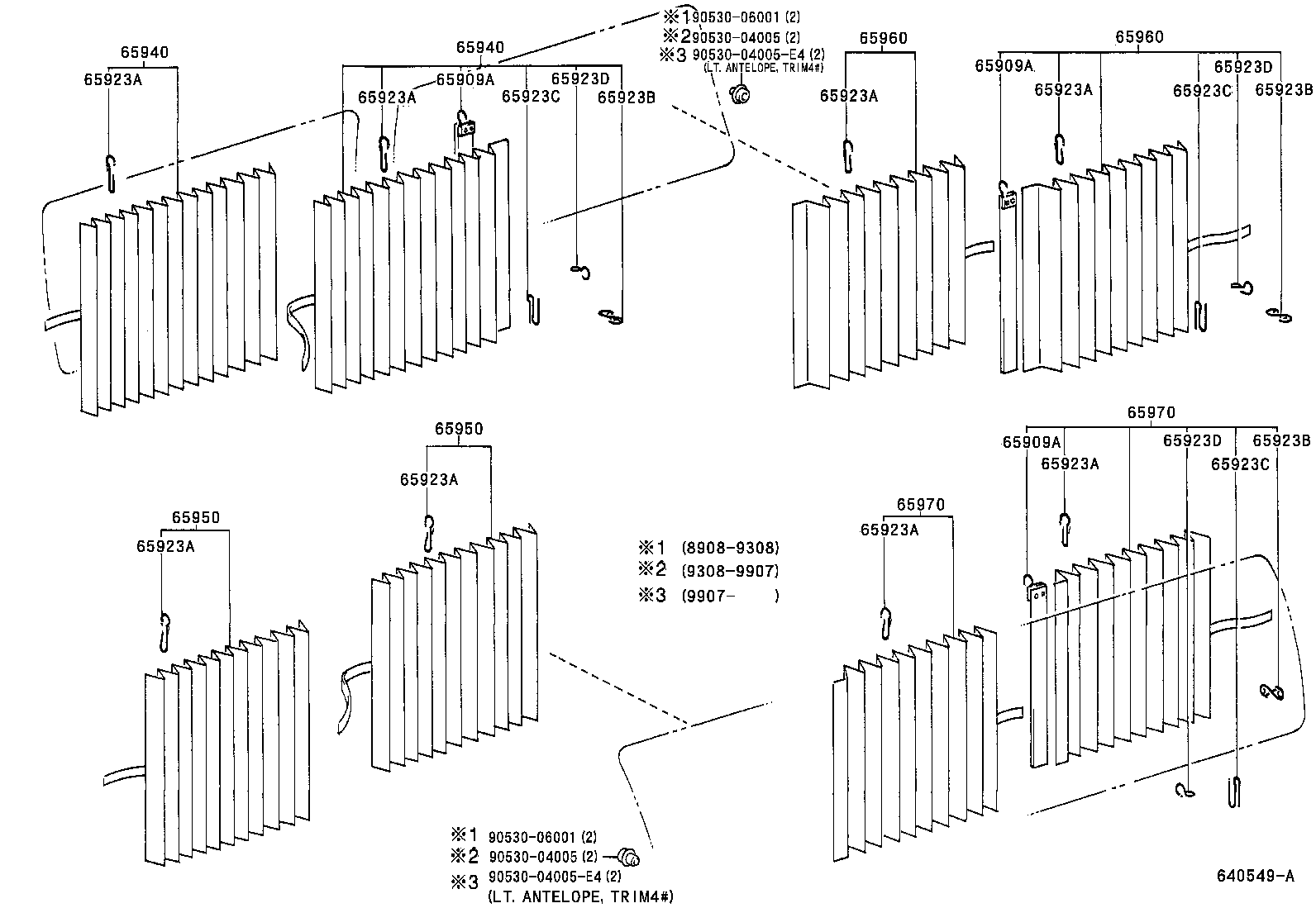

Figure MN0335 MN0335 1989-08 → — Figure 640549A 640549A 1989-08 → — Figure 640088 640088 1992-05 → — Figure MN0453 MN0453 1989-08 → — Figure MN1810A MN1810A 1992-05 → —

Part groups

PNCDescription
63430 Rack Assy, Roof, Inner
63435A Frame, Room Rack, NO.1
63436A Frame, Room Rack, NO.2
65905B Rail Sub-assy, Window Curtain
65909A Hook Sub-assy, Curtain
65923A Hook, Curtain, NO.1
65923B Hook, Curtain, NO.2
65923C Hook, Curtain, NO.3
65923D Hook, Curtain, NO.4
65923E Hook, Curtain
65931 Cover, Curtain Rail
65936 Rail, Curtain, NO.1
65938 Rail, Curtain, NO.3
65939 Rail, Curtain, NO.4
65940 Curtain Assy, Side, Front RH
65945A Rail, Curtain, NO.5
65950 Curtain Assy, Side, Front LH
65960 Curtain Assy, Side, Rear RH
65960A Curtain Assy, Roof
65970 Curtain Assy, Side, Rear LH
65980 Curtain Assy, Back Door, RH
65983 Hanger, Back Window Curtain
65989 Cap, Curtain Rail
65990 Curtain Assy, Back Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
