Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

21 part groups · 6 illustrations

Illustrations

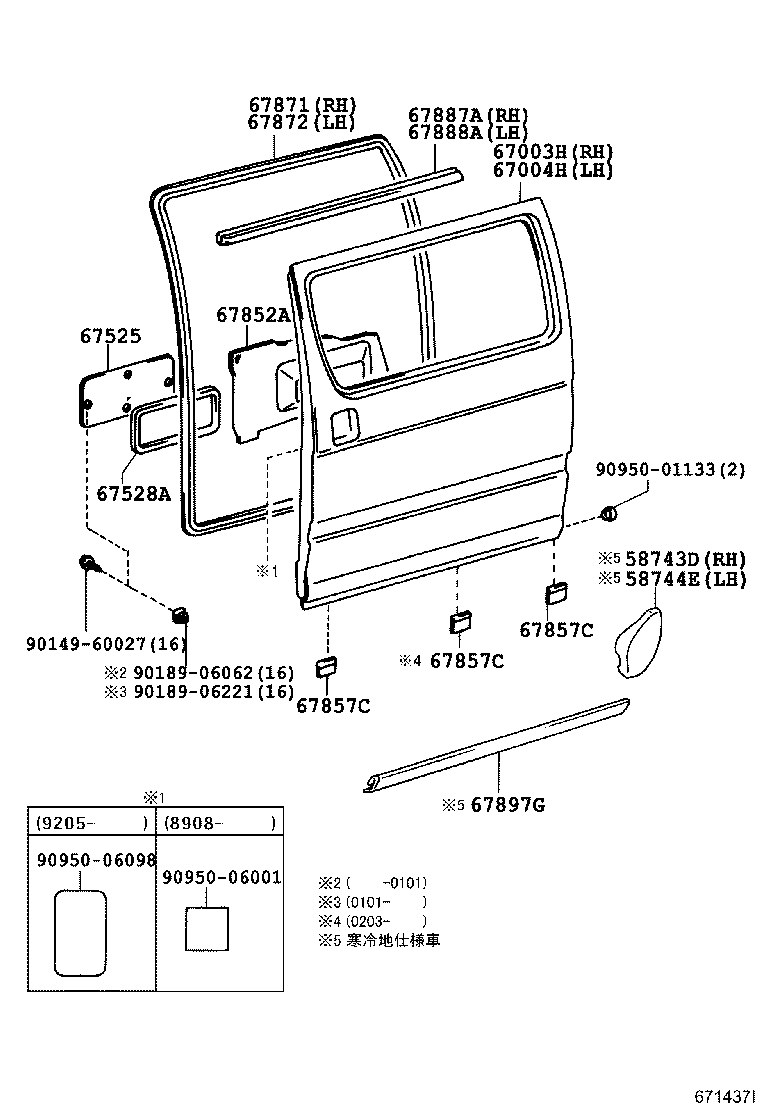

Figure MN0400A MN0400A 1989-08 → 1993-08 Figure 670207A 670207A 1989-08 → — Figure 670207A 670207A 2003-08 → — Figure 672527A 672527A 1993-08 → — Figure 672527A 672527A 2003-08 → — Figure 671437I 671437I 1989-08 → —

Part groups

PNCDescription
58743D Protector, Slide Door Panel, RH
58744E Protector, Slide Door Panel, LH
62036 Trim Sub-assy, Rear Door Trim, Upper LH
67003H Door Sub-assy, Slide, RH
67004H Door Sub-assy, Slide, LH
67525 Cover, Slide Door Panel, Lower
67528A Packing, Slide Door Lower Cover
67603 Board Sub-assy, Rear Door Trim, RH
67604 Board Sub-assy, Rear Door Trim, LH
67604B Clip(FOR SLIDE DOOR TRIM BOARD)
67604C Plug, Hole
67617B Clip(FOR SLIDE DOOR TRIM BASE)
67772F Cap, Rear Door Trim Retainer
67776 Cover, Rear Door Trim, Lower LH
67852A Cover, Slide Door Service Hole, NO.2
67857C Seal, Slide Door Panel Hole
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
67887A Weatherstrip, Rear Door, NO.2 RH
67888A Weatherstrip, Rear Door, NO.2 LH
67897G Seal, Slide Door, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
