Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07

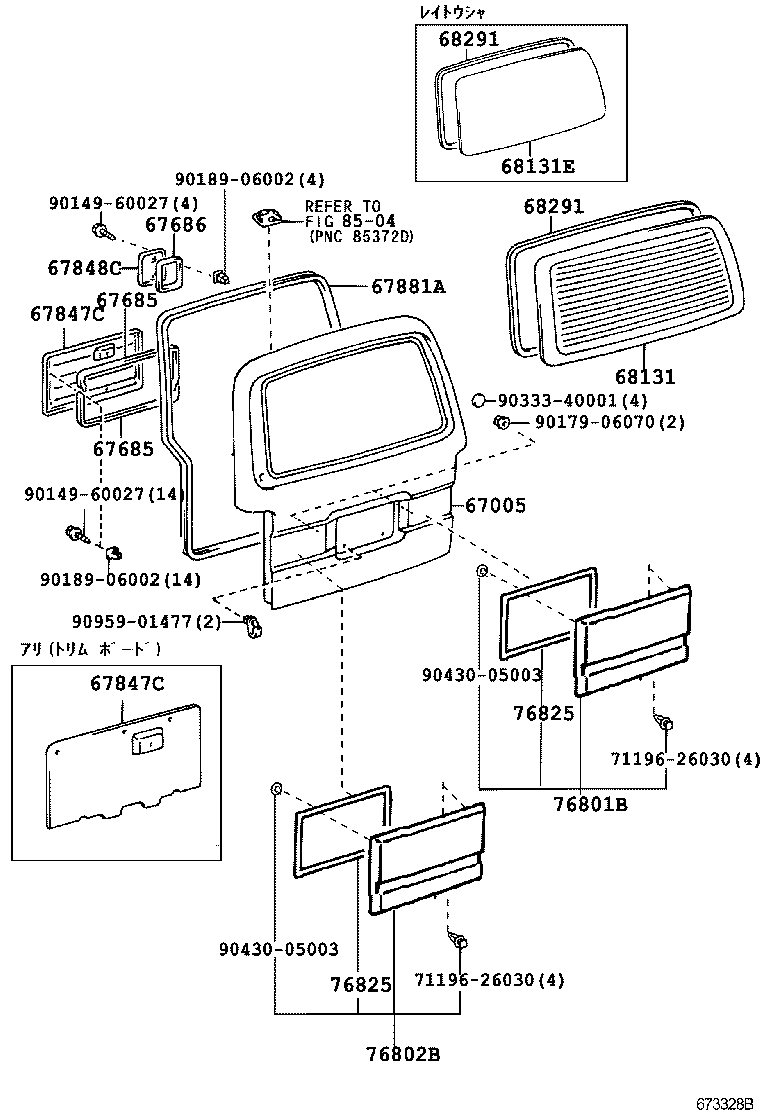

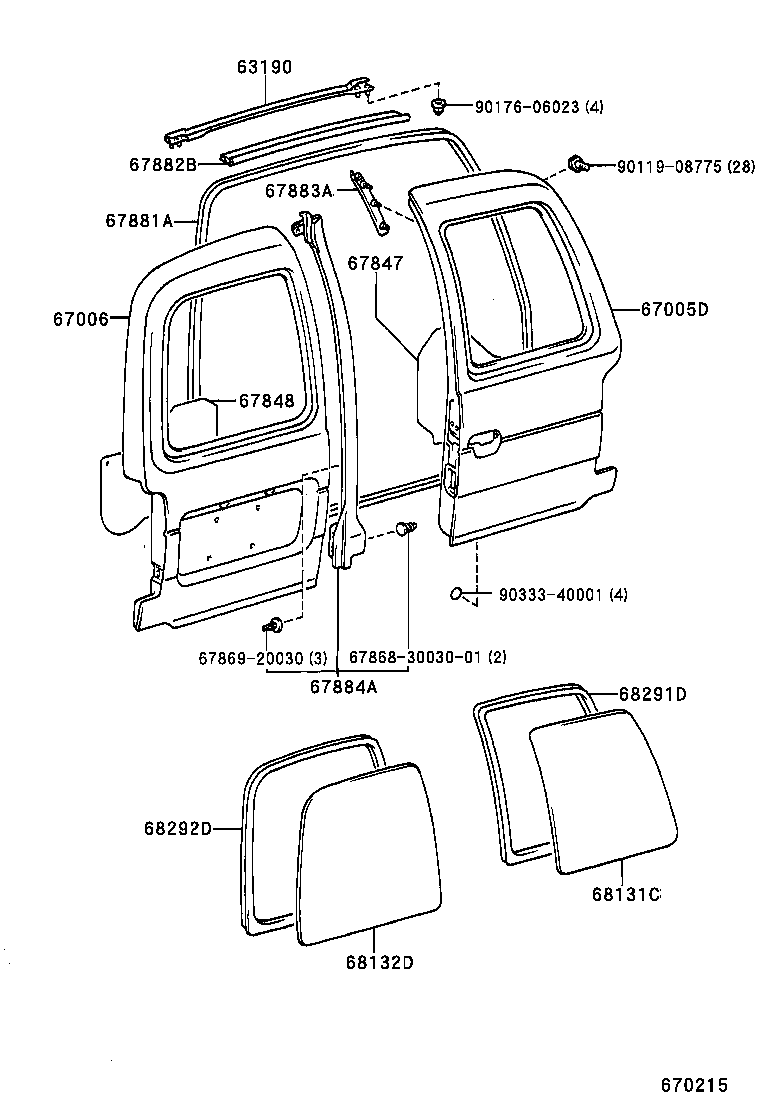

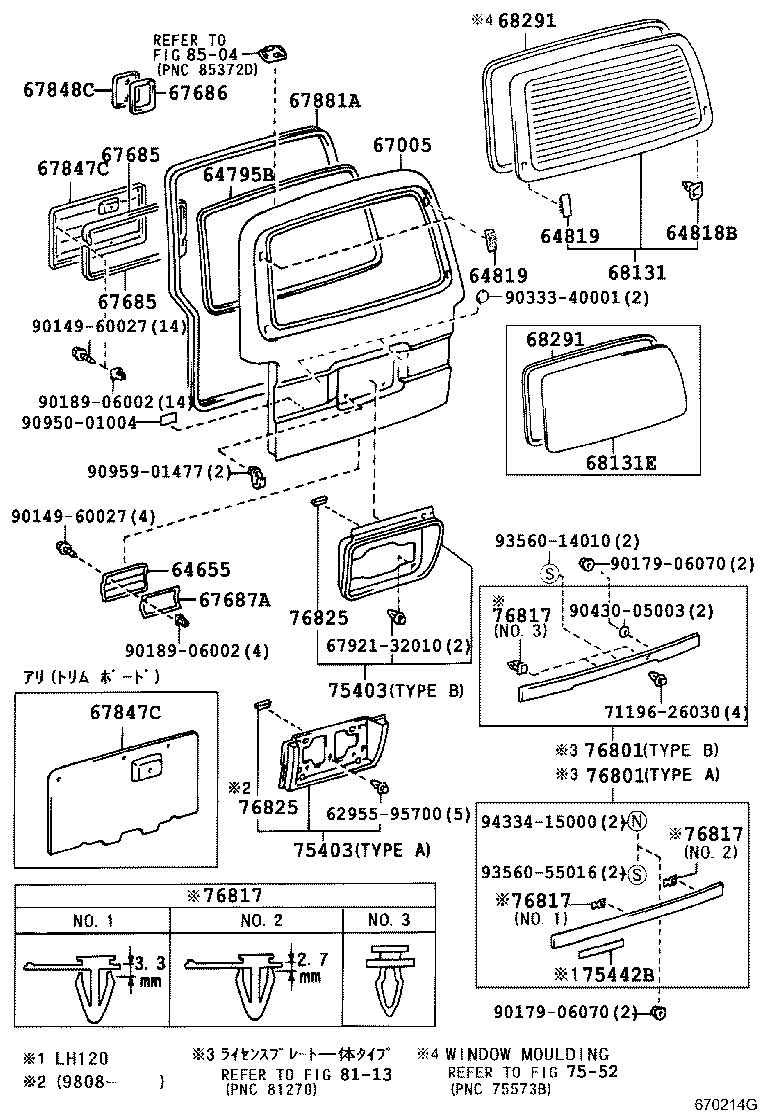

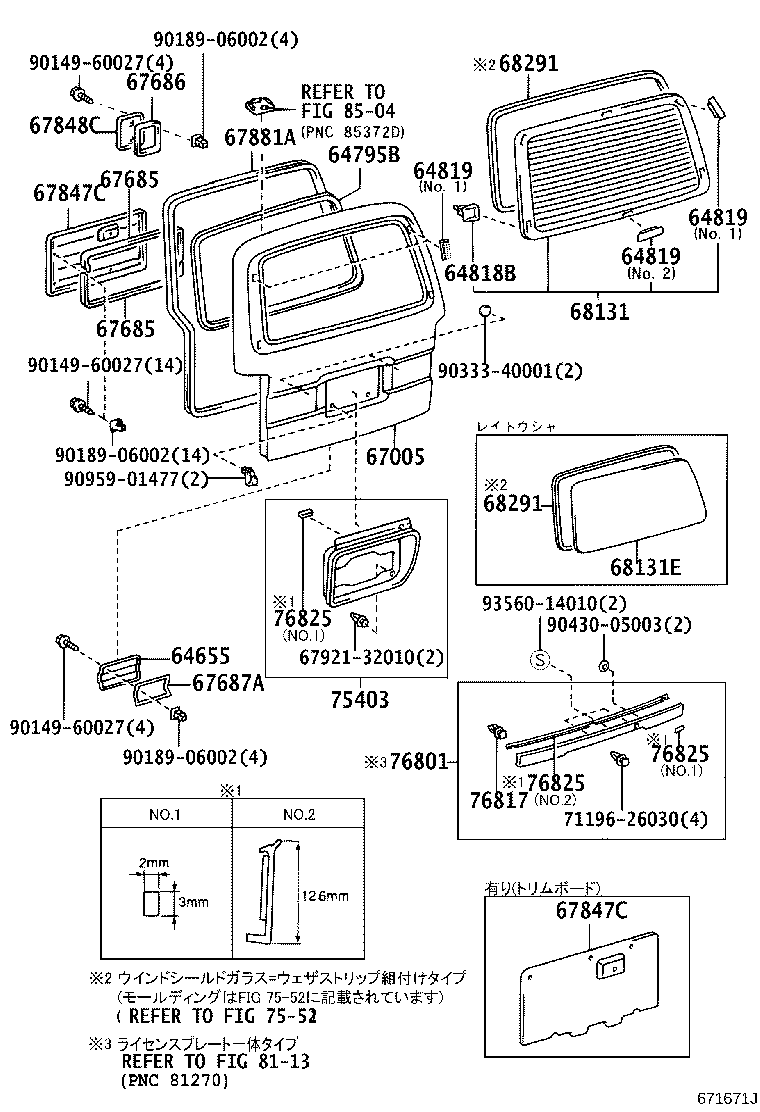

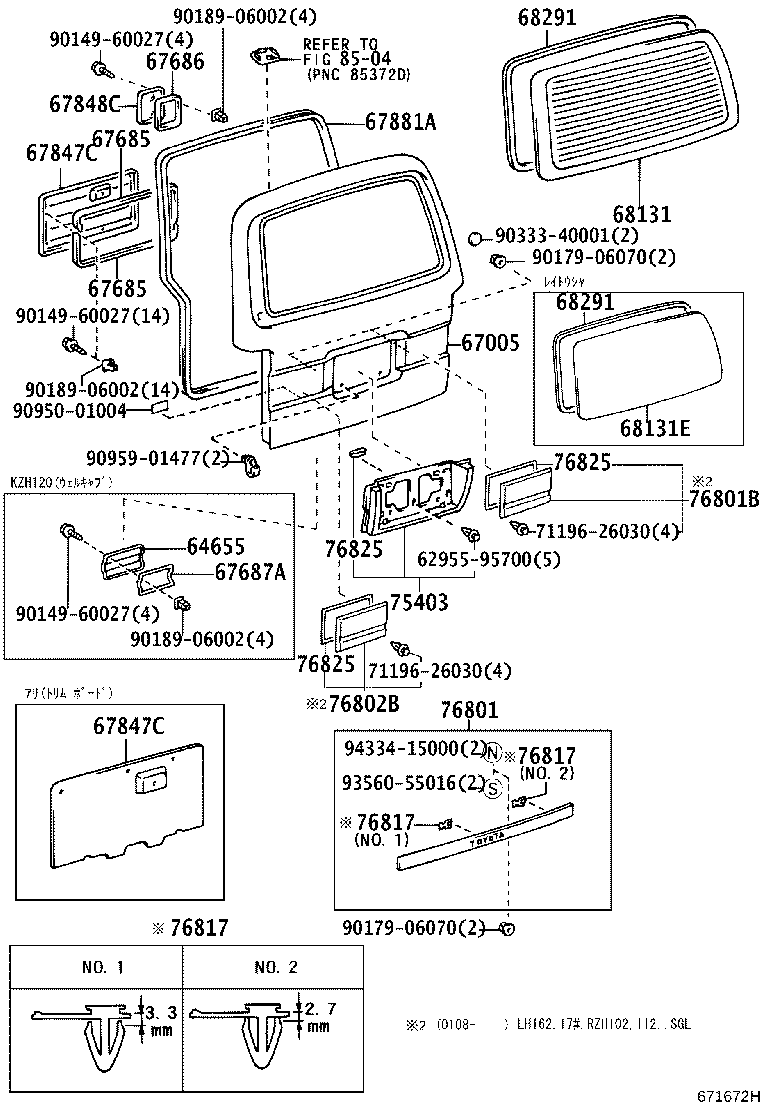

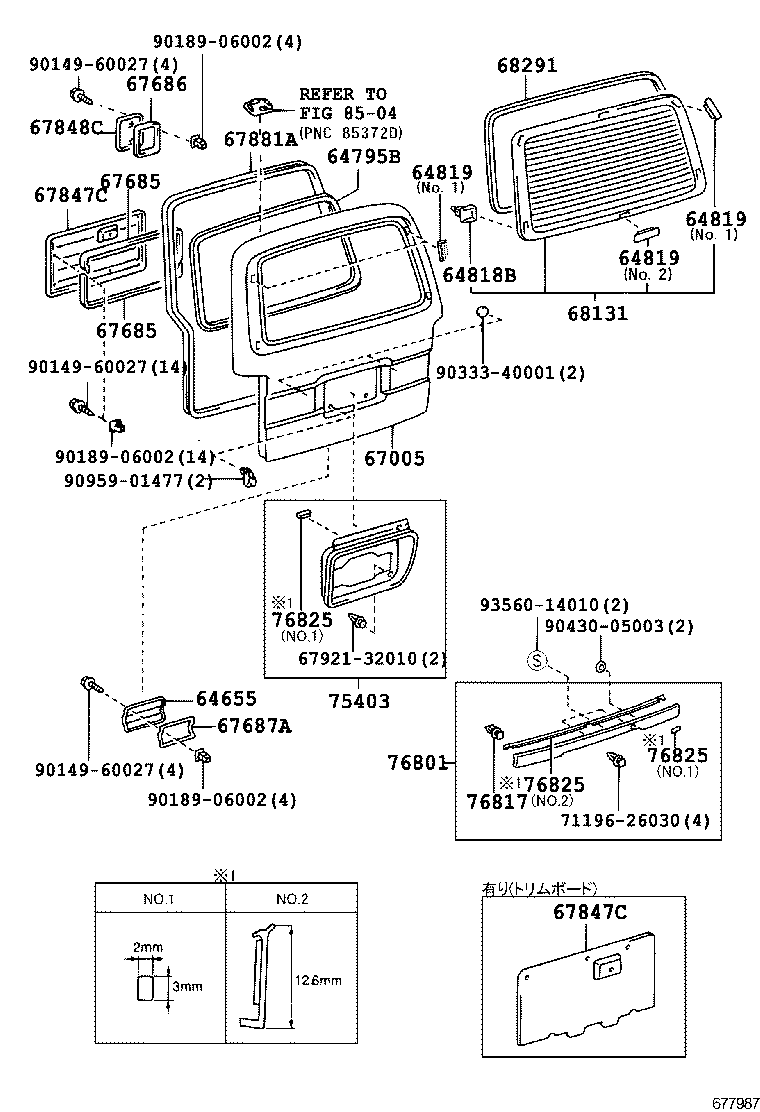

Back Door Panel & Glass
35 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 63190 | Bracket Assy, Back Door Weatherstrip |
| 64655 | Cover, Back Door Closer |
| 64795B | Trim, Back Window Opening |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67005D | Panel Sub-assy, Back Door, RH |
| 67006 | Door Sub-assy, Back, LH |
| 67685 | Packing, Back Door Service Hole, NO.1 |
| 67686 | Packing, Back Door Service Hole, NO.2 |
| 67687A | Packing, Back Door Service Hole, NO.3 |
| 67750 | Board Assy, Back Door Trim |
| 67751 | Board, Back Door Trim |
| 67847 | Cover, Back Door Service Hole, RH |
| 67847C | Cover, Back Door Service Hole, NO.1 |
| 67848 | Cover, Back Door Service Hole, LH |
| 67848C | Cover, Back Door Service Hole, NO.2 |
| 67881A | Weatherstrip, Back Door |
| 67882B | Weatherstrip, Back Door, Upper LH |
| 67883A | Retainer, Back Door Weatherstrip |
| 67884A | Weatherstrip, Back Door, Center |
| 68131 | Glass, Back Door |
| 68131C | Glass, Back Door, RH |
| 68131E | Panel, Back Door Glass |
| 68132D | Glass, Back Door, LH |
| 68291 | Weatherstrip, Back Door Glass |
| 68291D | Weatherstrip, Back Door Glass, RH |
| 68292D | Weatherstrip, Back Door Glass, LH |
| 75403 | Ornament Sub-assy, Back Door |
| 75442B | Plate, Back Door Name, NO.2 |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76801B | Garnish Sub-assy, Back Door, Outside RH |
| 76802B | Garnish Sub-assy, Back Door, Outside LH |
| 76817 | Clip, Back Door Outside Garnish |
| 76825 | Protector, Back Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
