Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07

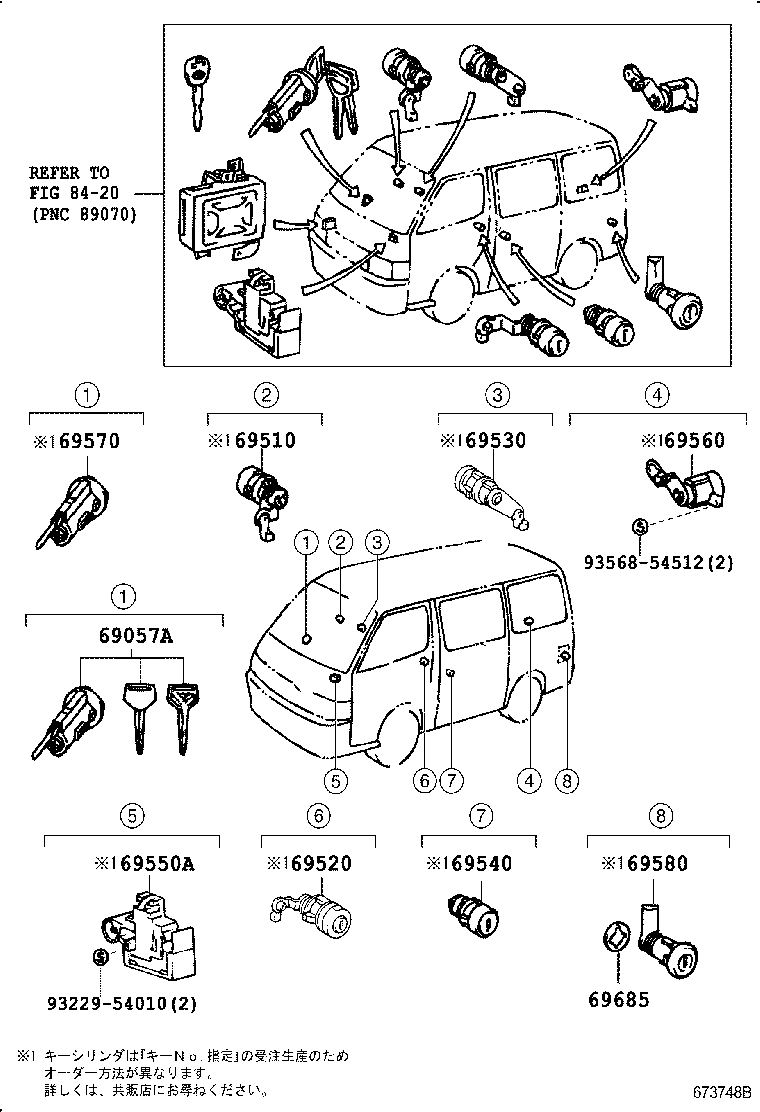

Lock Cylinder Set
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69530 | Cylinder Assy, Slide Door Lock, RH |
| 69540 | Cylinder Assy, Slide Door Lock, LH |
| 69550A | Cylinder Assy, Glove Compartment Door Lock |
| 69555 | Cover, Key |
| 69560 | Cylinder Assy, Back Door Lock |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69580 | Cylinder Assy, Fuel Filler Opening Lid |
| 69580B | Cylinder Assy, Battery Cover Opening |
| 69685 | Pad, Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
