Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07
Seat & Seat Track
343 part groups · 120 illustrations
Illustrations

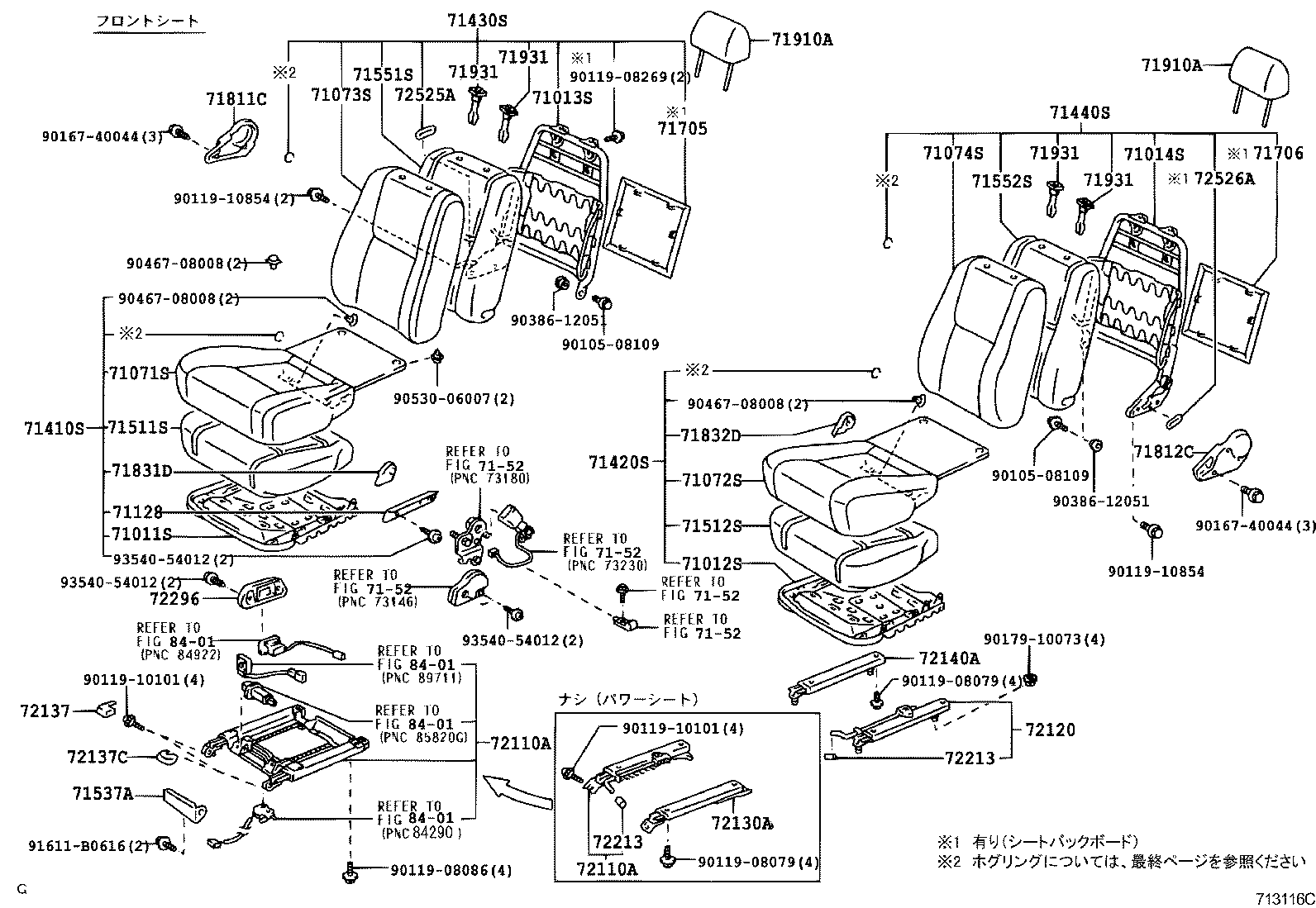

711591B
711591B

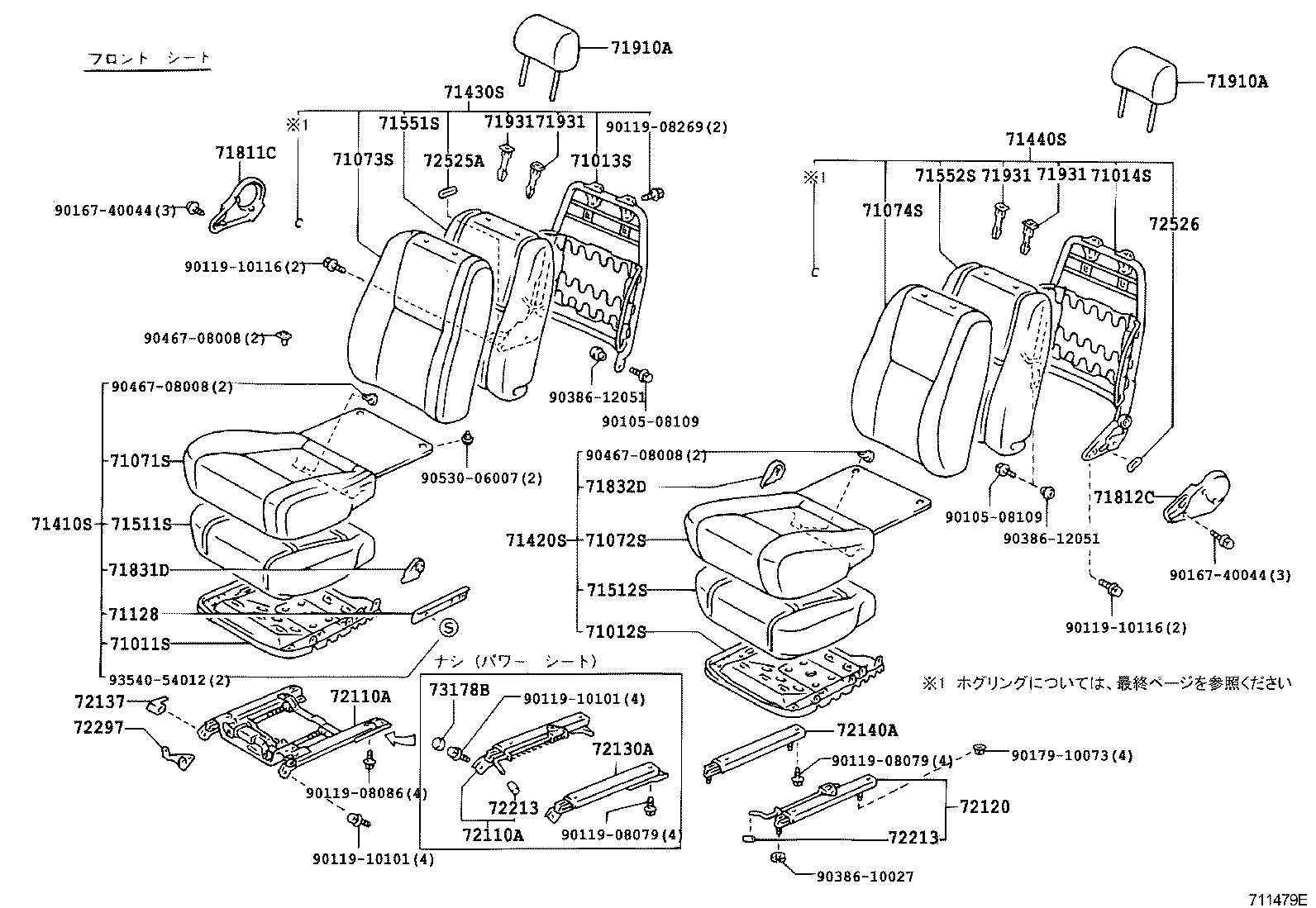

711479E

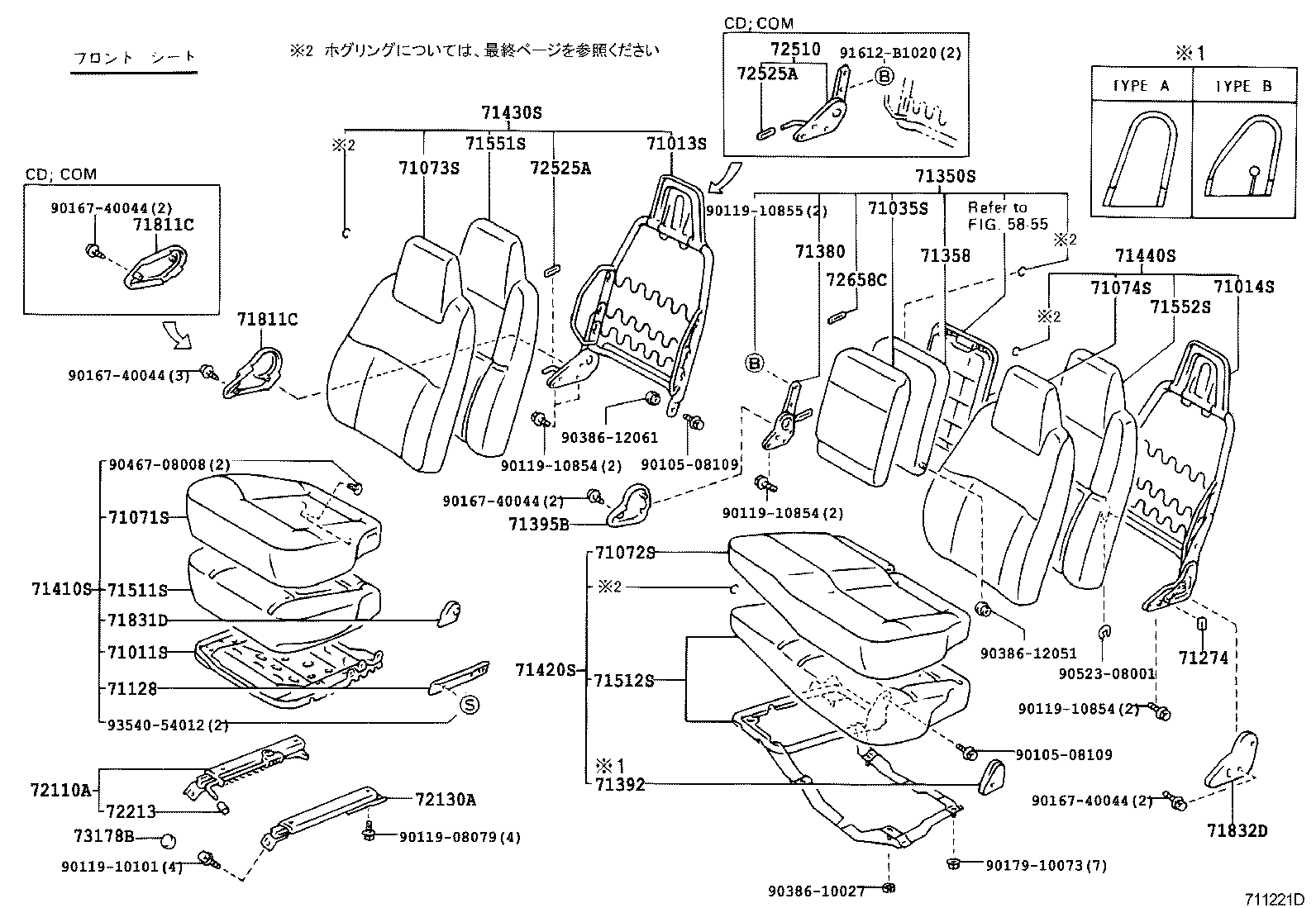

710221D

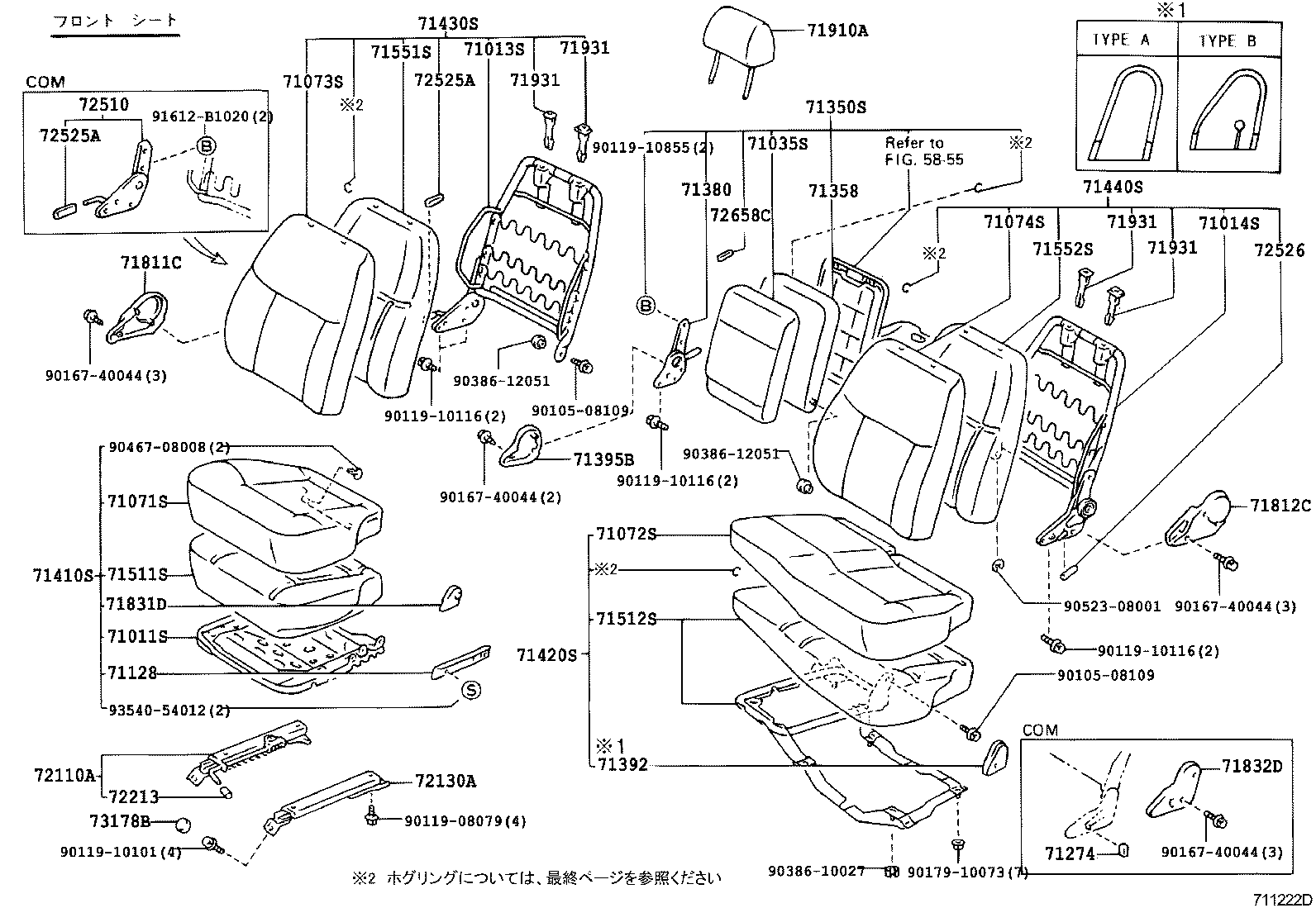

710222D

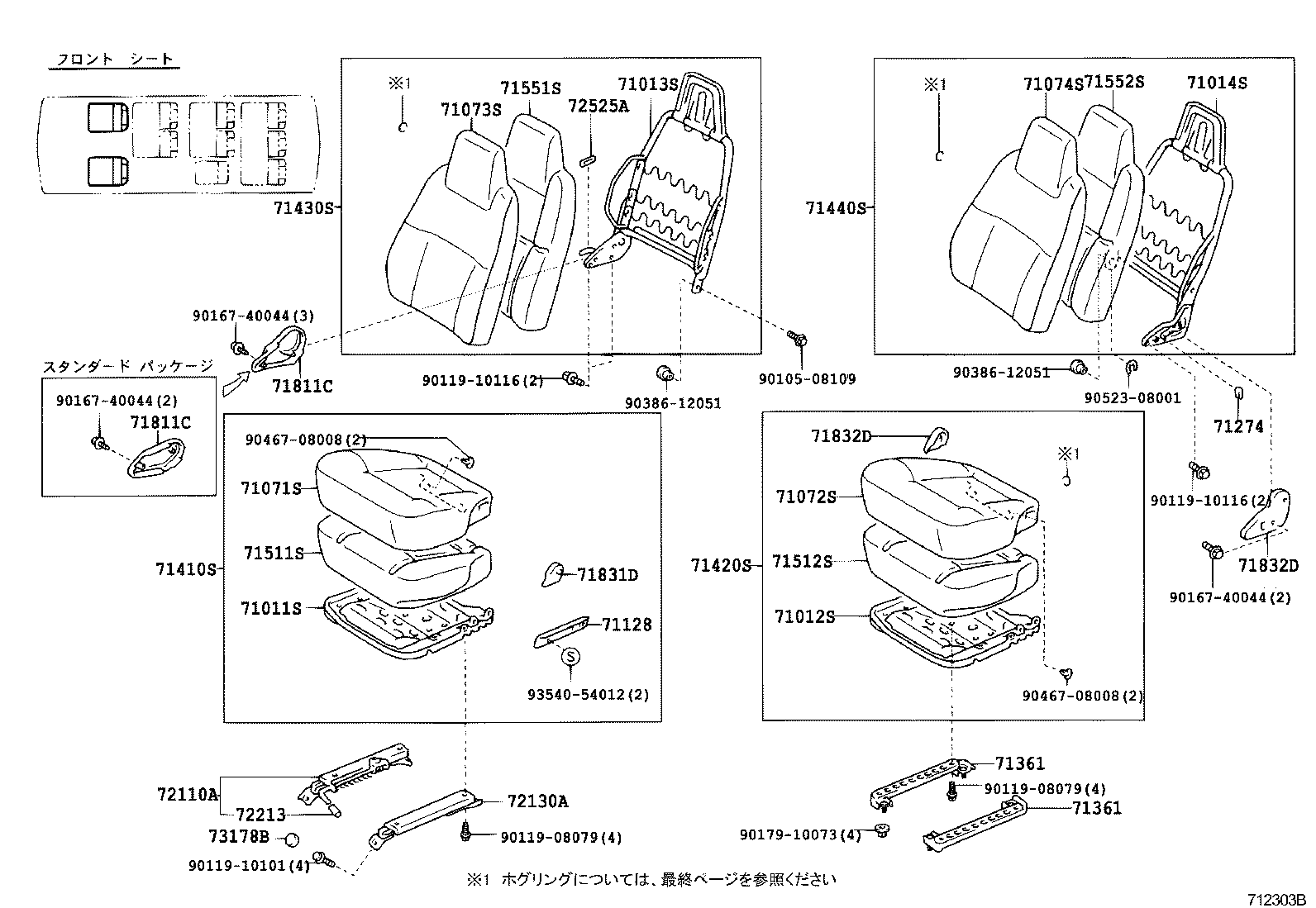

712303B

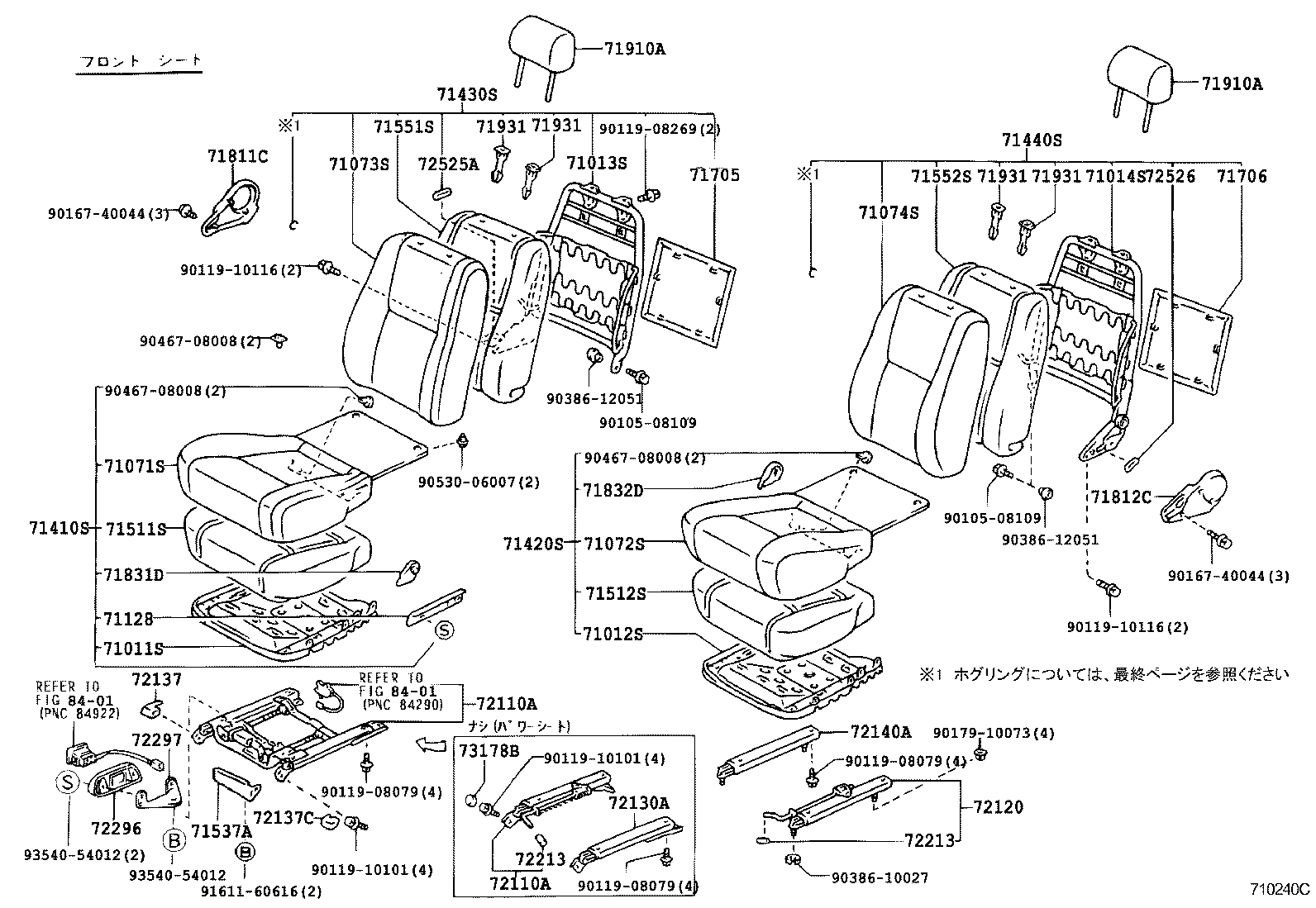

710240C

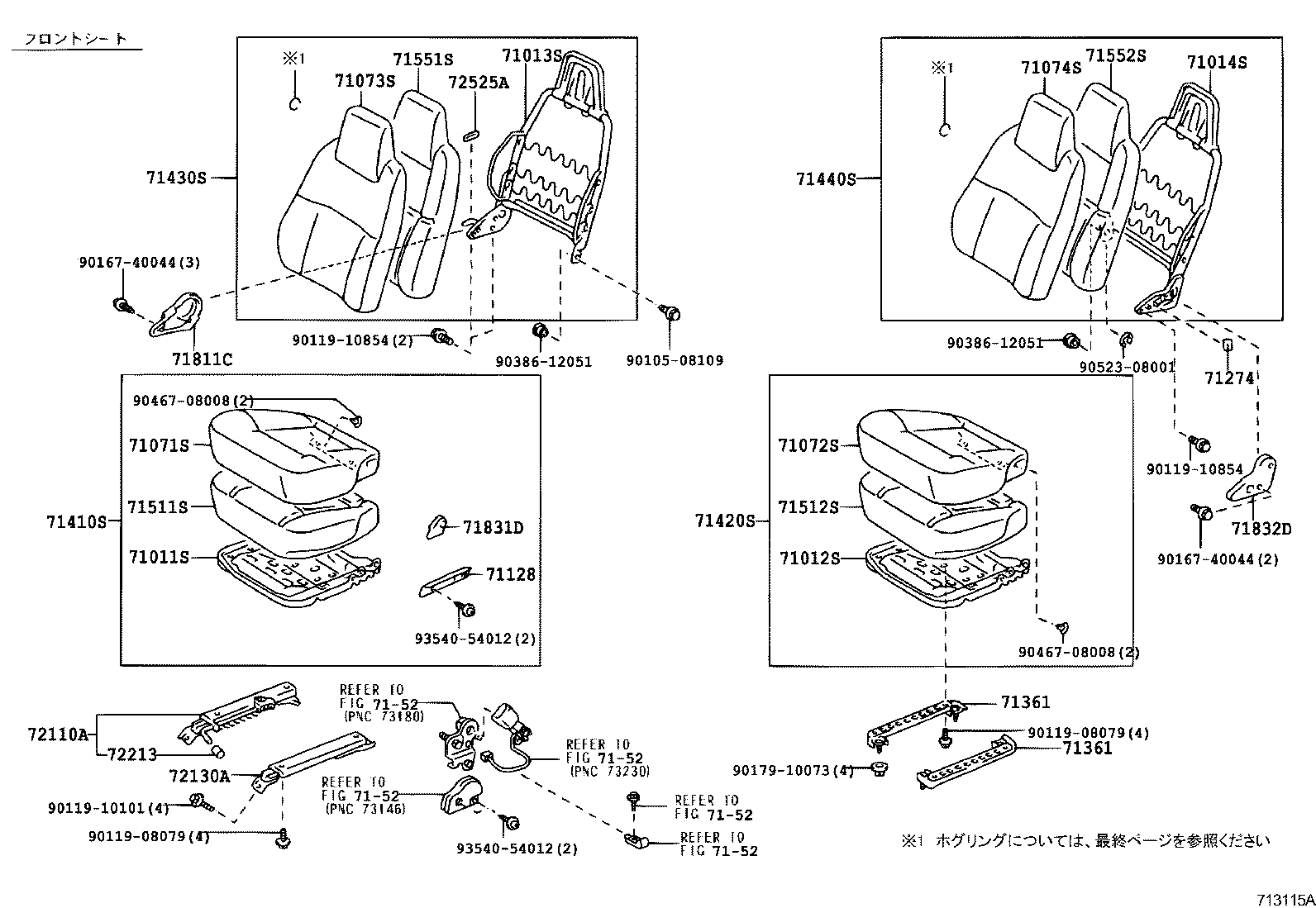

713115A
713116C

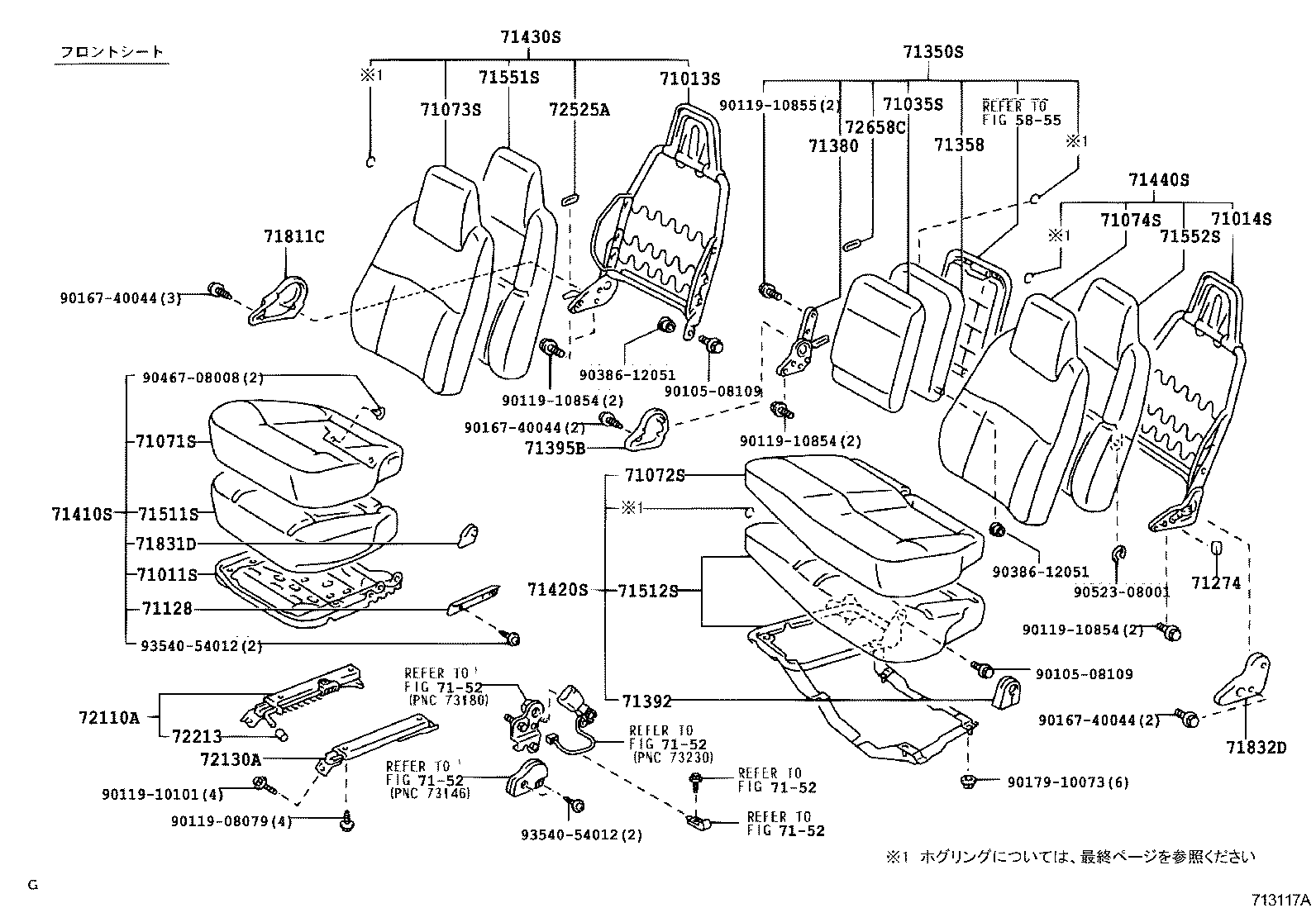

713117A
713117A

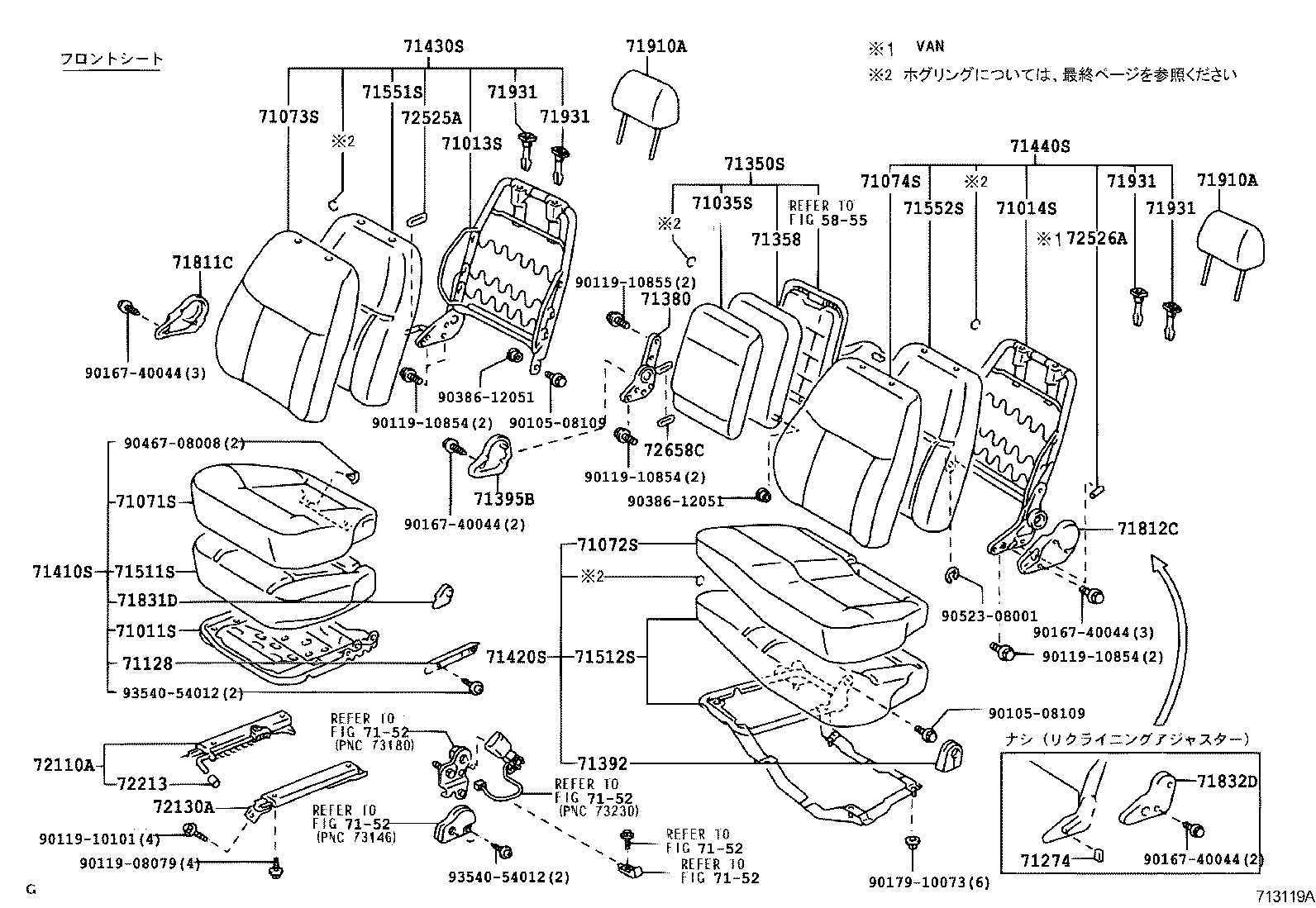

713119A

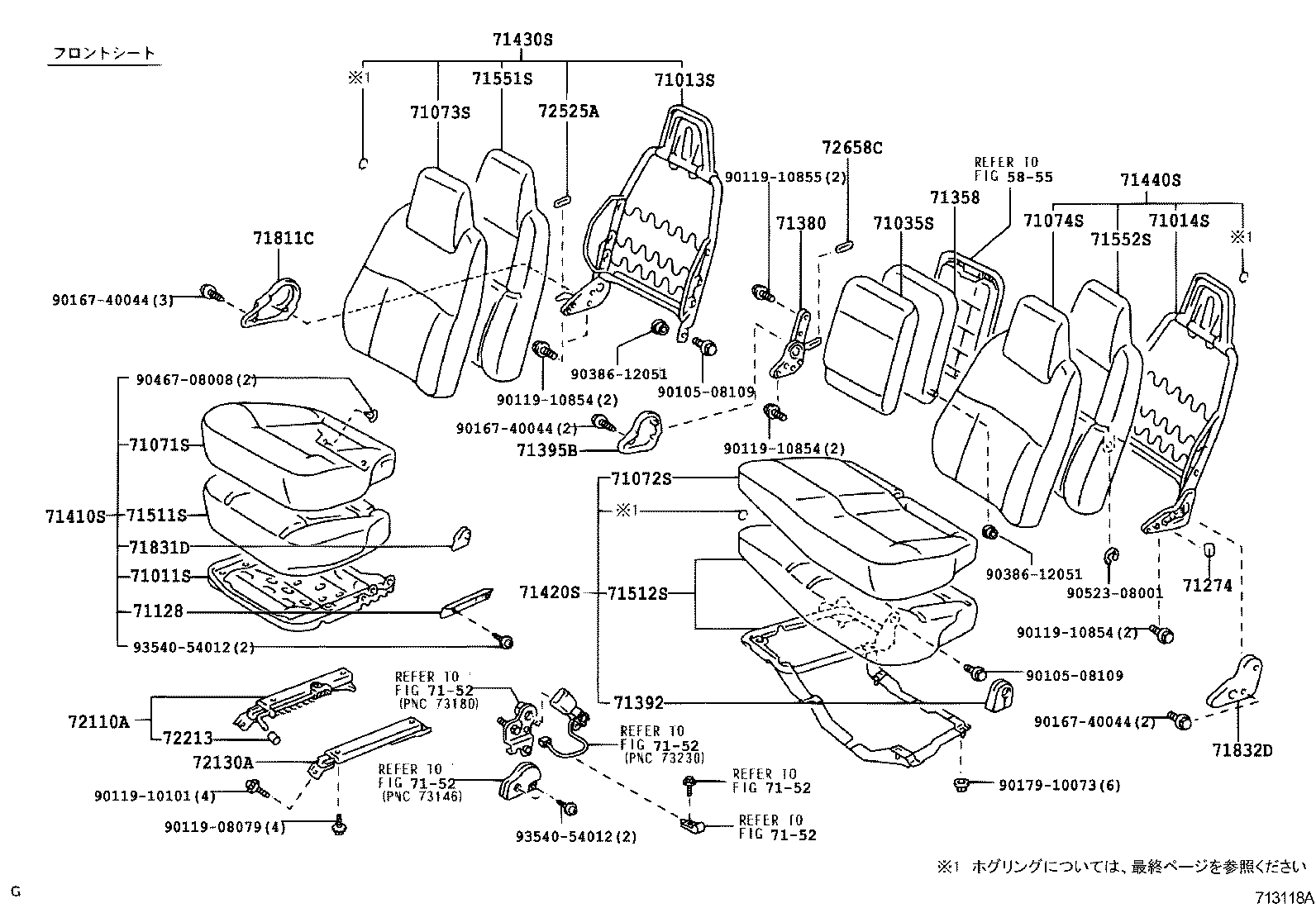

713118A

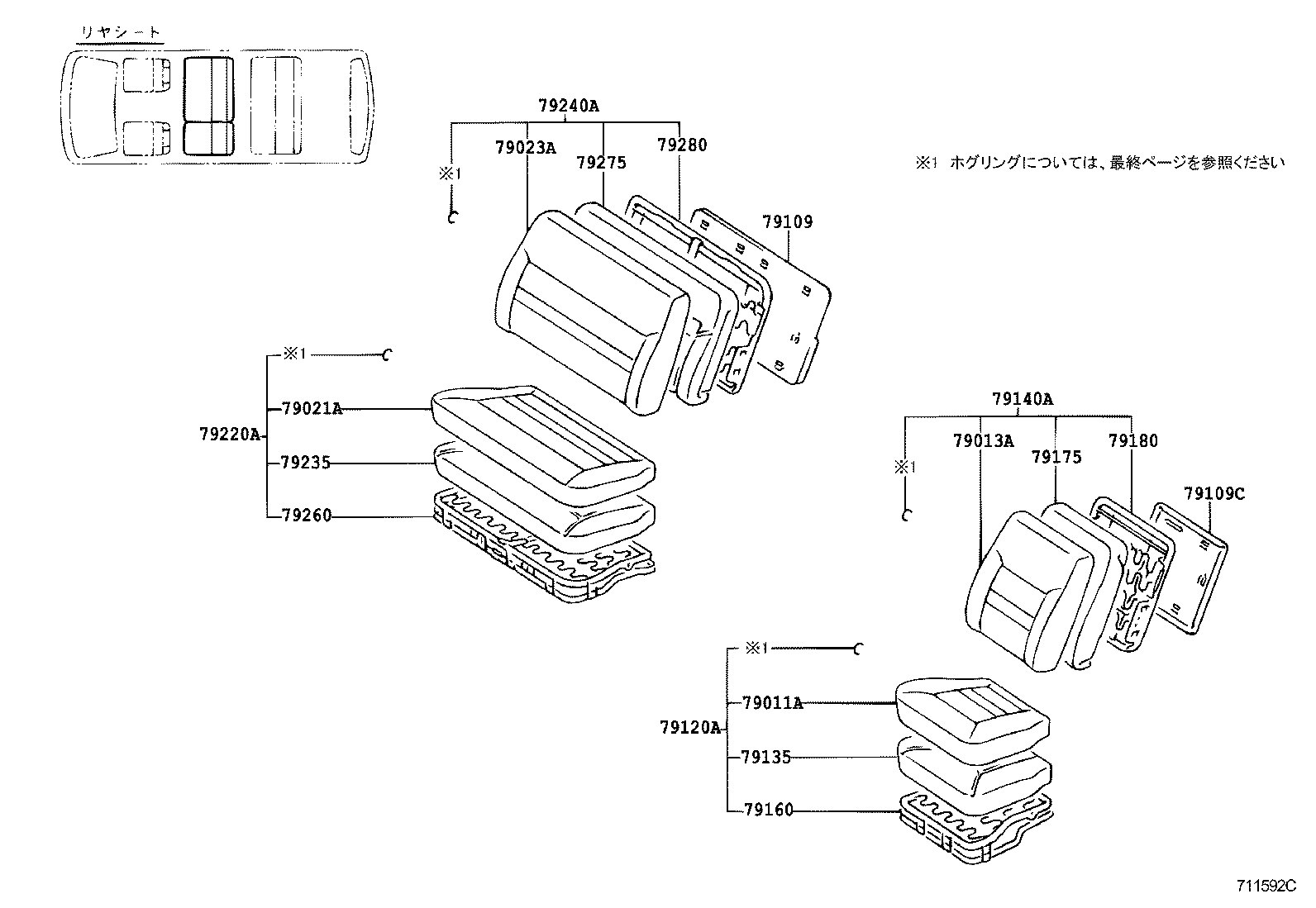

711592C

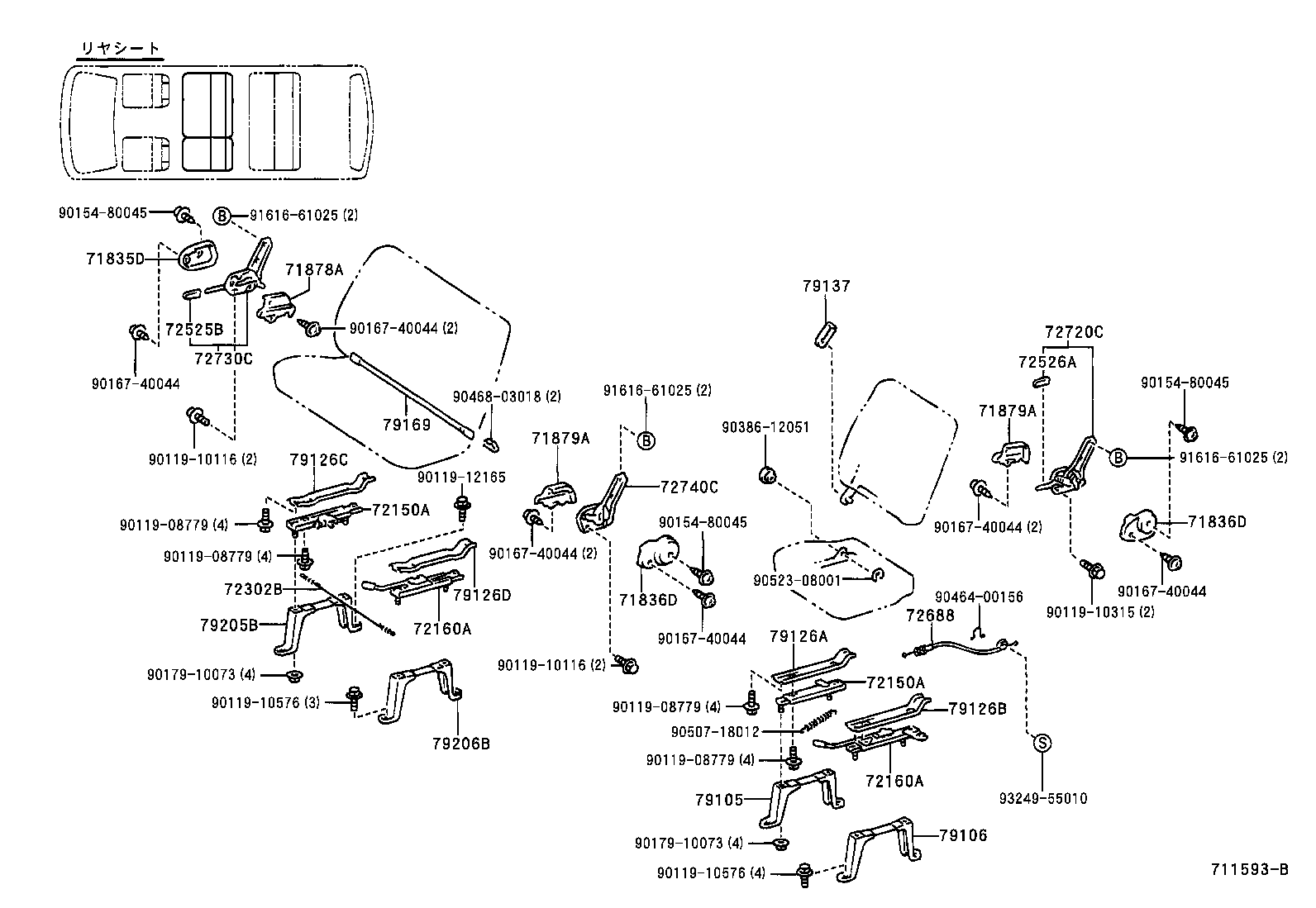

711593B

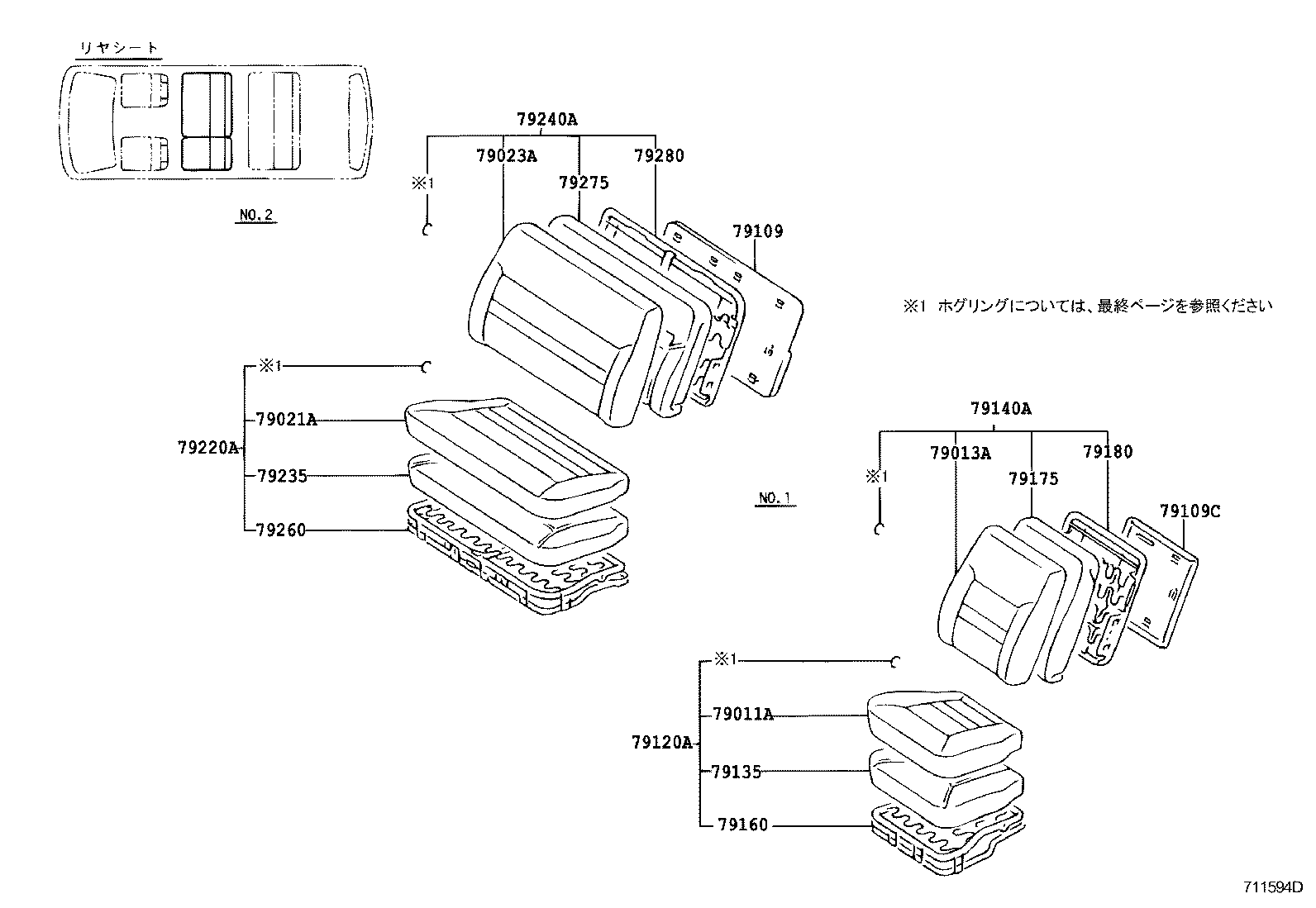

711594D

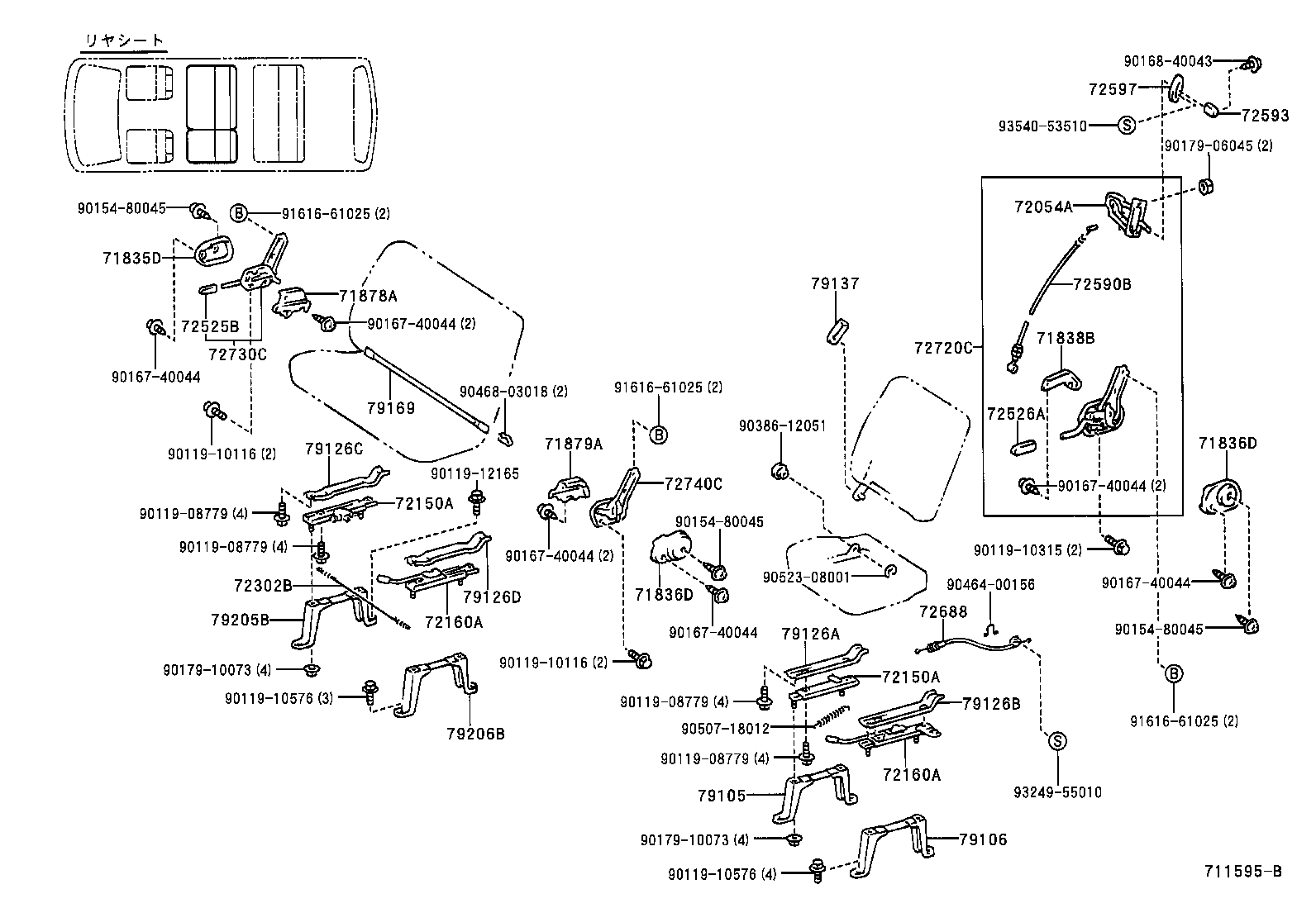

711595B

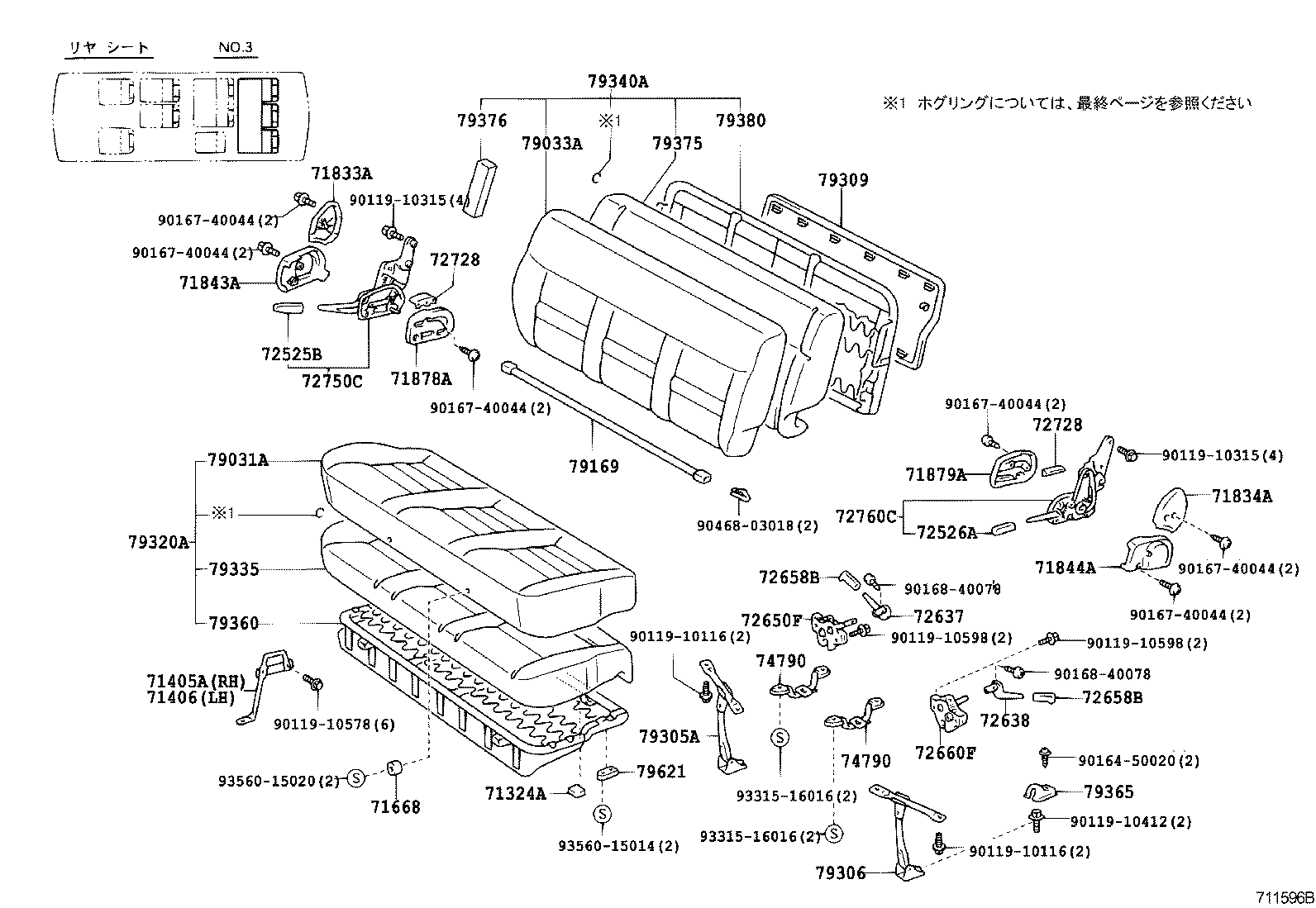

711596B
711596B
711701B

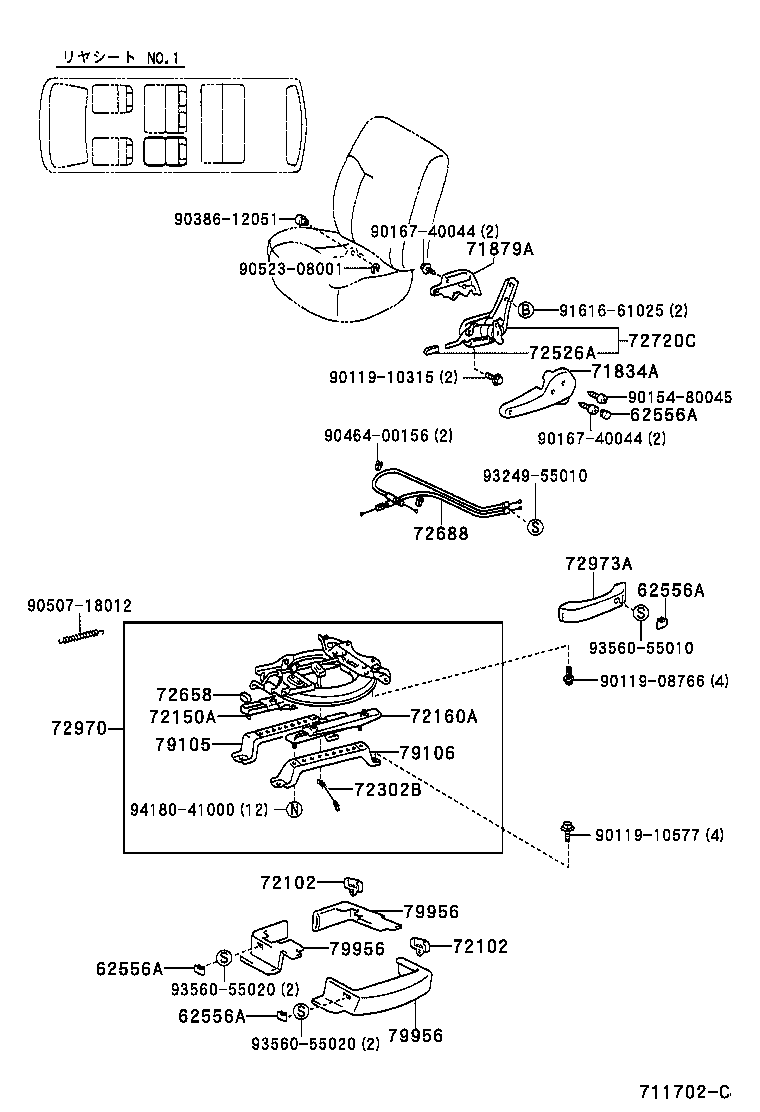

711702C
711703B

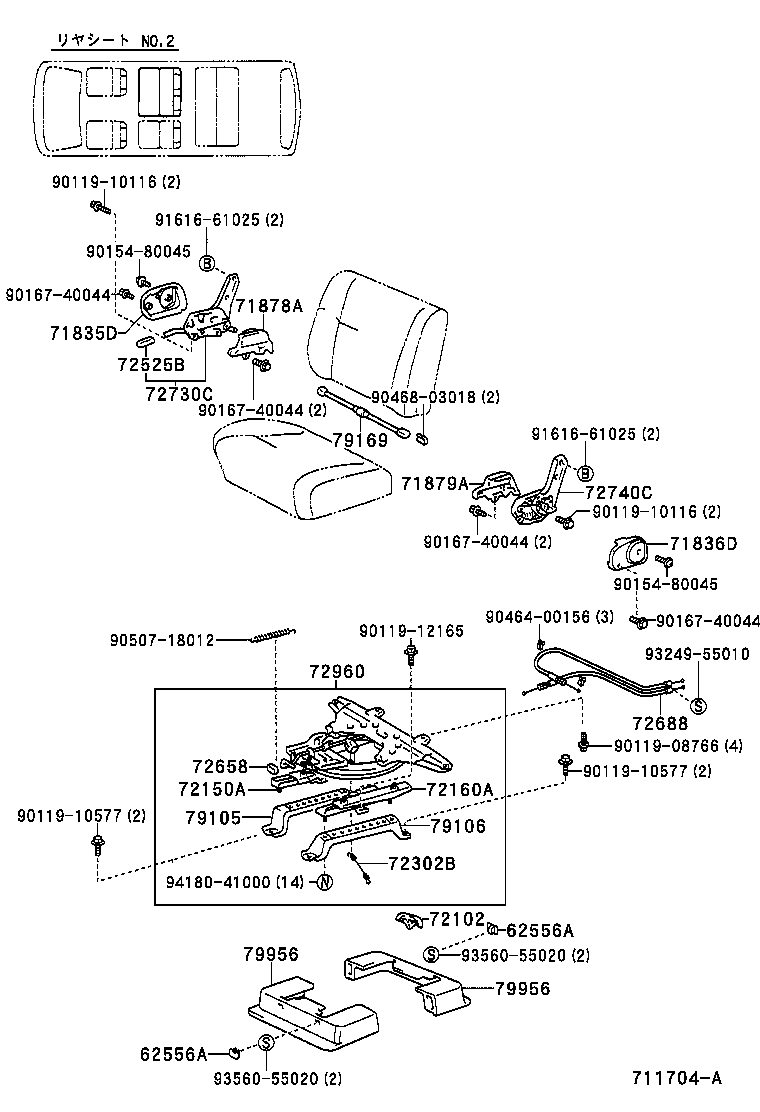

711704A
711705B

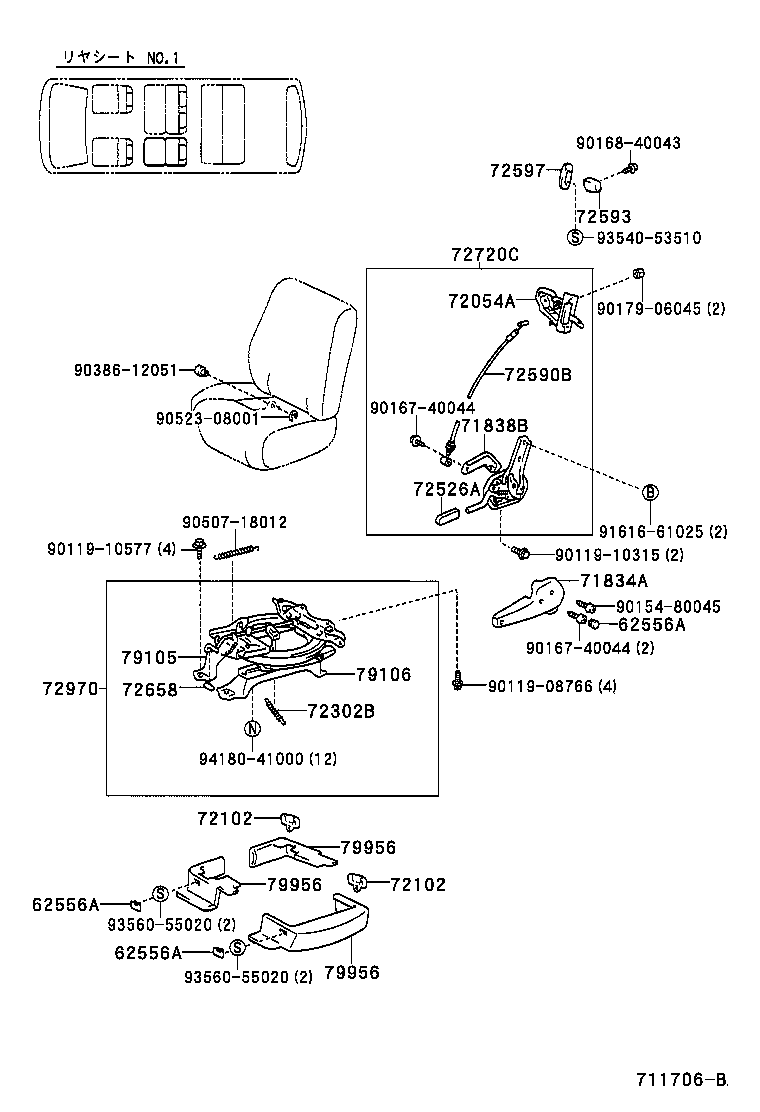

711706B
711707B

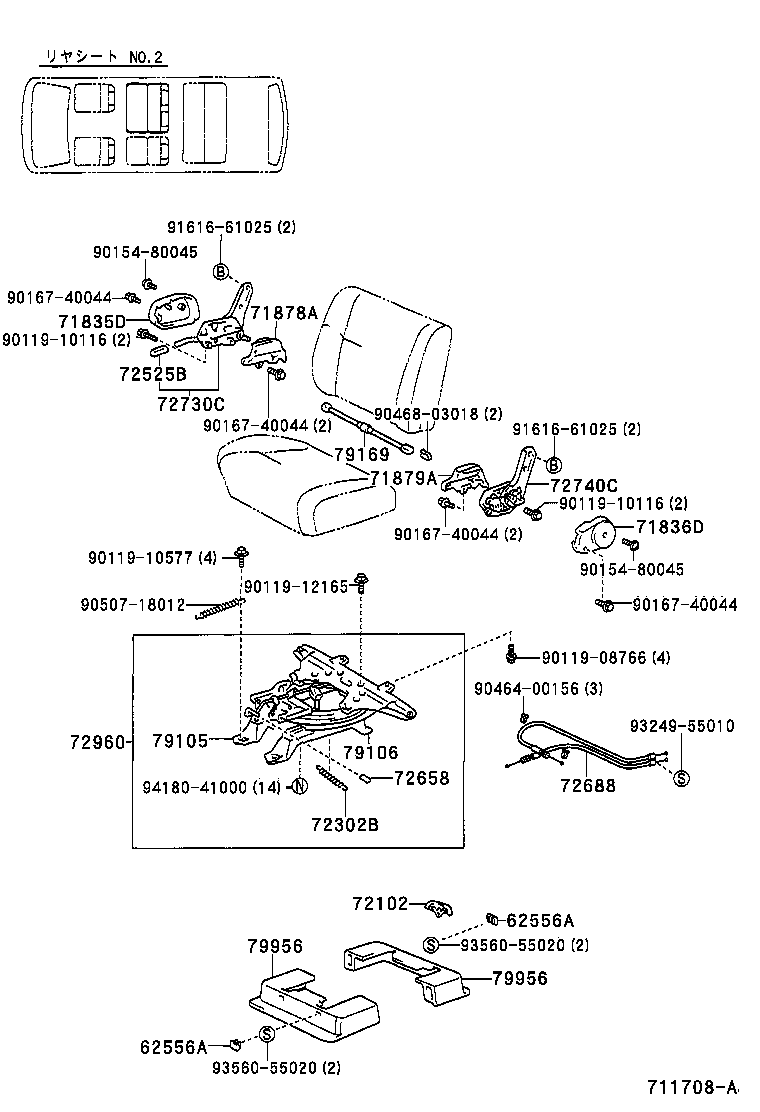

711708A

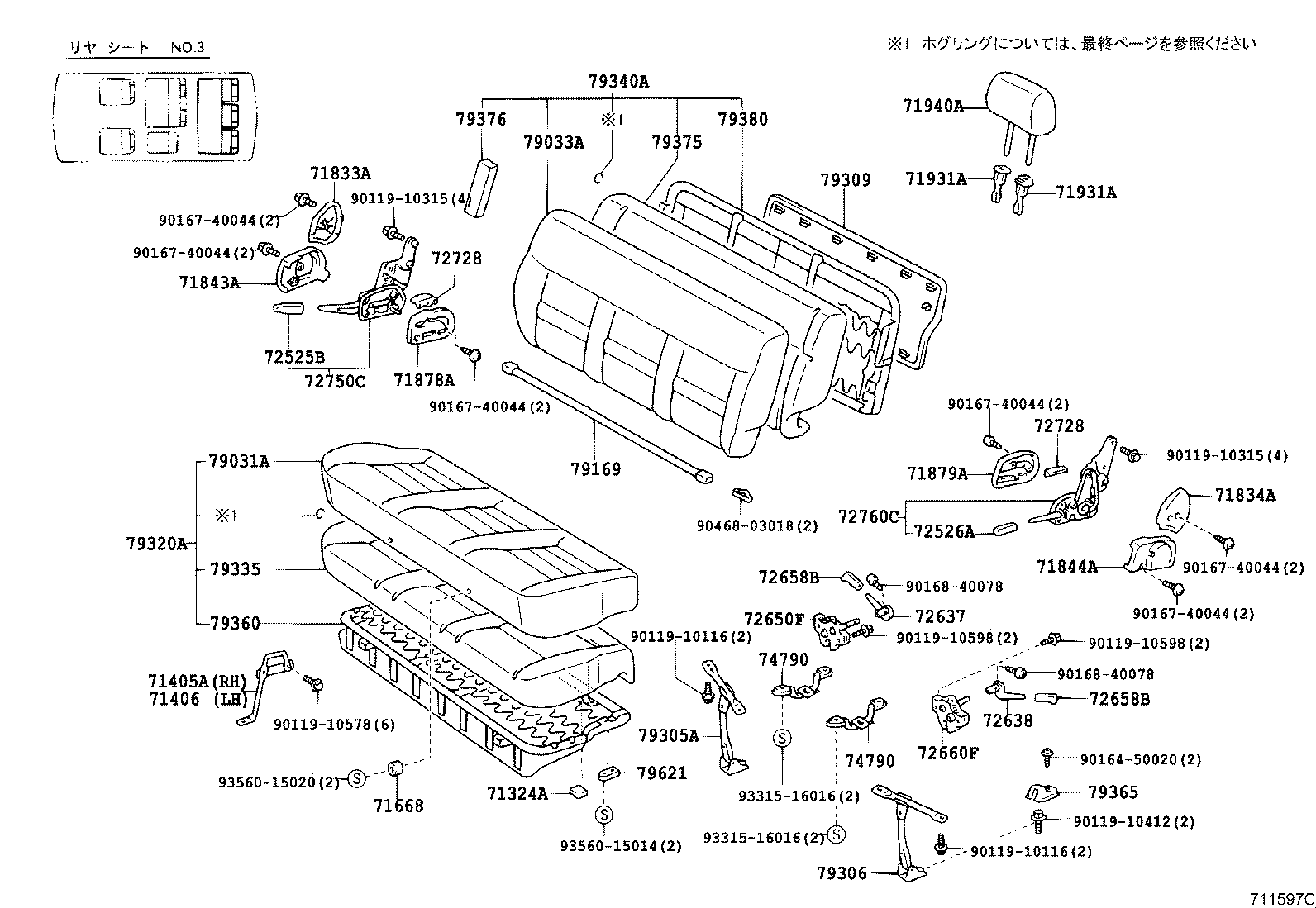

711597C

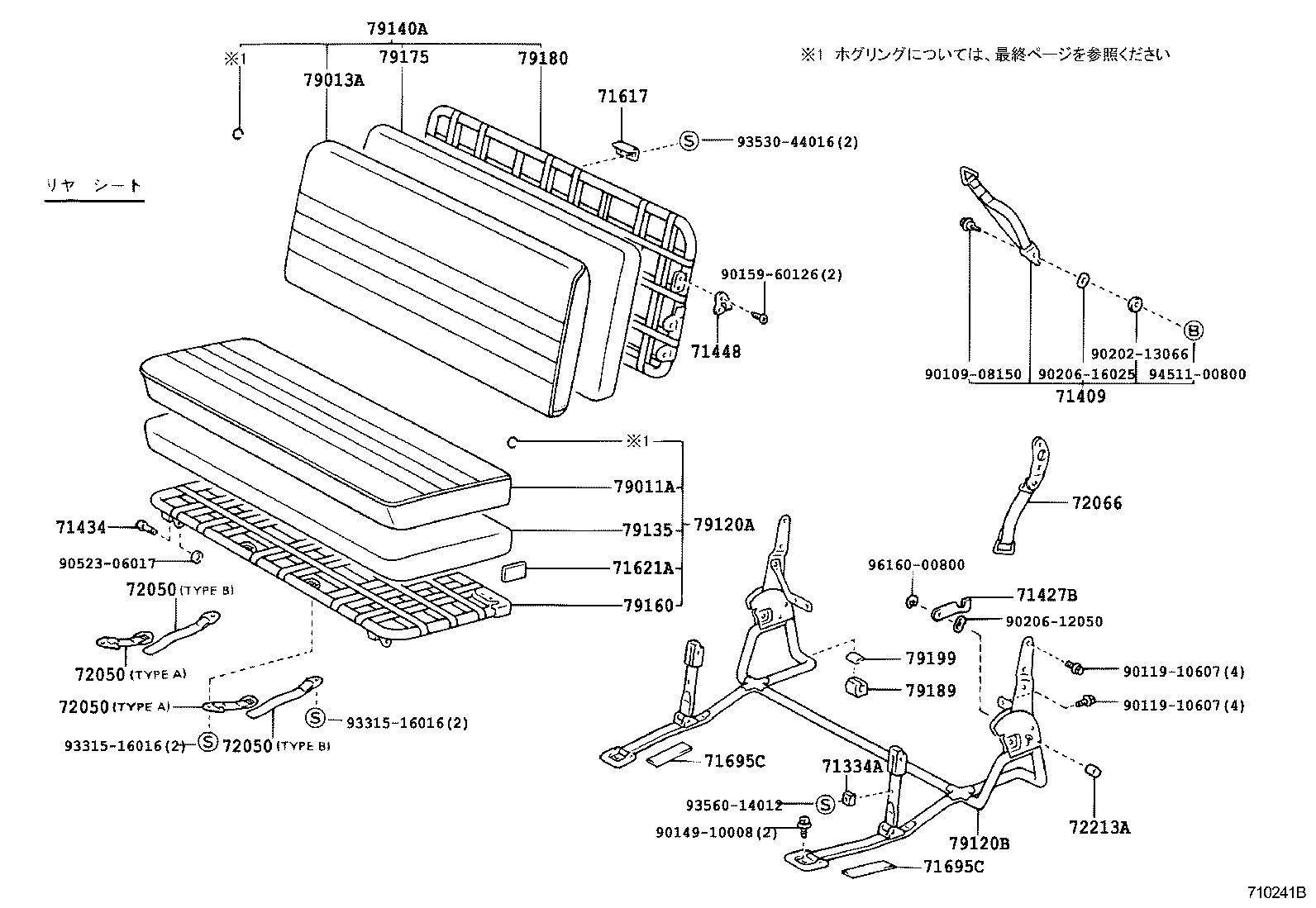

710241B

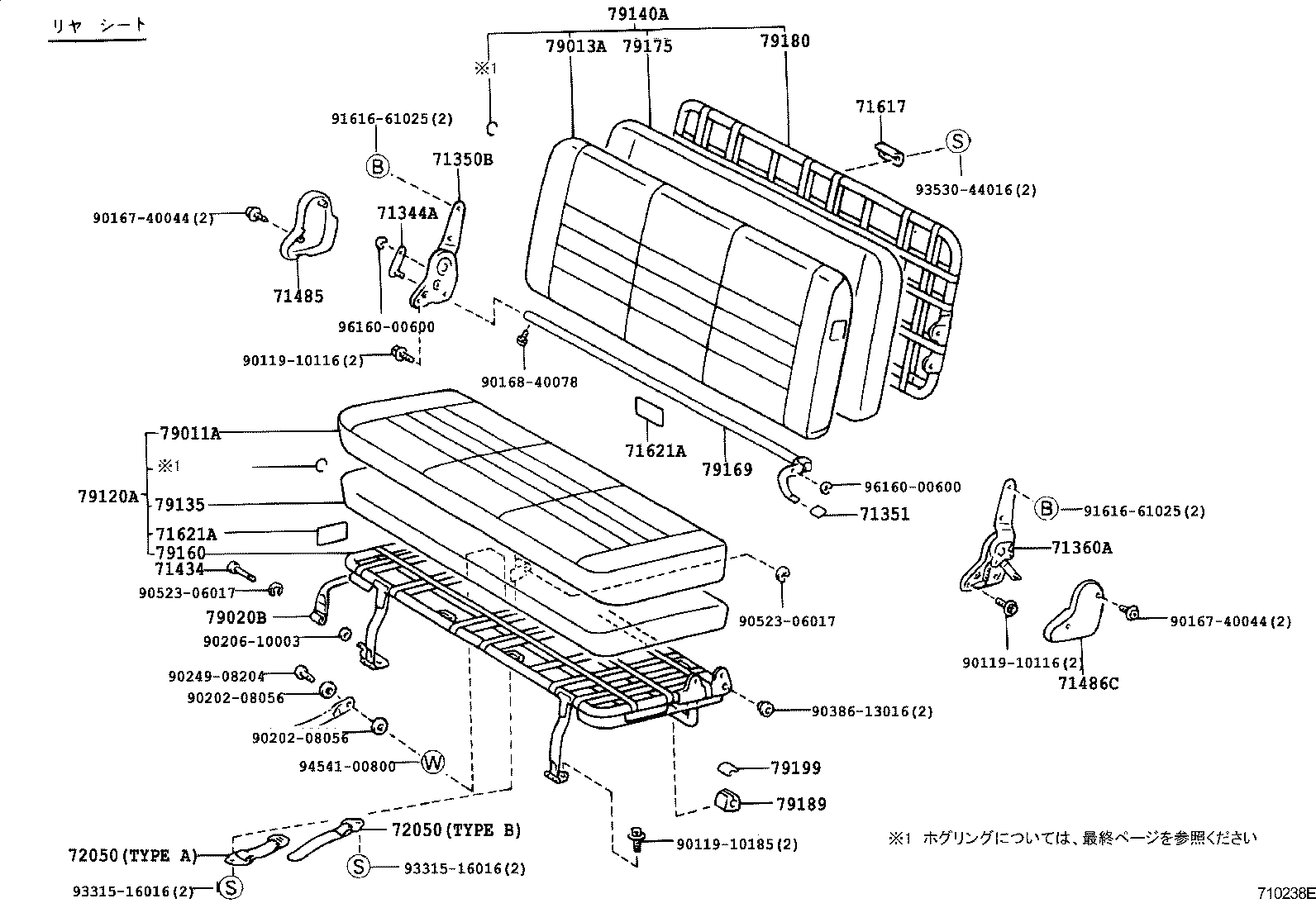

710238E

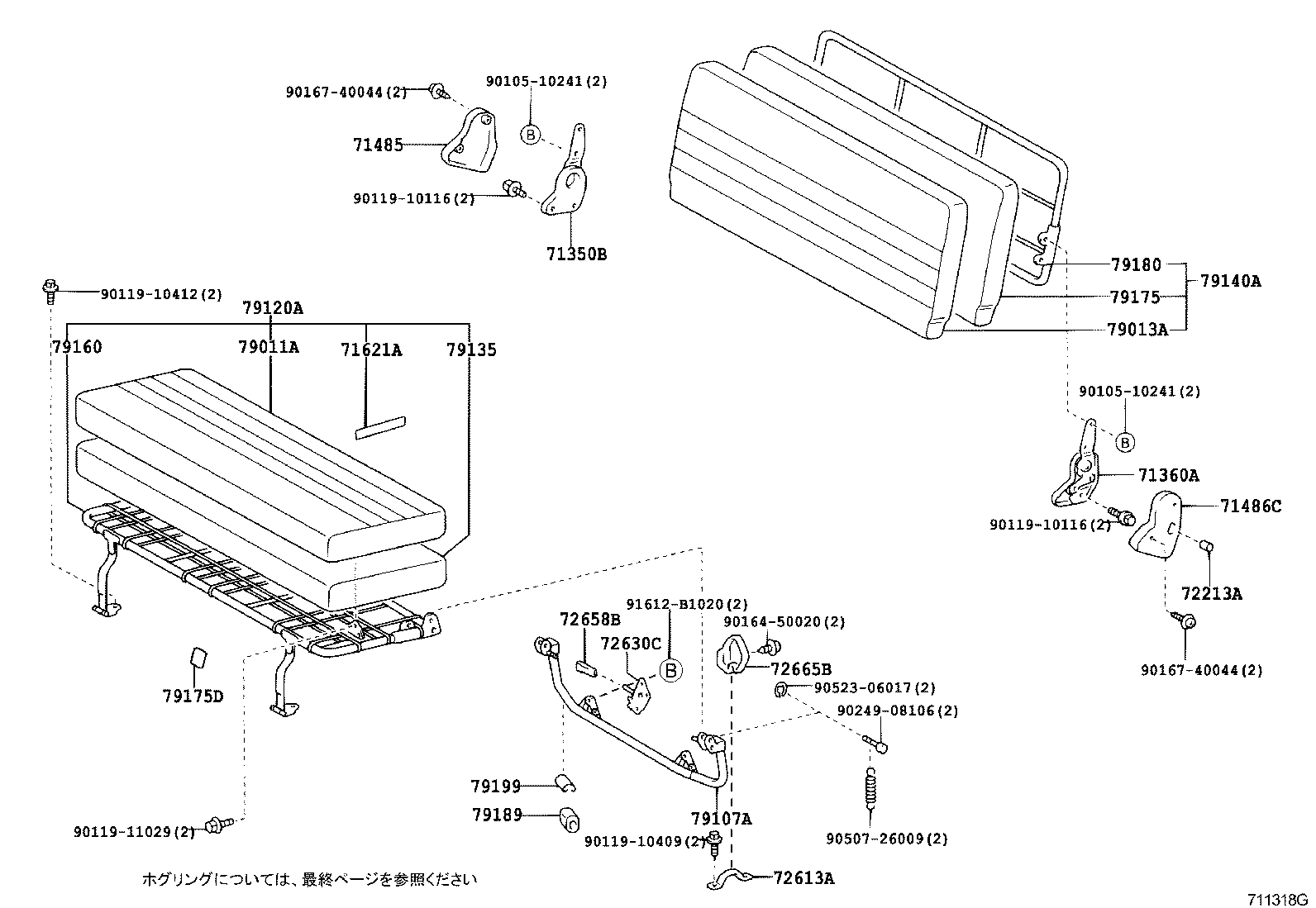

711318G

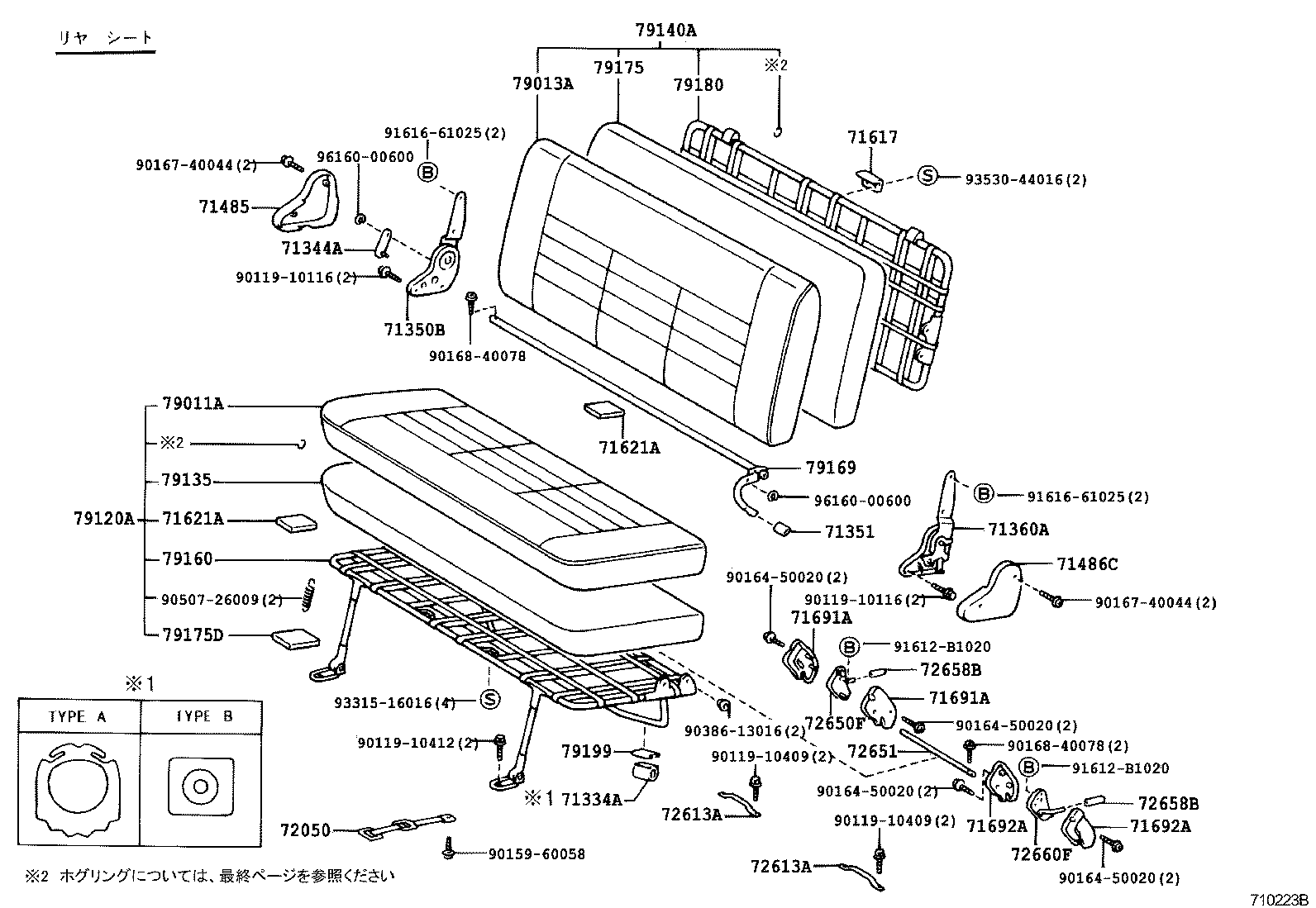

710223B

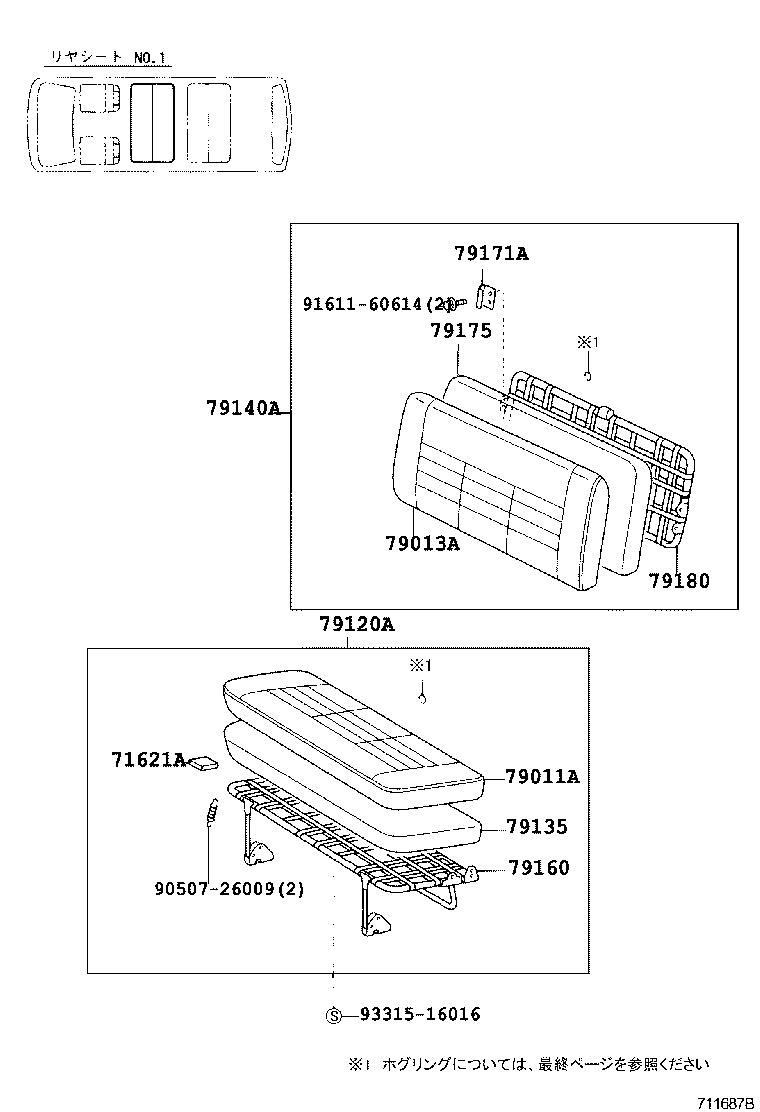

711687B

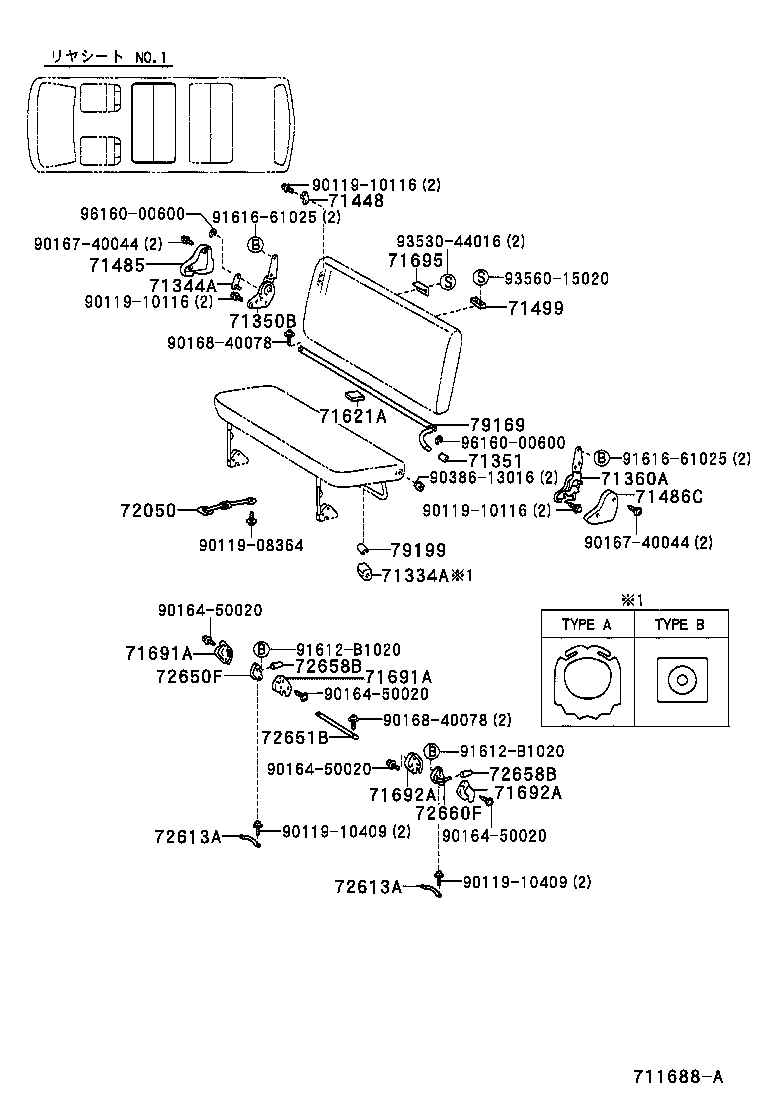

711688A

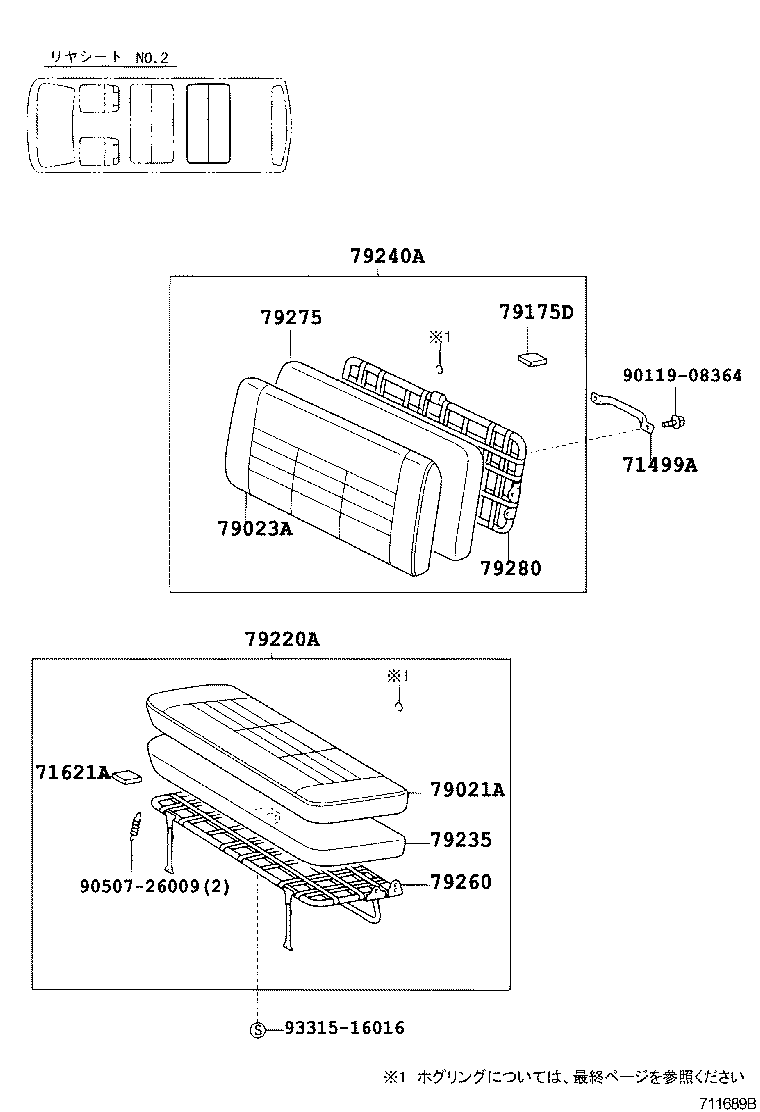

711689B

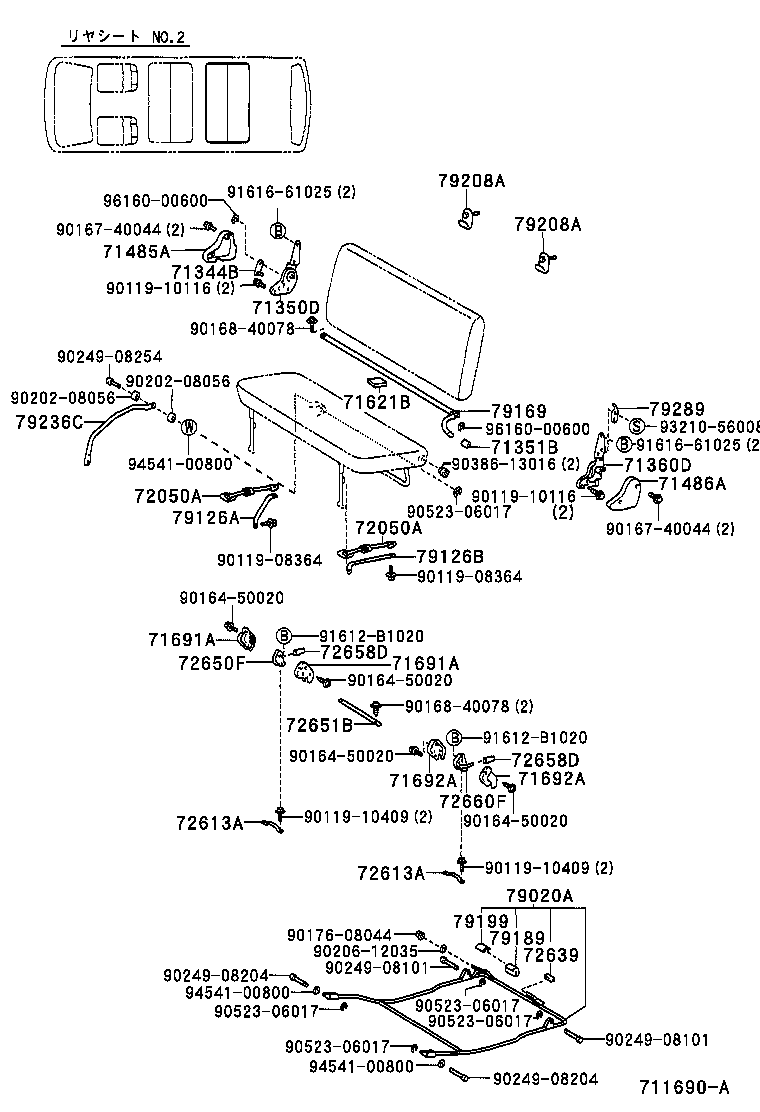

711690A

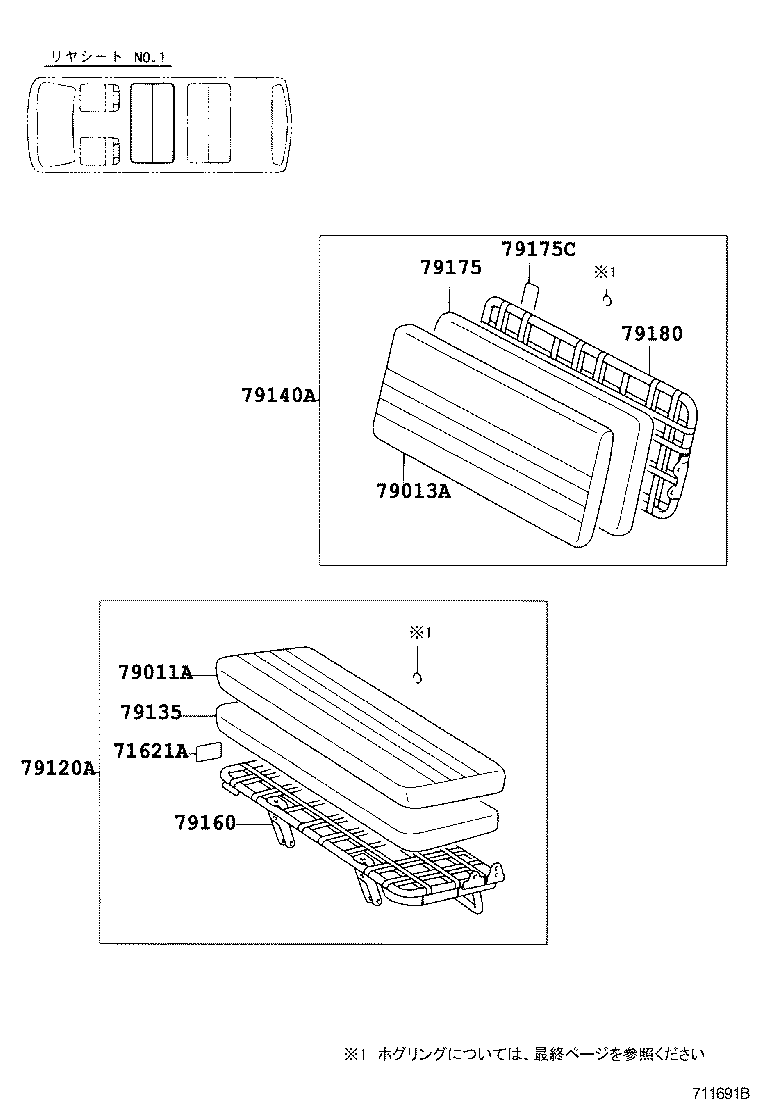

711691B
711692A

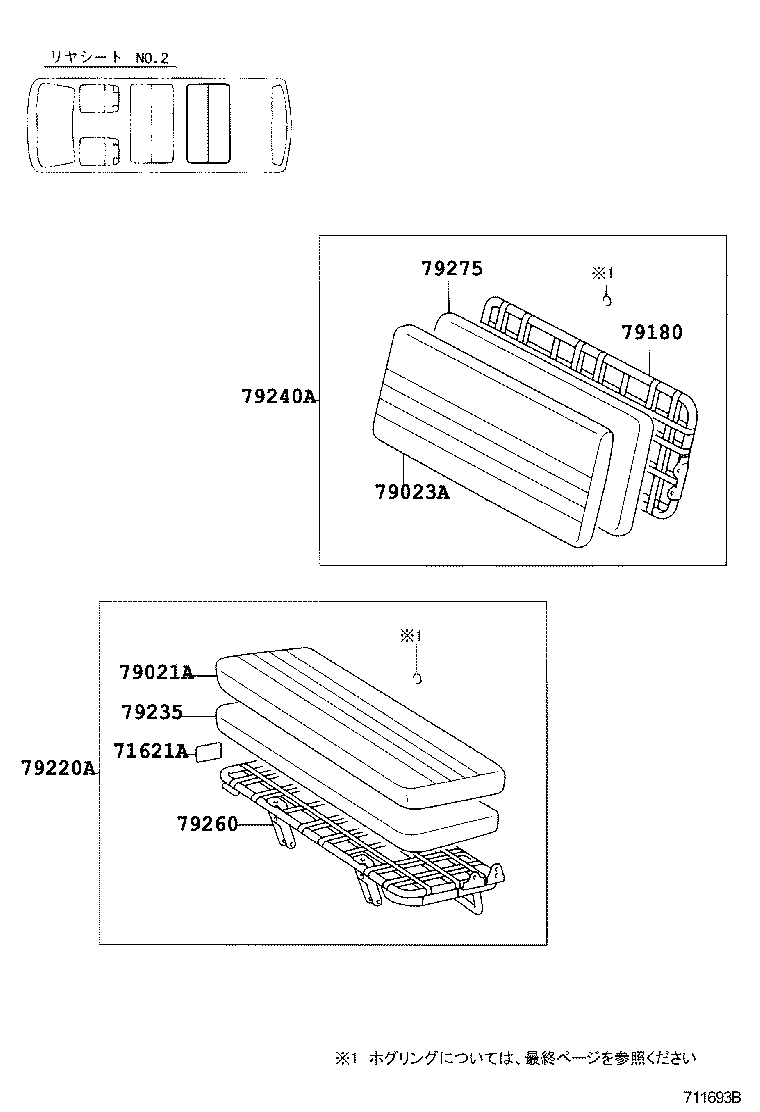

711693B

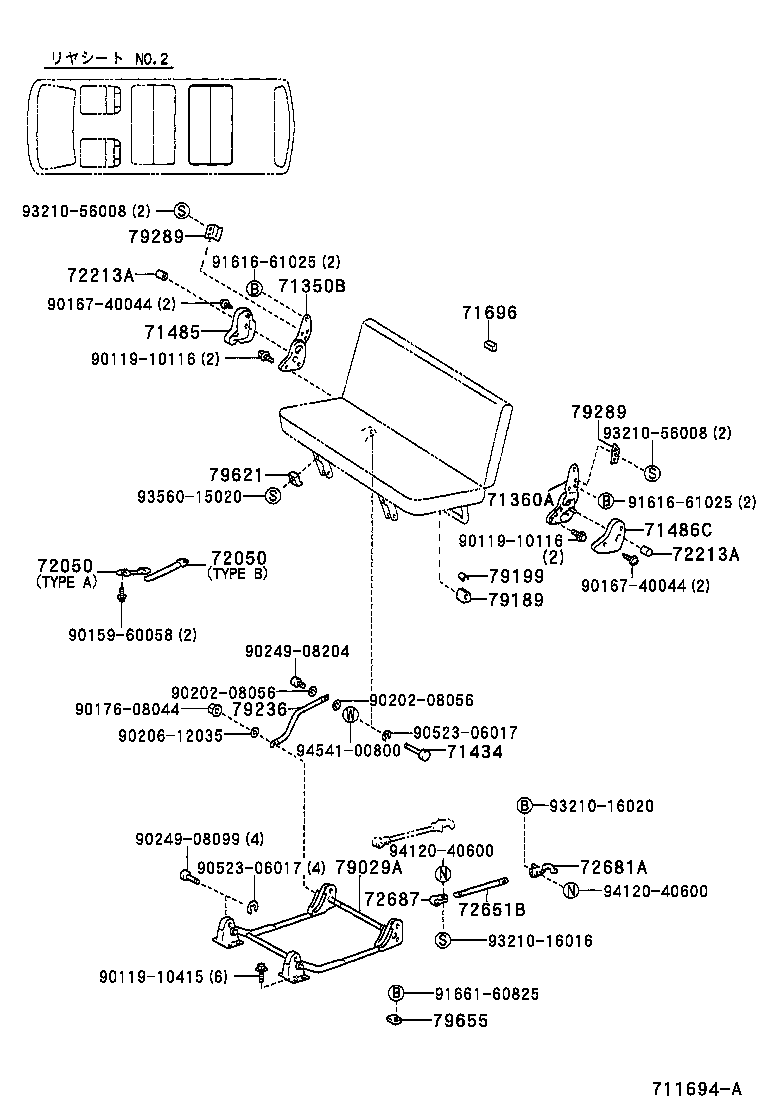

711694A

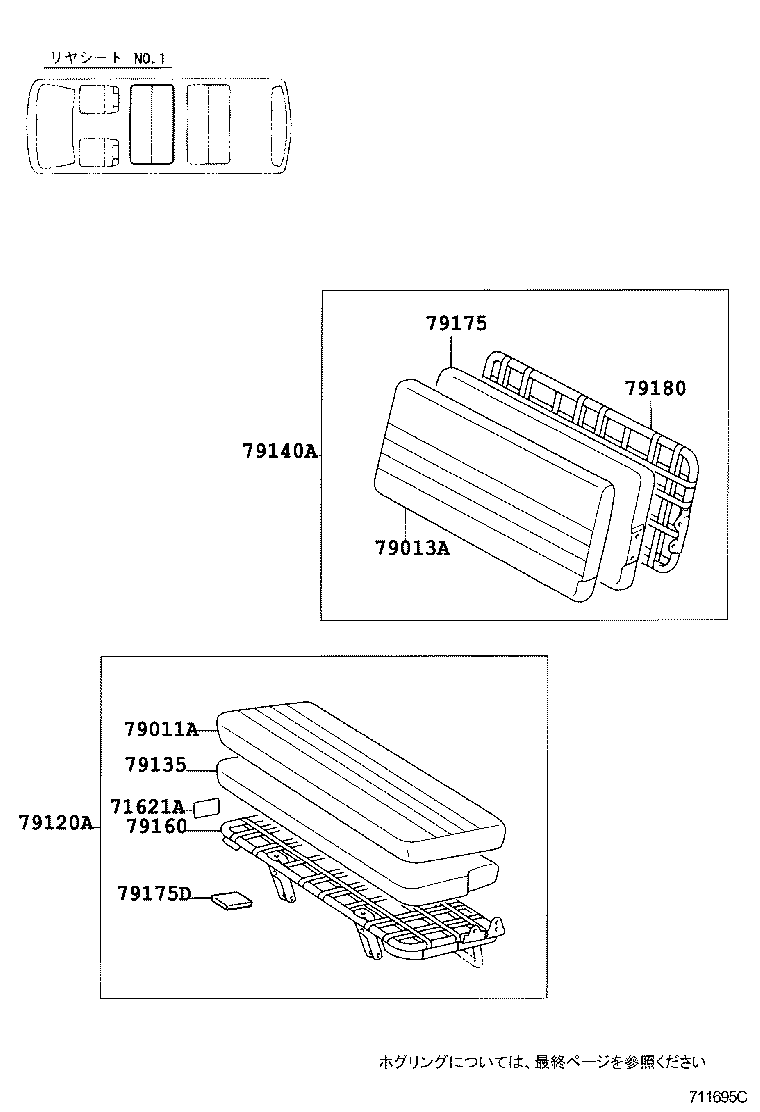

711695C
711696B

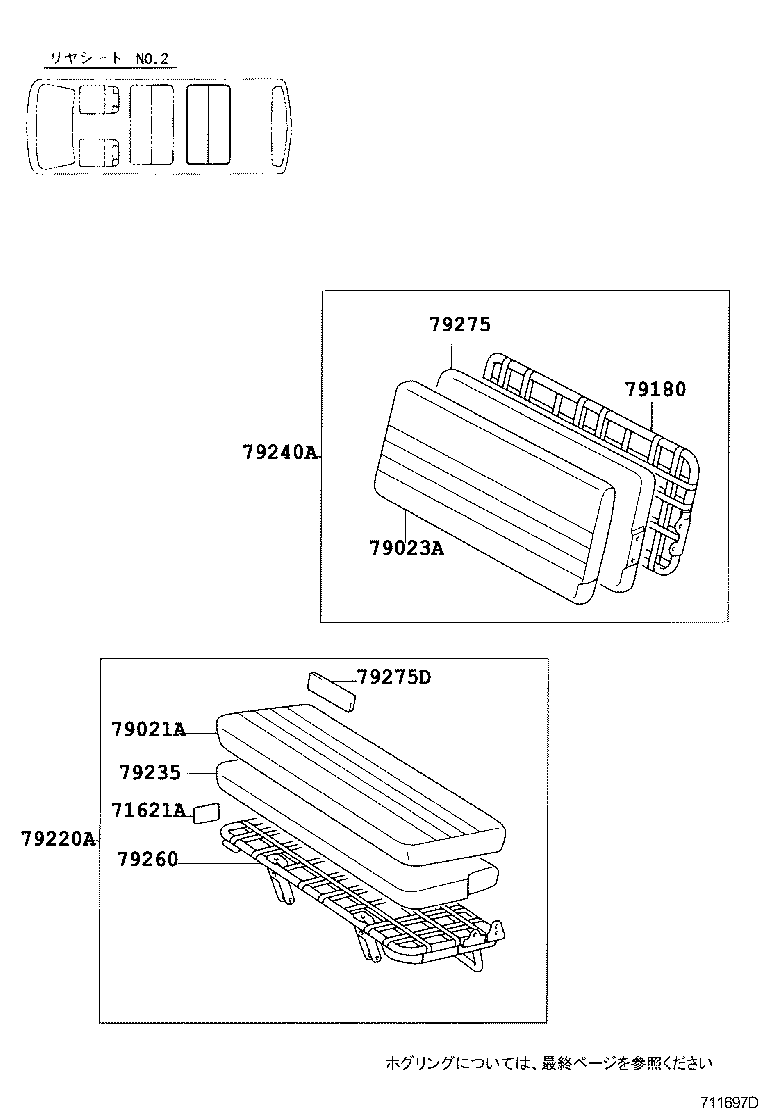

711697D

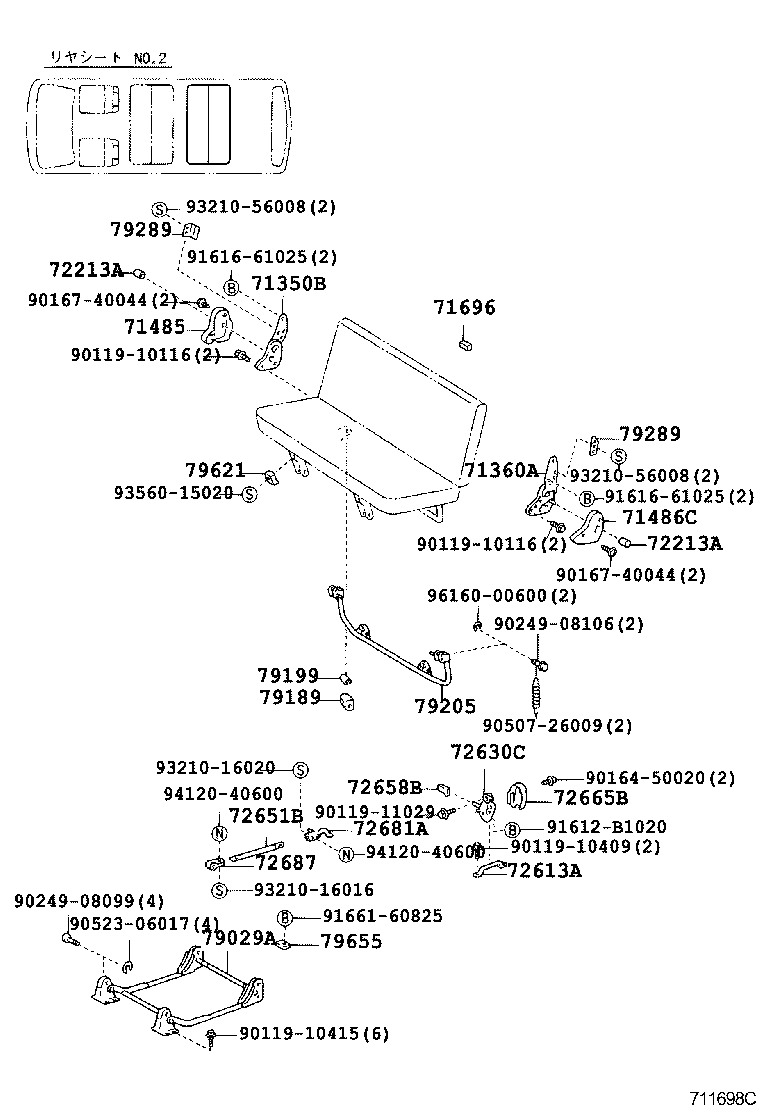

711698C

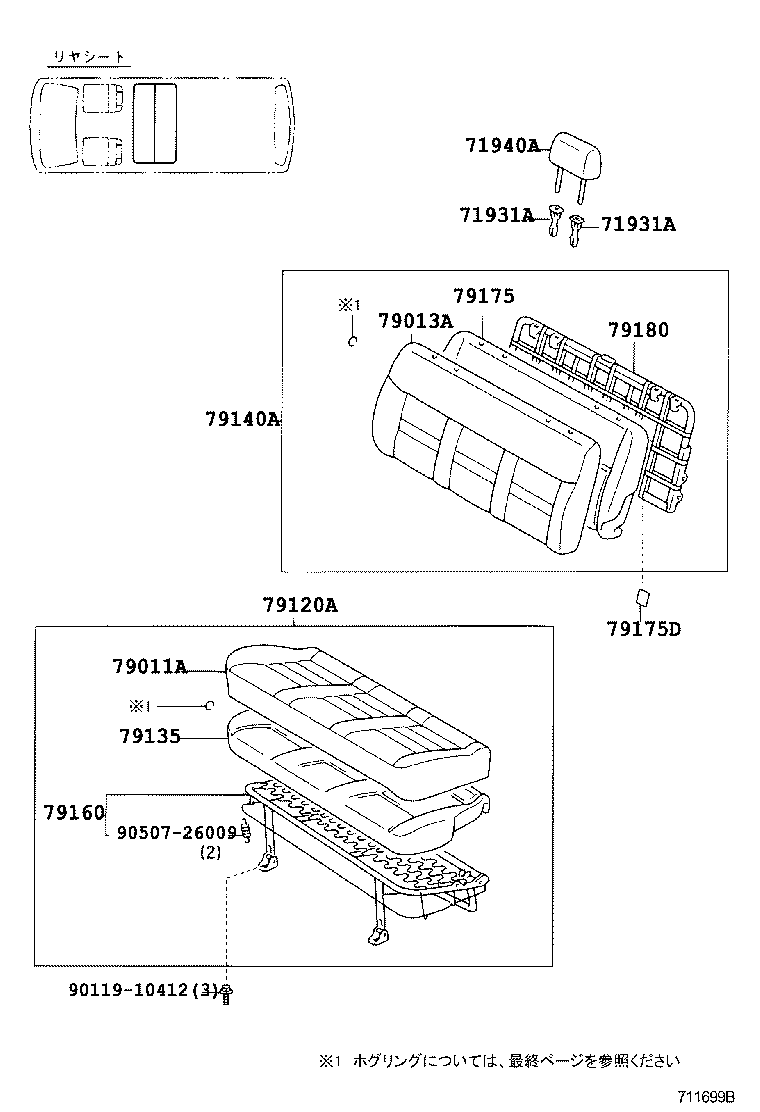

711699B

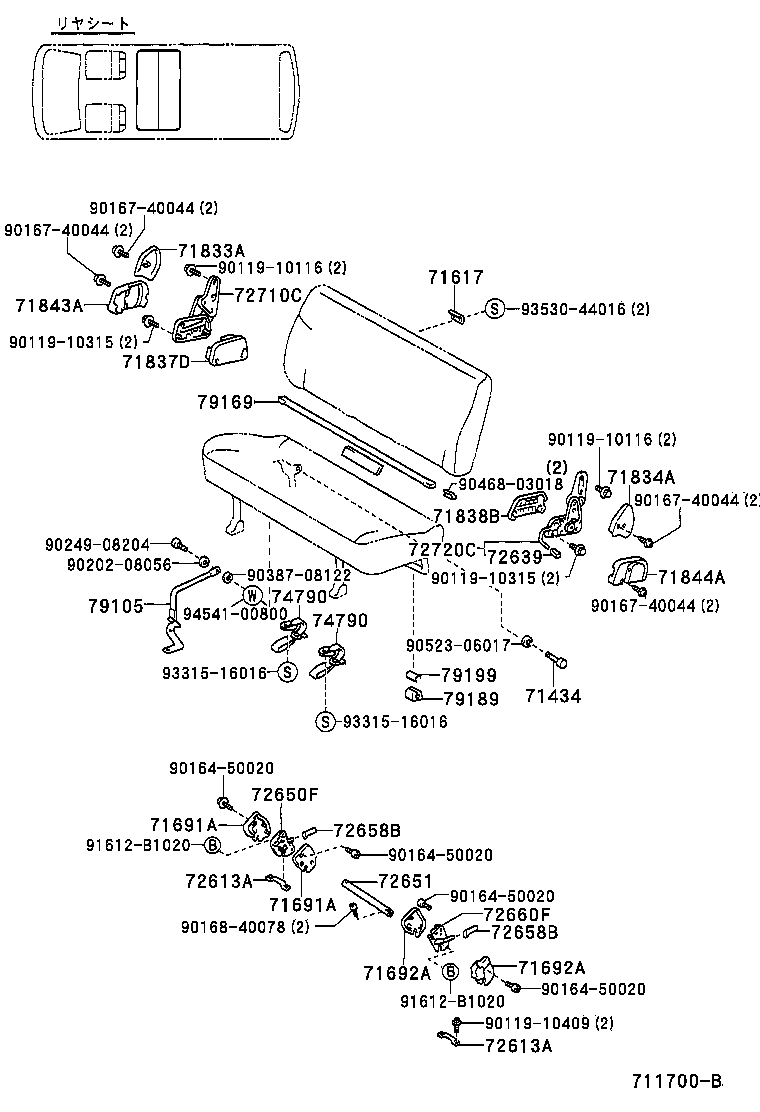

711700B

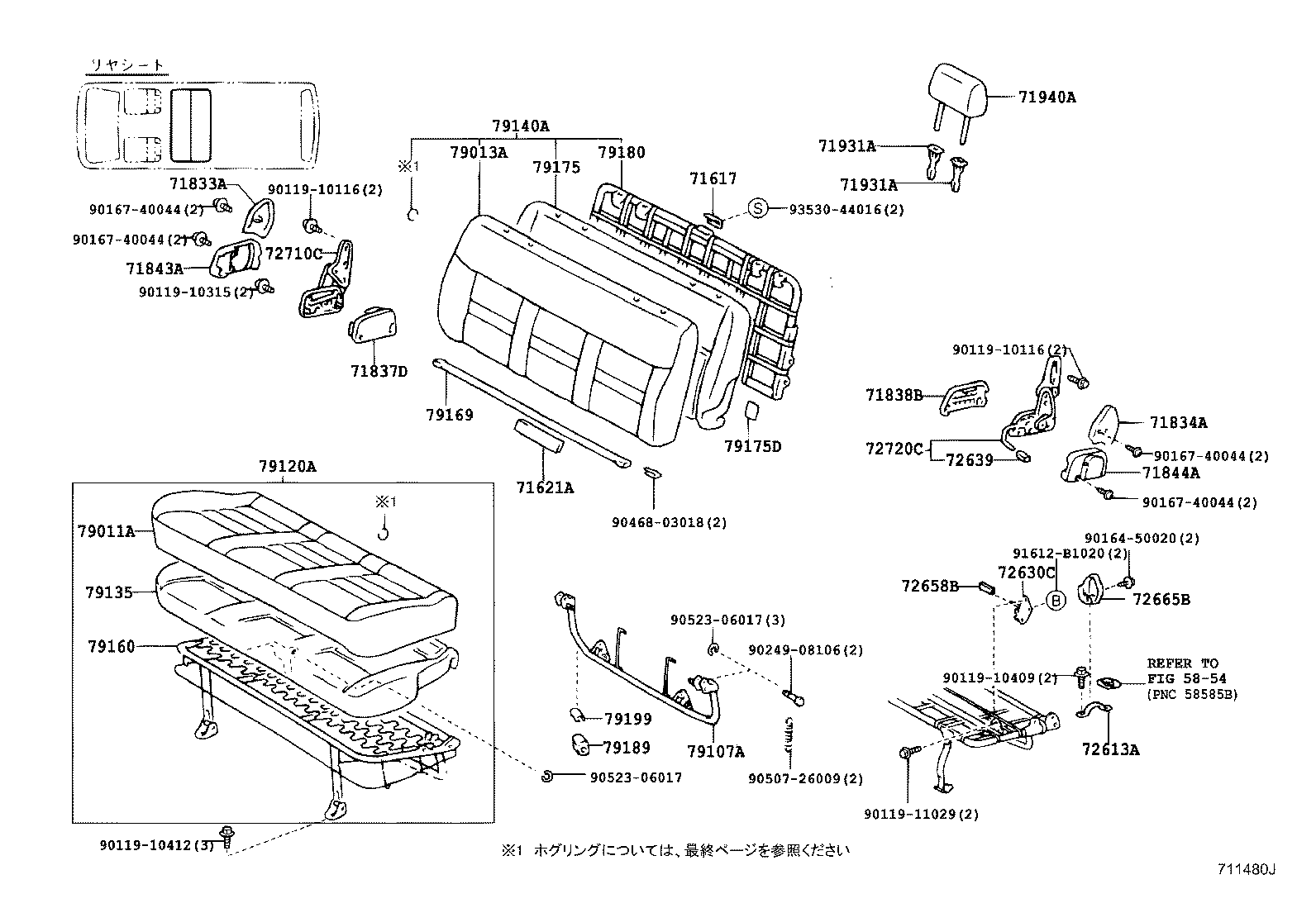

711480J

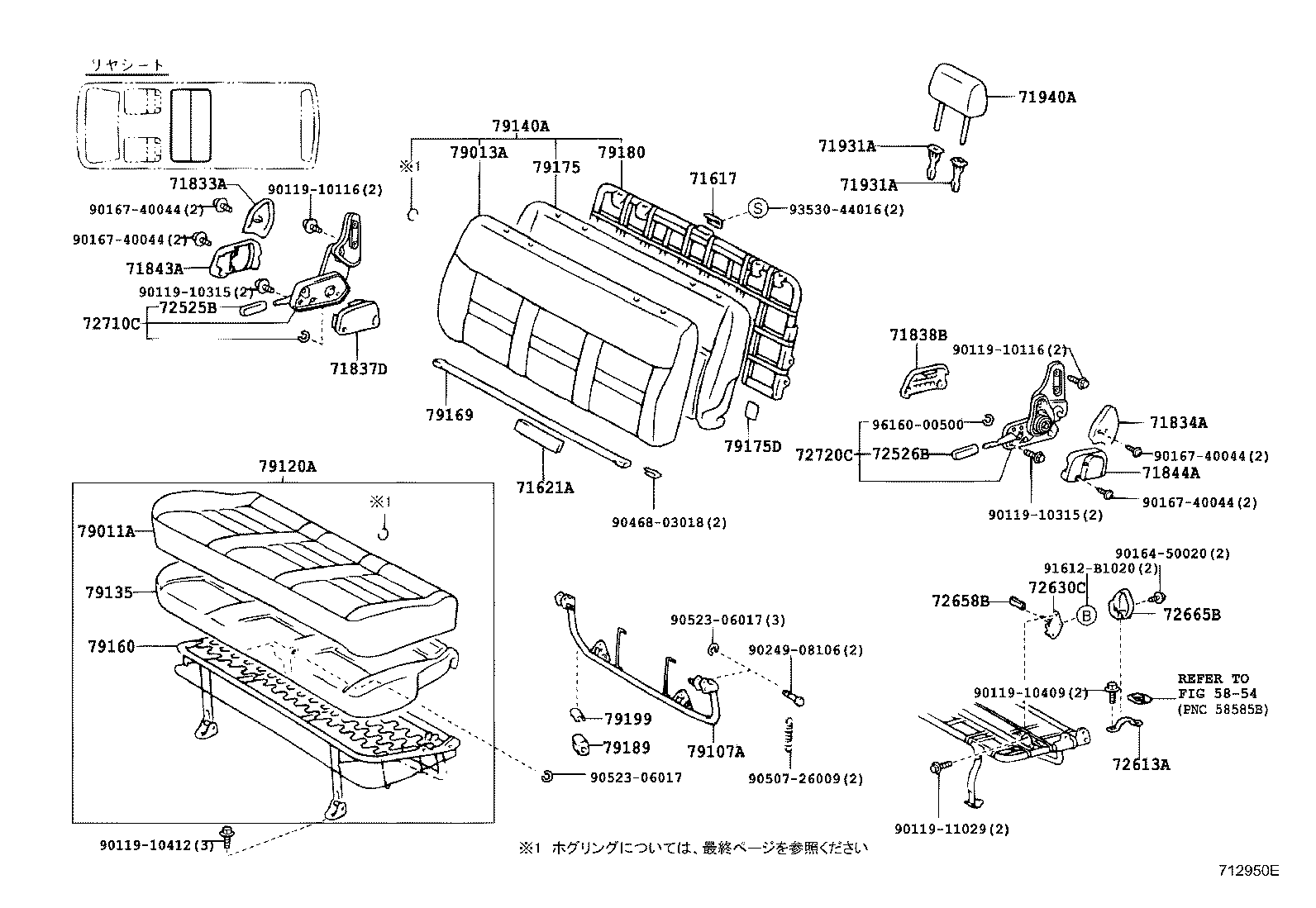

712950E
711724B

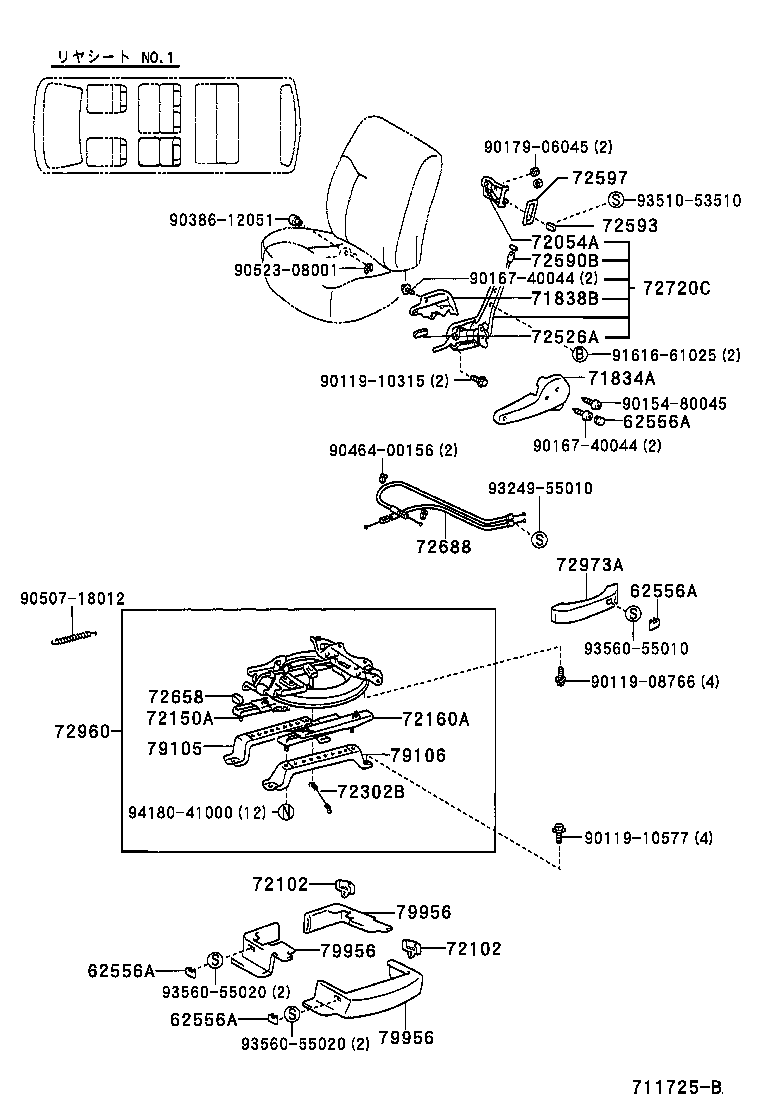

711725B
711726B

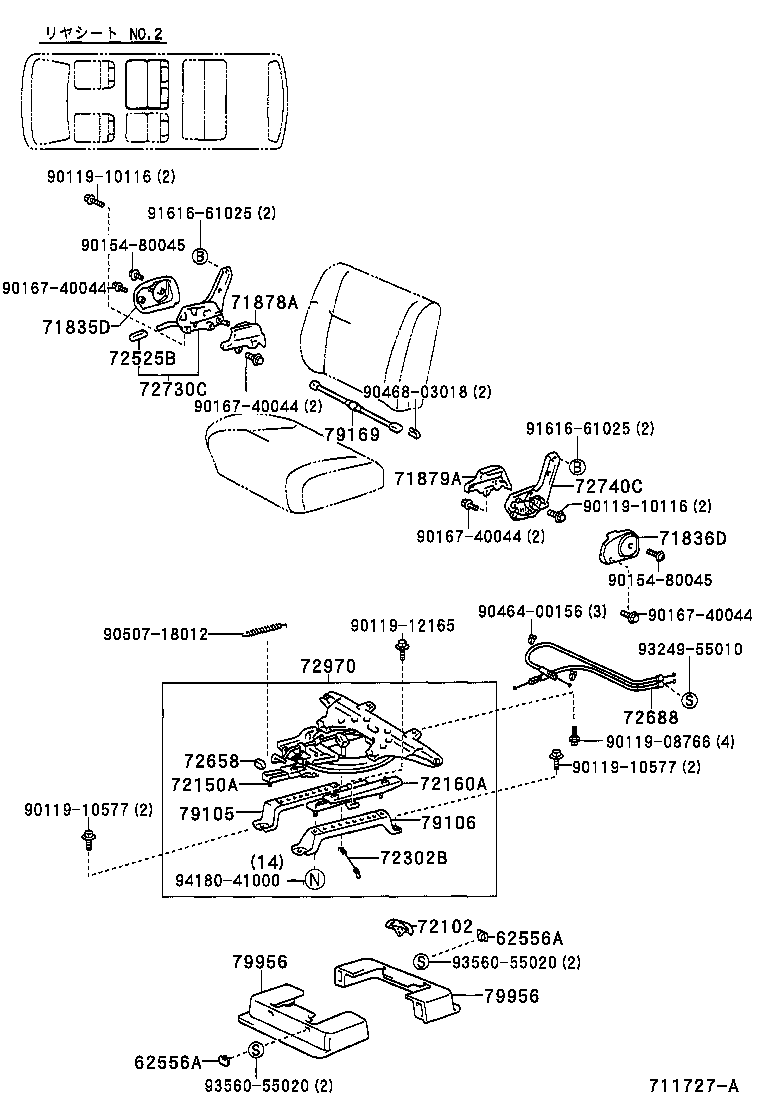

711727A
711709C

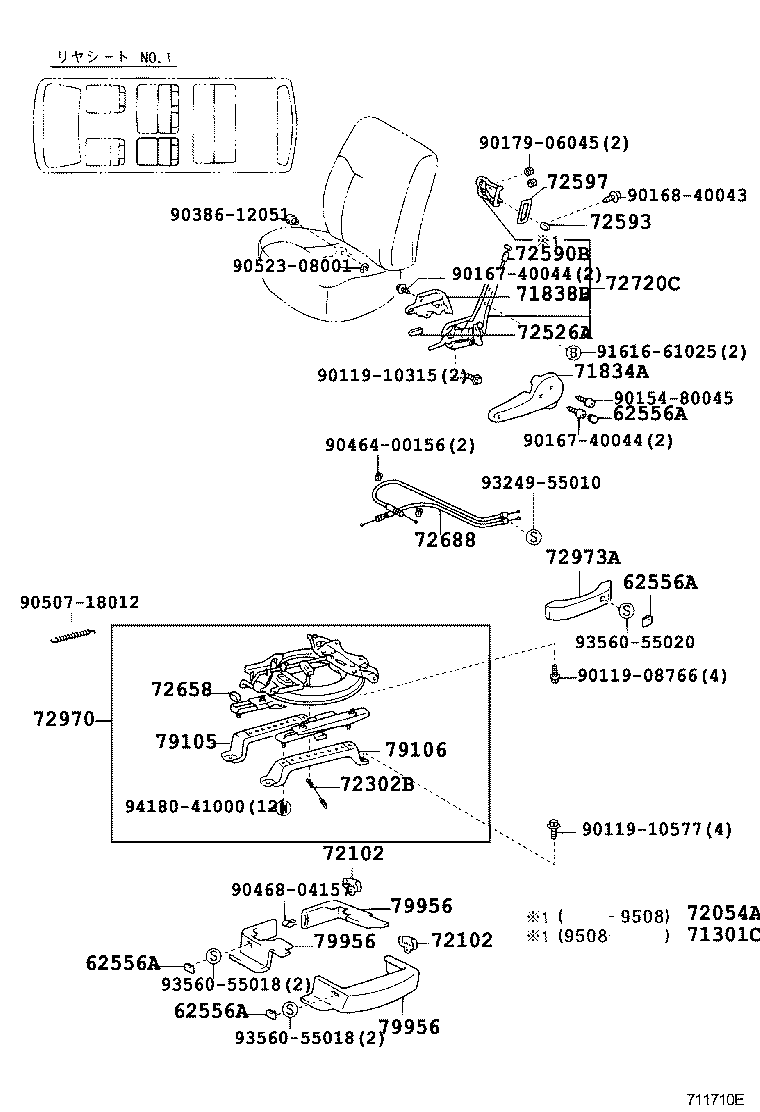

711710E
711711C

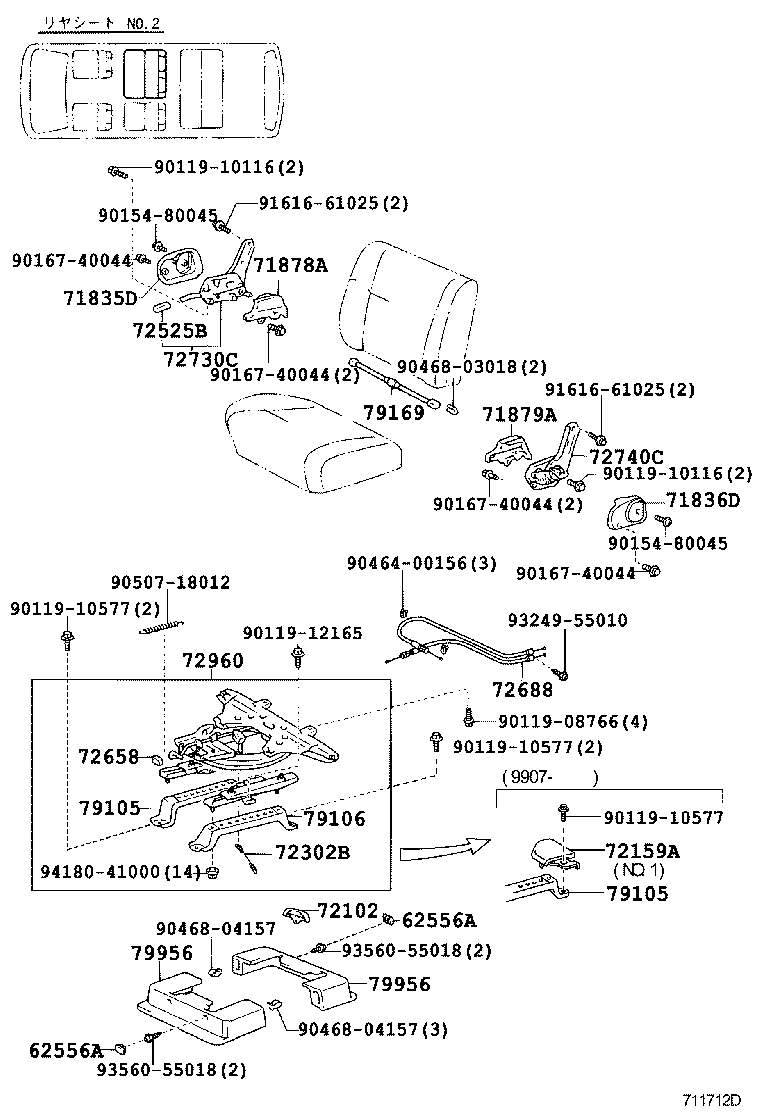

711712D

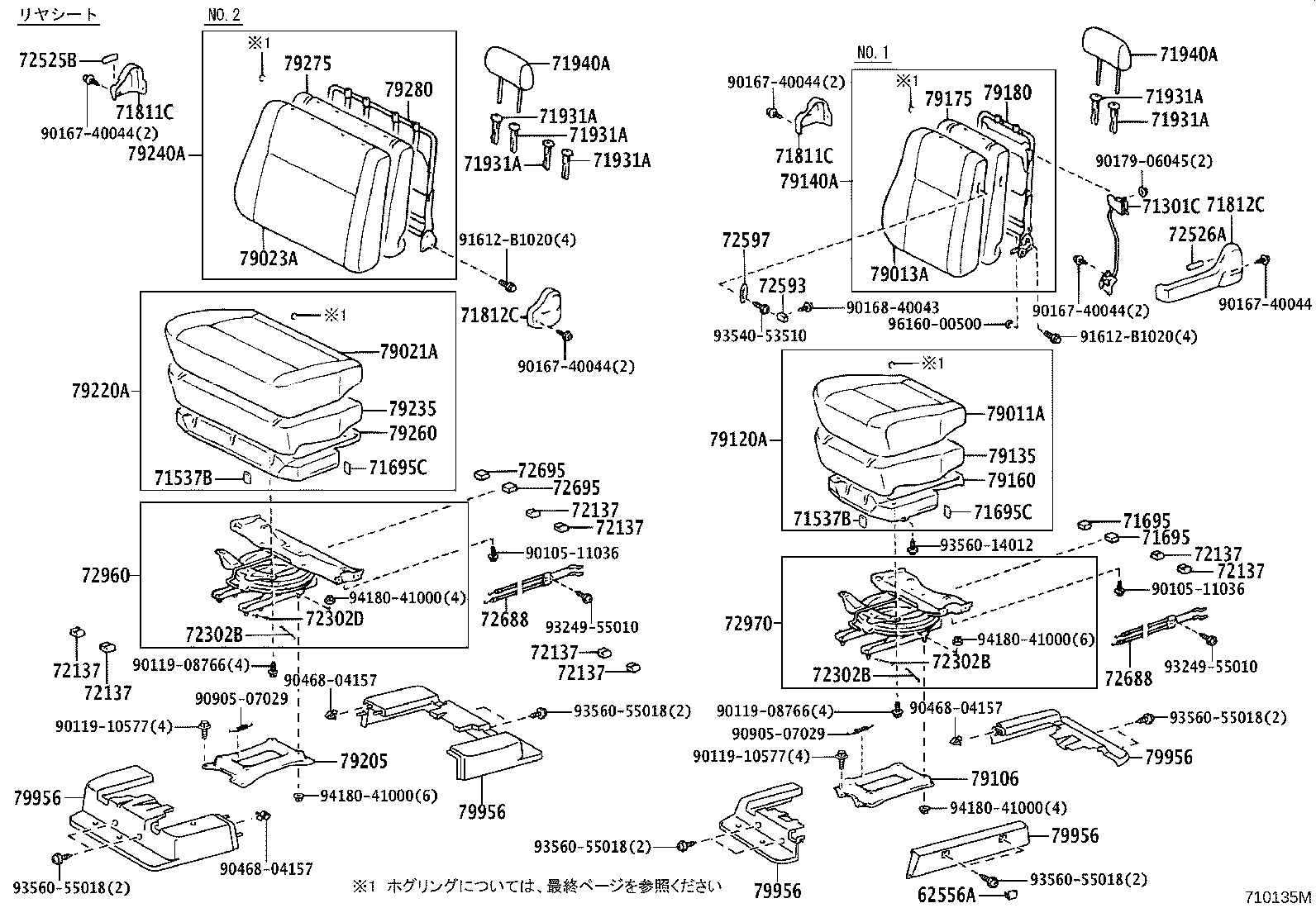

710135M

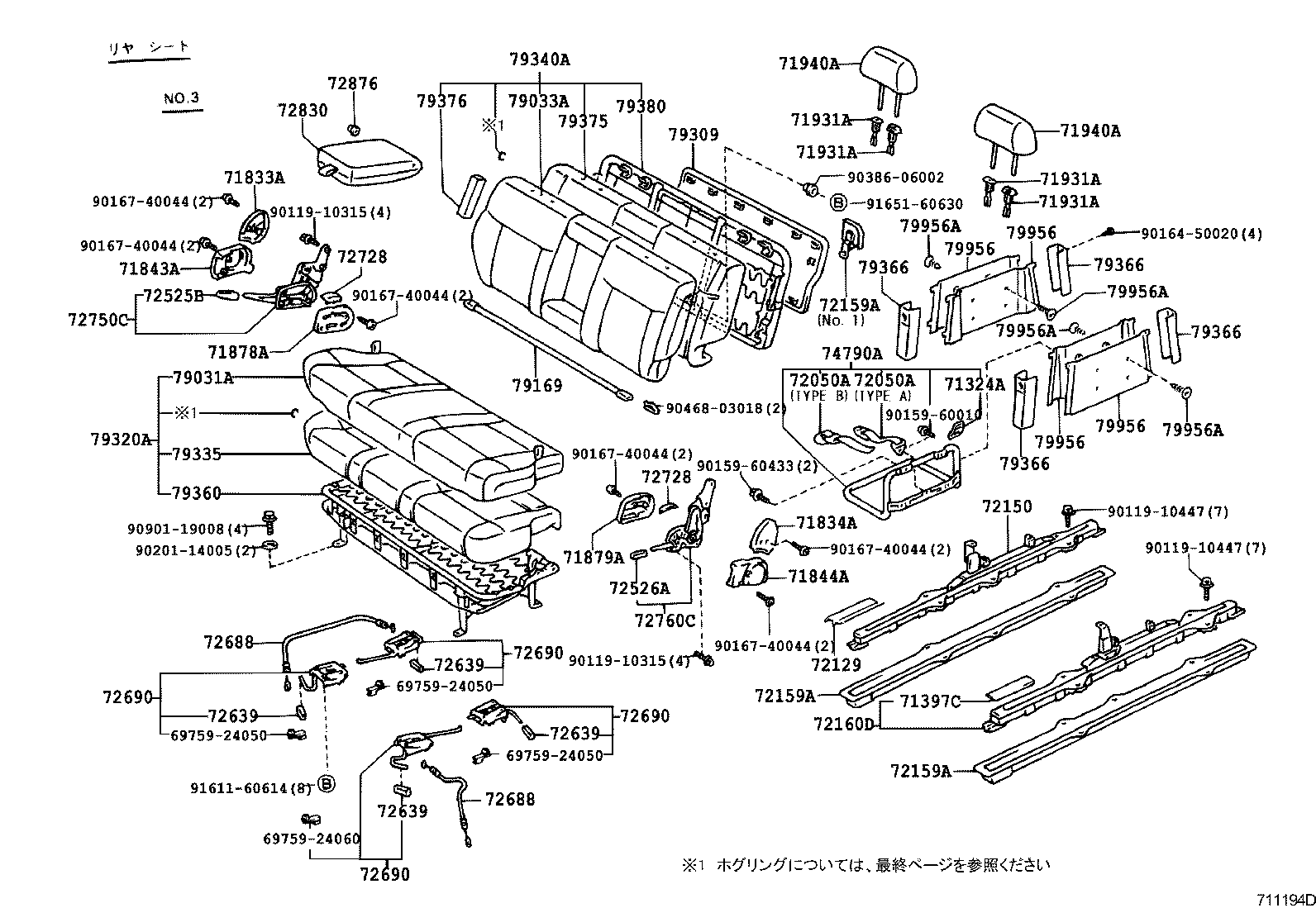

711194D

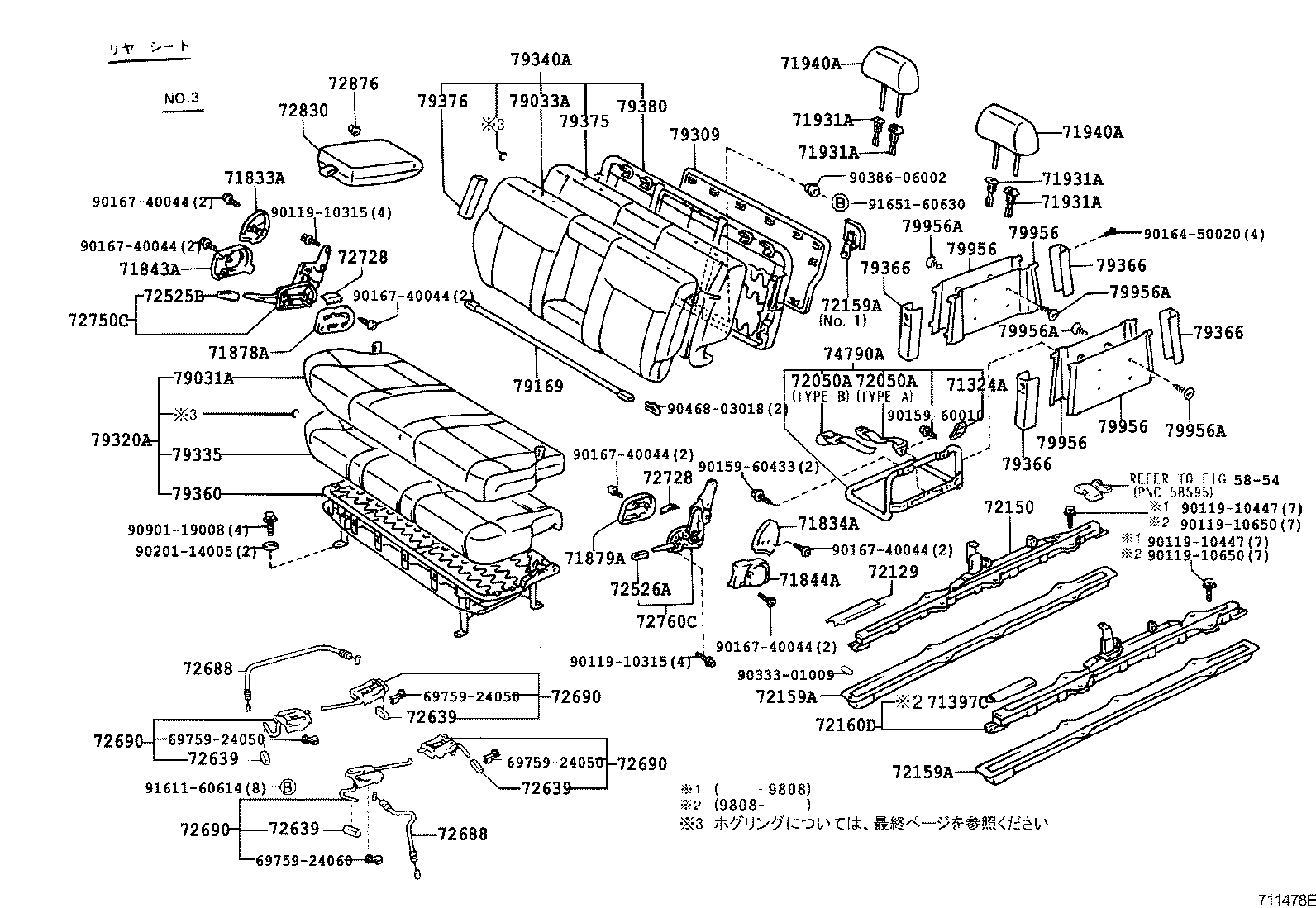

711478E

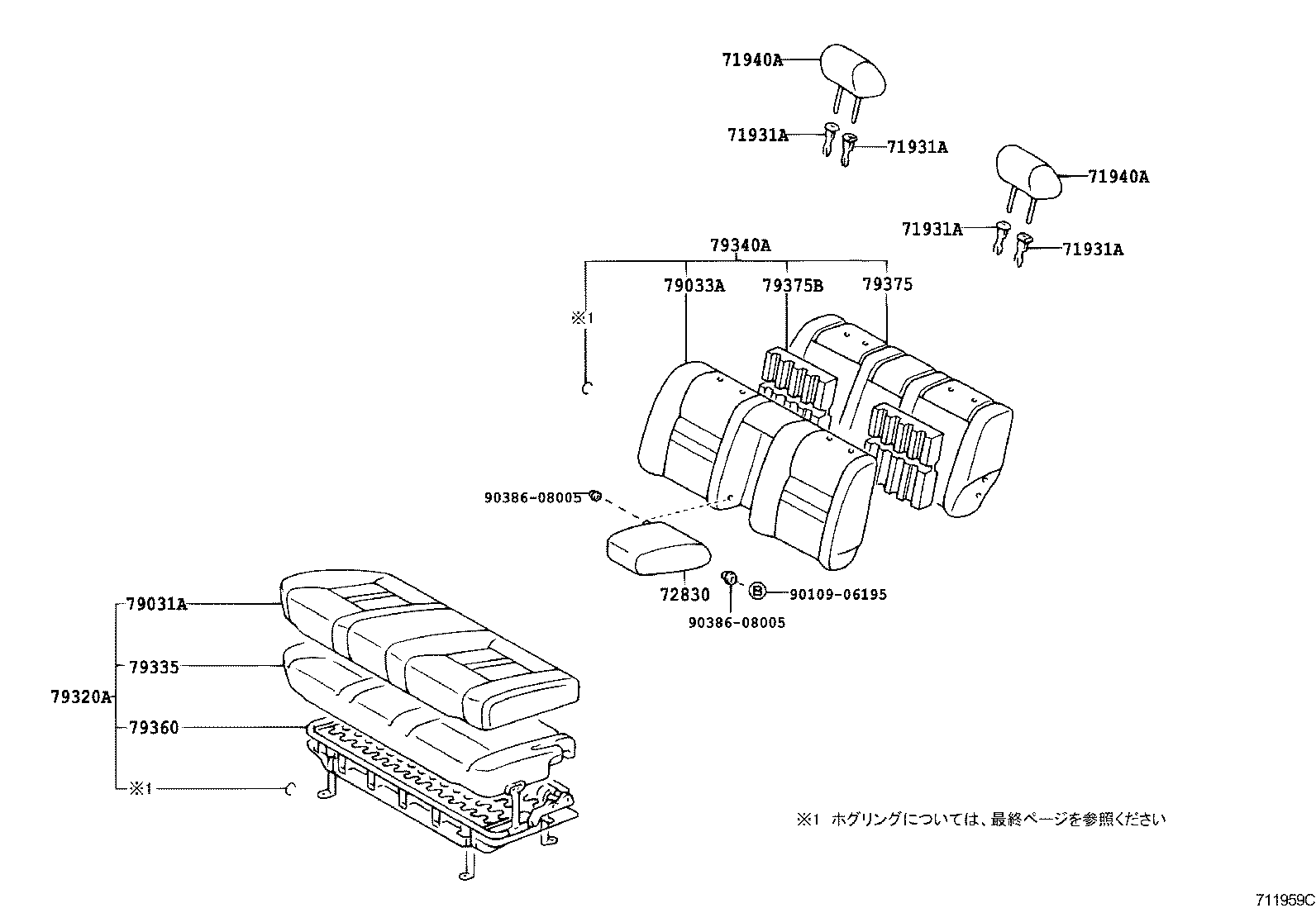

711959C

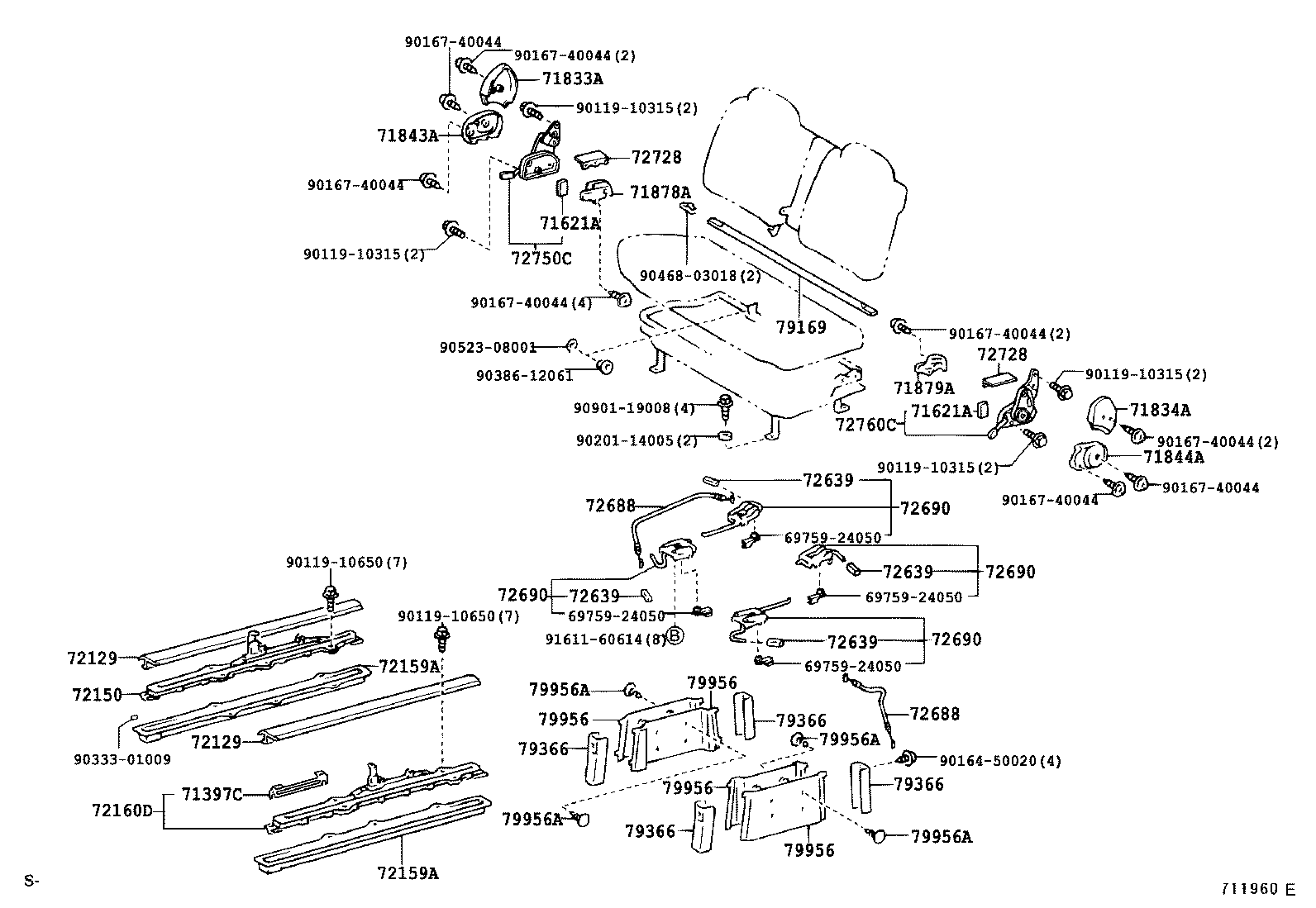

711960E

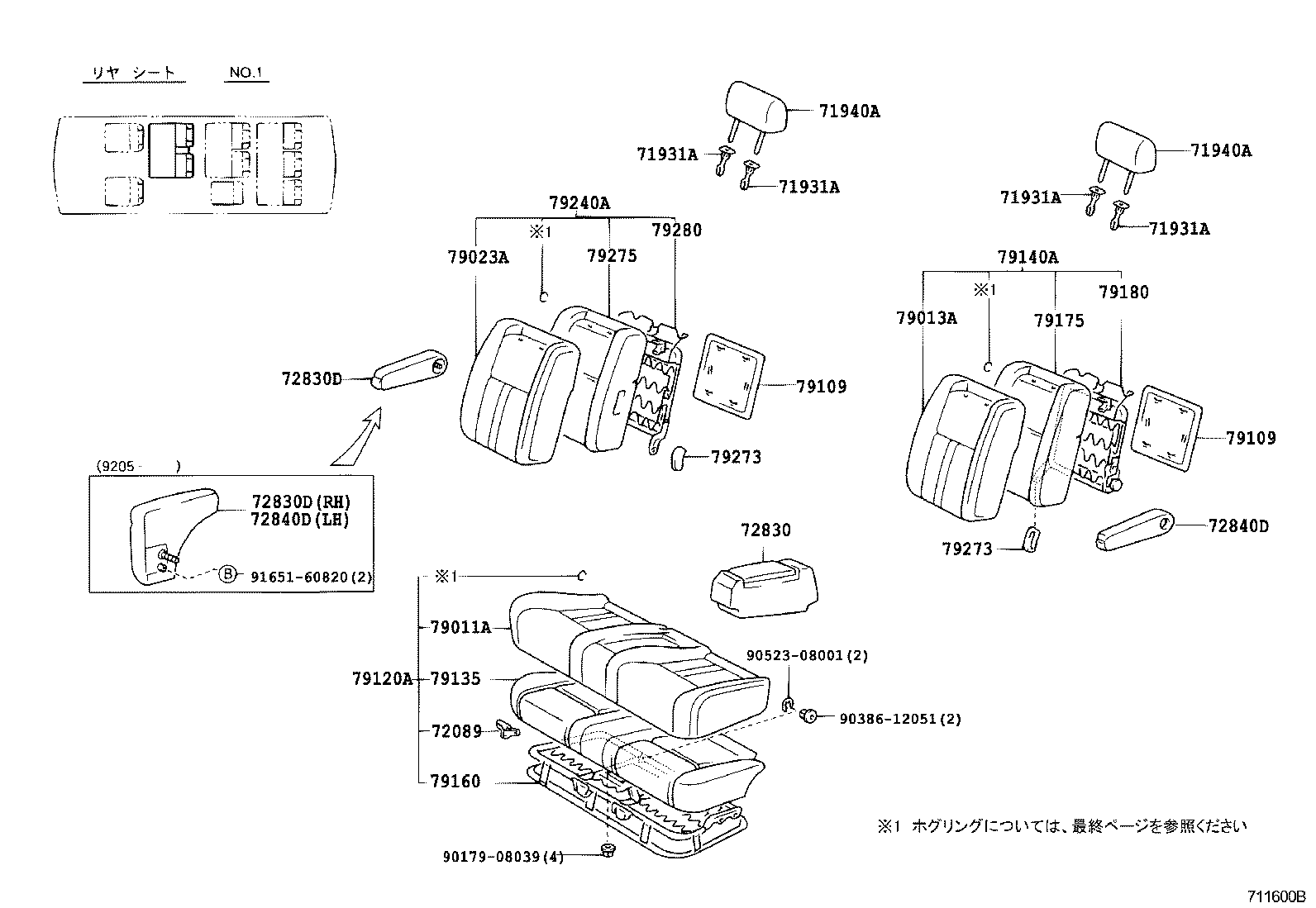

711600B

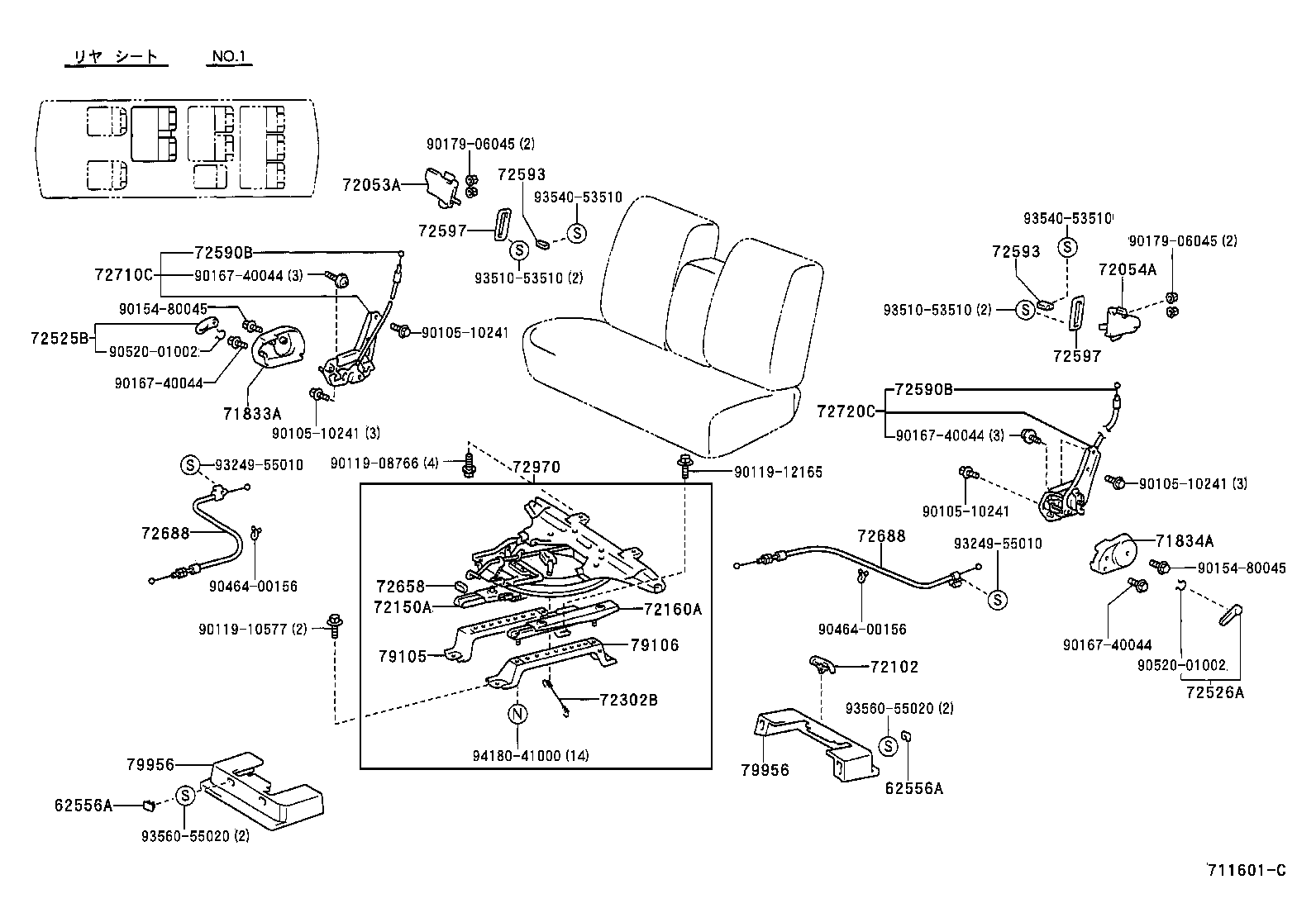

711601C

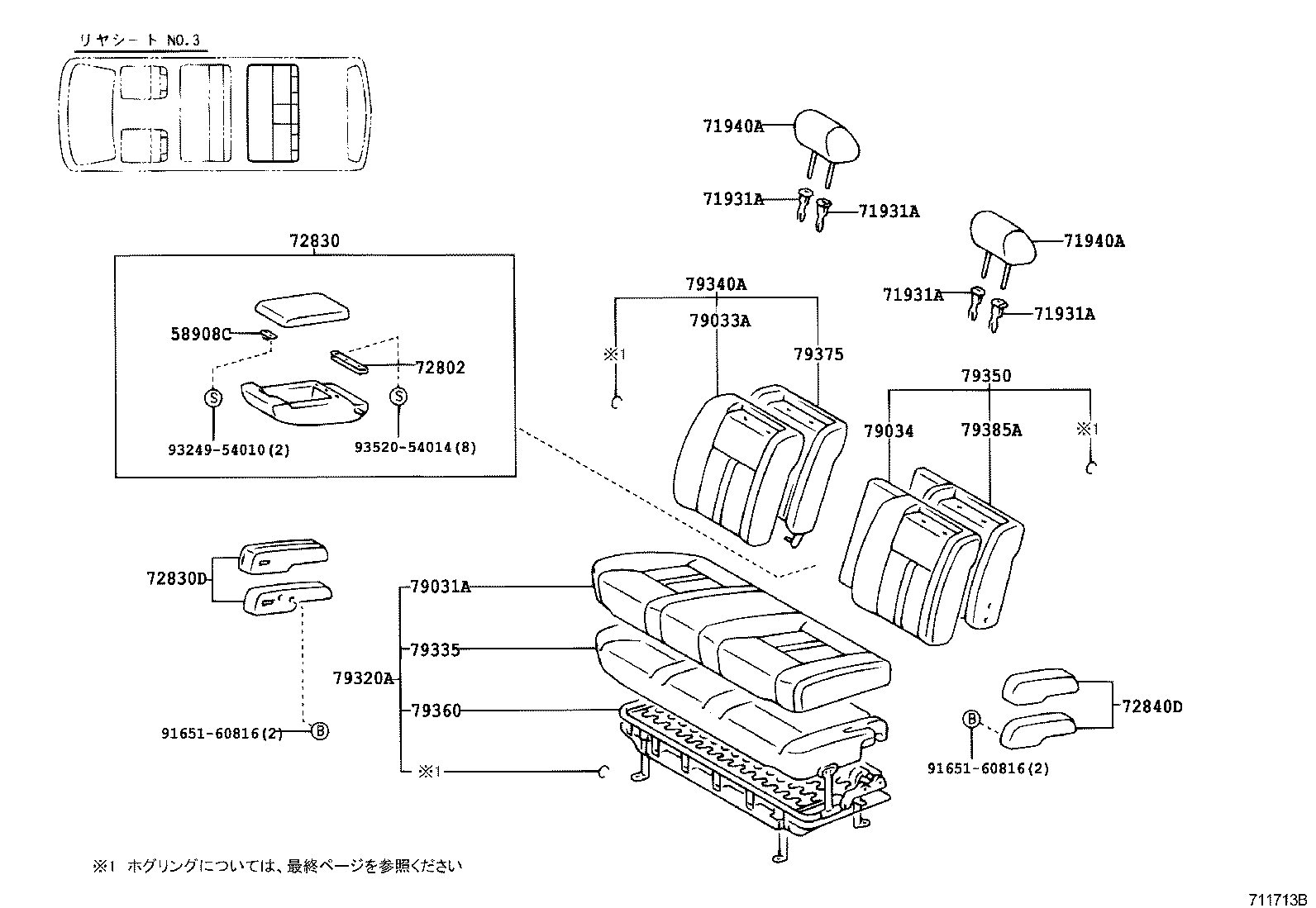

711713B

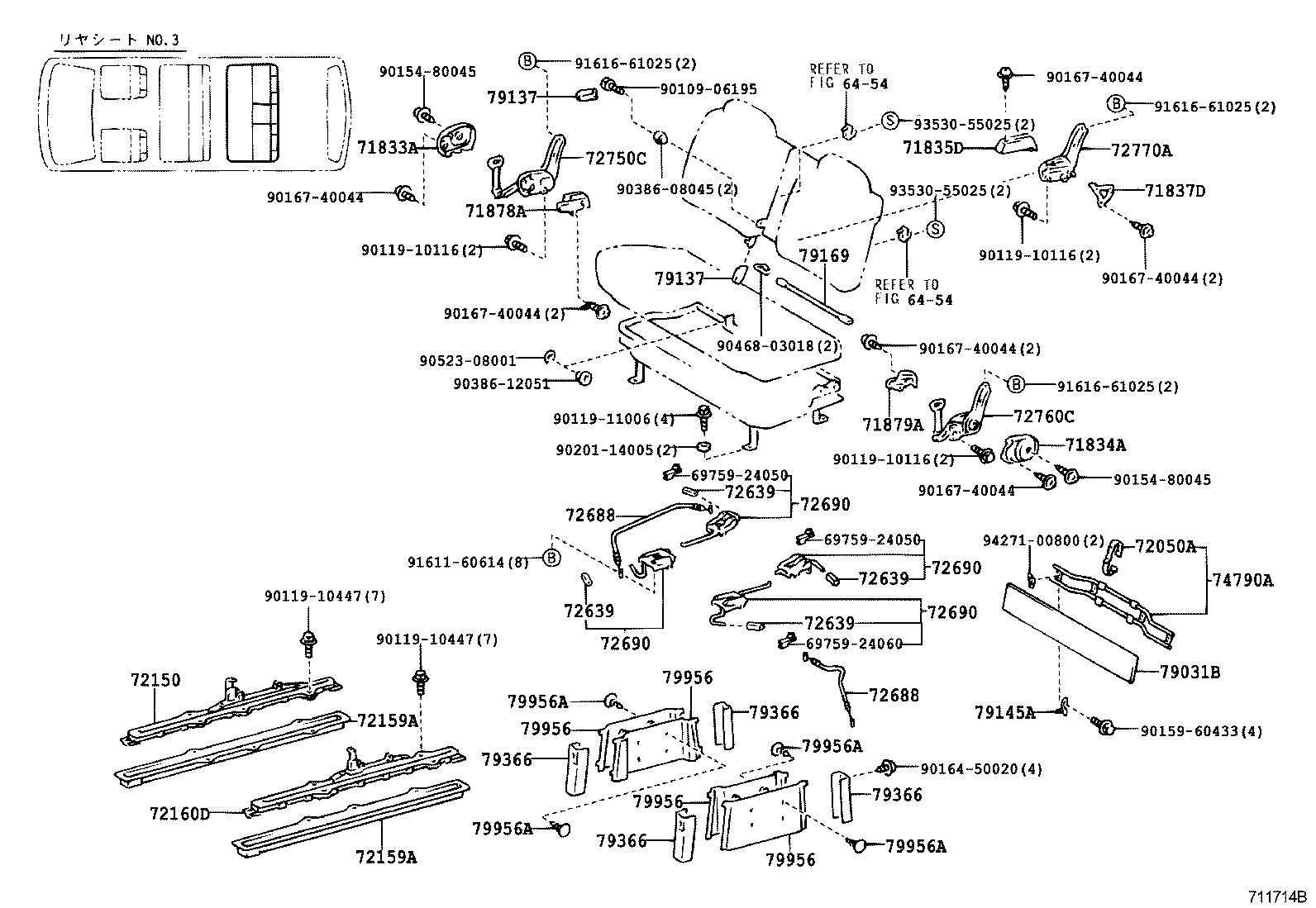

711714B

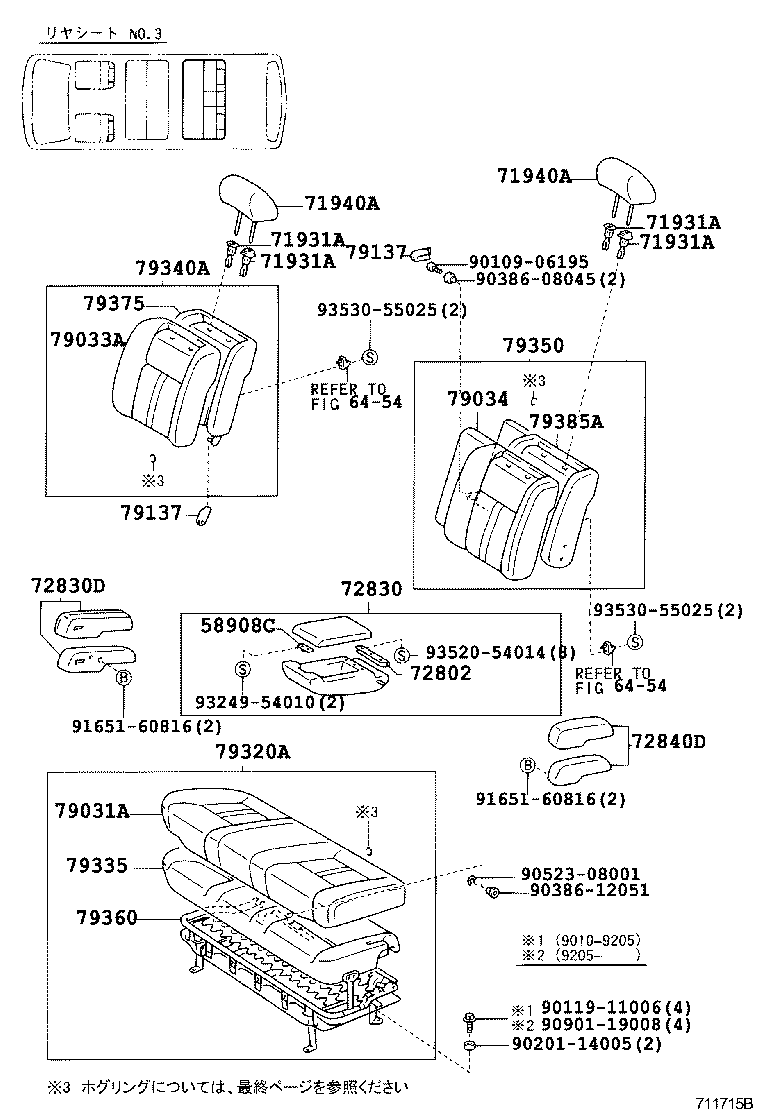

711715B

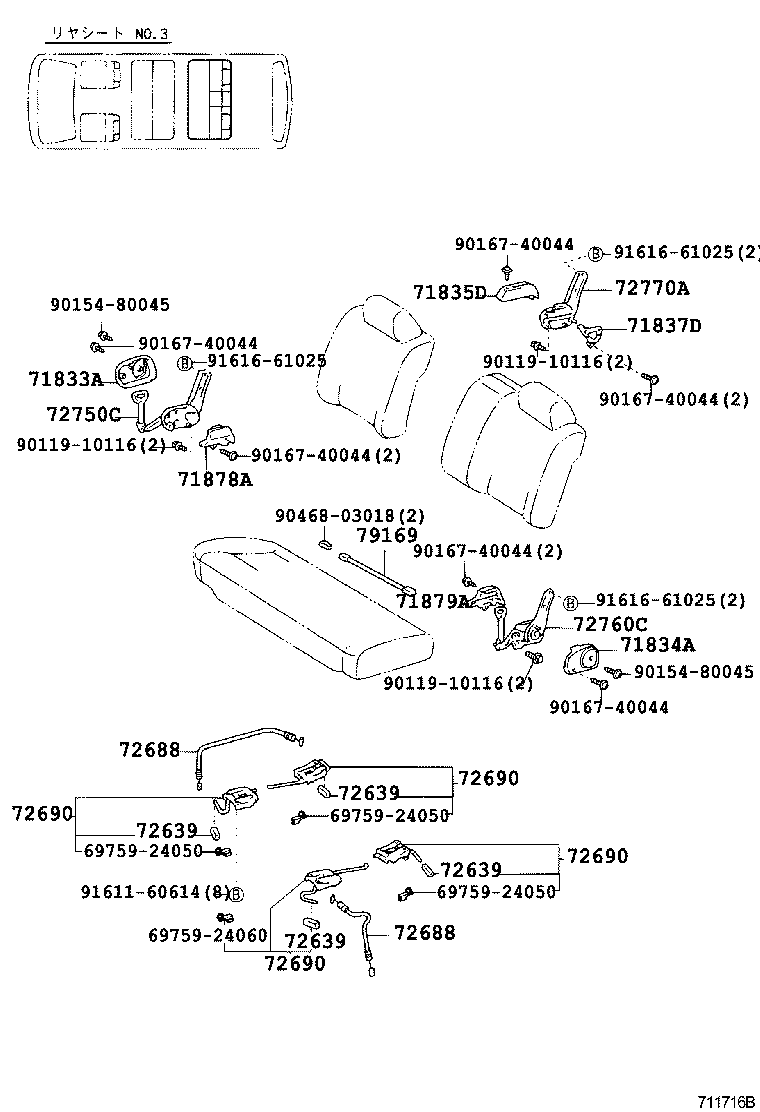

711716B

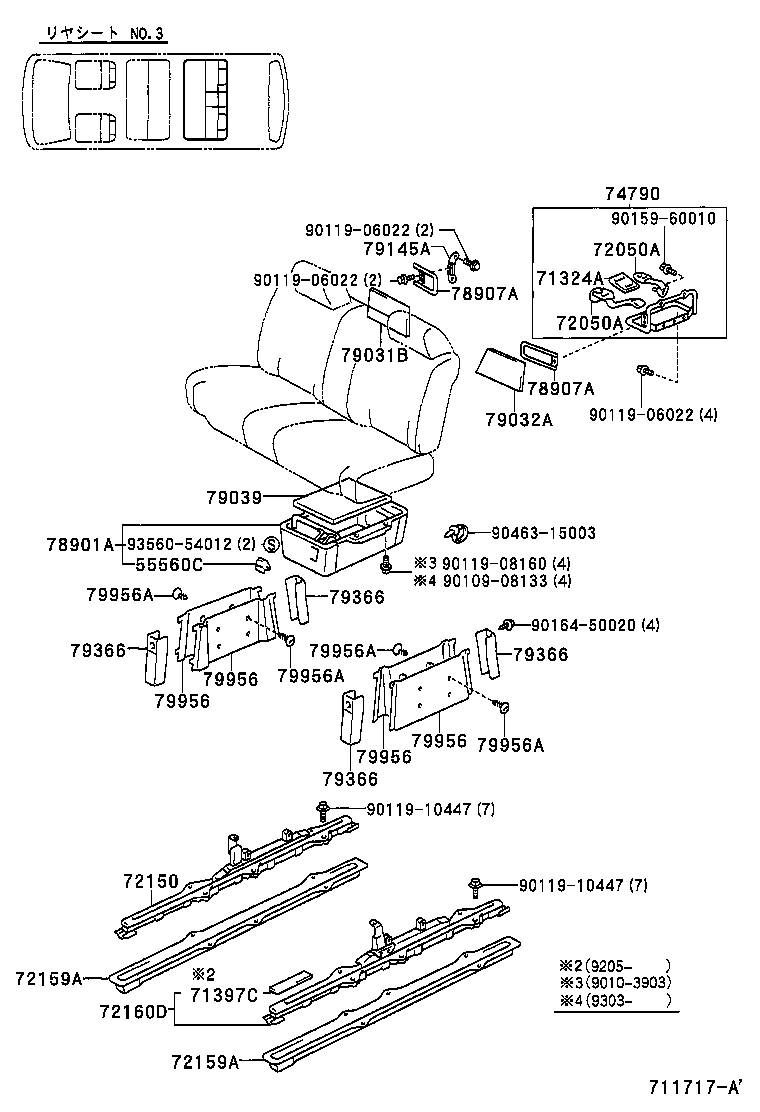

711717A

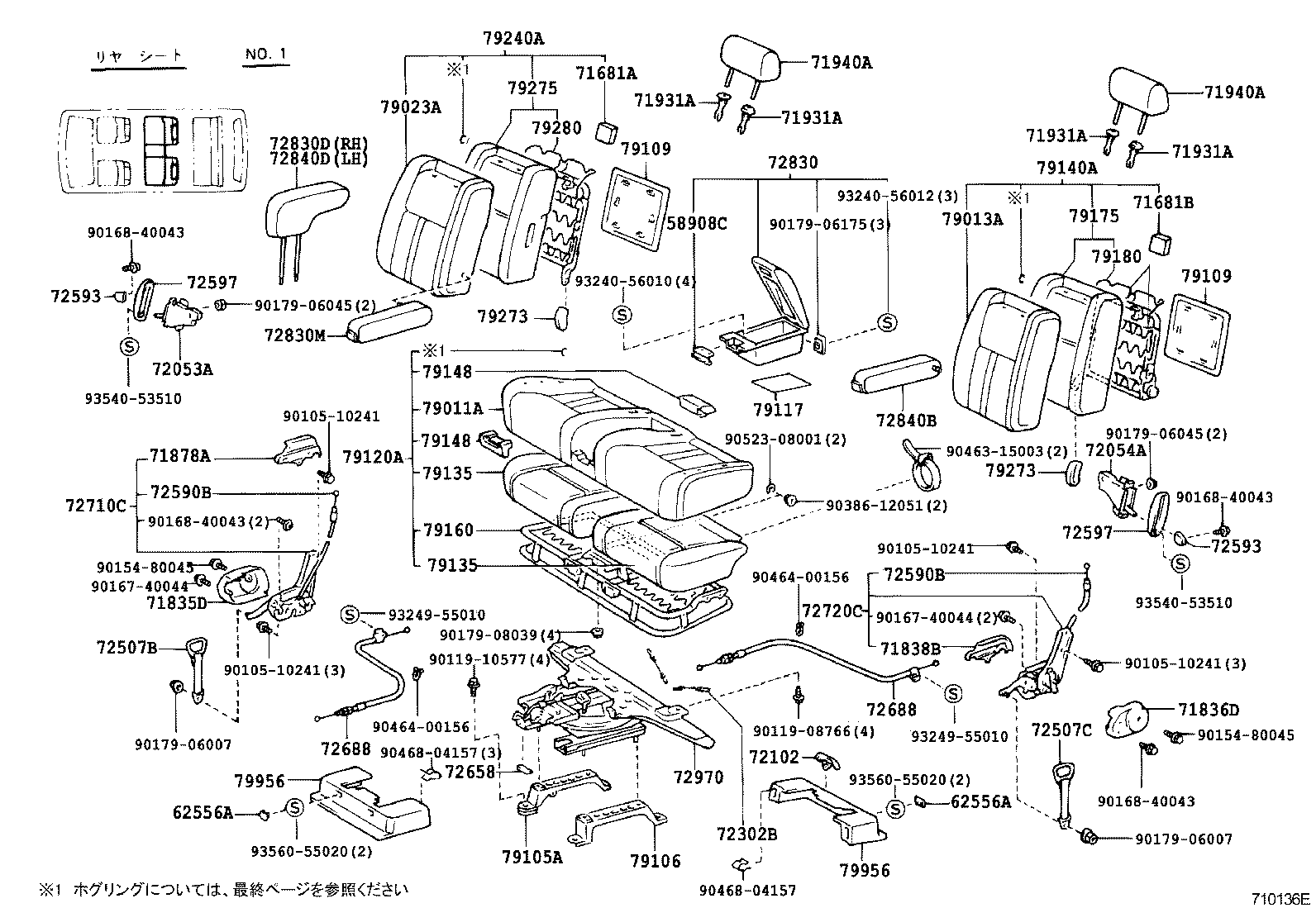

710136E

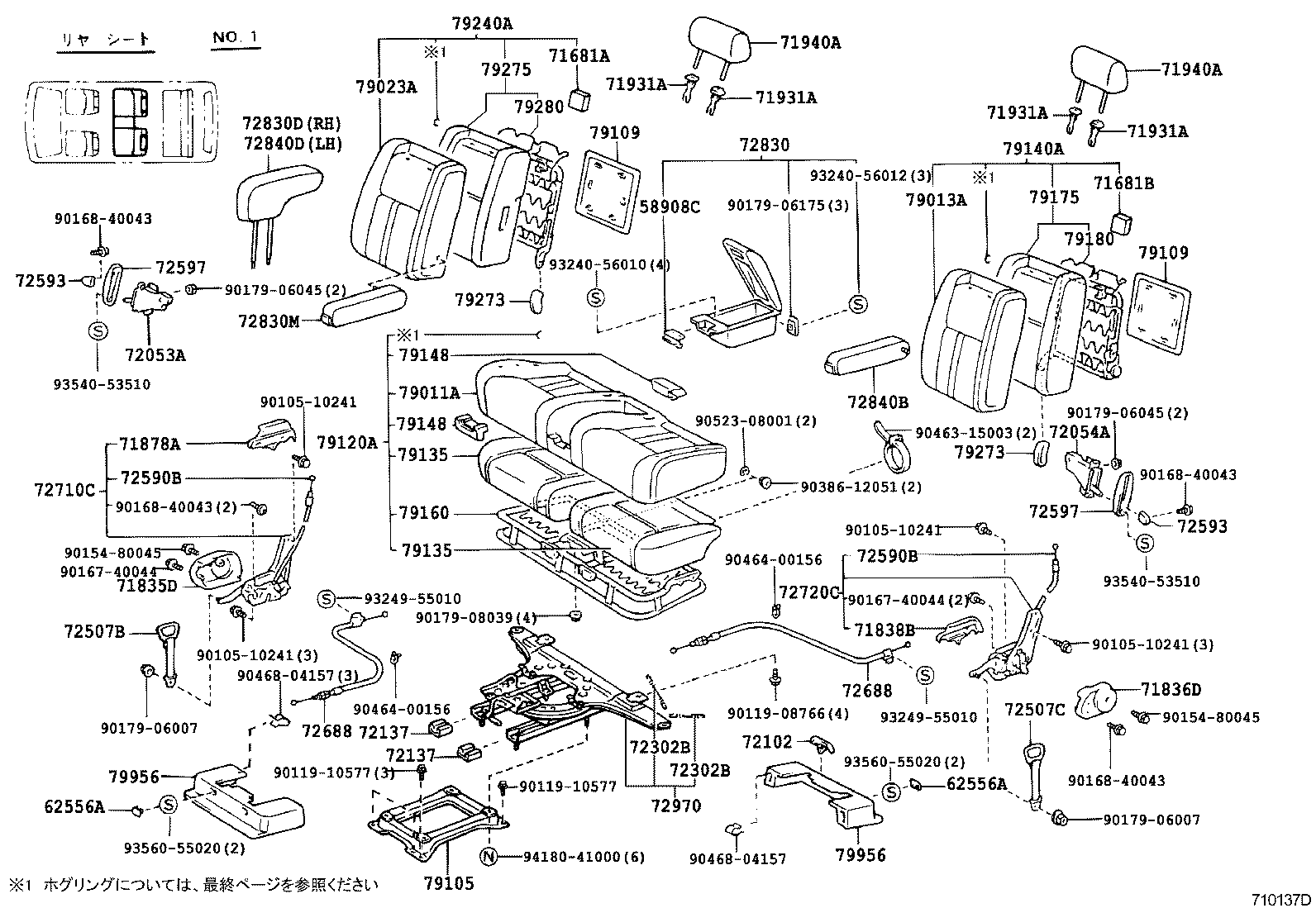

710137D

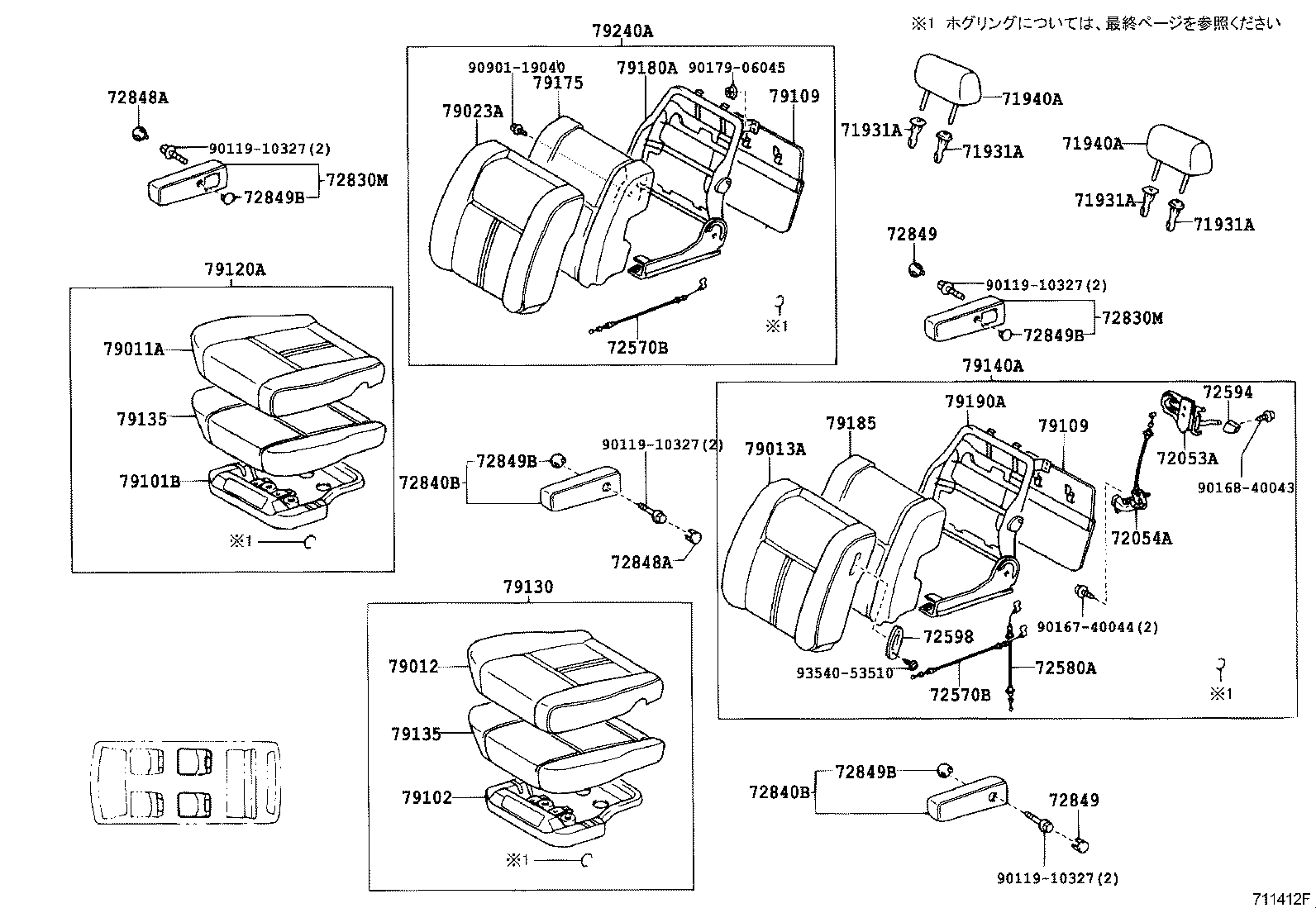

711412F

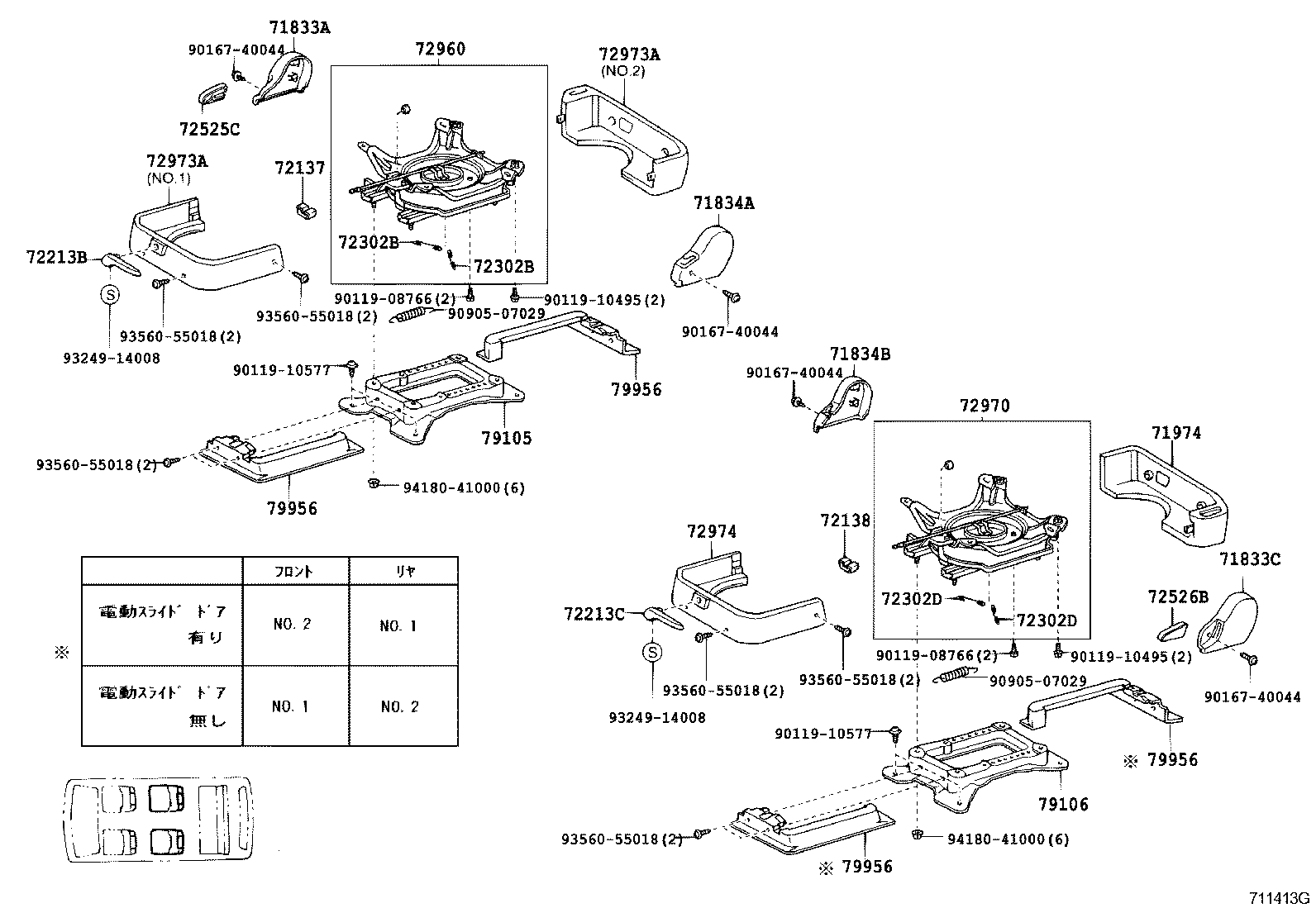

711413G

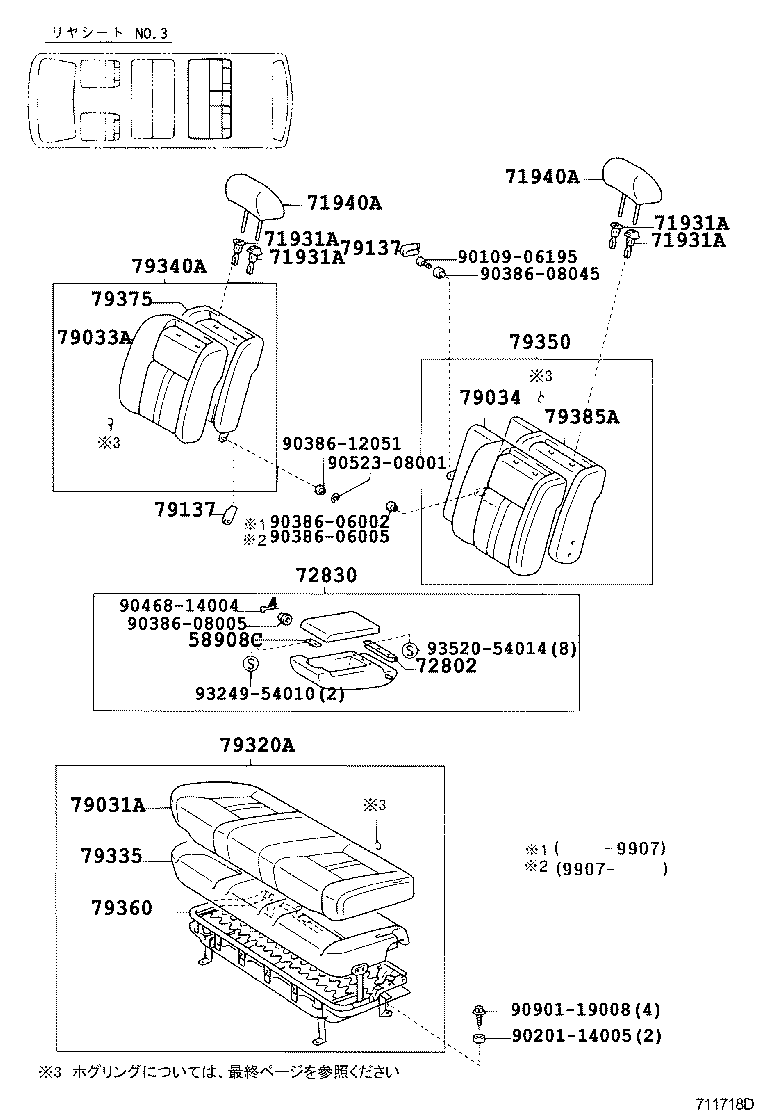

711718D

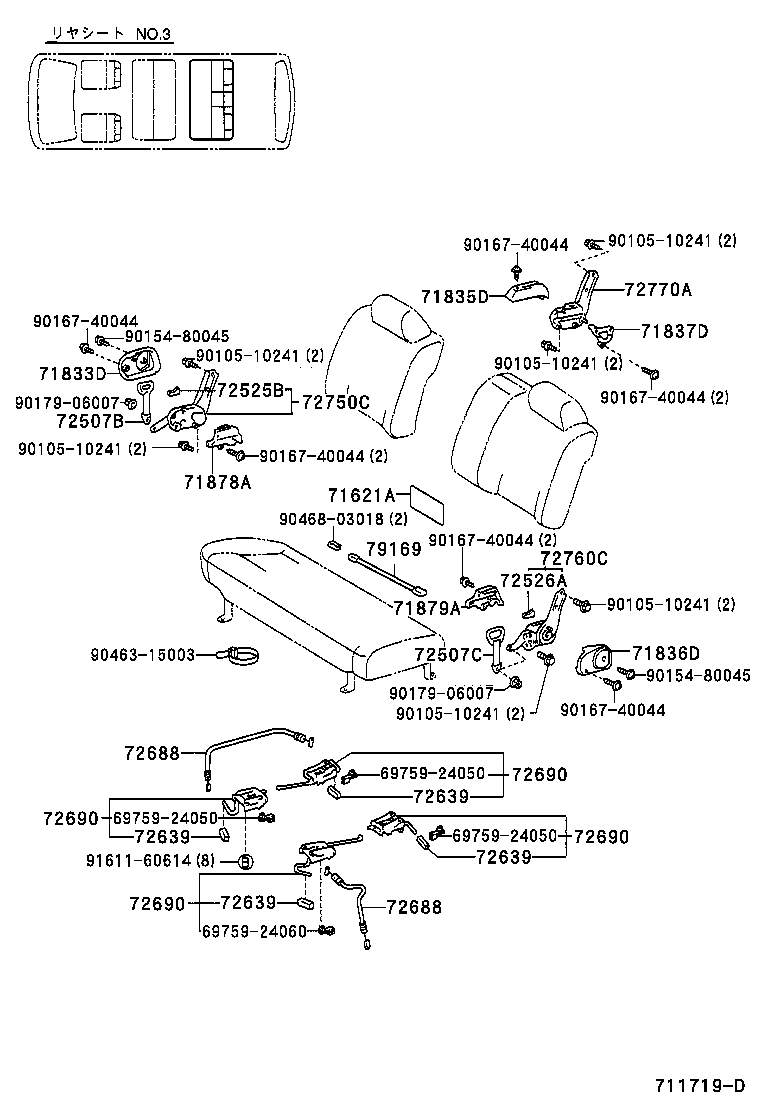

711719D

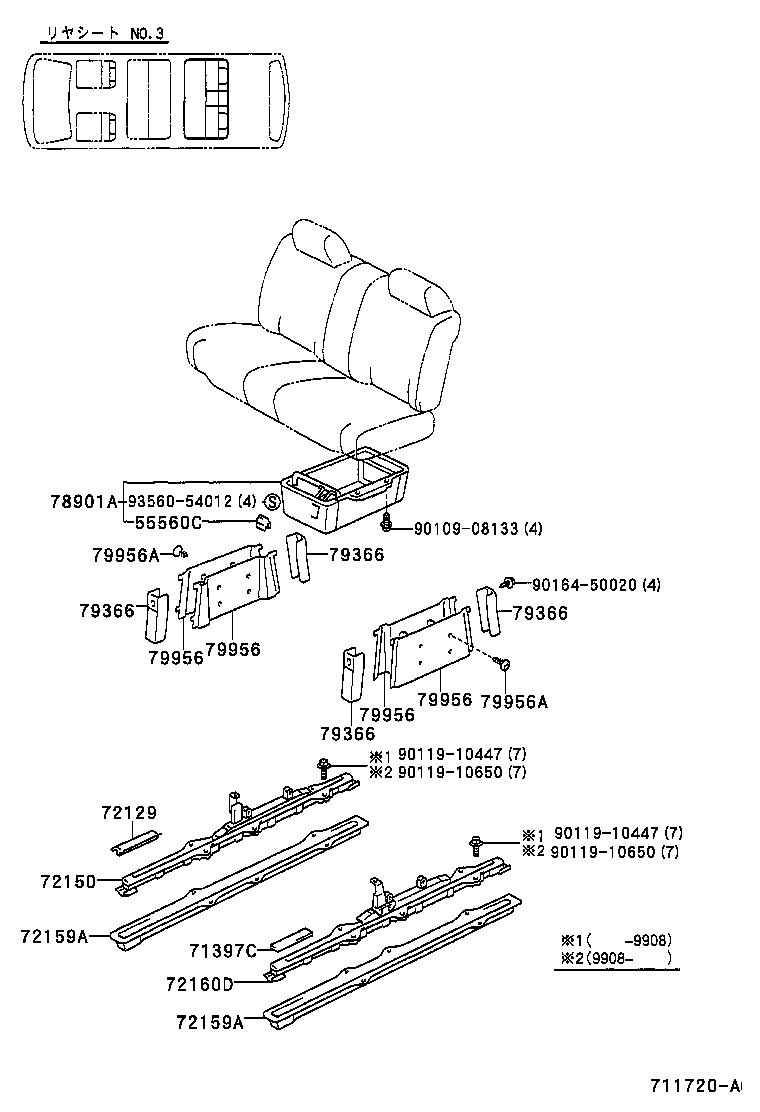

711720A

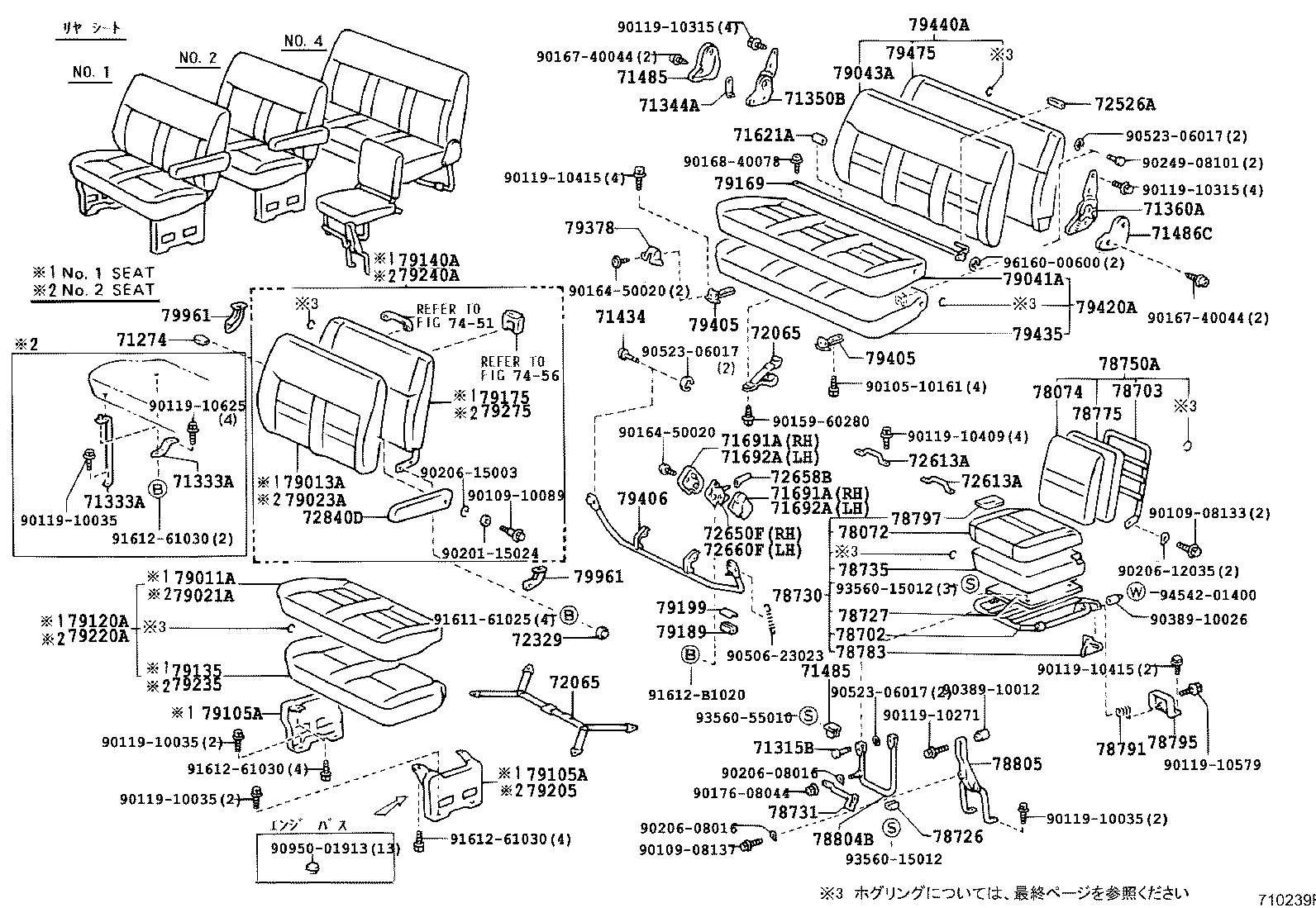

710239F

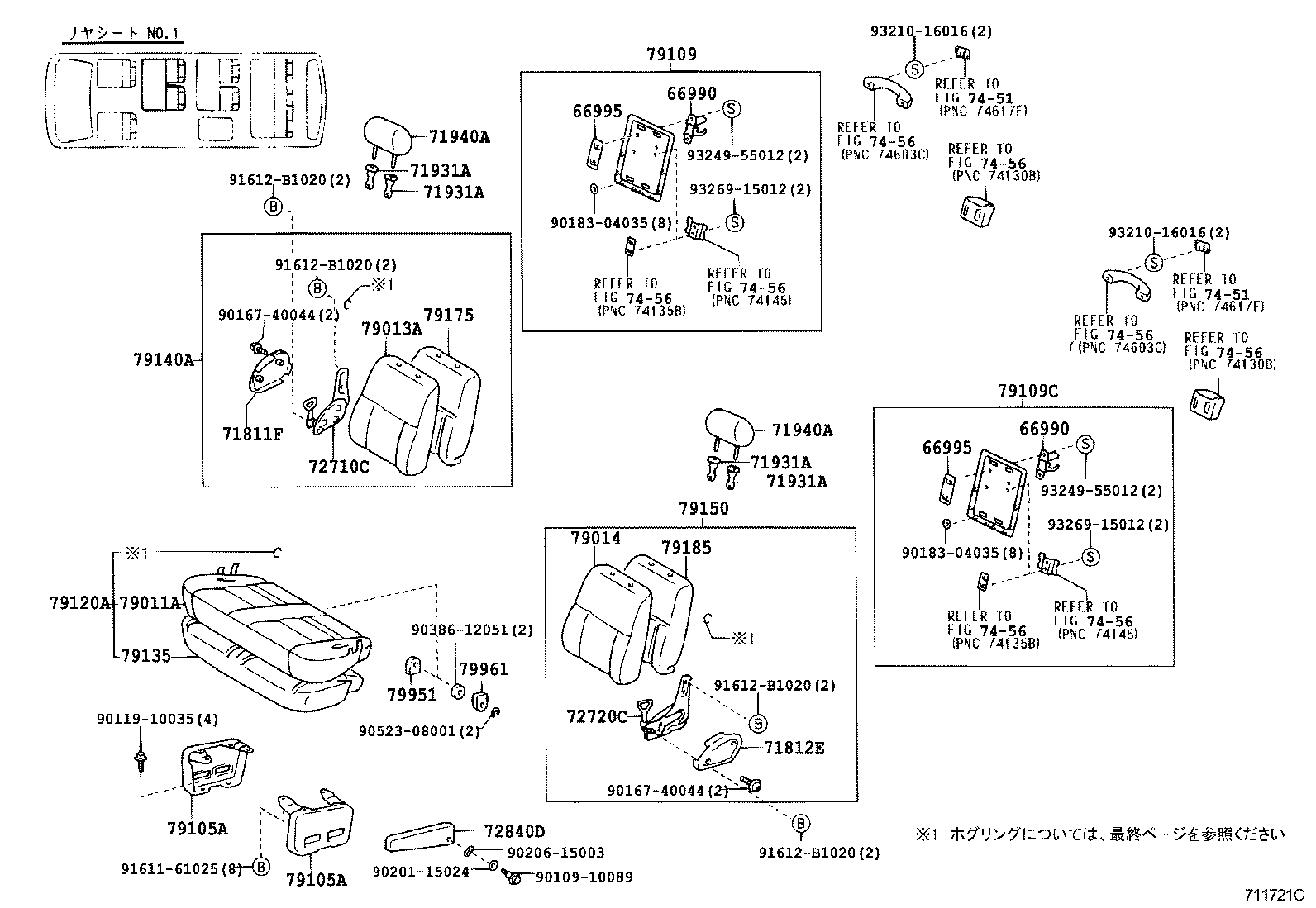

711721C

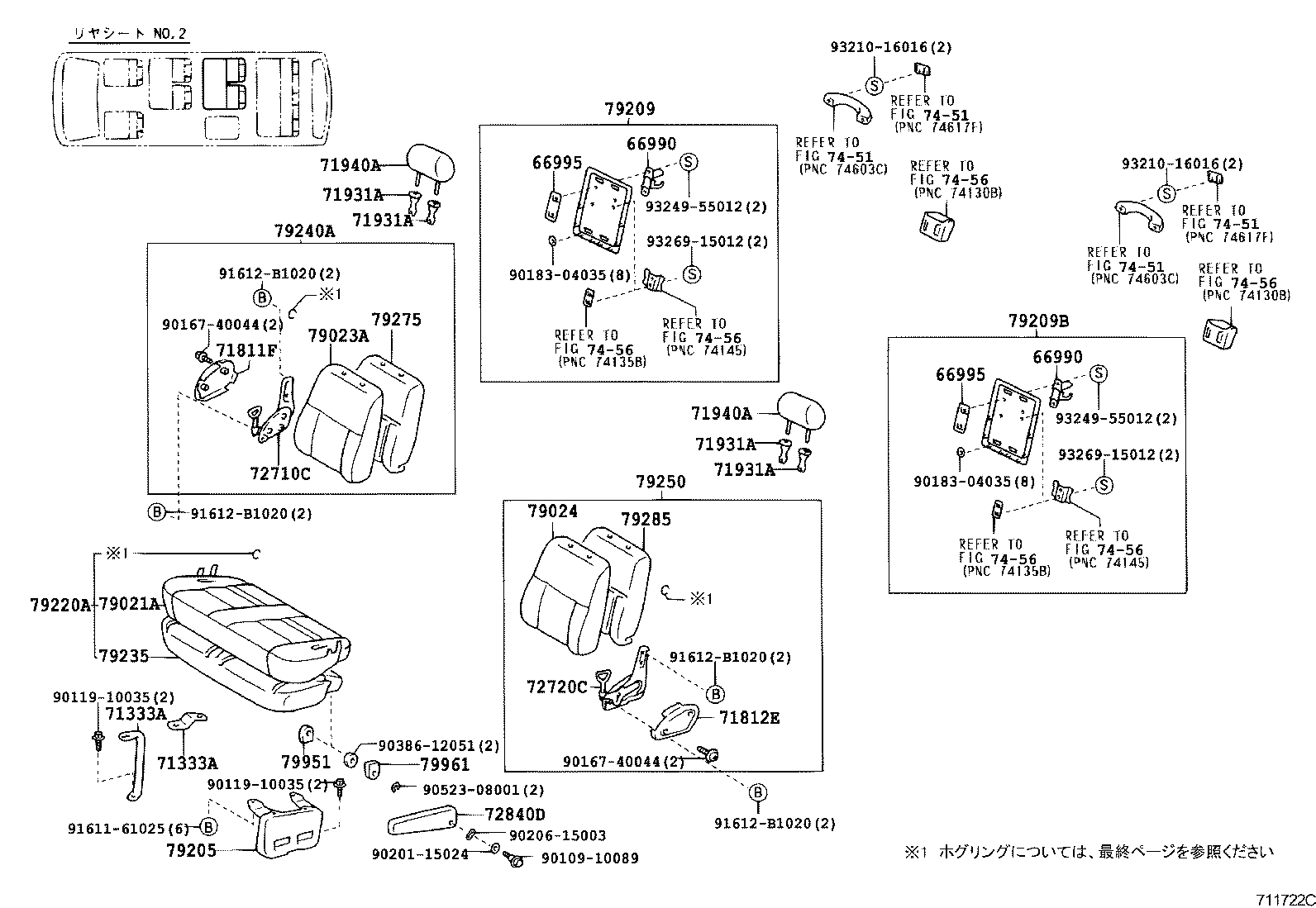

711722C

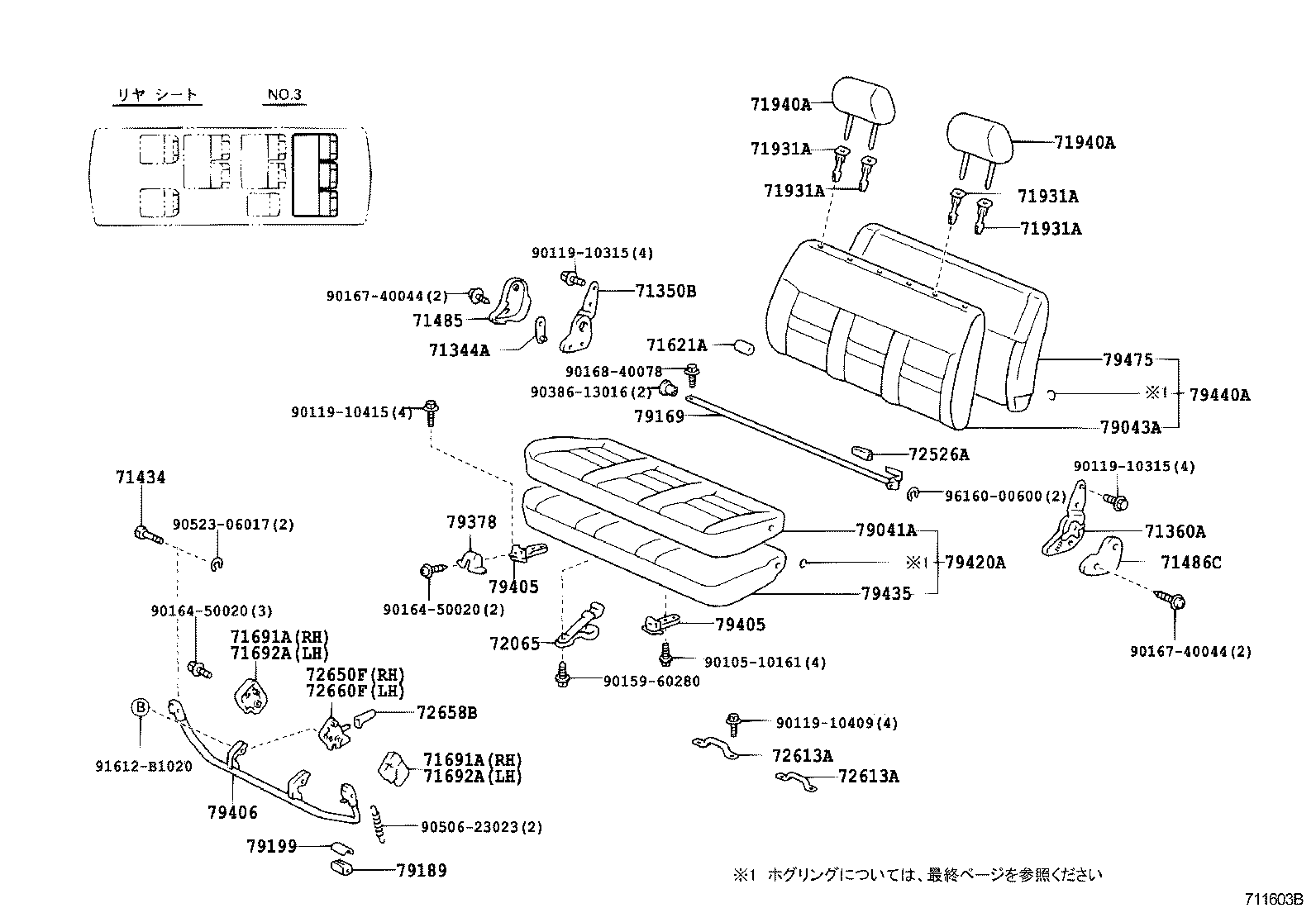

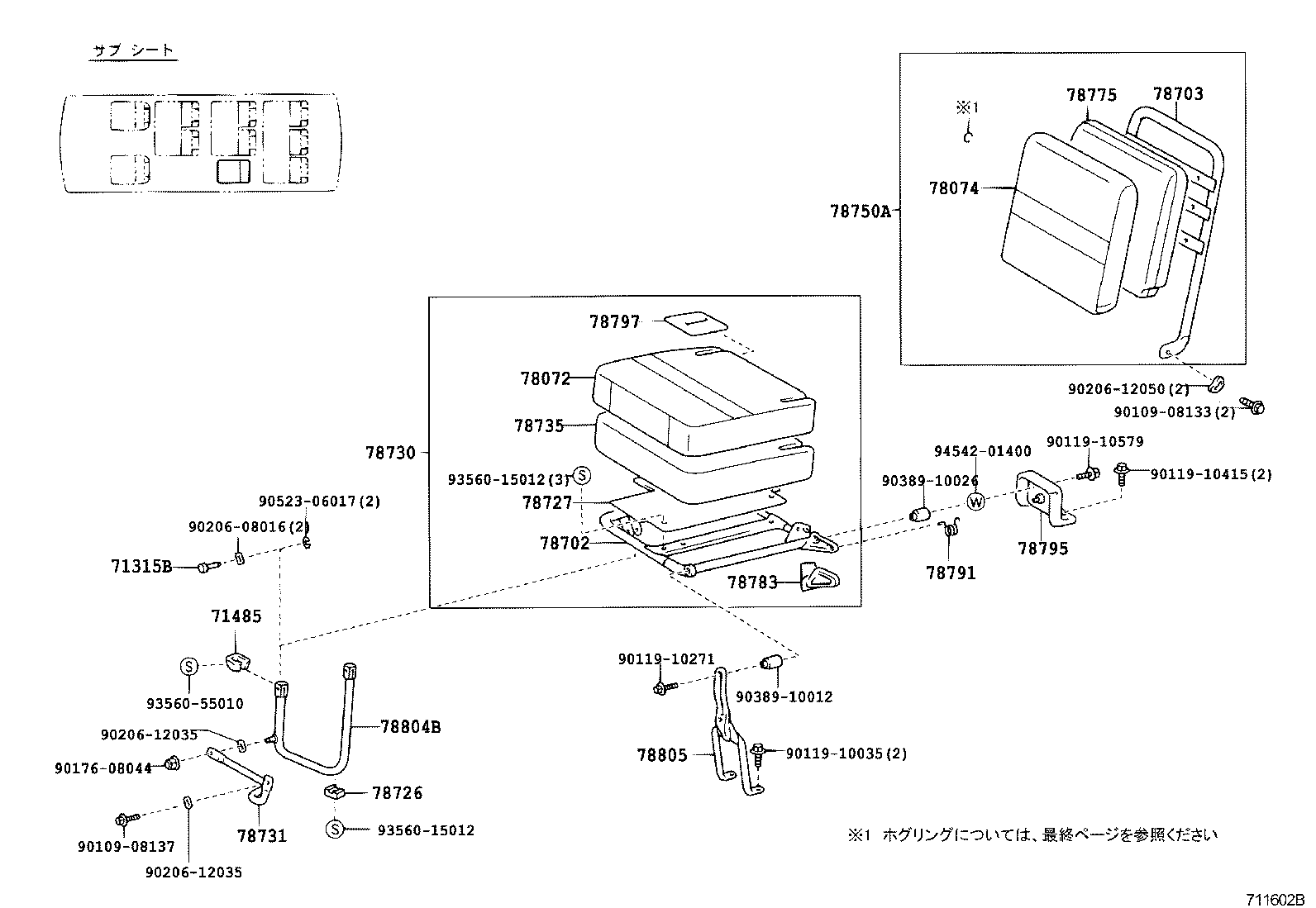

711602B
711603B
711728B
711729A
711730B
711731A
711732B
711733A

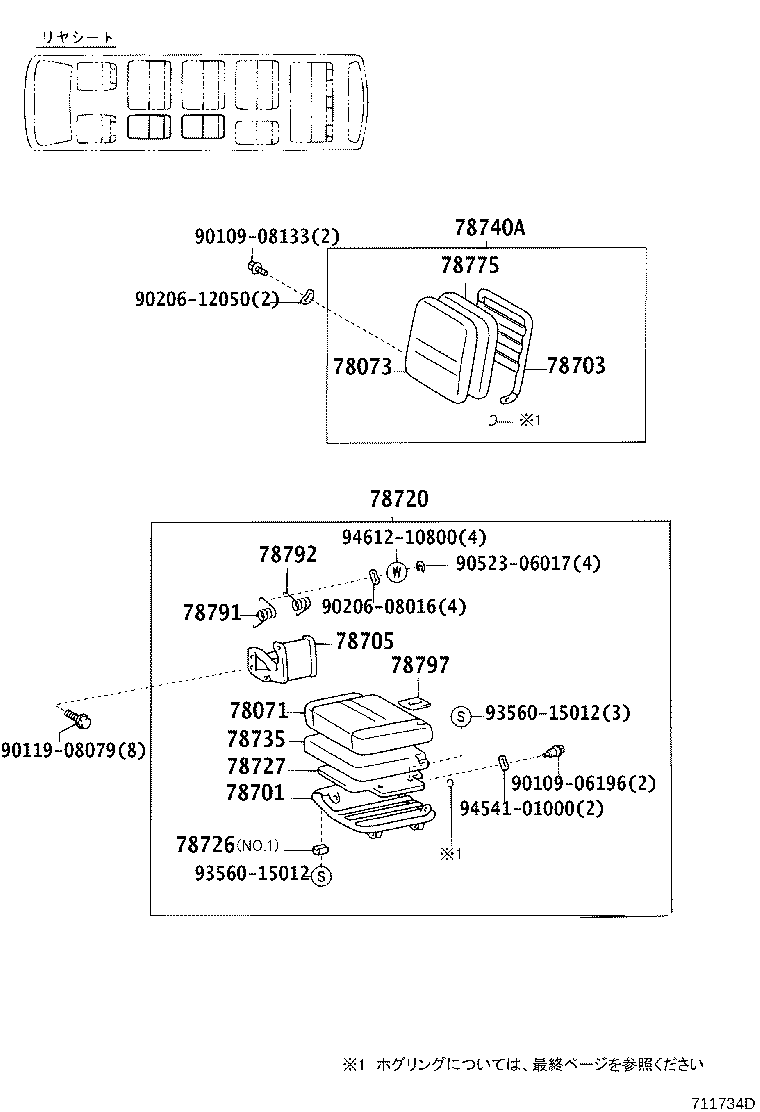

711734D
711735B
711736B
711737B

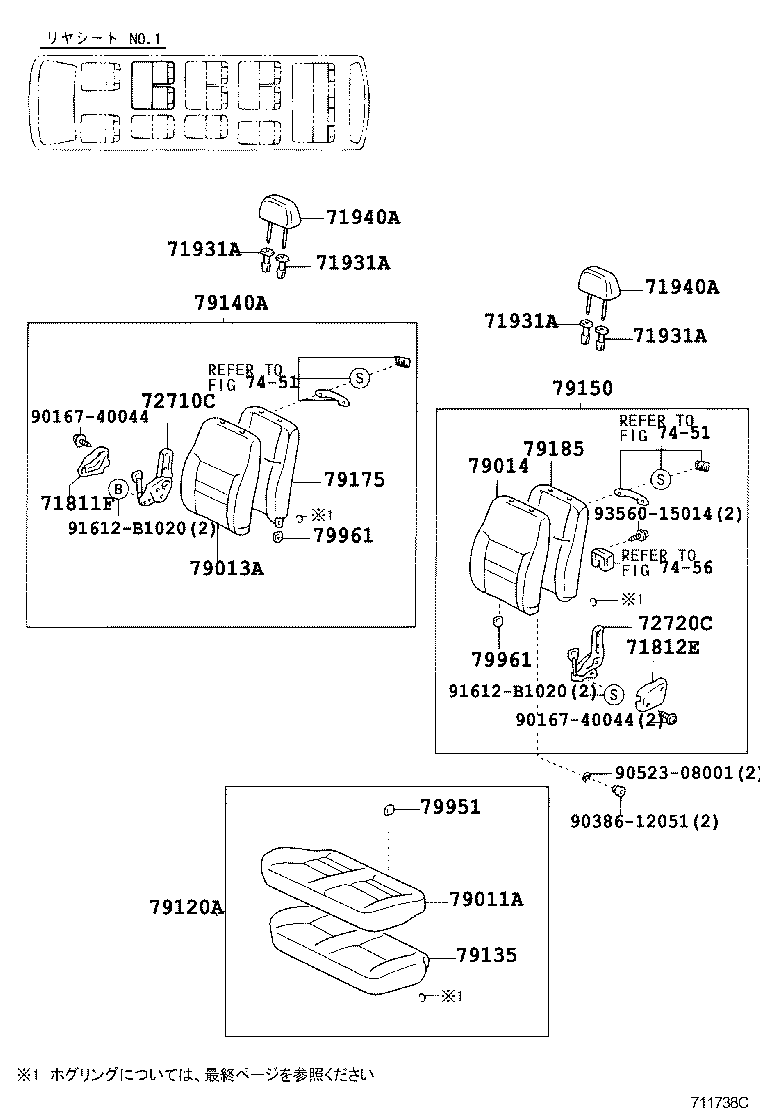

711738C
711739A

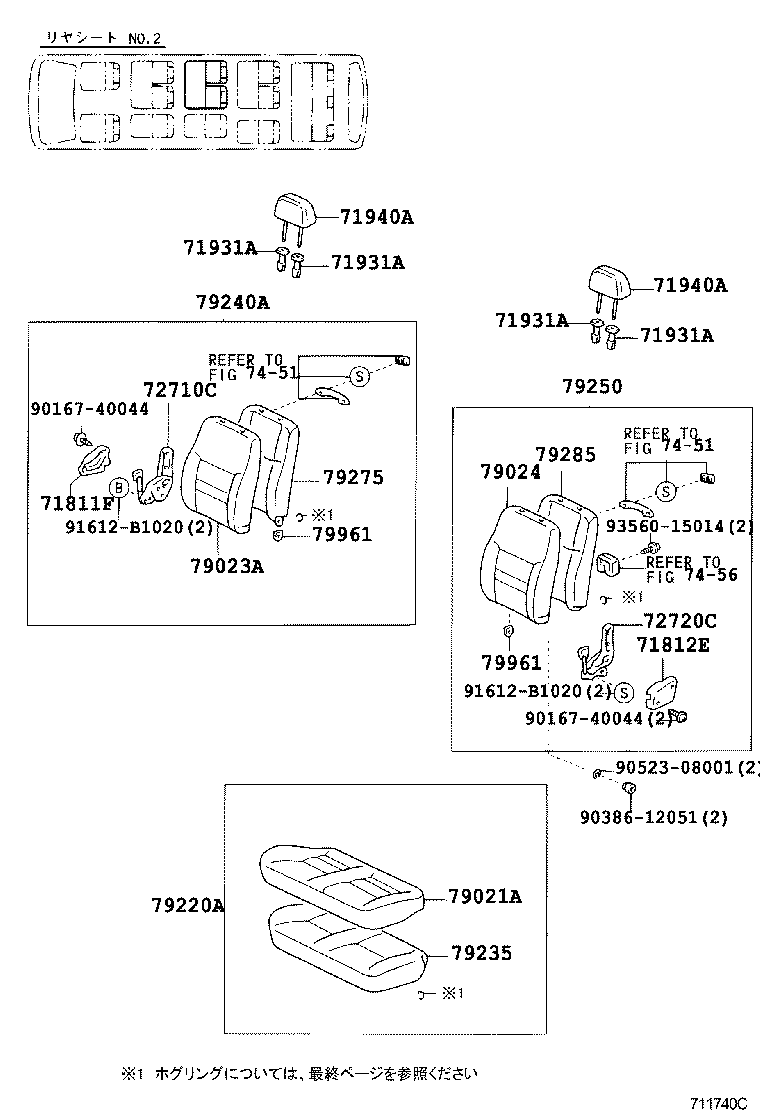

711740C
711741A

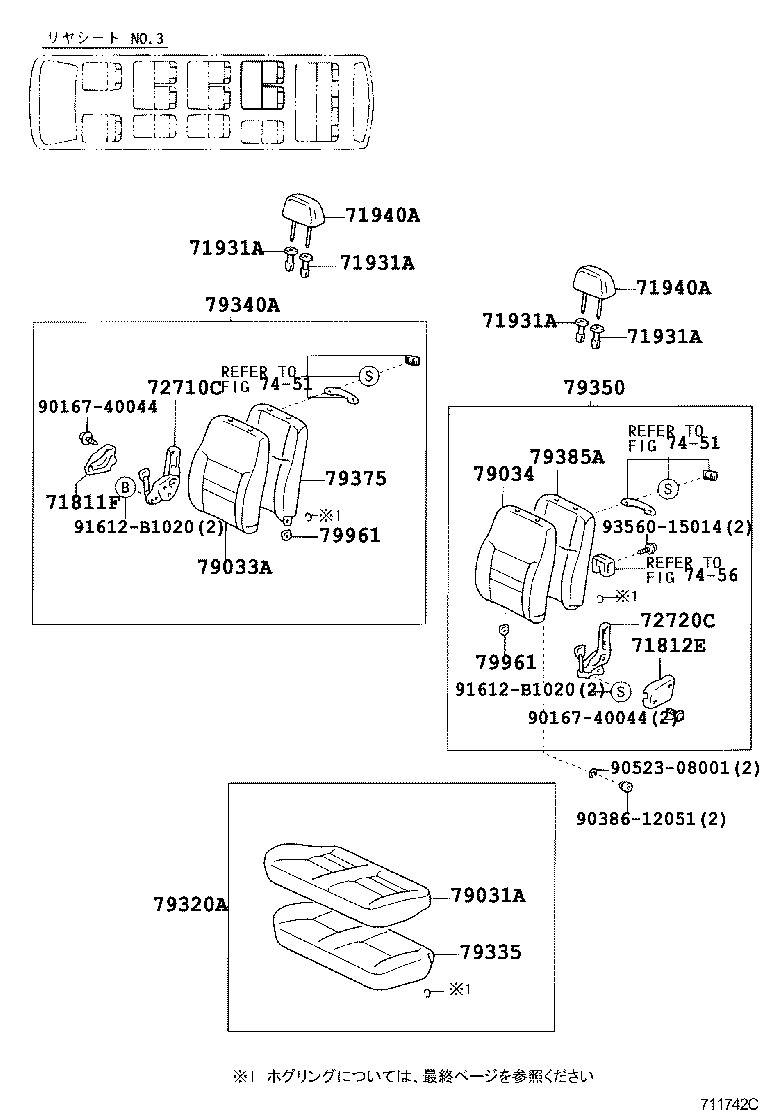

711742C
711743A

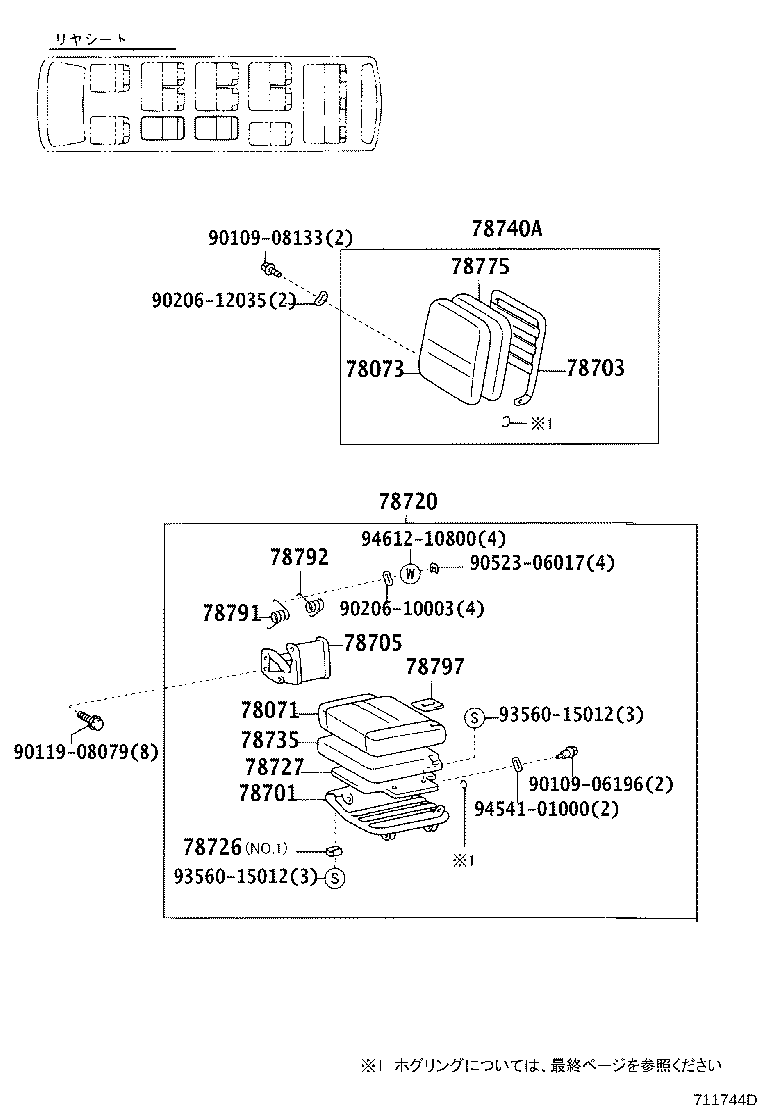

711744D
711745B
711746B
711747B

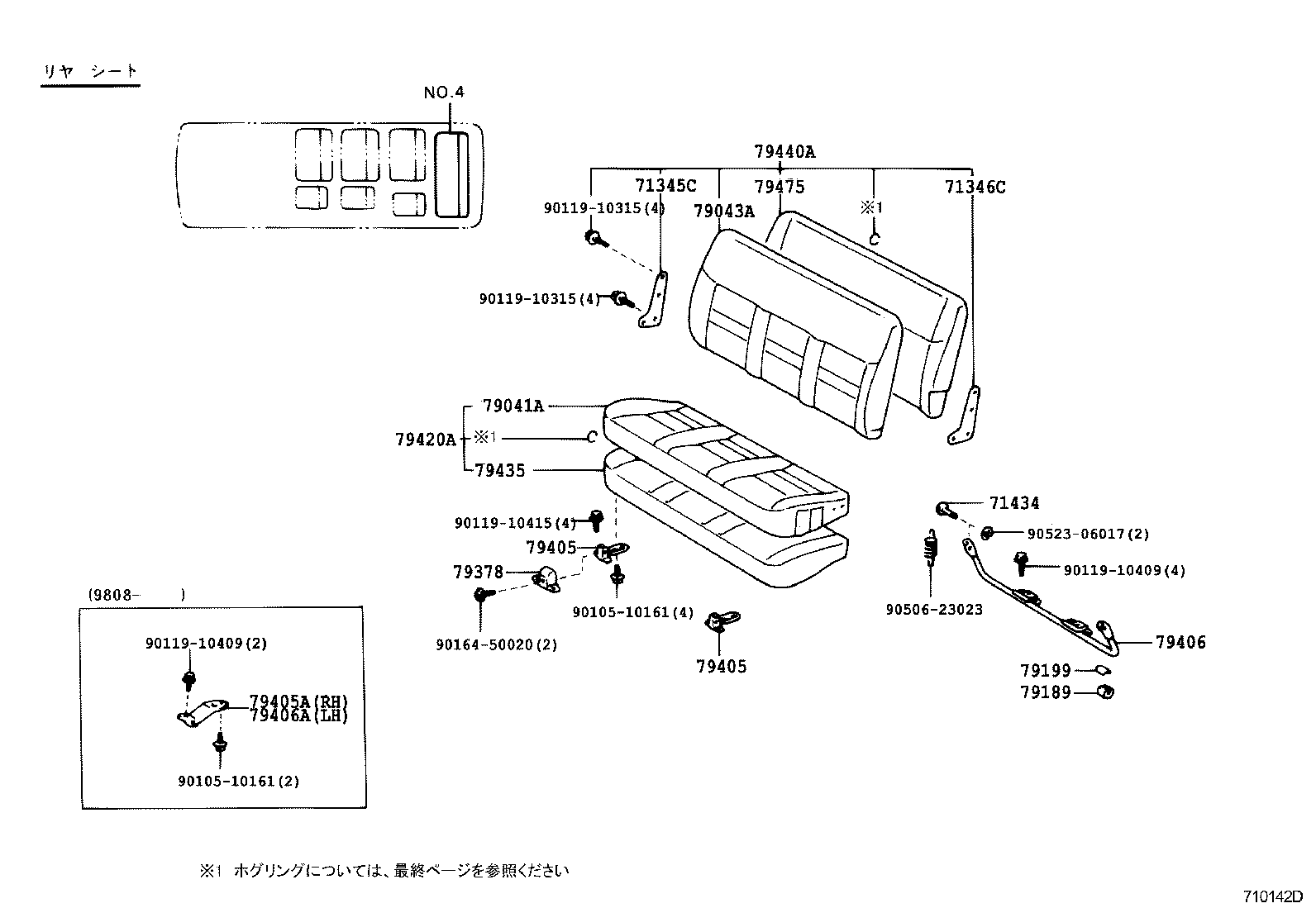

710142D

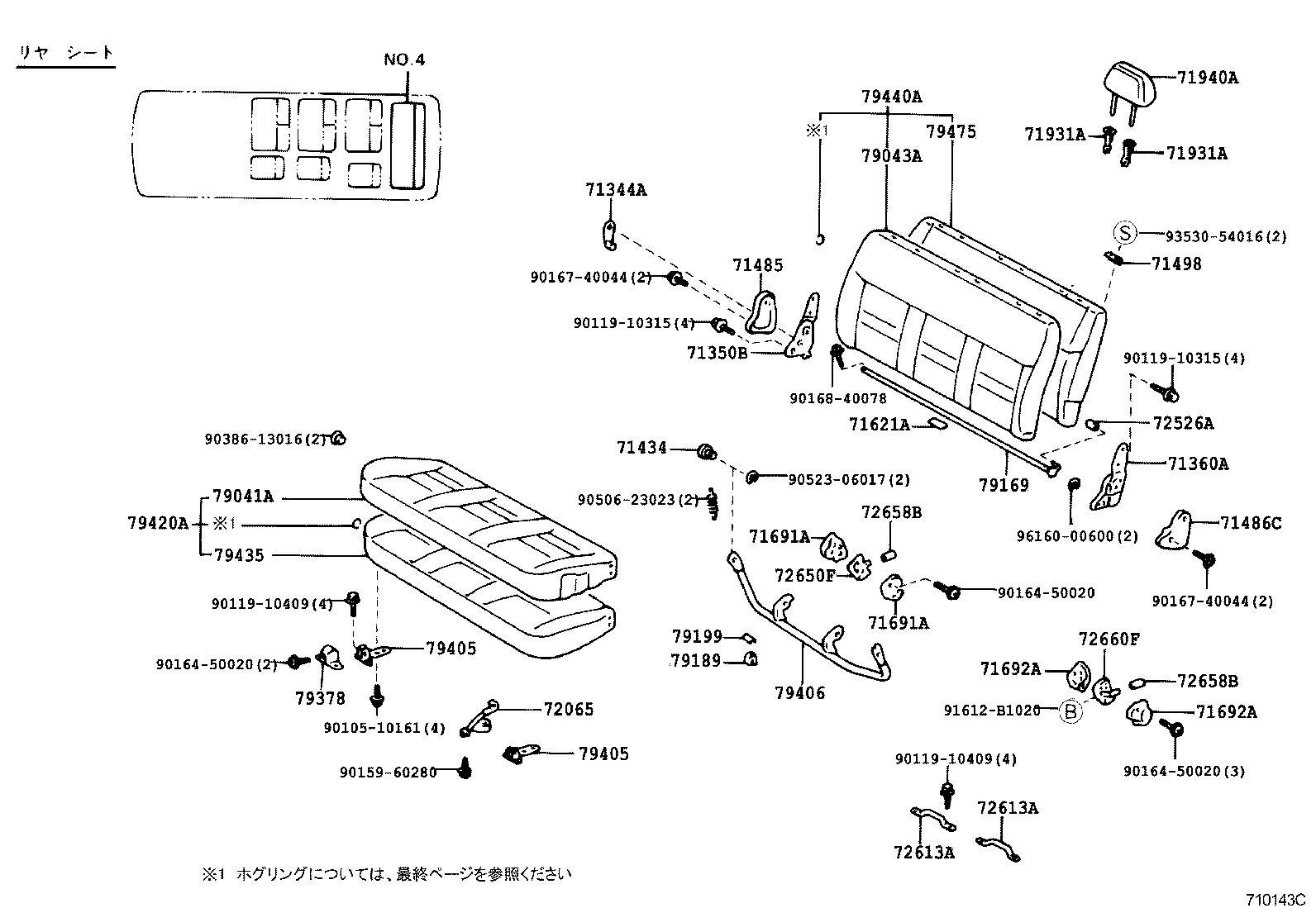

710143C
711604B
711750C

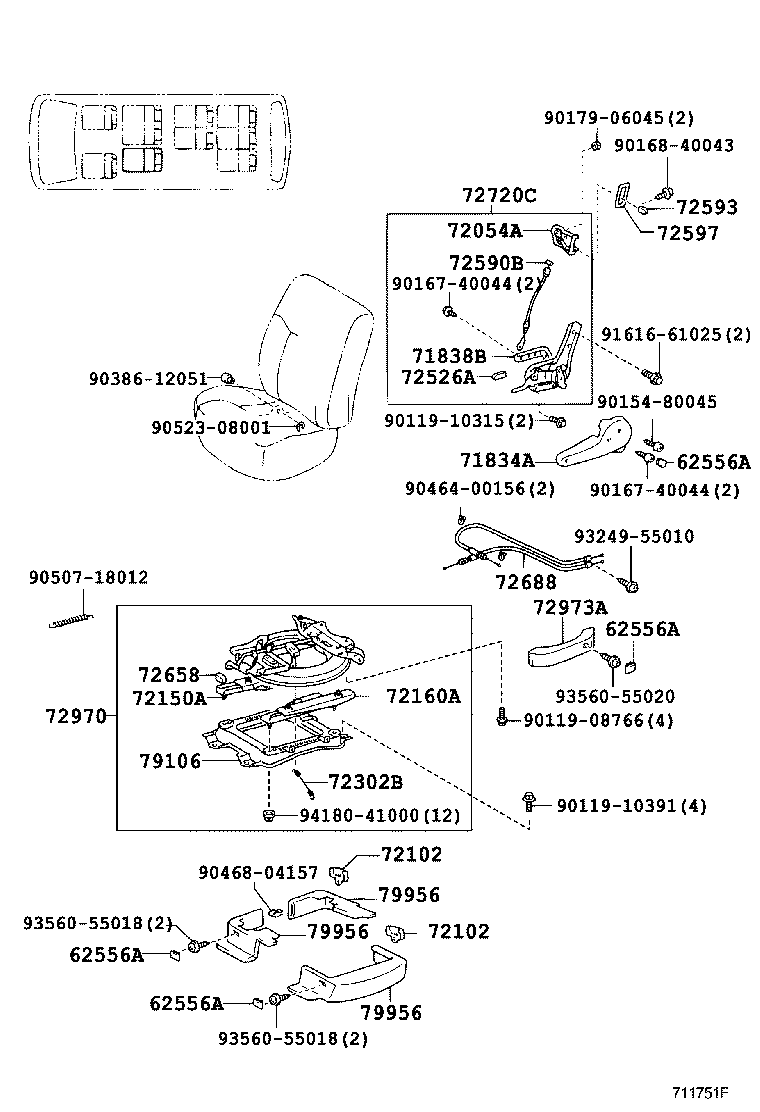

711751F
711752B

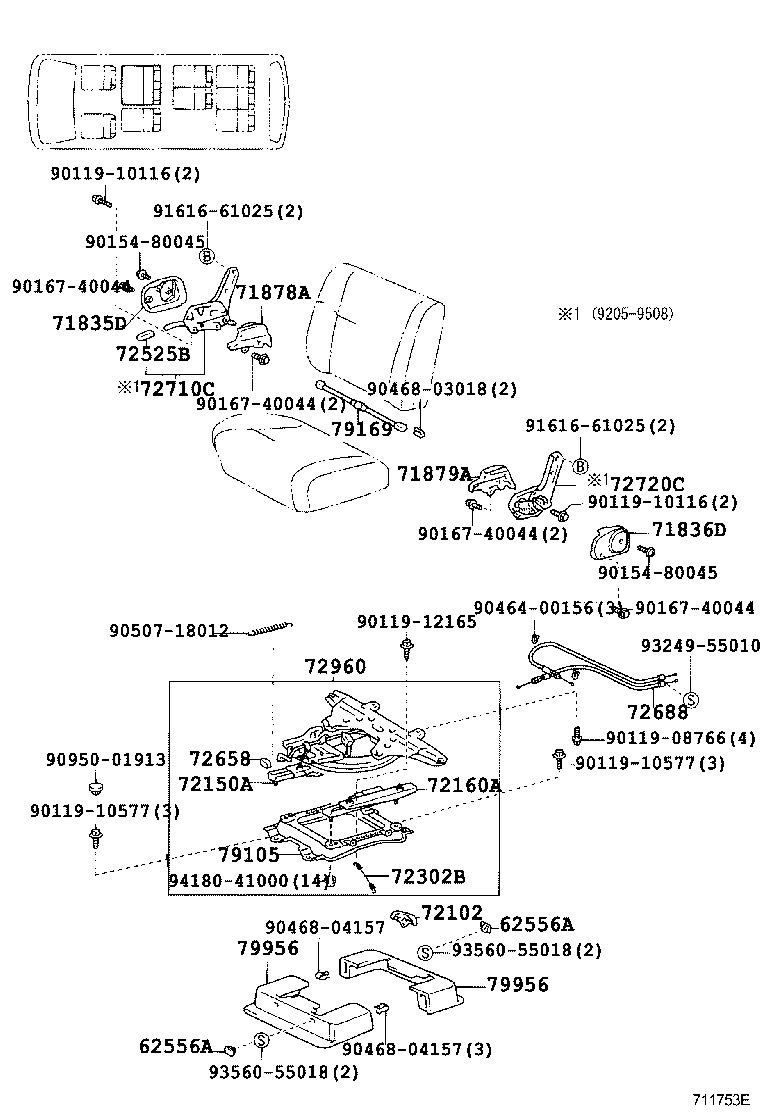

711753E

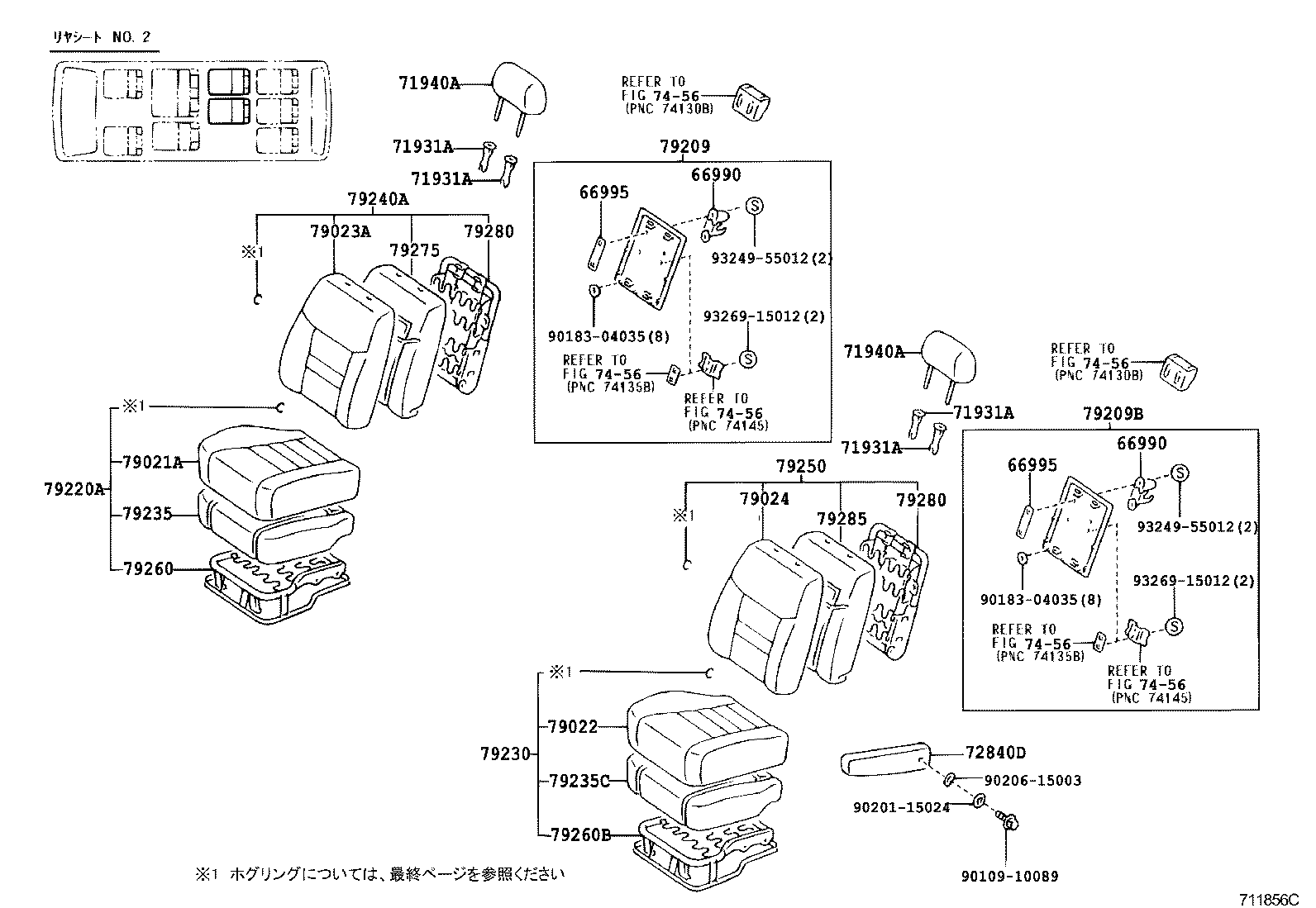

711856C

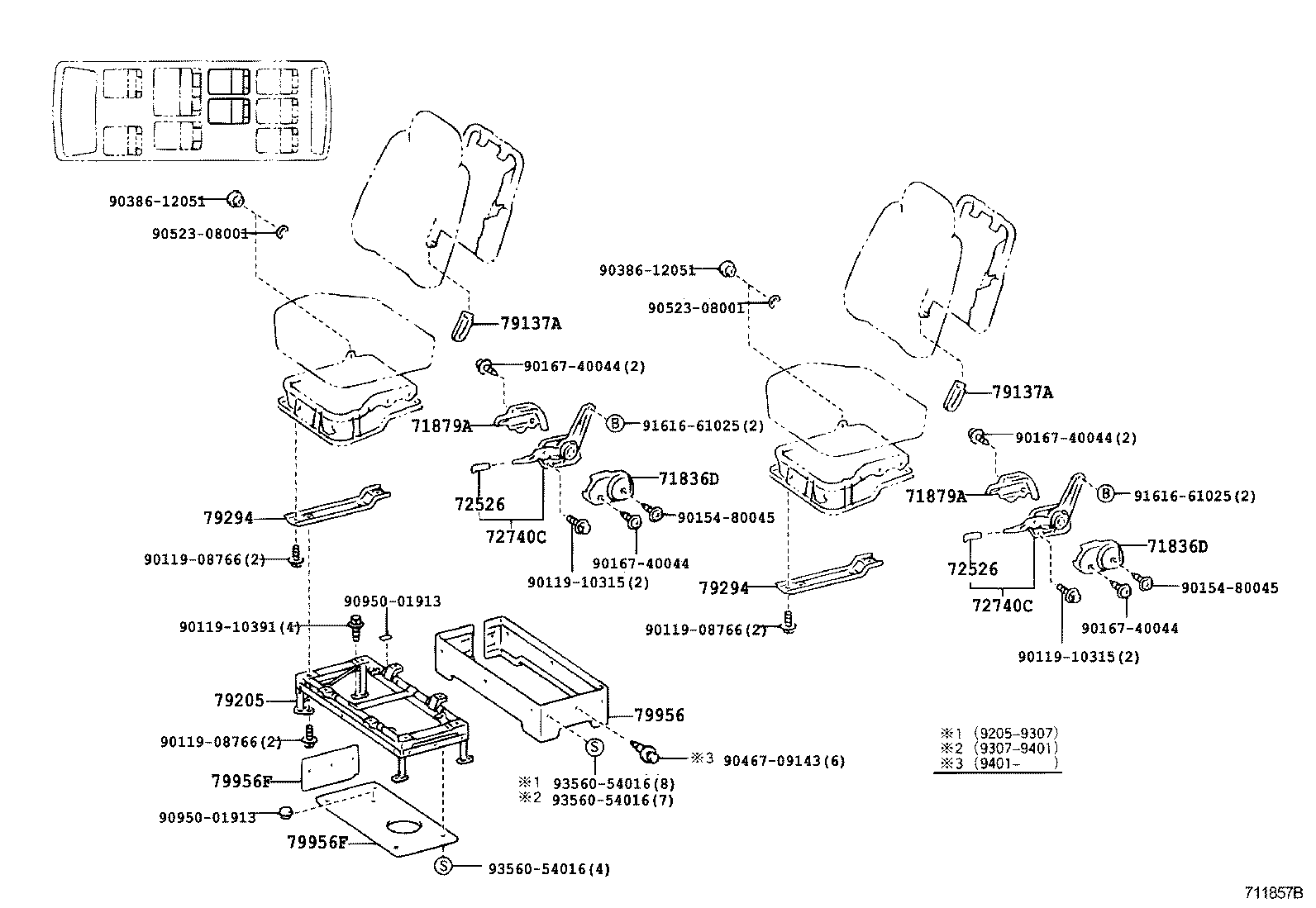

711857B

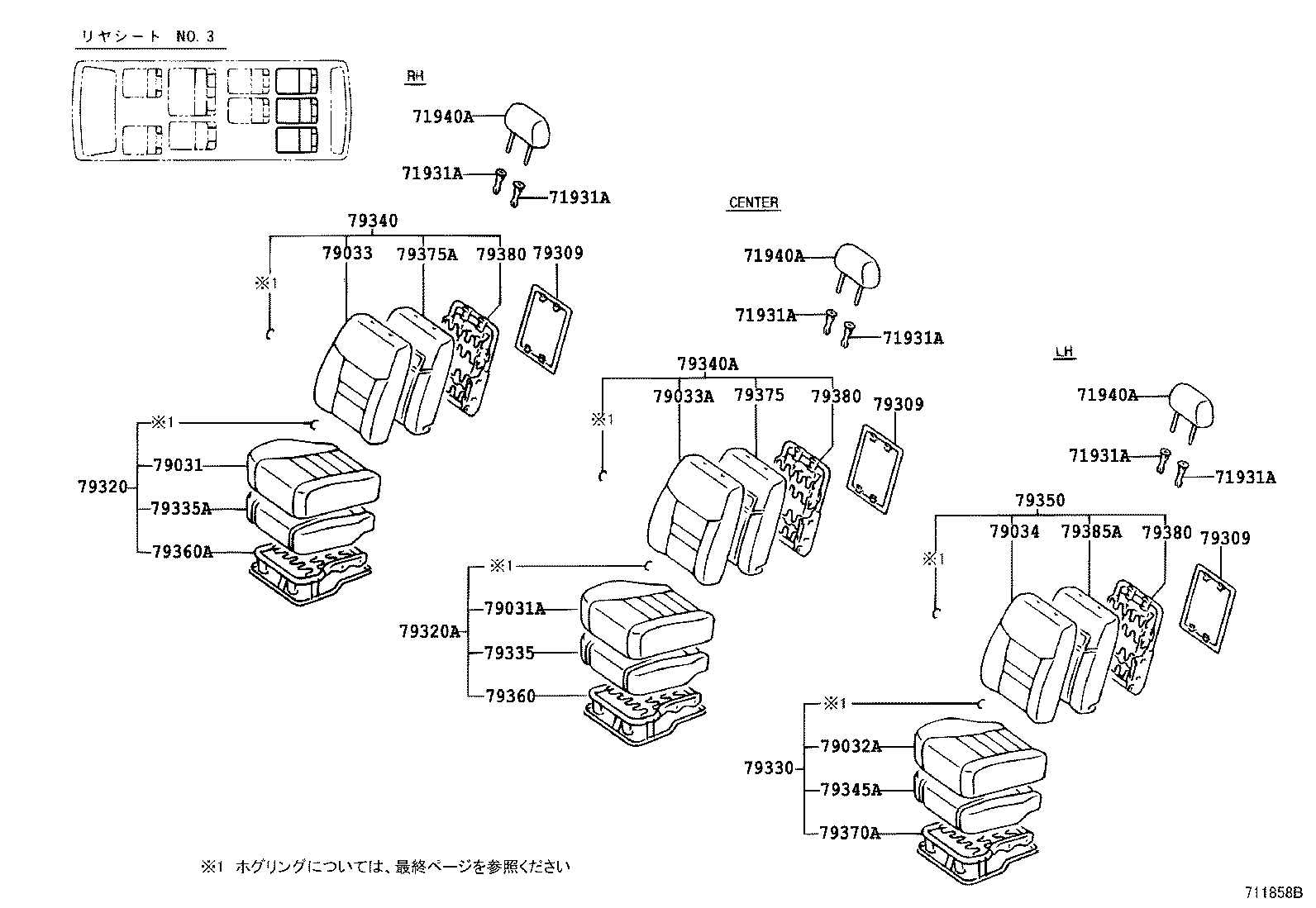

711858B

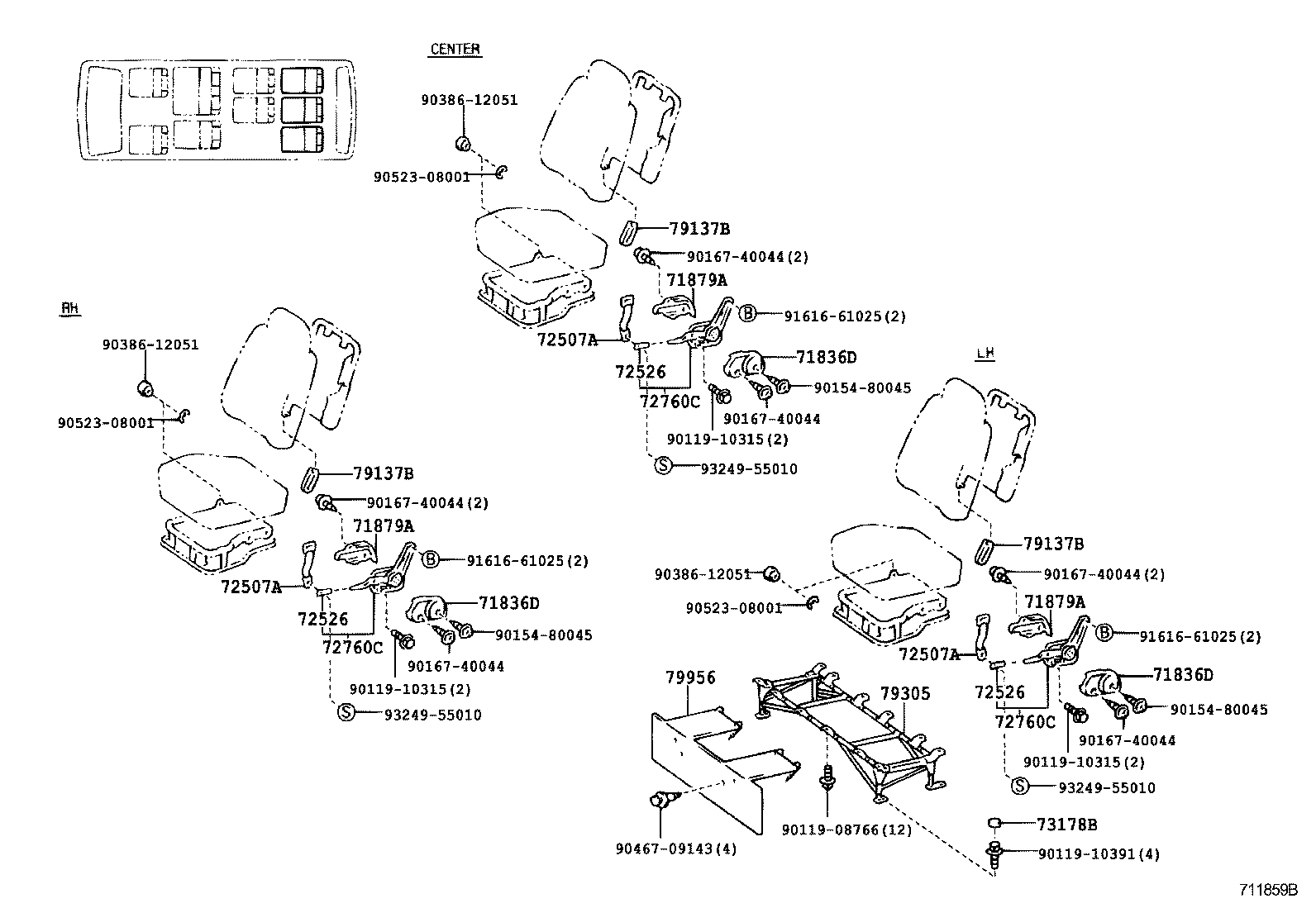

711859B

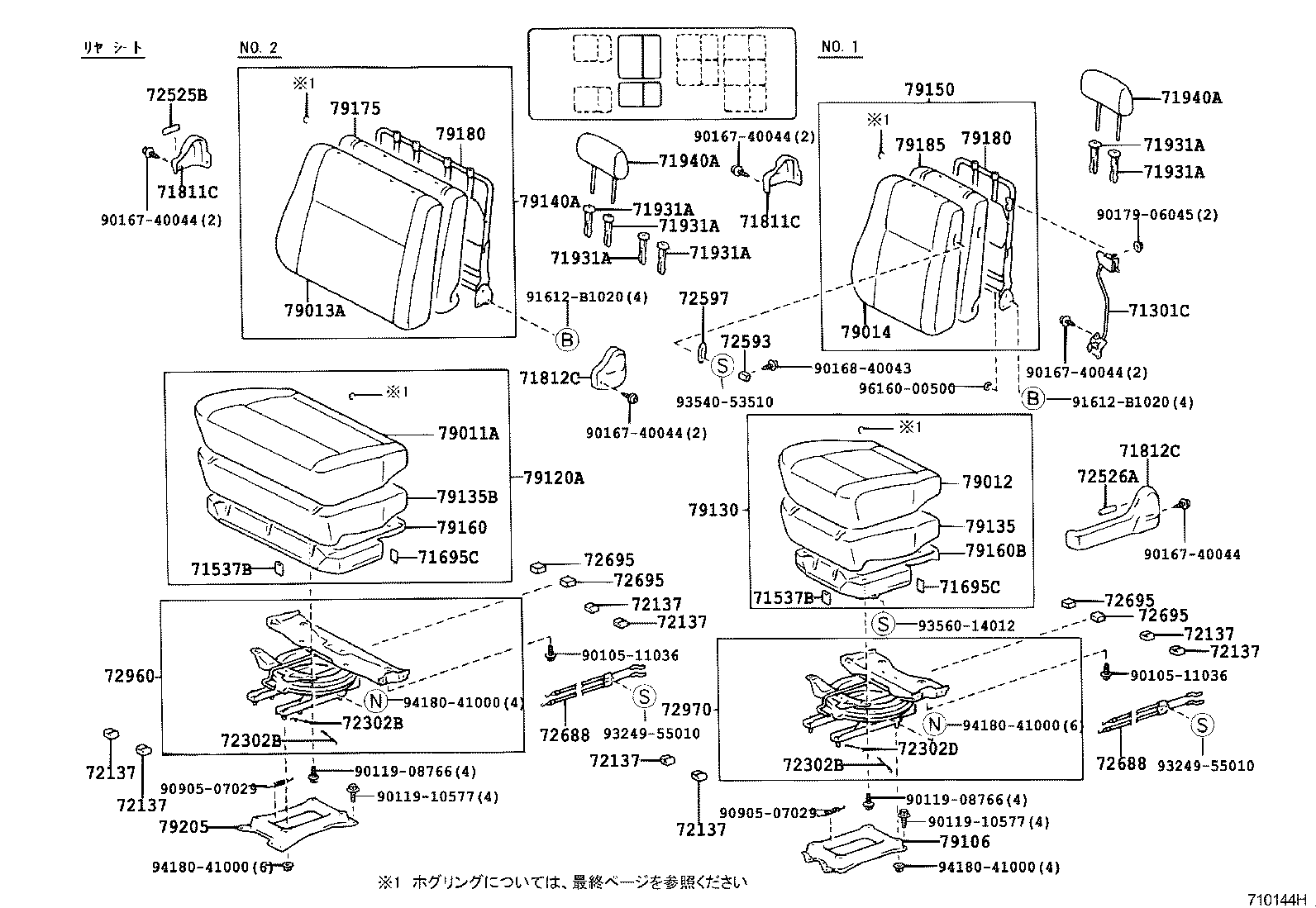

710144H

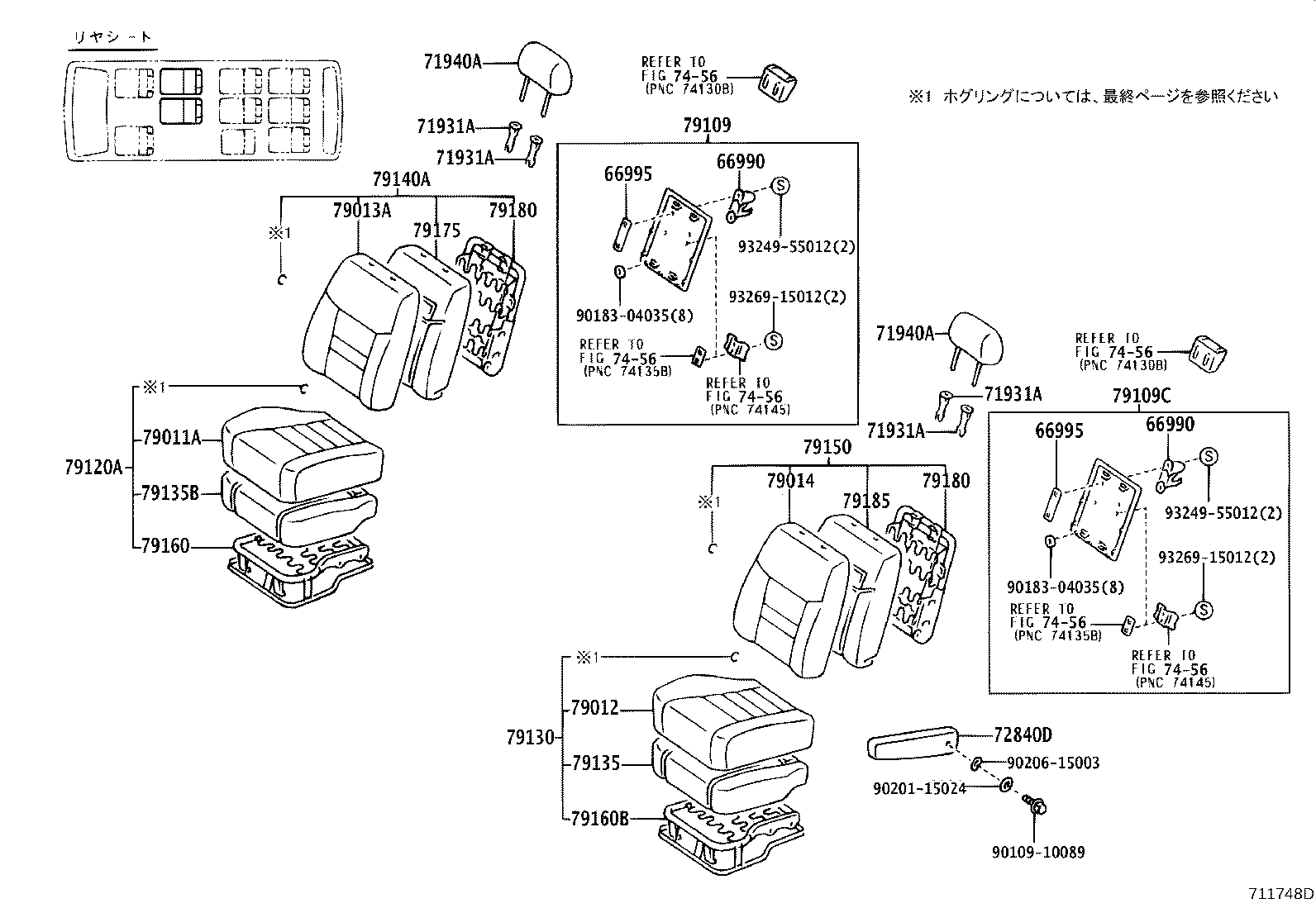

711748D

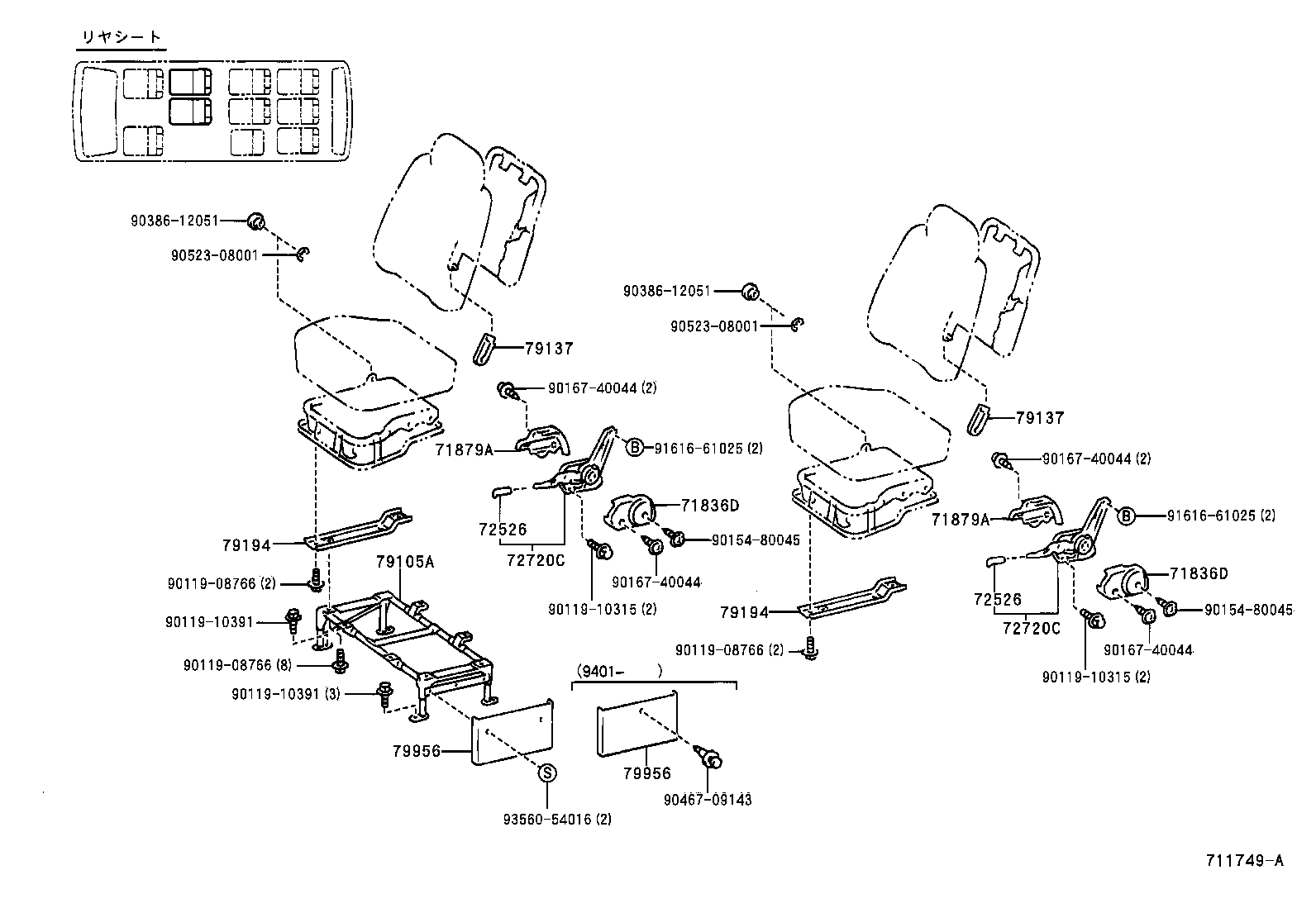

711749A

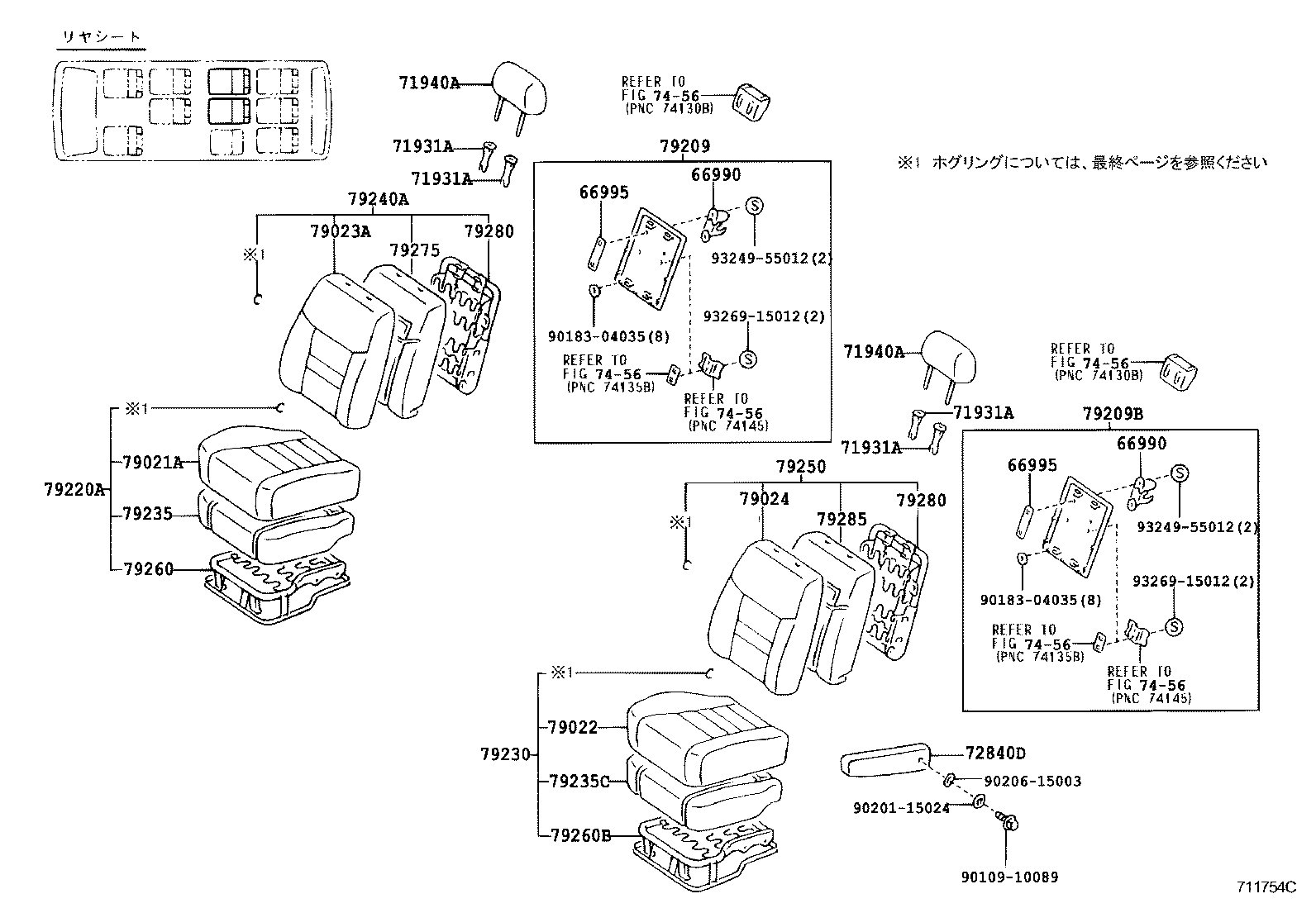

711754C

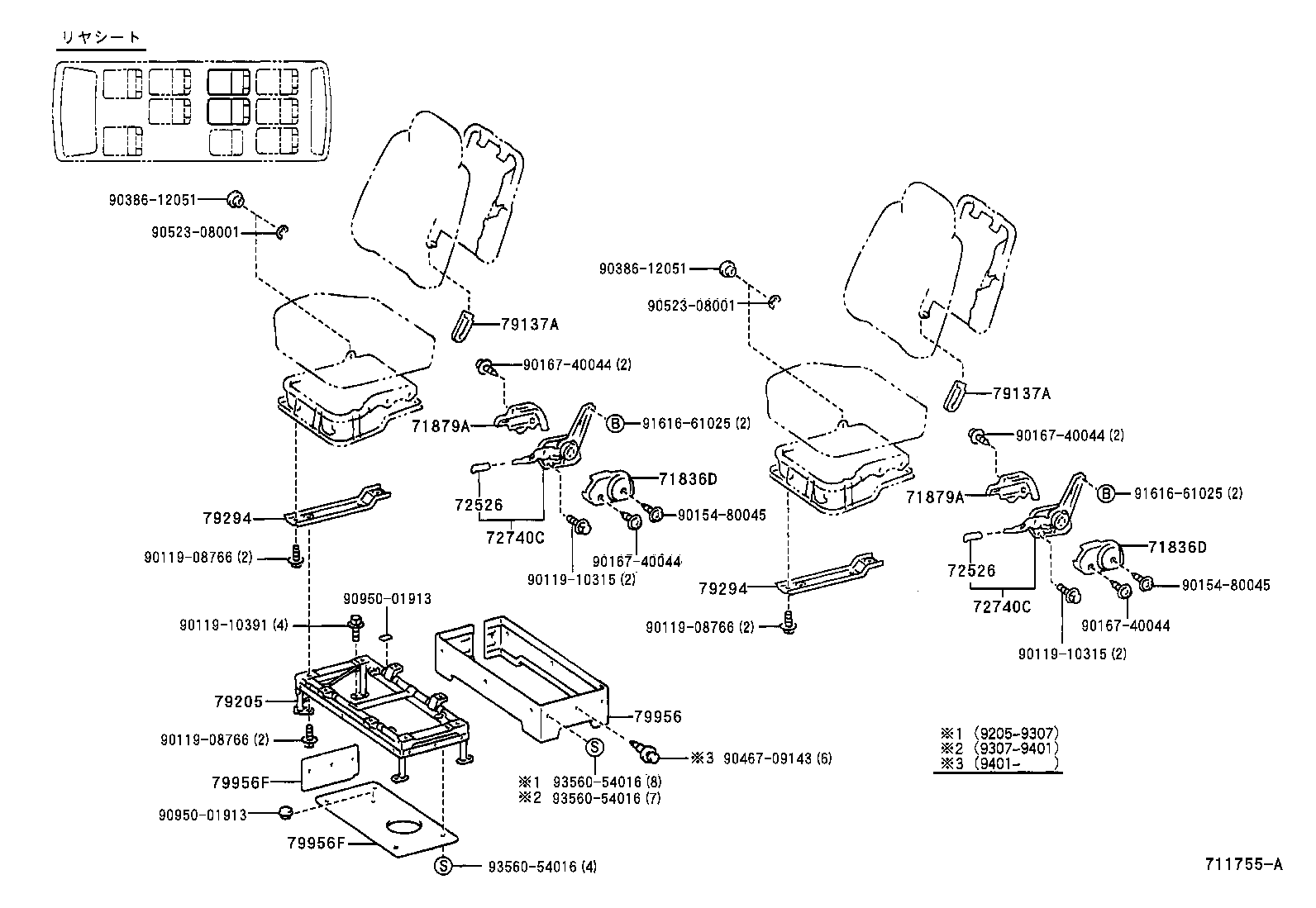

711755A

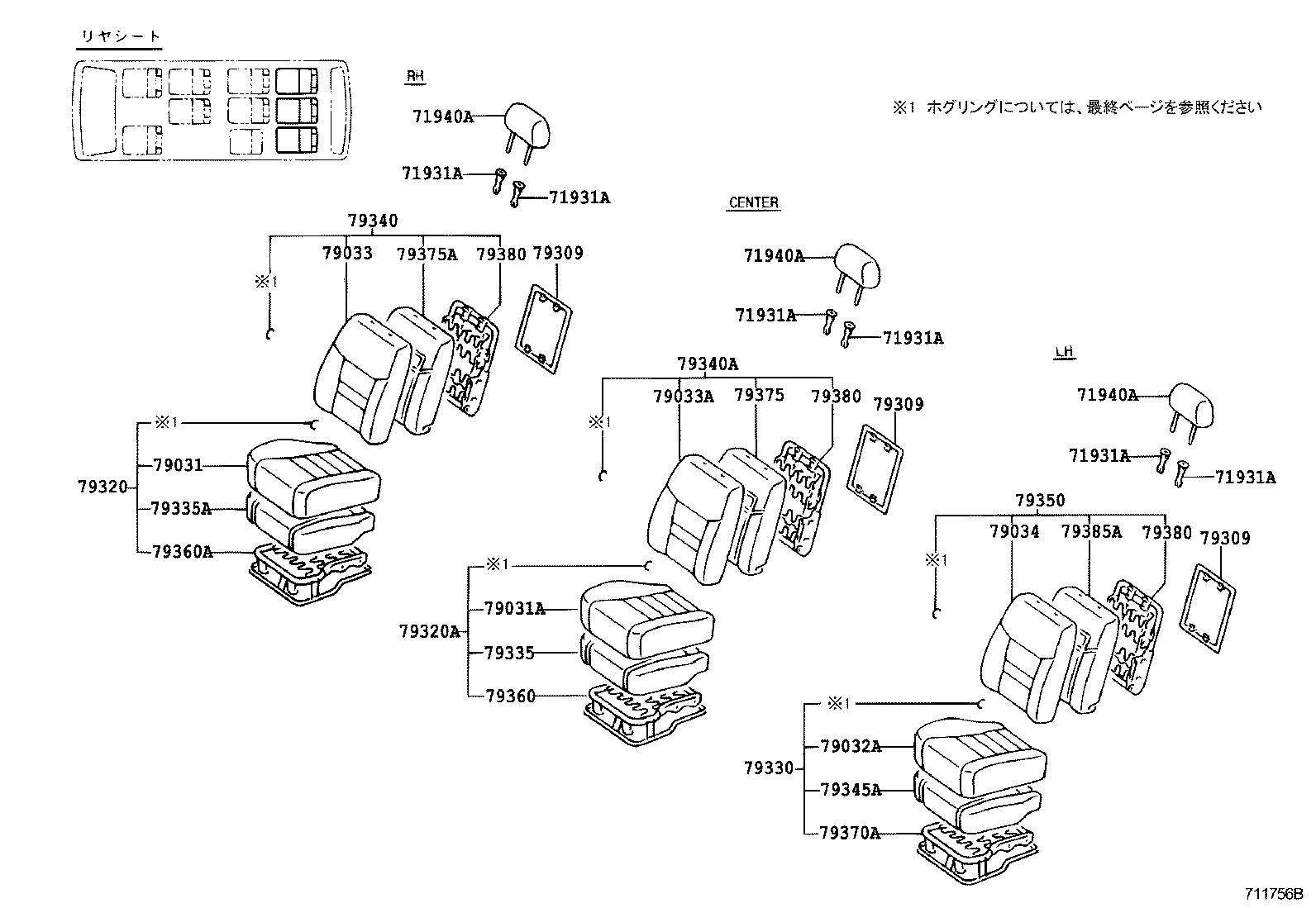

711756B

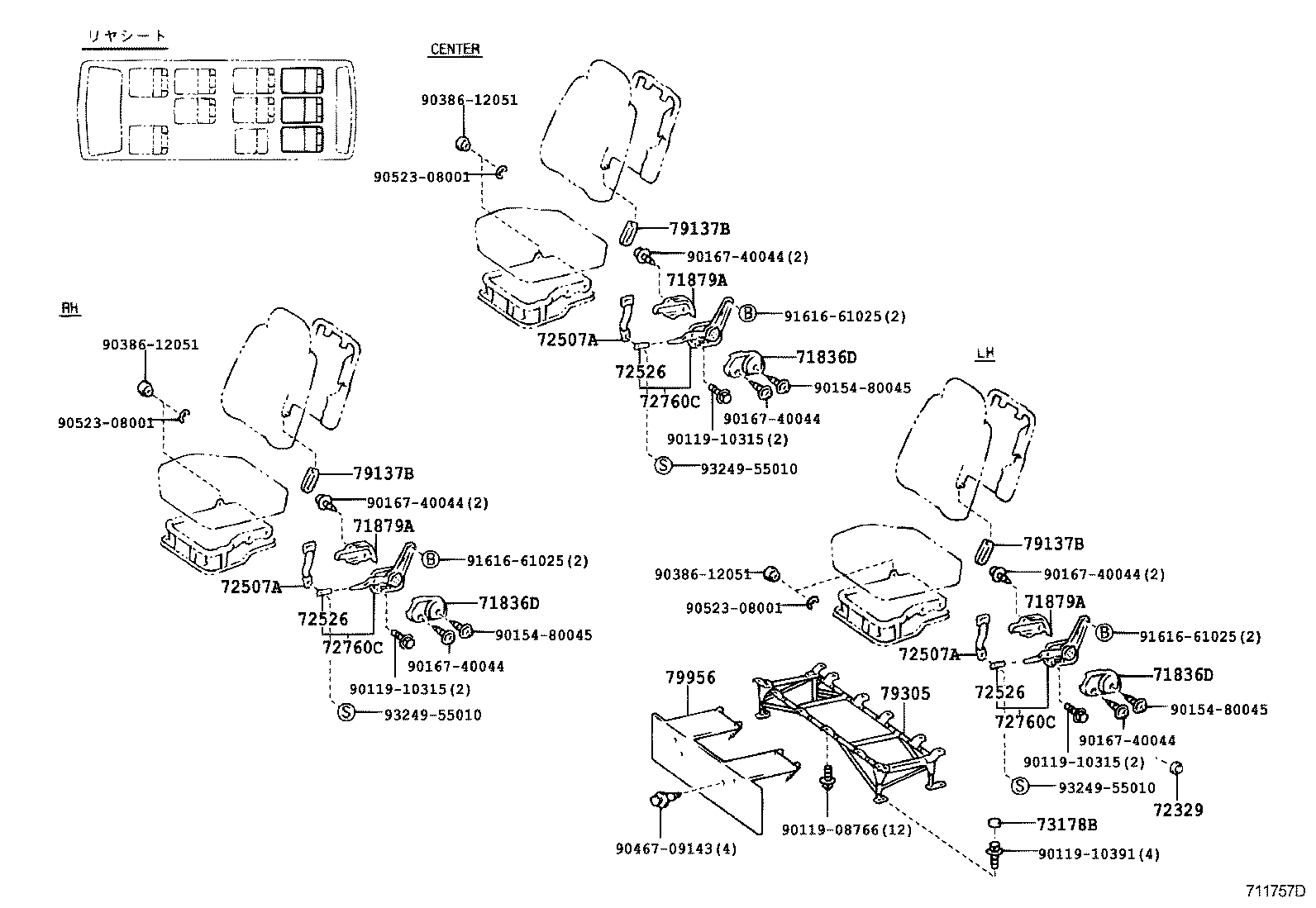

711757D

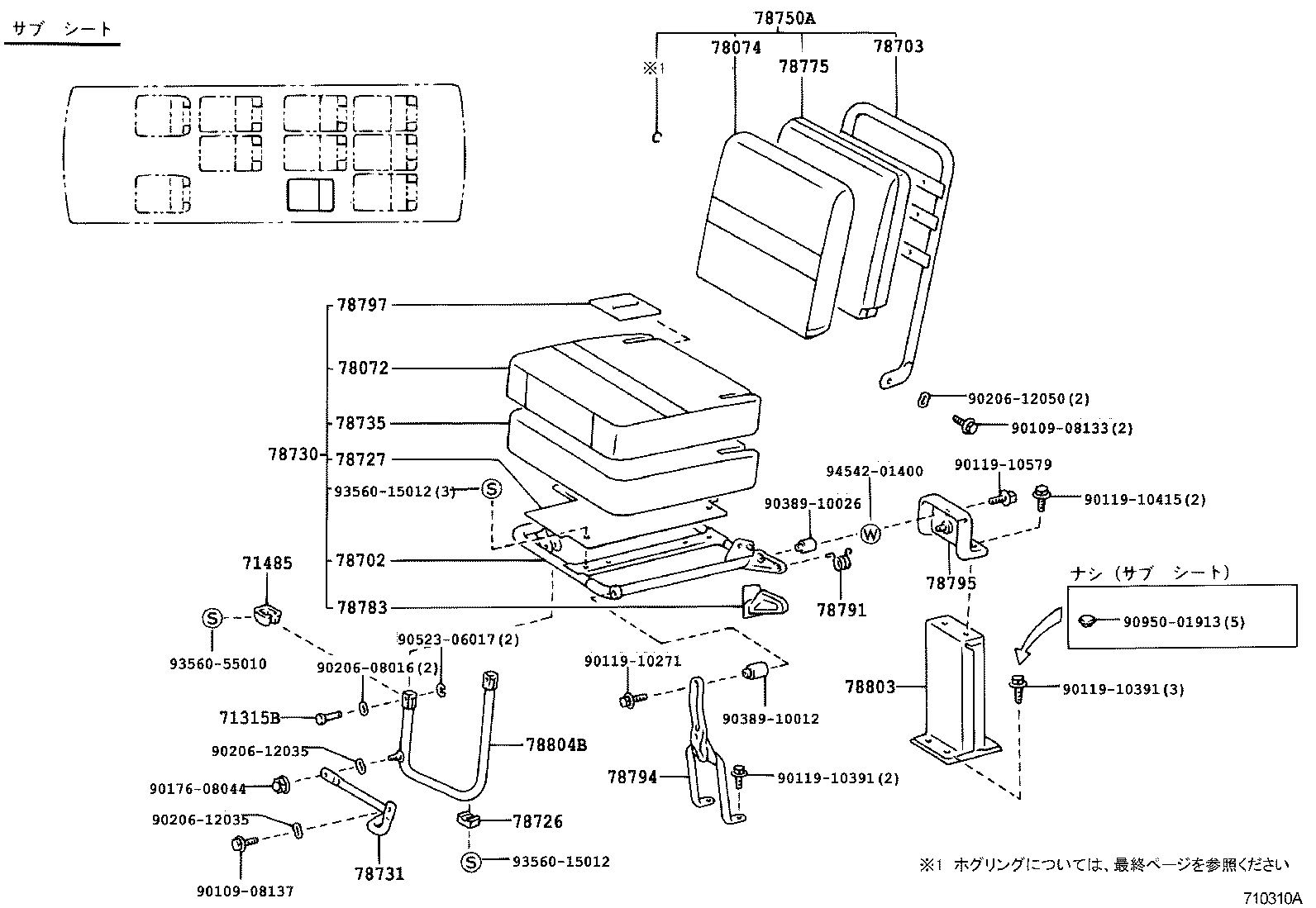

710310B
718165A
Part groups
| PNC | Description |
|---|---|
| 55560C | Lock Assy, Glove Compartment Door |
| 58908C | Lock Sub-assy, Rear Seat Armrest |
| 62556A | Cap, Rear Seat Side Garnish |
| 66990 | Holder Assy, Cup |
| 66995 | Retainer, Cup Holder |
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71035S | Cover, Front Seatback, Center |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71128 | Plate, Front Seat Cushion Cover Set, Outside LH |
| 71274 | Knob, Front Seat Hinge |
| 71301C | Link Sub-assy, Rear Seat Cushion |
| 71315B | Pin, Rear Seat Hinge |
| 71324A | Cushion, Rear Seat |
| 71333 | Leg, Rear Seat Cushion, NO.1 |
| 71333A | Leg, Rear Seat Cushion, NO.2 |
| 71333B | Leg, Rear Seat Cushion, NO.3 |
| 71334A | Stopper, Rear Seat Leg |
| 71344A | Plate, Rear Seat Cushion Hinge |
| 71344B | Plate, Rear Seat Cushion Hinge, NO.2 |
| 71345C | Hinge, Rear Seatback, RH |
| 71346C | Hinge, Rear Seatback, LH |
| 71350B | Hinge Assy, Rear Seat, RH |
| 71350D | Hinge Assy, Rear Seat, NO.2 RH |
| 71350S | Back Assy, Front Seat, Center |
| 71351 | Knob, Seat Hinge Lever |
| 71351B | Knob, Seat Hinge Lever, NO.2 |
| 71358 | Pad, Center Seatback |
| 71360A | Hinge Assy, Rear Seat, LH |
| 71360D | Hinge Assy, Rear Seat, NO.2 LH |
| 71361 | Bracket, Front Seat Set, NO.1 |
| 71380 | Hinge Assy, Center Seat, RH |
| 71392 | Cover, Center Seat Cushion Bracket, LH |
| 71395B | Cover, Center Seat Hinge, RH |
| 71397C | Stopper, Rear Seat |
| 71405A | Striker Sub-assy, Rear Seat Lock, RH |
| 71406 | Striker Sub-assy, Rear Seat Lock, LH |
| 71409 | Stopper Sub-assy, Rear Seatback |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71427B | Hook, Rear Seatback Stop |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71434 | Pin, Rear Seat Cushion Leg, Rear |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71448 | Stopper, Rear Seatback |
| 71485 | Cover, Rear Seat Hinge |
| 71485A | Cover, Rear Seat Hinge, NO.2 RH |
| 71486A | Cover, Rear Seat Hinge, NO.2 LH |
| 71486C | Cover, Rear Seat Hinge, LH |
| 71498 | Protector, Rear Seatback |
| 71499 | Stopper, Rear Seatback |
| 71499A | Stopper, Rear Seatback, NO.2 |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71537B | Protector, Rear Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71617 | Protector, Rear Seatback |
| 71621A | Pad, Rear Seat Cushion Silencer, A |
| 71621B | Pad, Rear Seat Cushion Silencer, NO.2 |
| 71668 | Cushion, Rear NO.3 Seat |
| 71681A | Pad, Rear Seatback Corner, RH |
| 71681B | Pad, Rear Seatback Corner, LH |
| 71691A | Cover, Rear NO.3 Seat Lock, RH |
| 71692A | Cover, Rear NO.3 Seat Lock, LH |
| 71695 | Protector, Rear Seatback |
| 71695C | Protector, Rear Seat, NO.1 |
| 71696 | Protector, Rear Seat, NO.2 |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71811C | Cover, Reclining Adjuster, RH |
| 71811F | Cover, Reclining Adjuster, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71812E | Cover, Reclining Adjuster, LH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71833C | Cover, Rear Seat Reclining, NO.2 RH |
| 71833D | Cover Rear Seat Reclining, RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71834B | Cover, Rear Seat Reclining, NO.2 LH |
| 71835D | Cover, Rear Seat Reclining, Lower RH |
| 71836D | Cover, Rear Seat Reclining, Lower LH |
| 71837D | Cover, Rear Seat Reclining, Inner RH |
| 71838B | Cover, Rear Seat Reclining, Inner LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71879A | Cover, Rear Seat Reclining, Inner LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71974 | Cover, Rear Seat Turn Table |
| 72050 | Belt Assy, Rear Seat Hook |
| 72050A | Belt Assy, Rear Seat Hook |
| 72053A | Lever Sub-assy, Reclining Remote Control |
| 72054A | Lever Sub-assy, Reclining Remote Control, LH |
| 72065 | Belt Sub-assy, Rear Seat Hook, RH |
| 72066 | Belt Sub-assy, Rear Seat Hook, LH |
| 72089 | Bracket Sub-assy, Rear Seat Armrest, RH |
| 72102 | Bracket Sub-assy, Seat Track, Lower Rear |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72129 | Protector, Seat Track Lower Rail, NO.1 |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137 | Cover, Seat Track, Outer RH |
| 72137C | Cover, Seat Track Inner, RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72150 | Track Assy, Rear Seat, RH |
| 72150A | Track Assy, Rear Seat, RH |
| 72159A | Cover, Rear Seat Track Bracket |
| 72160A | Track Assy, Rear Seat, LH |
| 72160D | Track Assy, Rear Seat, LH |
| 72213 | Knob, Seat Track Adjusting Handle |
| 72213A | Knob, Seat Track Adjusting Handle |
| 72213B | Knob, Seat Track Adjusting Handle, RH |
| 72213C | Knob, Seat Track Adjusting Handle, LH |
| 72296 | Bezel, Front Seat Slide Switch |
| 72297 | Bracket, Front Seat Slide Switch |
| 72302B | Wire Sub-assy, Rear Seat Track Equalizing |
| 72302D | Wire Sub-assy, Rear Seat Track Equalizing, LH |
| 72329 | Cover, Seat Adjuster Bolt |
| 72507A | Handle Sub-assy, Reclining Release |
| 72507B | Handle Sub-assy, Reclining Release, RH |
| 72507C | Handle Sub-assy, Reclining Release, LH |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72525B | Handle, Reclining Adjuster Release, RH |
| 72525C | Handle, Reclining Adjuster Release, NO.1 RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72526B | Handle, Reclining Adjuster Release, NO.1 LH |
| 72570B | Cable Assy, Reclining Adjusting, RH |
| 72580A | Cable Assy, Reclining Adjusting, LH |
| 72590B | Cable Assy, Reclining Remote Control |
| 72593 | Knob, Reclining Remote Control Lever |
| 72594 | Knob, Remote Control Lever, LH |
| 72597 | Bezel, Reclining Remote Control |
| 72598 | Bezel, Reclining Remote Control Lever, LH |
| 72613A | Striker, Front Seat Lock |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72637 | Lever, Rear Seatback Rod Control, Inner |
| 72638 | Handle, Rear Seat Lock, LH |
| 72639 | Knob, Rear Seat Lock |
| 72650F | Lock Assy, Rear Seat, RH |
| 72651 | Rod, Rear Seatback Lock |
| 72651B | Rod, Rear Seat Lock |
| 72658 | Knob, Rear Seat Handle |
| 72658B | Knob, Rear Seat Lock Handle |
| 72658C | Knob, Front Seat Lock Handle |
| 72658D | Knob, Rear Seat Lock Handle |
| 72660F | Lock Assy, Rear Seat, LH |
| 72665B | Cover, Rear Seatback Lock |
| 72681A | Hook, Rear Seat |
| 72687 | Bracket, Rear Seat Hook |
| 72688 | Cable, Rear Seat Track & Turn Control |
| 72690 | Lever Assy, Seat Cushion Lock Release |
| 72695 | Silencer, Rear Seatback Lock Control Rod |
| 72710C | Adjuster Assy, NO.1 Seat Reclining, RH |
| 72720C | Adjuster Assy, NO.1 Seat Reclining, LH |
| 72728 | Protector, Rear Seat Reclining, Inner RH |
| 72730C | Adjuster Assy, NO.2 Seat Reclining, RH |
| 72740C | Adjuster Assy, NO.2 Seat Reclining, LH |
| 72750C | Adjuster Assy, NO.3 Seat Reclining, RH |
| 72760C | Adjuster Assy, NO.3 Seat Reclining, LH |
| 72770A | Adjuster Assy, NO.3 Seat Reclining, Center |
| 72802 | Hinge Sub-assy, Armrest Console |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830D | Armrest Assy, Rear Seat, RH |
| 72830M | Armrest Assy, Seat Center, RH |
| 72840B | Armrest Assy, Seat Center, LH |
| 72840D | Armrest Assy, Rear Seat, LH |
| 72848A | Cap, Seat Armrest, NO.1 |
| 72849 | Cap, Seat Armrest, NO.2 |
| 72849B | Cap, Seat Armrest, NO.1 |
| 72876 | Guide, NO.3 Seat Center Armrest |
| 72960 | Table Assy, Rear Seat Turn |
| 72970 | Table Assy, Rear Seat Turn, LH |
| 72973A | Cover, Rear Seat Turn Table |
| 72974 | Cover, Rear Seat Turn Lock |
| 73178B | Cap, Seat Belt Anchor Cover |
| 74790 | Holder Assy, Warning Reflector |
| 74790A | Holder Assy, Warning Reflector |
| 78071 | Cover Sub-assy, Sub Seat Cushion, RH |
| 78072 | Cover Sub-assy, Sub Seat Cushion, LH |
| 78073 | Cover Sub-assy, Sub Seatback, RH |
| 78074 | Cover Sub-assy, Sub Seatback, LH |
| 78701 | Frame Sub-assy, Sub Seat Cushion, RH |
| 78702 | Frame Sub-assy, Sub Seat Cushion, LH |
| 78703 | Frame Sub-assy, Sub Seatback |
| 78705 | Bracket Sub-assy, Sub Seat Cushion |
| 78720 | Cushion Assy, Sub Seat, RH |
| 78726 | Cushion, Sub Seat Cushion Frame |
| 78727 | Board, Sub Seat Cushion |
| 78730 | Cushion Assy, Sub Seat, LH |
| 78731 | Arm, Sub Seat Link, NO.1 |
| 78735 | Pad, Sub Seat Cushion |
| 78740A | Back Assy, Sub Seat, RH |
| 78750A | Back Assy, Sub Seat, LH |
| 78775 | Pad, Sub Seatback |
| 78783 | Cover, Sub Seat Hinge, LH |
| 78791 | Spring, Sub Seat Link, NO.1 |
| 78792 | Spring, Sub Seat Link, NO.2 |
| 78794 | Bracket, Sub Seat, NO.1 |
| 78795 | Bracket, Sub Seat, NO.2 |
| 78797 | Cover, Sub Seat |
| 78803 | Leg Sub-assy, Sub Seat |
| 78803A | Leg Sub-assy, Sub Seat, RH |
| 78804B | Leg Sub-assy, Sub Seat, LH |
| 78805 | Bracket Sub-assy, Sub Seat Cushion, Rear RH |
| 78901A | Tray,Sub-assy, Rear Seat Under |
| 78907A | Bracket Sub-assy, Rear Seat Under Tray, RH |
| 79011A | Cover Sub-assy, NO.1 Seat Cushion |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013A | Cover Sub-assy, NO.1 Seatback |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79020A | Bracket Assy, NO.2 Seat Leg Connecting |
| 79020B | Leg Assy, NO.2 Seat |
| 79021A | Cover Sub-assy, NO.2 Seat Cushion |
| 79022 | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023A | Cover Sub-assy, NO.2 Seatback |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79029A | Stay Sub-assy, NO.2 Seat |
| 79031 | Cover Sub-assy, NO.3 Seat Cushion, RH |
| 79031A | Cover Sub-assy, NO.3 Seat Cushion |
| 79031B | Cover Sub-assy, NO.3 Seat Cushion, RH |
| 79032A | Cover Sub-assy, NO.3 Seat Cushion, LH |
| 79033 | Cover Sub-assy, NO.3 Seatback, RH |
| 79033A | Cover Sub-assy, NO.3 Seatback |
| 79034 | Cover Sub-assy, NO.3 Seatback, LH |
| 79039 | Board Sub-assy, NO.3 Seat Cushion |
| 79041A | Cover Sub-assy, NO.4 Seat Cushion |
| 79043A | Cover Sub-assy, NO.4 Seatback |
| 79101B | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102 | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79105 | Leg Sub-assy, NO.1 Seat, RH |
| 79105A | Leg Sub-assy, NO.1 Seat |
| 79106 | Leg Sub Assy, NO.1 Seat, LH |
| 79107A | Leg Sub-assy, NO.1 Seat, Rear |
| 79109 | Board Sub-assy, NO.1 Seatback |
| 79109C | Board Sub-assy, NO.1 Seatback, LH |
| 79117 | Carpet, NO.1 Seat Cushion |
| 79120A | Cushion Assy, NO.1 Seat |
| 79120B | Leg Assy, NO.1 Seat, LH |
| 79126A | Reinforcement, NO.1 Seat Leg, NO.1 |
| 79126B | Reinforcement, NO.1 Seat Leg, NO.2 |
| 79126C | Reinforcement, NO.2 Seat Leg, NO.1 |
| 79126D | Reinforcement, NO.2 Seat Leg, NO.2 |
| 79130 | Cushion Assy, NO.1 Seat, LH |
| 79135 | Pad, NO.1 Seat Cushion |
| 79135B | Pad, NO.1 Seat Cushion, RH |
| 79137 | Cover, NO.1 Seat Hinge |
| 79137A | Cover, NO.2 Seat Hinge |
| 79137B | Cover, NO.3 Seat Hinge |
| 79140A | Back Assy, NO.1 Seat |
| 79145A | Bracket, NO.1 Seat Leg, Upper RH |
| 79148 | Pad, NO.1 Seat Cushion, Center |
| 79150 | Back Assy, NO.1 Seat, LH |
| 79160 | Spring Assy, NO.1 Seat Cushion |
| 79160B | Spring Assy, NO.1 Seat Cushion, LH |
| 79169 | Rod, Rear Seat Hinge Connector |
| 79171A | Bracket, NO.1 Seat |
| 79175 | Pad, NO.1 Seatback |
| 79175C | Pad, NO.1 Seatback Side |
| 79175D | Pad, NO.1 Seat Cushion, Under |
| 79180 | Spring Assy, NO.1 Seatback |
| 79180A | Spring Assy, NO.1 Seatback, RH |
| 79185 | Pad, NO.1 Seatback, LH |
| 79189 | Stopper, NO.1 Seat Leg |
| 79190A | Spring Assy, NO.1 Seatback, LH |
| 79194 | Reinforcement, NO.1 Seat |
| 79199 | Holder, NO.1 Seat Leg Stopper |
| 79205 | Leg Sub-assy, NO.2 Seat |
| 79205B | Leg Sub-assy, NO.2 Seat, RH |
| 79206B | Leg Sub-assy, NO.2 Seat, LH |
| 79208A | Hook Sub-assy, NO.2 Seat Leg |
| 79209 | Board Sub-assy, NO.2 Seatback |
| 79209B | Board Sub-assy, NO.2 Seatback, LH |
| 79220A | Cushion Assy, NO.2 Seat |
| 79230 | Cushion Assy, NO.2 Seat, LH |
| 79235 | Pad, NO.2 Seat Cushion |
| 79235C | Pad, NO.2 Seat Cushion |
| 79236 | Link, NO.2 LH Seat Leg |
| 79236C | Link, NO.2 Seat Leg |
| 79240A | Back Assy, NO.2 Seat |
| 79250 | Back Assy, NO.2 Seat, LH |
| 79260 | Spring Assy, NO.2 Seat Cushion |
| 79260B | Spring Assy, NO.2 Seat Cushion, LH |
| 79273 | Cover, NO.2 Seat Hinge |
| 79275 | Pad, NO.2 Seatback |
| 79275D | Pad, NO.2 Seat Cushion, Under |
| 79280 | Spring Assy, NO.2 Seatback |
| 79285 | Pad, NO.2 Seatback, LH |
| 79289 | Protector, NO.2 Seatback |
| 79294 | Reinforcement, NO.2 Seat, RH |
| 79305 | Leg Sub-assy, NO.3 Seat |
| 79305A | Leg Sub-assy, NO.3 Seat, RH |
| 79306 | Leg Sub Assy, NO.3 Seat, LH |
| 79309 | Board Sub-assy, NO.3 Seatback |
| 79320 | Cushion Assy, NO.3 Seat, RH |
| 79320A | Cushion Assy, NO.3 Seat |
| 79330 | Cushion Assy, NO.3 Seat, LH |
| 79335 | Pad, NO.3 Seat Cushion |
| 79335A | Pad, NO.3 Seat Cushion, RH |
| 79340 | Back Assy, NO.3 Seat, RH |
| 79340A | Back Assy, NO.3 Seat |
| 79345A | Pad, NO.3 Seat Cushion, LH |
| 79350 | Back Assy, NO.3 Seat, LH |
| 79360 | Spring Assy, NO.3 Seat Cushion |
| 79360A | Spring Assy, NO.3 Seat Cushion, RH |
| 79365 | Cover, NO.3 Seat Leg Bracket |
| 79366 | Cover, NO.3 Seat Leg, NO.1 |
| 79370A | Spring Assy, NO.3 Seat Cushion, LH |
| 79375 | Pad, NO.3 Seatback |
| 79375A | Pad, NO.3 Seatback, RH |
| 79375B | Pad, NO.3 Seatback |
| 79376 | Pad, NO.3 Seatback Side |
| 79378 | Cover, NO.3 Seat Cushion Hinge |
| 79380 | Spring Assy, NO.3 Seatback |
| 79385A | Pad, NO.3 Seatback, LH |
| 79405 | Leg Sub-assy, NO.4 Seat, Front |
| 79405A | Leg Sub-assy, NO.4 Seat, RH |
| 79406 | Leg Sub-assy, NO.4 Seat, Rear |
| 79406A | Leg Sub-assy, NO.4 Seat, LH |
| 79420A | Cushion Assy, NO.4 Seat |
| 79435 | Pad, NO.4 Seat Cushion |
| 79440A | Back Assy, NO.4 Seat |
| 79475 | Pad, NO.4 Seatback |
| 79621 | Stopper, NO.2 Seat Cushion |
| 79655 | Striker, NO.2 Seat Leg |
| 79951 | Cover, NO.1 Seat Cushion |
| 79956 | Cover, Rear Seat Leg Bracket |
| 79956A | Clip (FOR REAR SEAT LEG BRACKET COVER) |
| 79956F | Board, Seat Leg Garnish |
| 79961 | Cover, NO.1 Seatback |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
