Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

44 part groups · 27 illustrations

Illustrations

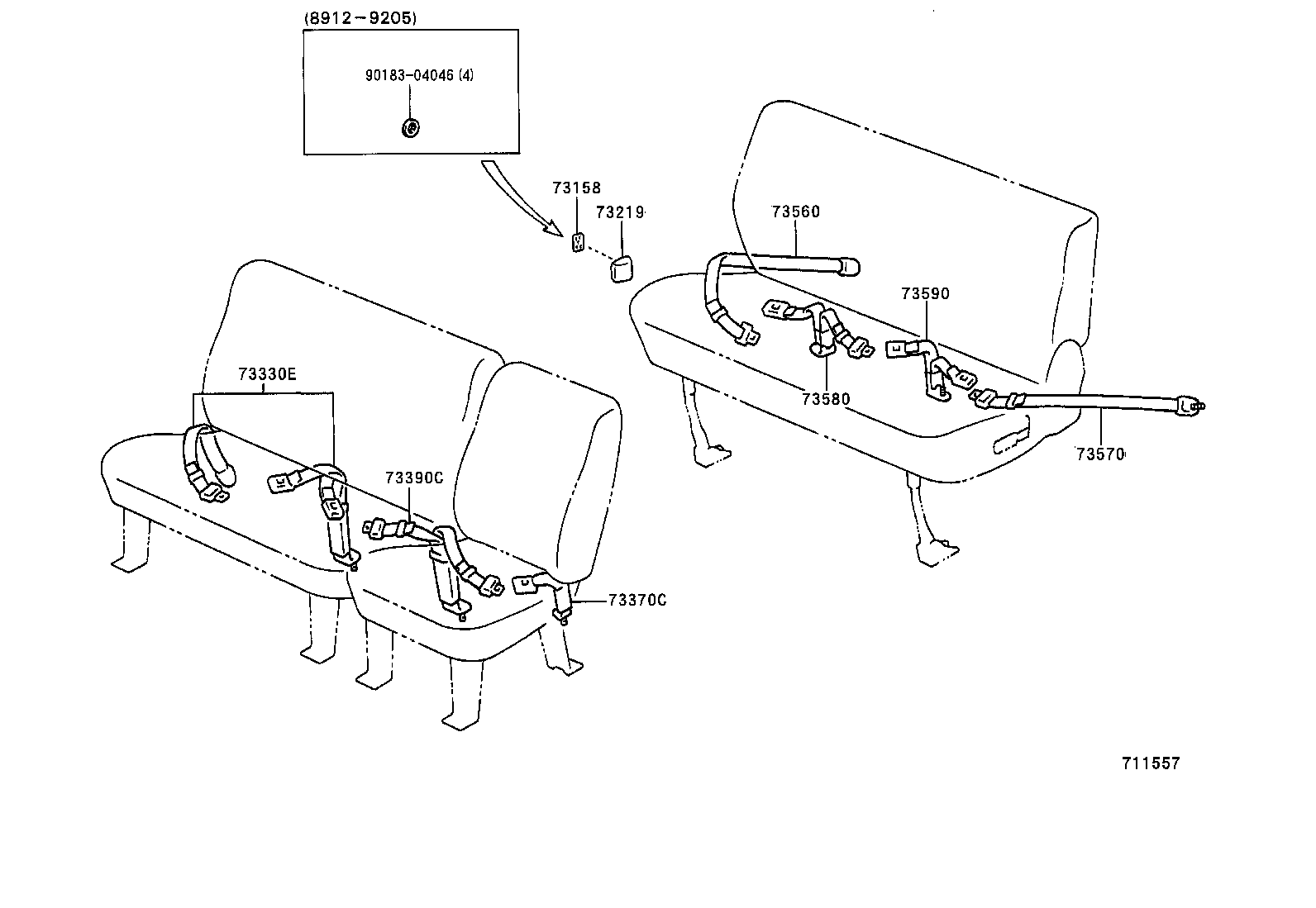

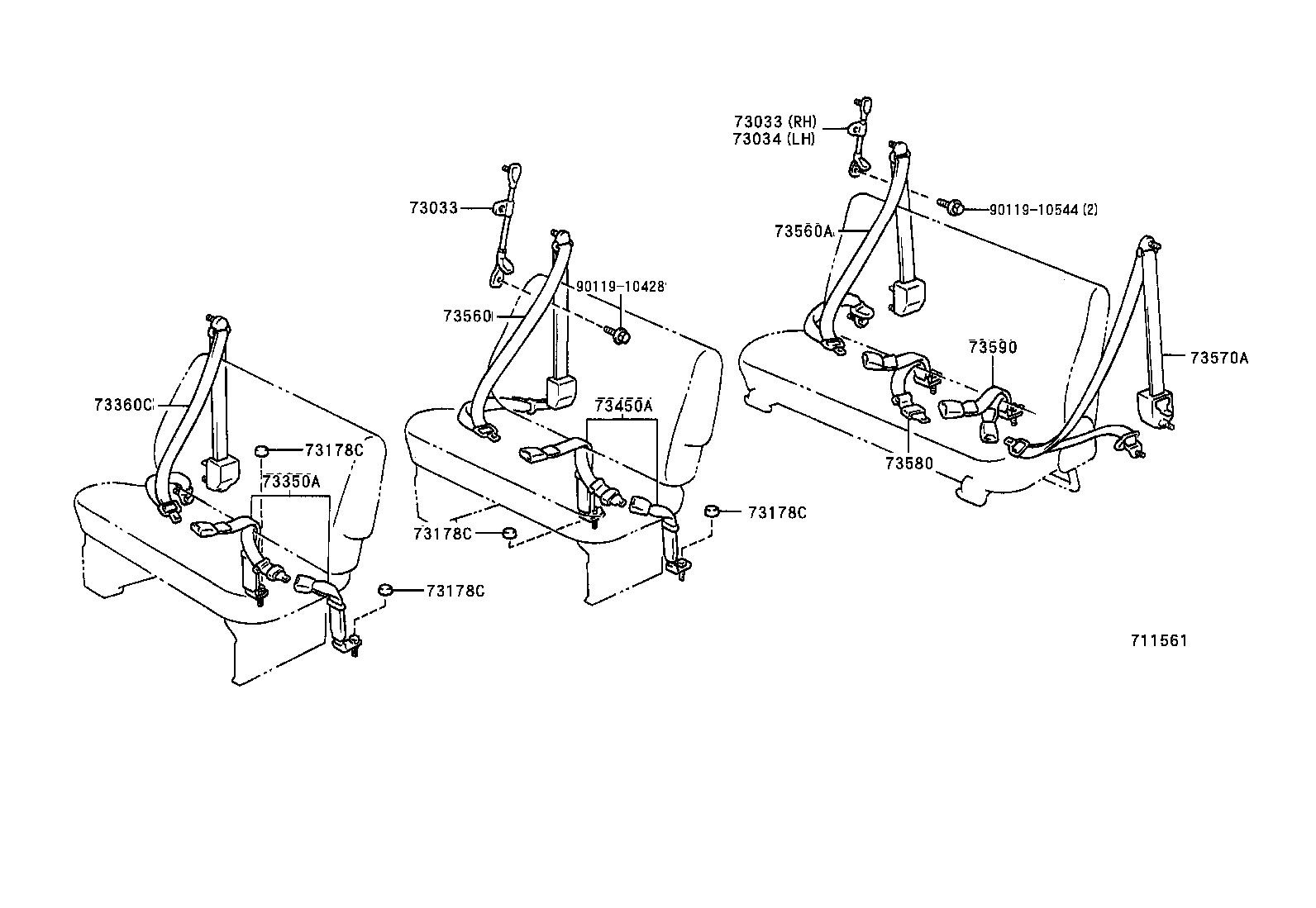

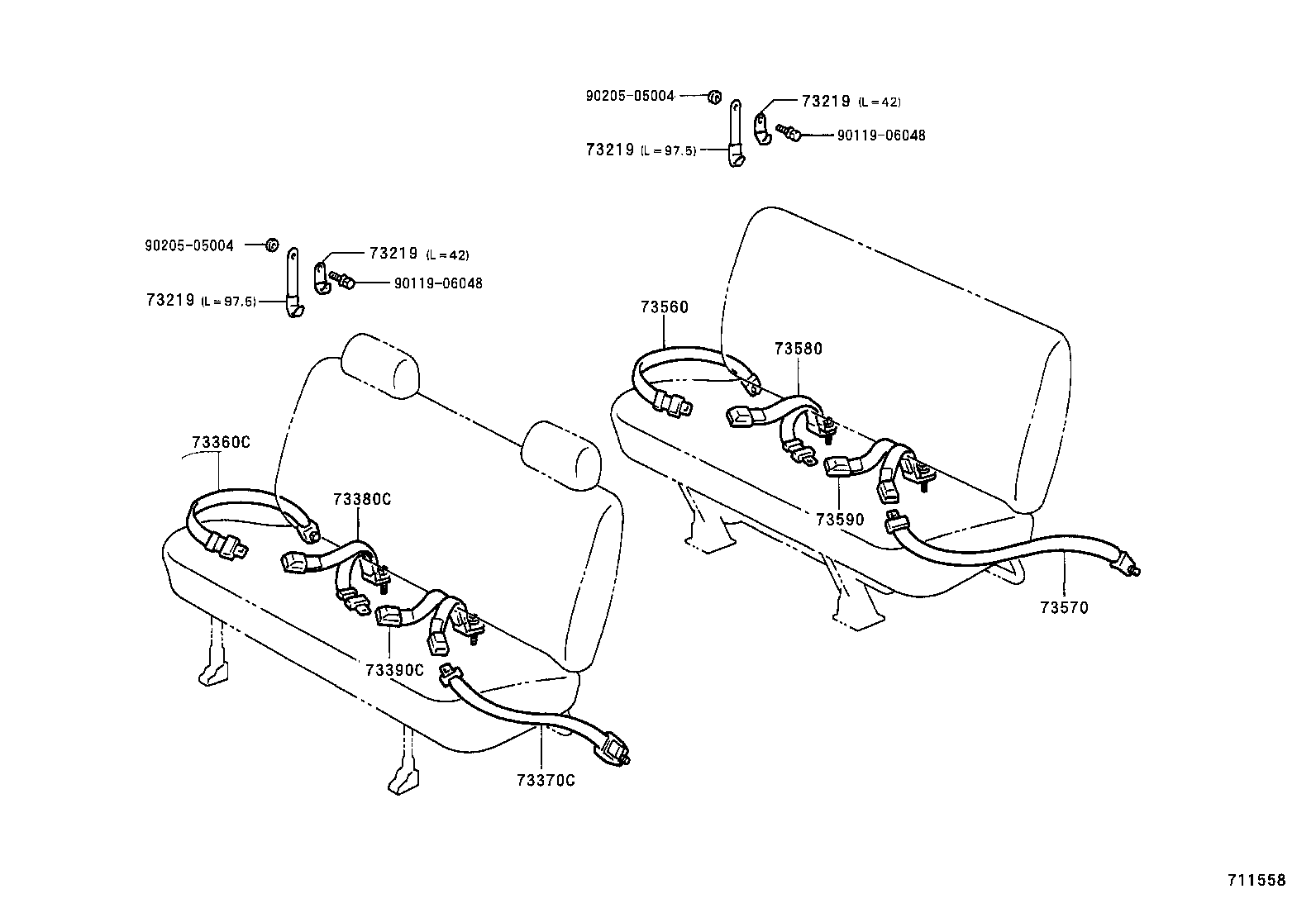

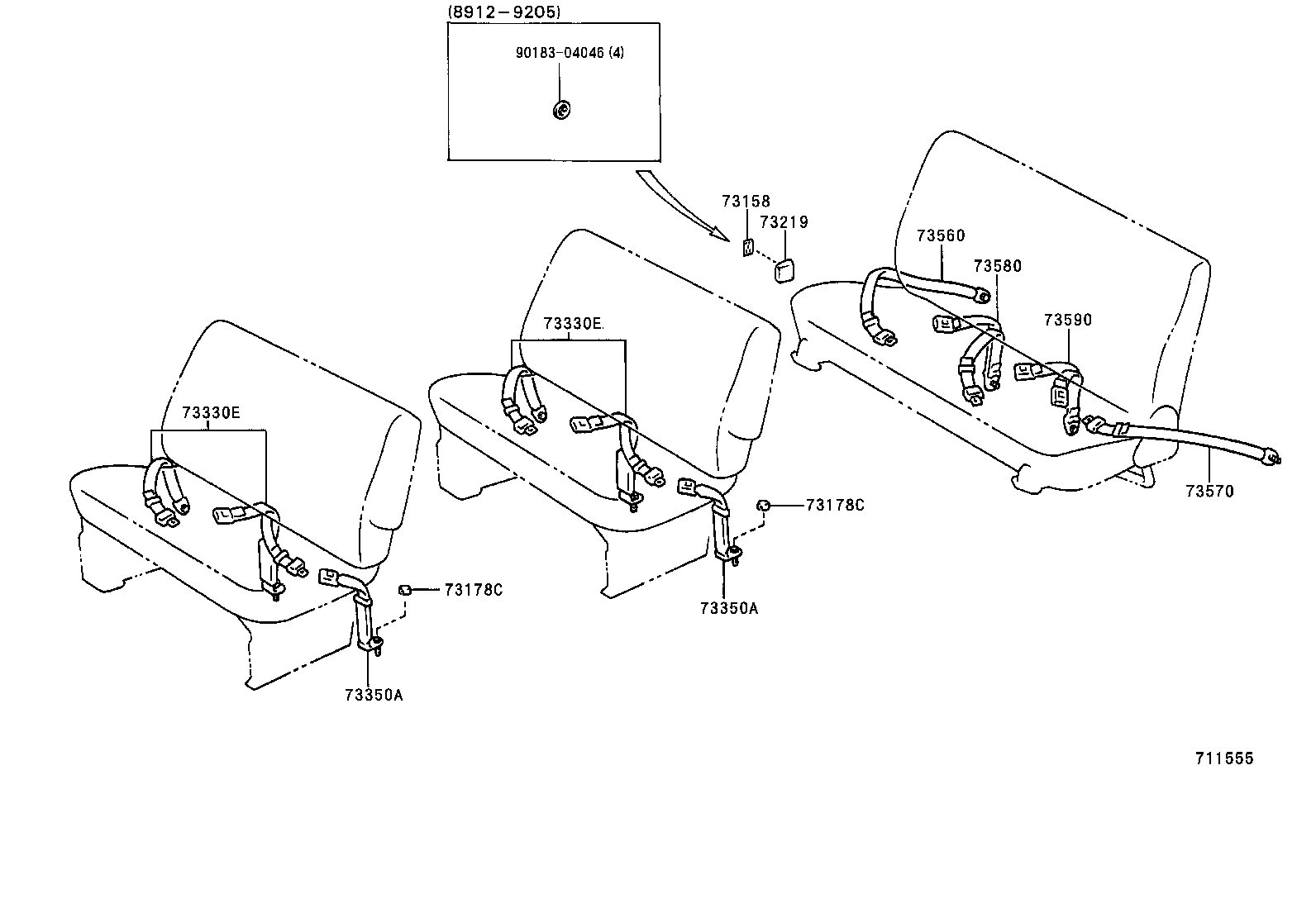

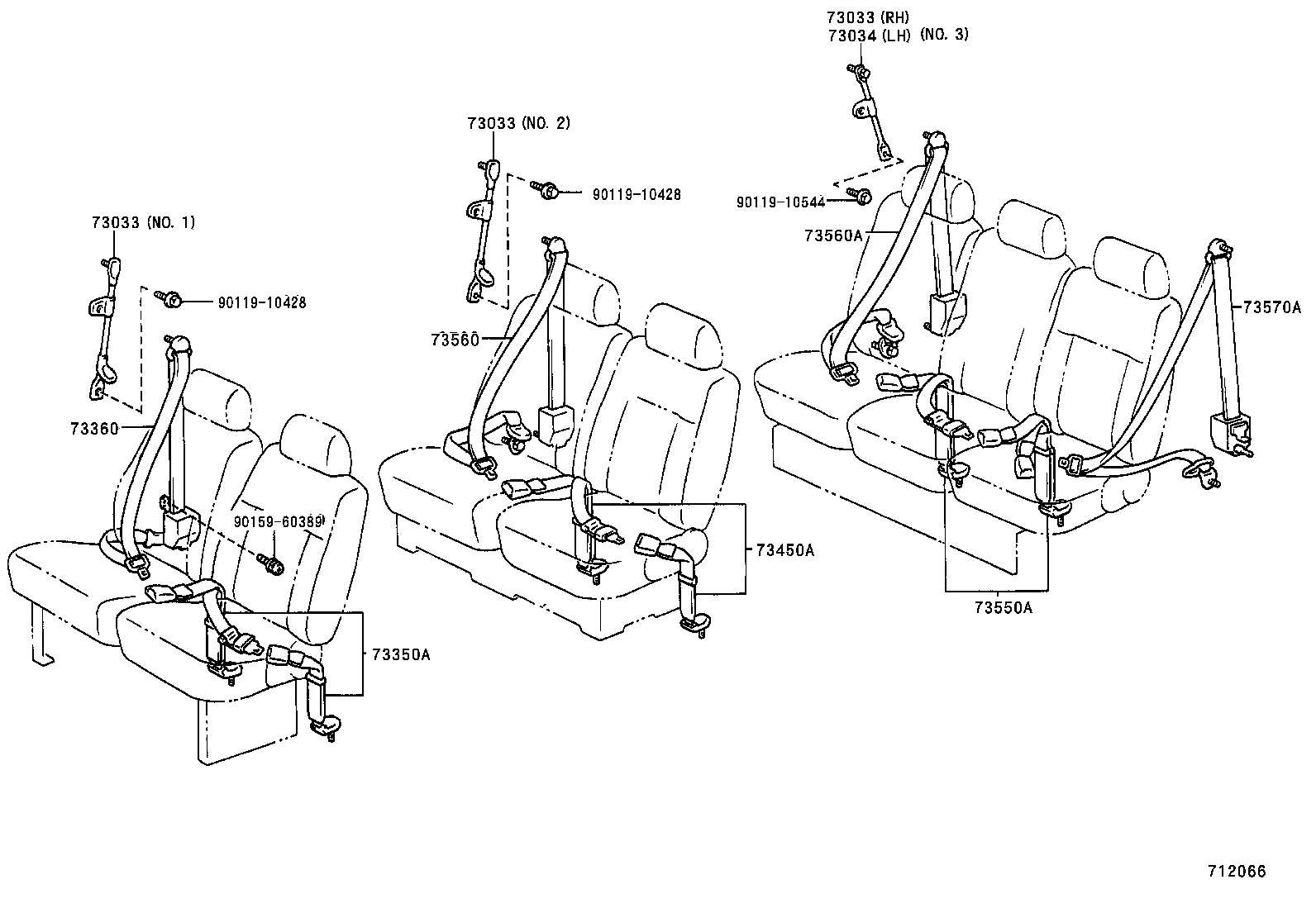

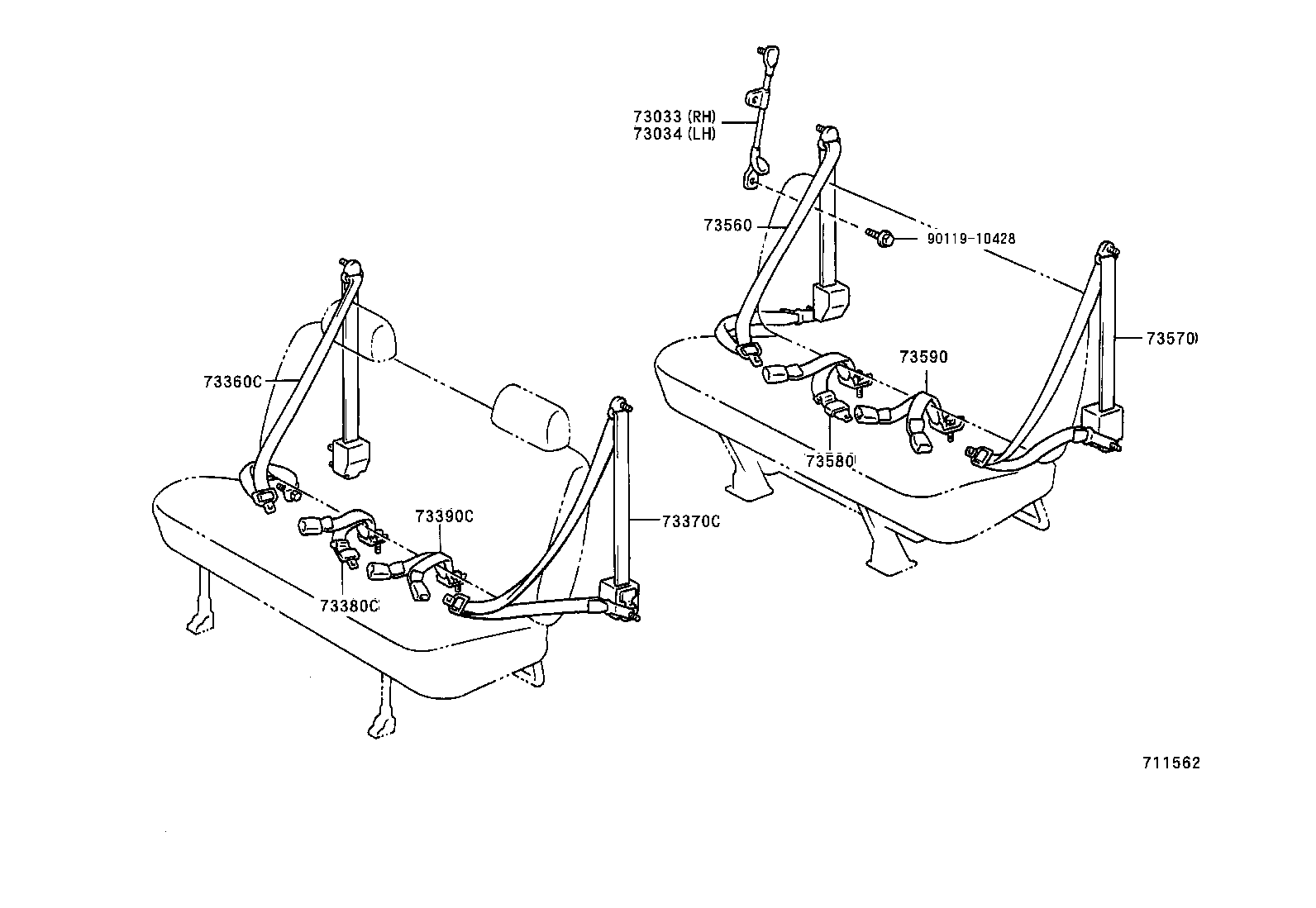

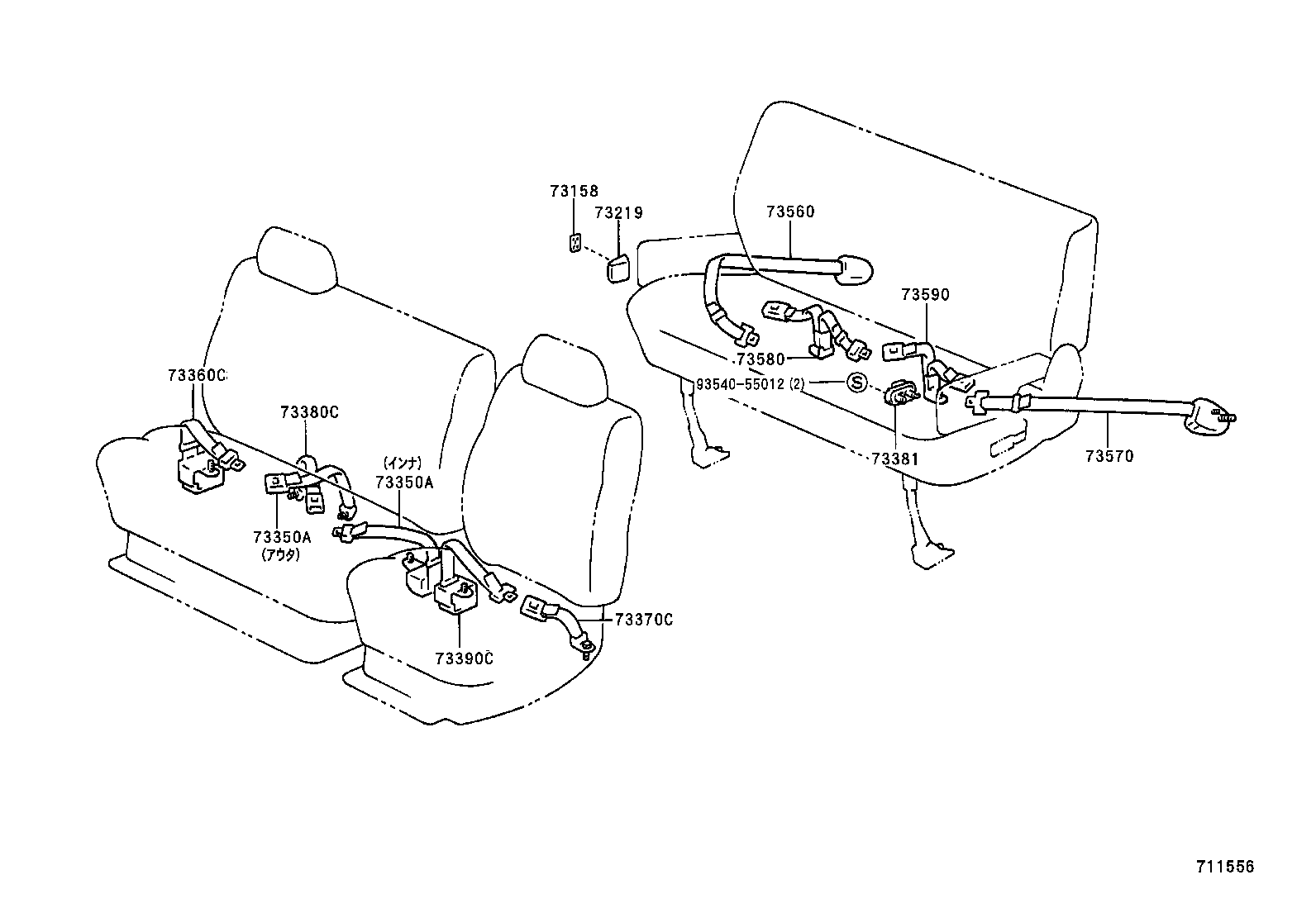

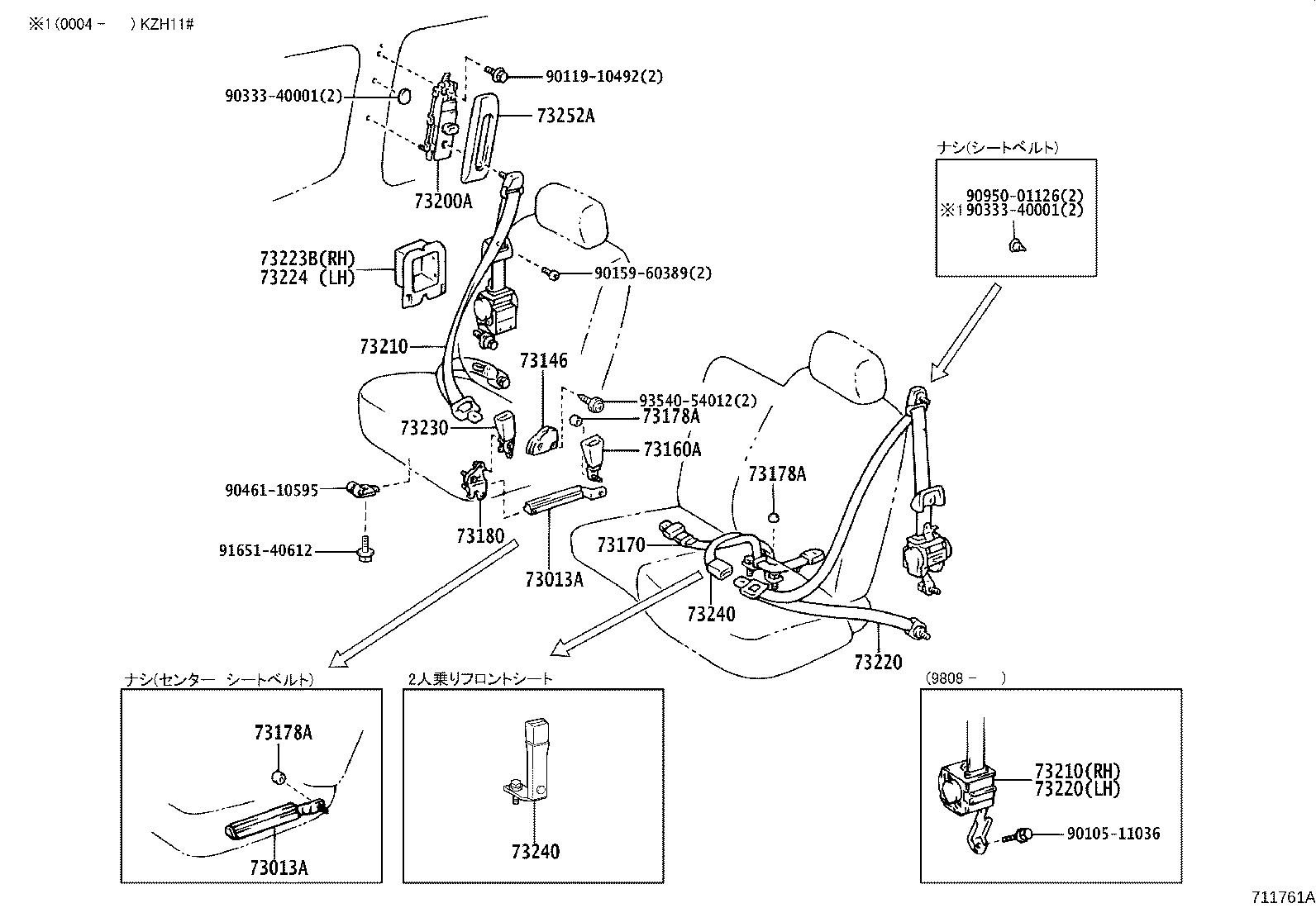

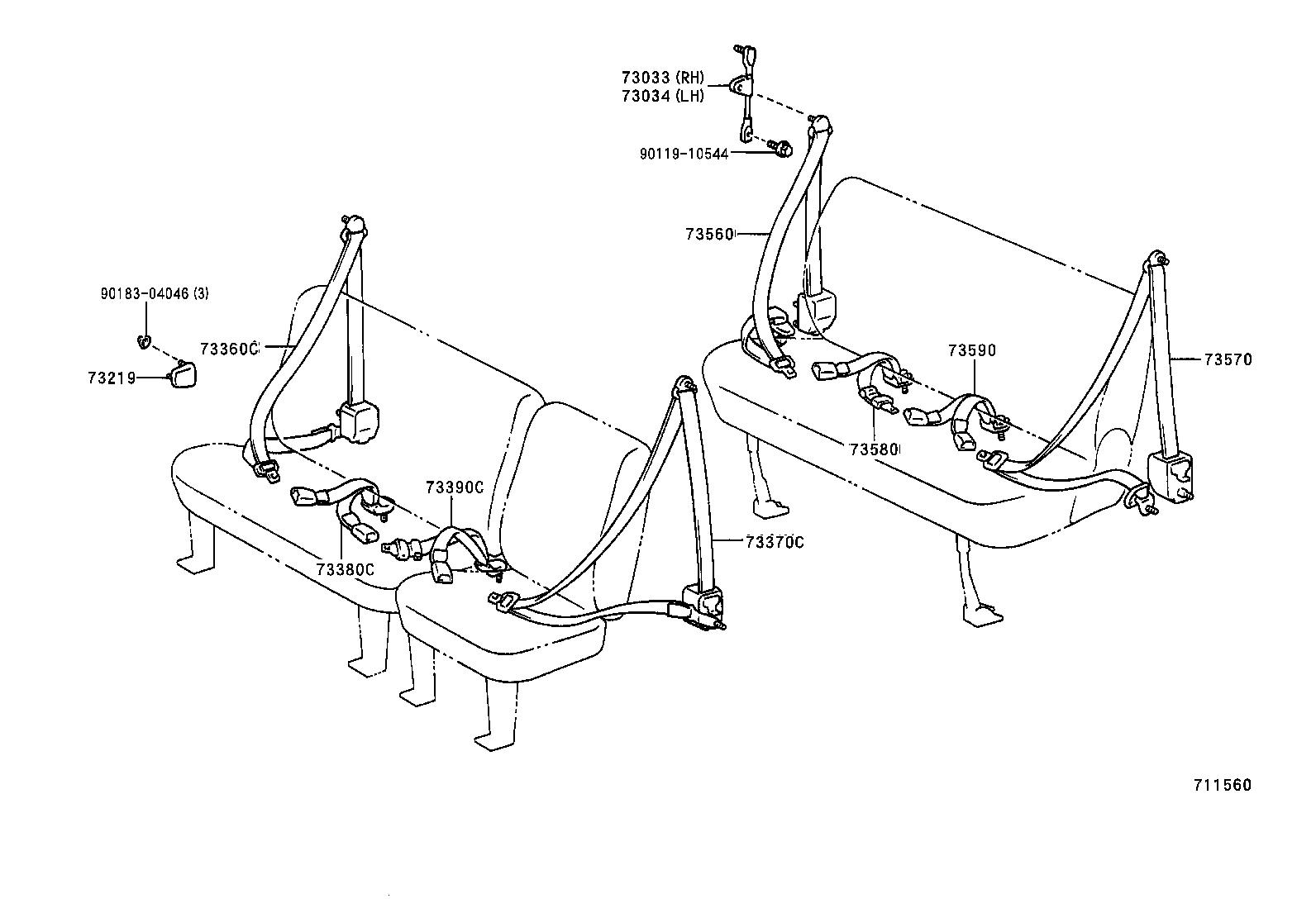

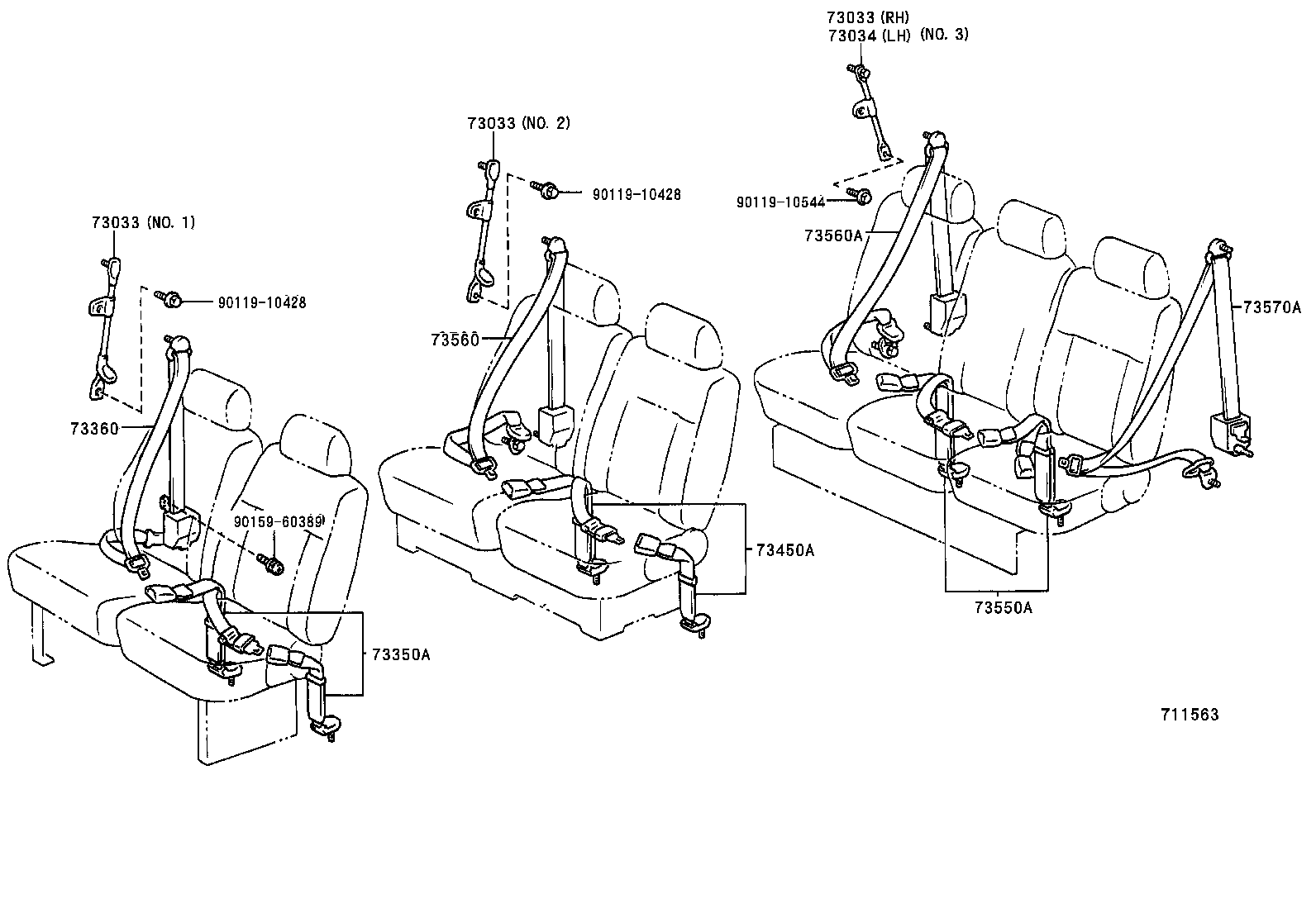

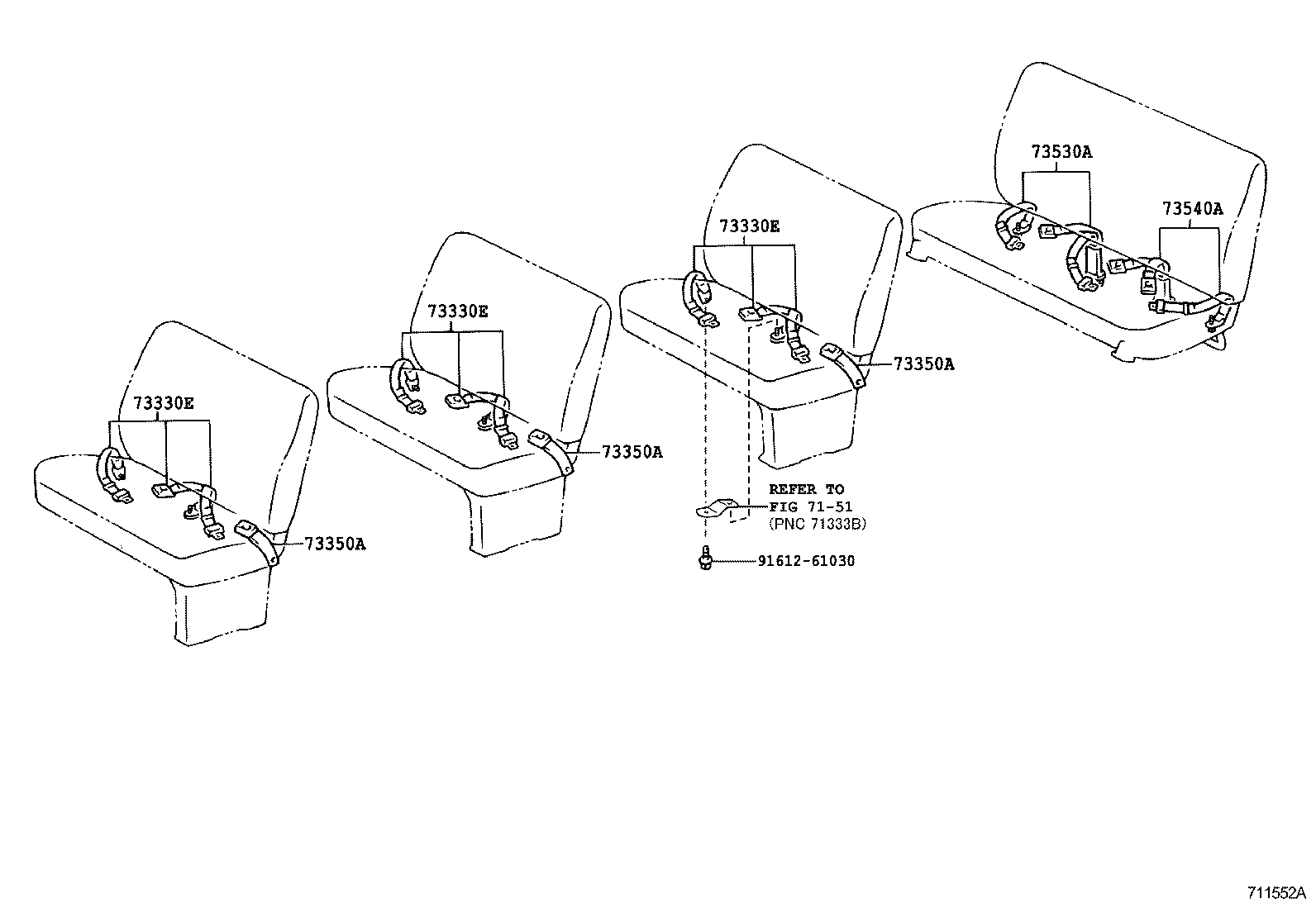

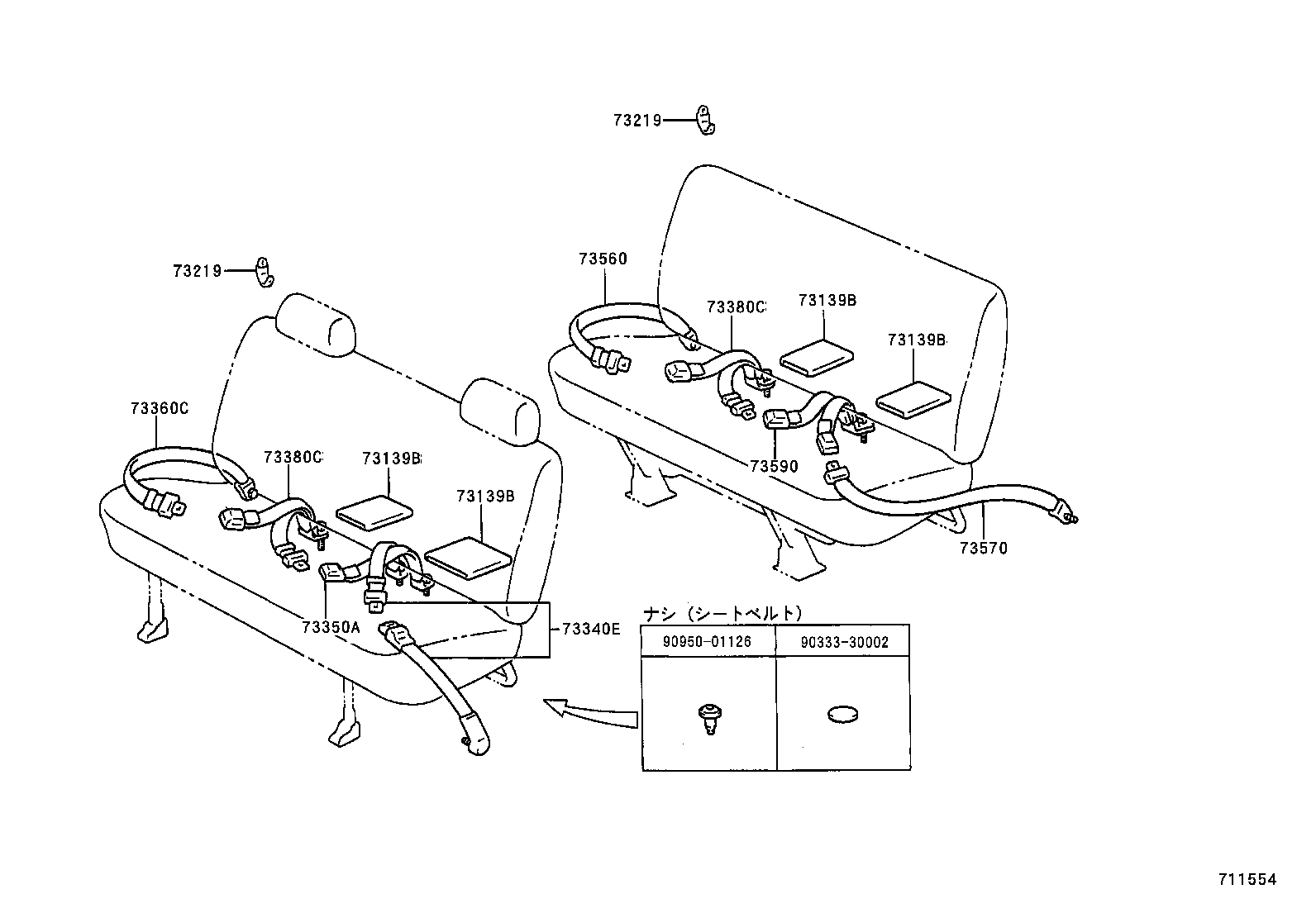

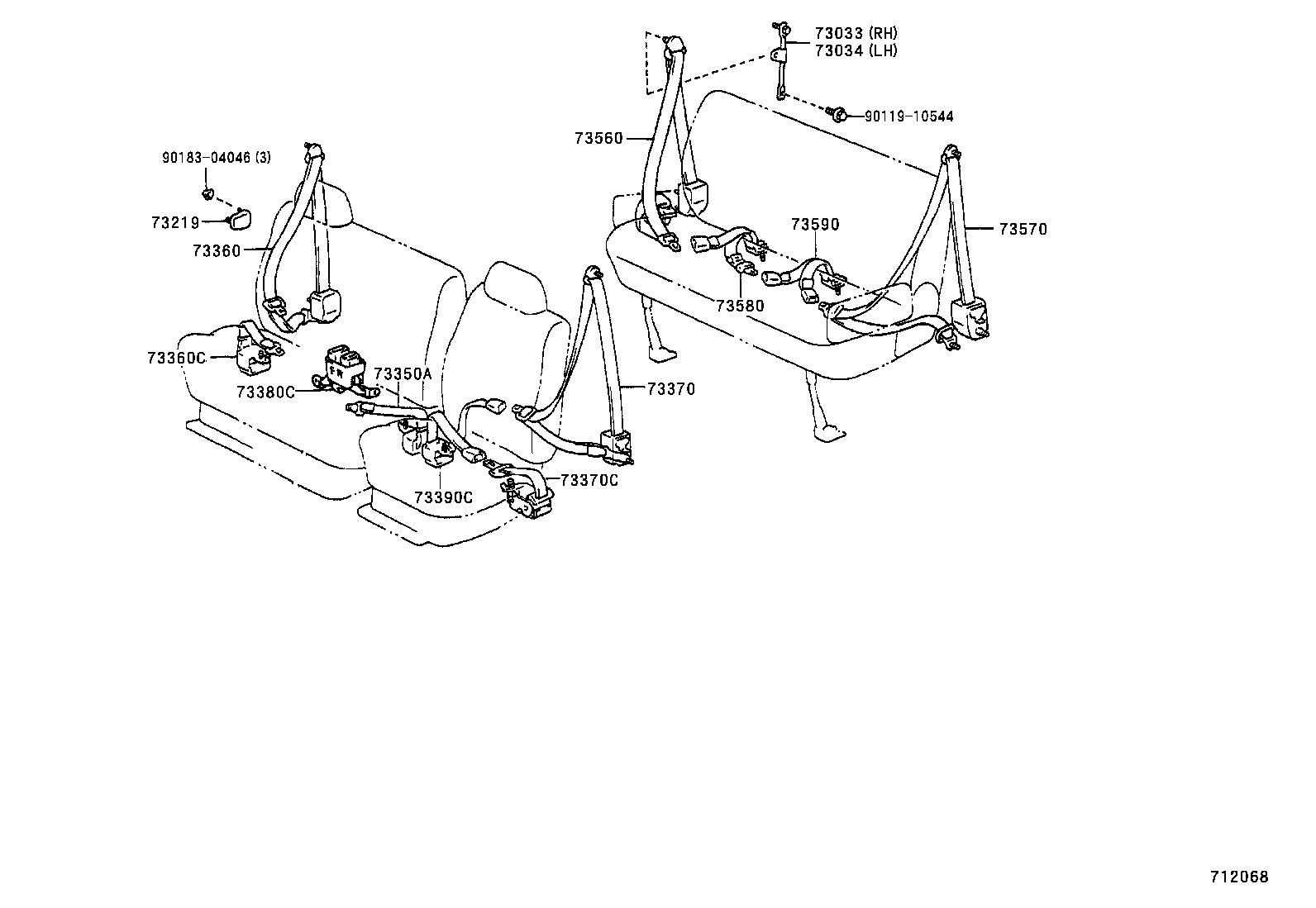

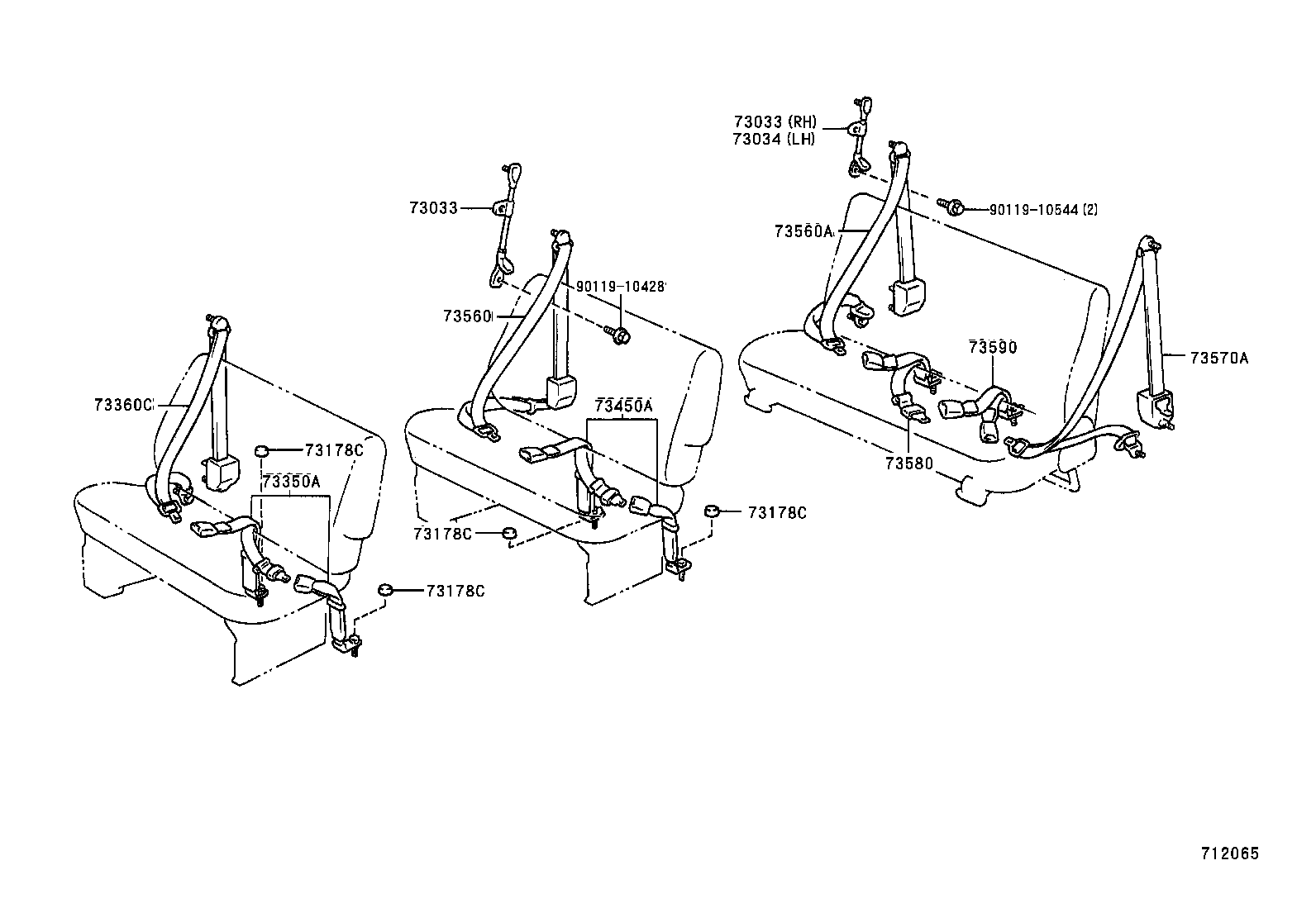

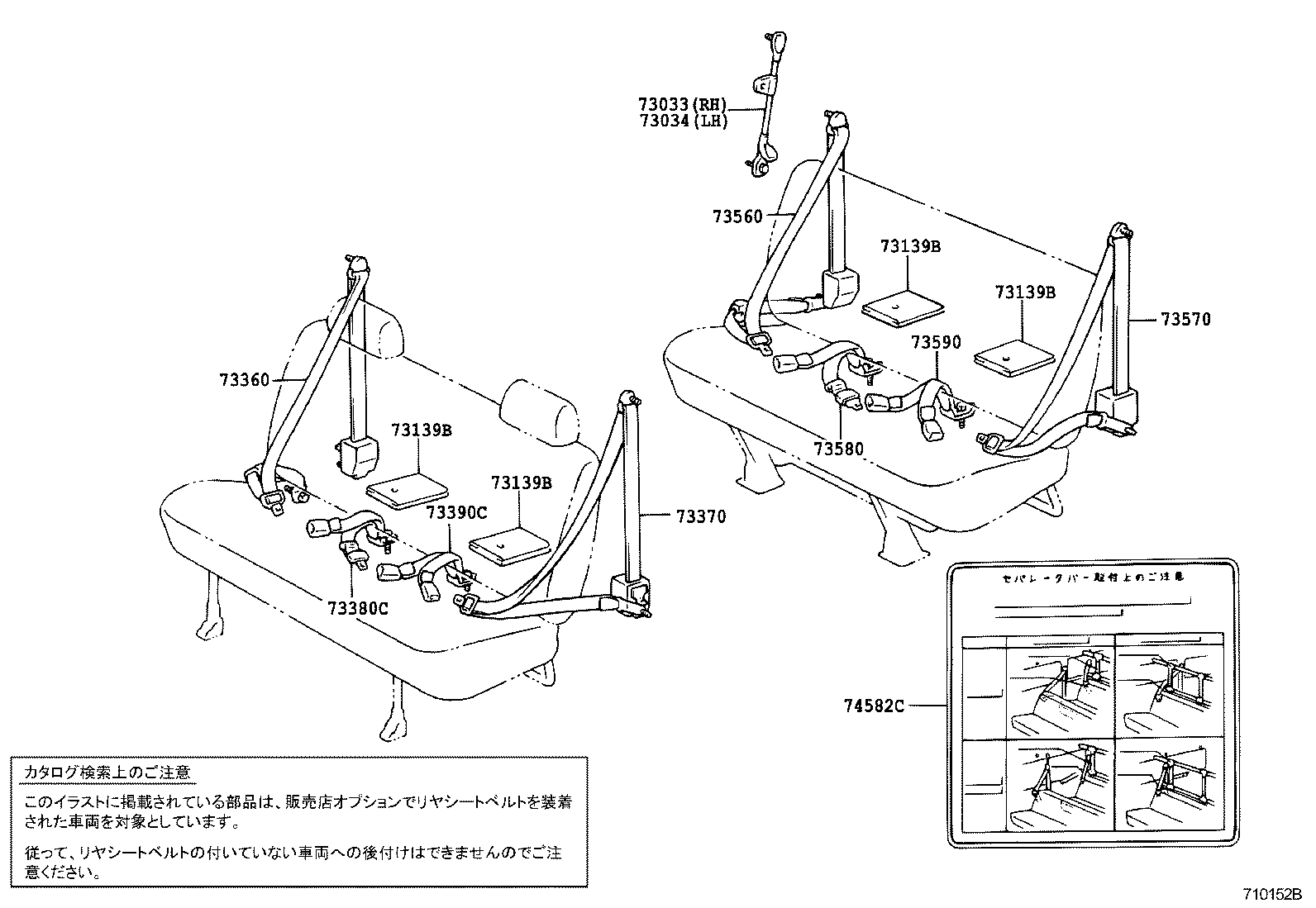

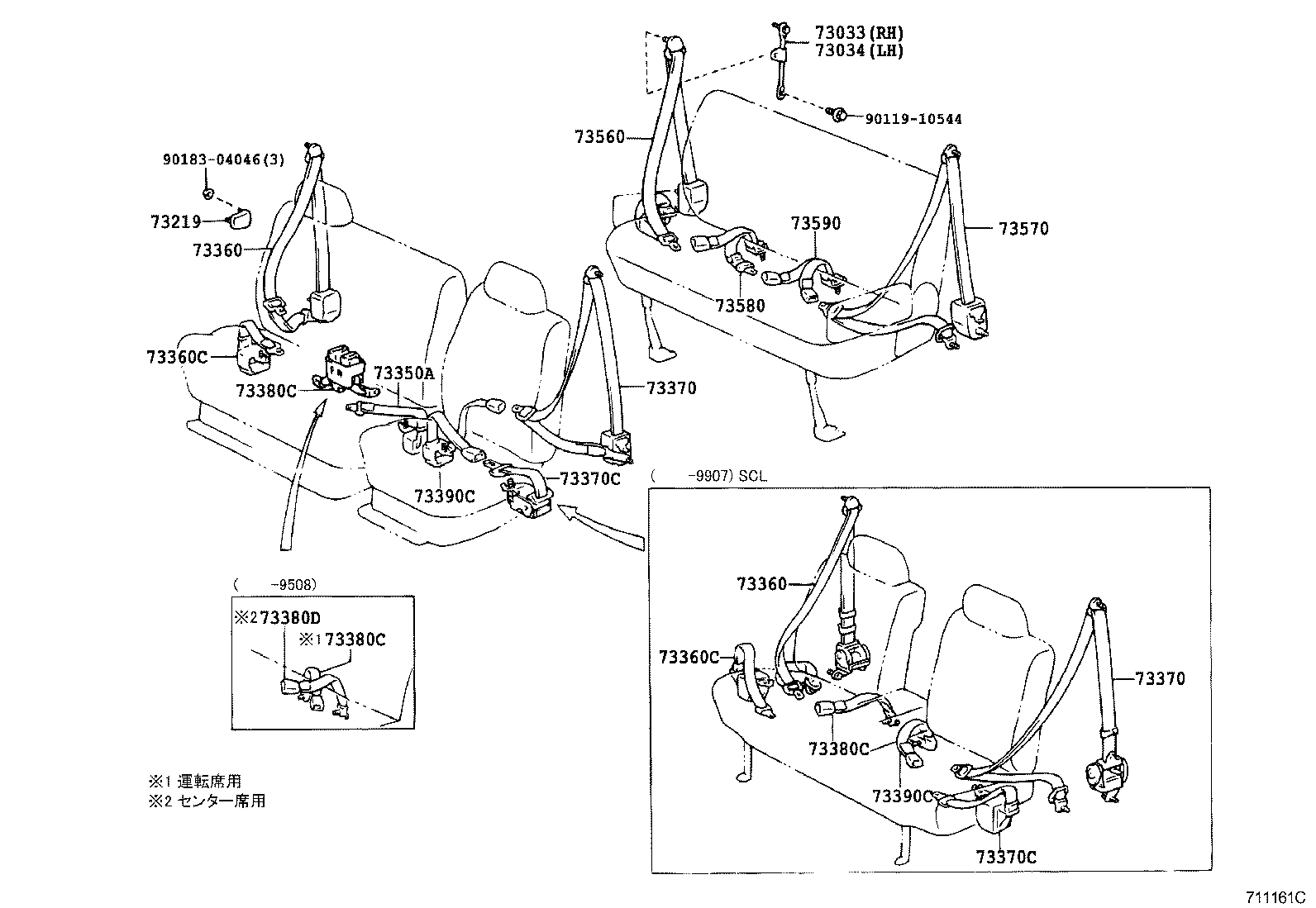

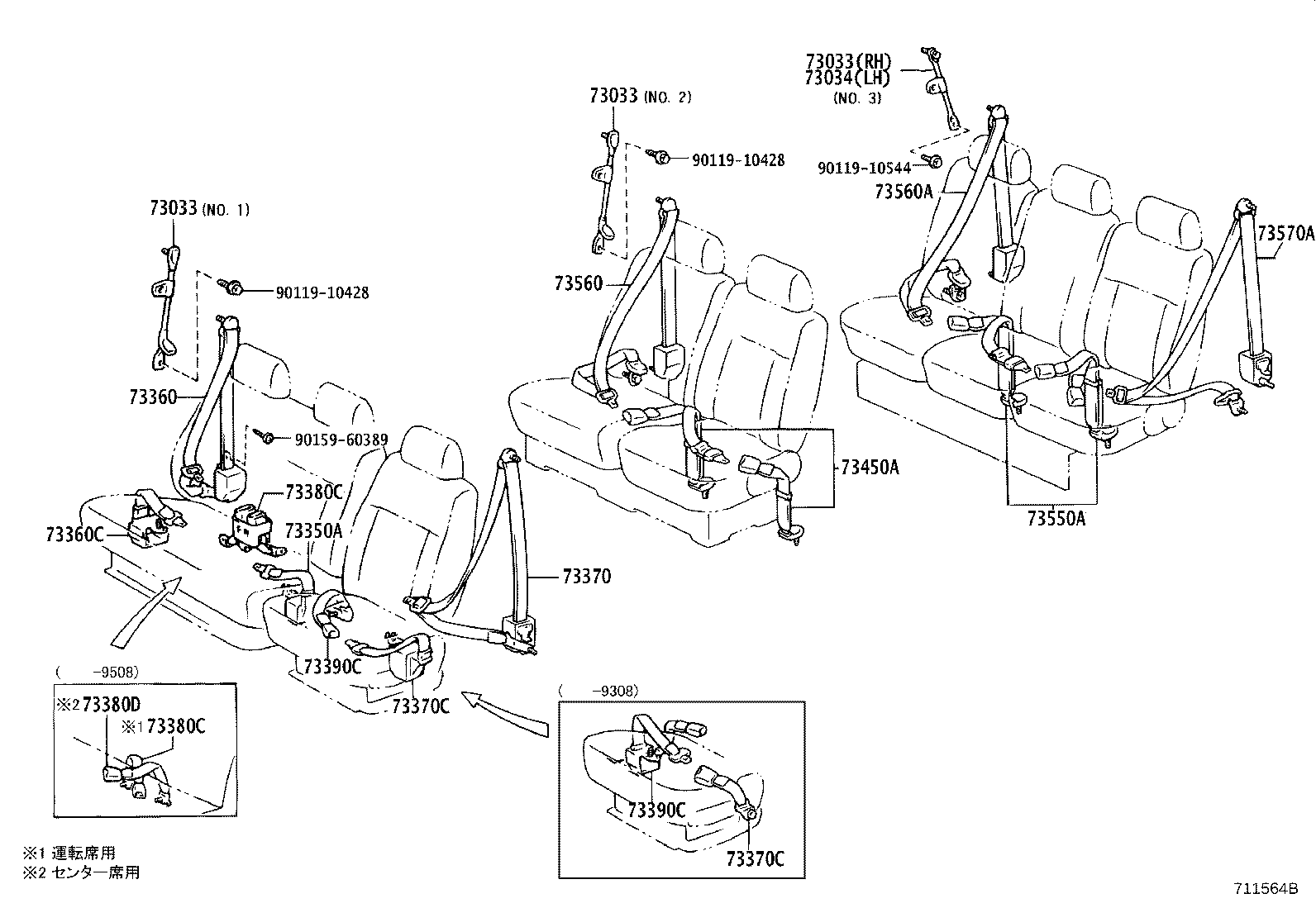

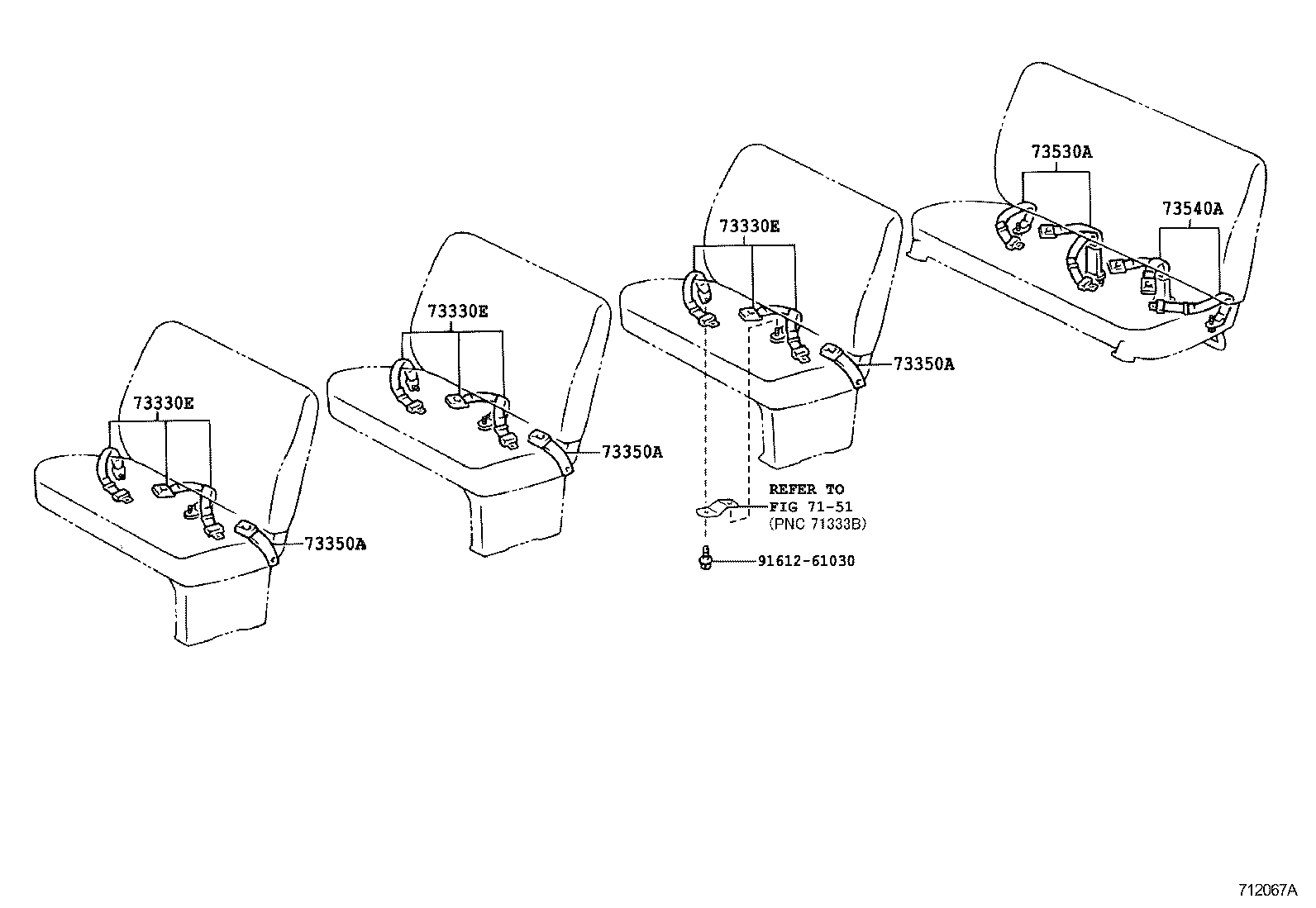

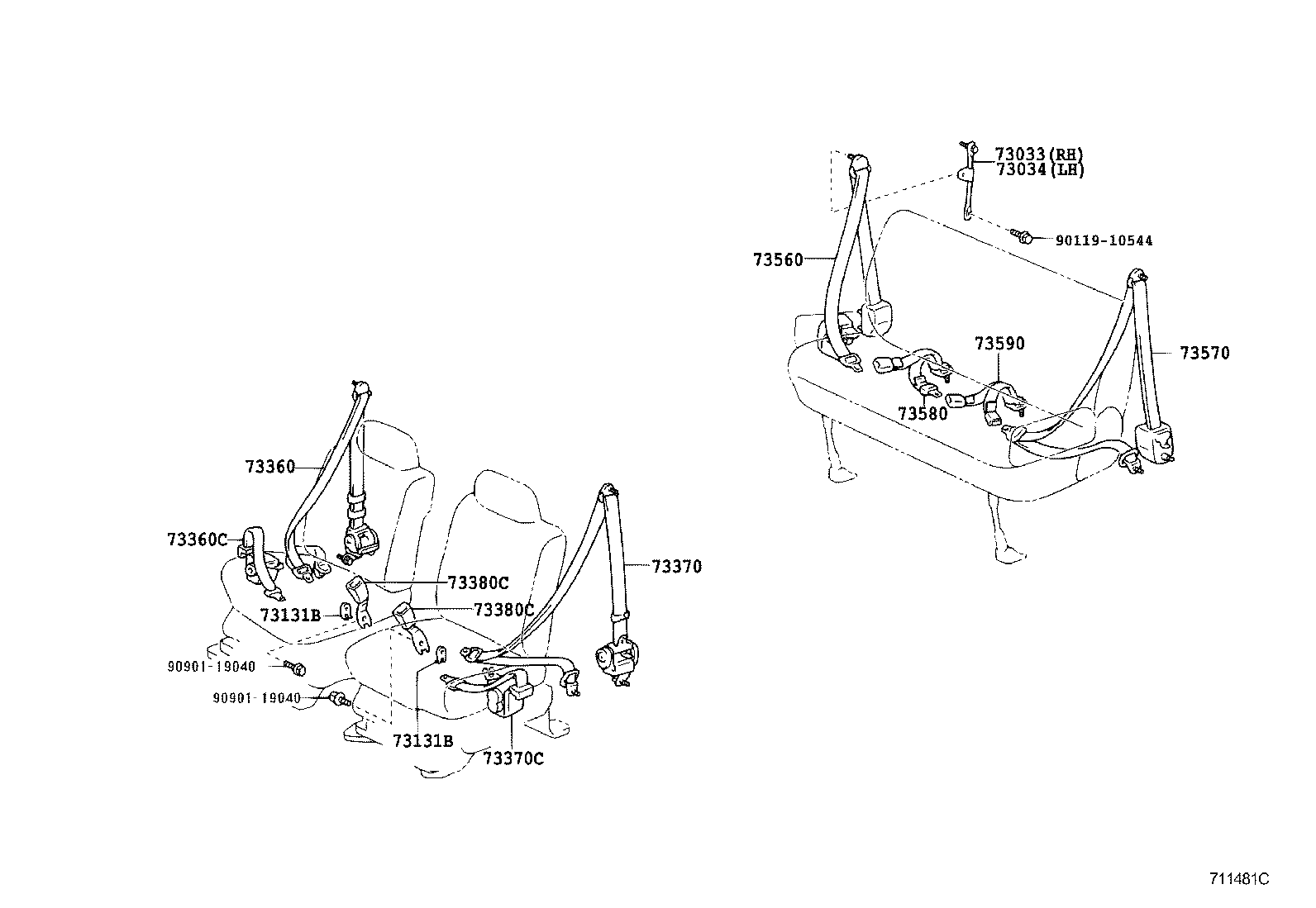

Figure 711246H 711246H 1989-08 → — Figure 711761A 711761A 1989-08 → — Figure 711552A 711552A 1989-08 → 1998-08 Figure 711553 711553 1989-08 → 1992-05 Figure 711553 711553 1992-05 → 1993-08 Figure 713964 713964 1989-08 → 1993-08 Figure 711554 711554 1989-08 → 1993-08 Figure 711555 711555 1989-08 → 1992-05 Figure 711556 711556 1989-08 → 1992-05 Figure 711557 711557 1989-08 → 1992-05 Figure 711558 711558 1990-10 → 1992-05 Figure 711559 711559 1992-05 → 1993-08 Figure 711561 711561 1992-05 → 1993-08 Figure 711562 711562 1992-05 → 1993-08 Figure 711563 711563 1992-05 → 1993-08 Figure 711161C 711161C 1992-05 → 1999-07 Figure 710151A 710151A 1989-08 → — Figure 710151A 710151A 2003-08 → — Figure 710152B 710152B 1989-08 → — Figure 712064A 712064A 1989-08 → — Figure 711560 711560 1992-05 → — Figure 711564B 711564B 1992-05 → — Figure 712065 712065 1993-08 → — Figure 712066 712066 1993-08 → — Figure 712067A 712067A 1998-08 → — Figure 712068 712068 1999-07 → — Figure 711481C 711481C 1999-07 → —

Part groups

PNCDescription
73013A Plate Sub-assy, Front Seat Belt Inner Anchor, RH
73033 Plate Sub-assy, Rear Shoulder Belt Anchor, RH
73034 Plate Sub-assy, Rear Shoulder Belt Anchor, LH
73131B Bracket, Seat Belt
73139B Cover, Seat Belt Anchor
73146 Cover, Front Seat Belt Inner Anchor Bracket, RH
73158 Bracket, Seat Belt Guide Set
73160A Seat Belt Assy, Front Center, RH
73170 Belt Assy, Front Center, LH
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73180 Bracket Assy, Seat Belt Inner Anchor, RH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73223B Cover, Front Seat Belt Retractor, RH
73224 Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252A Cover, Shoulder Belt Anchor Adjust
73330E Belt Assy, Rear NO.1 Seat Lap Type, RH
73340E Belt Assy, Rear NO.1 Seat Lap Type, LH
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73380D Belt Assy, Rear Seat, Inner
73381 Holder, Rear Seat Belt
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73450A Belt Assy, NO.2 Seat Lap Type, Center
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73550A Belt Assy, NO.3 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73560A Belt Assy, NO.3 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73570A Belt Assy, NO.3 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
74582C Label, Safety Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
