Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07

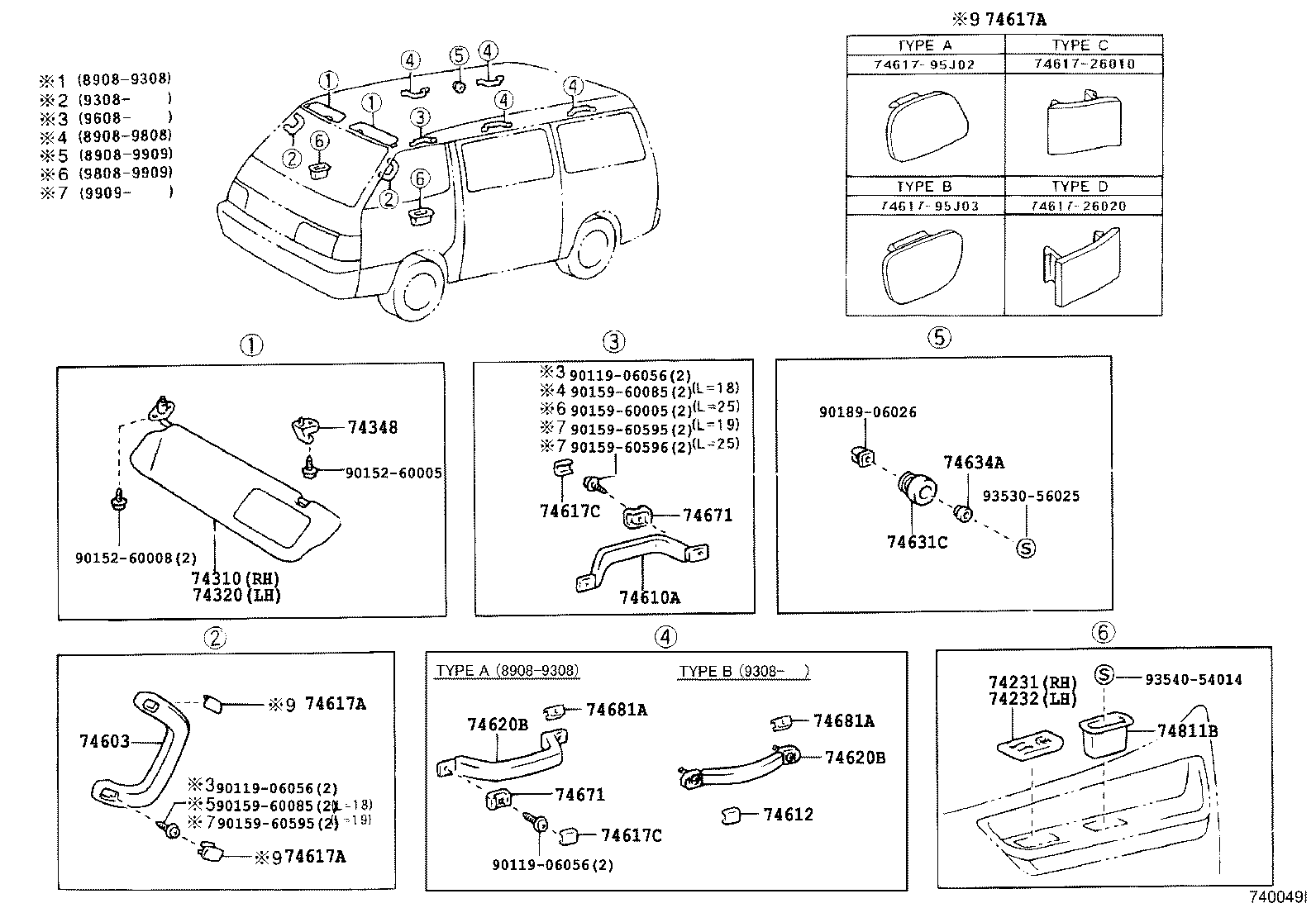

Armrest & Visor
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74310B | Plug, Hole (FOR VISOR) |
| 74320 | Visor Assy, LH |
| 74325 | Cover, Visor Bracket |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74603C | Grip Sub-assy, Assist |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74620B | Grip Assy, Assist, Rear |
| 74623 | Reinforcement, Rear Assist Grip |
| 74631C | Hook, Coat |
| 74634A | Collar, Coat Hook |
| 74671 | Support, Assist Grip |
| 74681A | Retainer, Assist Grip |
| 74710 | Extinguisher Assy |
| 74811B | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
