Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separator & Separator Curtain

20 part groups · 4 illustrations

Illustrations

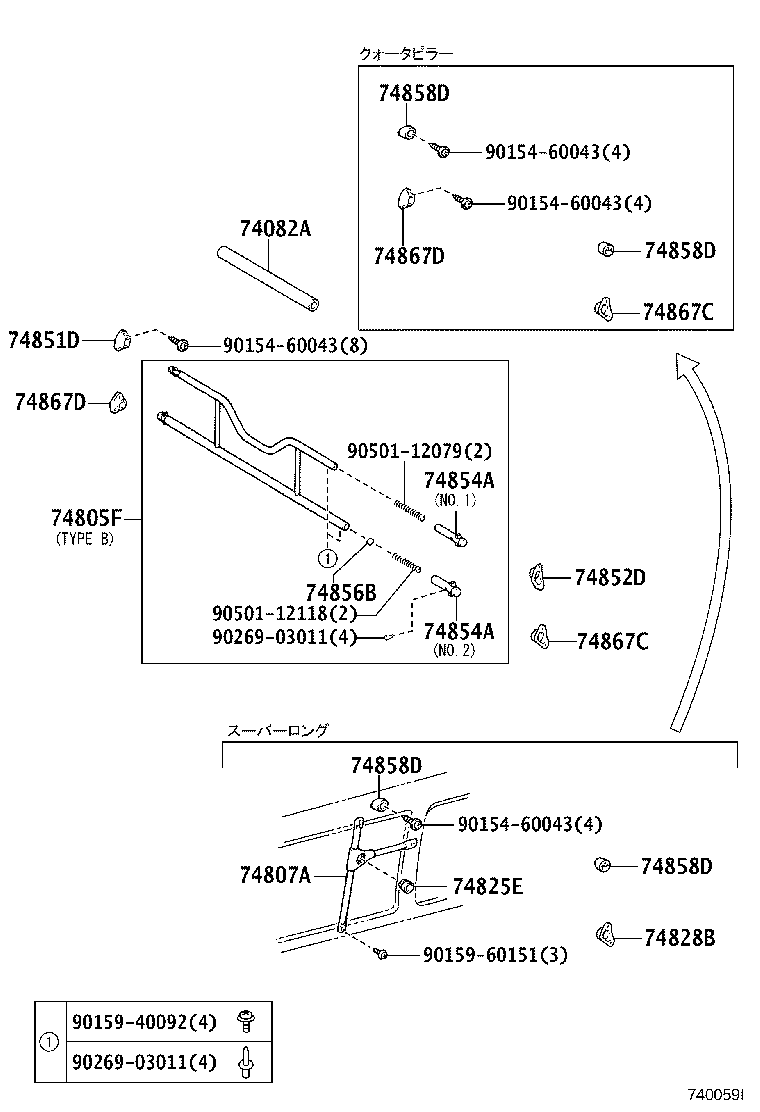

Figure 742687D 742687D 1989-08 → — Figure 740058G 740058G 1989-08 → — Figure 740059I 740059I 1989-08 → — Figure 740536A 740536A 1989-08 → —

Part groups

PNCDescription
74082A Cover Sub-assy, Separator Bar, Lwr
74084 Stay Sub-assy, Separator Bar
74805F Bar Sub-assy, Separator, A
74807A Bar Sub-assy, Rear Separator
74825E Bracket, Separator, RH
74827B Bracket, Separator Bar, RH
74828B Bracket, Separator Bar, LH
74849B Pin, Separator
74851D Bracket, Separator Bar, Upper RH
74852D Bracket, Separator Bar, Upper LH
74854A Stop, Separator
74856B Plate, Spring Set
74858D Bracket, Rear Separator Bar, Upper
74863C Bracket, Separator Bar, NO.3
74867C Bracket, Separator Bar, Lower
74867D Bracket, Separator Bar, Lower
74870A Curtain Assy, Separator
74875A Plate, Curtain Rear Separator
74891A Cover, Separator Bar, NO.1
74892A Cover, Separator Bar, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
