Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07

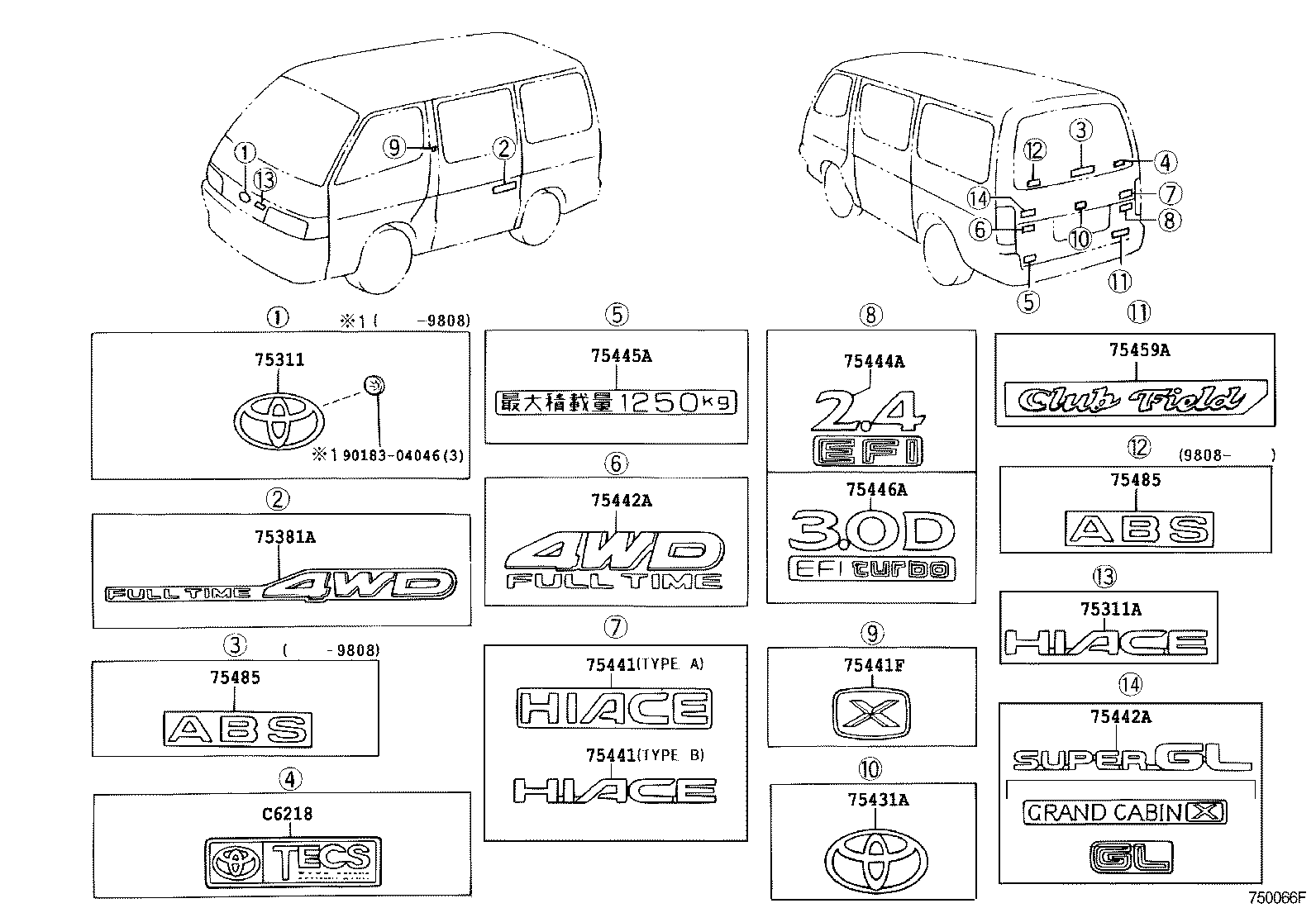

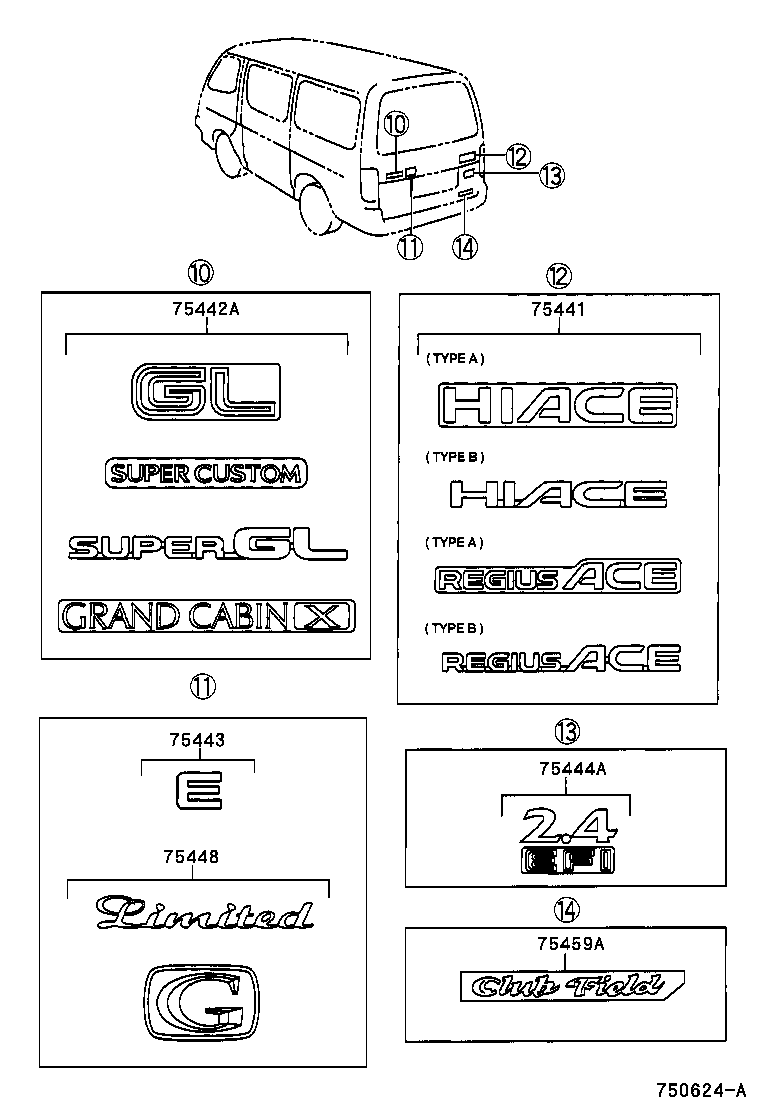

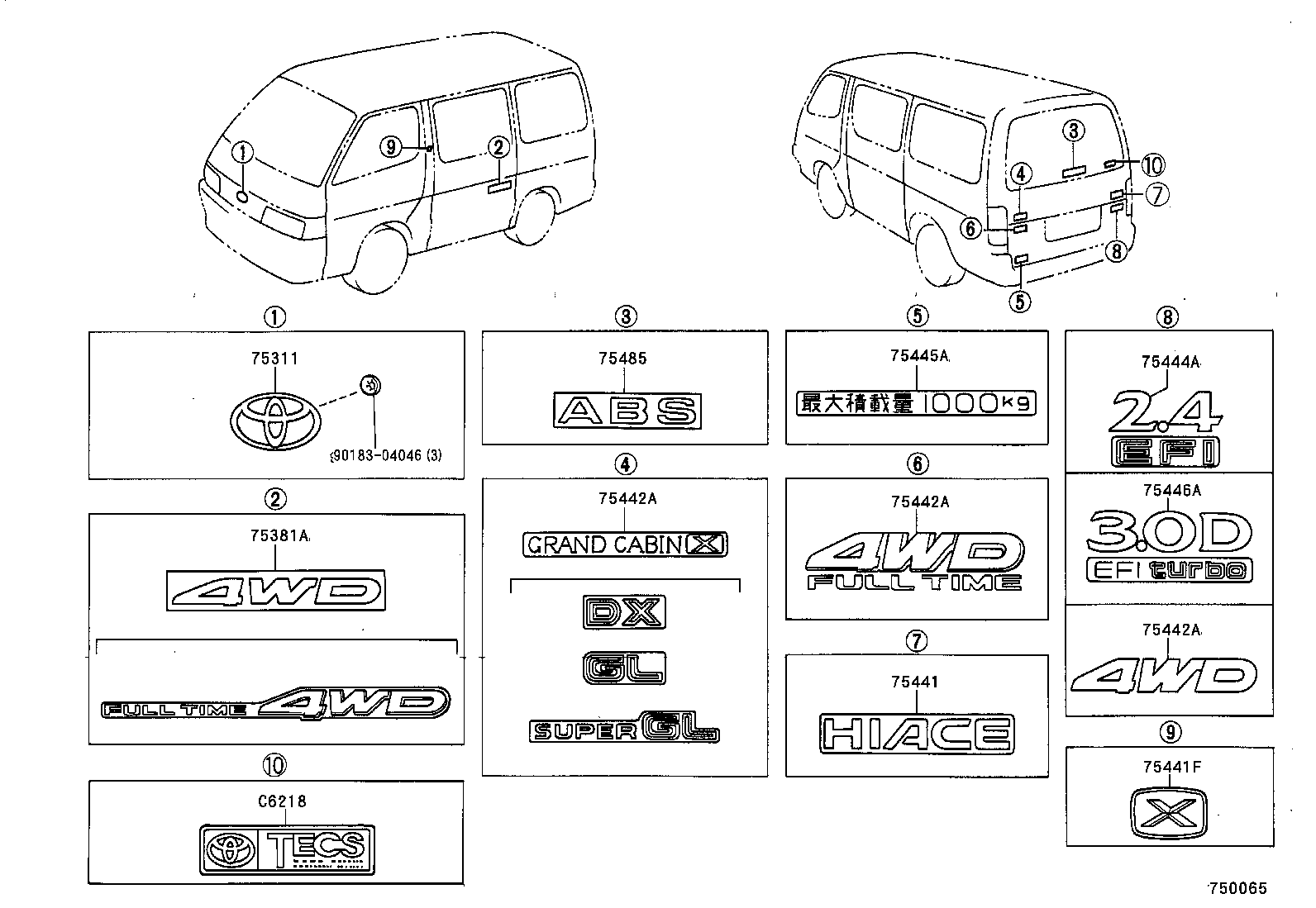

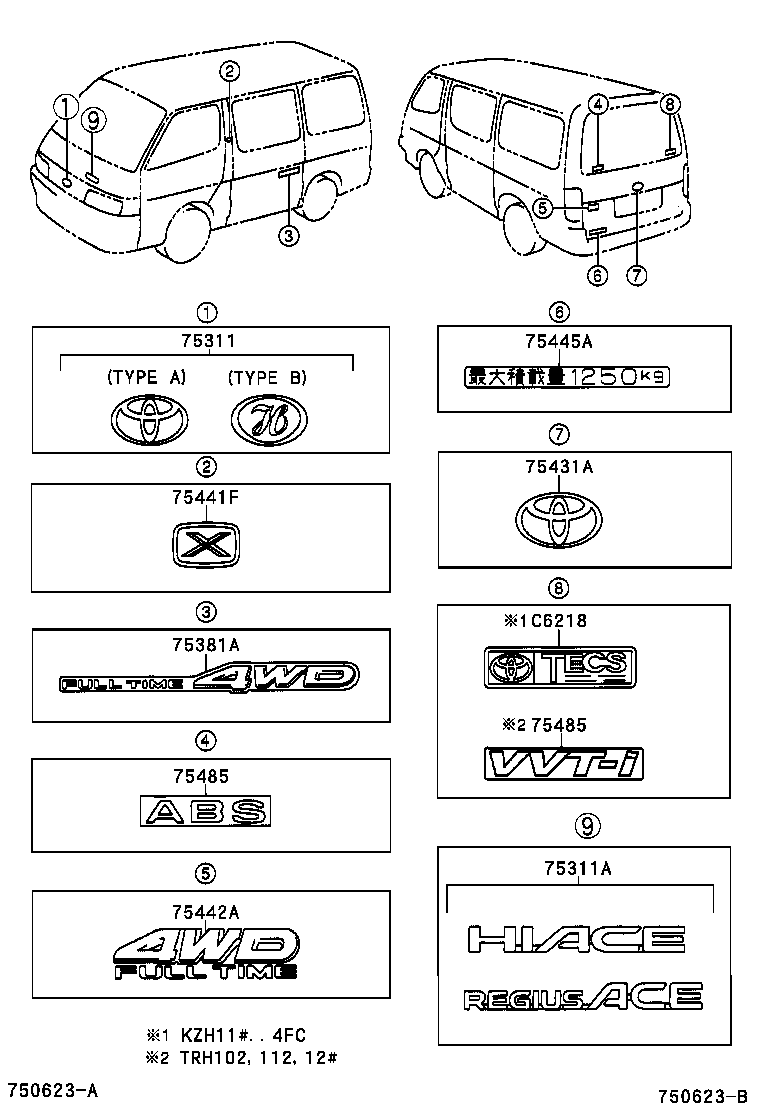

Emblem & Name Plate
19 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 75311 | Emblem, Radiator Grille (OR FRONT PANEL) |
| 75311A | Plate, Front Name, NO.1 |
| 75312B | Emblem, Radiator Grille, NO.2 |
| 75314A | Emblem, Radiator Grille, NO,4 |
| 75315A | Mark, Front Panel |
| 75363 | Plate, Door Name |
| 75381A | Plate, Quarter Panel |
| 75431A | Emblem, Back Door, NO.1 |
| 75441 | Plate, Rear Name, NO.1 |
| 75441F | Cover, Windshield Moulding Joint, Upper RH |
| 75442A | Plate, Back Door Name, NO.2 |
| 75443 | Plate, Back Door Name, NO.3 |
| 75444A | Plate, Back Door Name, NO.4 |
| 75445A | Plate, Back Door Name, NO.5 |
| 75446A | Plate, Back Door Name, NO.6 |
| 75448 | Plate, Back Door Name, NO.8 |
| 75459A | Mark, Back Door |
| 75485 | Plate, Back Window Name |
| C6218 | Plate, Vehicle Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
