Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07
Moulding

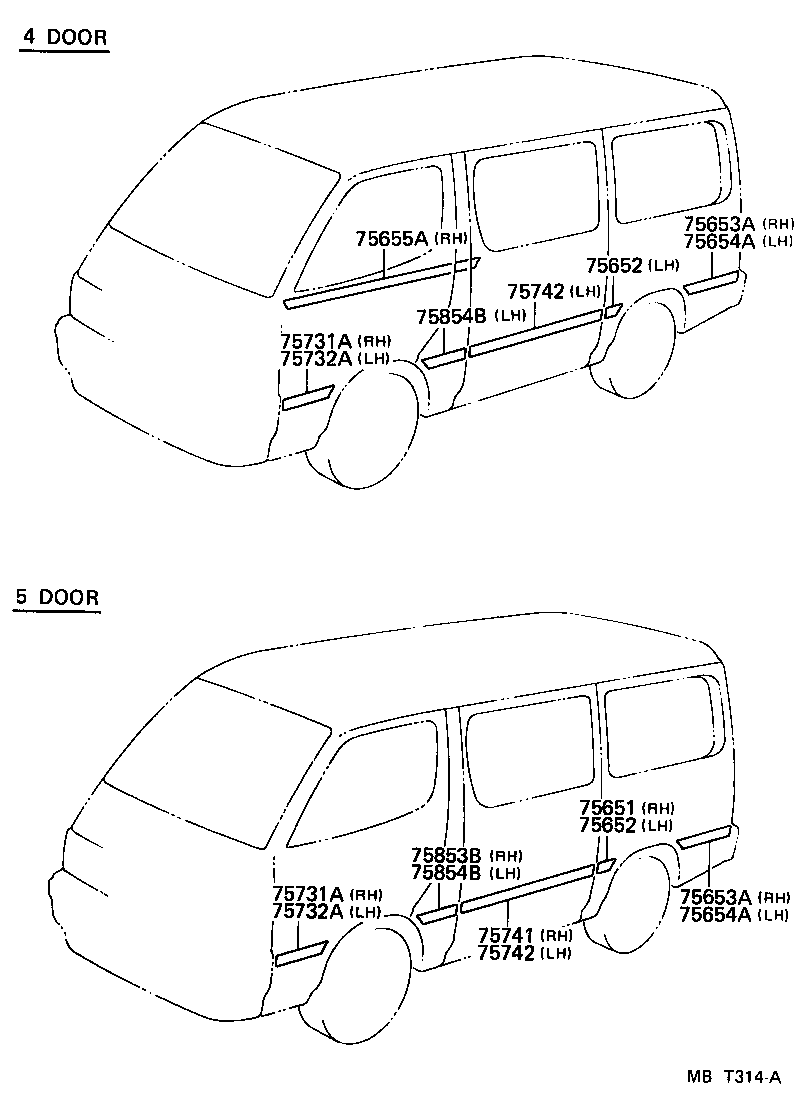

25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75531 | Moulding, Windshield, Outer Upper |
| 75534C | Garnish, Front Pillar, Outer LH |
| 75535A | Moulding, Windshield, Outside Lower |
| 75548A | Fastener, Windshield Outside Moulding, NO.1 |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75555C | Connector, Roof Drip Moulding |
| 75573B | Moulding, Back Window, Outside |
| 75578B | Cover, Roof Drip Moulding End, Rear RH |
| 75579B | Cover, Roof Drip Moulding End, Rear LH |
| 75595D | Cover, Roof Drip Side Moulding, Front RH |
| 75596D | Cover, Roof Drip Side Moulding, Front LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75653A | Moulding, Quarter, Outside Rear RH |
| 75654A | Moulding, Quarter, Outside Rear LH |
| 75655A | Moulding, Quarter, Outside Center RH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75853B | Moulding, Center Pillar, RH |
| 75854B | Moulding, Center Pillar, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
