Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

27 part groups · 32 illustrations

Illustrations

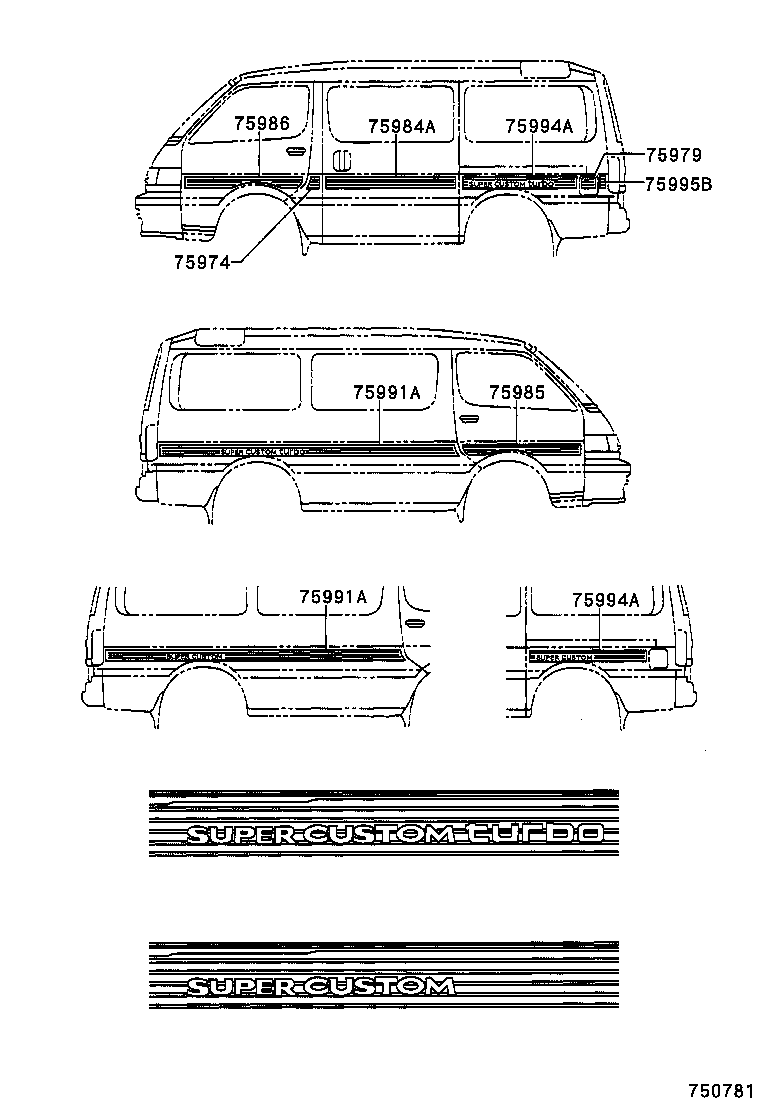

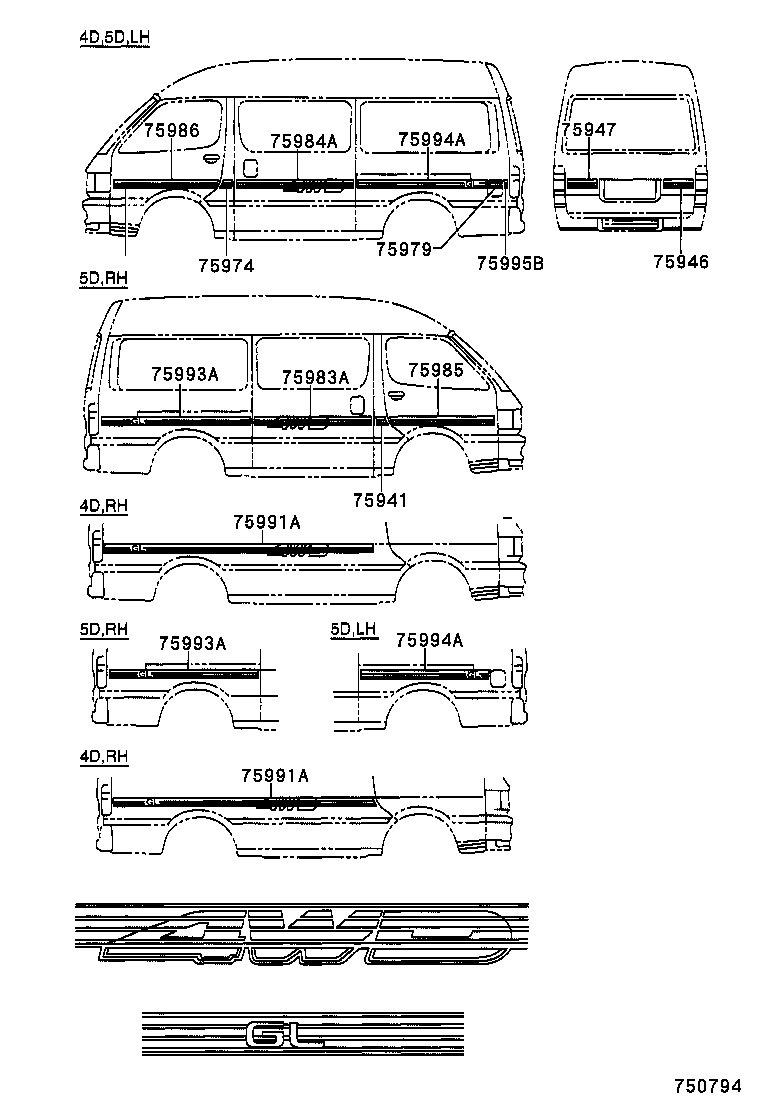

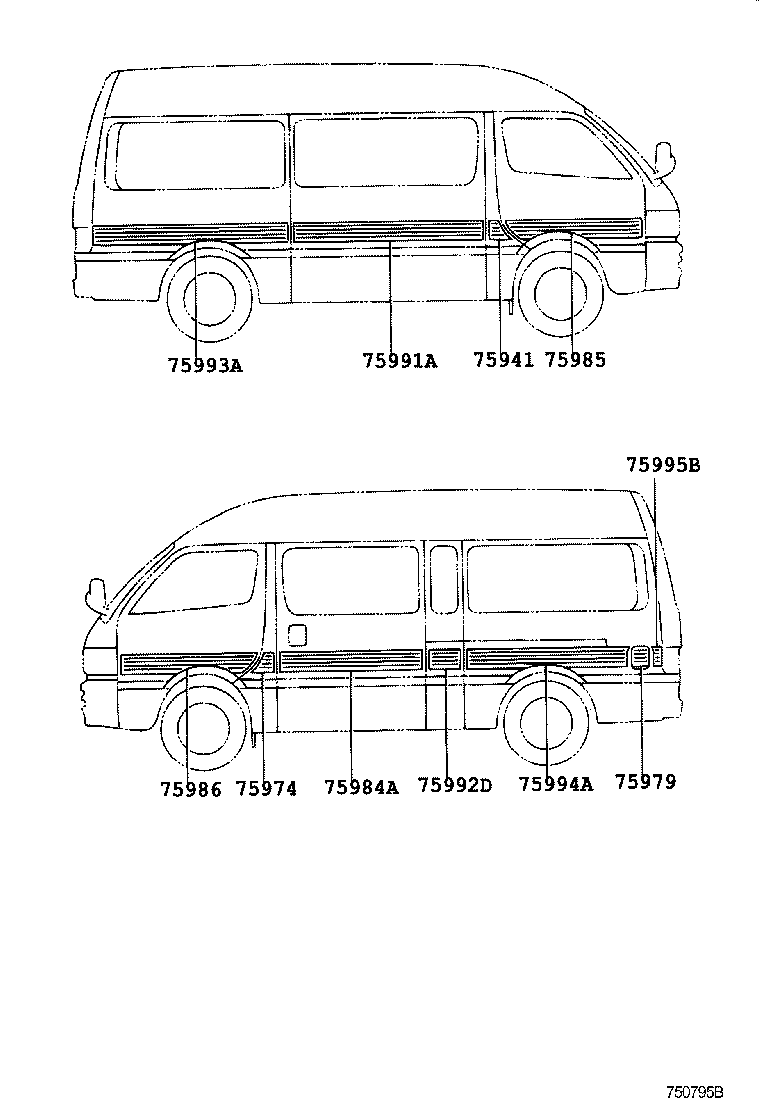

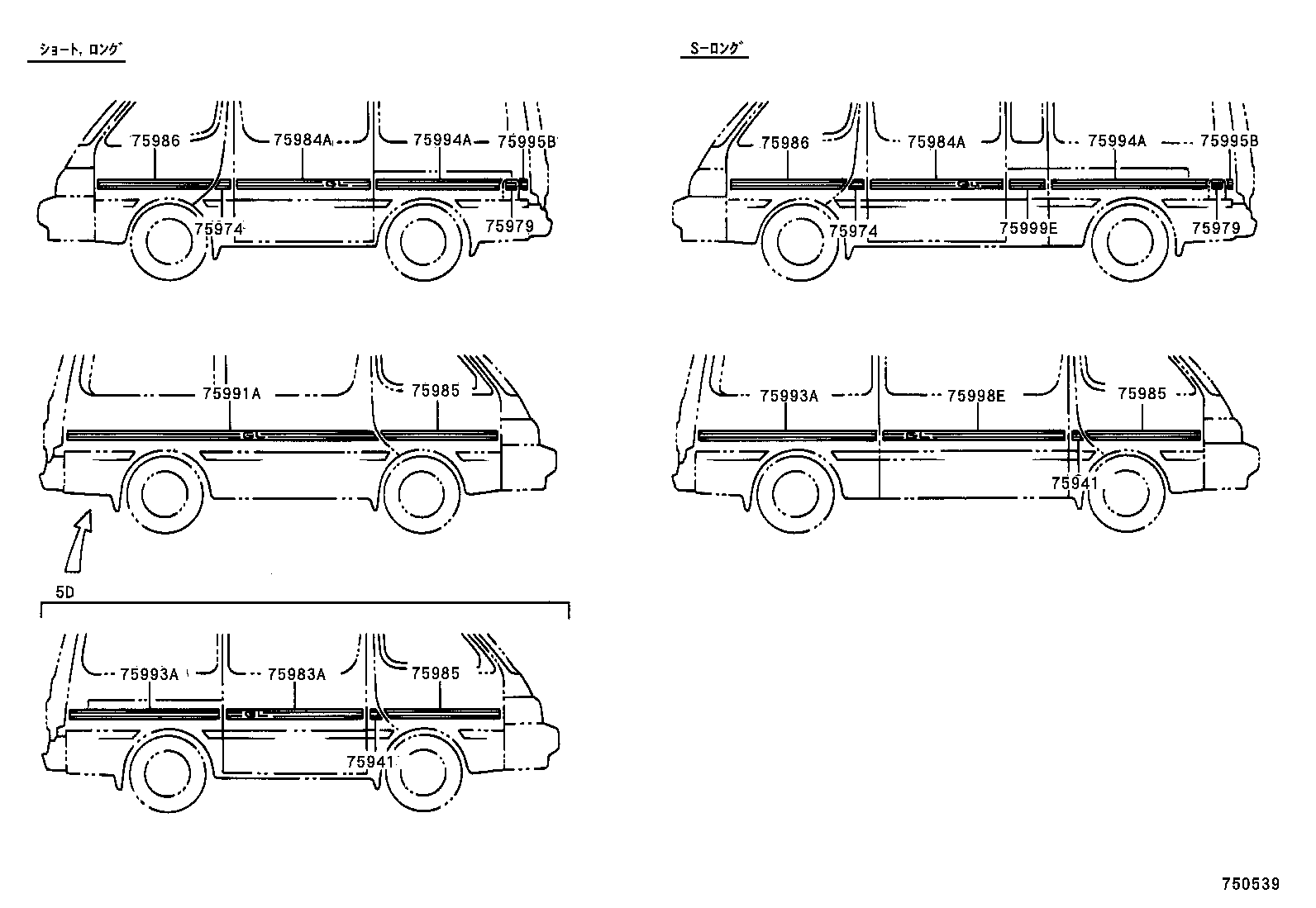

Figure 750779 750779 1989-08 → 1990-10 Figure 750779 750779 1990-10 → 1995-08 Figure 750780 750780 1990-10 → 1993-08 Figure 750781 750781 1989-08 → 1990-10 Figure 750781 750781 1990-10 → 1993-08 Figure 750782 750782 1990-10 → 1993-08 Figure 750783 750783 1989-08 → 1993-08 Figure 750784 750784 1990-10 → 1993-08 Figure 750785 750785 1989-08 → 1993-08 Figure 750786 750786 1989-08 → 1993-08 Figure 750787 750787 1992-10 → 1993-07 Figure 750788 750788 1995-04 → 1996-08 Figure 750789 750789 1995-08 → 1996-08 Figure 750791 750791 1993-08 → 1995-08 Figure 750791 750791 1993-08 → 1996-08 Figure 750790 750790 1995-08 → 1996-08 Figure 750792 750792 1989-08 → 1993-08 Figure 750792 750792 1993-08 → 1996-08 Figure 750792 750792 1996-08 → 1998-08 Figure 750793 750793 1993-08 → 1998-08 Figure 750794 750794 1989-08 → 1993-08 Figure 750795B 750795B 1992-05 → — Figure 750070 750070 1996-08 → — Figure 750071 750071 1996-08 → — Figure 750538 750538 1998-08 → — Figure 750539 750539 1998-08 → — Figure 750072 750072 1996-08 → 1997-08 Figure 750085 750085 1996-08 → — Figure 750796 750796 1994-05 → 1998-08 Figure 750554 750554 1998-08 → 1999-07 Figure 750734 750734 1999-07 → — Figure 750734 750734 1999-07 → —

Part groups

PNCDescription
75941 Stripe, Center Pillar, RH
75946 Stripe, Back Door, RH
75947 Stripe, Back Door, LH
75974 Stripe, Center Pillar, LH NO.2
75975 Stripe, Side, RH Upr NO.3
75975C Stripe, Side, RH NO.3 (FOR LOWER)
75976 Stripe, Side, LH Upr
75976C Stripe, Side, LH NO.3 (FOR LOWER)
75979 Stripe, Fuel Filler Opening Lid
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75983A Stripe, Slide Door
75984A Stripe, Slide Door
75984C Stripe, Slide Door, LH Upper
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75992D Stripe, Quarter, Front LH
75993A Stripe, Quarter, Rear RH
75994A Stripe, Quarter Extension
75995A Stripe, Rear Body, Center
75995B Stripe, Quarter Rear End
75996C Stripe, Rear Body, RH
75997C Stripe, Rear Body, LH
75998E Stripe, Quarter Rear Lower, RH
75999E Stripe, Quarter Rear Lower, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
