Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

12 part groups · 2 illustrations

Illustrations

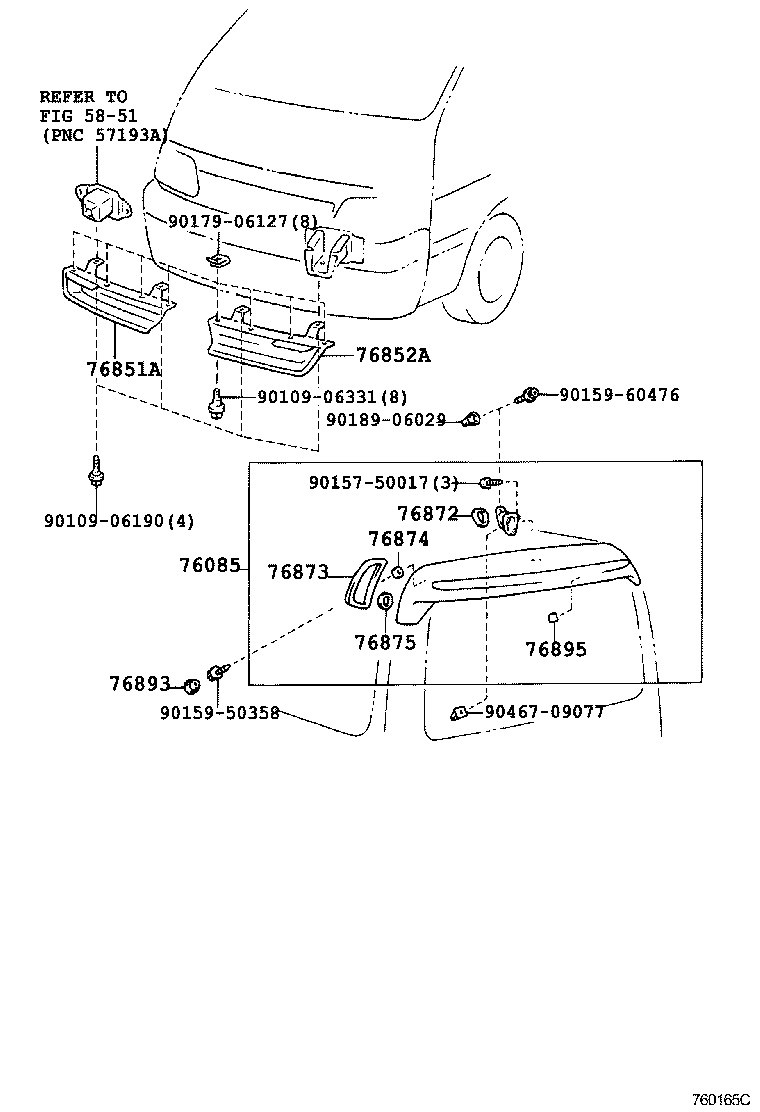

Figure 760024B 760024B 1993-08 → 1999-07 Figure 760165C 760165C 1999-07 → —

Part groups

PNCDescription
76081 Spoiler Sub-assy, Front
76085 Spoiler Sub-assy, Rear
76851 Cover, Front Spoiler
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76893 Cover, Rear Spoiler, NO.1
76895 Protector, Rear Spoiler, NO.5
85750B Motor Assy, FR Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
