Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

72 part groups · 12 illustrations

Illustrations

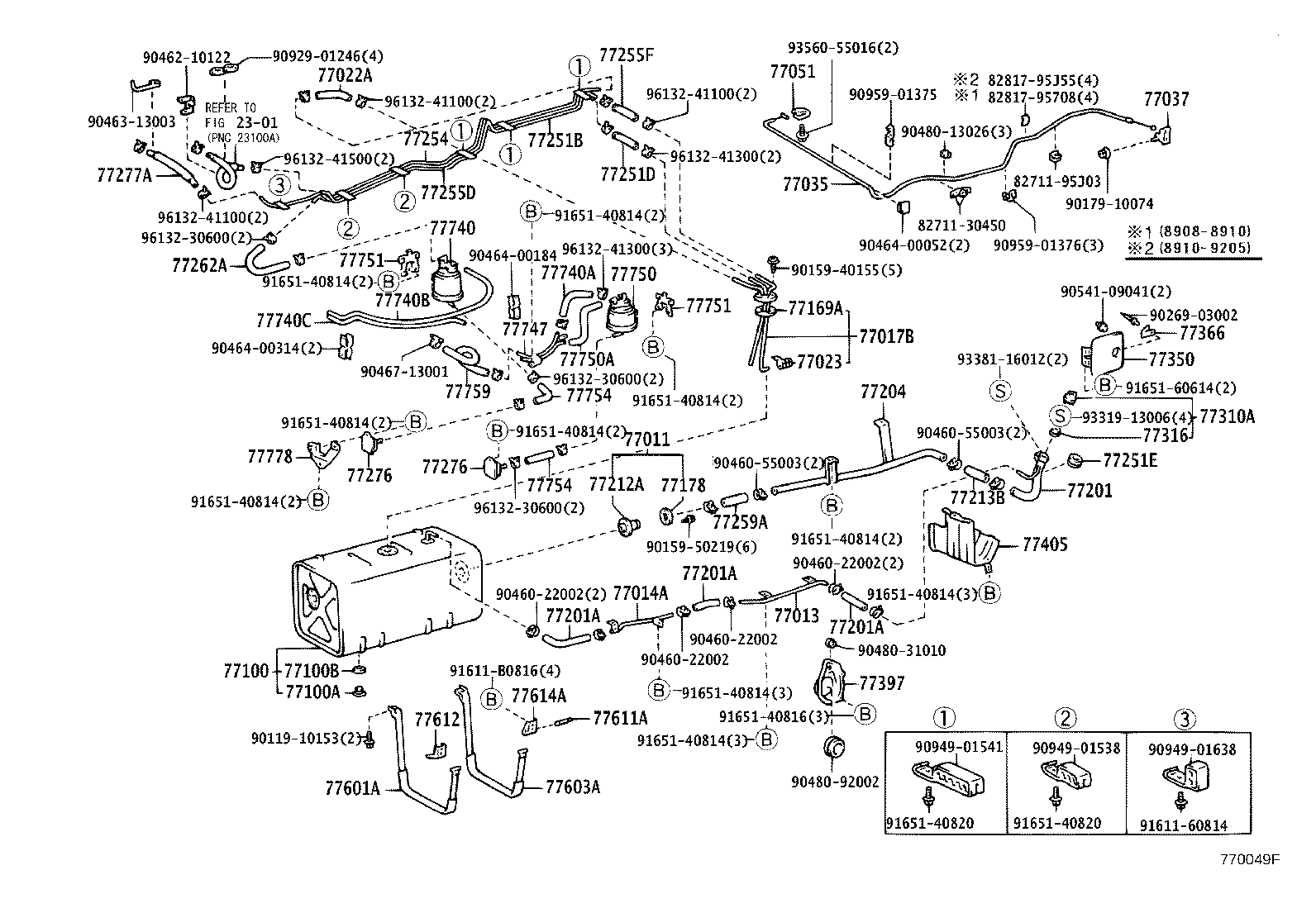

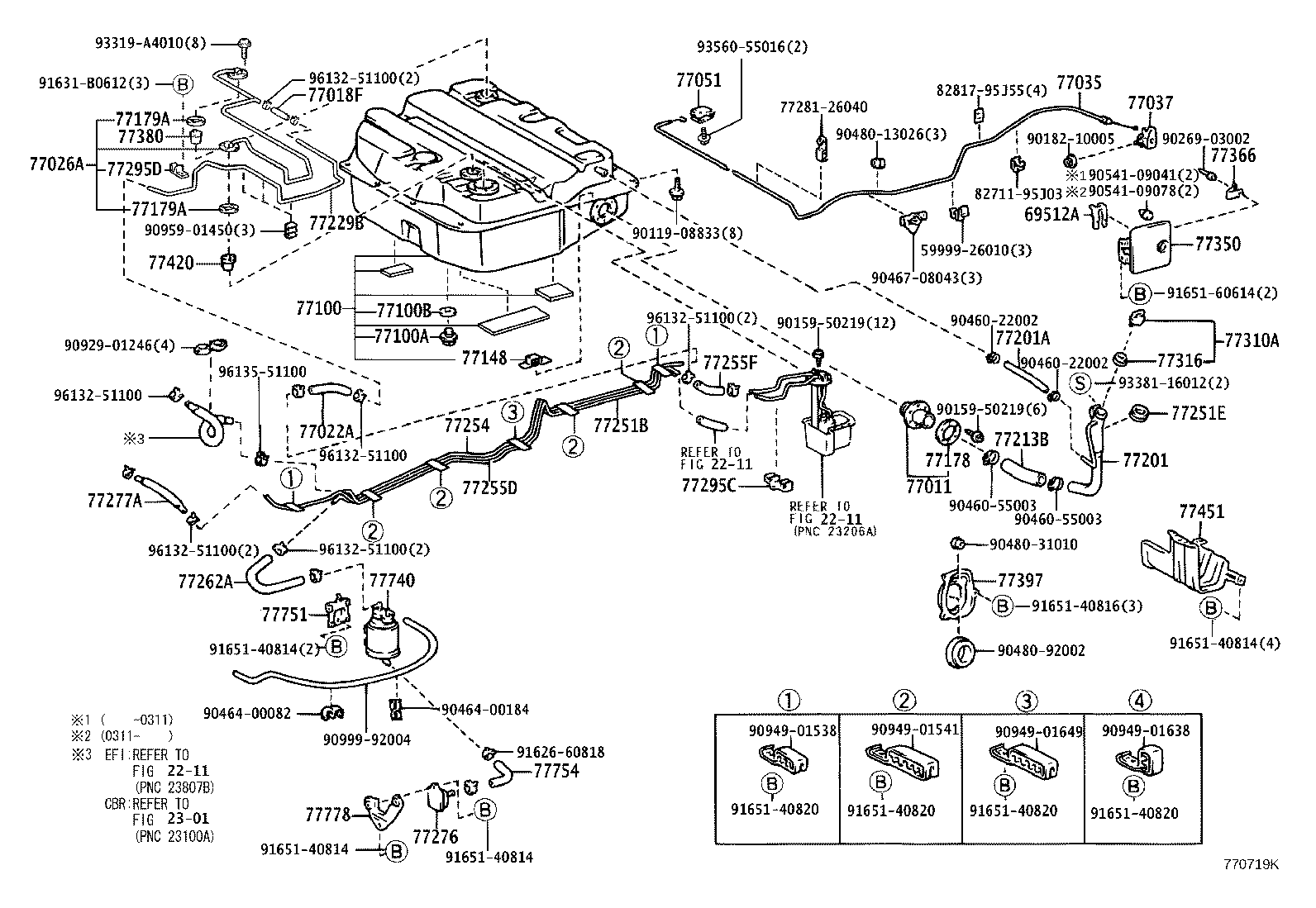

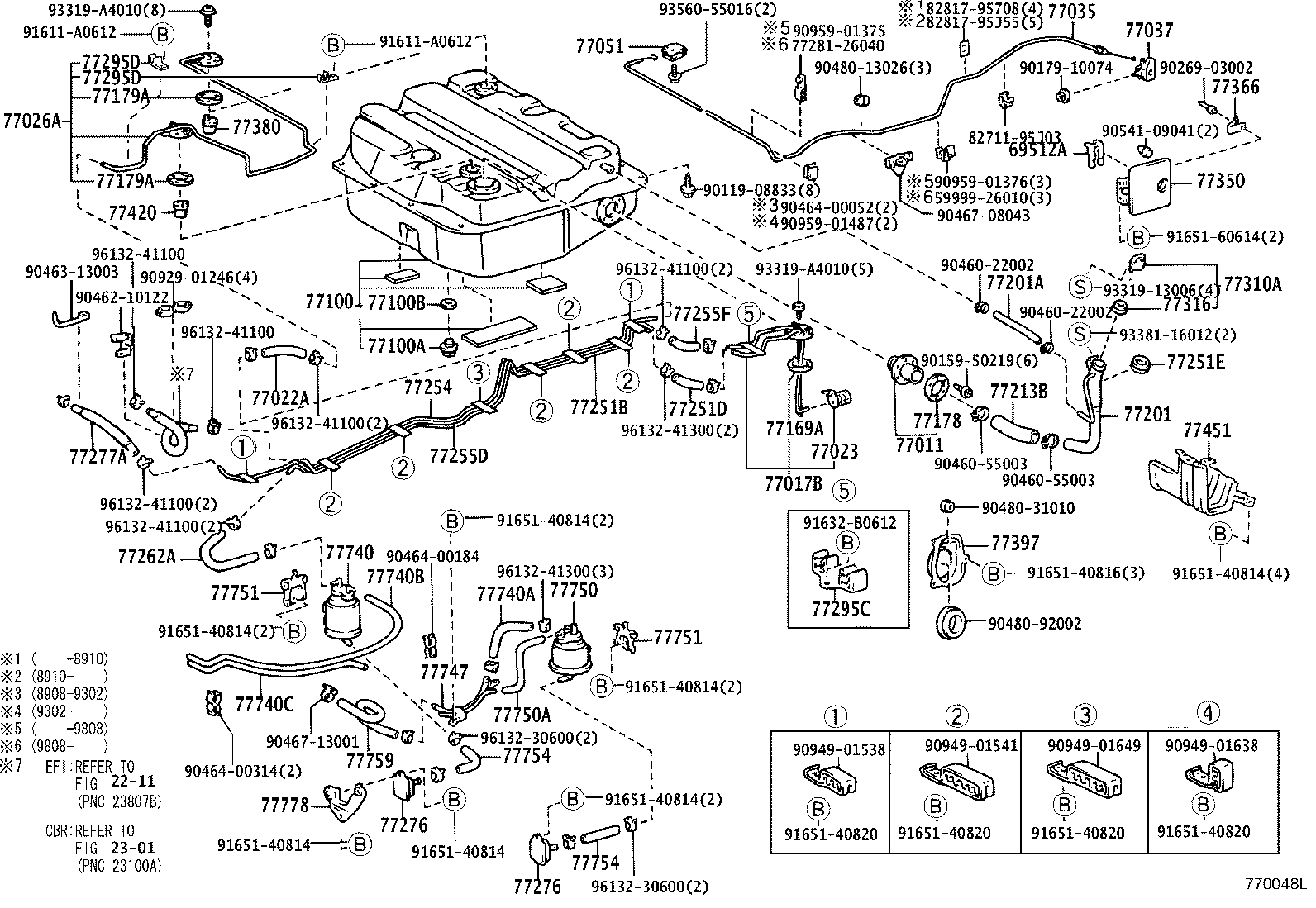

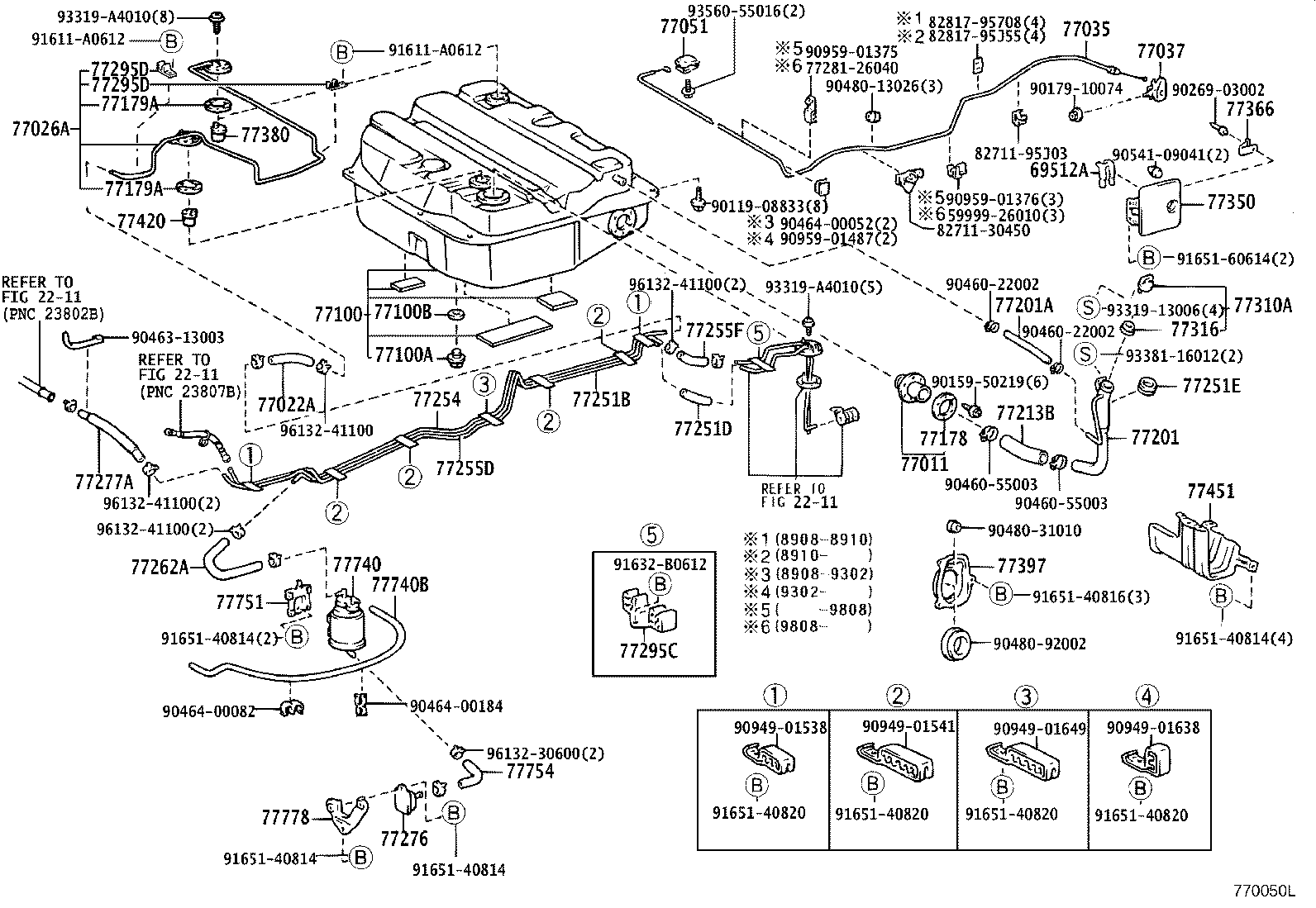

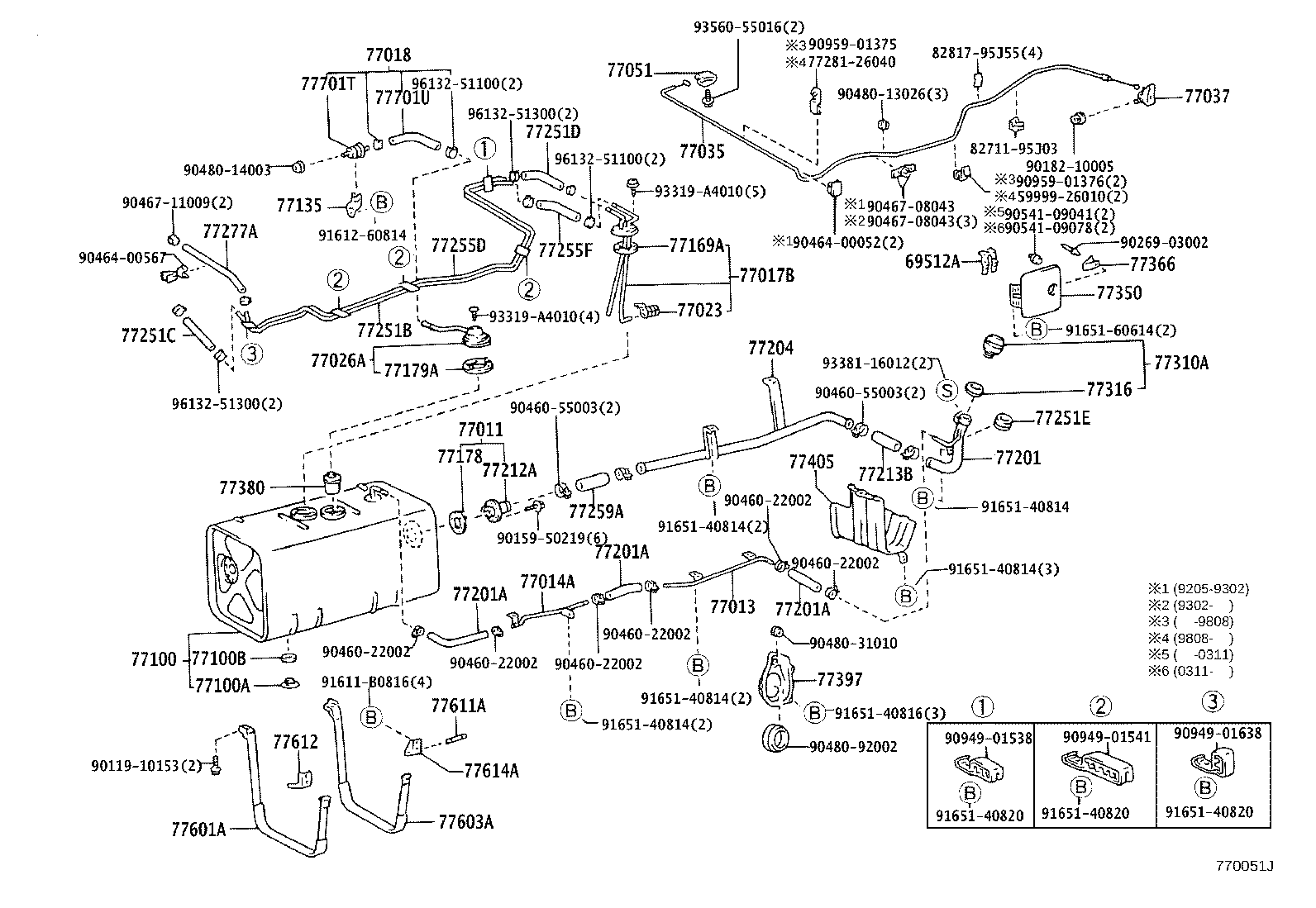

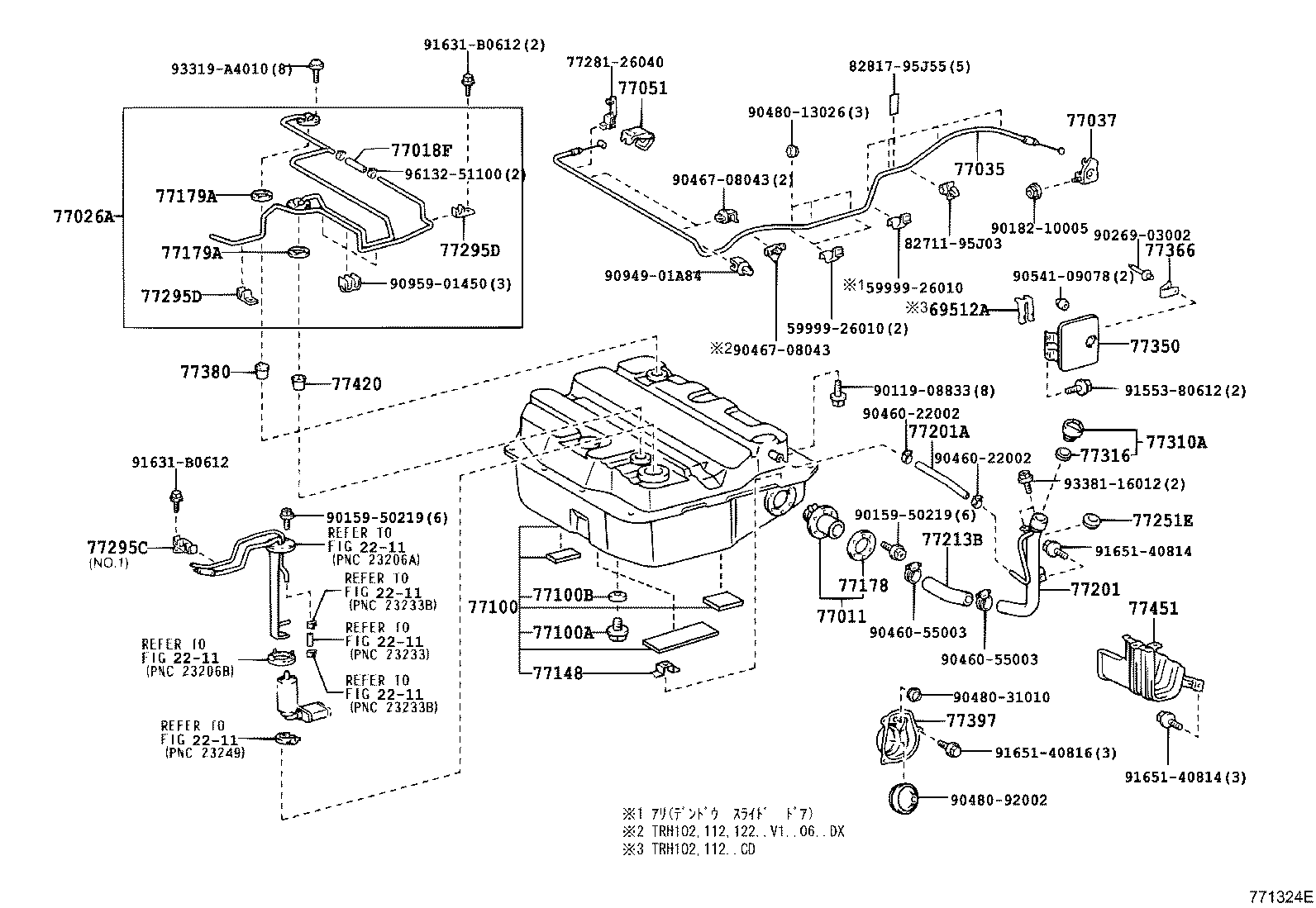

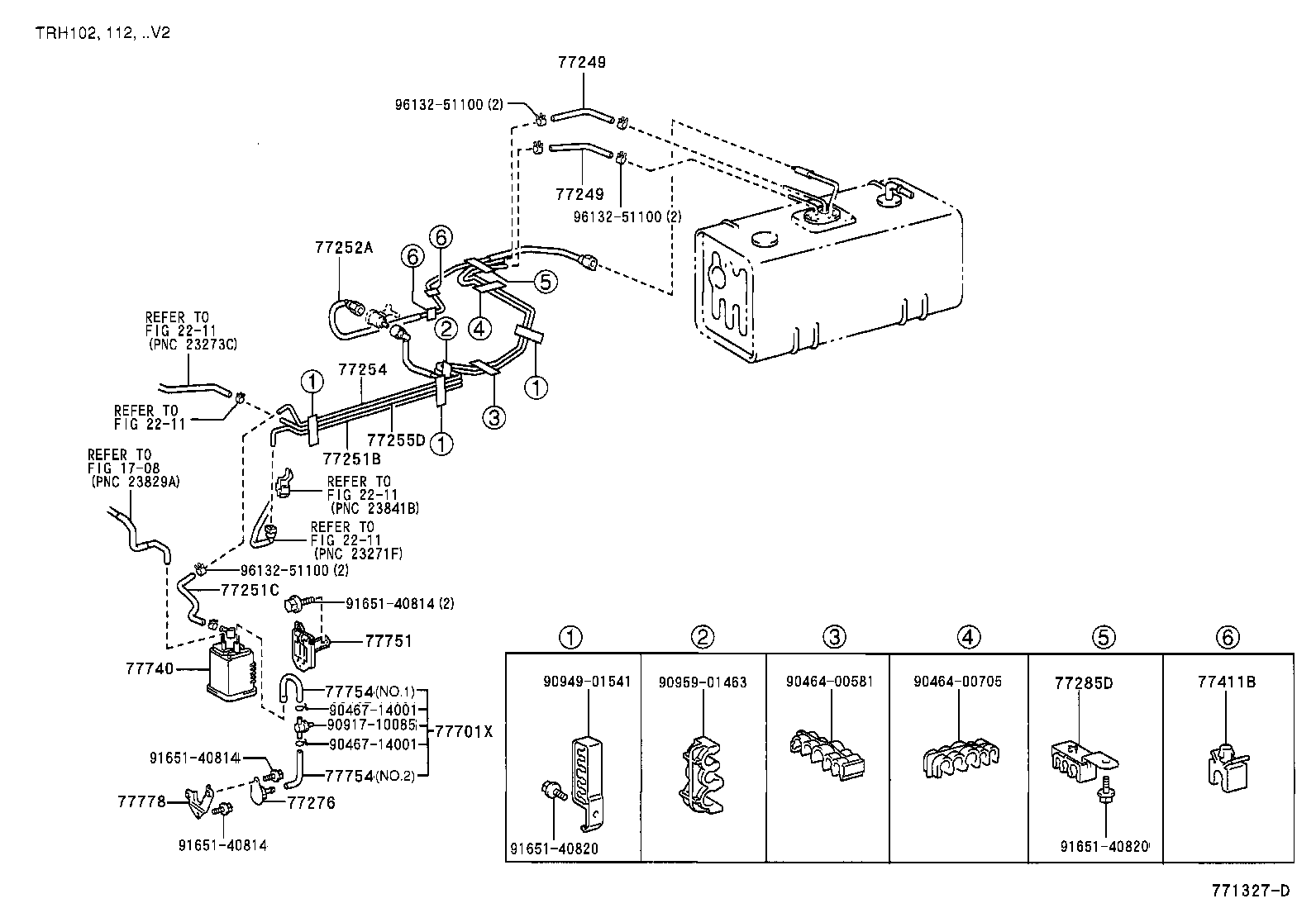

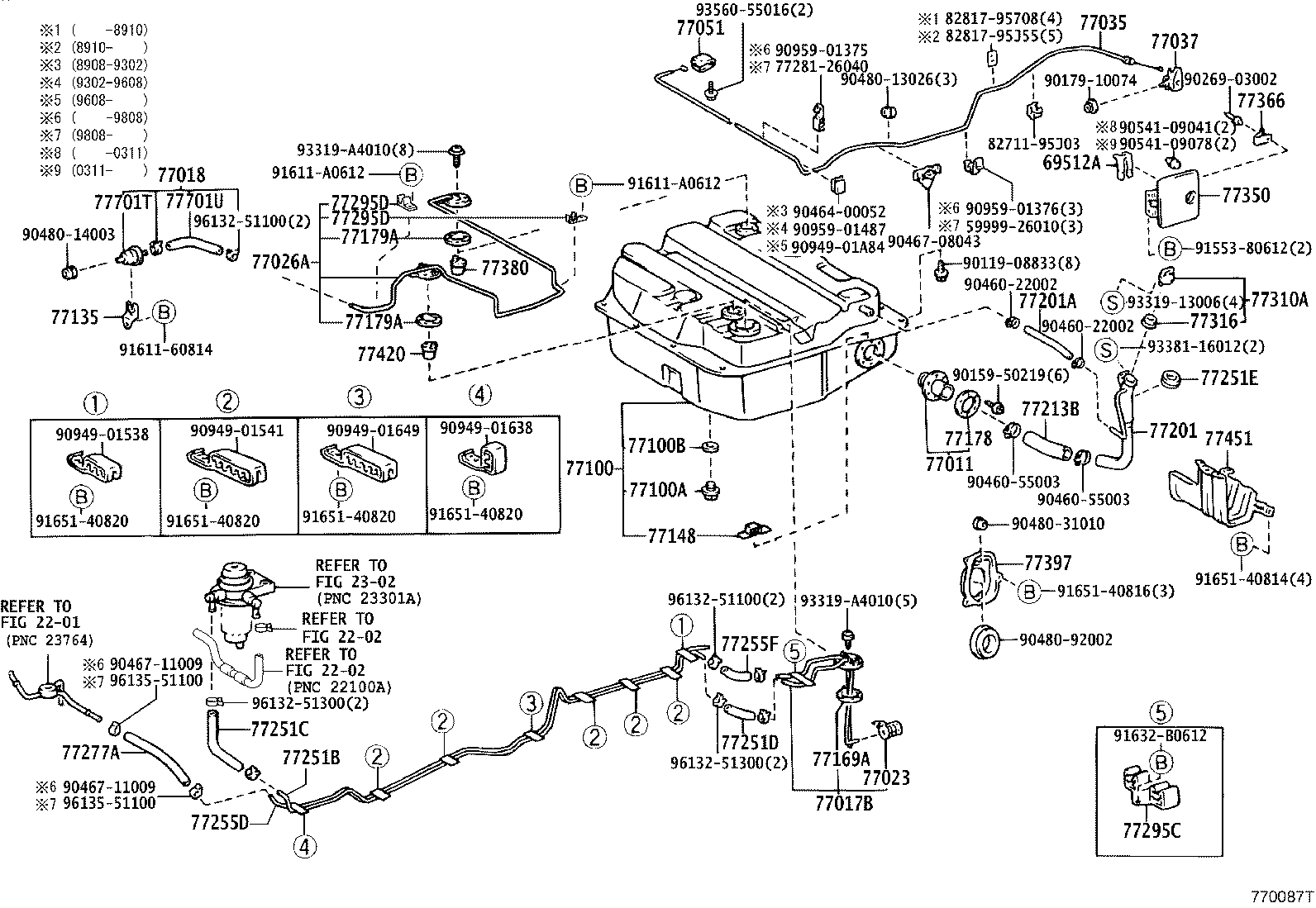

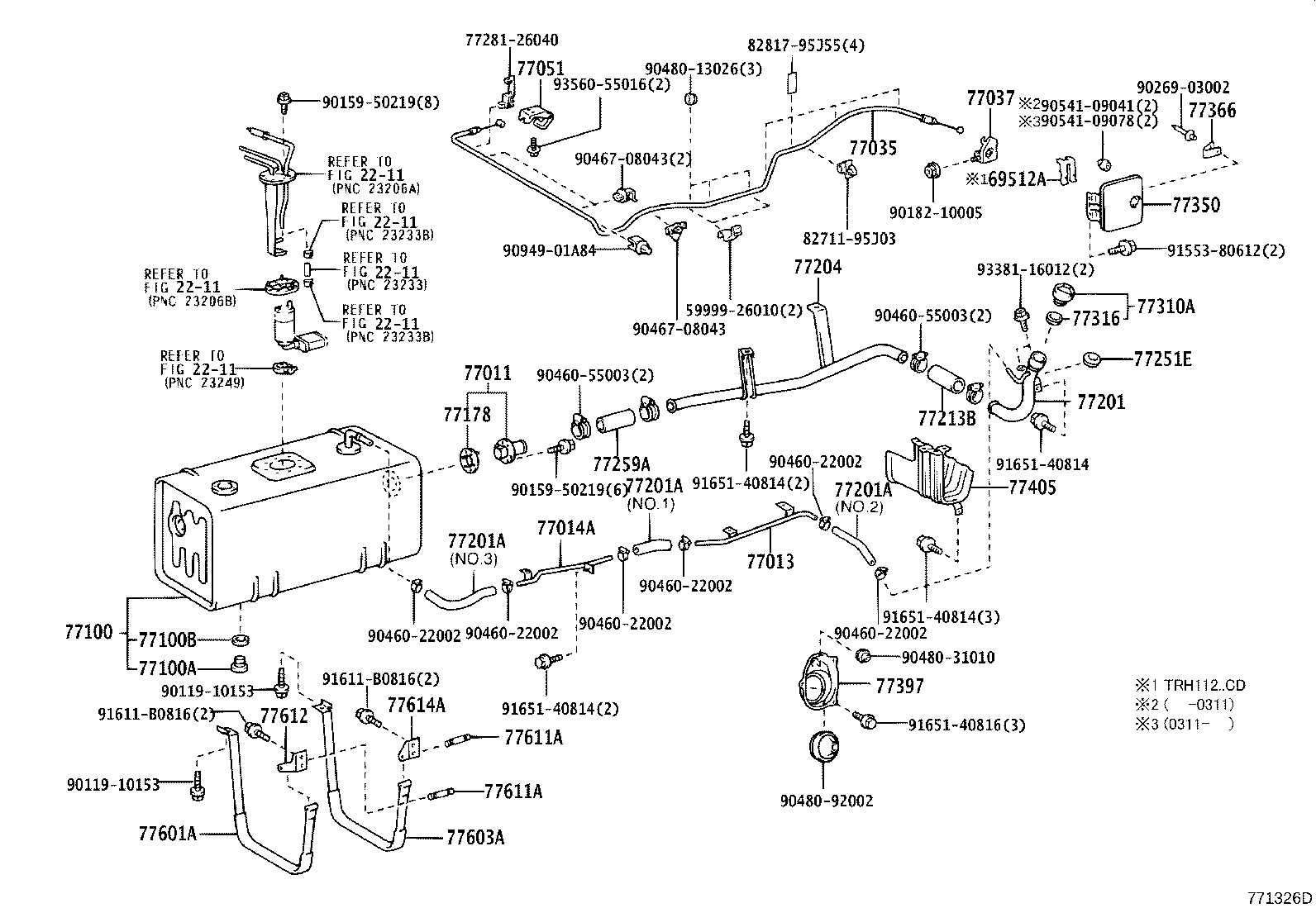

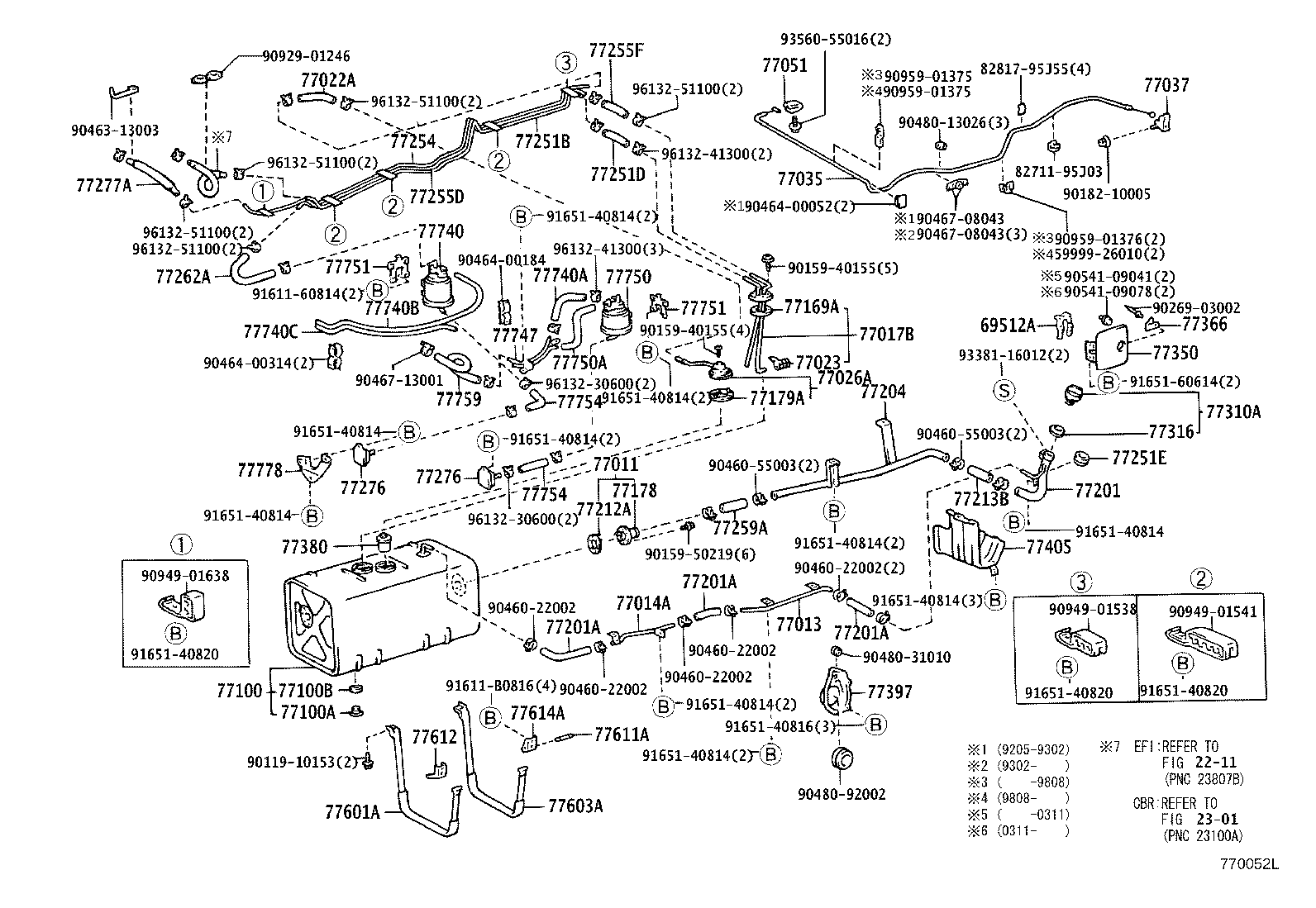

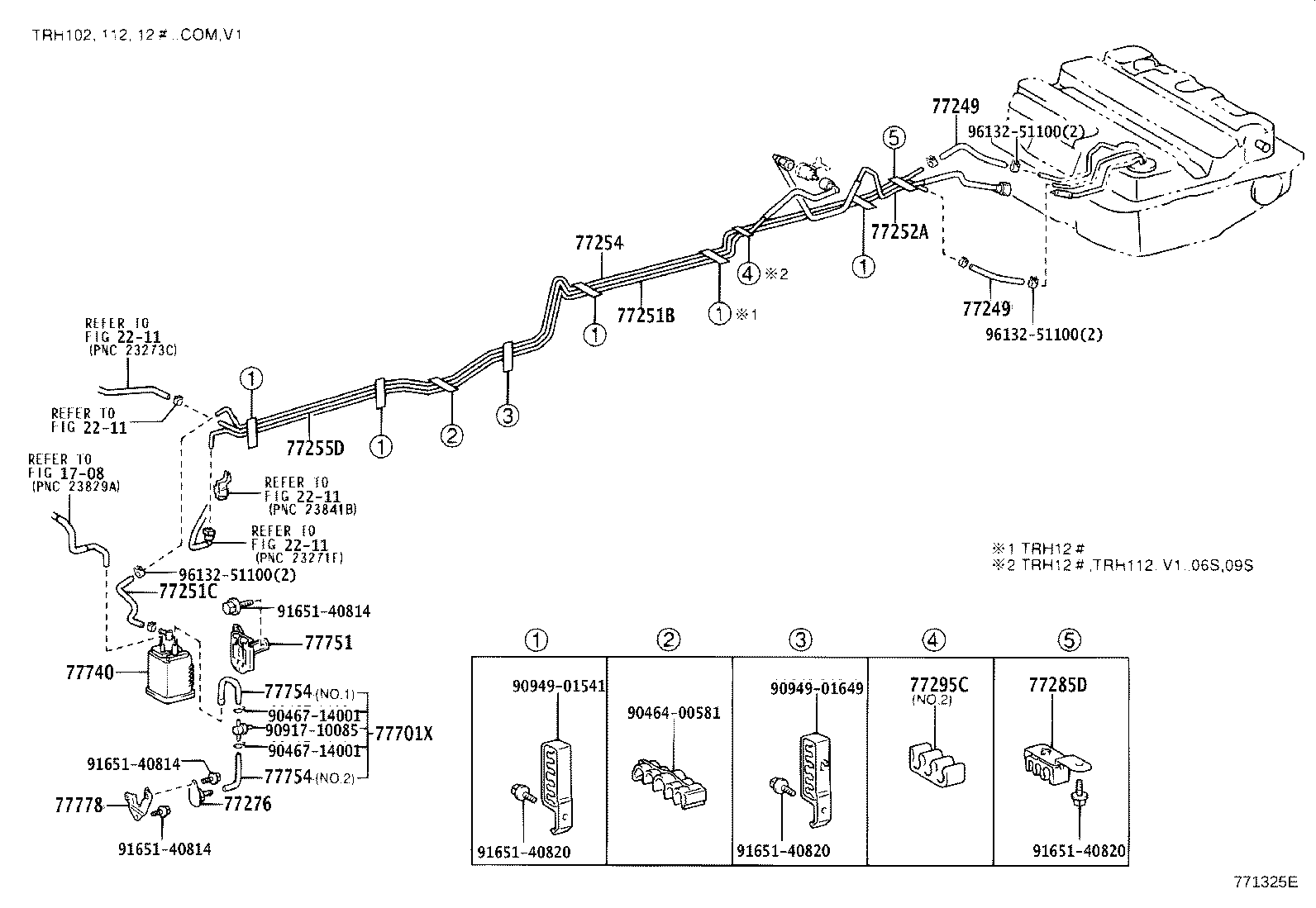

Figure 770047C 770047C 1989-08 → 1992-05 Figure 770051J 770051J 1992-05 → — Figure 770049F 770049F 1989-08 → 1992-05 Figure 770052L 770052L 1992-05 → — Figure 770048M 770048M 1989-08 → 1999-07 Figure 770050L 770050L 1989-08 → 1999-07 Figure 770719K 770719K 1999-07 → — Figure 770087T 770087T 1989-08 → — Figure 771324E 771324E 2003-08 → — Figure 771326D 771326D 2003-08 → — Figure 771325E 771325E 2003-07 → — Figure 771327D 771327D 2003-07 → —

Part groups

PNCDescription
69512A Retainer, Rear Door Lock Cylinder
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77013 Tube Sub-assy, Fuel Tank Breather, NO.2
77014A Tube Sub-assy, Fuel Tank Breather, NO.3
77017B Tube Sub-assy, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77018F Hose, Fuel Tank Evaporation Vent
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77051 Lever Sub-assy, Fuel Lid Open
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77135 Bracket, Check Valve
77148 Bracket, Fuel Tube TO Tank
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77204 Pipe Sub-assy, Fuel Tank Filler, Center
77212A Pipe, Fuel Tank Filler, Lower
77213B Hose, Fuel Tank TO Filler Pipe
77229B Tube, Fuel Tank Evaporation Vent, NO.3
77249 Hose, Fuel Emission
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251D Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
77251E Shield, Fuel Tank Inlet Pipe
77252A Tube, Fuel Main, NO.2
77254 Tube, Fuel Emission, NO.1
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77259A Hose, Fuel(FOR BREATHER TUBE)
77262A Hose, Fuel, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
77276 Protector, Fuel Hose
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77285D Clamp, Fuel Tube, NO.1
77295C Grommet, Fuel Tube
77295D Grommet, Fuel Tube
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77380 Valve Assy, Fuel Cut Off
77397 Plate, Fuel Inlet Pipe Seal
77405 Protector Sub-assy, Fuel Inlet Hose
77411B Support, Fuel Tube Grommet, NO.1
77420 Valve Assy, Fuel Cut Off, NO.2
77451 Protector, Fuel Inlet Hose
77601A Band Sub-assy, Fuel Tank, NO.1
77603A Band Sub-assy, Fuel Tank, NO.2
77611A Pin (FOR FUEL TANK BAND)
77612 Bracket Sub-assy, Fuel Tank
77614A Band, Fuel Tank, NO.2 RH
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77701X Hose Sub-assy, Canister Outlet, NO.1
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77747 Pipe, Charcoal Canister, NO.1
77750 Canister Assy, Charcoal
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
77759 Hose, Charcoal Canister
77778 Bracket, Fuel Hose Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
