Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

25 part groups · 7 illustrations

Illustrations

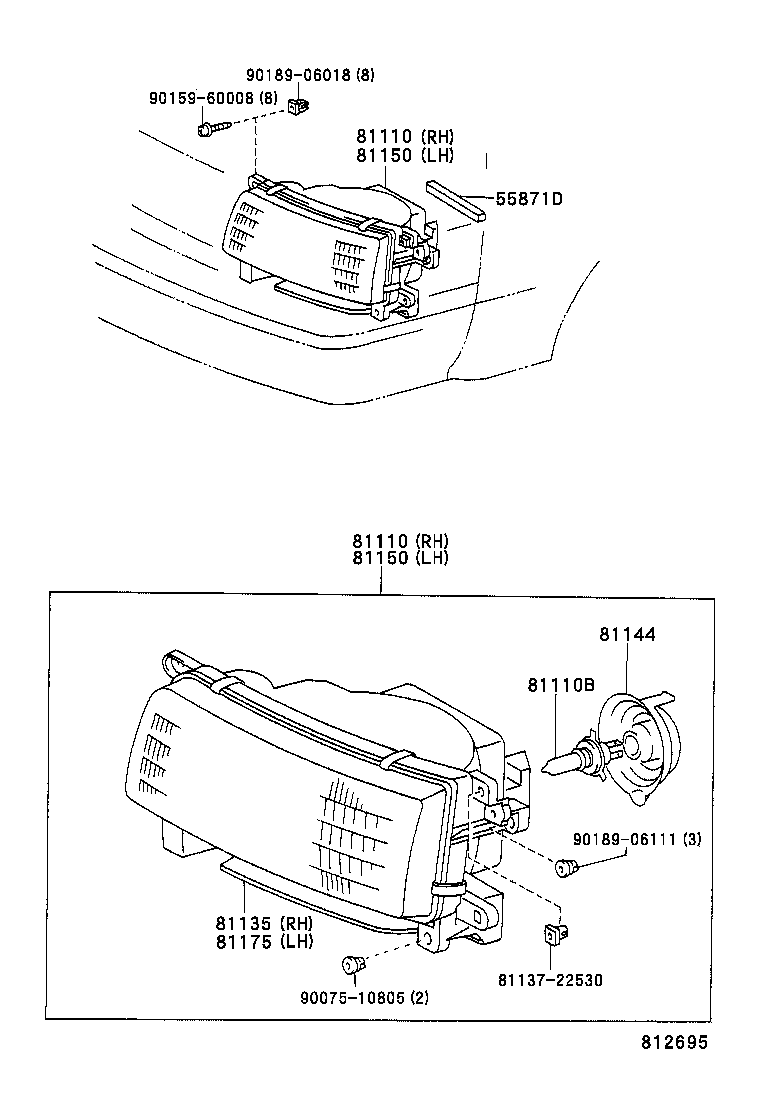

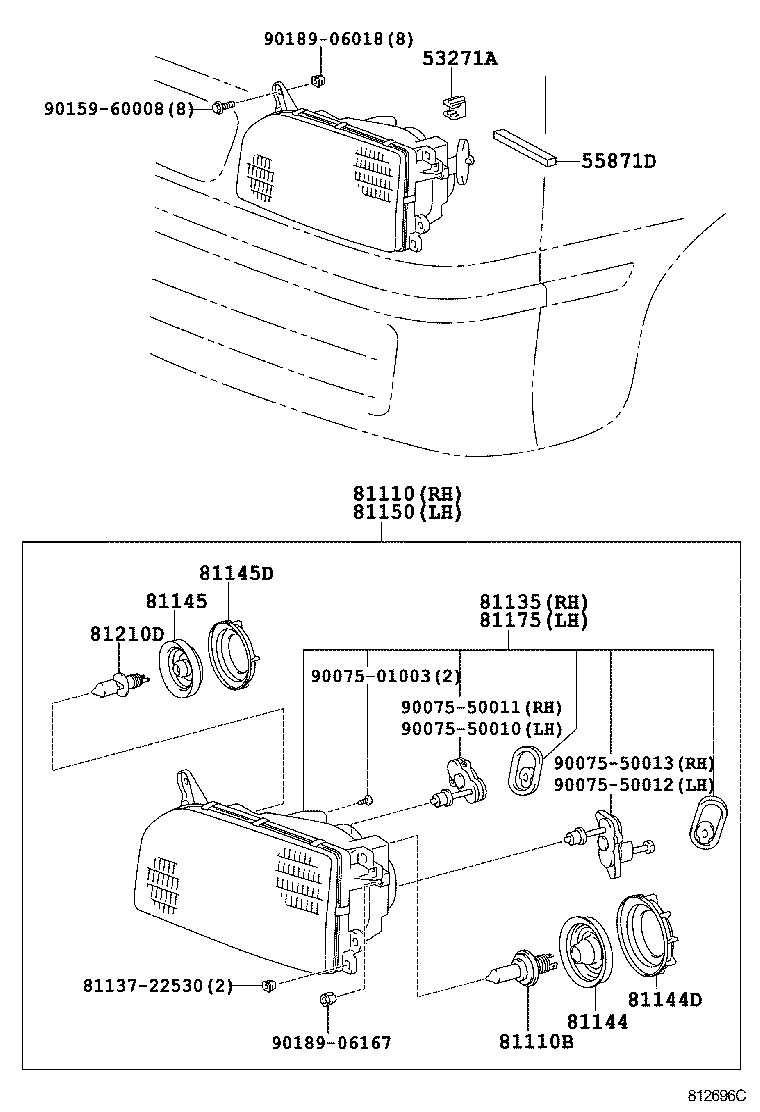

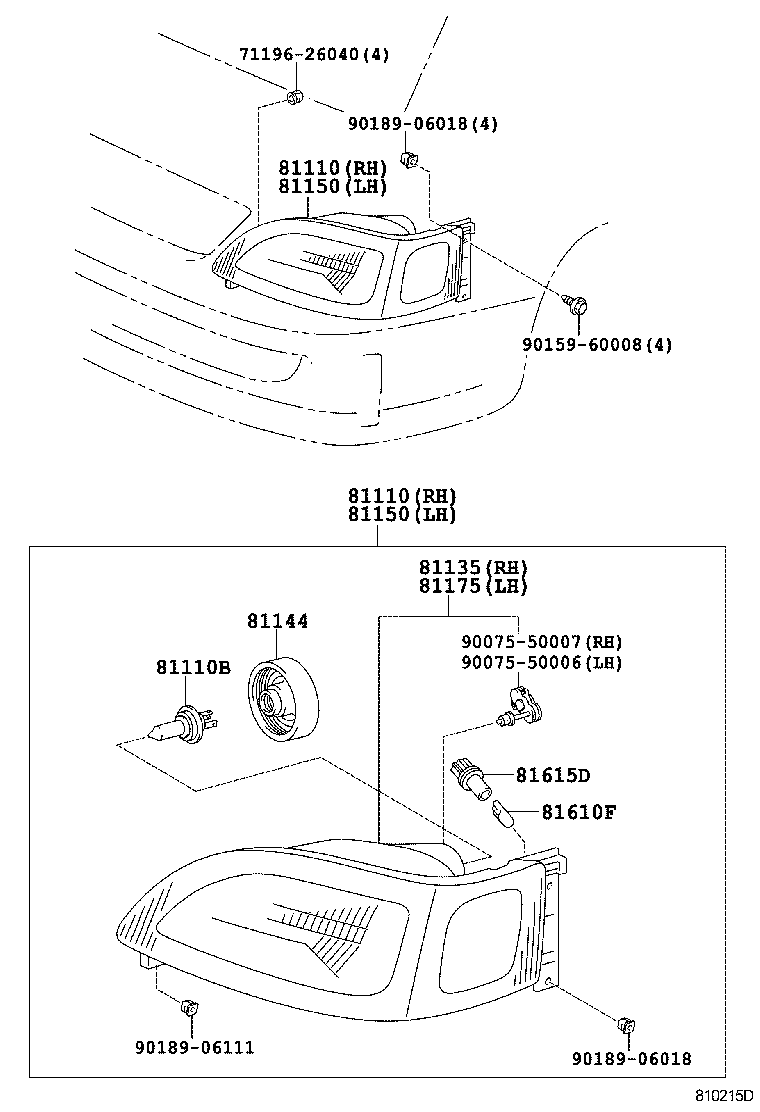

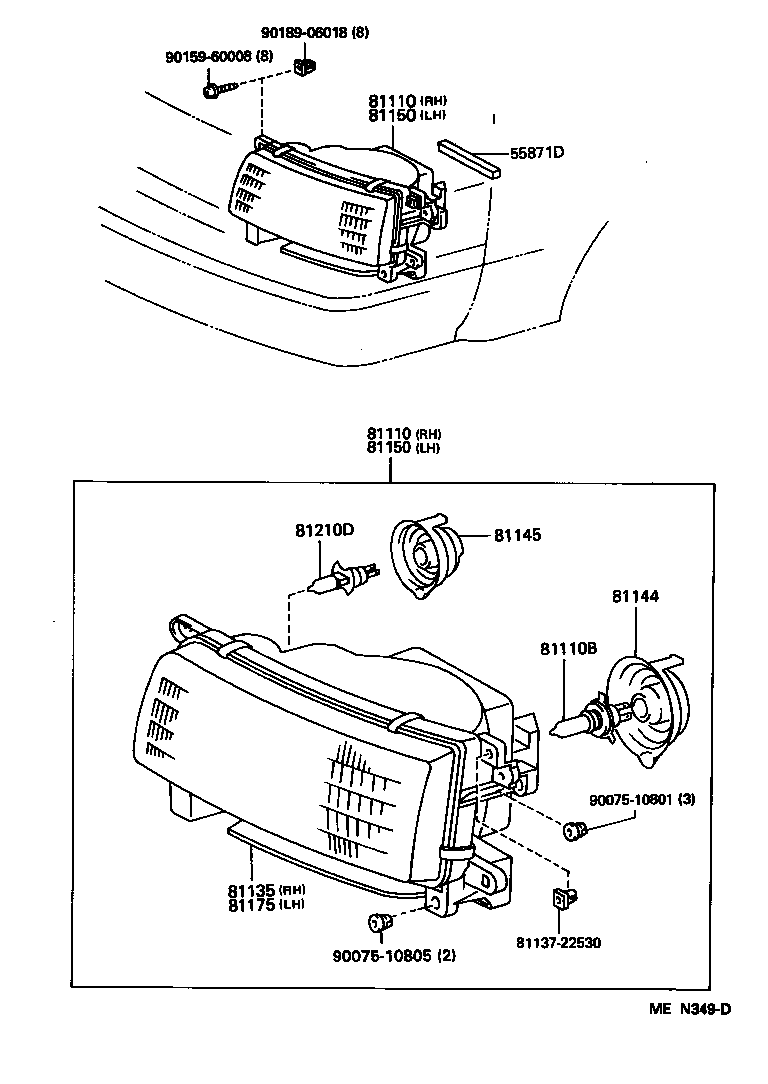

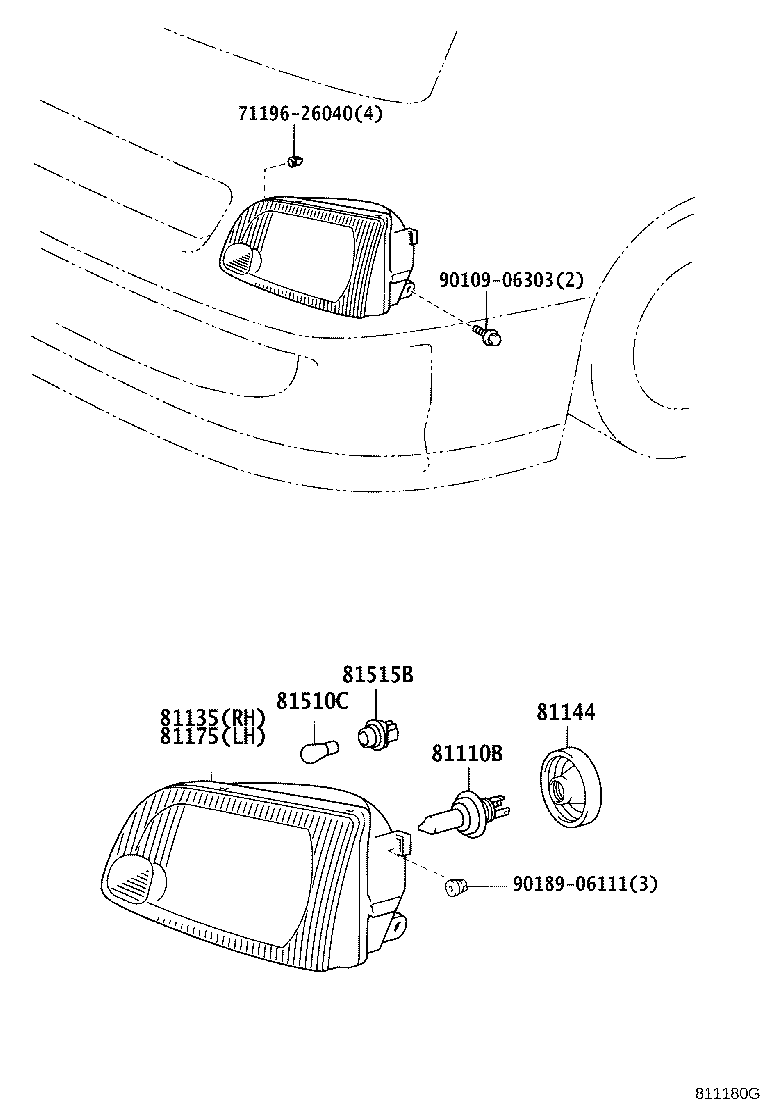

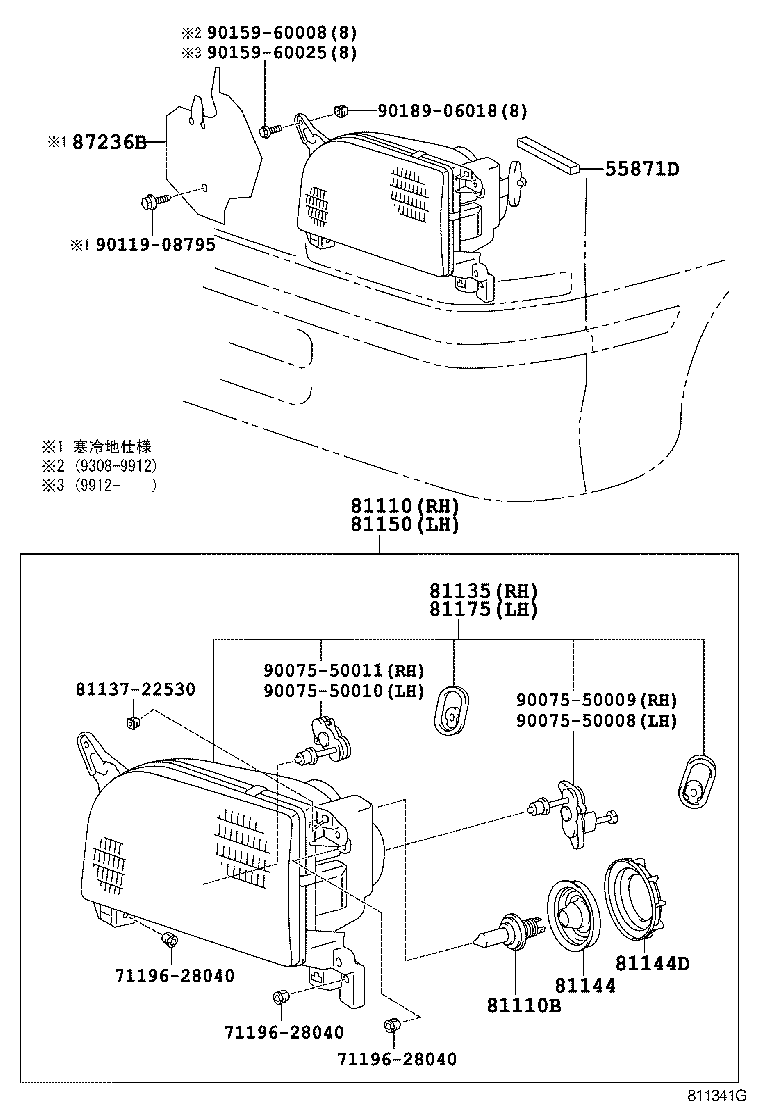

Figure 812694A 812694A 1989-08 → 1993-08 Figure 812695 812695 1989-08 → 1993-08 Figure MEN349D MEN349D 1989-08 → 1993-08 Figure 812696C 812696C 1993-08 → 1996-08 Figure 810215D 810215D 1996-08 → 1999-07 Figure 811341G 811341G 1993-08 → — Figure 811180G 811180G 1999-07 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
55871D Seal, Air Duct
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144D Cap, Headlamp Locking
81145 Cover, Headlamp, NO.2
81145D Cap, Headlamp Locking NO.2
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
87236B Cover, Heater Blower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
