Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07
Interior Lamp
44 part groups · 3 illustrations
Part groups

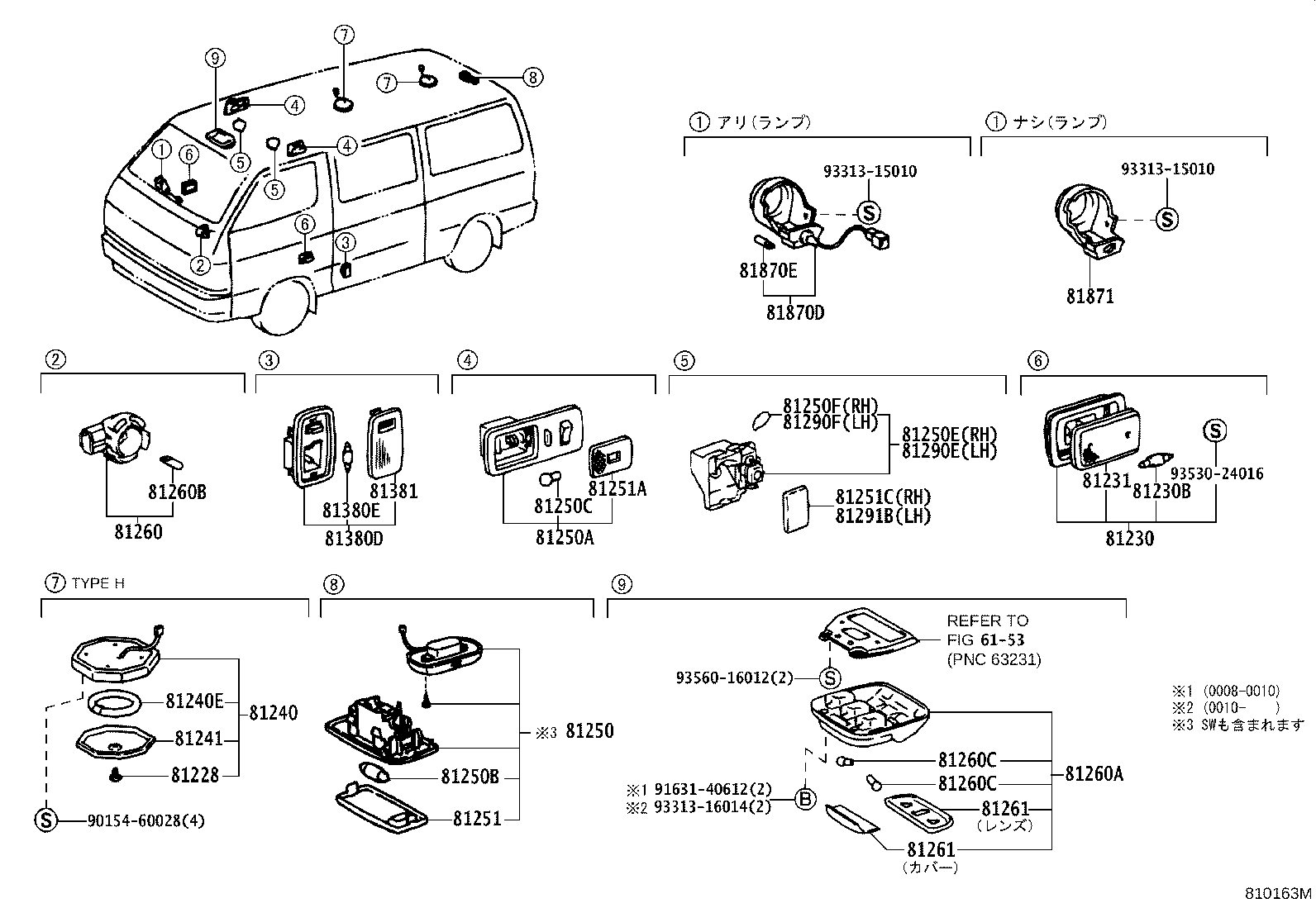

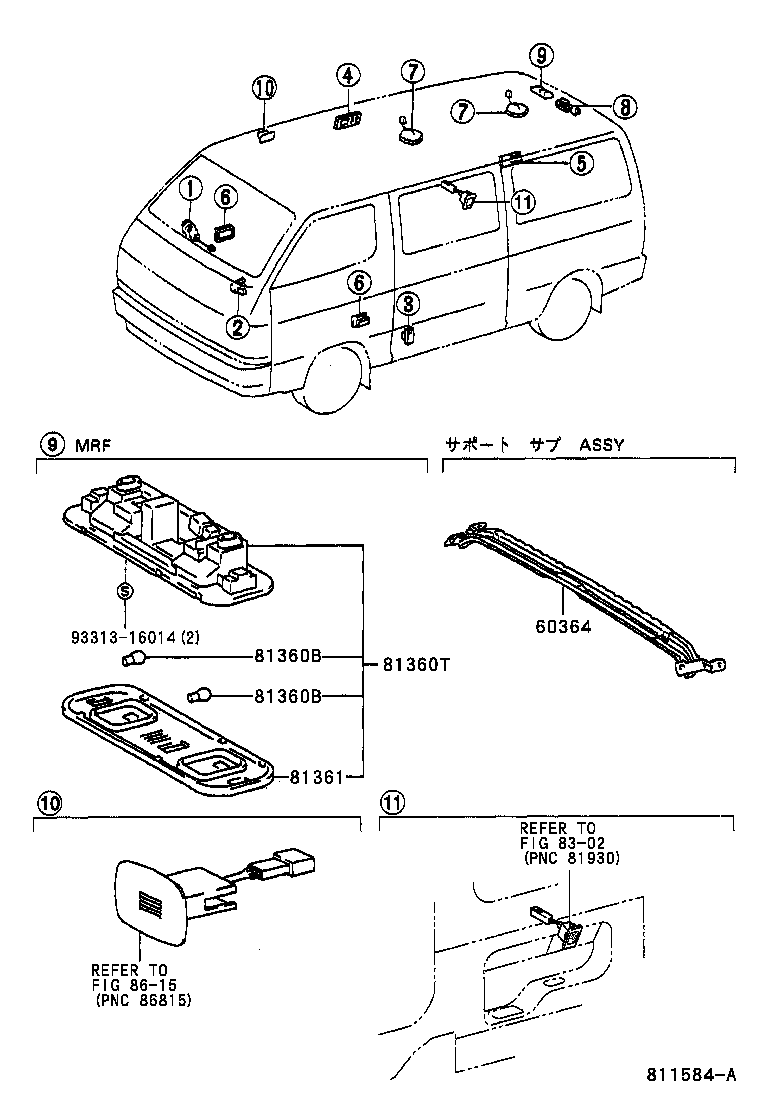

| PNC | Description |
|---|---|
| 60364 | Support Sub-assy, Room Lamp, Rear |
| 81017 | Lens Sub-assy, Rear Room, RH |
| 81018 | Lens Sub-assy, Rear Room, LH |
| 81228 | Stopper, Lens |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81231 | Lens, Courtesy Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240E | Bulb, Room Lamp, NO.2 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81243 | Body, Room Lamp, NO.1 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250A | Lamp Assy, Spot |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81250C | Bulb, Spot Lamp |
| 81250E | Lamp Assy, Rear Room, RH NO.2 |
| 81250F | Bulb, Rear Room Lamp RH NO.2 |
| 81251 | Lens, Room Lamp, NO.2 |
| 81251A | Lens, Spot Lamp |
| 81251C | Lens, Rear Room Lamp, RH NO.2 |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81290 | Lamp Assy, Room, NO.3 |
| 81290B | Bulb, Room Lamp, NO.3 |
| 81290E | Lamp Assy, Rear Room, LH NO.2 |
| 81290F | Bulb, Rear Room Lamp LH NO.2 |
| 81291B | Lens, Rear Room Lamp, LH NO.2 |
| 81360B | Bulb, Step OR Spot Lamp |
| 81360T | Lamp Assy, Spot |
| 81361 | Lens, Step Lamp |
| 81363 | Lens, Room Lamp, Outer |
| 81364A | Lens, Room Lamp, Inner |
| 81365A | Knob, Room Lamp Switch |
| 81366C | Base, Room Lamp Switch |
| 81380D | Lamp Assy, Step |
| 81380E | Bulb (FOR STEP LAMP) |
| 81381 | Lens, Step Lamp |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
| 81871 | Lens, Key Illumination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
