Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

72 part groups · 27 illustrations

Illustrations

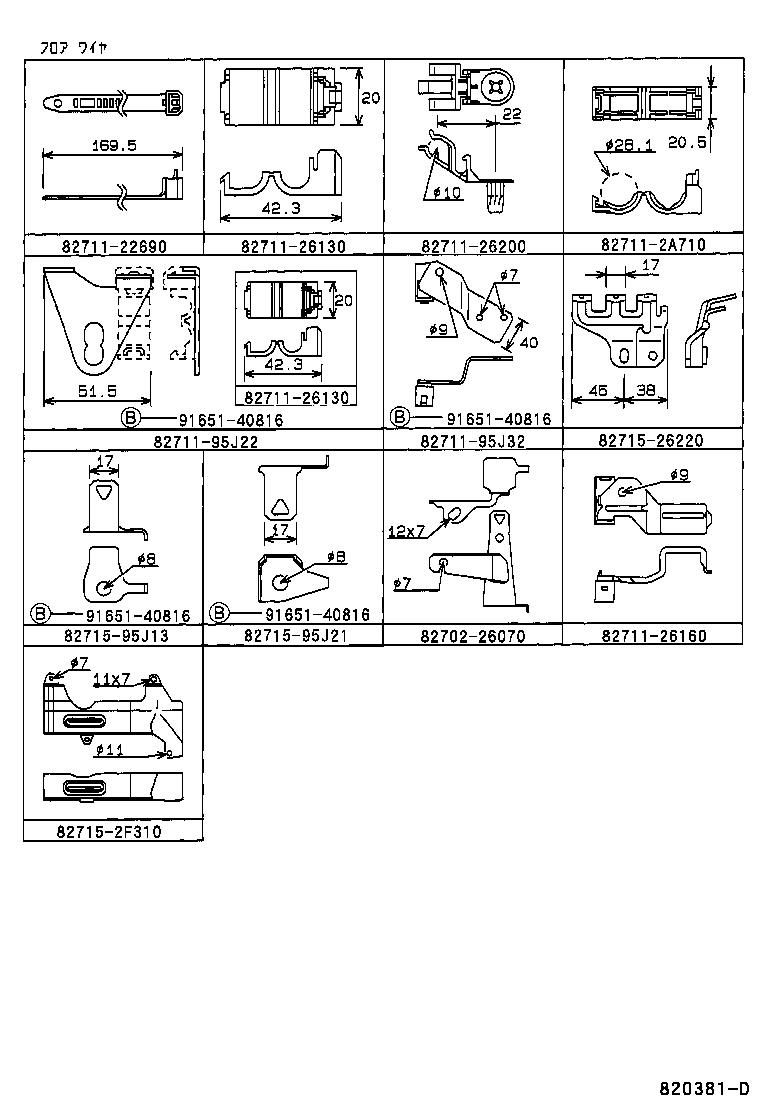

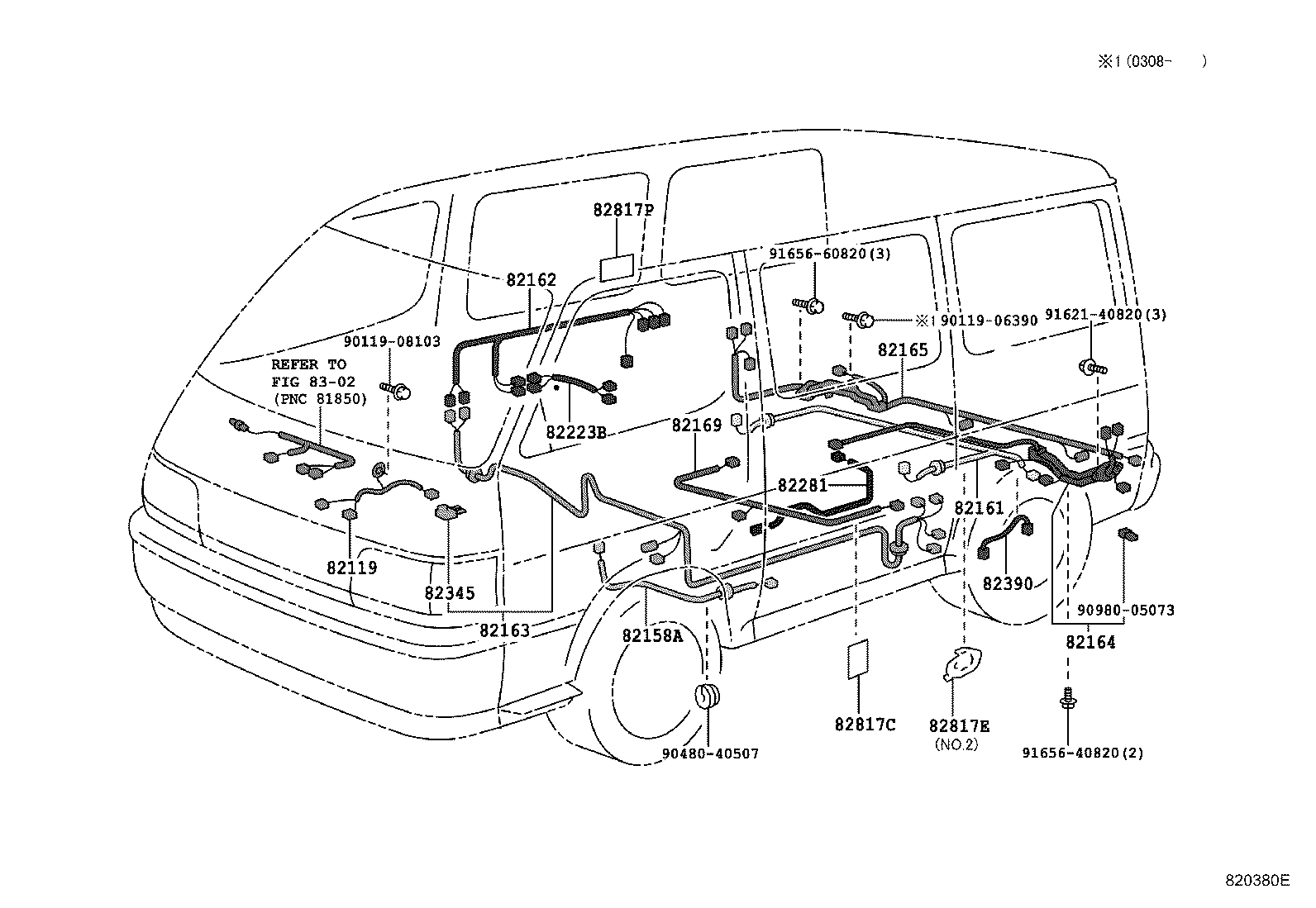

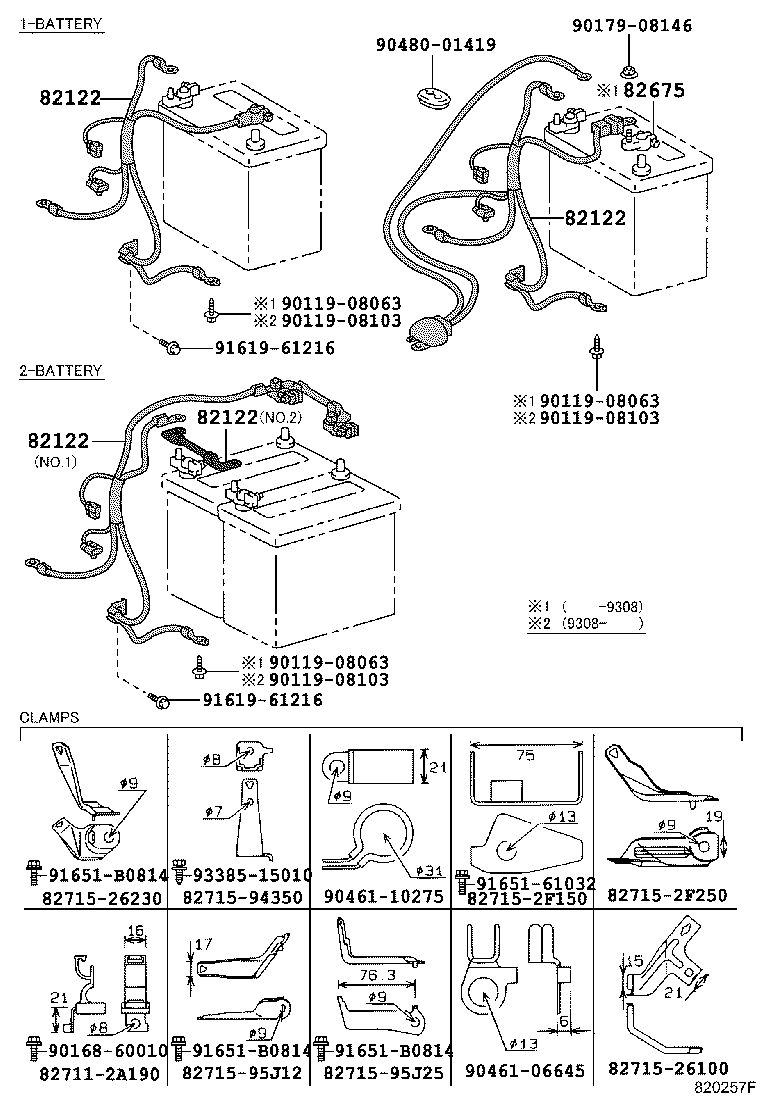

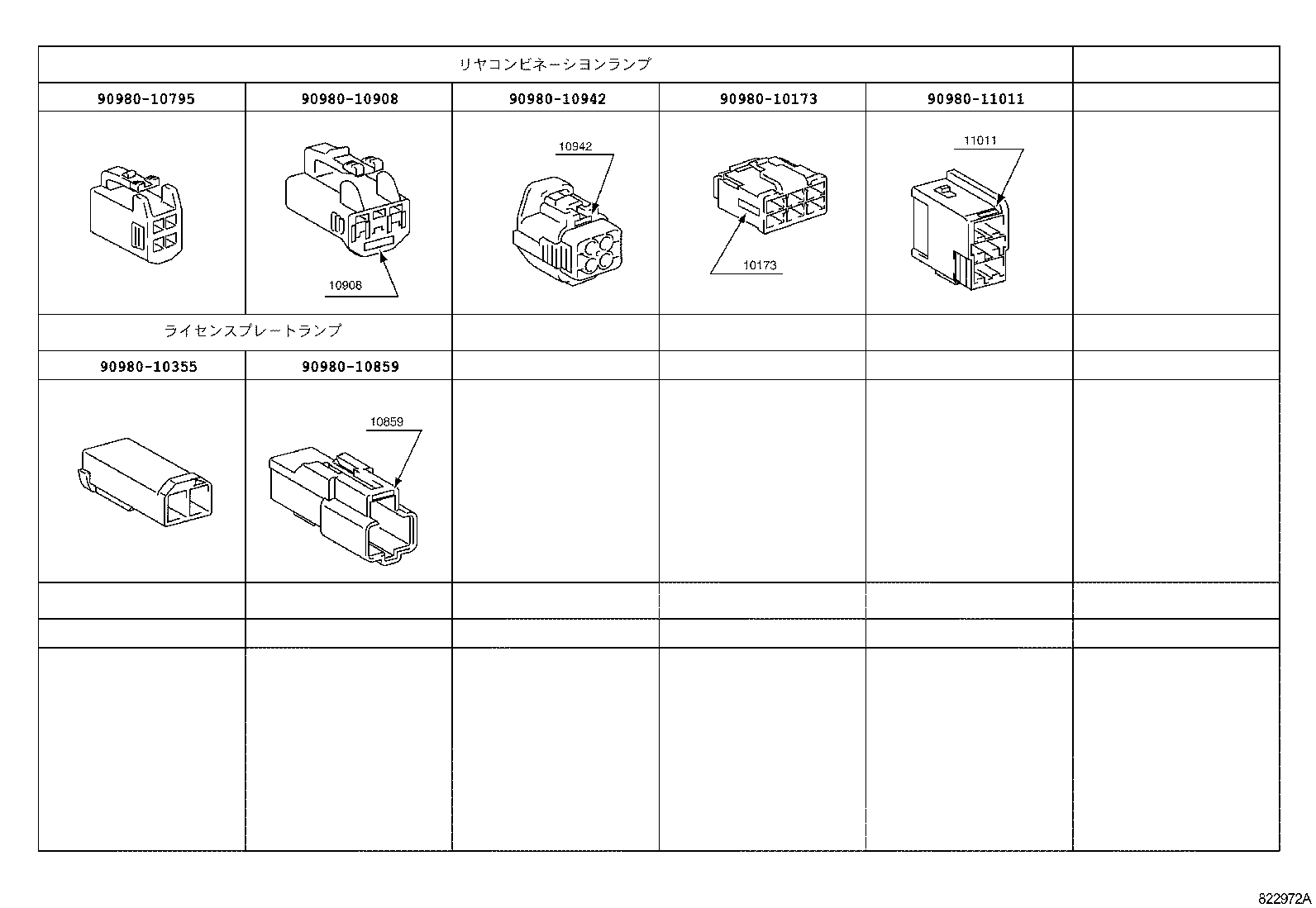

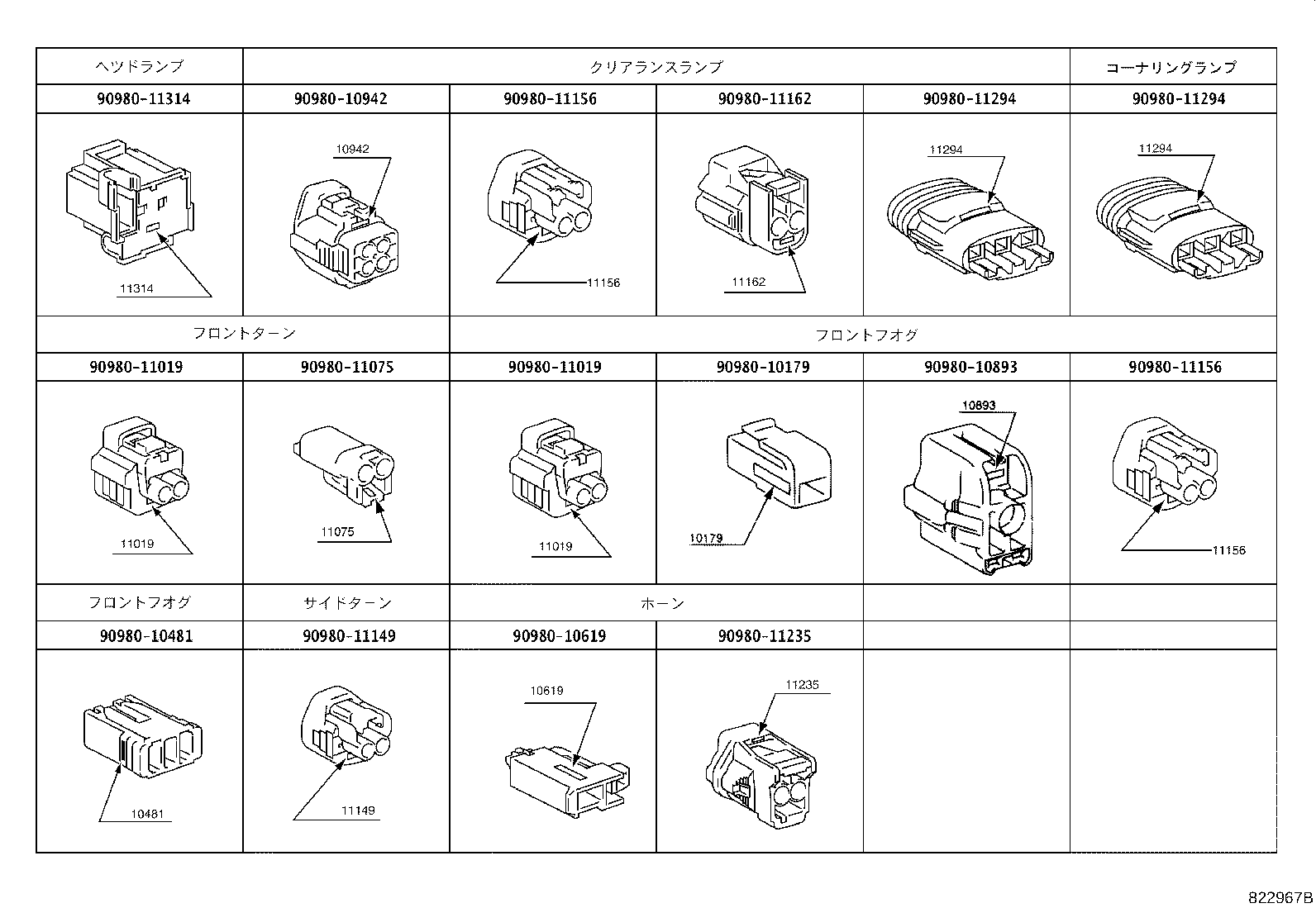

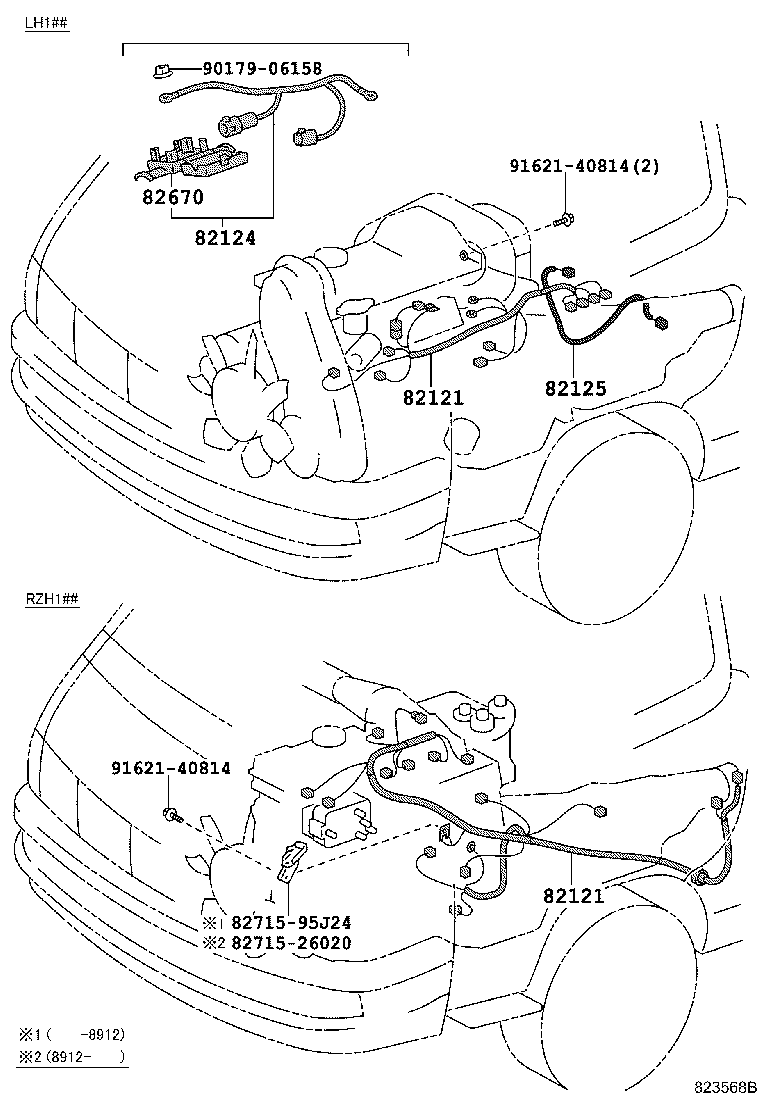

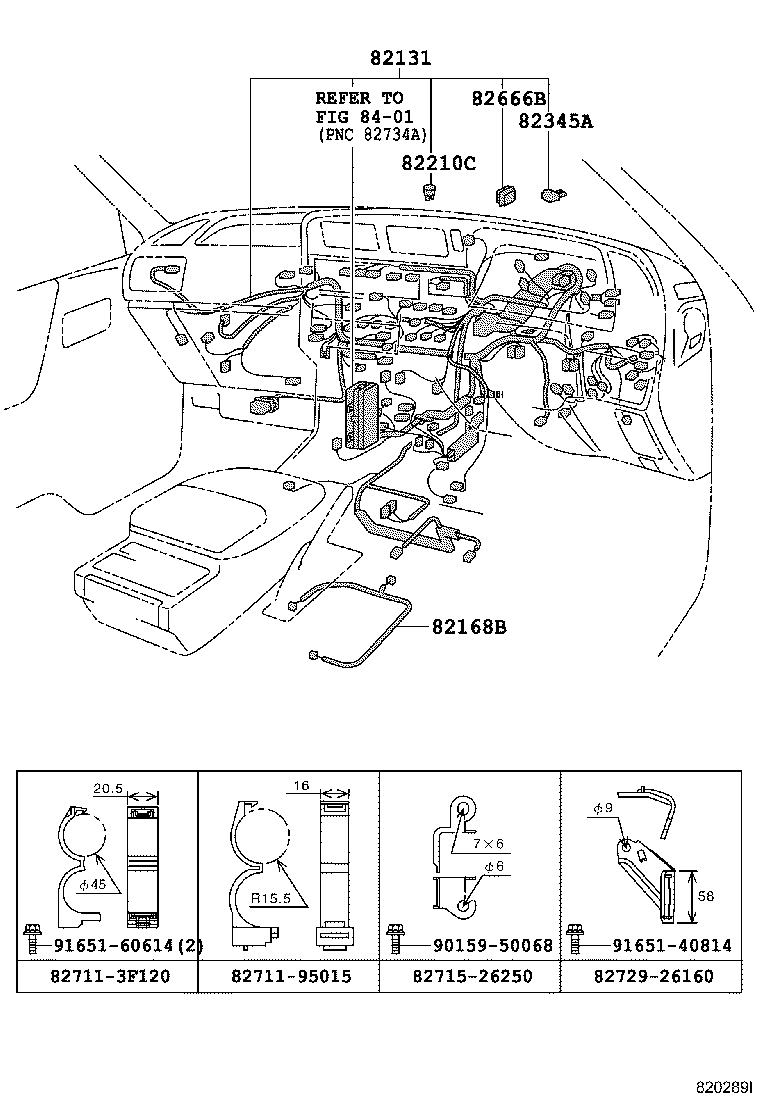

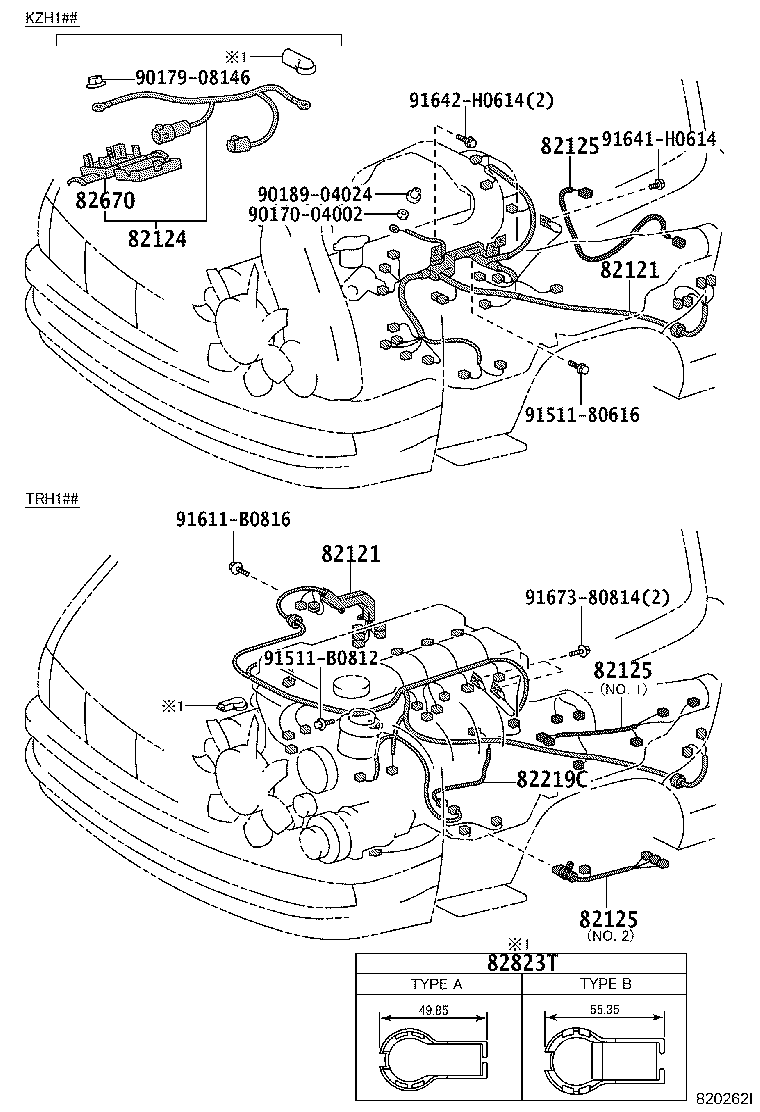

Figure 820304J 820304J 1989-08 → — Figure 820264L 820264L 1989-08 → — Figure 823567B 823567B 2003-08 → — Figure 821431C 821431C 1989-08 → — Figure 821850A 821850A 1989-08 → — Figure 823568B 823568B 1989-08 → — Figure 820262I 820262I 1993-08 → — Figure 820288F 820288F 1989-08 → — Figure 823566A 823566A 1989-08 → — Figure 820291E 820291E 1993-08 → — Figure 820289I 820289I 1996-08 → — Figure 823569B 823569B 1989-08 → — Figure 825527A 825527A 1989-08 → — Figure 823729 823729 2003-08 → — Figure 820257F 820257F 1989-08 → — Figure 820290D 820290D 1989-08 → — Figure 820380E 820380E 1989-08 → — Figure 820381D 820381D 1989-08 → — Figure 821851A 821851A 1989-08 → — Figure 820305C 820305C 1989-08 → — Figure 820292D 820292D 1989-08 → — Figure 821857C 821857C 1989-08 → — Figure 821864C 821864C 1993-08 → — Figure 823702A 823702A 2003-08 → — Figure 821852B 821852B 1989-08 → — Figure 822967B 822967B 1989-08 → — Figure 822972A 822972A 1989-08 → —

Part groups

PNCDescription

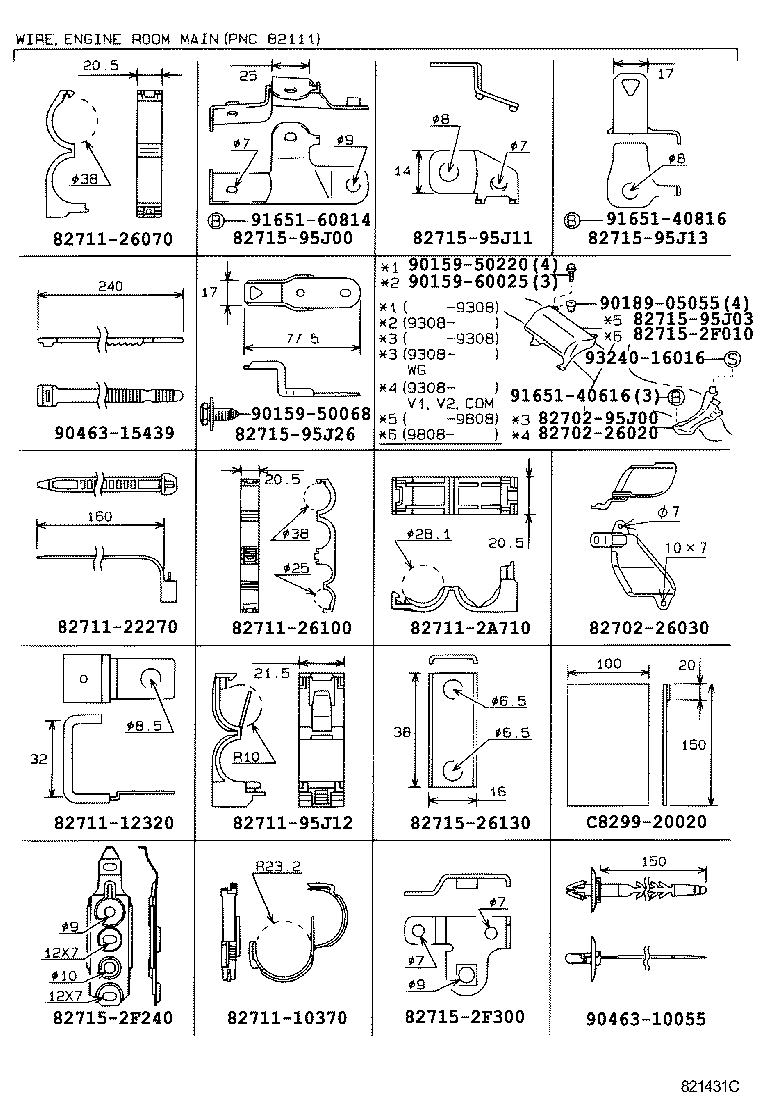

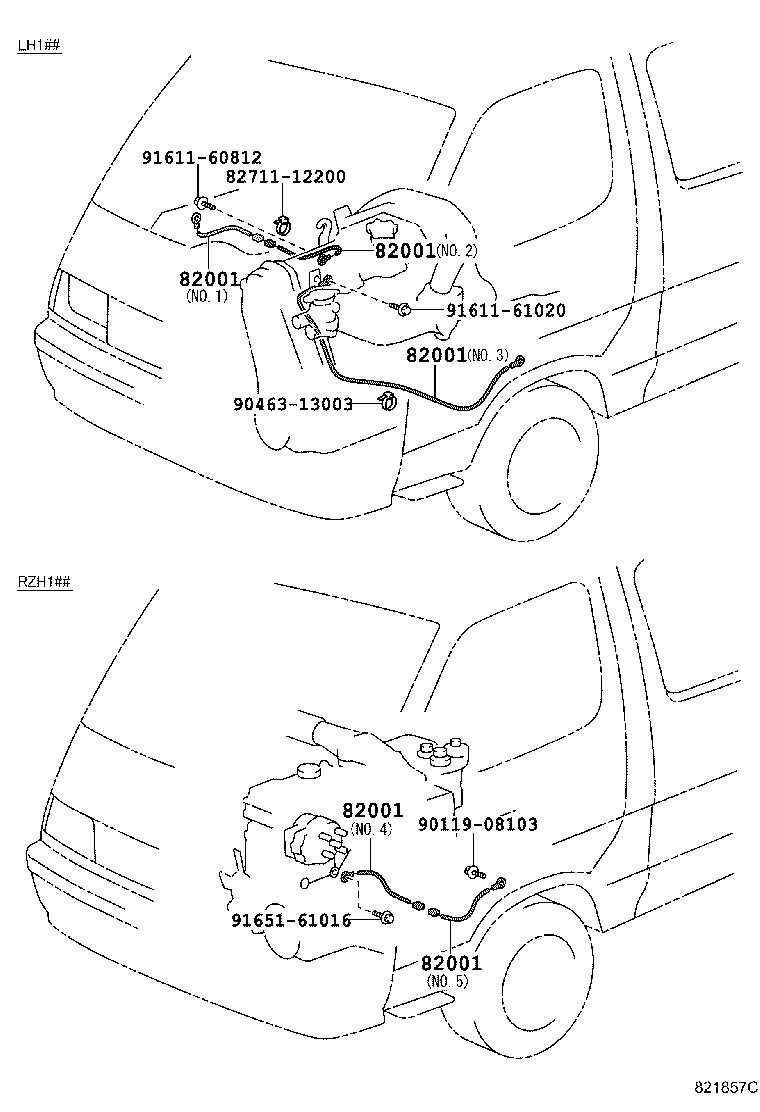

82001 Cable, Bond, NO.1

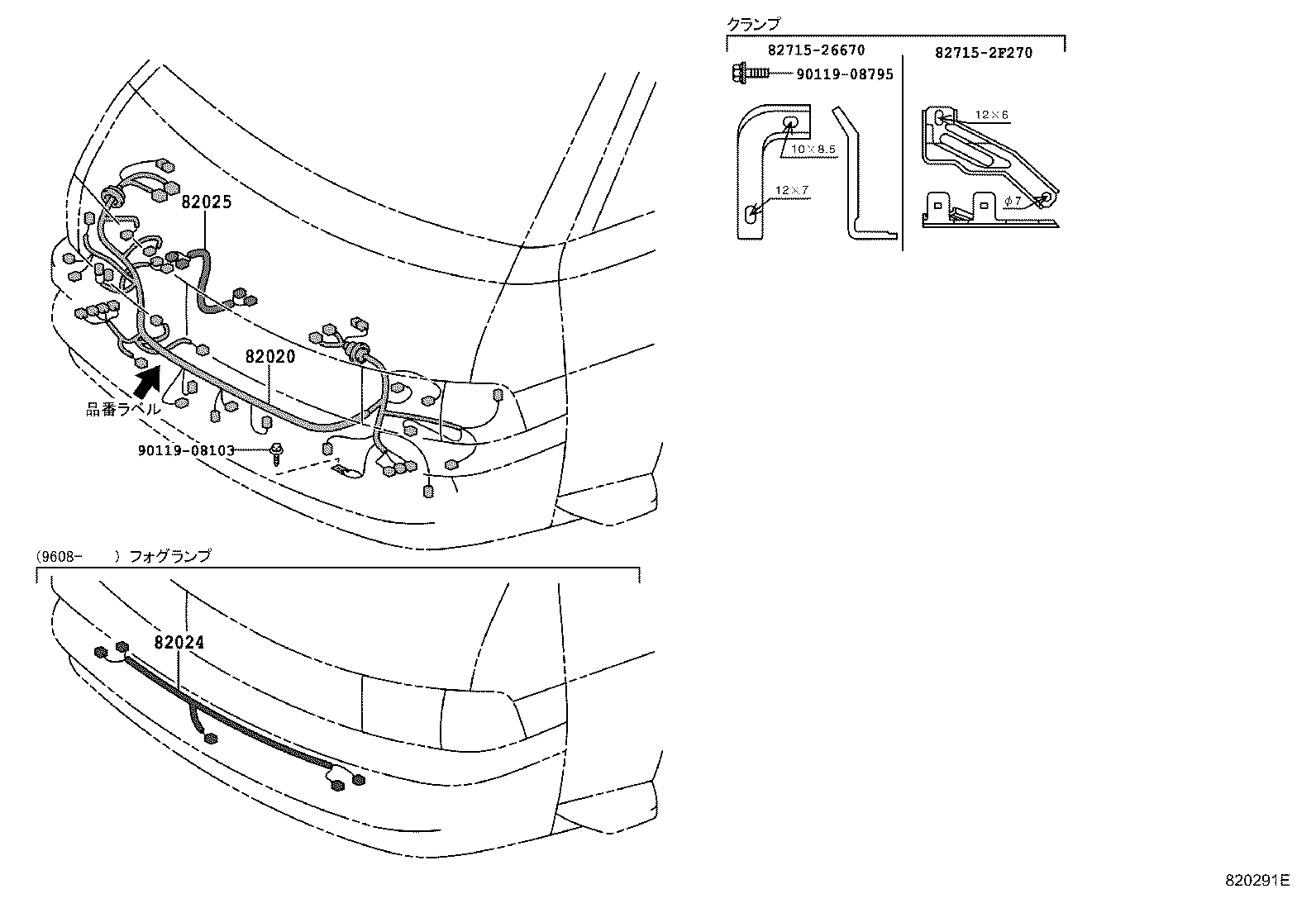

82020 Harness Assy, Wiring Cowl TO Headlamp
82024 Wire Sub-assy, Fog Lamp Feed
82025 Wiring Sub-assy, Front Side

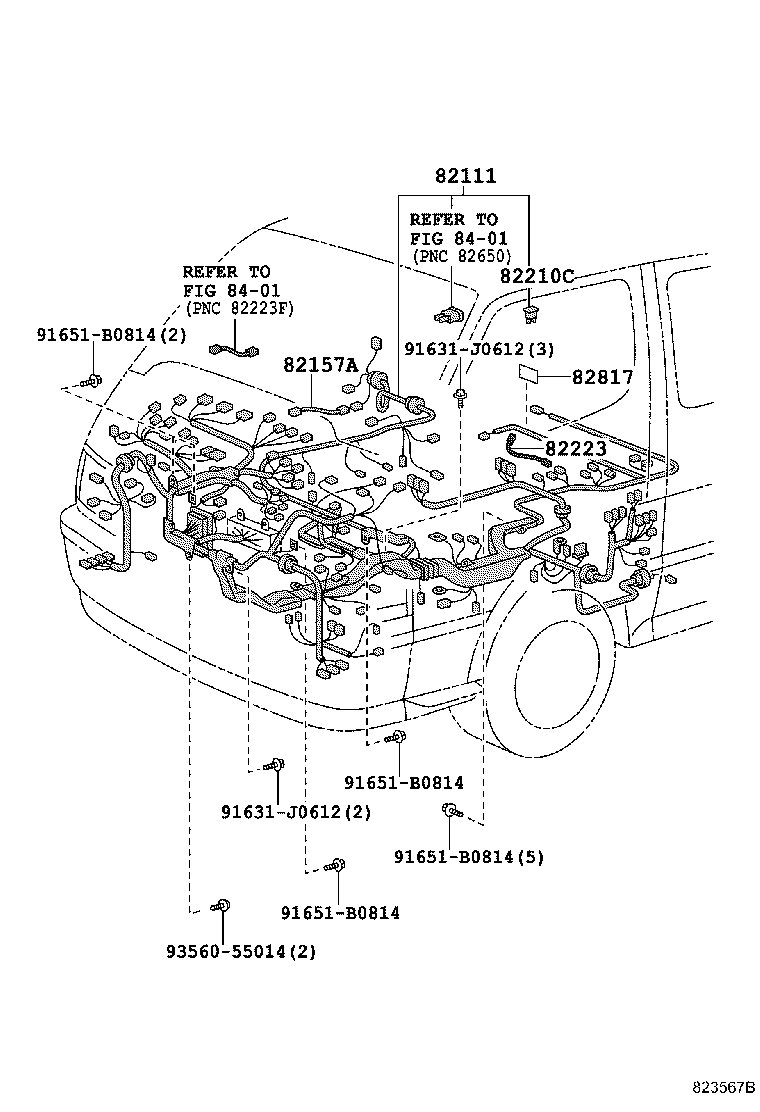

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4

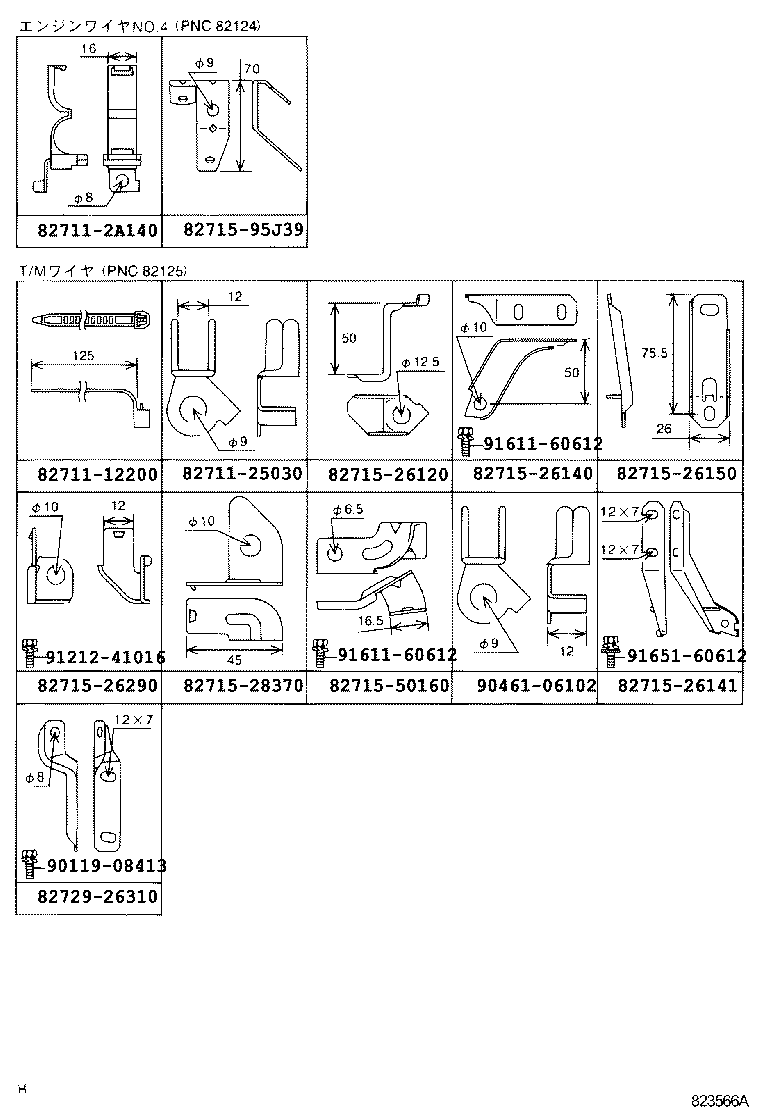

82119 Wire, Sensor
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82125 Wire, Transmission

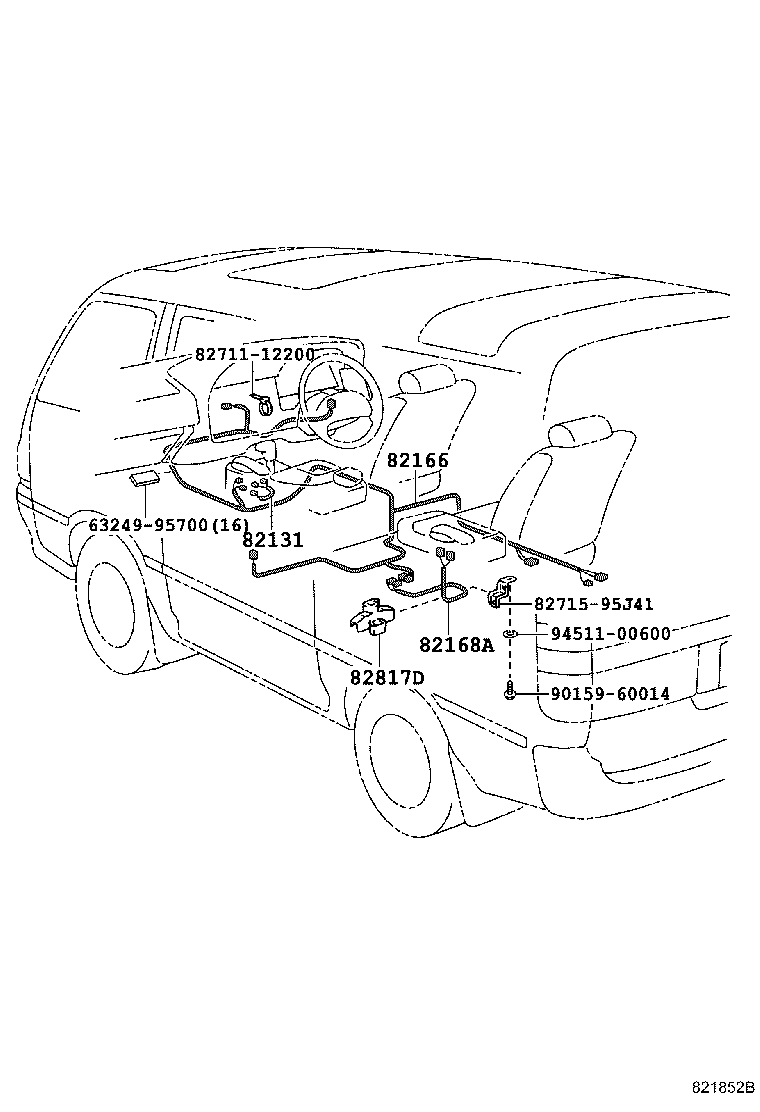

82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3

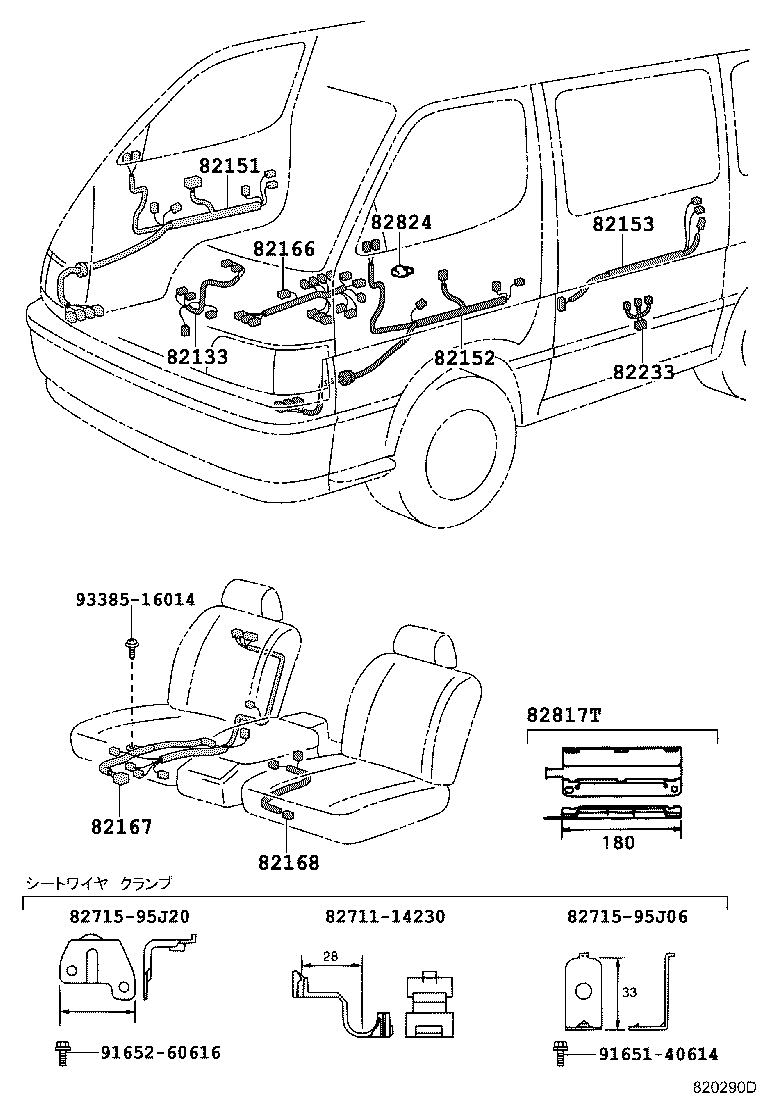

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82157A Wire, Step Panel, RH
82158A Wire, Step Panel, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82168A Wire, Seat, NO.2(FOR TELEPHONE)
82168B Wire, Seat, NO.2 (SUB WIRE)
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82175 Wire, Roof, NO.5

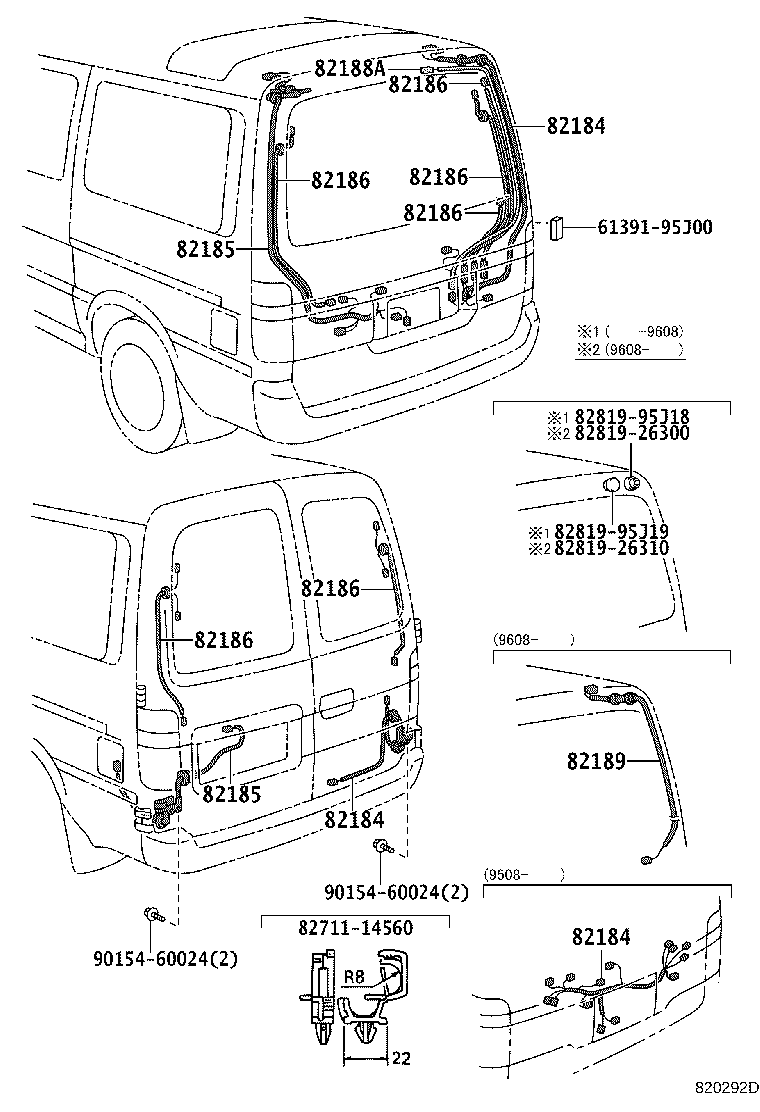

82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82210C Fusible Link
82214A Wire, Lamp
82219A Wire, Sensor
82219C Wire, Sensor
82219E Wire, Sensor
82223 Wire, Switch
82223B Wire, Switch, NO.2
82233 Wire, Computer
82241C Wire, Relay
82281 Wire, Gage
82345 Diode
82345A Diode
82390 Wire Assy, Cigarette Lighter
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82670 Block Assy, Junction, NO.1
82675 Terminal, Junction
82719 Cover, Wire Hanress Service Hole(FOR CENTER PILLAR)
82719A Cover, Wire Hanress Service Hole(FOR ROOF BACK)
82781 Wire, Auto Curtain, NO.1
82817 Protector, Wiring Harness, NO.1
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82822 Bracket,Connector Block
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
