Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

59 part groups · 30 illustrations

Illustrations

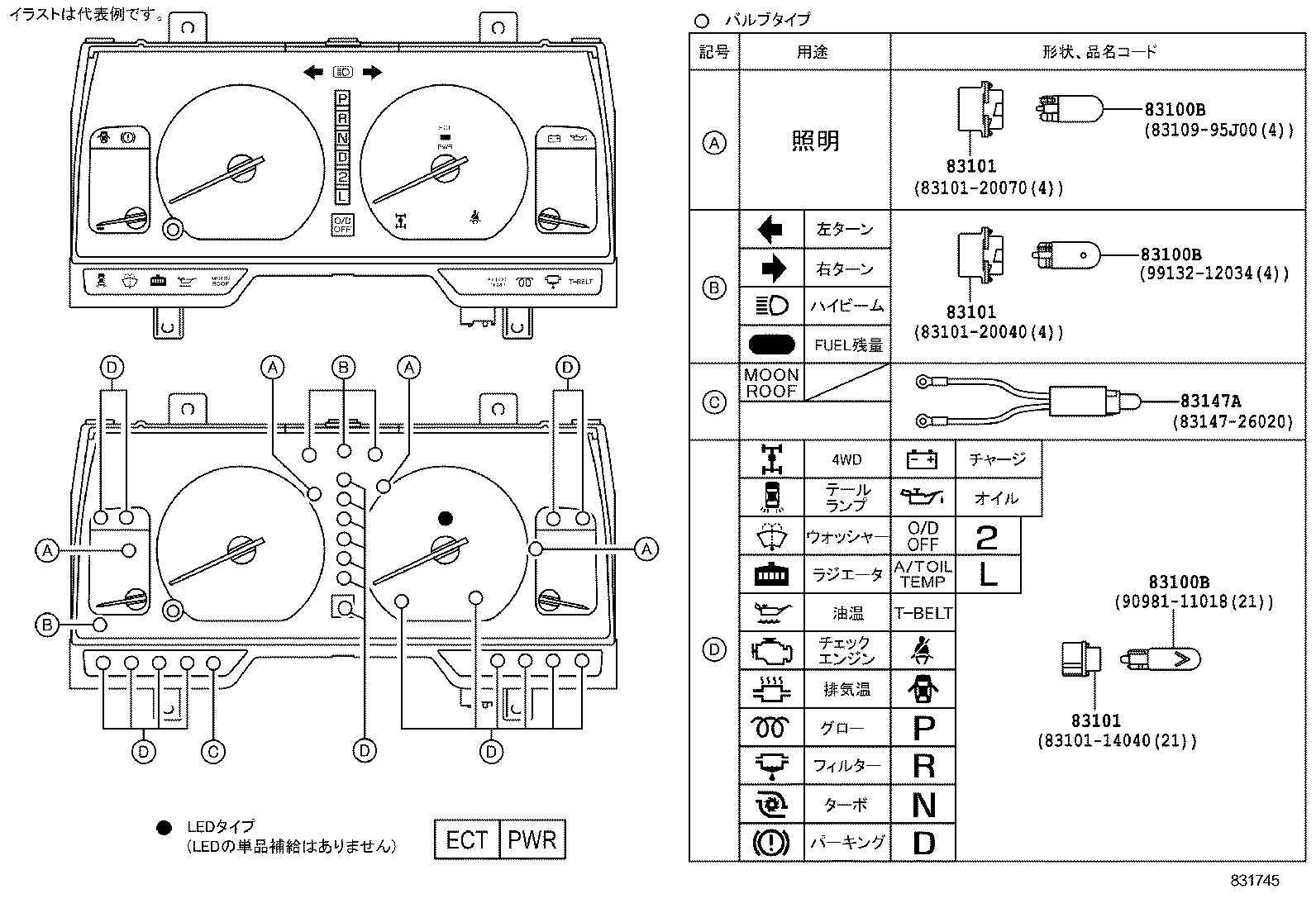

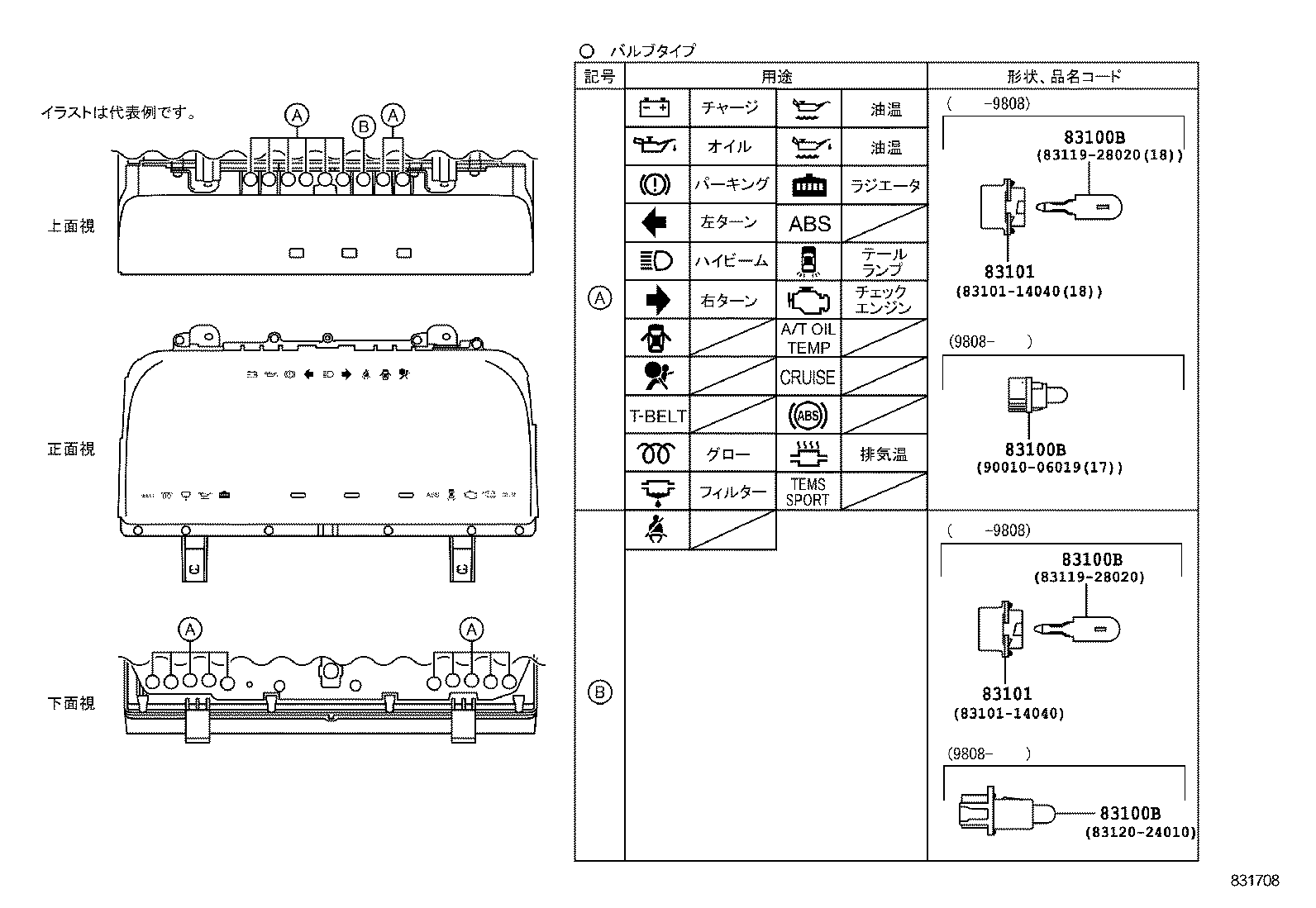

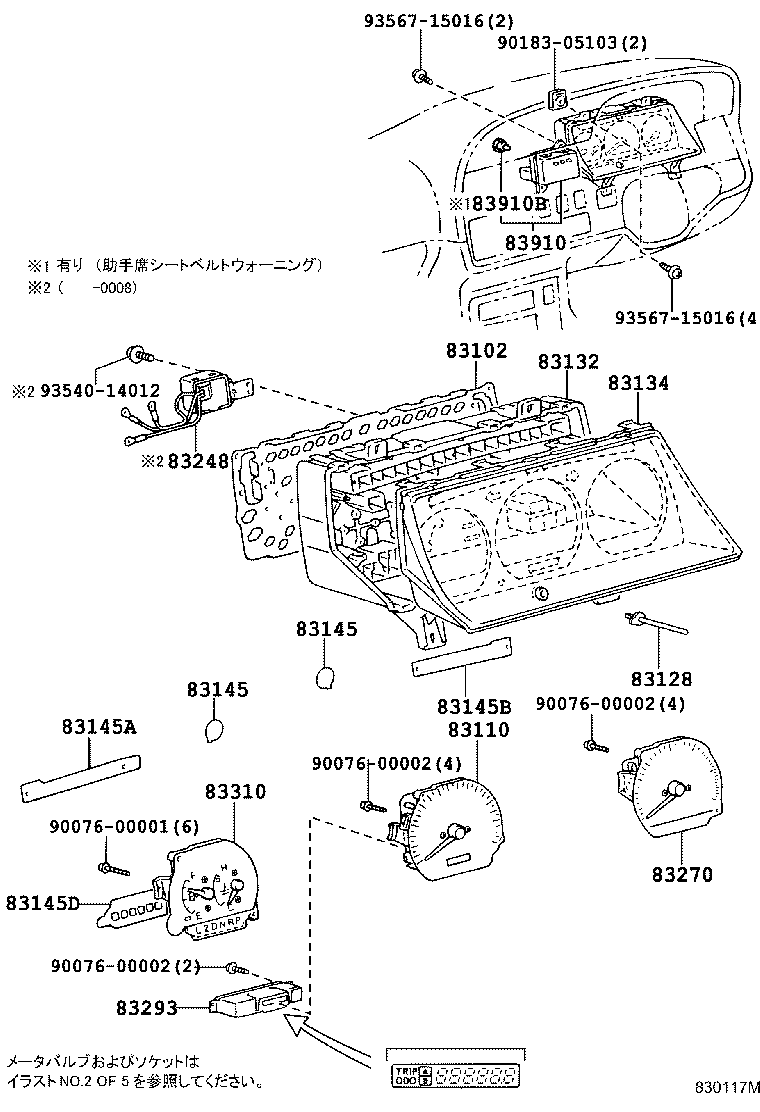

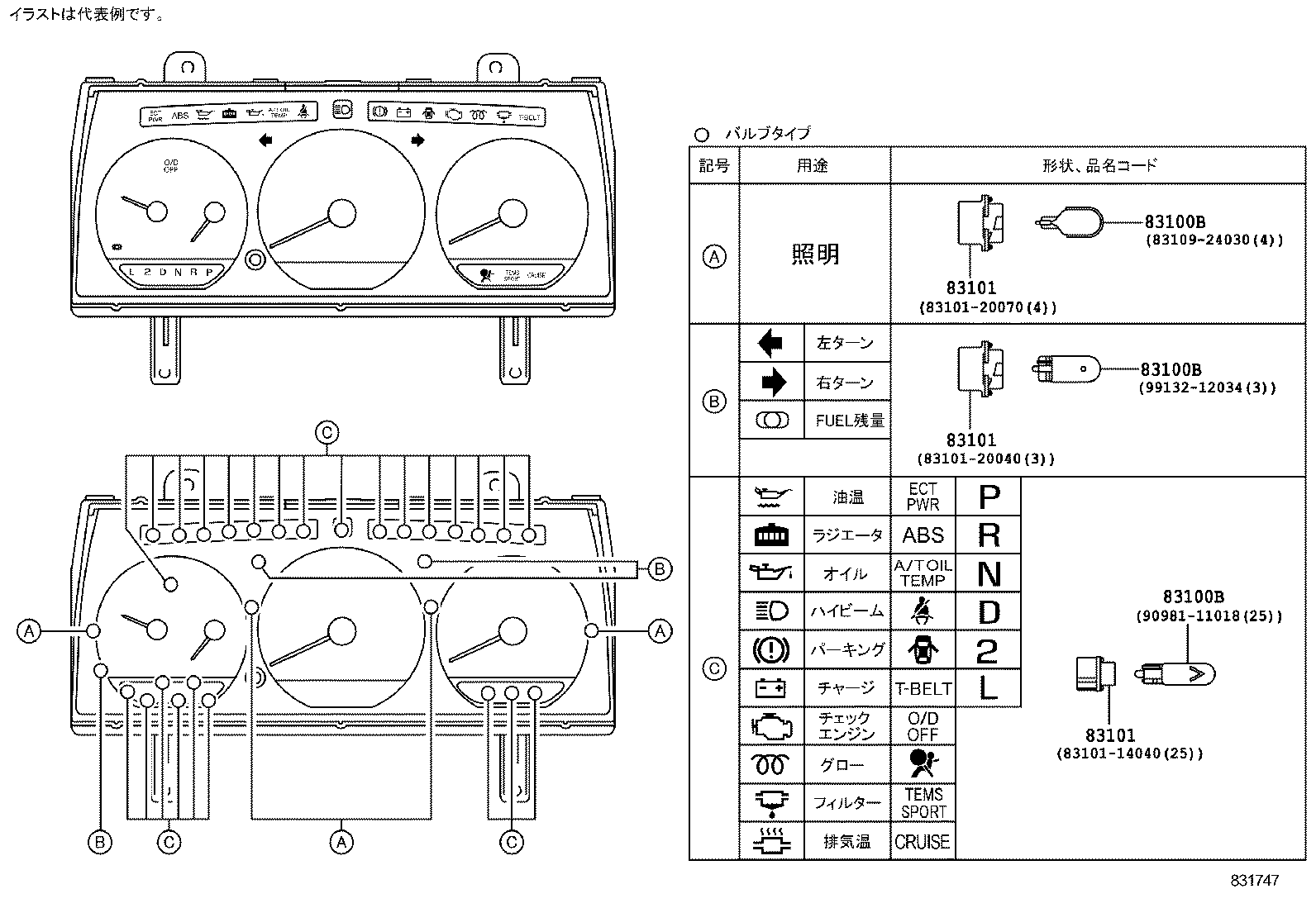

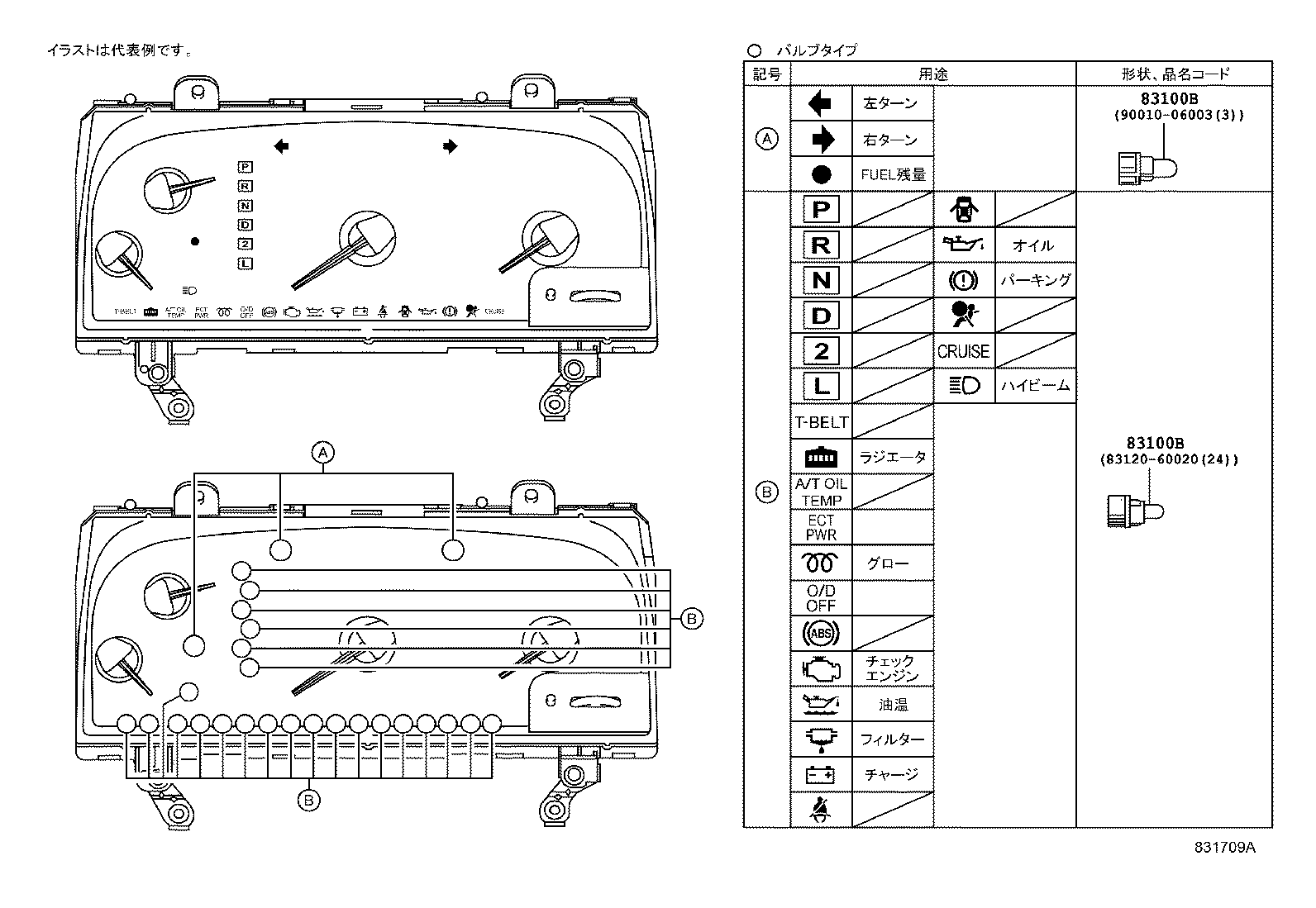

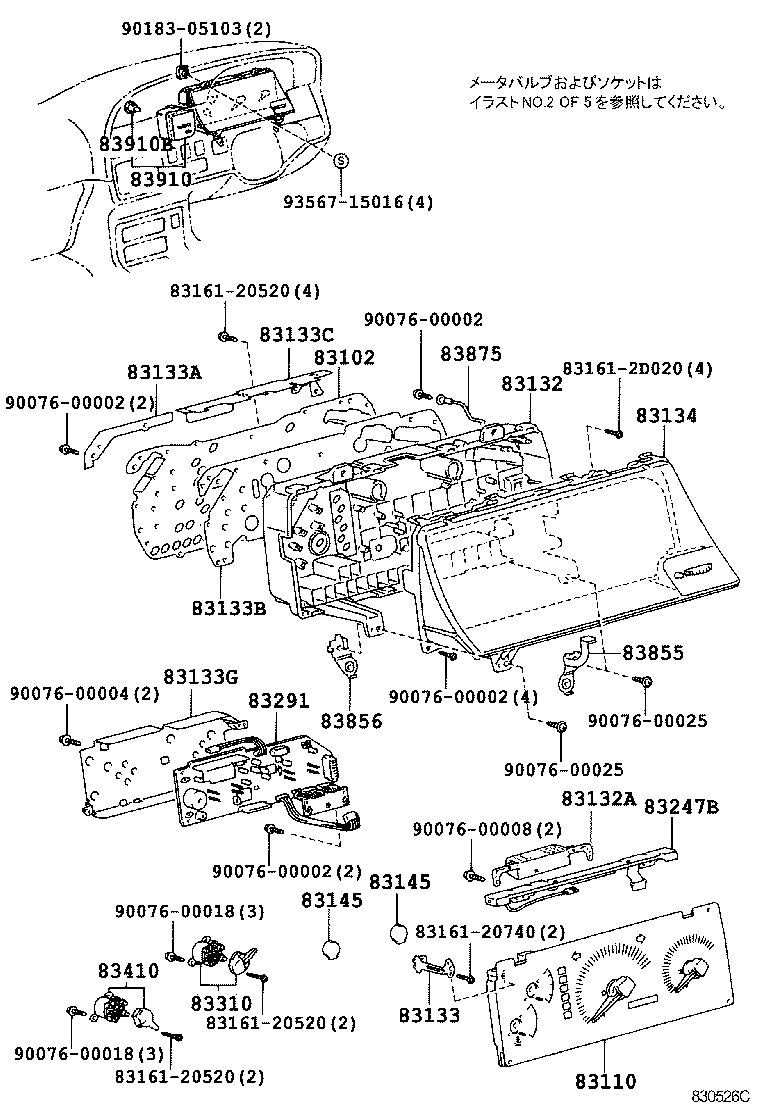

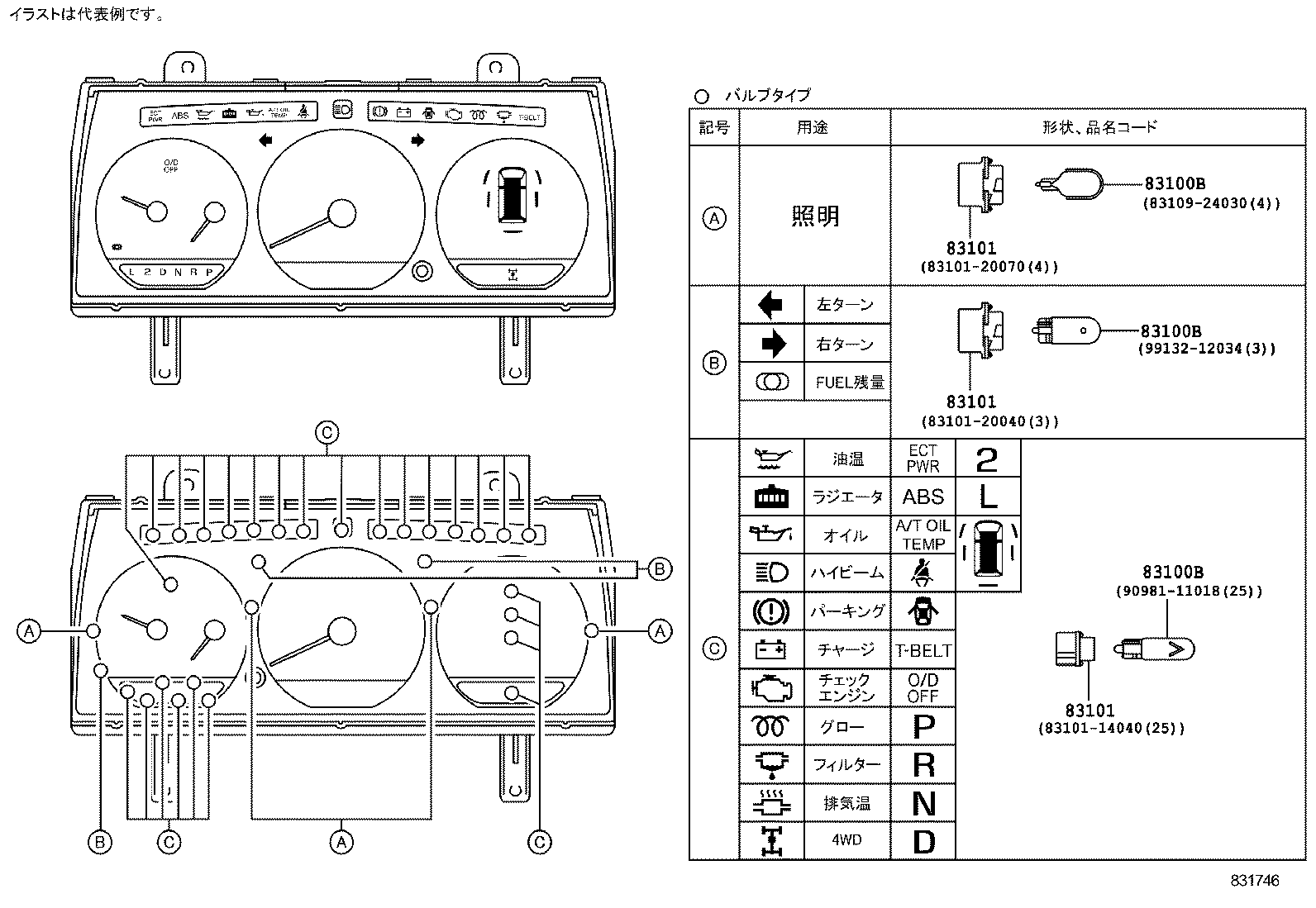

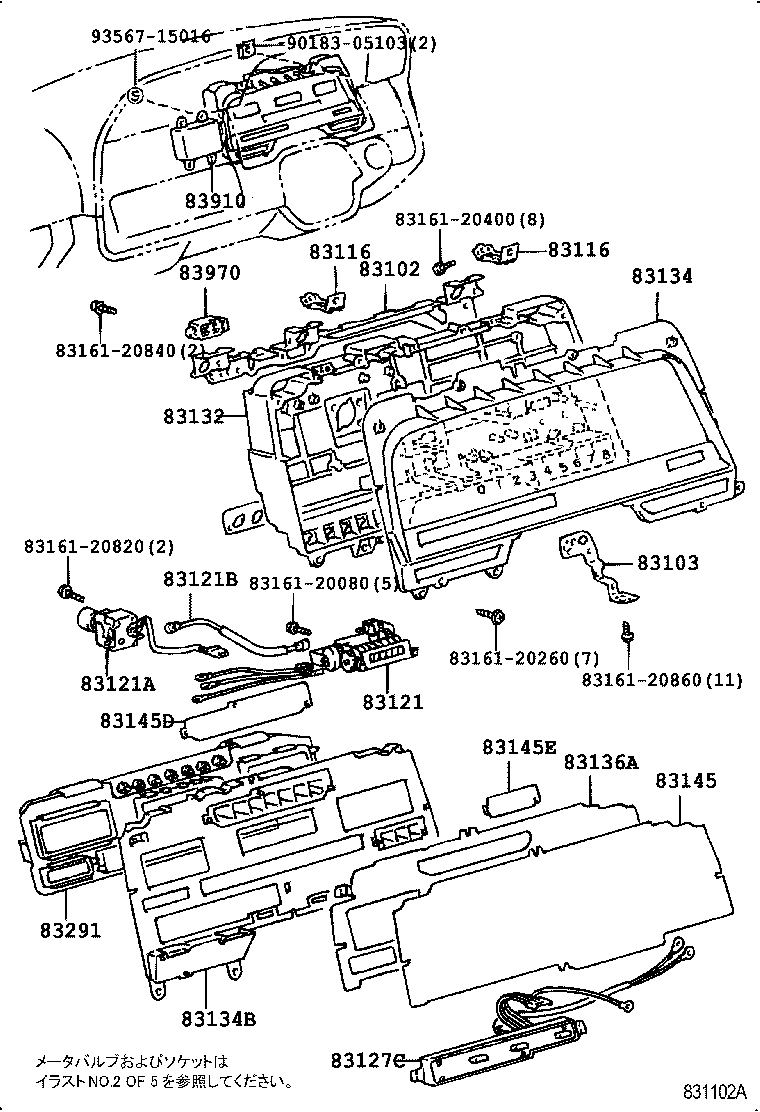

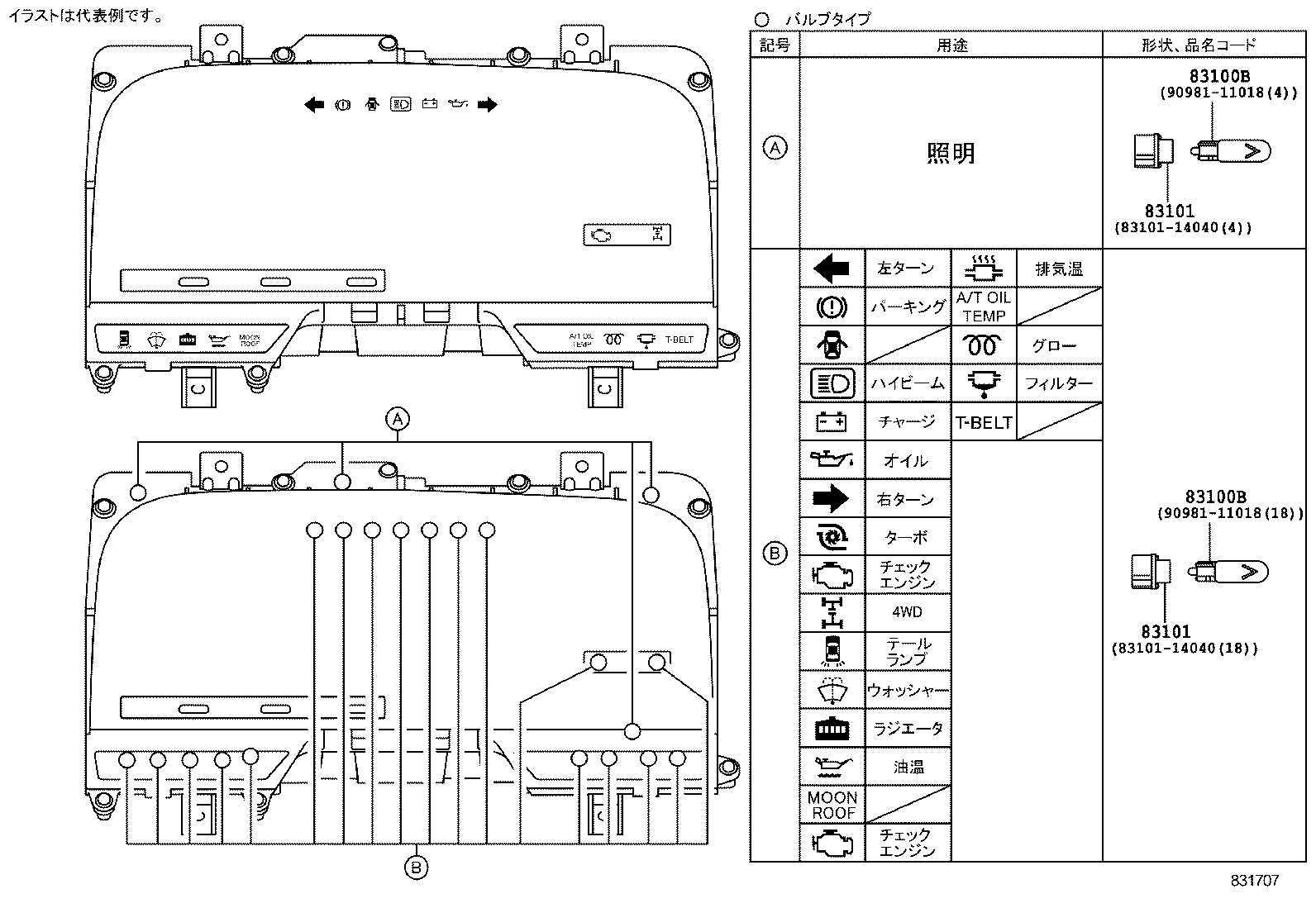

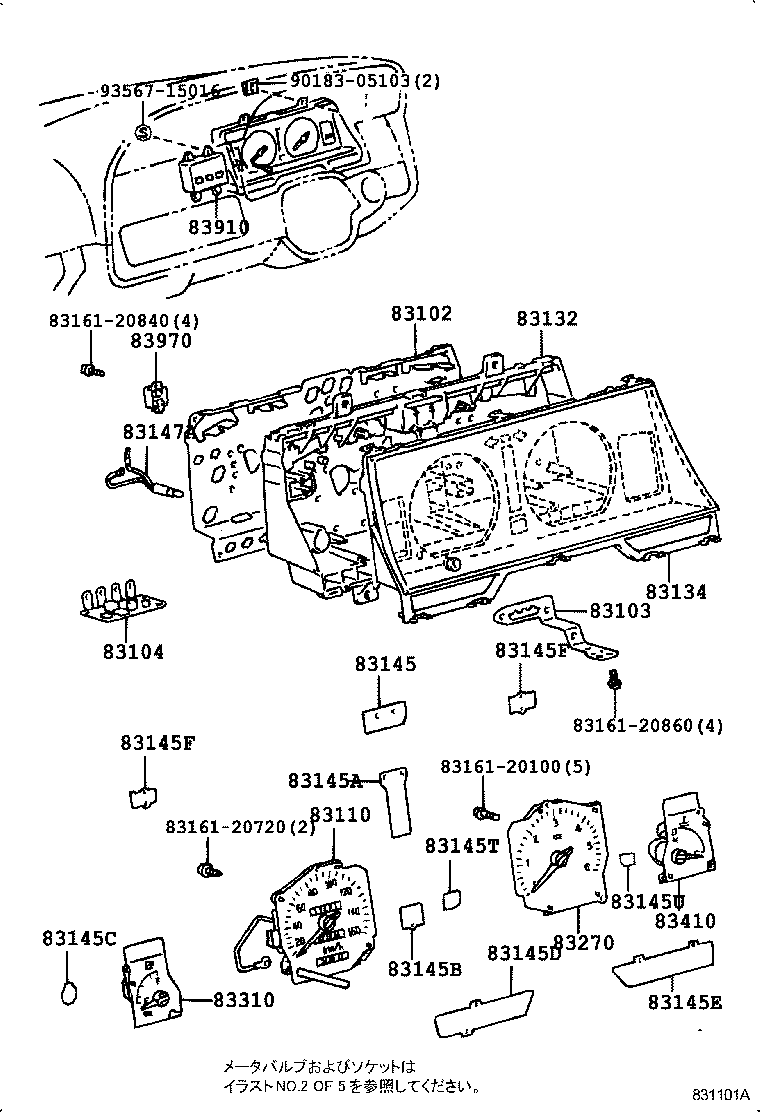

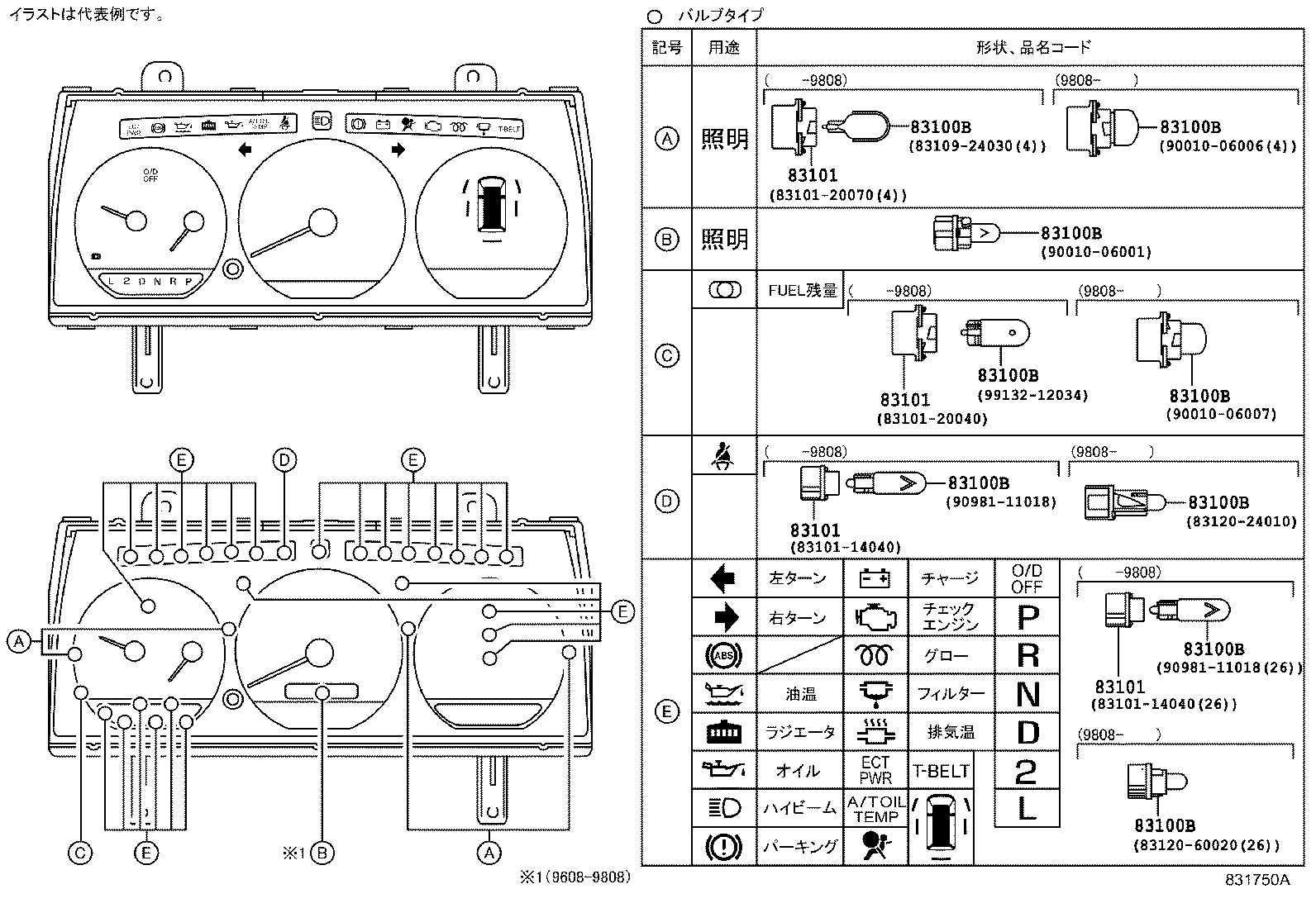

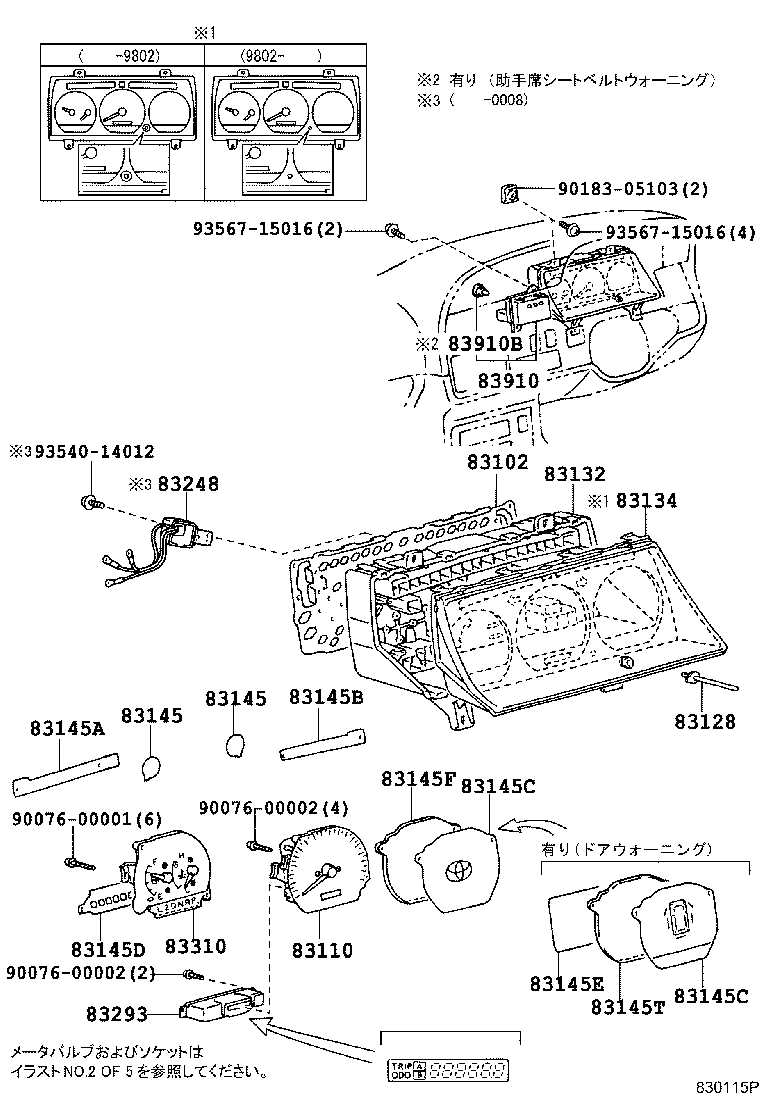

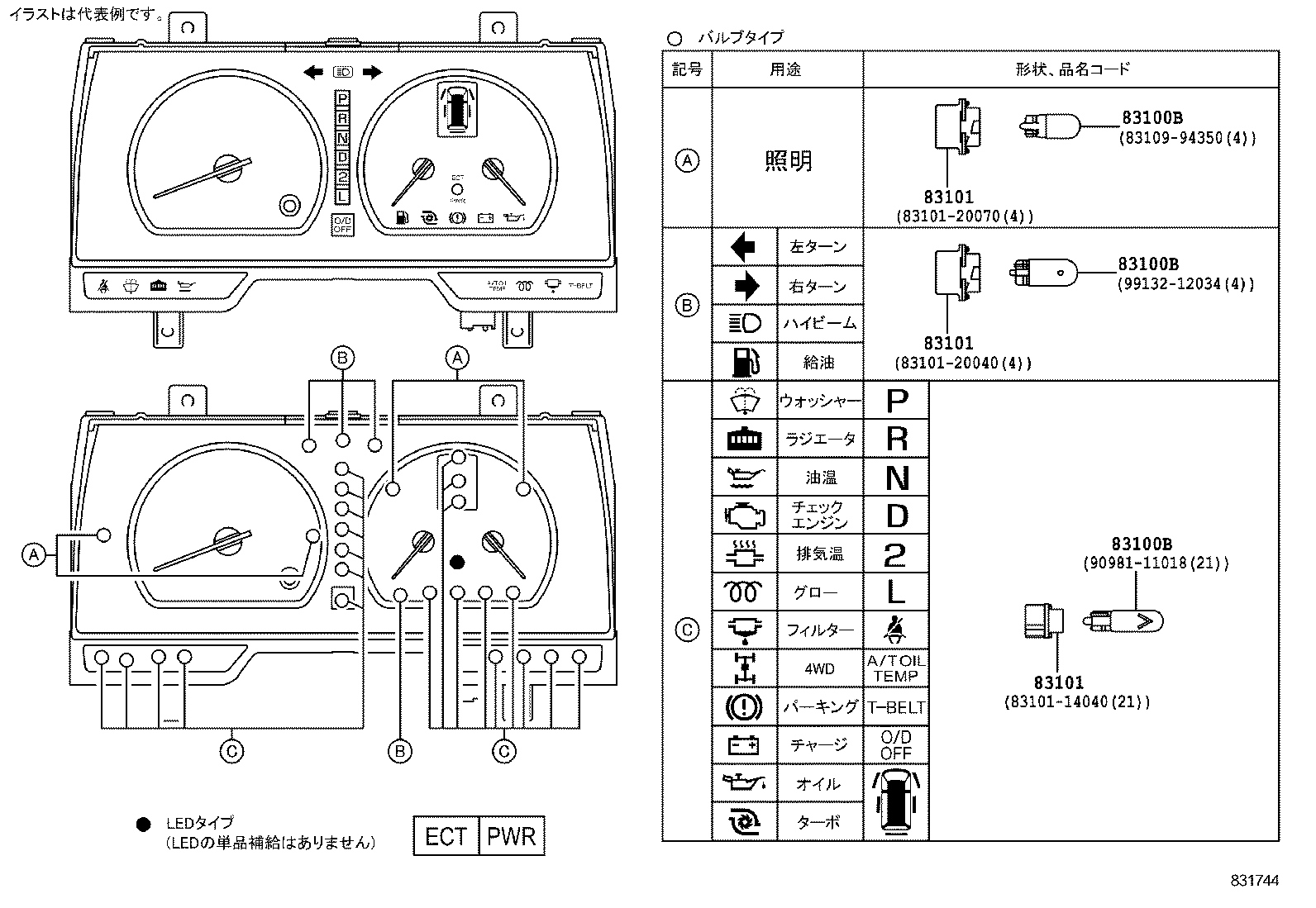

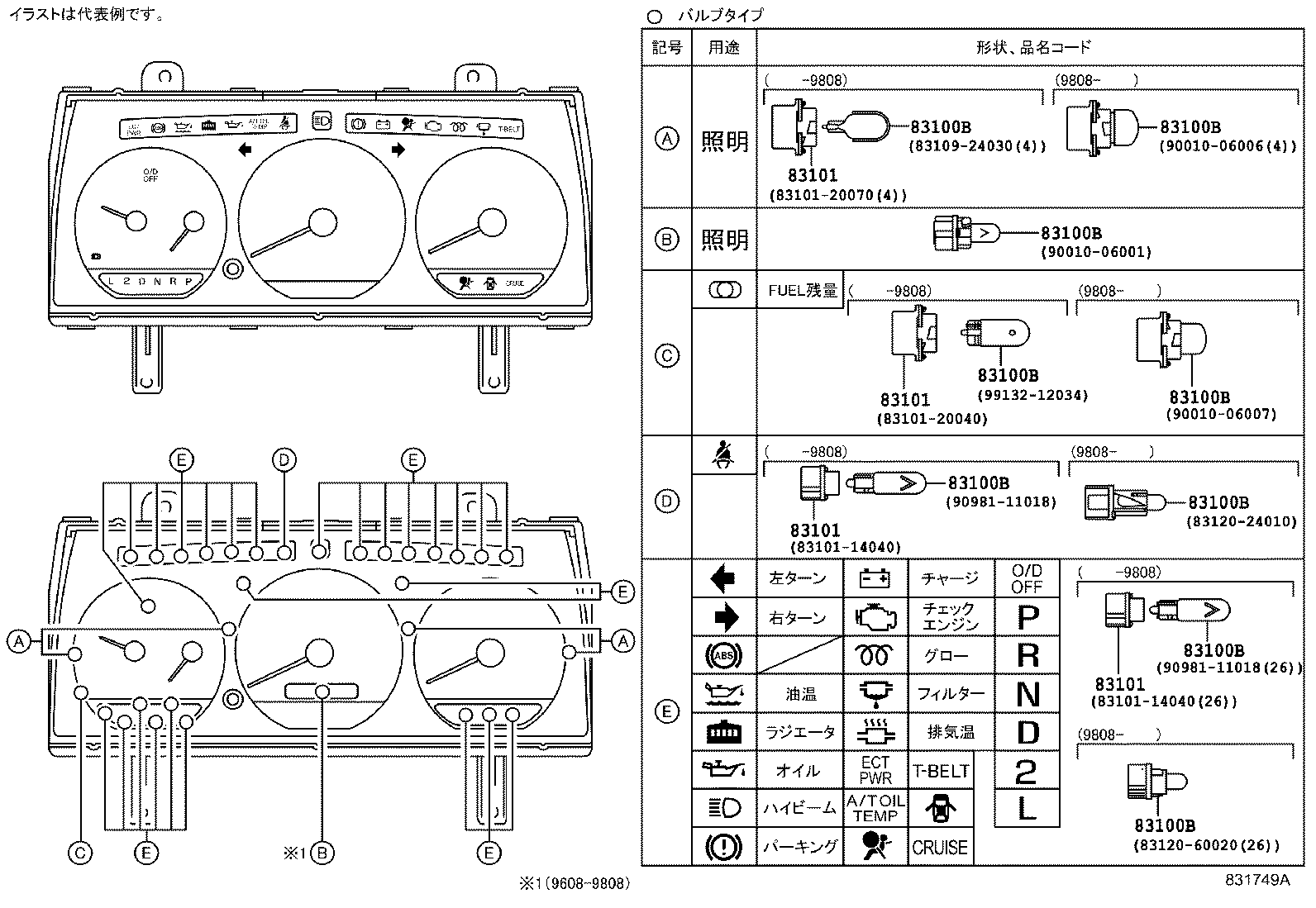

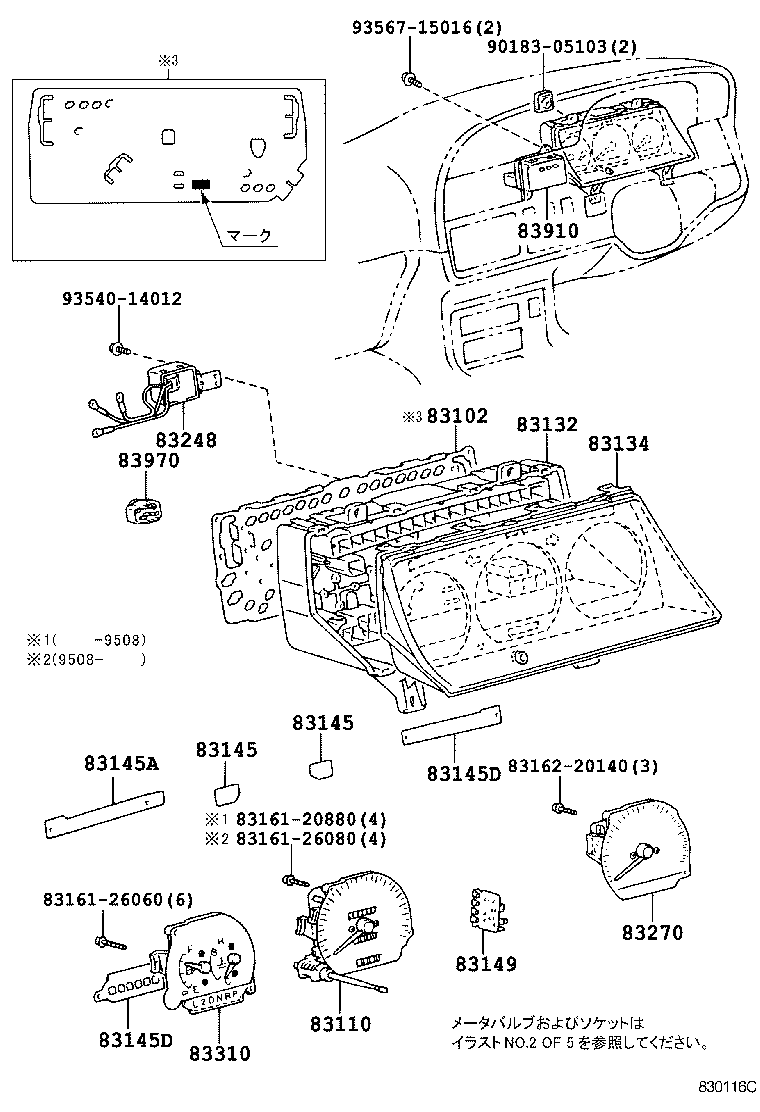

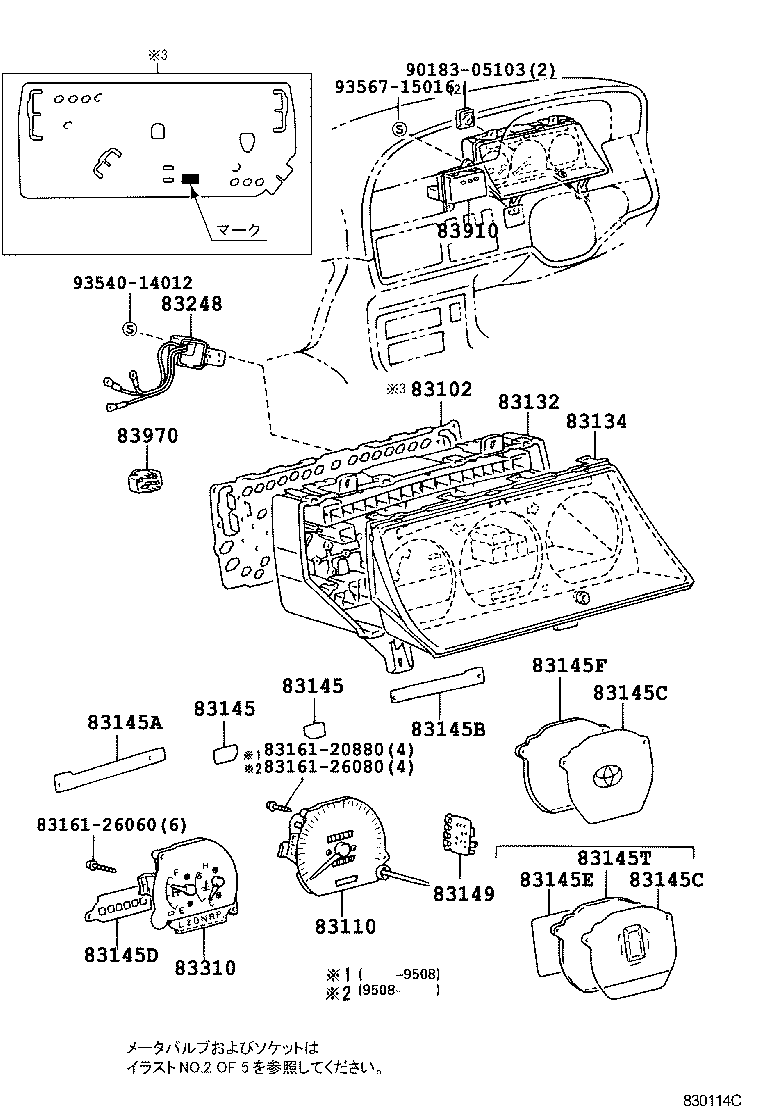

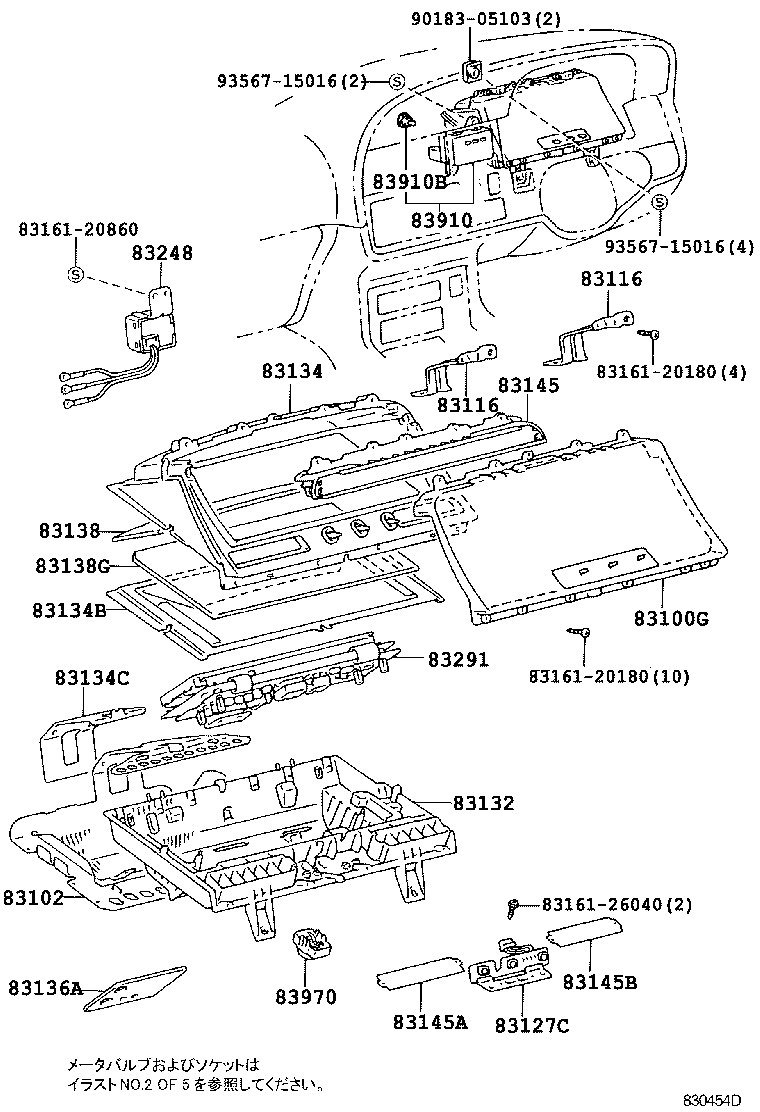

Figure 831100A 831100A 1989-08 → 1993-08 Figure 831101A 831101A 1989-08 → 1993-08 Figure 831102A 831102A 1989-08 → 1993-08 Figure 830114C 830114C 1993-08 → 1996-08 Figure 830116C 830116C 1993-08 → 1996-08 Figure 830454D 830454D 1993-08 → 1999-07 Figure 830115P 830115P 1996-08 → 1999-07 Figure 830115P 830115P 1999-07 → — Figure 830115P 830115P 2003-08 → — Figure 830117M 830117M 1996-08 → 1999-07 Figure 830117M 830117M 1999-07 → — Figure 830117M 830117M 2003-08 → — Figure 830526C 830526C 1999-07 → — Figure 831744 831744 1989-08 → 1993-08 Figure 831745 831745 1989-08 → 1993-08 Figure 831707 831707 1989-08 → 1993-08 Figure 831746 831746 1993-08 → 1996-08 Figure 831747 831747 1993-08 → 1996-08 Figure 831708 831708 1993-08 → 1999-07 Figure 831750A 831750A 1996-08 → 1999-07 Figure 831750A 831750A 1999-07 → — Figure 831750A 831750A 2003-08 → — Figure 831749A 831749A 1996-08 → 1999-07 Figure 831749A 831749A 1999-07 → — Figure 831749A 831749A 2003-08 → — Figure 831709A 831709A 1999-07 → — Figure MEN484C MEN484C 1989-08 → — Figure 830649A 830649A 1993-08 → — Figure 830649A 830649A 2003-08 → — Figure MEN485 MEN485 1989-08 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83104 Plate Sub-assy, Combination Meter Circuit, NO.3
83110 Speedometer Assy
83116 Bracket, Speedometer
83121 Counter, Total
83121A Sensor, Speed
83121B Cable, Counter And Sensor
83127C Switch, Meter
83128 Knob, Trip Counter
83128A Knob, Meter
83132 Case, Combination Meter
83132A Case, Meter
83133 Plate, Combination Meter, NO.1
83133A Plate, Combination Meter, NO.2
83133B Plate, Combination Meter, NO.3
83133C Plate, Combination Meter,NO.4
83133G Plate,Combination Meter
83134 Cover, Combination Meter, NO.1
83134B Cover, Combination Meter, NO.2
83134C Cover, Speedometer
83136A Cover, Combination Meter
83138 Glass, Speedometer
83138G Glass, Combination Meter
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83145D Lens, Meter, NO.5
83145E Lens, Meter, NO.6
83145F Lens, Meter, NO.7
83145T Lens, Meter, NO.8
83145U Lens, Meter, NO.9
83147A Lamp, Meter NO.2
83149 Plate, Meter Circuit
83180 Detector Assy, Revolution
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83182 Magnet, Speedometer Sensor
83247B Plate, Meter Circuit, NO.2
83248 Chime, Speed Warning
83270 Tachometer Assy, Engine
83291 Computer, Combination Meter
83293 Computer, Total Counter Module
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83783 Key, Speedmeter Sensor
83798 Key, Speedometer Cable Adapter
83855 Bracket, Combination Meter, NO.1
83856 Bracket, Combination Meter, NO.2
83875 Wire, Combination Meter, NO.1
83910 Clock Assy
83910B Bulb, Clock Indicator
83970 Buzzer Assy, Reverse Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
