Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

19 part groups · 8 illustrations

Illustrations

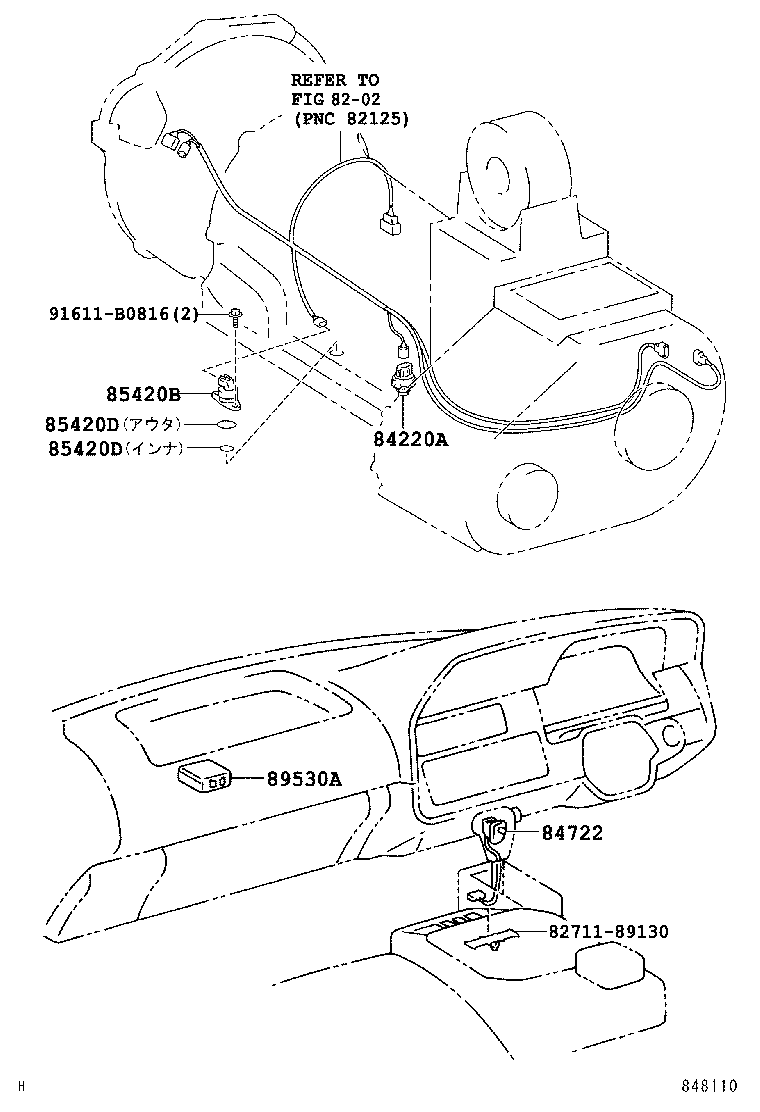

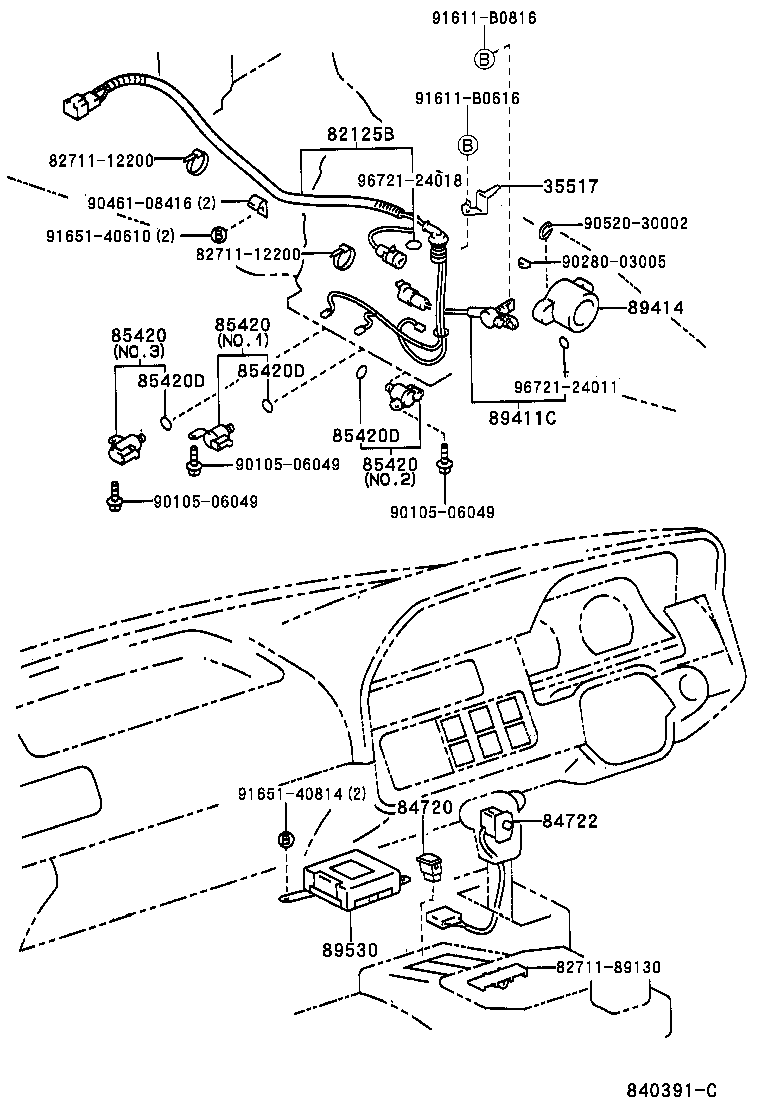

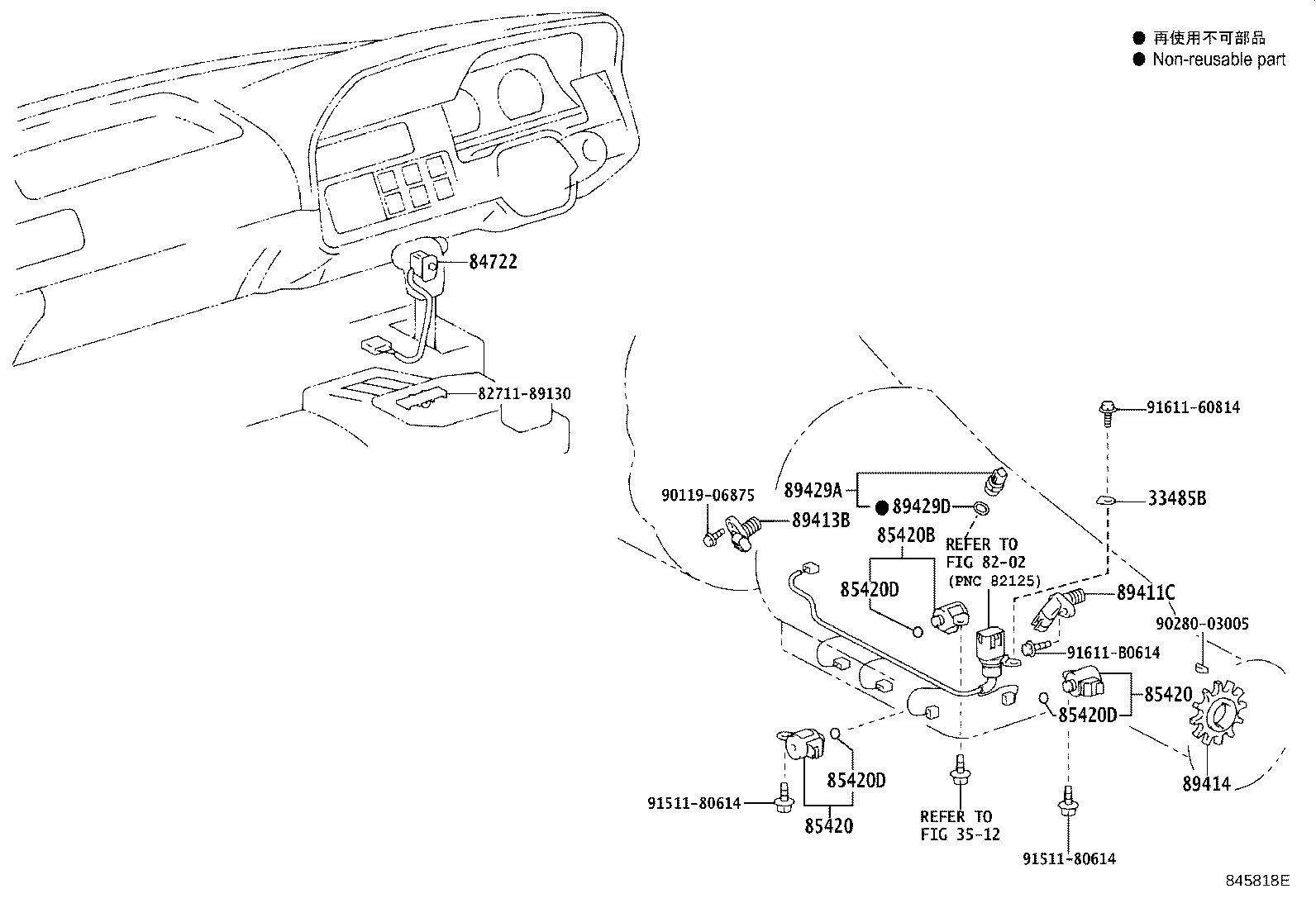

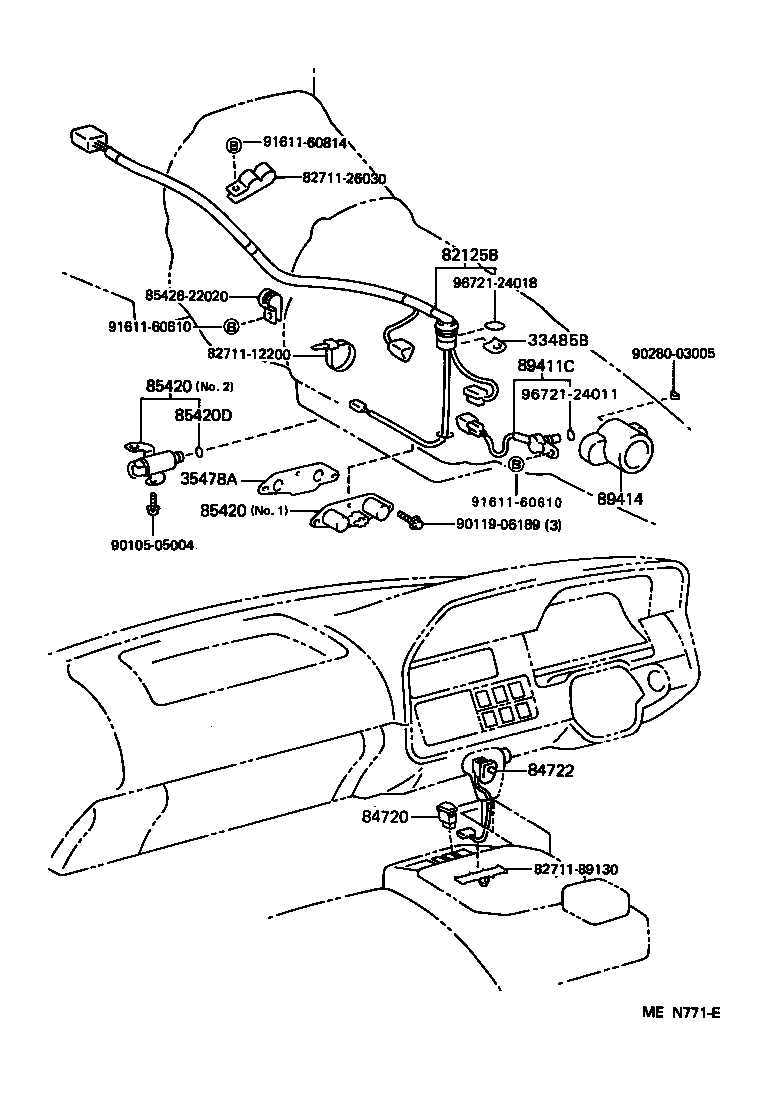

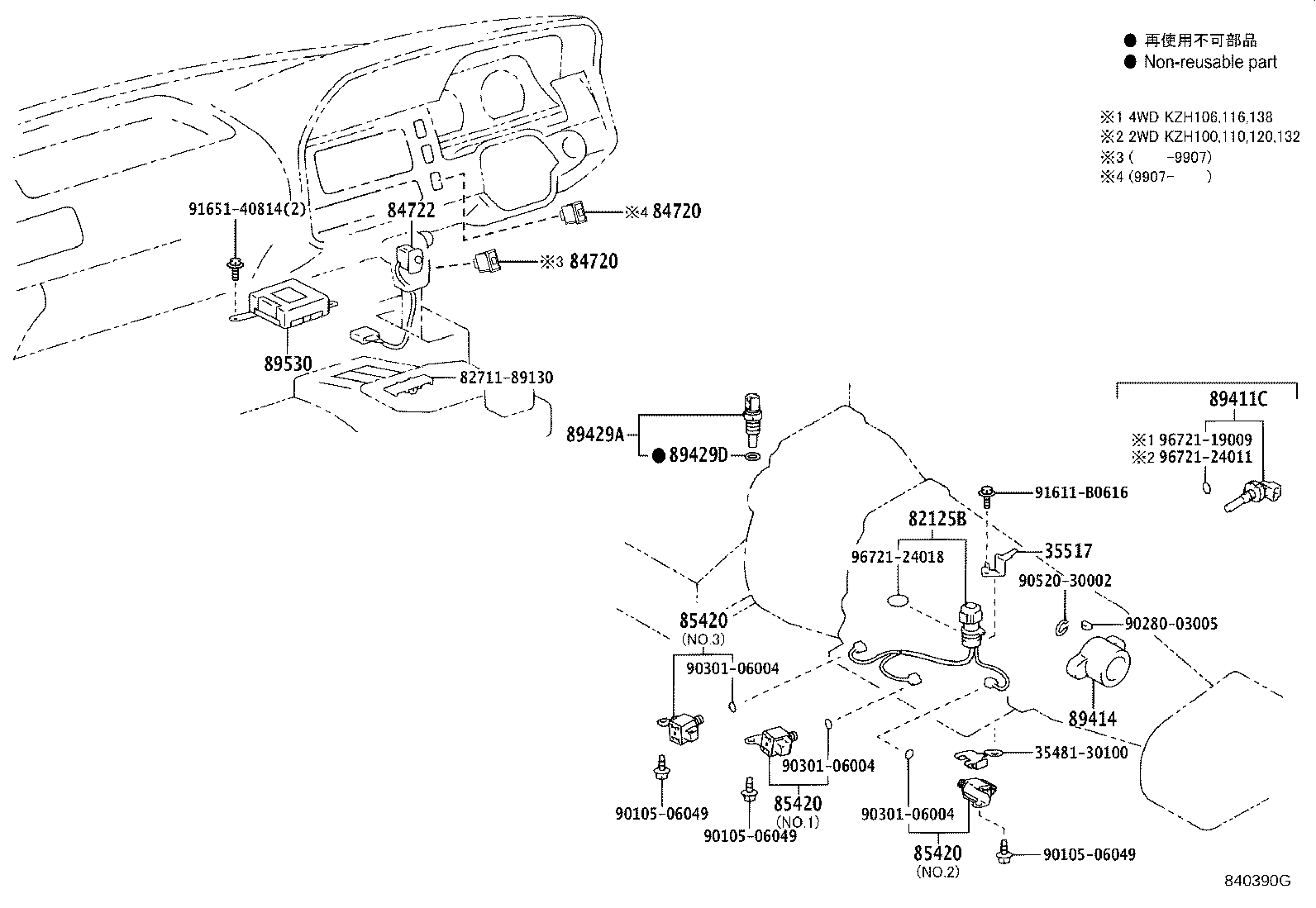

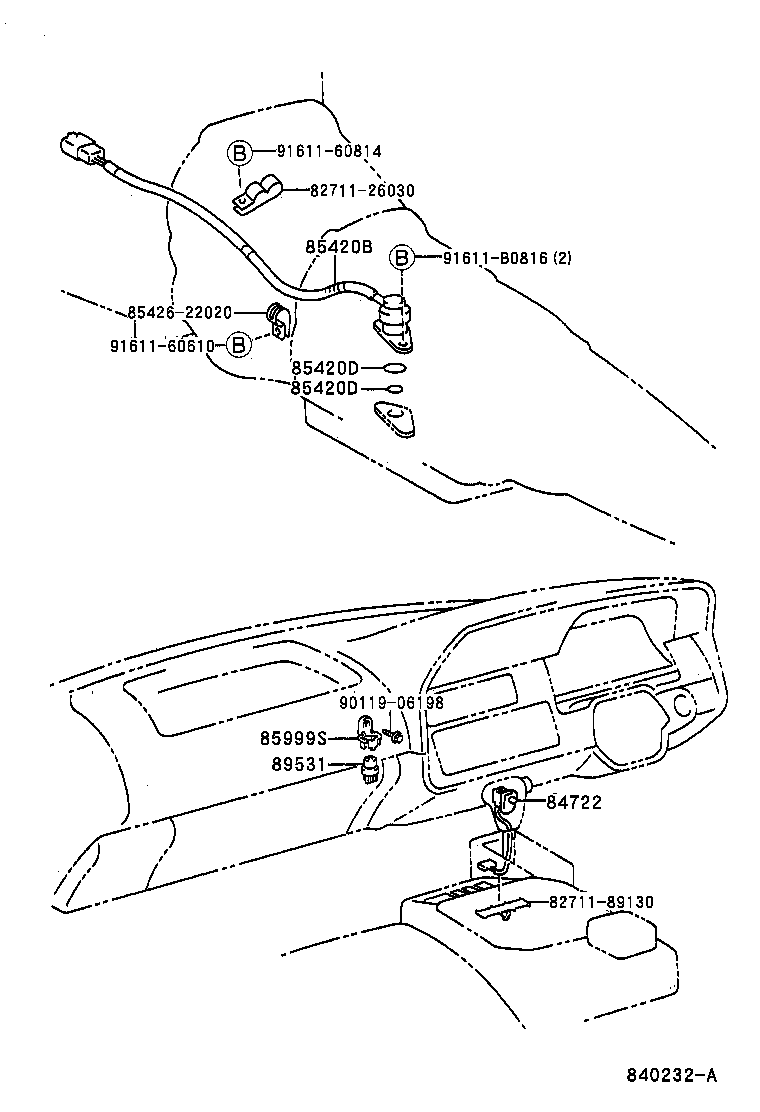

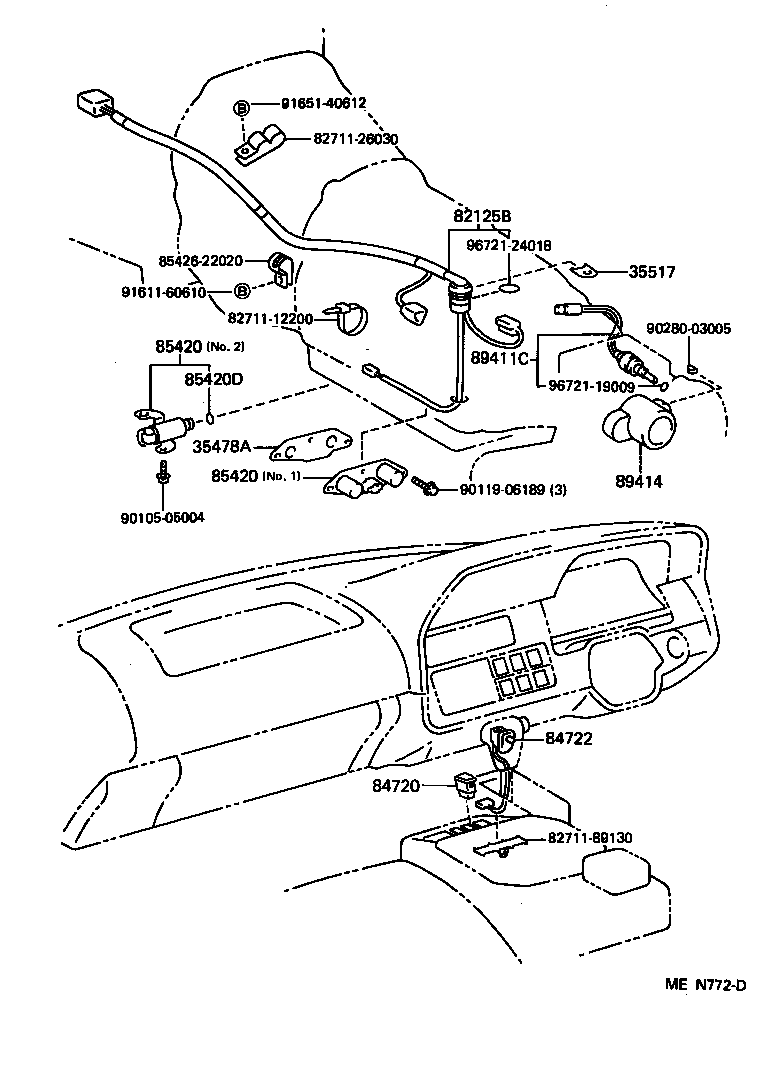

Figure 840353B 840353B 1989-08 → 1993-08 Figure 840232A 840232A 1989-08 → 1993-08 Figure MEN772D MEN772D 1989-08 → 1993-08 Figure MEN771E MEN771E 1989-08 → — Figure 840391C 840391C 1990-10 → 1993-08 Figure 848110 848110 1993-08 → — Figure 840390G 840390G 1993-08 → — Figure 845818E 845818E 2003-08 → —

Part groups

PNCDescription
33485B Plate, Transmission Wire
35478A Gasket, Shift Control Solenoid
35517 Plate, Transmission Wire Lock
82125B Wire, Transmission
84220A Switch Assy, Transmission Position Indicator
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
85999S Bracket, Relay
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89414 Rotor, Sensor
89429A Sensor, Temperature
89429D Ring, O(FOR TEMPERATURE SENSOR)
89530 Computer Assy, Transmission Control
89530A Computer Assy, Transmission Control
89531 Relay, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
