Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 15 illustrations

Illustrations

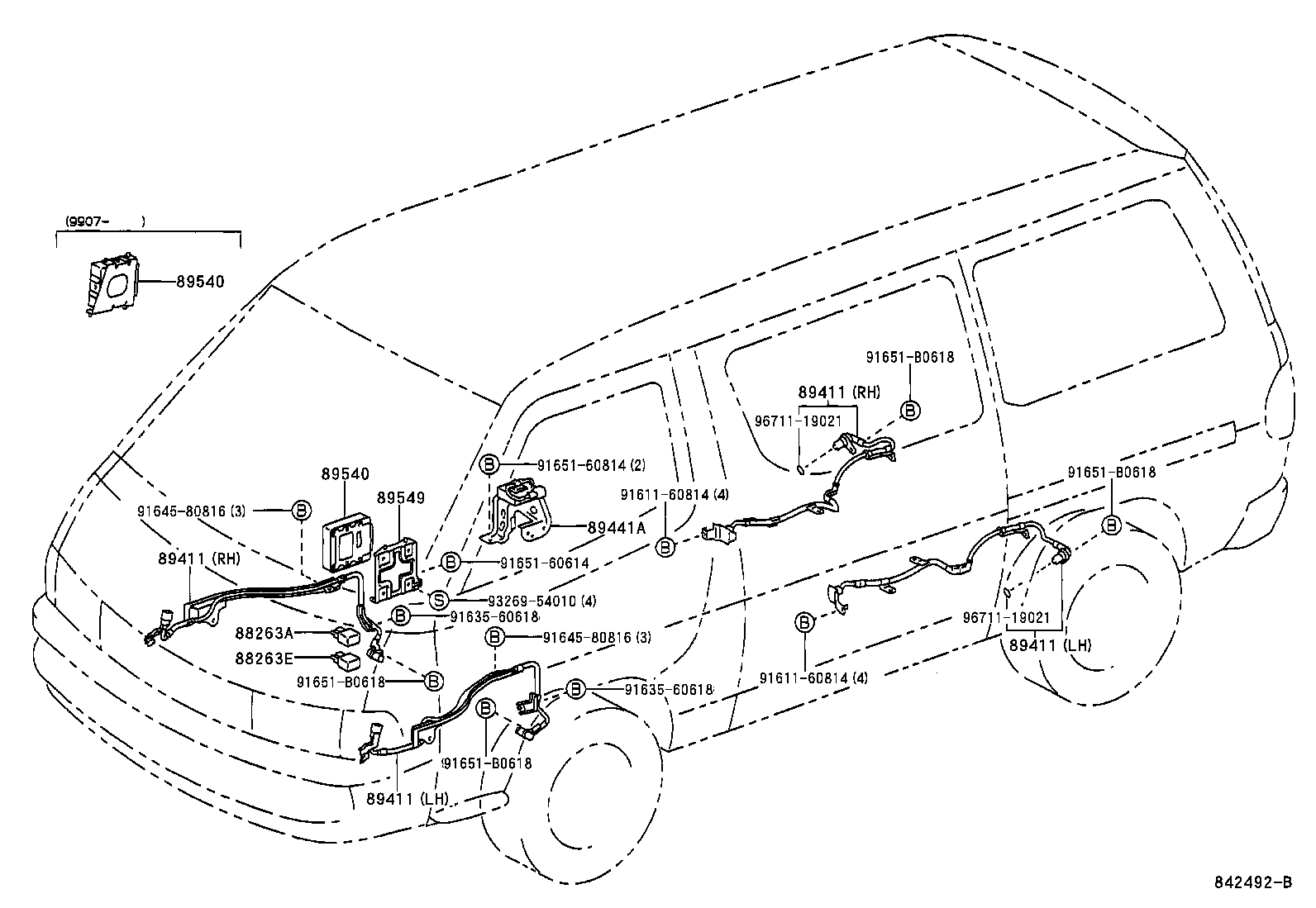

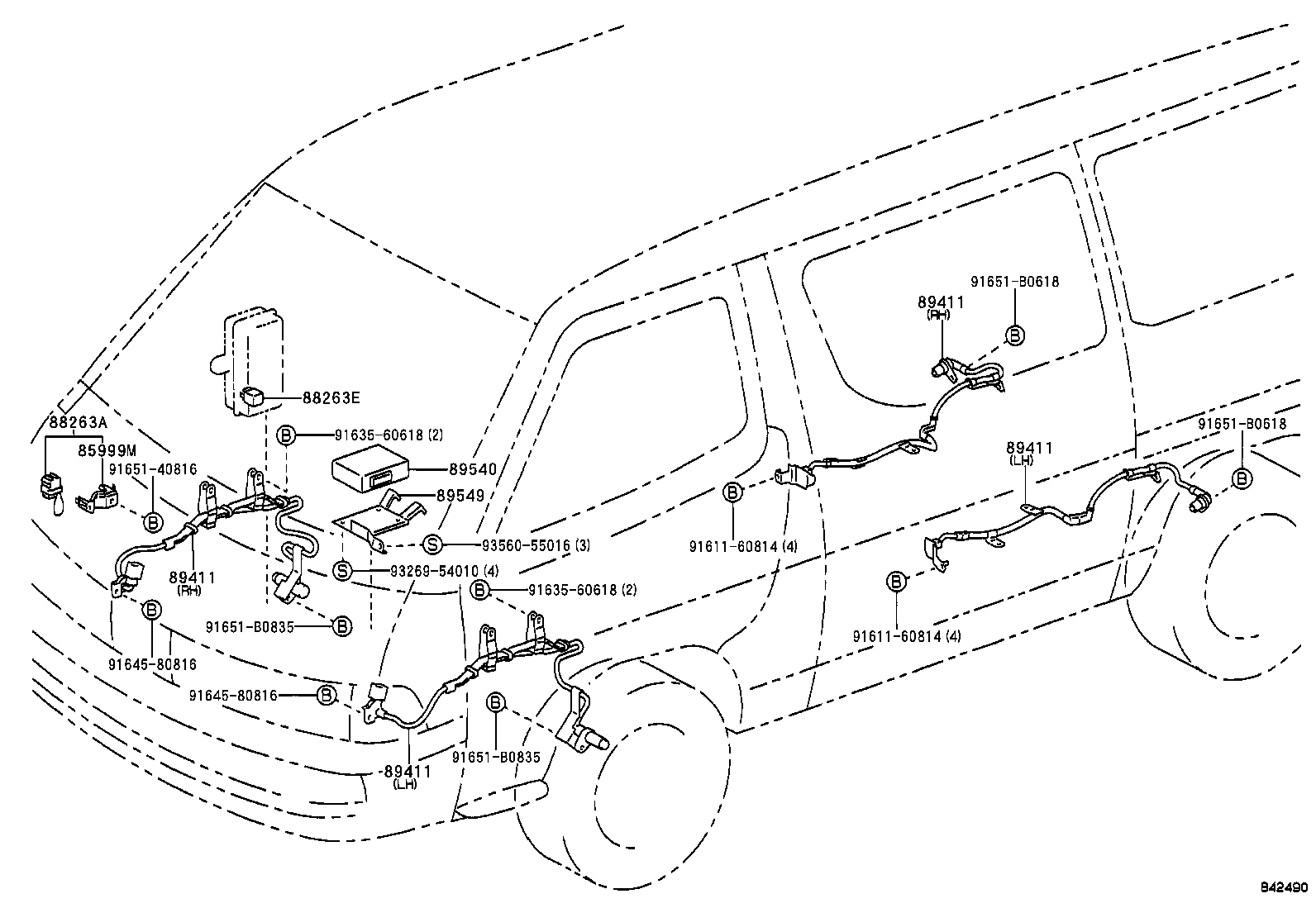

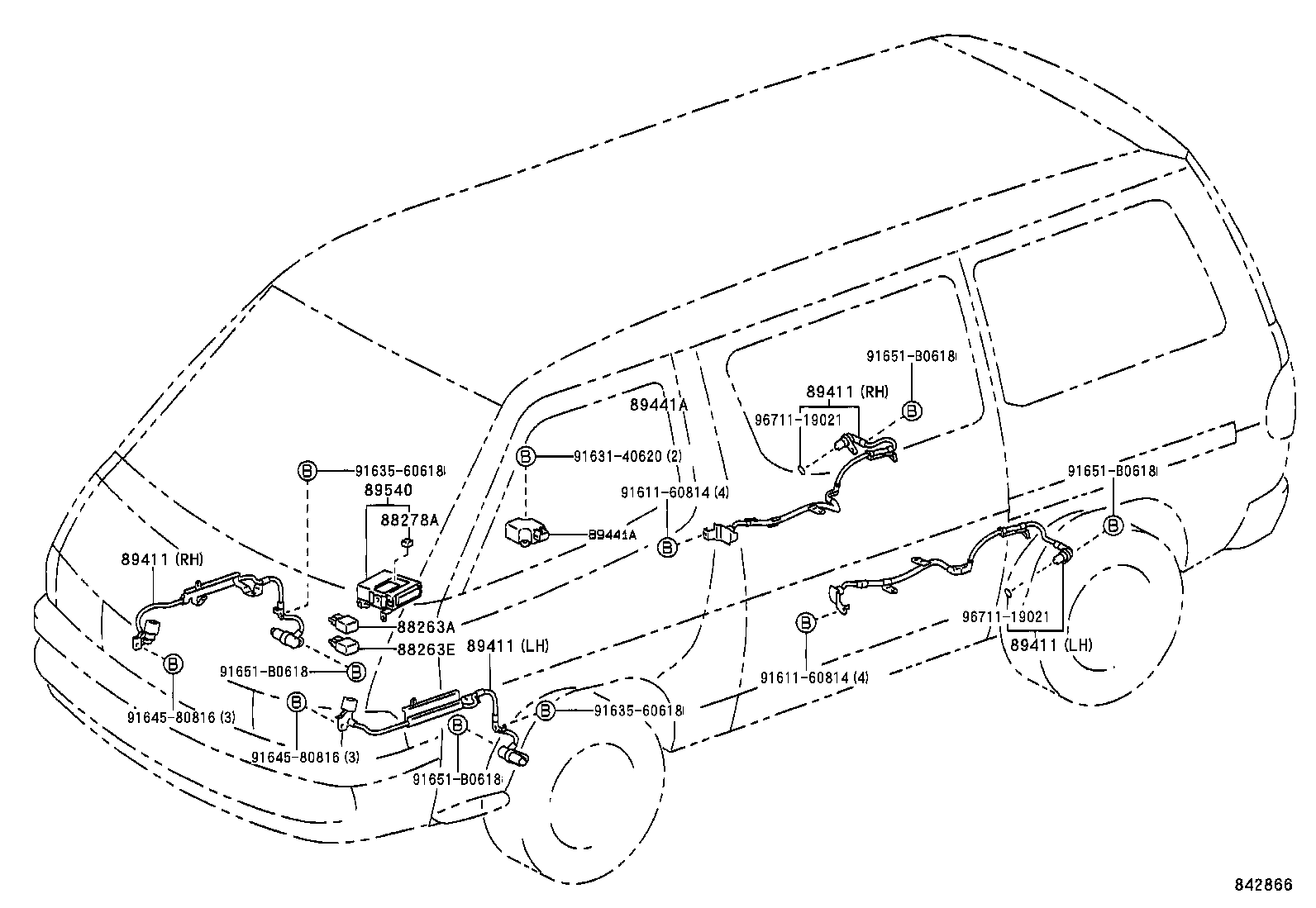

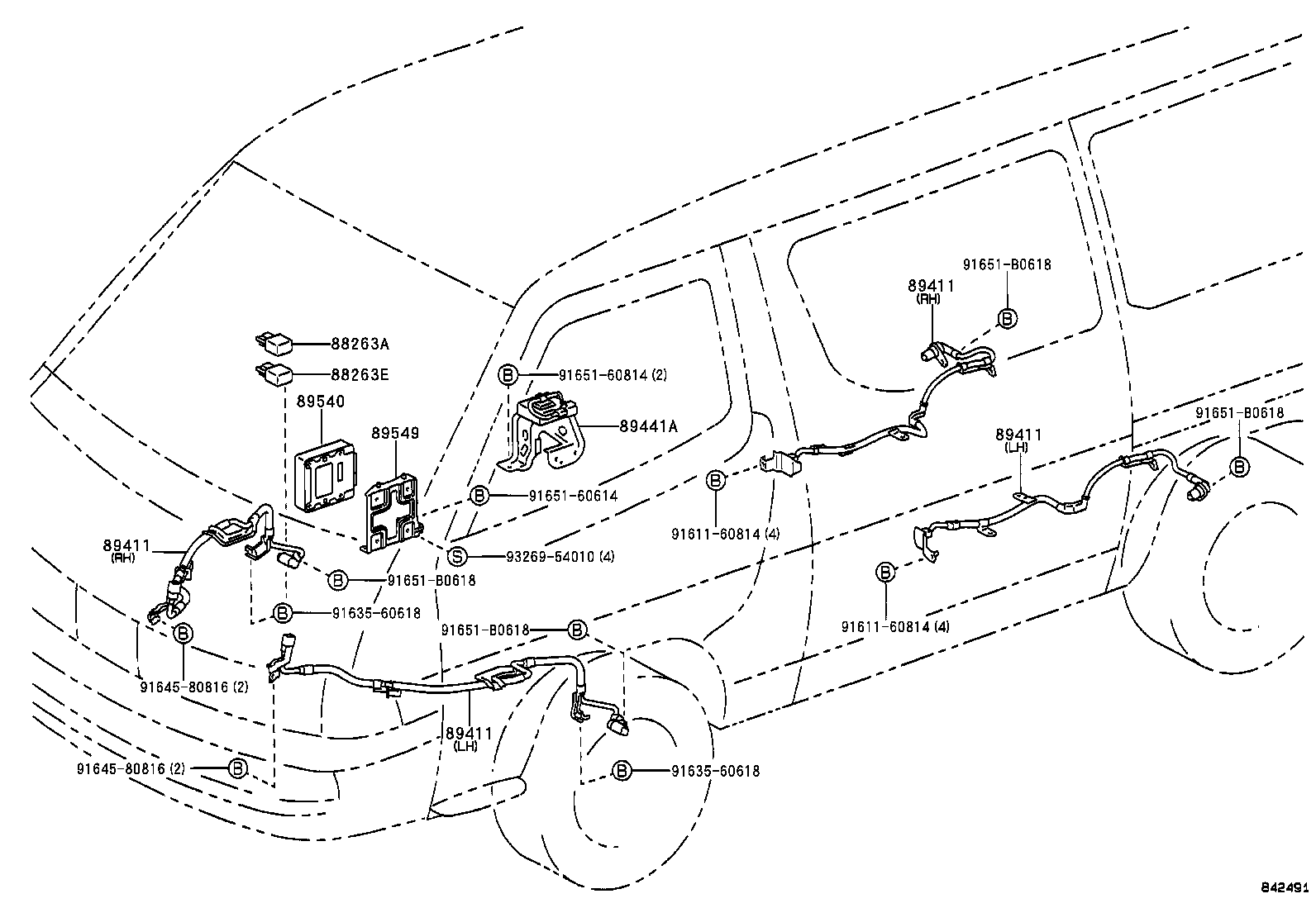

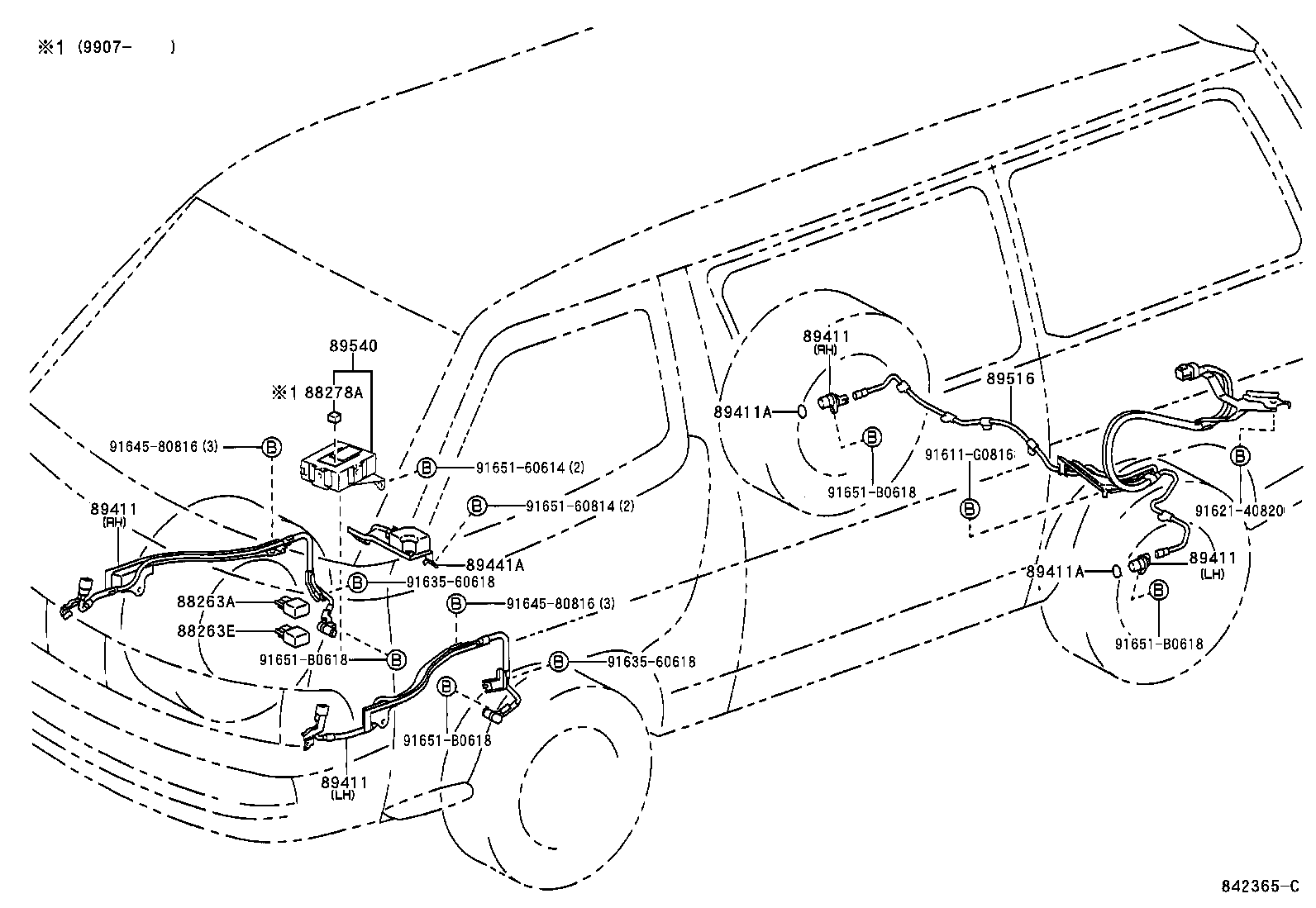

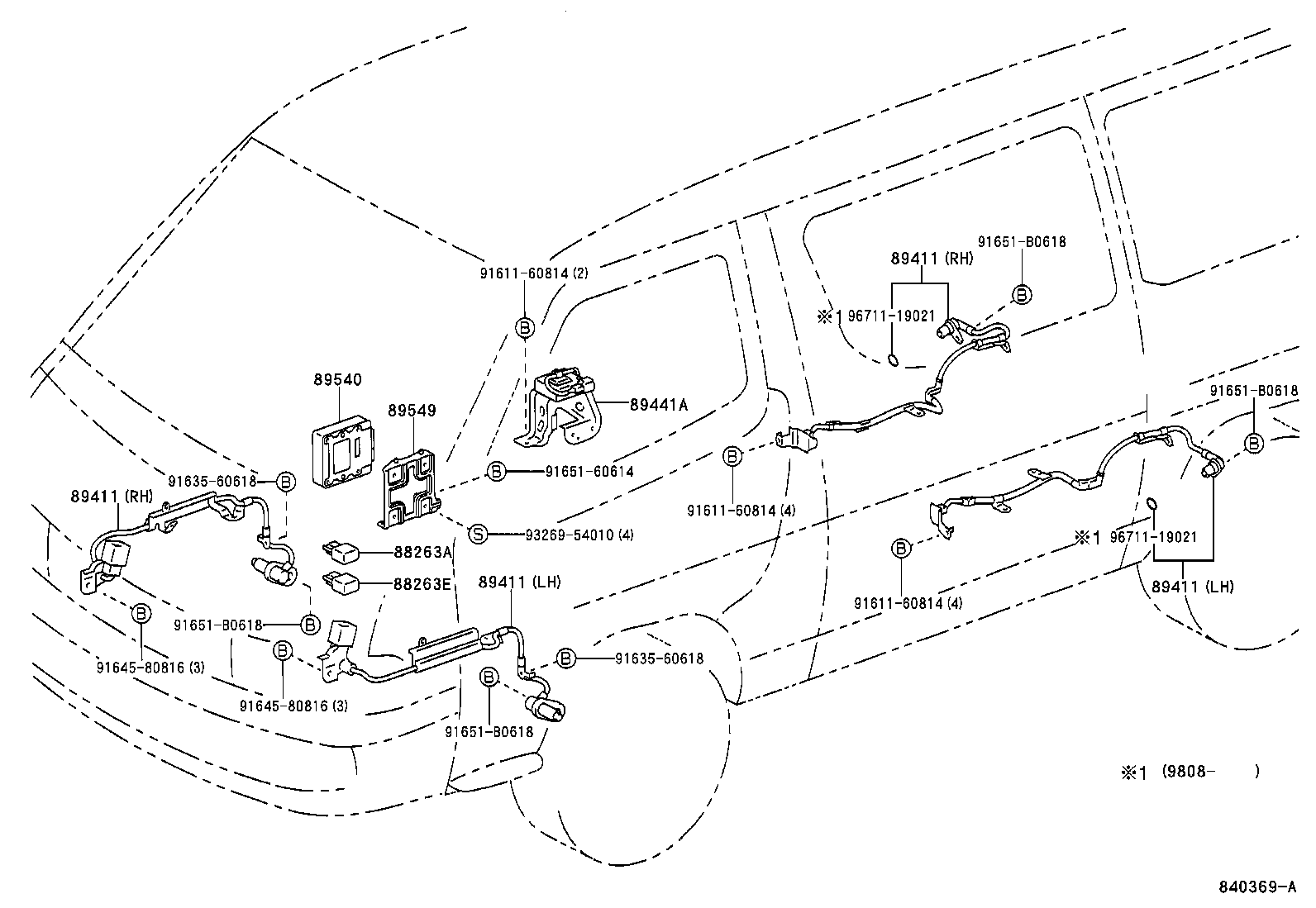

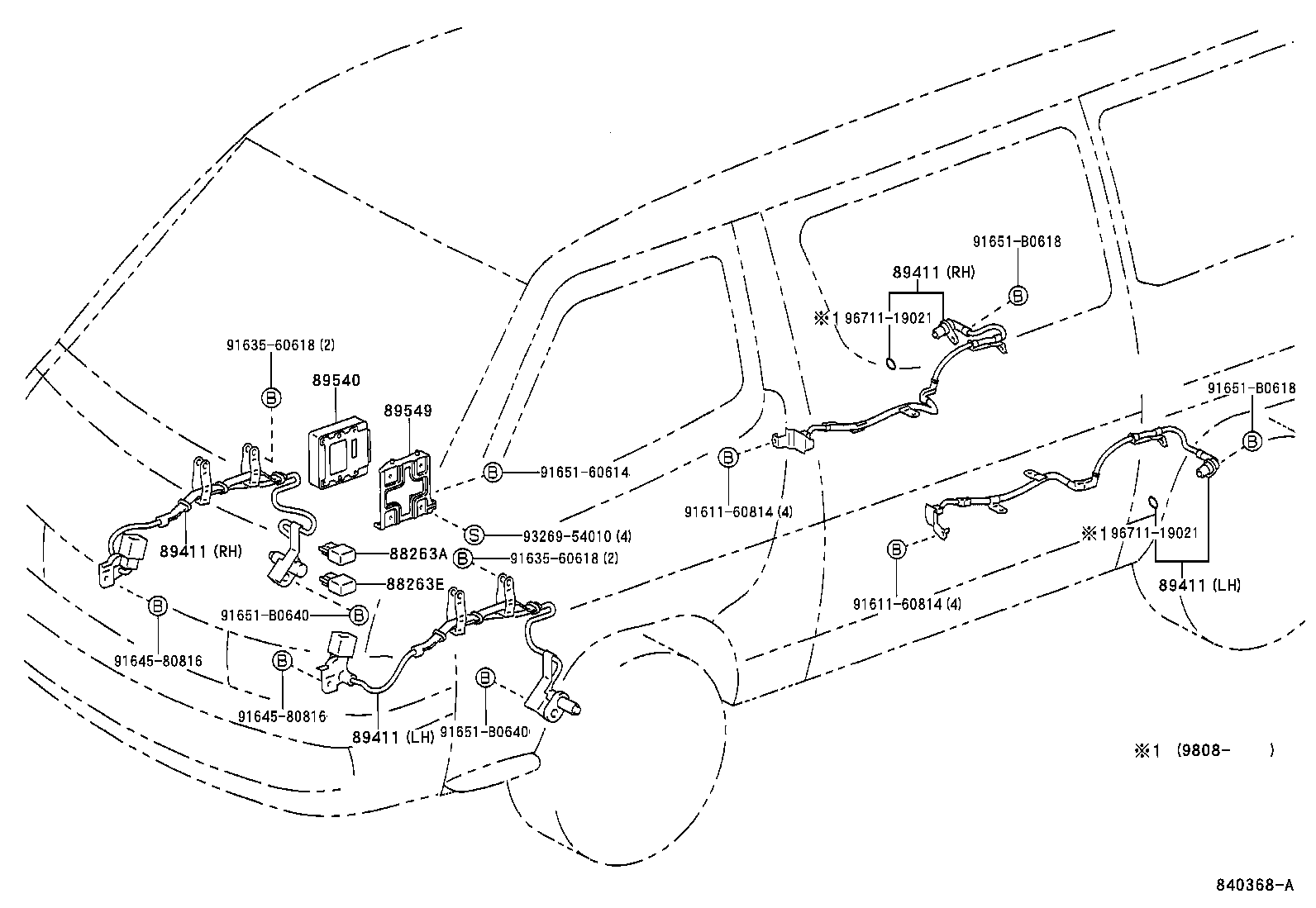

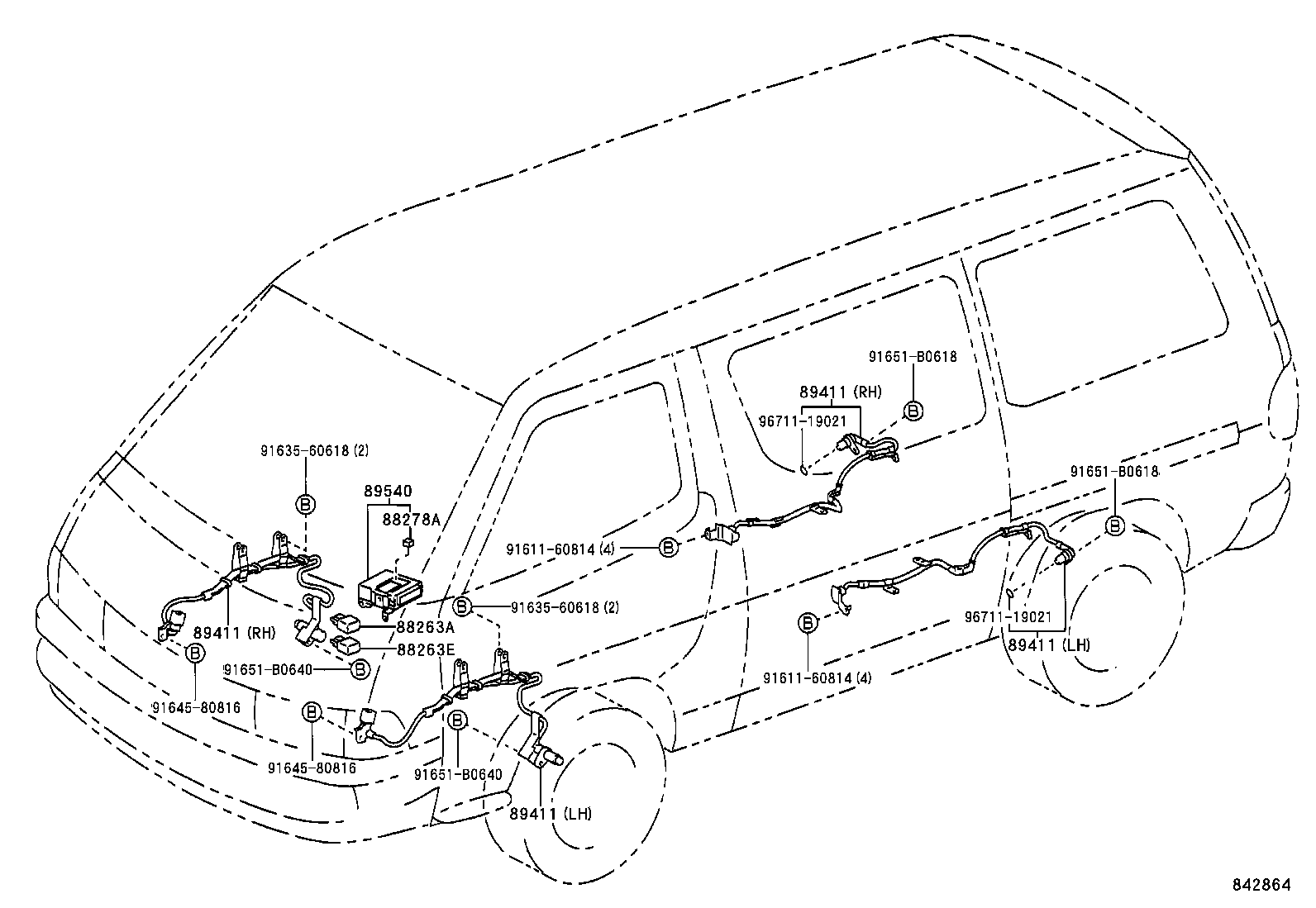

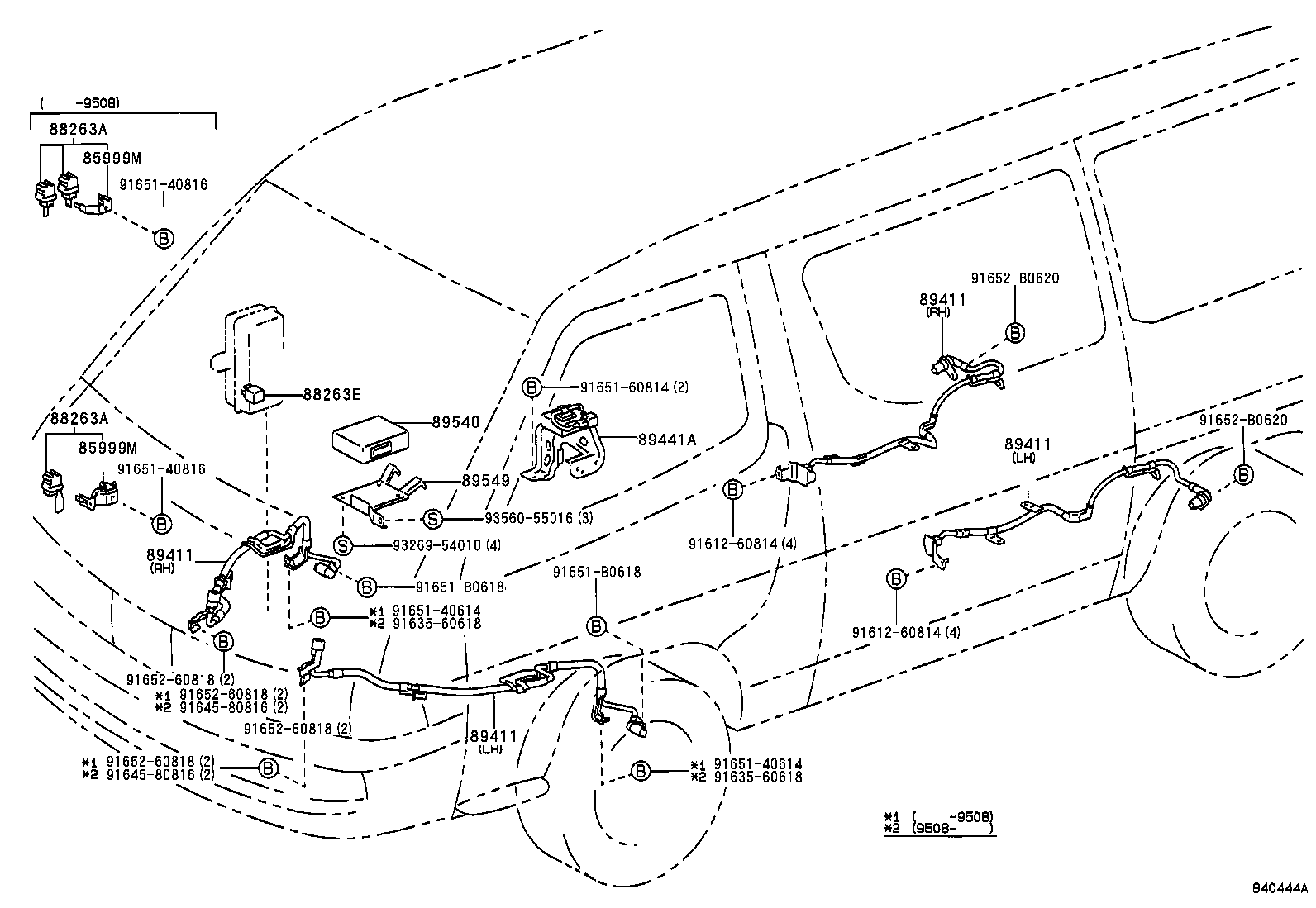

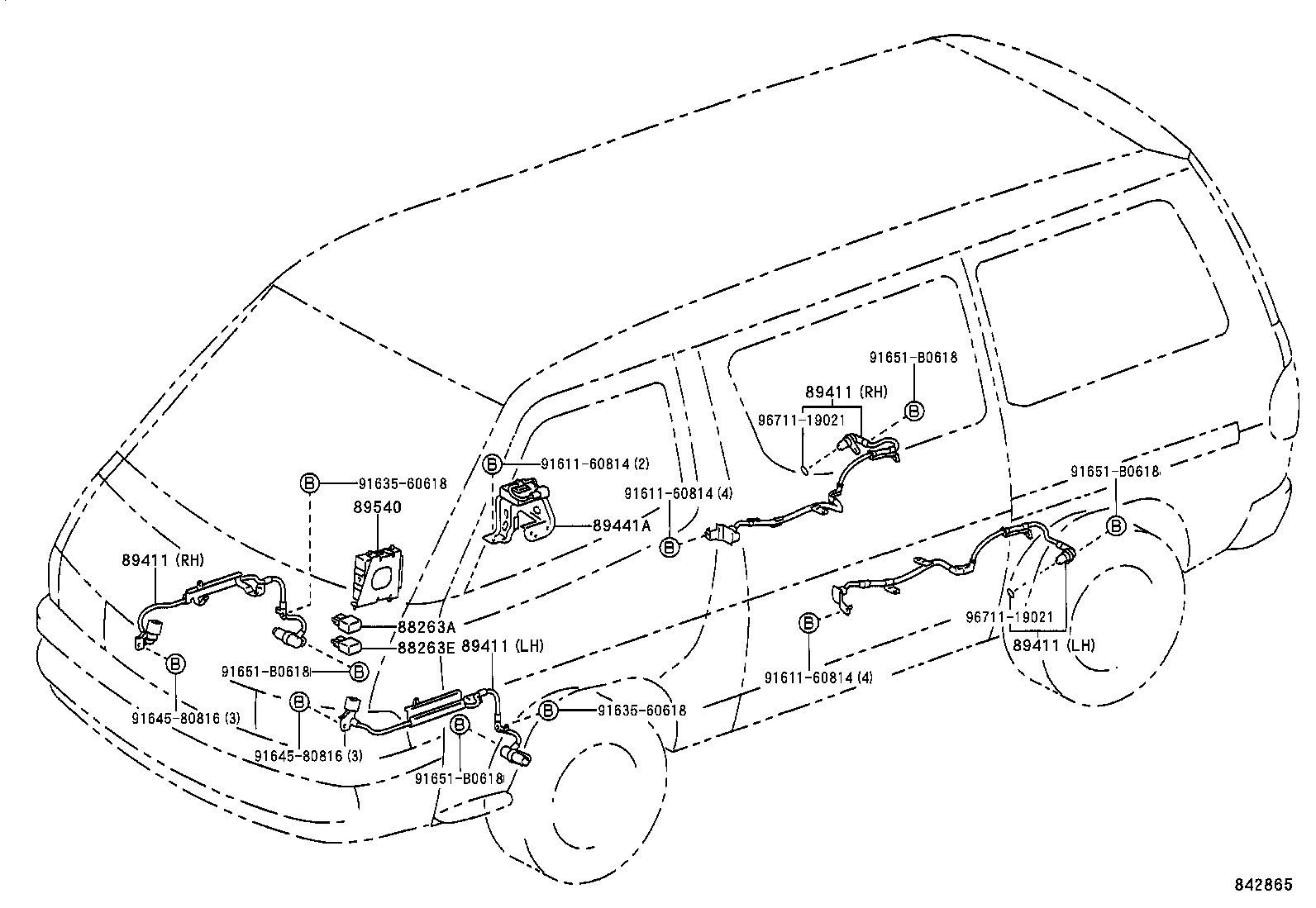

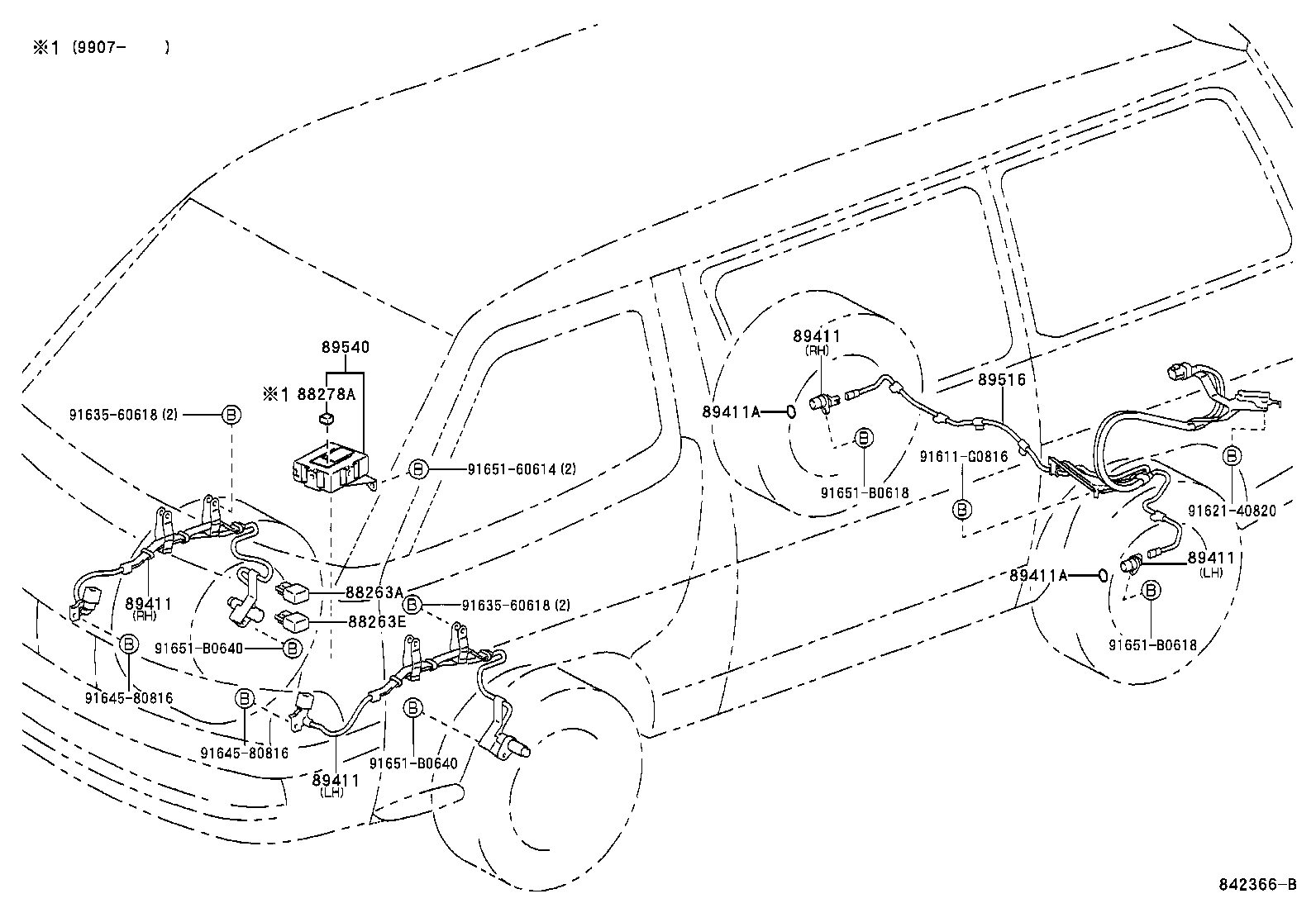

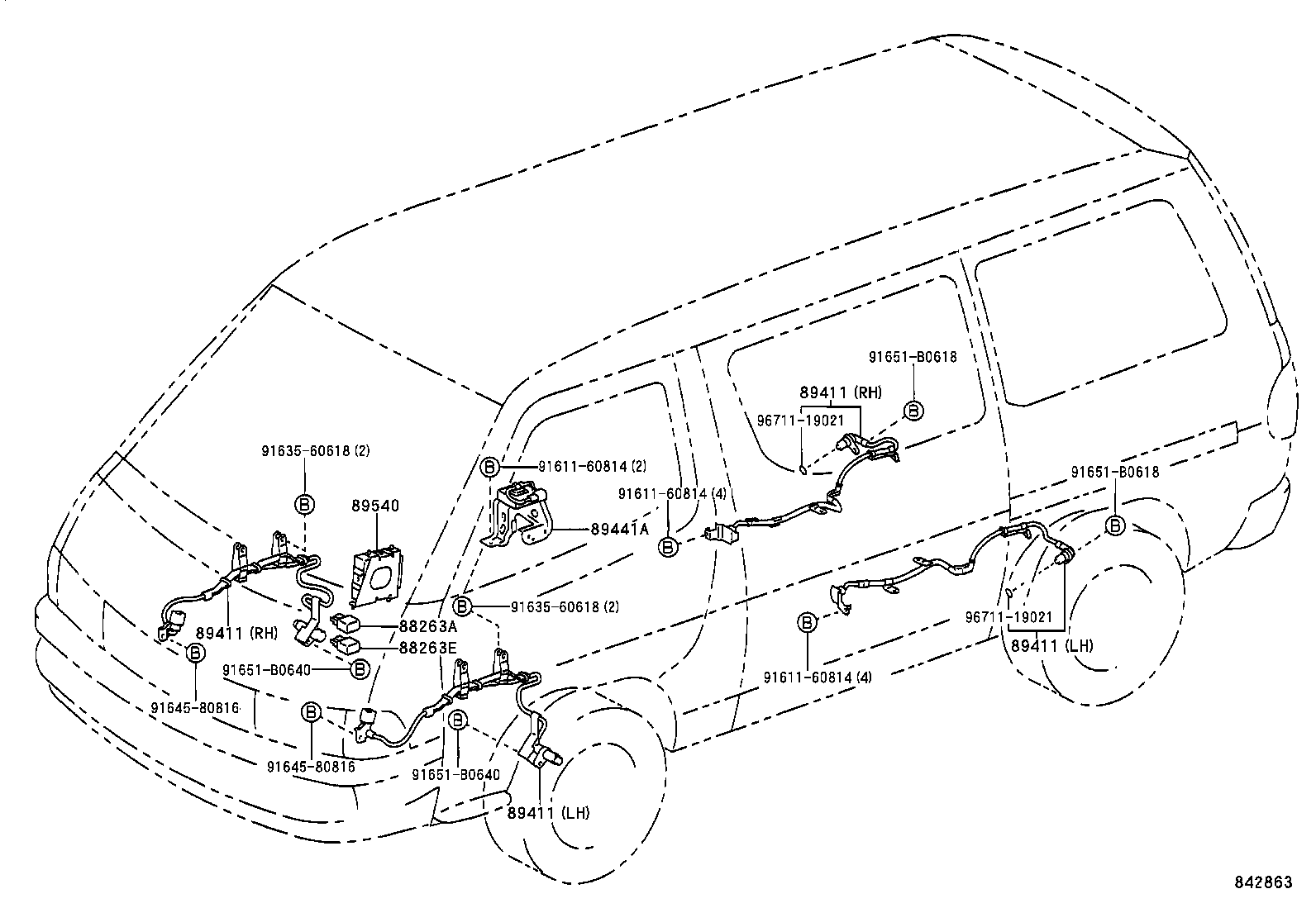

Figure 842453 842453 1993-08 → 1995-08 Figure 842490 842490 1995-08 → 1996-08 Figure 840368A 840368A 1996-08 → 1999-07 Figure 842863 842863 1999-07 → — Figure 842864 842864 1999-07 → — Figure 840444A 840444A 1993-08 → 1996-08 Figure 842491 842491 1996-08 → 1996-10 Figure 840369A 840369A 1996-08 → 1996-10 Figure 840369A 840369A 1996-10 → 1998-08 Figure 840369A 840369A 1998-08 → 1999-07 Figure 842865 842865 1999-07 → — Figure 842866 842866 1999-07 → — Figure 842492B 842492B 1998-08 → — Figure 842366B 842366B 1998-08 → — Figure 842365C 842365C 1998-08 → —

Part groups

PNCDescription
85999M Bracket, Relay
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
88278A Cushion, Skid Control Computer
89411 Sensor, Speed
89411A Ring, O (FOR SPEED SENSOR)
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89549 Bracket, Skid Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
