Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

13 part groups · 7 illustrations

Illustrations

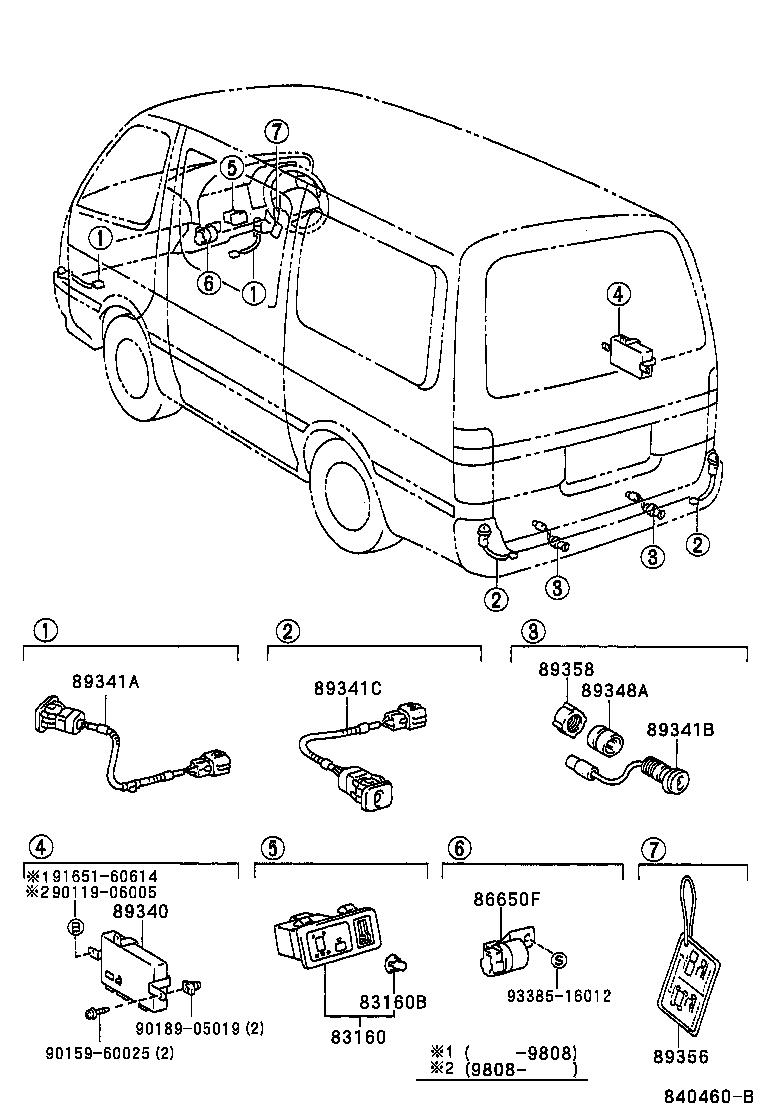

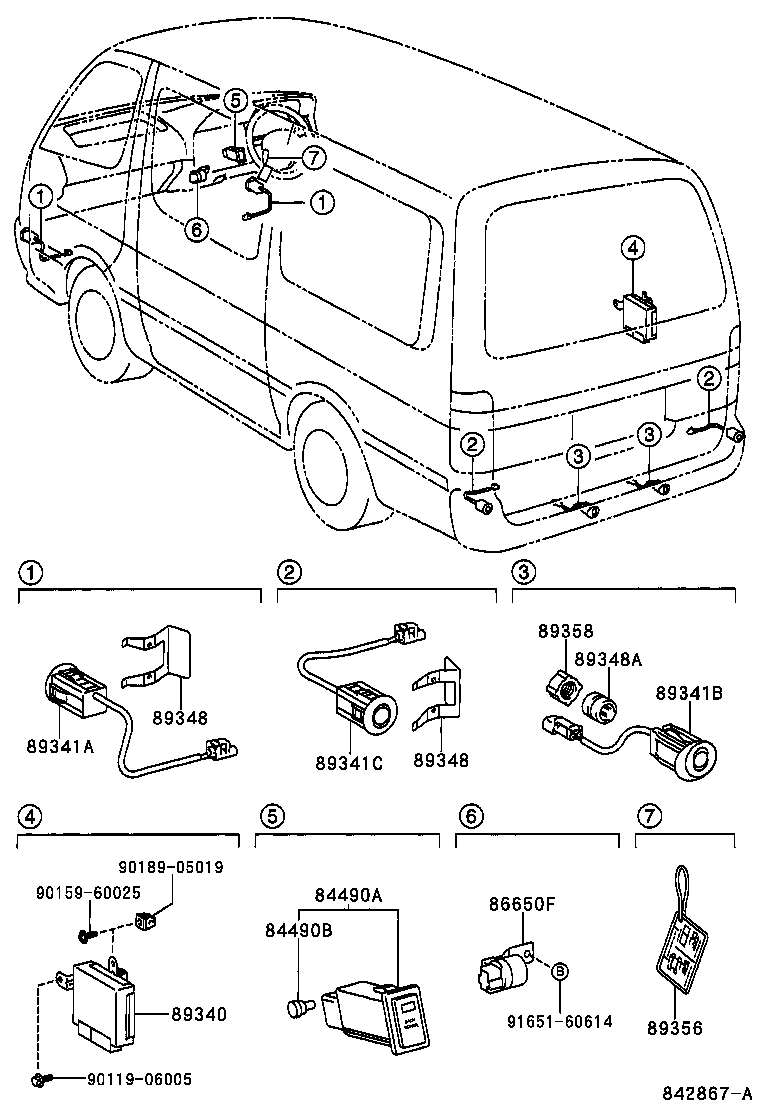

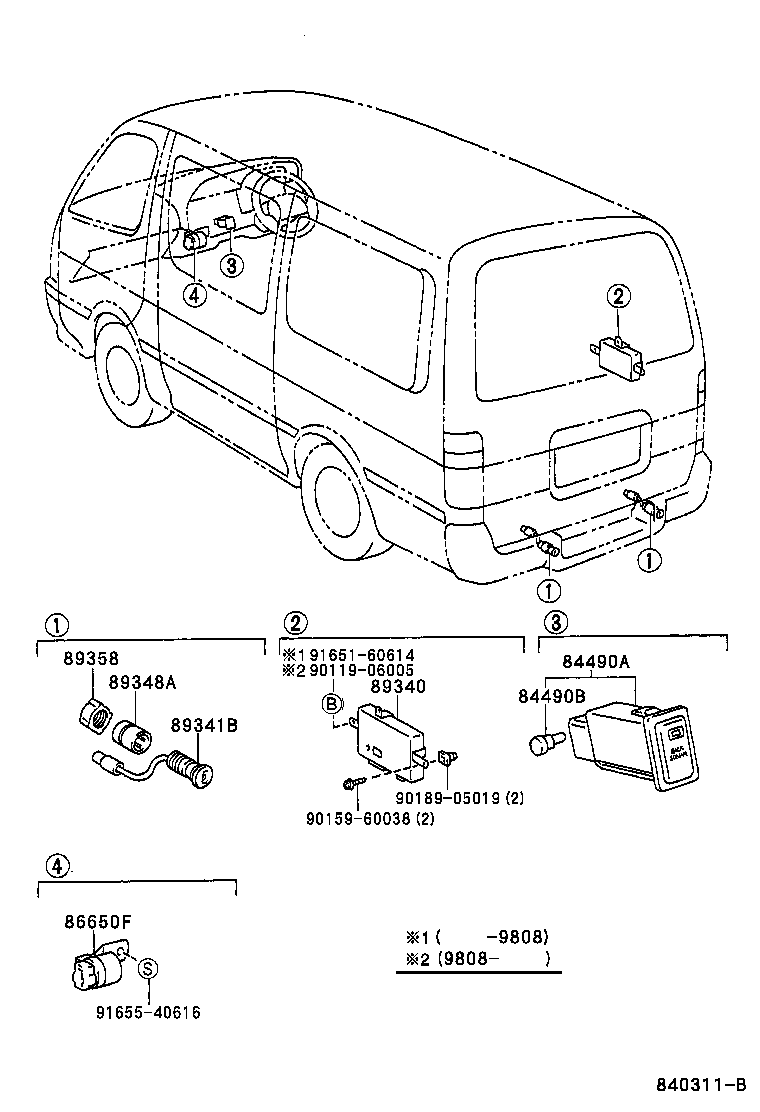

Figure 840455A 840455A 1989-08 → 1999-07 Figure 840455A 840455A 1989-08 → 1999-07 Figure 840455A 840455A 1989-08 → 1999-07 Figure 840455A 840455A 1989-08 → 1999-07 Figure 840460B 840460B 1993-08 → 1999-07 Figure 840311B 840311B 1989-08 → 1999-07 Figure 842867A 842867A 1999-07 → —

Part groups

PNCDescription
83160 Indicator Assy, Clearance Warning
83160B Bulb (FOR CLEARANCE WARNING INDICATOR)
84490A Switch Assy, Back Sonar OR Clearance Sonar
84490B Bulb(FOR BACK SONAR SWITCH)
86650F Buzzer Assy
89340 Computer Assy, Rear Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89348 Retainer, Ultrasonic Sensor, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
89356 Label, Clearance Warning Information
89358 Nut, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
