Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

11 part groups · 4 illustrations

Illustrations

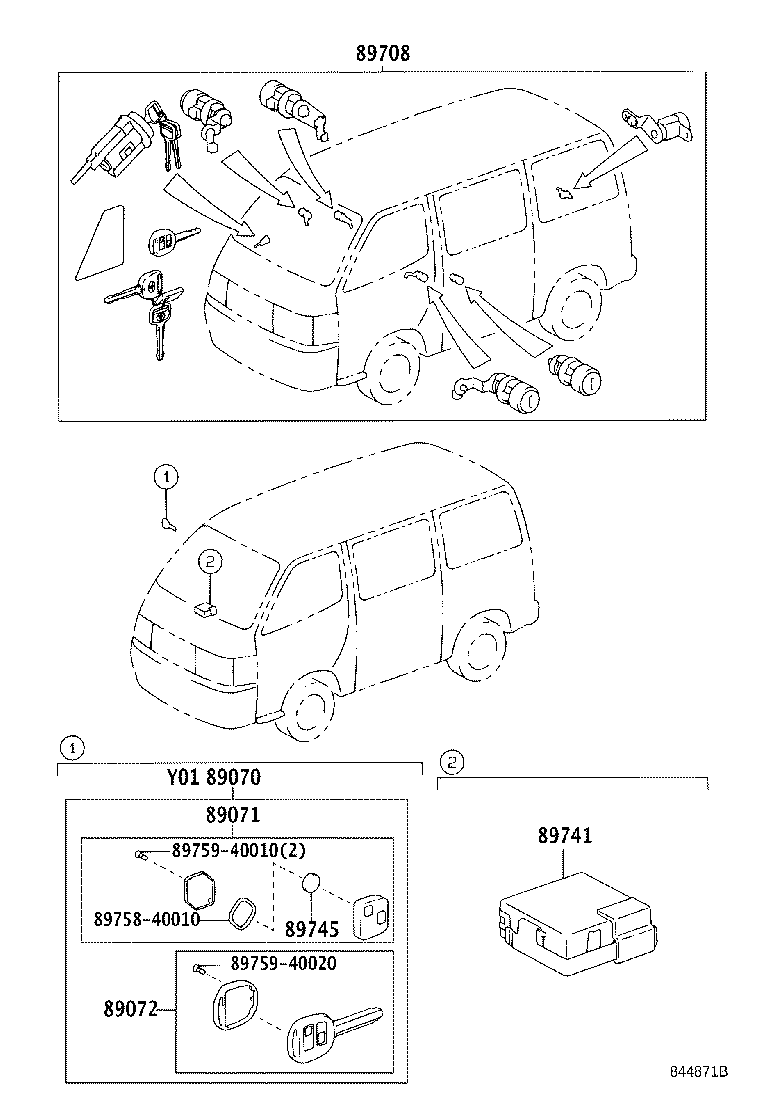

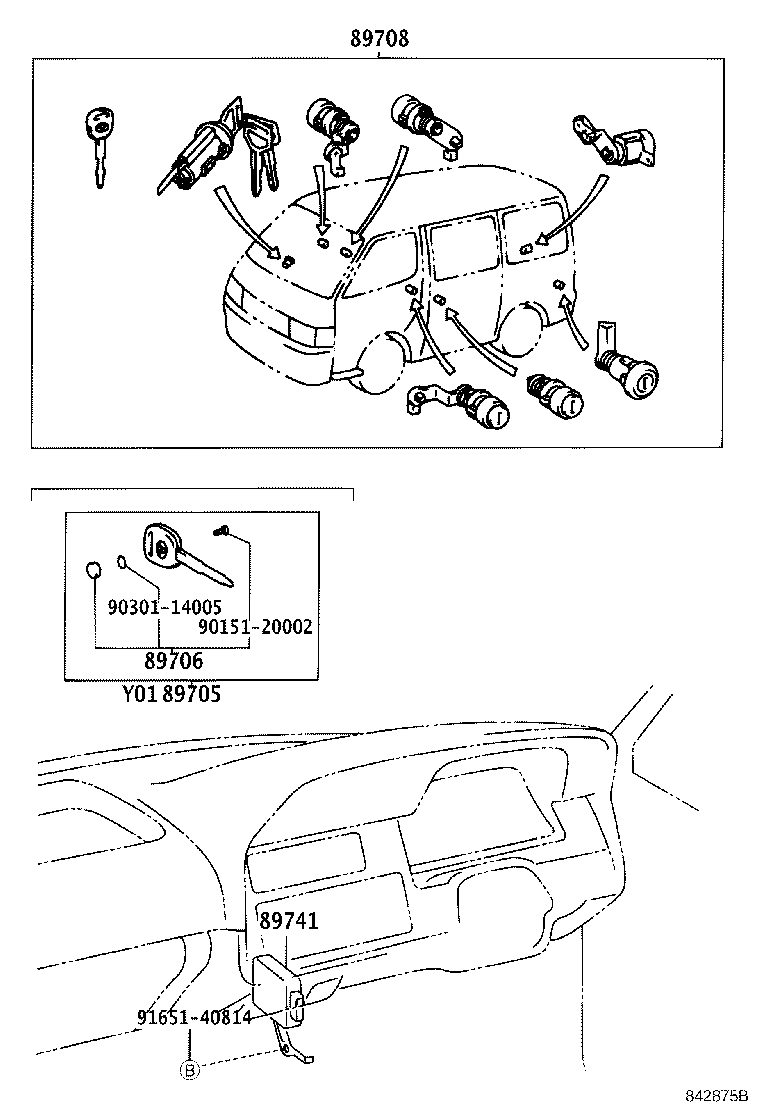

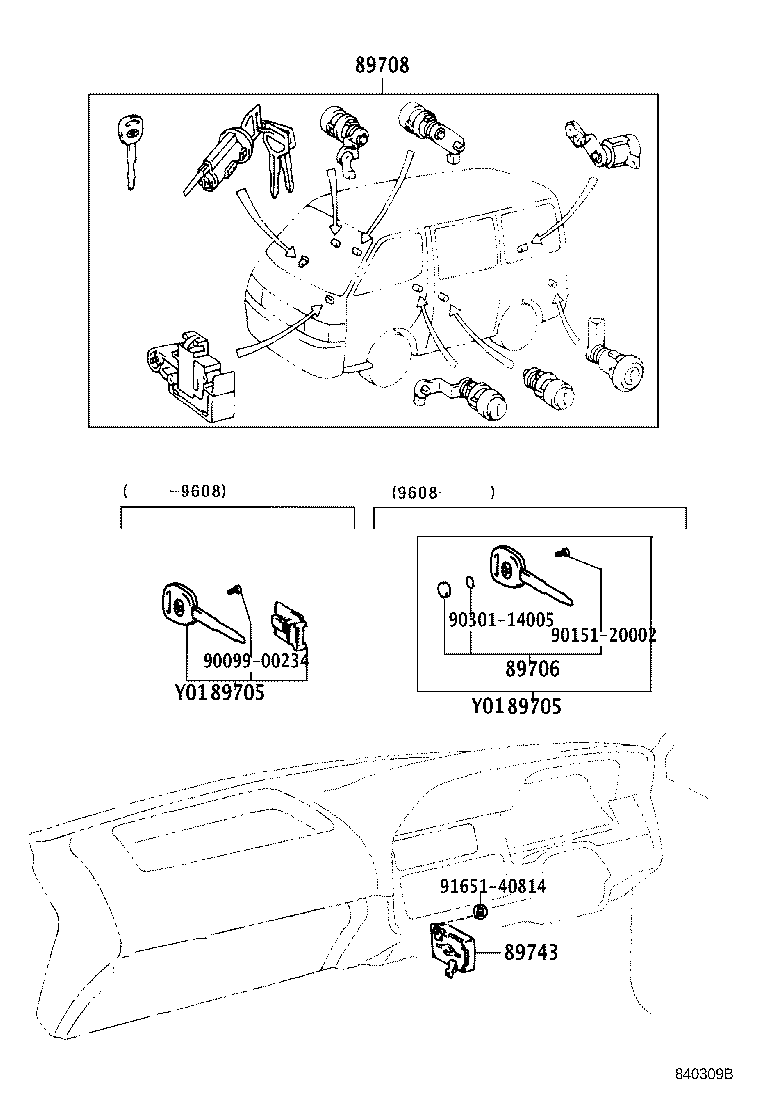

Figure 847172A 847172A 1990-08 → 1995-03 Figure 840309B 840309B 1993-08 → 1999-07 Figure 842875B 842875B 1999-07 → — Figure 844871B 844871B 2002-08 → —

Part groups

PNCDescription
84987A Switch, Keyless Entry Cancel
89070 Transmitter Assy, Door Control
89071 Module Set, Transmitter Sub-assy, Door Control
89072 Housing Set, Door Control Transmitter
89704 Control Set, Wireless Door Lock
89705 Transmitter, Door Control
89706 Battery Set, Transmitter
89708 Cylinder Set, Wireless Door Lock
89741 Receiver, Door Control
89743 Receiver, Door Control
89745 Battery, Transmitter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
