Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07
Radio Receiver & Amplifier & Condenser
18 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

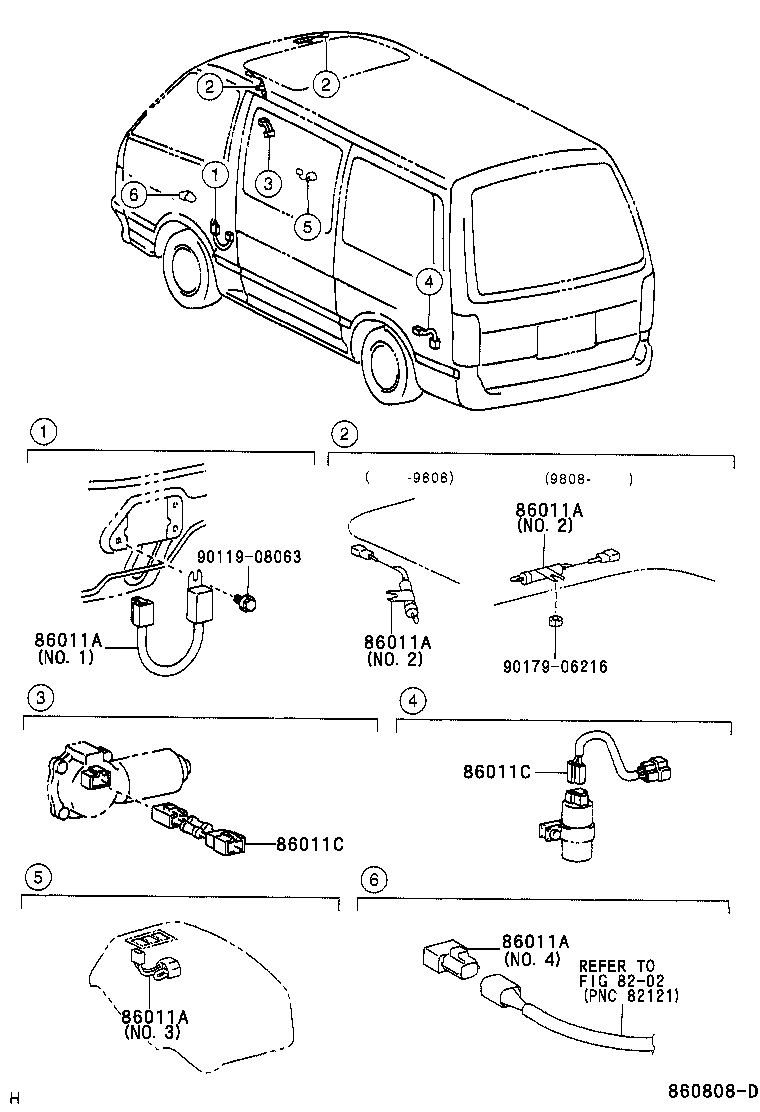

| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |

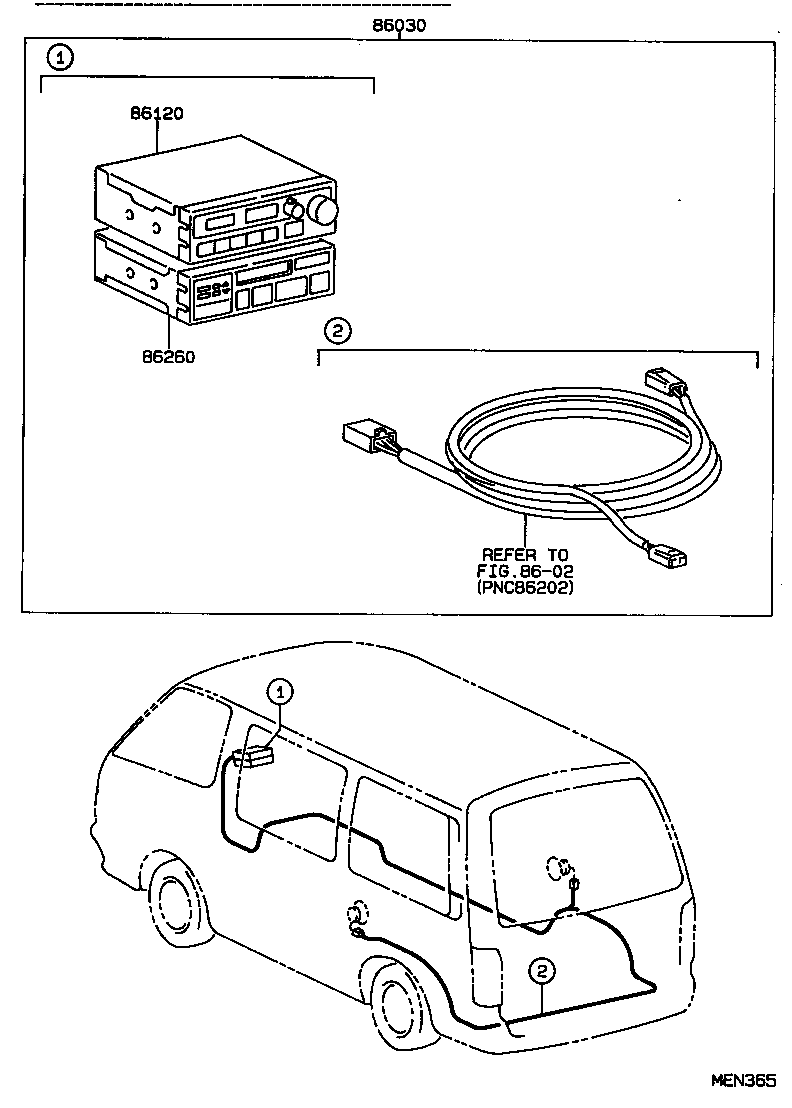

| 86030 | Stereo Component Assy |

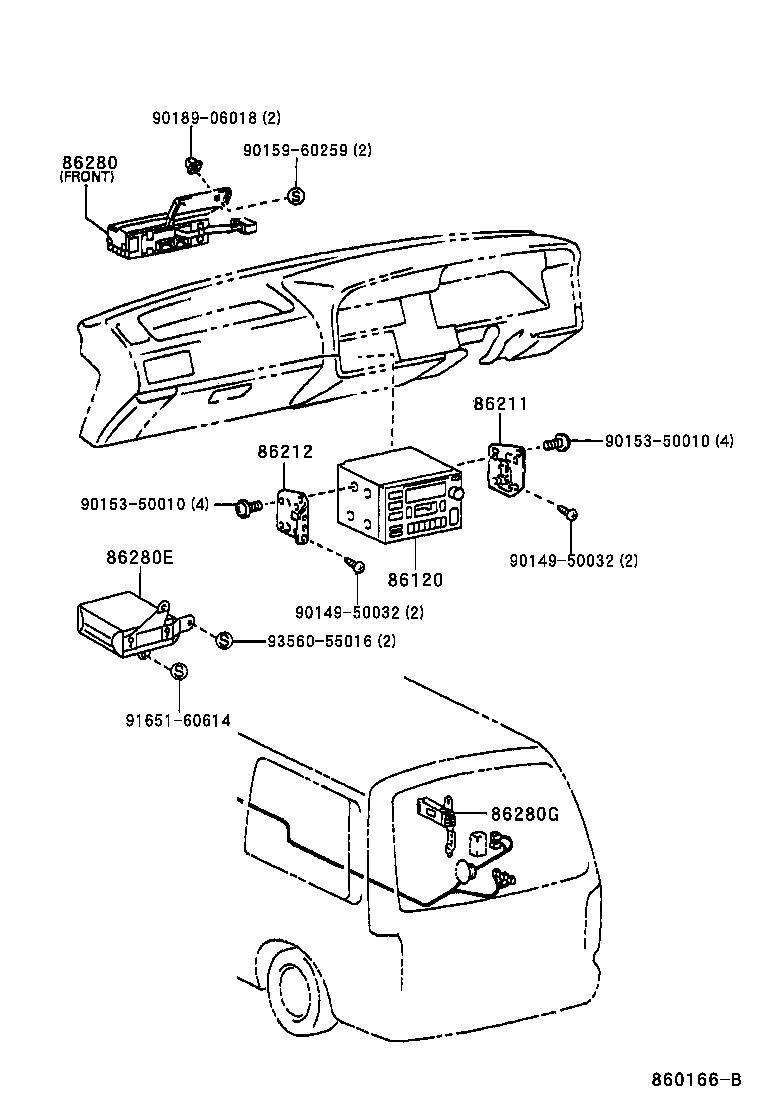

| 86120 | Receiver Assy, Radio |
| 86203 | Wire, Radio |
| 86203D | Wire, Stereo Component, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |

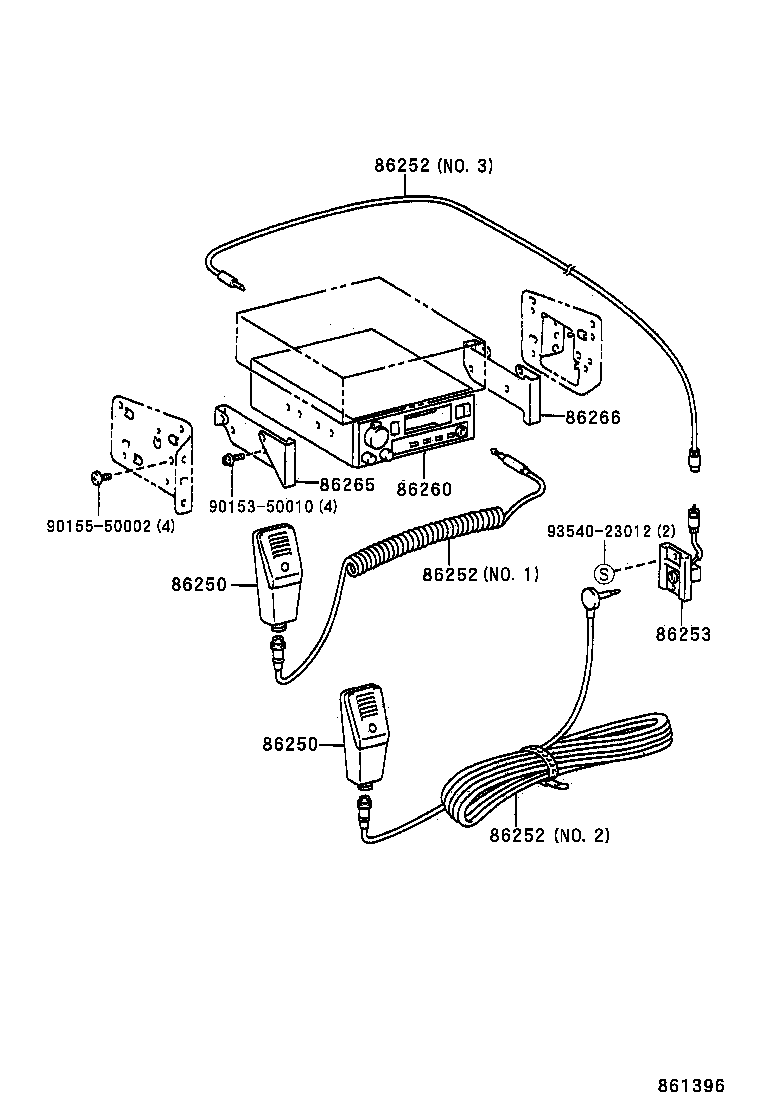

| 86250 | Microphone Assy, Amplifier |
| 86252 | Code, Microphone, NO.1 |
| 86253 | Code, Microphone, NO.2 |
| 86260 | Tape Player Assy |
| 86265 | Bracket, Tape Player, NO.1 |
| 86266 | Bracket, Tape Player, NO.2 |
| 86270A | Disc Player Assy |
| 86280 | Amplifier Assy, Stereo Component |
| 86280E | Amplifier Set, Stereo Component |
| 86280G | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
